Gigabyte GA-M61PM-S2 Manuel utilisateur

GA-M61PM-S2(rev. 2.0)

AMD Socket AM2 Processor Motherboard

User's Manual

Rev. 2002

12ME-M61PMS2-2002R

* The WEEE marking on the product indicates this product must not be disposed of with user's other household waste

and must be handed over to a designated collection point for the recycling of waste electrical and electronic equipment!!

* The WEEE marking applies only in European Union's member states.

Motherboard

GA-M61PM-S2 (rev. 2.0)

Nov. 29, 2006

Motherboard

GA-M61PM-S2 (rev. 2.0)

The trademarks mentioned in the manual are legally registered to their respective companies.

Notice

The written content provided with this product is the property of Gigabyte.

No part of this manual may be reproduced, copied, translated, or transmitted in any form or by any

means without Gigabyte's prior written permission. Specifications and features are subject to

change without prior notice.

Product Manual Classification

In order to assist in the use of this product, Gigabyte has categorized the user manual in the

following:

For detailed product information and specifications, please carefully read the

"Product User Manual".

For detailed information related to Gigabyte's unique features, please go to the

"Technology Guide" section on Gigabyte's website to read or download the information

you need.

For more product details, please click onto Gigabyte's website at www.gigabyte.com.tw

- 4 -

Table of Contents

ItemChecklist ................................................................................................................. 6

OptionalAccessories ...................................................................................................... 6

GA-M61PM-S2 (rev. 2.0) Motherboard Layout ............................................................. 7

Block Diagram ................................................................................................................ 8

Chapter 1 Hardware Installation .................................................................................... 9

1-1 Considerations Prior to Installation .................................................................... 9

1-2 Feature Summary .......................................................................................... 10

1-3 Installation of the CPU and CPU Cooler ....................................................... 12

1-3-1 Installation of the CPU ......................................................................................... 12

1-3-2 Installation of the CPU Cooler ............................................................................ 13

1-4 Installation of Memory .................................................................................... 14

1-5 Installation of Expansion Cards ...................................................................... 16

1-6 I/O Back Panel Introduction ........................................................................... 17

1-7 Connectors Introduction .................................................................................. 18

Chapter 2 BIOS Setup................................................................................................ 29

The Main Menu (For example: BIOS Ver. : F4d) ...................................................... 30

2-1 Standard CMOS Features ............................................................................. 32

2-2 Advanced BIOS Features .............................................................................. 34

2-3 Integrated Peripherals ..................................................................................... 36

2-4 Power Management Setup ............................................................................. 40

2-5 PnP/PCI Configurations ................................................................................. 41

2-6 PC Health Status ........................................................................................... 42

2-7 Load Fail-Safe Defaults ................................................................................... 43

2-8 Load Optimized Defaults ................................................................................. 43

2-9 Set Supervisor/User Password ..................................................................... 44

2-10 Save & Exit Setup ......................................................................................... 45

2-11 Exit Without Saving ....................................................................................... 45

- 5 -

Chapter 3 Drivers Installation ...................................................................................... 47

3-1 Install Chipset Drivers .................................................................................... 47

3-2 SoftwareApplications ..................................................................................... 48

3-3 Driver CD Information .................................................................................... 48

3-4 Hardware Information ..................................................................................... 49

3-5 Contact Us ..................................................................................................... 49

Chapter 4 Appendix ................................................................................................... 51

4-1 Unique Software Utilities ................................................................................ 51

4-1-1 EasyTune 5 Introduction ..................................................................................... 51

4-1-2 Xpress Recovery2 Introduction ......................................................................... 52

4-1-3 Flash BIOS Method Introduction ........................................................................ 54

4-1-4 Configuring SATA Hard Drive(s) ........................................................................ 58

4-1-5 2- / 4- / 6- / 8- Channel Audio Function Introduction ...................................... 68

4-2 Troubleshooting ............................................................................................... 73

- 6 -

Item Checklist

IDE Cable x 1 & FDD Cable x 1

SATA 3Gb/s Cable x 2

I/O Shield

* The items listed above are for reference only, and are subject to change without notice.

Optional Accessories

2 Ports USB 2.0 Cable (Part Number: 12CR1-1UB030-51/R)

4 Ports USB 2.0 Cable (Part Number: 12CR1-1UB030-21/R)

2 Ports IEEE 1394 Cable (Part Number: 12CF1-1IE008-01R)

e-SATA Cable (Part Number: 12CF1-3SATPW-11R)

COM Port Cable (Part Number: 12CF1-1CM001-31/12CF1-1CM001-12R)

SPDIF In and Out Cable (Part Number: 12CR1-1SPINO-11/R)

- 7 -

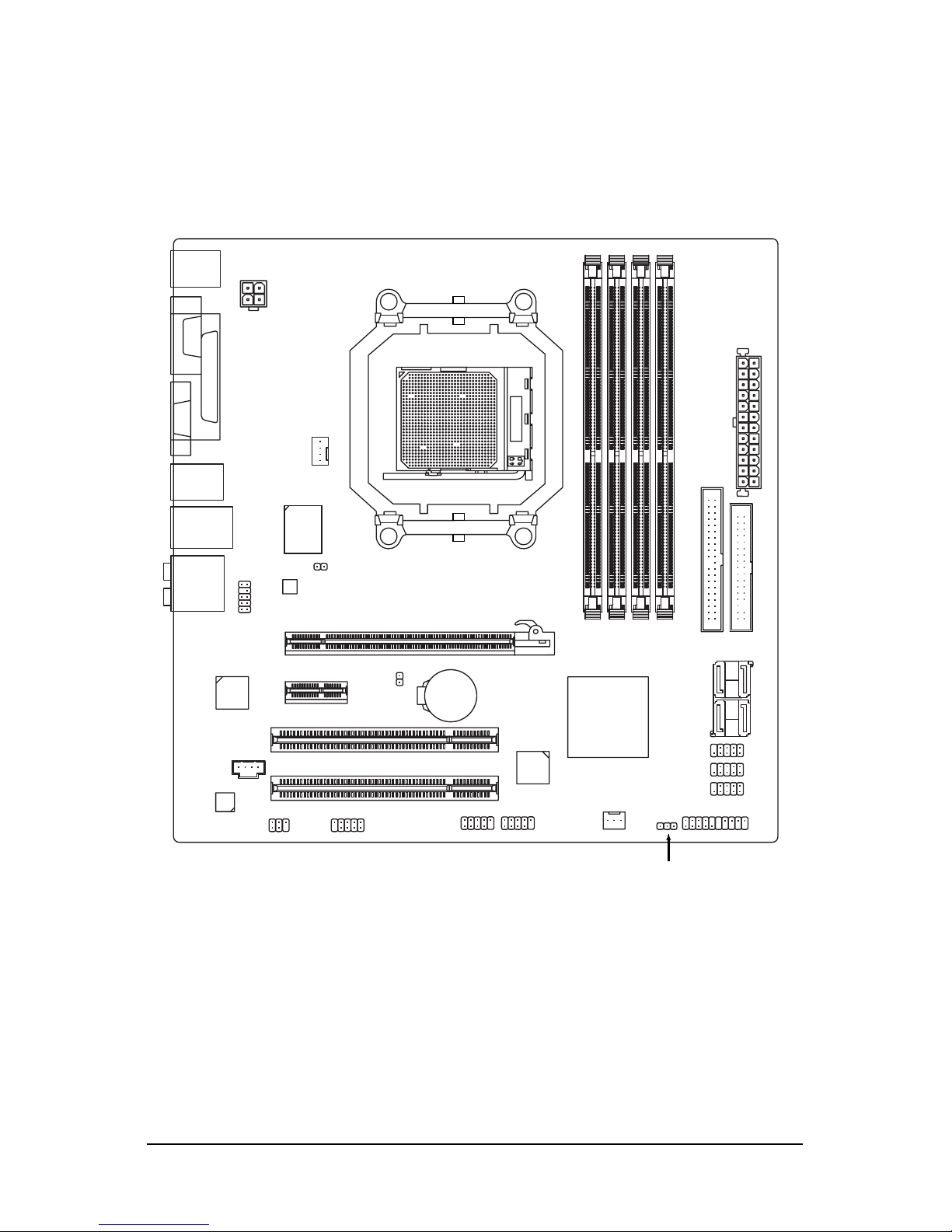

GA-M61PM-S2 (rev. 2.0) Motherboard Layout

KB_MS

ATX_12V

CPU_FAN

SPDIF_IO

CODEC

VGA

LPT

USB

LAN

F_PANEL

BIOS

F_AUDIO

F2_1394F1_1394

BATTERY

ATX

CD_IN

GA-M61PM-S2

PCIE_16

Socket AM2

IDE

DDRII_1

DDRII_2

COMB

nVIDIA®

GeForce 6100/

nForce 430

AUDIO

PWR_LED

CLR_CMOS

SYS_FAN

RTL8211

COMA

FDD

PCI1

PCI2

PCIE_1

IT8716

DDRII_3

DDRII_4

SATAII0

F_USB2

F_USB1

F_USB3

USB

1394

TSB43AB23

REV: 2.0

SATAII2

SATAII1 SATAII3

- 8 -

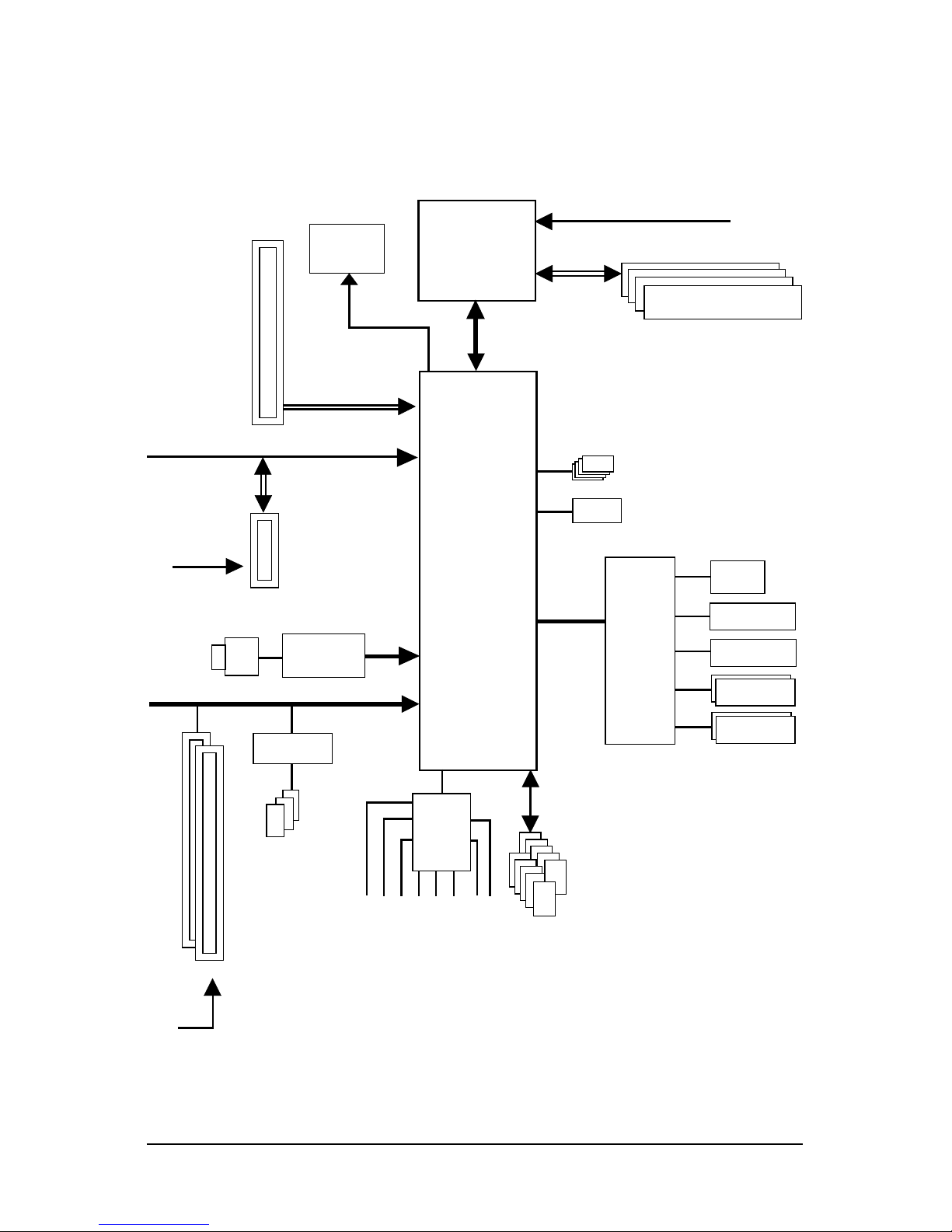

Block Diagram

Center/Subwoofer Spear Out

DDRII 800/667/533/400 MHz DIMM

PCIe CLK

(100 MHz)

PCI Express x16

VGA

AMD

Socket AM2

CPU

CPU CLK+/-(200 MHz)

Hyper Transport Bus

nVIDIA®

GeForce 6100/

nForce 430

IT8716

4 SATA 3Gb/s

ATA 33/66/100/133

IDE Channel

PCI CLK

(33 MHz)

2 PCI

PCI Bus

10 USB

Ports

Dual Channel Memory

LPC BUS

Line-Out

MIC

CODEC

Line-In

SPDIF In

SPDIF Out

Side Speaker Out

Surround Speaker Out

PCI Express x1 Bus

RJ45

RTL8211

1 PCI Express x1

PCIe CLK

(100 MHz)

3 IEEE 1394a

TSB43AB23

LAN

PS/2 Keyboard/

Mouse

COM Ports

LPT Port

Floppy

BIOS

Hardware Installation- 9 -

English

1-1 Considerations Prior to Installation

Preparing Your Computer

The motherboard contains numerous delicate electronic circuits and components which can

become damaged as a result of electrostatic discharge (ESD). Thus, prior to installation, please

follow the instructions below:

1. Please turn off the computer and unplug its power cord.

2. When handling the motherboard, avoid touching any metal leads or connectors.

3. It is best to wear an electrostatic discharge (ESD) cuff when handling electronic components

(CPU, RAM).

4. Prior to installing the electronic components, please have these items on top of an antistatic

pad or within a electrostatic shielding container.

5. Please verify that the power supply is switched off before unplugging the power supply connector

from the motherboard.

Installation Notices

1. Prior to installation, please do not remove the stickers on the motherboard. These stickers

are required for warranty validation.

2. Prior to the installation of the motherboard or any hardware, please first carefully read the

information in the provided manual.

3. Before using the product, please verify that all cables and power connectors are connected.

4. To prevent damage to the motherboard, please do not allow screws to come in contact with

the motherboard circuit or its components.

5. Please make sure there are no leftover screws or metal components placed on the motherboard

or within the computer casing.

6. Please do not place the computer system on an uneven surface.

7. Turning on the computer power during the installation process can lead to damage to system

components as well as physical harm to the user.

8. If you are uncertain about any installation steps or have a problem related to the use of the

product, please consult a certified computer technician.

Instances of Non-Warranty

1. Damage due to natural disaster, accident or human cause.

2. Damage as a result of violating the conditions recommended in the user manual.

3. Damage due to improper installation.

4. Damage due to use of uncertified components.

5. Damage due to use exceeding the permitted parameters.

6. Product determined to be an unofficial Gigabyte product.

Chapter 1Hardware Installation

GA-M61PM-S2 (rev. 2.0) Motherboard - 10 -

English

1-2 Feature Summary

CPU Socket AM2 for AMD AthlonTM 64 FX / AthlonTM 64 X2 Dual-Core /

AthlonTM 64 / SempronTM processor

Front Side Bus 2000 MHz

Chipset nVIDIA®GeForce 6100/nForce 430 chipset

LAN Realtek RTL8211 (10/100/1000 Mbit)

Audio Onboard Realtek ALC883 CODEC chip

Supports High Definition Audio

Supports 2 / 4 / 6 / 8 channel audio

Supports S/PDIF In/Out connection

Supports CD In connection

IEEE 1394 Onboard T.I. TSB43AB23 chip

3 IEEE 1394a ports

Storage nVIDIA®GeForce 6100/nForce 430 chipset

- 1 FDD connector, allowing connection of 1 FDD device

- 1 IDE connector with UDMA 33/ATA 66/ATA 100/ATA 133

support, allowing connection of 2 IDE devices

- 4 SATA 3Gb/s connectors, allowing connection of 4 SATA 3Gb/s

devices

- Supports RAID 0, RAID 1, RAID 0+1, and RAID 5 for Serial ATA

O.S Support Microsoft Windows 2000/XP

Memory 4 DDRII DIMM memory slots (supports up to 16 GB memory)(Note 1)

Supports dual channel DDRII 800/667/533/400 DIMMs

Supports 1.8V DDRII DIMMs

Expanstion Slots 1 PCI Express x16 slot

1 PCI Express x1 slot

2 PCI slots

Internal Connectors 1 24-pin ATX power connector

1 4-pin ATX 12V power connector

1 floppy connector

1 IDE connector

4 SATA 3Gb/s connectors

1 CPU fan connector

1 system fan connector

1 front panel connector

1 front audio connector

1 S/PDIF In/Out connector

1 CD In connector

3 USB 2.0/1.1 connectors for additional 6 USB 2.0/1.1 ports by cable

2 IEEE 1394a connectors for additional 2 ports by cable

1 COMB connector

1 power LED connector

1 Chassis Intrusion connector

Table des matières

Autres manuels Gigabyte Carte mère

Gigabyte

Gigabyte 12QU-MBQUICK-106DR Manuel utilisateur

Gigabyte

Gigabyte B560 AORUS PRO AX Manuel utilisateur

Gigabyte

Gigabyte GA-F2A85X-UP4 Manuel utilisateur

Gigabyte

Gigabyte GA-EP45C-DS3 Manuel utilisateur

Gigabyte

Gigabyte GA-P55A-UD7 Manuel utilisateur

Gigabyte

Gigabyte GA-8N775 Manuel utilisateur

Gigabyte

Gigabyte GA-Q77M-D2H Manuel utilisateur

Gigabyte

Gigabyte GA-P67A-D3-B3 Manuel utilisateur

Gigabyte

Gigabyte H510M DS2V Manuel utilisateur

Gigabyte

Gigabyte B460 AORUS PRO AC Manuel utilisateur

Gigabyte

Gigabyte GA-H81M-S2V Manuel utilisateur

Gigabyte

Gigabyte C246-WU4 Manuel utilisateur

Gigabyte

Gigabyte GA-Z77-D3H Manuel utilisateur

Gigabyte

Gigabyte GA-A75M-DS2 Manuel utilisateur

Gigabyte

Gigabyte GA-H110M-S2 Manuel utilisateur

Gigabyte

Gigabyte MATMH81 Manuel utilisateur

Gigabyte

Gigabyte GA-H110M-HD2 Manuel utilisateur

Gigabyte

Gigabyte GA-MA790XT-UD4P Manuel utilisateur

Gigabyte

Gigabyte GA-A75M-UD2H Manuel utilisateur

Gigabyte

Gigabyte GA-G41MT-D3 Manuel utilisateur

Gigabyte

Gigabyte GA-G33M-DS2R Manuel utilisateur

Gigabyte

Gigabyte GA-7N400E Manuel utilisateur

Gigabyte

Gigabyte GA-8I865GVMK-775 Manuel utilisateur

Gigabyte

Gigabyte GA-Z68XP-D3 Manuel utilisateur

Manuels Carte mère populaires d'autres marques

DFI

DFI SD170 Manuel utilisateur

ASROCK

ASROCK ROMED8-2T Manuel utilisateur

Asus

Asus P2L97A Manuel utilisateur

Winmate

Winmate IC70 Manuel utilisateur

Asus

Asus MES-B Manuel utilisateur

Grantech

Grantech SYS8F377VGGA-3OMN Manuel utilisateur

Telit Wireless Solutions

Telit Wireless Solutions SL869-3DR Manuel utilisateur

Texas Instruments

Texas Instruments ADS8372EVM Manuel utilisateur

Commell

Commell MS-C73 Manuel utilisateur

IBT Technologies

IBT Technologies MB860 Manuel utilisateur

Nvidia

Nvidia TEGRA DG-04927-001_V01 Manuel utilisateur

Biostar

Biostar M7VIT Bravo Instructions d'utilisation et d'installation

Intel

Intel D33217CK Manuel utilisateur

Asus

Asus F1A55-M LX PLUS R2.0 Manuel utilisateur

EPC

EPC EPC9147C Manuel utilisateur

Asus

Asus EX-B760M-V5 D4 Manuel utilisateur

EPOX

EPOX MU-8KHA0010 Manuel utilisateur

Ski-Doo

Ski-Doo Bombardier MPEM 219 700 090 Manuel utilisateur
