Gigabyte GA-E350N-USB3 Manuel utilisateur

GA-E350N-USB3

FT1 BGA motherboard

Built in with an AMD E-350 Dual-Core processor

User's Manual

Rev. 1001

12ME-E350NB3-1001R

Motherboard

GA-E350N-USB3

Dec. 17, 2010

Motherboard

GA-E350N-USB3

The trademarks mentioned in this manual are legally registered to their respective owners.

Disclaimer

Information in this manual is protected by copyright laws and is the property of GIGABYTE.

Changes to the specifications and features in this manual may be made by GIGABYTE

without prior notice. No part of this manual may be reproduced, copied, translated, transmitted,

or published in any form or by any means without GIGABYTE's prior written permission.

Documentation Classications

In order to assist in the use of this product, GIGABYTE provides the following types of documentations:

For quick set-up of the product, read the Quick Installation Guide included with the product.

For detailed product information, carefully read the User's Manual.

For product-related information, check on our website at:

http://www.gigabyte.com

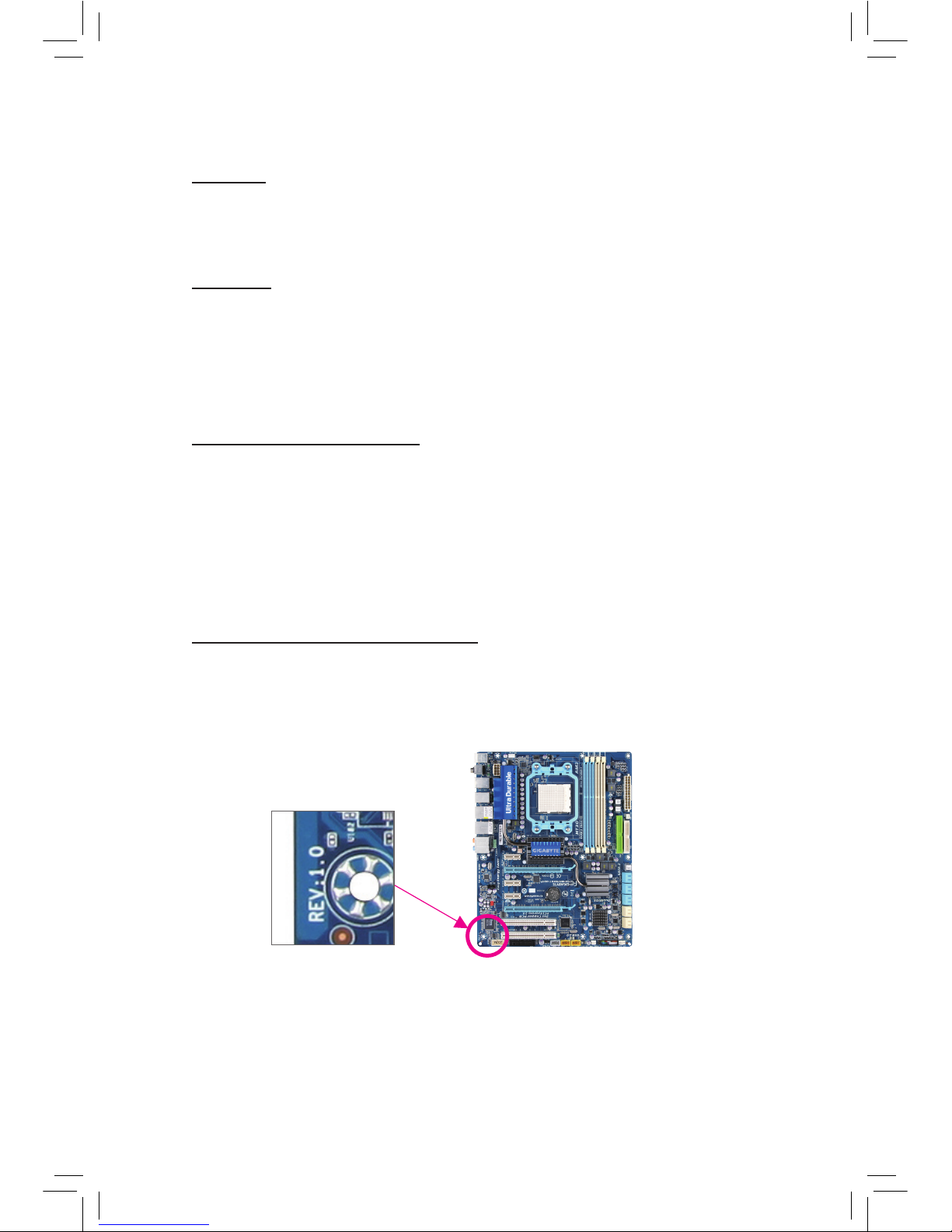

Identifying Your Motherboard Revision

The revision number on your motherboard looks like this: "REV: X.X." For example, "REV: 1.0"

means the revision of the motherboard is 1.0. Check your motherboard revision before updating

motherboard BIOS, drivers, or when looking for technical information.

Example:

- 4 -

Table of Contents

Box Contents...................................................................................................................6

Optional Items .................................................................................................................6

GA-E350N-USB3 Motherboard Layout ..........................................................................7

GA-E350N-USB3 Motherboard Block Diagram..............................................................8

Chapter 1 Hardware Installation .....................................................................................9

1-1 Installation Precautions ................................................................................... 9

1-2 ProductSpecications................................................................................... 10

1-3 Installing the Memory .................................................................................... 13

1-4 Installing an Expansion Card......................................................................... 14

1-5 Back Panel Connectors ................................................................................. 15

1-6 Internal Connectors ....................................................................................... 19

Chapter 2 BIOS Setup..................................................................................................27

2-1 Startup Screen............................................................................................... 28

2-2 The Main Menu.............................................................................................. 29

2-3 MB Intelligent Tweaker(M.I.T.) ....................................................................... 31

2-4 Standard CMOS Features ............................................................................. 35

2-5 Advanced BIOS Features.............................................................................. 37

2-6 Integrated Peripherals ................................................................................... 39

2-7 Power Management Setup ............................................................................ 42

2-8 PC Health Status ........................................................................................... 44

2-9 Load Fail-Safe Defaults ................................................................................. 45

2-10 Load Optimized Defaults ............................................................................... 45

2-11 Set Supervisor/User Password ..................................................................... 46

2-12 Save & Exit Setup.......................................................................................... 47

2-13 Exit Without Saving........................................................................................ 47

- 5 -

Chapter 3 Drivers Installation .......................................................................................49

3-1 Installing Chipset Drivers............................................................................... 49

3-2 Application Software...................................................................................... 50

3-3 Technical Manuals......................................................................................... 50

3-4 Contact........................................................................................................... 51

3-5 System ........................................................................................................... 51

3-6 Download Center........................................................................................... 52

3-7 New Utilities ................................................................................................... 52

Chapter 4 Unique Features...........................................................................................53

4-1 Xpress Recovery2 ......................................................................................... 53

4-2 BIOS Update Utilities..................................................................................... 56

4-2-1 Updating the BIOS with the Q-Flash Utility.......................................................... 56

4-2-2 Updating the BIOS with the @BIOS Utility............................................................59

4-3 EasyTune 6 .................................................................................................... 60

4-4 Q-Share ......................................................................................................... 61

4-5 SMART Recovery........................................................................................... 62

4-6 Auto Green..................................................................................................... 63

Chapter 5 Appendix......................................................................................................65

5-1 ConguringAudioInputandOutput.............................................................. 65

5-1-1 Conguring2/4/5.1/7.1-ChannelAudio................................................................. 65

5-1-2 ConguringS/PDIFOut.........................................................................................67

5-1-3 Enabling the Dolby Home Theater Function ........................................................ 68

5-1-4 ConguringMicrophoneRecording...................................................................... 69

5-1-5 Using the Sound Recorder ....................................................................................71

5-2 Troubleshooting ............................................................................................. 72

5-2-1 Frequently Asked Questions .................................................................................72

5-2-2 Troubleshooting Procedure ...................................................................................73

- 6 -

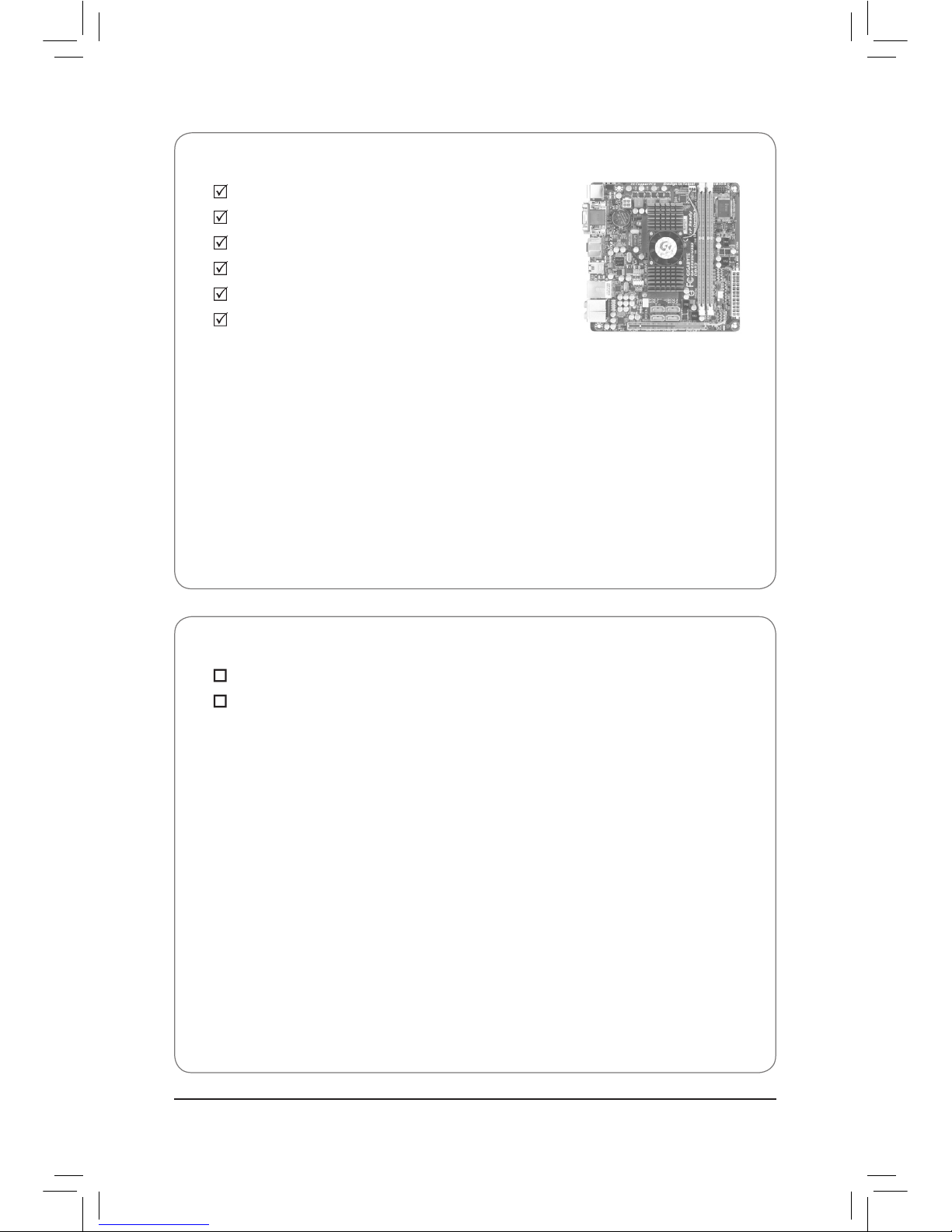

Box Contents

GA-E350N-USB3 motherboard

Motherboard driver disk

User's Manual

Quick Installation Guide

Two SATA cables

I/O Shield

Optional Items

2-port USB 2.0 bracket (Part No. 12CR1-1UB030-5*R)

2-port SATA power cable (Part No. 12CF1-2SERPW-0*R)

•The box contents above are for reference only and the actual items shall depend on the product package you obtain.

The box contents are subject to change without notice.

•The motherboard image is for reference only.

- 7 -

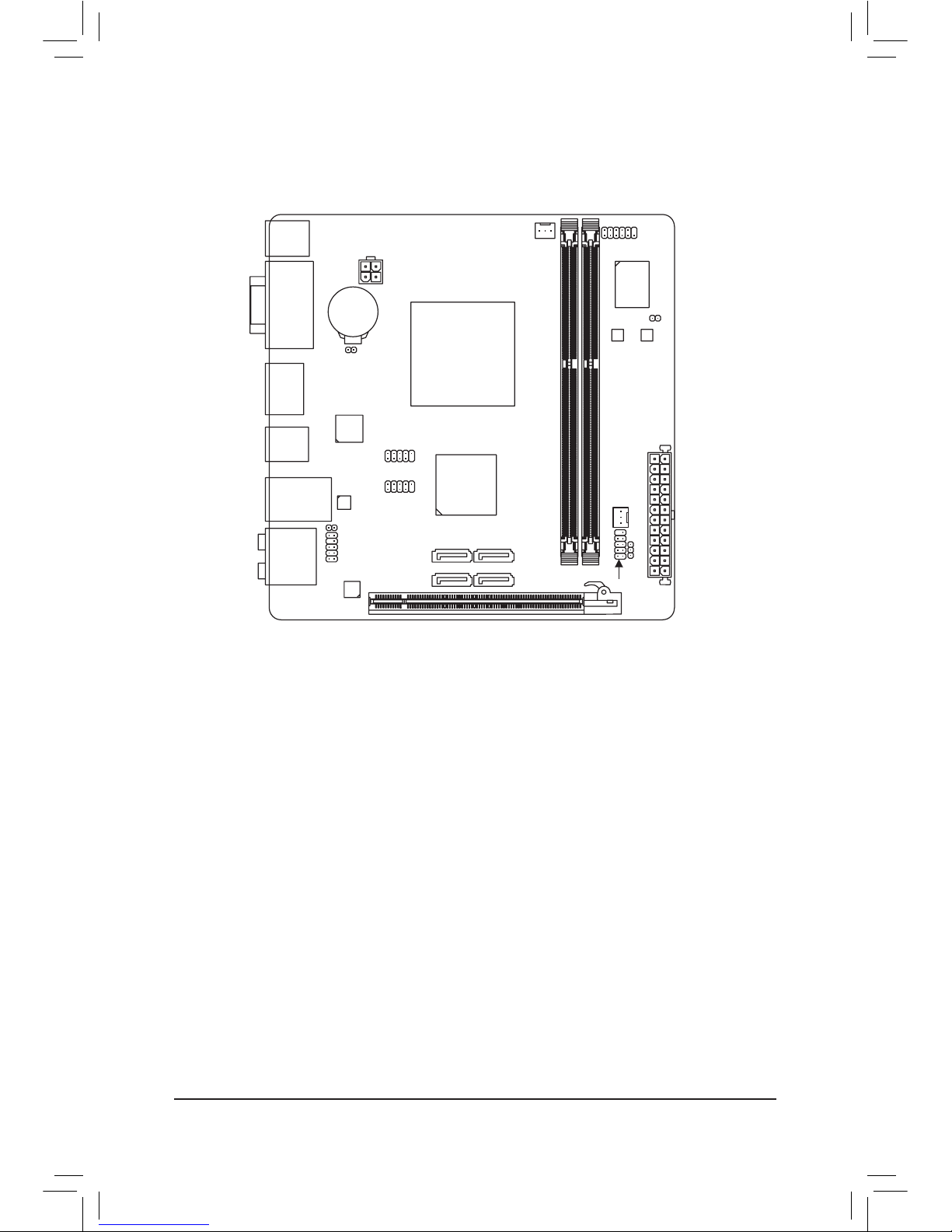

GA-E350N-USB3 Motherboard Layout

KB_MS_USB

SYS_FAN

CPU_FAN

DB_PORT (Note)

AMD E-350 APU

AMD

Hudson-M1

FCH

ATX

GA-E350N-USB3

F_AUDIO

AUDIO

B_BIOS

DDR3_0

DDR3_1

BAT

ATX_12V

SATA3_0 SATA3_3

SATA3_1 SATA3_2

R_USB30

CODEC

CLR_CMOS

M_BIOS

VGA_DVI

USB_LAN

PCIEX4

SPDIF_O

F_USB1

F_USB2

PWR_LED

HDMI_SPDIF

Realtek

RTL8111E

Renesas

D720200

iTE

IT8720

(Note) This port is mainly used by repair technicians for debugging and problem diagnosis.

F_PANEL

- 8 -

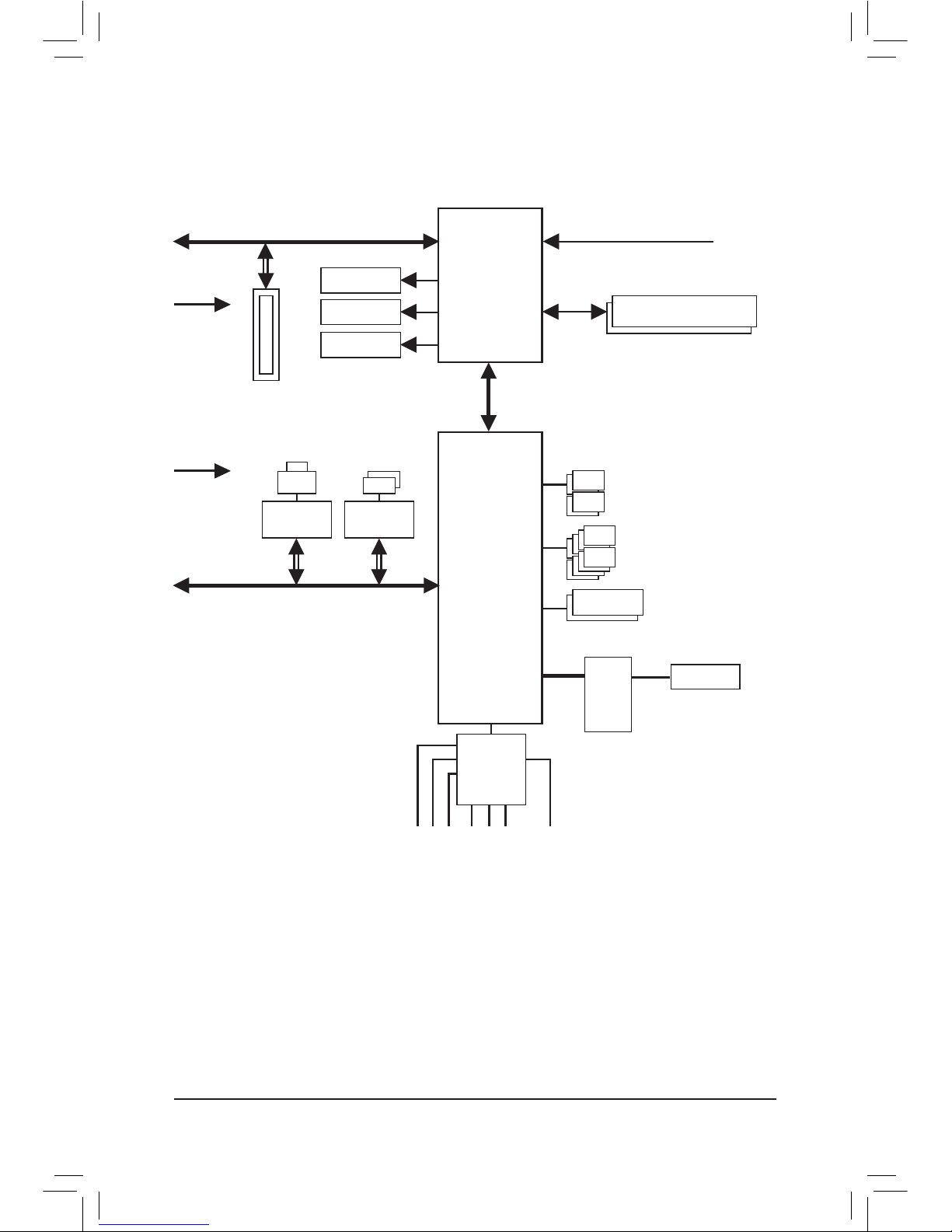

GA-E350N-USB3 Motherboard Block Diagram

UMI

AMD

Hudson-M1

FCH

CPU CLK+/- (100 MHz)

DDR3

Center/Subwoofer Speaker Out

Line Out

MIC

Line In

S/PDIF Out

Side Speaker Out

Surround Speaker Out

CODEC

AMD

E-350 APU DDR3 1333 (O.C.)/1066 MHz

iTE

IT8720

Dual BIOS

LPC

Bus

PS/2 KB/Mouse

8 USB 2.0/1.1

4 SATA 6Gb/s

PCI Express Bus

PCIe CLK

(100 MHz)

PCIe CLK

(100 MHz)

x1 x1

2 USB 3.0/2.0

Renesas

D720200

LAN

RJ45

Realtek

RTL8111E

D-Sub

DVI-D

HDMI

PCI Express Bus

1 PCI Express x4

- 9 - Hardware Installation

1-1 Installation Precautions

The motherboard contains numerous delicate electronic circuits and components which can

become damaged as a result of electrostatic discharge (ESD). Prior to installation, carefully read

the user's manual and follow these procedures:

Prior to installation, do not remove or break motherboard S/N (Serial Number) sticker or•

warranty sticker provided by your dealer. These stickers are required for warranty validation.

Always remove the AC power by unplugging the power cord from the power outlet before•

installing or removing the motherboard or other hardware components.

When connecting hardware components to the internal connectors on the motherboard,•

make sure they are connected tightly and securely.

When handling the motherboard, avoid touching any metal leads or connectors.•

It is best to wear an electrostatic discharge (ESD) wrist strap when handling electronic com-•

ponents such as a motherboard, CPU or memory. If you do not have an ESD wrist strap,

keepyourhandsdryandrsttouchametalobjecttoeliminatestaticelectricity.

Prior to installing the motherboard, please have it on top of an antistatic pad or within an•

electrostatic shielding container.

Before unplugging the power supply cable from the motherboard, make sure the power sup-•

ply has been turned off.

Before turning on the power, make sure the power supply voltage has been set according to•

the local voltage standard.

Before using the product, please verify that all cables and power connectors of your hard-•

ware components are connected.

To prevent damage to the motherboard, do not allow screws to come in contact with the•

motherboard circuit or its components.

Make sure there are no leftover screws or metal components placed on the motherboard or•

within the computer casing.

Do not place the computer system on an uneven surface•

Do not place the computer system in a high-temperature environment.•

Turning on the computer power during the installation process can lead to damage to sys-•

tem components as well as physical harm to the user.

If you are uncertain about any installation steps or have a problem related to the use of the•

product,pleaseconsultacertiedcomputertechnician.

Chapter 1 Hardware Installation

Hardware Installation - 10 -

1-2 Product Specications

APU Built in with an AMD E-350 Dual-Core processor

Built in with an AMD Radeon™HD 6310 (DirectX 11) graphics core

Chipset AMD Hudson-M1 FCH

Memory 2 x 1.5V DDR3 DIMM sockets supporting up to 8 GB of system memory

* Due to Windows 32-bit operating system limitation, when more than 4 GB of physical

memory is installed, the actual memory size displayed will be less than 4 GB.

Single channel memory architecture

Support for DDR3 1333 (O.C.)/1066 MHz memory modules

(Go to GIGABYTE's website for the latest supported memory speeds and memory

modules.)

Onboard

Graphics

Integrated in the APU:

- 1 x D-Sub port

- 1 x DVI-D port, supporting a maximum resolution of 1920x1200

* The DVI-D port does not support D-Sub connection by adapter.

- 1 x HDMI port, supporting a maximum resolution of 1920x1200

Audio Realtek ALC892 codec

HighDenitionAudio

2/4/5.1/7.1-channel

Support for Dolby®Home Theater

Support for S/PDIF Out

LAN 1 x Realtek RTL8111E chip (10/100/1000 Mbit)

Expansion Slots 1 x PCI Express x16 slot, running at x4

(The PCIEX4 slot conforms to PCI Express 2.0 standard.)

Storage Interface FCH:

- 4 x SATA 6Gb/s connectors supporting up to 4 SATA 6Gb/s devices

USB FCH:

- Up to 8 USB 2.0/1.1 ports (4 on the back panel, 4 via the USB brackets

connected to the internal USB headers)

Renesas D720200 chip:

- Up to 2 USB 3.0/2.0 ports on the back panel

Table des matières

Autres manuels Gigabyte Carte mère

Gigabyte

Gigabyte B550 AORUS ELITE Manuel utilisateur

Gigabyte

Gigabyte GA-K8NS Pro Manuel utilisateur

Gigabyte

Gigabyte GA-8I865GM-775 Manuel utilisateur

Gigabyte

Gigabyte GA-8TX Manuel utilisateur

Gigabyte

Gigabyte GA-A55M-S2V Manuel utilisateur

Gigabyte

Gigabyte GA-J1800M-D2P-IN Manuel utilisateur

Gigabyte

Gigabyte B760M D2HX SI DDR4 Manuel utilisateur

Gigabyte

Gigabyte MD71-HB0 Manuel utilisateur

Gigabyte

Gigabyte GA-780T-USB3 Manuel utilisateur

Gigabyte

Gigabyte GA-990FXA-UD5 R5 Manuel utilisateur

Gigabyte

Gigabyte GA-H61M-USB3-B3 Manuel utilisateur

Gigabyte

Gigabyte GA-945GCM-S2 Manuel utilisateur

Gigabyte

Gigabyte GA-6OX Manuel utilisateur

Gigabyte

Gigabyte GA-M52S-S3P Manuel utilisateur

Gigabyte

Gigabyte GA-6CXC7 Manuel utilisateur

Gigabyte

Gigabyte AMD Socket AM2 Processor Motherboard... Manuel utilisateur

Gigabyte

Gigabyte 586ATX4 Manuel utilisateur

Gigabyte

Gigabyte B365M D3V Manuel utilisateur

Gigabyte

Gigabyte G-MAX Flex ATX Series Manuel utilisateur

Gigabyte

Gigabyte MZ01-CE1 Manuel utilisateur

Gigabyte

Gigabyte GA-MA790FX-DQ6 Manuel

Gigabyte

Gigabyte GA-GC230D Manuel utilisateur

Gigabyte

Gigabyte GA-Z77X-UP4 TH Manuel utilisateur

Gigabyte

Gigabyte GA-8VT800 Manuel utilisateur

Manuels Carte mère populaires d'autres marques

DFI

DFI SD170 Manuel utilisateur

ASROCK

ASROCK ROMED8-2T Manuel utilisateur

Asus

Asus P2L97A Manuel utilisateur

Winmate

Winmate IC70 Manuel utilisateur

Asus

Asus MES-B Manuel utilisateur

Grantech

Grantech SYS8F377VGGA-3OMN Manuel utilisateur

Telit Wireless Solutions

Telit Wireless Solutions SL869-3DR Manuel utilisateur

Texas Instruments

Texas Instruments ADS8372EVM Manuel utilisateur

Commell

Commell MS-C73 Manuel utilisateur

IBT Technologies

IBT Technologies MB860 Manuel utilisateur

Nvidia

Nvidia TEGRA DG-04927-001_V01 Manuel utilisateur

Biostar

Biostar M7VIT Bravo Instructions d'utilisation et d'installation

Intel

Intel D33217CK Manuel utilisateur

Asus

Asus F1A55-M LX PLUS R2.0 Manuel utilisateur

EPC

EPC EPC9147C Manuel utilisateur

Asus

Asus EX-B760M-V5 D4 Manuel utilisateur

EPOX

EPOX MU-8KHA0010 Manuel utilisateur

Ski-Doo

Ski-Doo Bombardier MPEM 219 700 090 Manuel utilisateur
