Gigabyte GA-8IDXR-A Manuel utilisateur

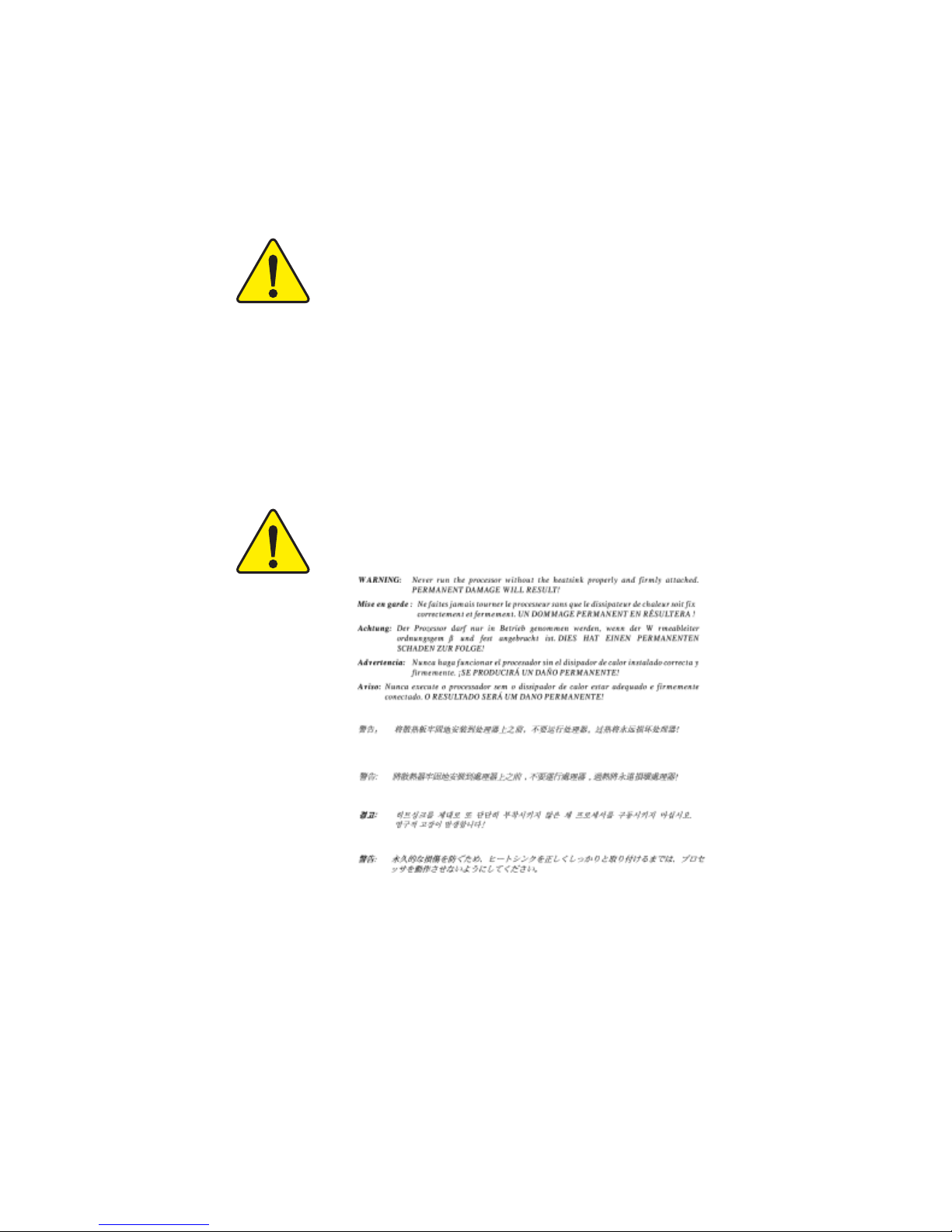

0The author assumes no responsibility for any errors

or omissions that may appear in this document nor

does the author make a commitment to up

date the information contained herein.

0Third-party brands and names are the property of

their respective owners.

0Please do not remove any labels on motherboard, this

may void the warranty of this motherboard.

0Due to rapid change in technology, some of the

specifications might be out of date before publication

of this booklet.

FCC Part 15, Subpart B, Section 15.107(a) and Section 15.109(a),

Class B Digital Device

DECLARATION OF CONFORMITY

Per FCC Part 2 Section 2.1077(a)

Responsible Party Name:

Address:

Phone/Fax No:

hereby declares that the product

Product Name:

Conforms to the following specifications:

This device complies with part 15 of the FCC Rules. Operation is

subject to the following two conditions: (1) This device may not

cause harmful and (2) this device must accept any inference received,

including that may cause undesired operation.

Representative Person’s Name:

Signature: Eric Lu

Supplementary Information:

Model Number:

17358 Railroad Street

City of Industry, CA 91748

G.B.T. INC. (U.S.A.)

(818) 854-9338/ (818) 854-9339

Motherboard

GA-8IDXR-A

Date:

ERIC LU

February 25,2002

Declaration of Conformity

We, Manufacturer/Importer

(full address)

G.B.T. Technology Träding GMbH

Ausschlager Weg 41, 1F, 20537 Hamburg, Germany

declare that the product

( description of the apparatus, system, installation to which it refers)

Mother Board

GA-8IDXR-A

is in conformity with

(reference to the specification under which conformity is declared)

in accordance with 89/336 EEC-EMC Directive



EN 55011 Limits and methods of measurement

of radio disturbance characteristics of

industrial,scientific and medical (ISM

high frequency equipment



EN 61000-3-2*

7EN 60555-2

Disturbances in supply systems cause

by household appliances and similar

electrical equipment “Harmonics”



EN 55013 Limits and methods of measurement

of radio disturbance characteristics of

broadcast receivers and associated

equipment



EN 61000-3-3* Disturbances in supply systems cause

by household appliances and similar

electrical equipment “Voltage fluctuations”



EN 55014 Limits and methods of measurement

of radio disturbance characteristics of

household electrical appliances,

portable tools and similar electrical

apparatus

7EN 50081-1 Generic emission standard Part 1:

Residual commercial and light industry

7EN 50082-1 Generic immunity standard Part 1:

Residual commercial and light industry



EN 55015 Limits and methods of measurement

of radio disturbance characteristics of

fluorescent lamps and luminaries

Generic emission standard Part 2:

Industrial environment



EN 55081-2

Immunity from radio interference of

broadcast receivers and associated

equipment

Generic emission standard Part 2:

Industrial environment



EN 55082-2

7EN 55022 Limits and methods of measurement

of radio disturbance characteristics of

information technology equipment

lmmunity requirements for household

appliances tools and similar apparatus



ENV 55104

Cabled distribution systems; Equipment

for receiving and/or distribution from

sound and television signals

EMC requirements for uninterruptible

power systems (UPS)



EN50091-2



EN 55020



DIN VDE 0855



part 10



part 12

(EC conformity marking)

7CE marking

The manufacturer also declares the conformity of above mentioned product

with the actual required safety standards in accordance with LVD 73/23 EEC

Safety requirements for mains operated

electronic and related apparatus for

household and similar general use



EN 60950



EN 60065

Safety of household and similar

electrical appliances



EN 60335

Manufacturer/Importer

Signature:

Name:

(Stamp) Date : February 25, 2002

7EN 60555-3

Timmy Huang



EN 50091-1

USER’S MANUAL

GA-8IDXR-A

Pentium®4 Processor Motherboard

Rev. 1.1 First Edition

12ME-8IDXRA-1101

GA-8IDXR-A Motherboard

Table of Content

Revision History..................................................................................... 4

Item Checklist ......................................................................................... 4

WARNING! ............................................................................................... 5

Chapter 1 Introduction ............................................................................. 6

Summary of Features .................................................................................. 6

GA-8IDXR-A Motherboard Layout ............................................................... 8

Chapter 2 Hardware Installation Process ................................................ 9

Step 1: Install the Central Processing Unit (CPU)..................................... 10

Step 1-1:CPU Installation ................................................................................................ 10

Step 1-2:CPU Heat Sink Installation ............................................................................... 11

Step 2: Install memory modules ................................................................ 12

Step 3: Install expansion cards ................................................................. 13

Step 4: Connect ribbon cables, cabinet wires, and power supply ........... 14

Step 4-1: I/O Back Panel Introduction ............................................................................ 14

Step 4-2: Connectors Introduction .................................................................................. 16

Step 4-3: Jumper Setting Introduction ............................................................................ 22

Chapter 3 BIOS Setup .......................................................................... 24

Main (For example: BIOS Ver. :F1) ........................................................... 26

Advanced ................................................................................................... 28

Advanced BIOS Features ............................................................................................... 28

Integrated Peripherals ..................................................................................................... 31

Power Management Setup ............................................................................................. 35

Boot ............................................................................................................ 38

Table of Content

Server ......................................................................................................... 40

Security ...................................................................................................... 43

Defaults ...................................................................................................... 45

Exit ............................................................................................................. 46

Chapter 4 Technical Reference ............................................................ 47

Block Diagram ........................................................................................... 47

Chapter 5 Appendix.............................................................................. 48

GA-8IDXR-A Motherboard

;The GA-8IDXR-A motherboard

;IDE cable x 1/ Floppy cable x 1

;Driver CD for motherboard driver & utility

;GA-8IDXR-A user’s manual

;I/O Back Panel

;USB Cable x 1 (Optional)

;SCSI Cable x 1 (Optional)

Revision History

Item Checklist

Revision Revision Note Date

1.1 Initial release of the GA-8IDXR-A motherboard user's manual. Feb. 2002

WARNING!

Computer motherboards and expansion cards contain very delicate Integrated Circuit (IC) chips. To

protect them against damage from static electricity, you should follow some precautions whenever you

work on your computer.

1. Unplug your computer when working on the inside.

2. Use a grounded wrist strap before handling computer components. If you do not have

one, touch both of your hands to a safely grounded object or to a metal object, such as

the power supply case.

3. Hold components by the edges and try not touch the IC chips, leads or connectors, or

othercomponents.

4. Place components on a grounded antistatic pad or on the bag that came with the

components whenever the components are separated from the system.

5. Ensure that the ATX power supply is switched off before you plug in or remove the ATX

power connector on the motherboard.

If the motherboard has mounting holes, but they don’t line up with the holes on the base and there are

no slots to attach the spacers, do not become alarmed you can still attach the spacers to the mounting

holes. Just cut the bottom portion of the spacers (the spacer may be a little hard to cut off, so be careful

of your hands). In this way you can still attach the motherboard to the base without worrying about short

circuits. Sometimes you may need to use the plastic springs to isolate the screw from the motherboard

PCB surface, because the circuit wire may be near by the hole. Be careful, don’t let the screw contact

any printed circuit write or parts on the PCB that are near the fixing hole, otherwise it may damage the

board or cause board malfunctioning.

Installing the motherboard to the chassis…

WARNING!

GA-8IDXR-A Motherboard

Form Factor y26.6cm x 30.5cm ATX size form factor, 4 layers PCB.

Motherboard yGA-8IDXR-A Motherboard

CPU ySocket 478 for Intel®Micro FC-PGA2 Pentium®4 processor

yIntel Pentium®4 400MHz FSB

y2nd cache depend on CPU

Chipset yChipset 82845 HOST/AGP/Controller

y82801BA(ICH2) I/O Controller Hub

Memory y3 168-pin DIMM sockets

ySupports PC-100/PC-133 SDRAM (Auto)

ySupports only 3.3V SDRAM DIMM

yNo Registered DIMM support, support ECC function

ySupports up to 3GB SDRAM (Max)

I/O Control yW83627HF

Slots y4 PCI slot supports 33MHz & PCI 2.2 compliant

yPCI4 supports Intel ZCR Card

On-Board IDE yAn IDE controller on the Intel 82801BA PCI chipset

provides IDE HDD/CD-ROM with PIO, Bus Master (Ultra

ATA66/ATA100/133) operation modes.

yCan connect up to four IDE devices

On-Board Peripherals y1 Floppy port supports with 360K, 720K,1.2M, 1.44M

and 2.88M bytes.

y1 Parallel port supports Normal/EPP/ECP mode

y2 Serial ports (COM1&COM2)

y2 LAN ports (LAN1 & LAN2)

y4 USB ports (Rear USB x 2, Front USB x 2)

y1 IrDA connector for IR/CIR

Hardware Monitor yCPU/Power/System Fan Revolution detect

yCPU/Power/System Fan Control

yCPU Overheat Warning

ySystem Voltage Detect

Chapter 1 Introduction

to be continued......

Summary of Features

Introduction

On-Board LAN yBuild in Intel Dual 82550 series 10/100 Ethernet Chipset (Server Adaptec)

On-Board VGA yBuild in ATI RageXI VGA PCI Chipset

On-Board SCSI yAdaptec 7899G SCSI Chipset

PS/2 Connector yPS/2 Keyboard interface and PS/2 Mouse interace

BIOS yLicensed AWARD BIOS, 4M bit FWH

AdditionalFeatures yPS/2 Keyboard power on by password

yPS/2 Mouse power on

yWake on LAN

yAC Recovery

yUSB KB/Mouse wake up from S1,S5

yIPMI V1.0 (Winbond W83910F (BMC) )

0Please set the CPU host frequency in accordance with your processor’s specifications.

We don’t recommend you to set the system bus frequency over the CPU’s specification

because these specific bus frequencies are not the standard specifications for CPU,

chipset and most of the peripherals. Whether your system can run under these specific

bus frequencies properly will depend on your hardware configurations, including CPU,

Chipsets,SDRAM,Cards….etc.

Table des matières

Autres manuels Gigabyte Carte mère

Gigabyte

Gigabyte Z390 UD Manuel utilisateur

Gigabyte

Gigabyte GA-8S661FXM Manuel utilisateur

Gigabyte

Gigabyte MJ11-EC0 Manuel utilisateur

Gigabyte

Gigabyte Z690 AORUS XTREME WB Manuel utilisateur

Gigabyte

Gigabyte GA-8SMML Manuel utilisateur

Gigabyte

Gigabyte GA-EP31-DS3LP Manuel utilisateur

Gigabyte

Gigabyte GA-X99-SOC Champion Manuel utilisateur

Gigabyte

Gigabyte GA-6CX7 Manuel utilisateur

Gigabyte

Gigabyte Z590 UD AC Manuel utilisateur

Gigabyte

Gigabyte GA-E240N Manuel utilisateur

Gigabyte

Gigabyte GA-9IVDTH Manuel utilisateur

Gigabyte

Gigabyte GA-Z170M-D3H Manuel utilisateur

Gigabyte

Gigabyte GA-K8N Ultra-9 Manuel utilisateur

Gigabyte

Gigabyte GA-6VXC7-4X Manuel utilisateur

Gigabyte

Gigabyte GA-970A-DS3 Manuel utilisateur

Gigabyte

Gigabyte Z370 AORUS Gaming 7 Manuel utilisateur

Gigabyte

Gigabyte GA-H61M-D2P-B3 Manuel utilisateur

Gigabyte

Gigabyte B550 AORUS ELITE Manuel utilisateur

Gigabyte

Gigabyte GA-H61M-DS2 R2 Manuel utilisateur

Gigabyte

Gigabyte GA-6VX Manuel utilisateur

Gigabyte

Gigabyte GA-F2A58M-H Manuel utilisateur

Gigabyte

Gigabyte B365M D3V Manuel utilisateur

Gigabyte

Gigabyte GA-8N-SLI Royal Manuel utilisateur

Gigabyte

Gigabyte B550M AORUS ELITE AX Manuel utilisateur

Manuels Carte mère populaires d'autres marques

DFI

DFI SD170 Manuel utilisateur

ASROCK

ASROCK ROMED8-2T Manuel utilisateur

Asus

Asus P2L97A Manuel utilisateur

Winmate

Winmate IC70 Manuel utilisateur

Asus

Asus MES-B Manuel utilisateur

Grantech

Grantech SYS8F377VGGA-3OMN Manuel utilisateur

Telit Wireless Solutions

Telit Wireless Solutions SL869-3DR Manuel utilisateur

Texas Instruments

Texas Instruments ADS8372EVM Manuel utilisateur

Commell

Commell MS-C73 Manuel utilisateur

IBT Technologies

IBT Technologies MB860 Manuel utilisateur

Nvidia

Nvidia TEGRA DG-04927-001_V01 Manuel utilisateur

Biostar

Biostar M7VIT Bravo Instructions d'utilisation et d'installation

Intel

Intel D33217CK Manuel utilisateur

Asus

Asus F1A55-M LX PLUS R2.0 Manuel utilisateur

EPC

EPC EPC9147C Manuel utilisateur

Asus

Asus EX-B760M-V5 D4 Manuel utilisateur

EPOX

EPOX MU-8KHA0010 Manuel utilisateur

Ski-Doo

Ski-Doo Bombardier MPEM 219 700 090 Manuel utilisateur
