When you installing AGP card, please make sure the following notice

is fully understood and practiced. If your AGP card has "AGP 4X/8X

(1.5V) notch"(show below), please make sure your AGP card is AGP

4X/8X.

Caution: AGP 2X card is not supported by VIA®KM400. You might

experience system unable to boot up normally. Please insert an AGP

4X/8X(1.5V) card.

Example 1: Diamond Vipper V770 golden finger is compatible with 2X/4X

mode AGP slot. It can be switched between AGP 2X(3.3V) or 4X(1.5V) mode

by adjusting the jumper. The factory default for this card is 2X(3.3V).

The GA-7VM400M (or any AGP 4X/8X only) motherboards might not

function properly, if you install this card without switching the jumper to 4X/

8X(1.5V) mode in it.

Example 2: Some ATi Rage 128 Pro graphics cards made by "Power Color",

the graphics card manufacturer & some SiS 305 cards, their golden finger is

compatible with 2X(3.3V) / 4X(1.5V) mode AGP slot, but they support

2X(3.3V) only. The GA-7VM400M (or any AGP Pro 4X/8X only) motherboards

might not function properly, If you install this card in it.

Note : Although Gigabyte's AG32S(G) graphics card is based on ATi Rage

128 Pro chip, the design of AG32S(G) is compliance with AGP 4X(1.5V)

specification. Therefore, AG32S(G) will work fine with VIA®KM400 based

motherboards.

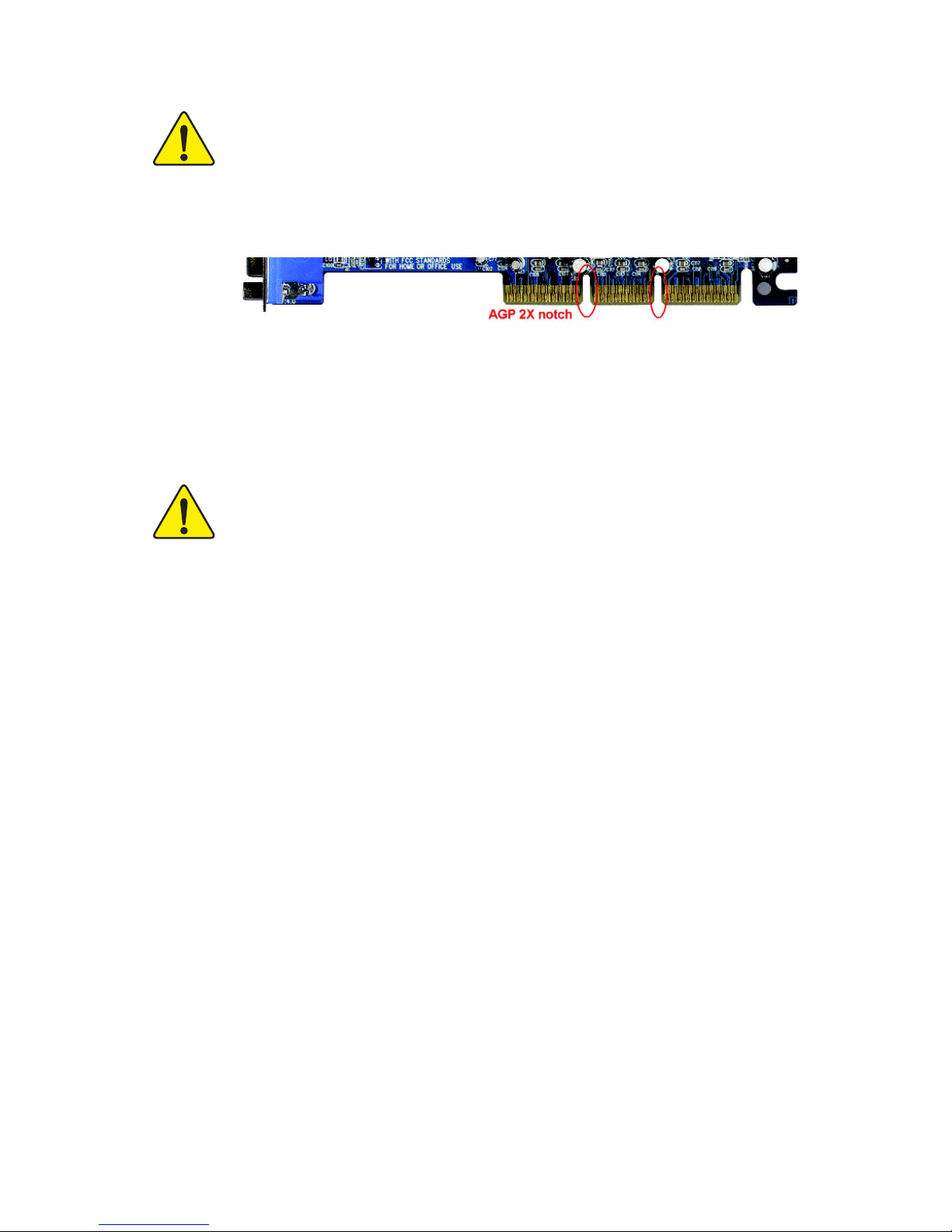

AGP 4X/8X notch

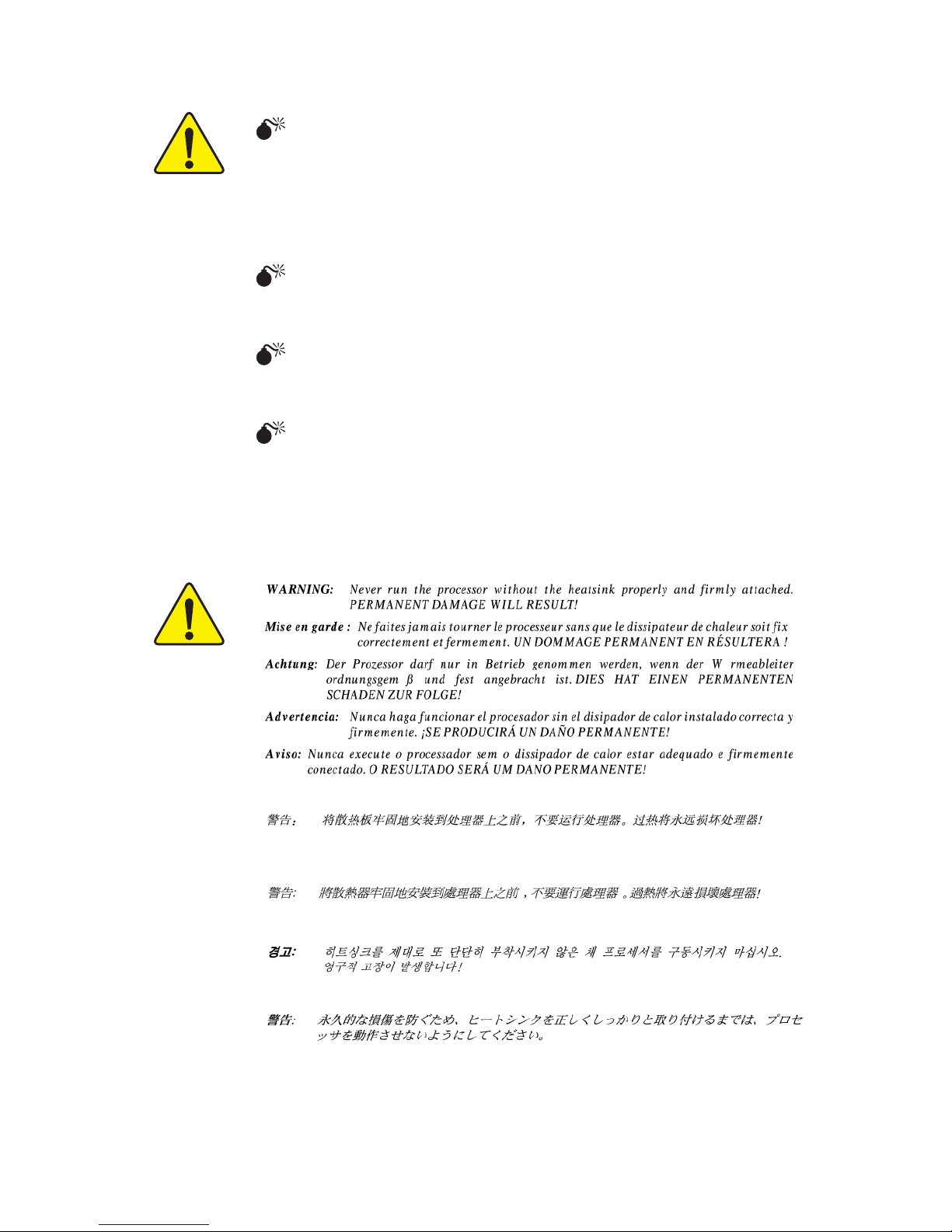

The author assumes no responsibility for any errors or

omissions that may appear in this document nor does the

author make a commitment to update the information

contained herein.

Third-party brands and names are the property of their

respective owners.

Please do not remove any labels on motherboard, this may

void the warranty of this motherboard.

Due to rapid change in technology, some of the

specifications might be out of date before publication of

this booklet.

Declaration of Conformity

We, Manufacturer/Importer

(full address)

G.B.T. Technology Träding GMbH

Ausschlager Weg 41, 1F, 20537 Hamburg, Germany

declare that the product

( description of the apparatus, system, installation to which it refers)

Mother Board

GA-7VM400M

is in conformity with

(reference to the specification under which conformity is declared)

in accordance with 89/336 EEC-EMC Directive



EN 55011 Limits and methods of measurement

of radio disturbance characteristics of

industrial,scientific and medical (ISM

high frequency equipment



EN 61000-3-2*

7EN 60555-2

Disturbances in supply systems cause

by household appliances and similar

electrical equipment "Harmonics"



EN 55013 Limits and methods of measurement

of radio disturbance characteristics of

broadcast receivers and associated

equipment



EN 61000-3-3* Disturbances in supply systems cause

by household appliances and similar

electrical equipment "Voltage fluctuations"



EN 55014 Limits and methods of measurement

of radio disturbance characteristics of

household electrical appliances,

portable tools and similar electrical

apparatus

7EN 50081-1 Generic emission standard Part 1:

Residual commercial and light industry

7EN 50082-1 Generic immunity standard Part 1:

Residual commercial and light industry



EN 55015 Limits and methods of measurement

of radio disturbance characteristics of

fluorescent lamps and luminaries

Generic emission standard Part 2:

Industrial environment



EN 55081-2

Immunity from radio interference of

broadcast receivers and associated

equipment

Generic emission standard Part 2:

Industrial environment



EN 55082-2

7EN 55022 Limits and methods of measurement

of radio disturbance characteristics of

information technology equipment

lmmunity requirements for household

appliances tools and similar apparatus



ENV 55104

Cabled distribution systems; Equipment

for receiving and/or distribution from

sound and television signals

EMC requirements for uninterruptible

power systems (UPS)



EN50091-2



EN 55020



DIN VDE 0855



part 10



part 12

(EC conformity marking)

7CE marking

The manufacturer also declares the conformity of above mentioned product

with the actual required safety standards in accordance with LVD 73/23 EEC

Safety requirements for mains operated

electronic and related apparatus for

household and similar general use



EN 60950



EN 60065

Safety of household and similar

electrical appliances



EN 60335

Manufacturer/Importer

Signature:

Name:

(Stamp) Date : Jan. 2, 2004

7EN 60555-3

Timmy Huang



EN 50091-1

Safety for information technology equipment

including electrical bussiness equipment

General and Safety requirements for

uninterruptible power systems (UPS)

FCC Part 15, Subpart B, Section 15.107(a) and Section 15.109(a),

Class B Digital Device

DECLARATION OF CONFORMITY

Per FCC Part 2 Section 2.1077(a)

Responsible Party Name:

Address:

Phone/Fax No:

hereby declares that the product

Product Name: Motherboard

Conforms to the following specifications:

This device complies with part 15 of the FCC Rules. Operation is

subject to the following two conditions: (1) This device may not

cause harmful and (2) this device must accept any inference received,

including that may cause undesired operation.

Representative Person’s Name:

Signature: Eric Lu

Supplementary Information:

Model Number: GA-7VM400M

17358 Railroad Street

City of Industry, CA 91748

G.B.T. INC. (U.S.A.)

(818) 854-9338/ (818) 854-9339

Date:

ERIC LU

Jan. 2, 2004

USER'S MANUAL

GA-7VM400M

AMD Athlon™/ Athlon™ XP/ Duron™Socket A

Processor Motherboard

AMD Athlon™/ Athlon™XP / Duron™Socket A Processor Motherboard

Rev. 2001

12ME-7VM400M-2001

- 2 -GA-7VM400M Motherboard

English

Table of Contents

Item Checklist .......................................................................................... 4

Chapter 1 Introduction ............................................................................ 5

Features Summary ....................................................................................... 5

GA-7VM400M Motherboard Layout ............................................................. 7

Block Diagram .............................................................................................. 8

Chapter 2 Hardware Installation Process ............................................. 11

Step 1: Set System Jumper (JP1) .............................................................. 12

Step 2: Install the Central Processing Unit (CPU) ...................................... 13

Step 2-1: CPU Installation ....................................................................................................... 13

Step 2-2: CPU Cooling Fan Installation .................................................................................. 14

Step 3: Install Memory Modules ................................................................. 15

Step 4: Install Expansion Cards ................................................................. 17

Step 5: Connect Ribbon Cables, Cabinet Wires and Power Supply .......... 18

Step 5-1: I/O Back Panel Introduction .................................................................................... 18

Step 5-2: Connectors Introduction .......................................................................................... 20

Chapter 3 BIOS Setup ......................................................................... 31

The Main Menu (For example: BIOS Ver. : FAa)........................................ 32

Standard CMOS Features .......................................................................... 34

Advanced BIOS Features........................................................................... 37

Integrated Peripherals ............................................................................... 39

Power Management Setup ......................................................................... 43

PnP/PCI Configurations ............................................................................. 46

PC Health Status ........................................................................................ 47

Table of Content

English

- 3 -

Frequency/Voltage Control ......................................................................... 49

Load Fail-Safe Defaults .............................................................................. 51

Load Optimized Defaults ............................................................................ 52

Set Supervisor/User Password .................................................................. 53

Save & Exit Setup ...................................................................................... 54

Exit Without Saving .................................................................................... 55

Chapter 4 Technical Reference ............................................................ 57

@BIOS™Introduction ................................................................................. 57

EasyTune™4 Introduction .......................................................................... 58

Flash BIOS Method Introduction ................................................................ 59

Method 1 : Q-Flash™Utility ..................................................................................................... 59

Method 2 : @BIOS Utility ........................................................................................................72

2-/ 4-/ 6-Channel Audio Function Introduction ............................................ 74

Xpress Recovery Introduction .................................................................... 81

Chapter 5 Appendix .............................................................................. 85

- 4 -GA-7VM400M Motherboard

English

Item Checklist

The GA-7VM400M motherboard

CD for motherboard driver & utility

GA-7VM400M user's manual

Quick PC Installation Guide

SATA RAID Manual

GC-SATA Card (optional)

(Manual; SATA cable x 1; Power cable x 1)

I/O Shield

IDE cable x 1 / Floppy cable x 1

Serial ATA cable x 2

2 Port USB Cable x 1

4 Port USB Cable x 1

SPDIF-Kit x 1 (SPDIF Out Kit)

IEEE 1394 Cable x1

Audio Combo Kit x 1

(SURROUND-Kit + SPDIF Out Kit)

Motherboard Settings Label

Computer motherboards and expansion cards contain very delicate Integrated

Circuit (IC) chips. To protect them against damage from static electricity, you

should follow some precautions whenever you work on your computer.

1. Unplug your computer when working on the inside.

2. Use a grounded wrist strap before handling computer components. If you do not have

one, touch both of your hands to a safely grounded object or to a metal object, such as

the power supply case.

3. Hold components by the edges and try not touch the IC chips, leads or connectors, or

other components.

4. Place components on a grounded antistatic pad or on the bag that came with the compo-

nents whenever the components are separated from the system.

5. Ensure that the ATX power supply is switched off before you plug in or remove the ATX

power connector on the motherboard.

If the motherboard has mounting holes, but they don't line up with the holes on the base and

there are no slots to attach the spacers, do not become alarmed you can still attach the spacers to

the mounting holes. Just cut the bottom portion of the spacers (the spacer may be a little hard to

cut off, so be careful of your hands). In this way you can still attach the motherboard to the base

without worrying about short circuits. Sometimes you may need to use the plastic springs to

isolate the screw from the motherboard PCB surface, because the circuit wire may be near by the

hole. Be careful, don't let the screw contact any printed circuit write or parts on the PCB that are

near the fixing hole, otherwise it may damage the board or cause board malfunctioning.

Installing the motherboard to the chassis...

Introduction- 5 -

English

Form Factor y24.4cm x 22.3cm Micro ATX size form factor, 4 layers PCB

CPU ySocket A processor

AMD Athlon™/Athlon™XP/Duron™ (K7) Socket A processor

128K L1 & 256K/64K L2 cache on die

200/266/333MHz FSB and DDR bus speeds

ySupports 1.4GHz and faster

Chipset yVIA KM400 Memory/AGP/PCI Controller (PAC)

yVIA VT8235 Integrated Peripheral Controller (PSIPC)

Memory y2 184-pin DDR sockets

ySupports DDR333/DDR266/DDR200 DIMM

ySupports up to 2GB DDR (Max)

ySupports only 2.5V DDR DIMM

I/O Control yIT8705

Slots y1 AGP slot supports 8X/4X/2X mode(1.5V)

y3 PCI slots supports 33MHz & PCI 2.2 compliant

On-Board IDE y2 IDE bus master (UDMA33/ATA66/ATA100/ATA133) IDE ports

for up to 4 ATAPI devices

ySupports PIO mode3, 4 (UDMA 33/ATA66/ATA100/ATA133) IDE

& ATAPI CD-ROM

Hardware Monitor yCPU/System fan revolution detect

yCPU/System temperature detect

ySystem voltage detect

yCPU/System fan fail warning

On-Board Peripherals y1 Floppy port supports 2 FDD with 360K, 720K,1.2M, 1.44M

and 2.88M bytes

y1 Parallel port supports Normal/EPP/ECP mode

y1 Serial port (COMA), 1 VGA port, COMB on board

y6 USB 2.0/1.1 ports (2 x Rear, 4 x Front by cable)

y1 Front Audio Connector

Features Summary

to be continued...

Chapter 1 Introduction

- 6 -GA-7VM400M Motherboard

English

On-Board Sound yVIA VT1617

yLine Out / 2 front speaker

yLine In / 2 rear speaker (by s/w switch)

yMic In / center & subwoofer (by s/w switch)

ySPDIF Out

yCD_In / Game connector

On-Board VGA yBuilt-in VIA KM400 chipset

On-Board LAN yBuilt-in VIA VT6103 chip

y1 RJ45 port

PS/2 Connector yPS/2 Keyboard interface and PS/2 Mouse interface

BIOS yLicensed Award BIOS

ySupports Q-Flash

Additional Features yPS/2 Keyboard power on by password, PS/2 Mouse power on

yExternal Modem wake up

ySTR(Suspend-To-RAM)

yAC Recovery

yPoly fuse for keyboard over-current protection

yUSB KB/Mouse wake up from S3

ySupport Thermal Shutdown function

ySupports @BIOS

ySupports EasyTune 4

Overclocking yOver Clock (DDR/CPU) by BIOS

yOver Voltage (DDR/AGP) by BIOS

Please set the CPU host frequency in accordance with your processor's specifications.

We don't recommend you to set the system bus frequency over the CPU's specification

because these specific bus frequencies are not the standard specifications for CPU,

chipset and most of the peripherals. Whether your system can run under these specific

bus frequencies properly will depend on your hardware configurations, including CPU,

Memory, Cards…etc.

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Gigabyte Carte mère

Gigabyte

Gigabyte GA-7VKML Manuel utilisateur

Gigabyte

Gigabyte 686DLX Manuel utilisateur

Gigabyte

Gigabyte GA-J1800N-D2H Manuel utilisateur

Gigabyte

Gigabyte GA-J3355N-D2P Manuel utilisateur

Gigabyte

Gigabyte B460 AORUS PRO AC Manuel utilisateur

Gigabyte

Gigabyte GA-8SIMLH SERIES Manuel utilisateur

Gigabyte

Gigabyte GA-8IG1000MK Manuel utilisateur

Gigabyte

Gigabyte GA-8I915ME Series Manuel utilisateur

Gigabyte

Gigabyte GA-MA770-DS3 Manuel utilisateur

Gigabyte

Gigabyte 7ZXR Series Manuel utilisateur

Gigabyte

Gigabyte GA-H77TN Manuel utilisateur

Gigabyte

Gigabyte GA-7VTXE+ Manuel utilisateur

Gigabyte

Gigabyte GA-MA78G-DS3H Manuel

Gigabyte

Gigabyte GA-F2A75M-HD2 Manuel utilisateur

Gigabyte

Gigabyte GA-B250M-Gaming 3 Manuel utilisateur

Gigabyte

Gigabyte H610M S2H DDR4 Manuel utilisateur

Gigabyte

Gigabyte GA-Z270MX-Gaming 5 Manuel utilisateur

Gigabyte

Gigabyte GA-G41M-ES2H Manuel utilisateur

Gigabyte

Gigabyte GA-H81M-D3H Manuel utilisateur

Gigabyte

Gigabyte R281-2O0 Manuel utilisateur

Gigabyte

Gigabyte GA-990FXA-UD3 Manuel utilisateur

Gigabyte

Gigabyte Q370M D3H GSM PLUS Manuel utilisateur

Gigabyte

Gigabyte GA-8SMML Manuel utilisateur

Gigabyte

Gigabyte GA-P67X-UD3R-B3 Manuel utilisateur

Manuels Carte mère populaires d'autres marques

DFI

DFI SD170 Manuel utilisateur

ASROCK

ASROCK ROMED8-2T Manuel utilisateur

Asus

Asus P2L97A Manuel utilisateur

Winmate

Winmate IC70 Manuel utilisateur

Asus

Asus MES-B Manuel utilisateur

Grantech

Grantech SYS8F377VGGA-3OMN Manuel utilisateur

Telit Wireless Solutions

Telit Wireless Solutions SL869-3DR Manuel utilisateur

Texas Instruments

Texas Instruments ADS8372EVM Manuel utilisateur

Commell

Commell MS-C73 Manuel utilisateur

IBT Technologies

IBT Technologies MB860 Manuel utilisateur

Nvidia

Nvidia TEGRA DG-04927-001_V01 Manuel utilisateur

Biostar

Biostar M7VIT Bravo Instructions d'utilisation et d'installation

Intel

Intel D33217CK Manuel utilisateur

Asus

Asus F1A55-M LX PLUS R2.0 Manuel utilisateur

EPC

EPC EPC9147C Manuel utilisateur

Asus

Asus EX-B760M-V5 D4 Manuel utilisateur

EPOX

EPOX MU-8KHA0010 Manuel utilisateur

Ski-Doo

Ski-Doo Bombardier MPEM 219 700 090 Manuel utilisateur
