Gigabyte GA-6VXE+ Manuel utilisateur

R-41-04-010117

6VXE+

USER'S MANUAL

1. System power on by PS/2 Mouse: First, enable this function

in CMOS Setup, then you can power on the system by double

clicking the right or left button of your PS/2 Mouse.

2. System power on by Keyboard: If your ATX power supply

supports larger than 300 mA 5V Stand-By current (depends

on the specification of keyboards), you can power on your

system by entering password from the keyboard after setting

the “Keyboard power on” password in CMOS Setup.

3. Supports 3 steps ACPI LED.

4. Modem Ring-On. (COM A , B).

5. Wake-Up on LAN. (The ATX power supply supports larger

than 720 mA 5V Stand-By current)

For Intel Pentium



II / !!! / CeleronTM Processor MAINBOARD

REV. 4.1 Fourth Edition

6VXE+

The author assumes no responsibility for any errors or omissions which may

appear in this document nor does it make a commitment to update the

information contained herein.

Third-party brands and names are the property of their respective owners.

Sound Blaster is a registered trademark of Creative Technology Ltd in the

United States and certain other countries. Sound Blaster-LINK and SB-LINK are

trademarks of Creative Technology Ltd.

Jan 17, 2001 Taipei, Taiwan

Quick Installation Guide

I. Quick Installation Guide :

CPU SPEED SETUP

The system bus speed is selectable between 66 / 100 / 133MHz. The user can

select the system bus speed from Dip switch SW1 and jumper JP15 , change

the Dip switch SW2 selection to set up the CPU speed for 233 - 800MHz

processor.

Set System Bus Speed

SW1:

CPU JP15 1 2 3 4

66 ON ON OFF OFF ON

75 ON ON ON OFF ON

83 ON ON OFF ON ON

100 ON OFF OFF OFF OFF

112 ON OFF ON OFF OFF

124 OFF OFF OFF ON OFF

133 OFF OFF OFF OFF OFF

140 OFF OFF ON ON OFF

150 OFF OFF ON OFF OFF

The CPU speed MUST match with the frequency RATIO. It will cause

system hanging up if the frequency RATIO is higher than that of CPU.

SW2: DIP SWITCH

FREQ. RATIO 1 2 3 4

X 3 ON OFF ON ON

X 3.5 OFF OFF ON ON

X 4 ON ON OFF ON

X 4.5 OFF ON OFF ON

X 5 ON OFF OFF ON

X 5.5 OFF OFF OFF ON

X 6 ON ON ON OFF

X 6.5 OFF ON ON OFF

X 7 ON OFF ON OFF

X 7.5 OFF OFF ON OFF

X 8 ON ON OFF OFF

X 8.5 OFF ON OFF OFF

X 9 ON OFF OFF OFF

X 9.5 OFF OFF OFF OFF

6VXE+





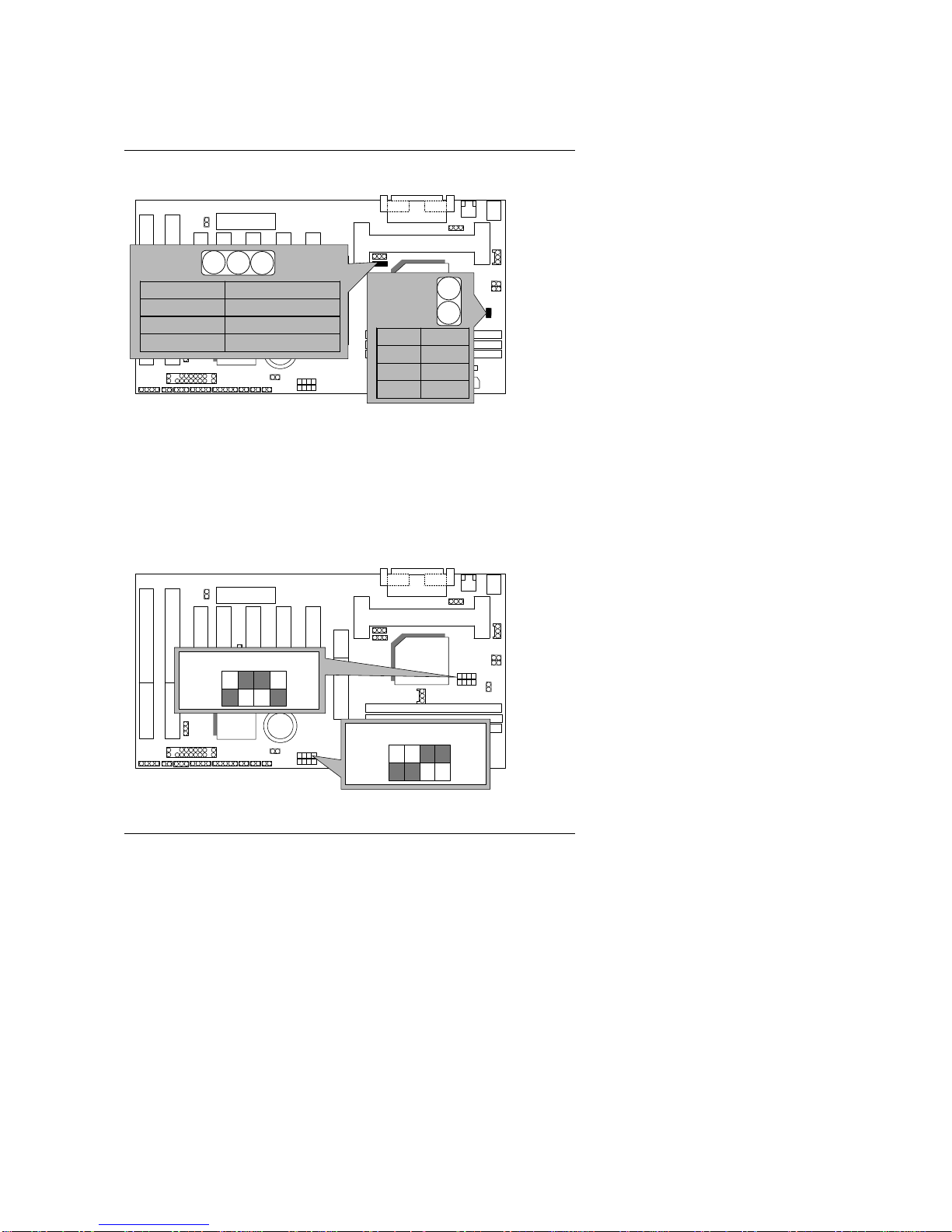

For 133MHz Jumper Setting:

CPU

VIA

82C693

VIA

82C596B

6VXE

Pin No. Function

1-2 close For 100 MHz

2-3 close Auto Frequency

1-2-3 open For 133 MHz

JP12

CPU JP15

66 ON

100 ON

133 OFF

JP15





Note: We don’t recommend you to set up your system speed to 75, 83,

112, 124, 140, 150 MHz because these frequencies are not the

standard specifications for CPU, Chipset and most of the

peripherals. Whether your system can run under 75, 83, 112, 124,

140, 150 MHz properly will depend on your hardware

configurations: CPU, SDRAM, Cards, etc.

☞The black part in the picture is the white extruding piece of the

DIP switch.

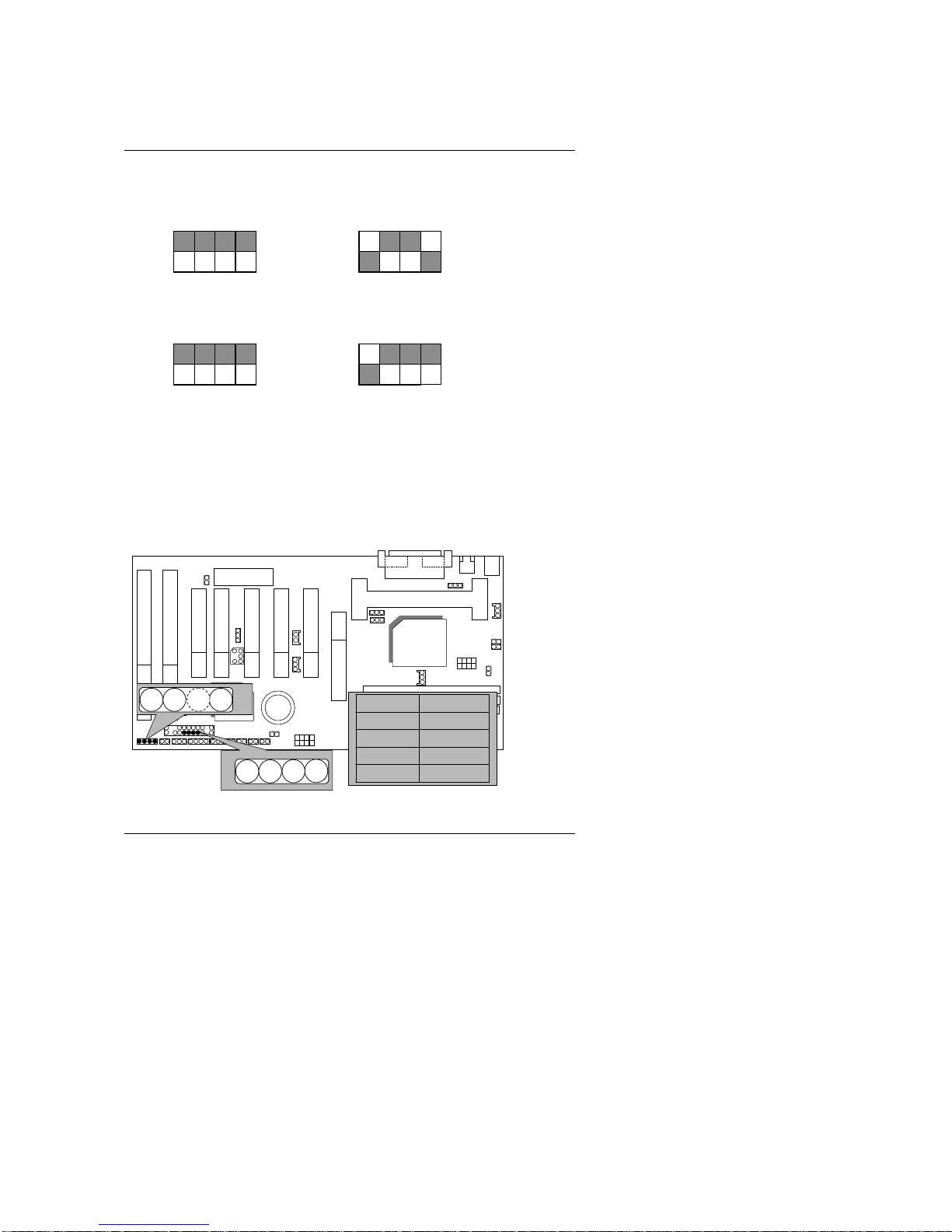

1. PentiumII /Celeron 233 / 66 MHz FSB

CPU

VIA

82C693A

VIA

82C596B

6VXE

OFF

SW 2

123

OFF

SW 1

1234

Quick Installation Guide

2. PentiumII /Celeron 266 / 66 MHz FSB

3. PentiumII /Celeron 300/Celeron 300A / 66 MHz FSB

4. PentiumII /Celeron 333 / 66 MHz FSB

5. PentiumII /Celeron 366 / 66MHz FSB

6. PentiumII /Celeron 400 / 66MHz FSB

7. PentiumII /Celeron 433 / 66MHz FSB

SW2 ON

4 3 2 1 OFF

SW1 ON

4 3 2 1 OFF

SW2 ON

4 3 2 1 OFF

SW1 ON

4 3 2 1 OFF

SW2 ON

4 3 2 1 OFF

SW1 ON

4 3 2 1 OFF

SW2 ON

4 3 2 1 OFF

SW1 ON

4 3 2 1 OFF

SW2 ON

4 3 2 1 OFF

SW2 ON

4 3 2 1 OFF

SW1 ON

4 3 2 1 OFF

SW1 ON

4 3 2 1 OFF

6VXE+

8. PentiumII /Celeron 466 / 66MHz FSB

9. PentiumII /Celeron 500 / 66MHz FSB

10. PentiumII /Celeron 533 / 66MHz FSB

11. PentiumII /Celeron 566 / 66MHz FSB (Reserve)

12. PentiumII 350 / 100 MHz FSB

13. PentiumII 400 / 100 MHz FSB

SW2 ON

4 3 2 1 OFF

SW1 ON

4 3 2 1 OFF

SW2 ON

4 3 2 1 OFF

SW1 ON

4 3 2 1 OFF

SW2 ON

4 3 2 1 OFF

SW1 ON

4 3 2 1 OFF

SW2 ON

4 3 2 1 OFF

SW1 ON

4 3 2 1 OFF

SW2 ON

4 3 2 1 OFF

SW1 ON

4 3 2 1 OFF

SW2 ON

4 3 2 1 OFF

SW1 ON

4 3 2 1 OFF

Quick Installation Guide

14. PentiumII/!!! 450 / 100 MHz FSB

15. PentiumII/!!! 500 / 100 MHz FSB

16. PentiumII/!!! 550 / 100 MHz FSB

17. PentiumII/!!! 600 / 100 MHz FSB

18. PentiumII/!!! 650 / 100 MHz FSB

19. PentiumII/!!! 700 / 100 MHz FSB

SW2 ON

4 3 2 1 OFF

SW1 ON

4 3 2 1 OFF

SW2 ON

4 3 2 1 OFF

SW1 ON

4 3 2 1 OFF

SW2 ON

4 3 2 1 OFF

SW1 ON

4 3 2 1 OFF

SW2 ON

4 3 2 1 OFF

SW2 ON

4 3 2 1 OFF

SW1 ON

4 3 2 1 OFF

SW1 ON

4 3 2 1 OFF

SW2 ON

4 3 2 1 OFF

SW1 ON

4 3 2 1 OFF

6VXE+

20. PentiumII/!!! 750 / 100 MHz FSB

21. PentiumII/!!! 800 / 100 MHz FSB

22. PentiumII/!!! 850 / 100 MHz FSB (Reserve)

23. Pentium!!! 533 / 133 MHz FSB

24. Pentium!!! 600 / 133 MHz FSB

SW2 ON

4 3 2 1 OFF

SW1 ON

4 3 2 1 OFF

SW2 ON

4 3 2 1 OFF

SW1 ON

4 3 2 1 OFF

SW2 ON

4 3 2 1 OFF

SW1 ON

4 3 2 1 OFF

SW2 ON

4 3 2 1 OFF

SW1 ON

4 3 2 1 OFF

SW2 ON

4 3 2 1 OFF

SW1 ON

4 3 2 1 OFF

Quick Installation Guide

25. Pentium!!! 667 / 133 MHz FSB

26. Pentium!!! 733 / 133 MHz FSB





We don’t recommend you to setup your CPU ratio above 8 nth, it

doesn’t support now.

II. Jumper setting :

SPK : Speaker Connector

CPU

6VXE+

VIA

82C693A

VIA

82C596B

Pin No. Function

1 VCC

2 NC

3 NC

4 Data

SW2 ON

4 3 2 1 OFF

SW1 ON

4 3 2 1 OFF

SW2 ON

4 3 2 1 OFF

SW1 ON

4 3 2 1 OFF
