Identifying Your Motherboard Revision

The revision number on your motherboard looks like this: "REV: X.X." For example, "REV: 1.0"

means the revision of the motherboard is 1.0. Check your motherboard revision before updating

motherboard BIOS, drivers, or when looking for technical information.

Example:

- 3 -

Table of Contents

Chapter 1 Product Introduction.......................................................................................4

1-1 Motherboard Layout......................................................................................... 4

1-2 Motherboard Block Diagram ............................................................................ 6

1-3 Box Contents.................................................................................................... 7

Chapter 2 Hardware Installation .....................................................................................8

2-1 Installation Precautions.................................................................................... 8

2-2 Product Specications...................................................................................... 9

2-3 Installing the CPU and CPU Cooler ............................................................... 13

2-4 Installing the Memory..................................................................................... 16

2-5 Installing an Expansion Card ......................................................................... 17

2-6 Back Panel Connectors.................................................................................. 18

2-7 Internal Connectors........................................................................................ 20

Chapter 3 BIOS Setup ..................................................................................................34

Chapter 4 Installing the Operating System and Drivers................................................36

4-1 Operating System Installation ........................................................................ 36

4-2 Drivers Installation.......................................................................................... 37

Chapter 5 Appendix ......................................................................................................38

5-1 Conguring a RAID Set.................................................................................. 38

Regulatory Notices.................................................................................................... 39

Contact Us ................................................................................................................ 44

- 4 -

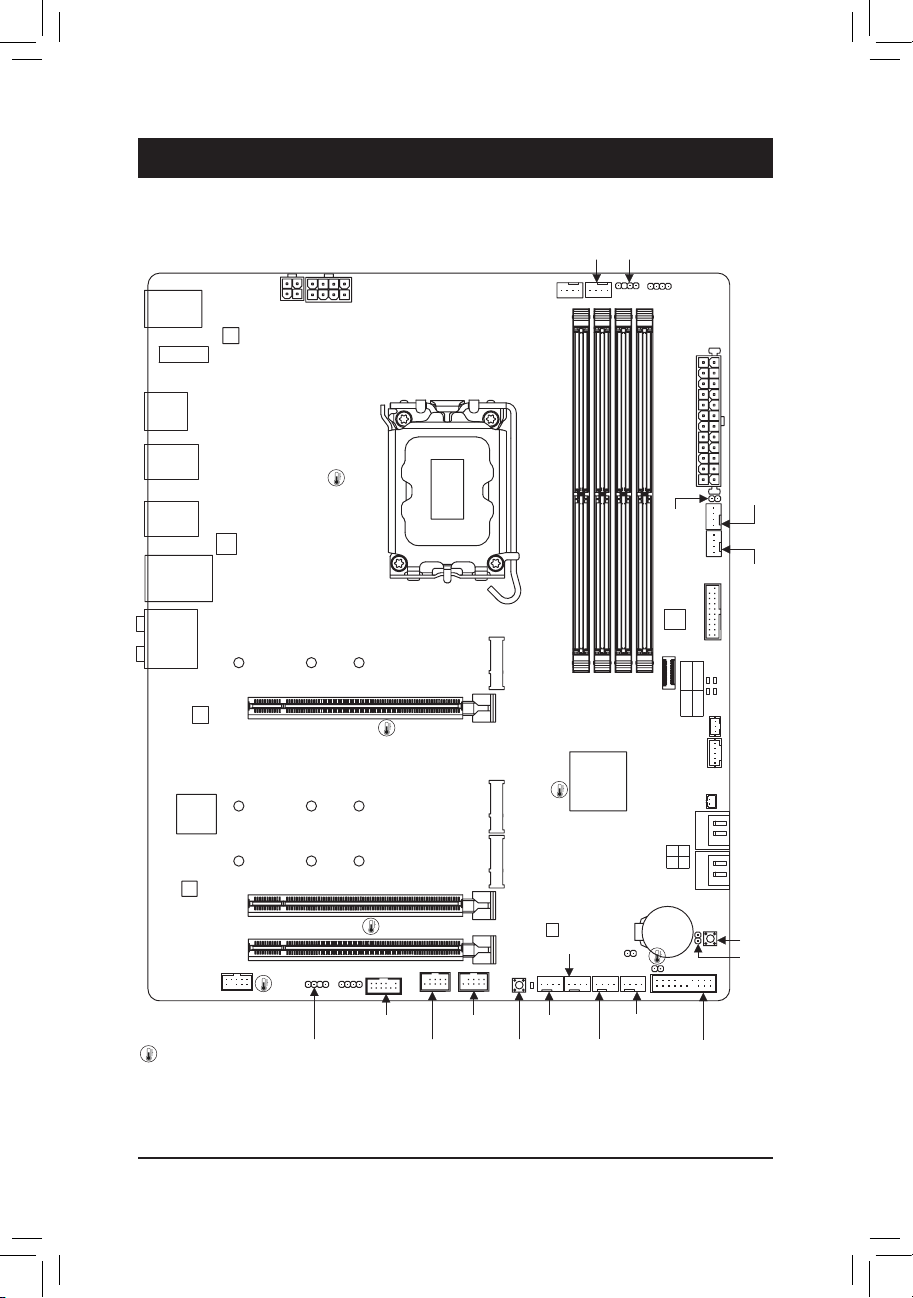

1-1 Motherboard Layout

Chapter 1 Product Introduction

Temperature

sensor

M2_WIFI

U320G_

U32G2

U32

U32_LAN

LGA1700

ATX

AUDIO

DDR5_A1

DDR5_A2

DDR5_B1

DDR5_B2

BAT

Intel®B660

CLR_CMOS

M_BIOS

THB_C1

THB_C2

CODEC

PCIEX16

PCIEX4

PCIEX1

F_U32C

F_U32

SYS_FAN6_PUMP

EC_TEMP2

EC_TEMP1

USB20

6080110

M2A_CPU

B660 AORUS MASTER

SYS_FAN1

F_USB2D_LED1

F_AUDIO

F_USB1

LED_C1

SYS_FAN3

SPI_TPM

F_PANEL

CPU_FAN

CPU_OPT

SYS_FAN4

iTE®

Super I/O

D_LED2

LED_C2

ATX_12V_2X4ATX_12V_2X2

USB 3.2 Gen 1 Hub

USB 2.0 Hub

USB 3.2

Gen 1 Hub

SATA3 5 7

4 6 VGA CPU

BOOT DRAM

DP_HDMI20

Intel®

2.5GbE LAN

SYS_FAN5_PUMP

NOISE_SENSOR

RST_SW

RST

SYS_FAN2

QFLED

QFLASH_PLUS

6080110

M2P_SB

6080110

M2M_SB

- 5 -

Temperature

sensor

M2_WIFI

U320G_

U32G2

U32

U32_LAN

LGA1700

ATX

AUDIO

DDR4_A1

DDR4_A2

DDR4_B1

DDR4_B2

BAT

Intel®B660

CLR_CMOS

M_BIOS

THB_C1

THB_C2

CODEC

PCIEX16

PCIEX4

PCIEX1

F_U32C

F_U32

SYS_FAN6_PUMP

EC_TEMP2

EC_TEMP1

USB20

6080110

M2A_CPU

B660 A MASTER DDR4

SYS_FAN1

F_USB2D_LED1

F_AUDIO

F_USB1

LED_C1

SYS_FAN3

SPI_TPM

F_PANEL

CPU_FAN

CPU_OPT

SYS_FAN4

iTE®

Super I/O

D_LED2

LED_C2

ATX_12V_2X4ATX_12V_2X2

USB 3.2 Gen 1 Hub

USB 2.0 Hub

USB 3.2

Gen 1 Hub

SATA3 5 7

4 6 VGA CPU

BOOT DRAM

DP_HDMI20

Intel®

2.5GbE LAN

SYS_FAN5_PUMP

NOISE_SENSOR

RST_SW

RST

SYS_FAN2

QFLED

QFLASH_PLUS

6080110

M2P_SB

6080110

M2M_SB

- 6 -

1-2 Motherboard Block Diagram

jOnly for B660 AORUS MASTER.

kOnly for B660 A MASTER DDR4.

LGA1700 CPU

CPU CLK+/- (80~800 MHz)

DMI 4.0

LAN

RJ45

Intel®2.5GbE

LAN

4 SATA 6Gb/s

(SATA3 4~7)

DDI

PCI Express 3.0 Bus

Center/Subwoofer

Speaker Out

Line Out

MIC

Line In

S/PDIF Out

Rear Speaker Out

CODEC

Intel®B660

DisplayPort

1 PCI Express x4

M.2 WIFI

PCI Express 4.0 Bus

1 PCI Express x16

x16

1 M.2 Socket 3

(M2M_SB)

PCI Express x1

DDR5 4800/4000 MHzj

DDR4 3200/3000/2933/2666/2400/2133 MHzk

DDI HDMI 2.0

Switch

PCI Express 4.0 Bus

1 M.2 Socket 3

(M2A_CPU)

PCI Express 4.0 Bus

1 M.2 Socket 3

(M2P_SB) eSPI

Bus

SPI

Bus

iTE®

Super I/O

1 USB Type-C®,

with USB 3.2 Gen 2x2 support

1 USB 3.2 Gen 2 Type-A

BIOS

TPM

4 USB 2.0/1.1

USB 2.0

Hub

1 USB Type-C®,

with USB 3.2 Gen 2 support

4 USB 2.0/1.1

6 USB 3.2 Gen 1

USB 3.2

Gen 1 Hub

- 7 -

1-3 Box Contents

5B660 AORUS MASTER or B660 A MASTER DDR4 motherboard

5User's Manual

5One antenna

5Two SATA cables

5One noise detection cable

5M.2 screws

5One G Connector

* The box contents above are for reference only and the actual items shall depend on the product package you obtain.

The box contents are subject to change without notice.

- 8 -

2-1 Installation Precautions

The motherboard contains numerous delicate electronic circuits and components which can become

damaged as a result of electrostatic discharge (ESD). Prior to installation, carefully read the user's

manual and follow these procedures:

•Prior to installation, make sure the chassis is suitable for the motherboard.

•Prior to installation, do not remove or break motherboard S/N (Serial Number) sticker or

warranty sticker provided by your dealer. These stickers are required for warranty validation.

•Always remove the AC power by unplugging the power cord from the power outlet before

installing or removing the motherboard or other hardware components.

•When connecting hardware components to the internal connectors on the motherboard, make

sure they are connected tightly and securely.

•When handling the motherboard, avoid touching any metal leads or connectors.

•It is best to wear an electrostatic discharge (ESD) wrist strap when handling electronic

components such as a motherboard, CPU or memory. If you do not have an ESD wrist strap,

keep your hands dry and rst touch a metal object to eliminate static electricity.

•Prior to installing the motherboard, please have it on top of an antistatic pad or within an

electrostatic shielding container.

•Before connecting or unplugging the power supply cable from the motherboard, make sure

the power supply has been turned off.

•Before turning on the power, make sure the power supply voltage has been set according to

the local voltage standard.

•Before using the product, please verify that all cables and power connectors of your hardware

components are connected.

•To prevent damage to the motherboard, do not allow screws to come in contact with the

motherboard circuit or its components.

•Make sure there are no leftover screws or metal components placed on the motherboard or

within the computer casing.

•Do not place the computer system on an uneven surface.

•Do not place the computer system in a high-temperature or wet environment.

•Turning on the computer power during the installation process can lead to damage to system

components as well as physical harm to the user.

•If you are uncertain about any installation steps or have a problem related to the use of the

product, please consult a certied computer technician.

•If you use an adapter, extension power cable, or power strip, ensure to consult with its

installation and/or grounding instructions.

Chapter 2 Hardware Installation

- 9 -

2-2 ProductSpecications

CPU LGA1700 socket: Support for 12th Generation Intel®Core™, Pentium®Gold and

Celeron®Processors

(Go to GIGABYTE's website for the latest CPU support list.)

L3 cache varies with CPU

Chipset Intel®B660 Express Chipset

Memory Support for DDR5 4800/4000 MHz memory modulesj

Support for DDR4 3200/3000/2933/2666/2400/2133 MHz memory modulesk

4 x DDR DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity)

of system memory

Dual channel memory architecture

Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in

non-ECC mode)

Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules

Support for Extreme Memory Prole (XMP) memory modules

(Go to GIGABYTE's website for the latest supported memory speeds and memory

modules.)

Onboard

Graphics

Integrated Graphics Processor-Intel®HD Graphics support:

- 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz

* Support for DisplayPort 1.2 version and HDCP 2.3

- 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz

* Support for HDMI 2.0 version and HDCP 2.3.

(Graphics specications may vary depending on CPU support.)

Audio Realtek®ALC1220-VB CODEC

* The back panel line out jack supports DSD audio.

High Denition Audio

2/4/5.1/7.1-channel

Support for S/PDIF Out

LAN Intel® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)

Wireless

Communication

Module

Intel®Wi-Fi 6 AX201 (For B660 AORUS MASTER PCB rev. 1.0/B660 A MASTER

DDR4 PCB rev. 1.1)

Intel®Wi-Fi 6 AX200 (For B660 AORUS MASTER PCB rev. 1.1/B660 A MASTER

DDR4 PCB rev. 1.2)

- WIFI a, b, g, n, ac, ax, supporting 2.4/5 GHz Dual-Band

- BLUETOOTH 5.2

- Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate

Intel®Wi-Fi 6E AX211 (For B660 AORUS MASTER PCB rev. 1.2/B660 A MASTER

DDR4 PCB rev. 1.3)

- WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands

- BLUETOOTH 5.2

- Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate

(Actual data rate may vary depending on environment and equipment.)

jOnly for B660 AORUS MASTER.

kOnly for B660 A MASTER DDR4.

- 10 -

Expansion Slots 1 x PCI Express x16 slot, running at x16 (PCIEX16)

(The PCIEX16 slot conforms to PCI Express 4.0 standard.)

1 x PCI Express x16 slot, running at x4 (PCIEX4)

* The PCIEX4 slot shares bandwidth with the M2M_SB connector. The PCIEX4 slot

becomes unavailable when a device is installed in the M2M_SB connector.

1 x PCI Express x16 slot, running at x1 (PCIEX1)

(The PCIEX4 and PCIEX1 slots conform to PCI Express 3.0 standard.)

Multi-Graphics

Technology Support forAMD Quad-GPU CrossFire™and 2-WayAMD CrossFire™technologies

Storage Interface CPU:

- 1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 PCIe 4.0 x4/x2

SSD support) (M2A_CPU)

Chipset:

- 1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 PCIe 4.0 x4/x2

SSD support) (M2P_SB)

- 1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 PCIe 3.0 x4/x2

SSD support) (M2M_SB)

- 4 x SATA 6Gb/s connectors

Support for SATA RAID 0, RAID 1, RAID 5, and RAID 10

Intel®Optane™Memory Ready

* System acceleration with Intel®Optane™Memory can only be enabled on the M.2

connectors supported by the Chipset.

USB Chipset:

- 1 x USB Type-C®port on the back panel, with USB 3.2 Gen 2x2 support

- 1 x USB Type-C®port with USB 3.2 Gen 2 support, available through the

internal USB header

- 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel

- 4 x USB 2.0/1.1 ports available through the internal USB headers

Chipset+2 USB 3.2 Gen 1 Hubs:

- 6 x USB 3.2 Gen 1 ports (4 ports on the back panel, 2 ports available through

the internal USB header)

Chipset+USB 2.0 Hub:

- 4 x USB 2.0/1.1 ports on the back panel

Internal

Connectors

1 x 24-pin ATX main power connector

1 x 8-pin ATX 12V power connector

1 x 4-pin ATX 12V power connector

1 x CPU fan header

1 x water cooling CPU fan header

4 x system fan headers

2 x system fan/water cooling pump headers

2 x addressable LED strip headers

2 x RGB LED strip headers

3 x M.2 Socket 3 connectors

4 x SATA 6Gb/s connectors

1 x front panel header

1 x front panel audio header

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Gigabyte Carte mère

Gigabyte

Gigabyte GA-9ITDW Guide rapide

Gigabyte

Gigabyte GA-J1800N-D2P Manuel utilisateur

Gigabyte

Gigabyte GA-965P-DS3 Manuel utilisateur

Gigabyte

Gigabyte GA-8GNXP-D Manuel utilisateur

Gigabyte

Gigabyte G-MAX Flex ATX Series Manuel utilisateur

Gigabyte

Gigabyte GA-A75M-UD2H Manuel utilisateur

Gigabyte

Gigabyte 5AA Manuel utilisateur

Gigabyte

Gigabyte GA-G31M-ES2C Manuel utilisateur

Gigabyte

Gigabyte B550 UD AC Manuel utilisateur

Gigabyte

Gigabyte GA-6PXSVL Manuel utilisateur

Gigabyte

Gigabyte GA-N3150N-D2H Manuel utilisateur

Gigabyte

Gigabyte GA-8S649MF-FS Manuel utilisateur

Gigabyte

Gigabyte H610M H DDR4 Manuel utilisateur

Gigabyte

Gigabyte R121-340 Manuel utilisateur

Gigabyte

Gigabyte 8S648FXP-RZ Manuel utilisateur

Gigabyte

Gigabyte A520 AORUS ELITE Manuel utilisateur

Gigabyte

Gigabyte GA-Q270M-D3H Manuel utilisateur

Gigabyte

Gigabyte GA-6KIEH-RH Manuel utilisateur

Gigabyte

Gigabyte Z690 AORUS MASTER Manuel utilisateur

Gigabyte

Gigabyte 8VM533M-RZ Manuel utilisateur

Gigabyte

Gigabyte GA-8IE2004 Manuel utilisateur

Gigabyte

Gigabyte B650 GAMING X AX Manuel utilisateur

Gigabyte

Gigabyte H310N 2.0 Manuel utilisateur

Gigabyte

Gigabyte GA-E2500N Manuel utilisateur

Manuels Carte mère populaires d'autres marques

DFI

DFI SD170 Manuel utilisateur

ASROCK

ASROCK ROMED8-2T Manuel utilisateur

Asus

Asus P2L97A Manuel utilisateur

Winmate

Winmate IC70 Manuel utilisateur

Asus

Asus MES-B Manuel utilisateur

Grantech

Grantech SYS8F377VGGA-3OMN Manuel utilisateur

Telit Wireless Solutions

Telit Wireless Solutions SL869-3DR Manuel utilisateur

Texas Instruments

Texas Instruments ADS8372EVM Manuel utilisateur

Commell

Commell MS-C73 Manuel utilisateur

IBT Technologies

IBT Technologies MB860 Manuel utilisateur

Nvidia

Nvidia TEGRA DG-04927-001_V01 Manuel utilisateur

Biostar

Biostar M7VIT Bravo Instructions d'utilisation et d'installation

Intel

Intel D33217CK Manuel utilisateur

Asus

Asus F1A55-M LX PLUS R2.0 Manuel utilisateur

EPC

EPC EPC9147C Manuel utilisateur

Asus

Asus EX-B760M-V5 D4 Manuel utilisateur

EPOX

EPOX MU-8KHA0010 Manuel utilisateur

Ski-Doo

Ski-Doo Bombardier MPEM 219 700 090 Manuel utilisateur
