B560M D2V

User's Manual

Rev. 1001

The trademarks mentioned in this manual are legally registered to their respective owners.

Disclaimer

Information in this manual is protected by copyright laws and is the property of GIGABYTE.

Changes to the specications and features in this manual may be made by GIGABYTE without

prior notice. No part of this manual may be reproduced, copied, translated, transmitted, or

published in any form or by any means without GIGABYTE's prior written permission.

In order to assist in the use of this product, carefully read the User's Manual.

For product-related information, check on our website at: https://www.gigabyte.com

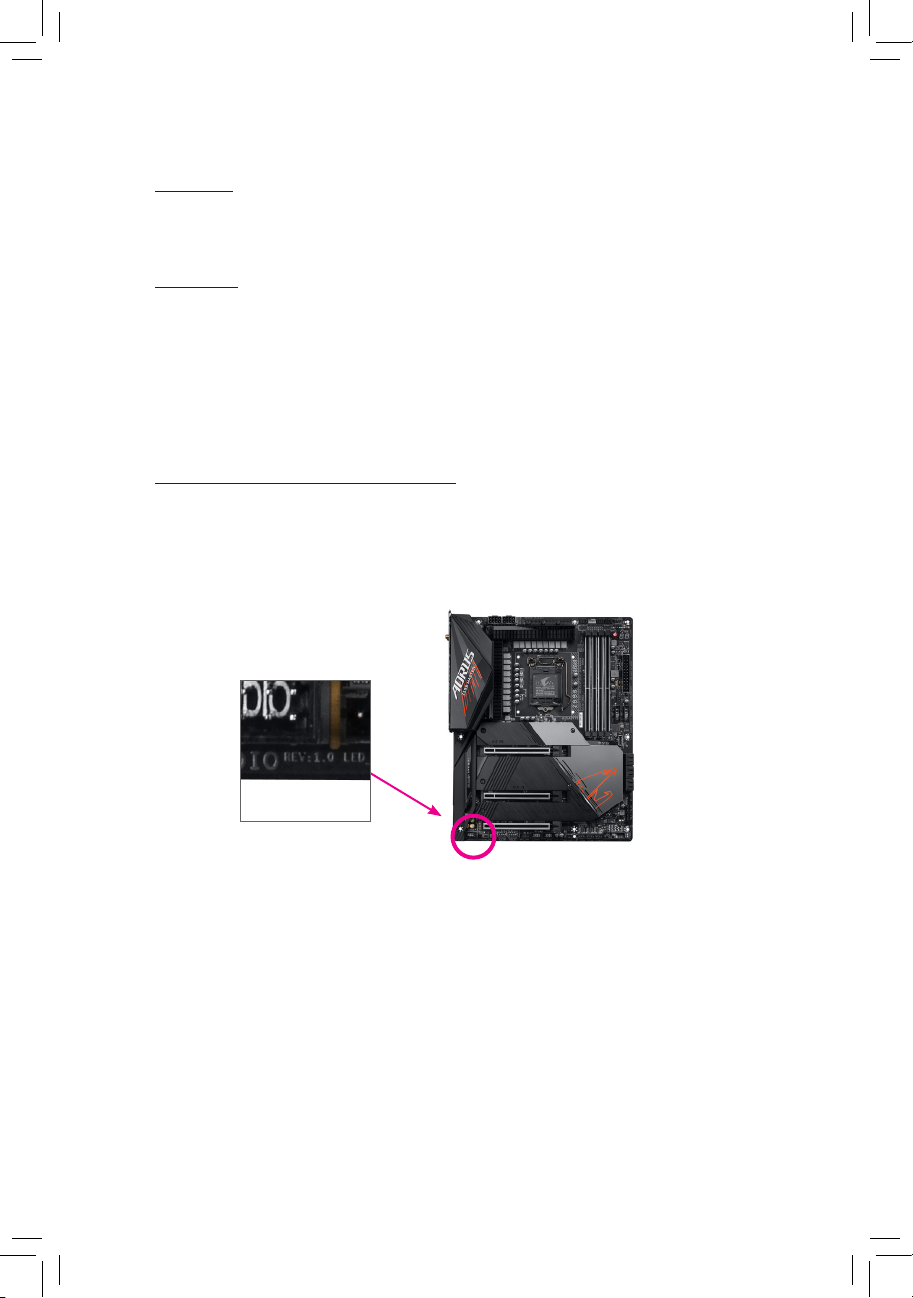

Identifying Your Motherboard Revision

The revision number on your motherboard looks like this: "REV: X.X." For example, "REV: 1.0"

means the revision of the motherboard is 1.0. Check your motherboard revision before updating

motherboard BIOS, drivers, or when looking for technical information.

Example:

- 3 -

Table of Contents

B560M D2V Motherboard Layout....................................................................................4

Chapter 1 Hardware Installation .....................................................................................5

1-1 Installation Precautions.................................................................................... 5

1-2 Product Specications...................................................................................... 6

1-3 Installing the CPU ............................................................................................ 9

1-4 Installing the Memory....................................................................................... 9

1-5 Installing an Expansion Card ......................................................................... 10

1-6 Back Panel Connectors.................................................................................. 10

1-7 Internal Connectors........................................................................................ 12

Chapter 2 BIOS Setup ..................................................................................................21

2-1 Startup Screen ............................................................................................... 21

2-2 The Main Menu .............................................................................................. 22

2-3 Smart Fan 6 .................................................................................................. 23

2-4 Favorites (F11) ............................................................................................... 25

2-5 Tweaker.......................................................................................................... 26

2-6 Settings .......................................................................................................... 31

2-7 System Info. ................................................................................................... 36

2-8 Boot................................................................................................................ 37

2-9 Save & Exit..................................................................................................... 40

Chapter 3 Appendix ......................................................................................................41

3-1 Installing Intel®Optane™Memory and Storage Management ........................ 41

3-2 Drivers Installation.......................................................................................... 42

Regulatory Notices.................................................................................................... 43

Contact Us ................................................................................................................ 44

- 4 -

B560M D2V Motherboard Layout

* The box contents above are for reference only and the actual items shall depend on the product package you obtain.

The box contents are subject to change without notice.

Box Contents

5B560M D2V motherboard

5Motherboard driver disc 5Two SATA cables

5User's Manual 5I/O Shield

KB_MS

SYS_FAN1

LGA1200

ATX

B560M D2V

AUDIO

DDR4_A1

DDR4_B1

BAT

ATX_12V_2X4

Intel®B560

F_U32

CODEC M_BIOS

DVI

VGA

USB_LAN

U32_2

U32_1

PCIEX16

PCIEX1_1

PCIEX1_2

iTE®

Super I/O

Realtek®

GbE LAN

SATA3

1 0

3 2

M2A_SB

6080

M2P_CPU

8060

LED_C1

QFLASH_PLUS

USB 2.0

Hub

QFLED

F_USB2 SPI_TPMCOM

D_LED1 F_USB1F_USB3 F_PANELF_AUDIO

Temperature

sensor

CLR_CMOS

CPU_FAN

Chapter 1 Hardware Installation

1-1 Installation Precautions

The motherboard contains numerous delicate electronic circuits and components which can become

damaged as a result of electrostatic discharge (ESD). Prior to installation, carefully read the user's

manual and follow these procedures:

•Prior to installation, make sure the chassis is suitable for the motherboard.

•Prior to installation, do not remove or break motherboard S/N (Serial Number) sticker or

warranty sticker provided by your dealer. These stickers are required for warranty validation.

•Always remove the AC power by unplugging the power cord from the power outlet before

installing or removing the motherboard or other hardware components.

•When connecting hardware components to the internal connectors on the motherboard, make

sure they are connected tightly and securely.

•When handling the motherboard, avoid touching any metal leads or connectors.

•It is best to wear an electrostatic discharge (ESD) wrist strap when handling electronic

components such as a motherboard, CPU or memory. If you do not have an ESD wrist strap,

keep your hands dry and rst touch a metal object to eliminate static electricity.

•Prior to installing the motherboard, please have it on top of an antistatic pad or within an

electrostatic shielding container.

•Before connecting or unplugging the power supply cable from the motherboard, make sure

the power supply has been turned off.

•Before turning on the power, make sure the power supply voltage has been set according to

the local voltage standard.

•Before using the product, please verify that all cables and power connectors of your hardware

components are connected.

•To prevent damage to the motherboard, do not allow screws to come in contact with the

motherboard circuit or its components.

•Make sure there are no leftover screws or metal components placed on the motherboard or

within the computer casing.

•Do not place the computer system on an uneven surface.

•Do not place the computer system in a high-temperature or wet environment.

•Turning on the computer power during the installation process can lead to damage to system

components as well as physical harm to the user.

•If you are uncertain about any installation steps or have a problem related to the use of the

product, please consult a certied computer technician.

•If you use an adapter, extension power cable, or power strip, ensure to consult with its installation

and/or grounding instructions.

- 5 -

1-2 ProductSpecications

CPU LGA1200 package:

- 11th Generation Intel®Core™i9 processors/Intel®Core™i7 processors/

Intel®Core™i5 processors

- 10th Generation Intel®Core™i9 processors/Intel®Core™i7 processors/

Intel®Core™i5 processors/Intel®Core™i3processors/Intel®Pentium®processors/

Intel®Celeron®processors*

* Limited to processors with 4 MB Intel®Smart Cache, Intel®Celeron®G5xx5 family.

(Go to GIGABYTE's website for the latest CPU support list.)

L3 cache varies with CPU

Chipset Intel®B560 Express Chipset

Memory 11th Generation Intel®Core™i9/i7/i5 processors:

- Support for DDR4 3200/3000/2933/2666/2400/2133 MHz memory modules

10th Generation Intel®Core™i9/i7 processors:

- Support for DDR4 2933/2666/2400/2133 MHz memory modules

10th Generation Intel®Core™i5/i3/Pentium®/Celeron®processors:

- Support for DDR4 2666/2400/2133 MHz memory modules

2 x DDR4 DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity)

of system memory

Dual channel memory architecture

Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in

non-ECC mode)

Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules

Support for Extreme Memory Prole (XMP) memory modules

(Go to GIGABYTE's website for the latest supported memory speeds and memory

modules.)

Onboard

Graphics

Integrated Graphics Processor-Intel®HD Graphics support:

- 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz

- 1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz

* The DVI-D port does not support D-Sub connection by adapter.

(Graphics specications may vary depending on CPU support.)

Audio Realtek®Audio CODEC

High Denition Audio

2/4/5.1/7.1-channel

* To congure 7.1-channel audio, you need to open the audio software and select Device

advanced settings > Playback Device to change the default setting rst. Please visit

GIGABYTE's website for details on conguring the audio software.

LAN Realtek®GbE LAN chip (1 Gbit/100 Mbit)

Expansion Slots 1 x PCI Express x16 slot, running at x16 (PCIEX16)

* For optimum performance, if only one PCI Express graphics card is to be installed,

be sure to install it in the PCIEX16 slot.

(The PCIEX16 slot conforms to PCI Express 4.0 standard.)(Note)

2 x PCI Express x1 slots (PCIEX1_1, PCIEX1_2)

(The PCIEX1 slot conforms to PCI Express 3.0 standard.)

(Note) Supported by 11th Generation processors only.

- 6 -

Storage Interface CPU:

- 1 x M.2 connector (Socket 3, M key, type 2260/2280 PCIe 4.0 x4/x2 SSD

support) (M2P_CPU) (Note)

Chipset:

- 1 x M.2 connector (Socket 3, M key, type 2260/2280 SATA and PCIe 3.0

x4/x2 SSD support) (M2A_SB)

- 6 x SATA 6Gb/s connectors

* Refer to "1-7 Internal Connectors," for the installation notices for the M.2 and SATA

connectors.

Intel®Optane™Memory Ready

* System acceleration with Intel®Optane™Memory can only be enabled on the

M2P_CPU connector and with an 11th Generation Intel®processor installed.

USB Chipset:

- 6 x USB 3.2 Gen 1 ports (4 ports on the back panel, 2 ports available through

the internal USB header)

Chipset+USB 2.0 Hub:

- 8 x USB 2.0/1.1 ports (2 ports on the back panel, 6 ports available through

the internal USB headers)

Internal

Connectors

1 x 24-pin ATX main power connector

1 x 8-pin ATX 12V power connector

1 x CPU fan header

1 x system fan header

1 x addressable LED strip header

1 x RGB LED strip header

2 x M.2 Socket 3 connectors

6 x SATA 6Gb/s connectors

1 x front panel header

1 x front panel audio header

1 x USB 3.2 Gen 1 header

3 x USB 2.0/1.1 headers

1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI

2.0 module only)

1 x serial port header

1 x Clear CMOS jumper

1 x Q-Flash Plus button

Back Panel

Connectors

1 x PS/2 mouse port

1 x PS/2 keyboard port

1 x D-Sub port

1 x DVI-D port

4 x USB 3.2 Gen 1 ports

2 x USB 2.0/1.1 ports

1 x RJ-45 port

3 x audio jacks

I/O Controller iTE®I/O Controller Chip

(Note) Supported by 11th Generation processors only.

- 7 -

Hardware

Monitor

Voltage detection

Temperature detection

Fan speed detection

Fan fail warning

Fan speed control

* Whether the fan speed control function is supported will depend on the cooler you

install.

BIOS 1 x 256 Mbit ash

Use of licensed AMI UEFI BIOS

PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Unique Features Support for APP Center

* Available applications in APP Center may vary by motherboard model. Supported

functions of each application may also vary depending on motherboard specications.

- @BIOS

- EasyTune

- Fast Boot

- Game Boost

- ON/OFF Charge

- RGB Fusion

- Smart Backup

- System Information Viewer

Support for Q-Flash Plus

Support for Q-Flash

Support for Xpress Install

Bundled

Software

Norton®Internet Security (OEM version)

Realtek®8118 Gaming LAN Bandwidth Control Utility

Operating

System Support for Windows 10 64-bit

Form Factor Micro ATX Form Factor; 24.4cm x 22.5cm

* GIGABYTE reserves the right to make any changes to the product specications and product-related information without

prior notice.

Please visit GIGABYTE's website

for support lists of CPU, memory

modules, SSDs, and M.2 devices.

Please visit the Support\Utility List

page on GIGABYTE's website to

download the latest version of apps.

- 8 -

DualChannelMemoryConguration

This motherboard provides two memory sockets and supports Dual Channel Technology. After the memory

is installed, the BIOS will automatically detect the specications and capacity of the memory. Enabling Dual

Channel memory mode will double the original memory bandwidth.

Please visit GIGABYTE's website for details on hardware installation.

1-3 Installing the CPU

Read the following guidelines before you begin to install the CPU:

•Make sure that the motherboard supports the CPU.

(Go to GIGABYTE's website for the latest CPU support list.)

•Always turn off the computer and unplug the power cord from the power outlet before installing the

CPU to prevent hardware damage.

•Locate the pin one of the CPU. The CPU cannot be inserted if oriented incorrectly. (Or you may

locate the notches on both sides of the CPU and alignment keys on the CPU socket.)

•Apply an even and thin layer of thermal grease on the surface of the CPU.

•Do not turn on the computer if the CPU cooler is not installed, otherwise overheating and damage

of the CPU may occur.

•Set the CPU host frequency in accordance with the CPU specications. It is not recommended

that the system bus frequency be set beyond hardware specications since it does not meet the

standard requirements for the peripherals. If you wish to set the frequency beyond the standard

specications, please do so according to your hardware specications including the CPU, graphics

card, memory, hard drive, etc.

Installing the CPU

Locate the alignment keys on the motherboard CPU socket and the notches on the CPU.

Do not remove the CPU socket cover before inserting the CPU. It may pop off from the load

plate automatically during the process of re-engaging the lever after you insert the CPU.

1-4 Installing the Memory

Read the following guidelines before you begin to install the memory:

•Make sure that the motherboard supports the memory. It is recommended that memory of the same

capacity, brand, speed, and chips be used.

(Go to GIGABYTE's website for the latest supported memory speeds and memory modules.)

•Always turn off the computer and unplug the power cord from the power outlet before installing the

memory to prevent hardware damage.

•Memory modules have a foolproof design. A memory module can be installed in only one direction.

If you are unable to insert the memory, switch the direction.

Triangle Pin One Marking on the CPU

Notch

LGA1200 CPU

Alignment

Key

Alignment

Key

LGA1200 CPU Socket

Pin One Corner of the CPU Socket

- 9 -

The two memory sockets are divided into two channels and each channel has one memory socket as following:

Channel A: DDR4_1

Channel B: DDR4_2

Due to CPU limitations, read the following guidelines before installing the memory in Dual Channel mode.

1. Dual Channel mode cannot be enabled if only one memory module is installed.

2. When enabling Dual Channel mode with two memory modules, it is recommended that memory of

the same capacity, brand, speed, and chips be used.

1-5 Installing an Expansion Card

Read the following guidelines before you begin to install an expansion card:

•Make sure the motherboard supports the expansion card. Carefully read the manual that came

with your expansion card.

•Always turn off the computer and unplug the power cord from the power outlet before installing an

expansion card to prevent hardware damage.

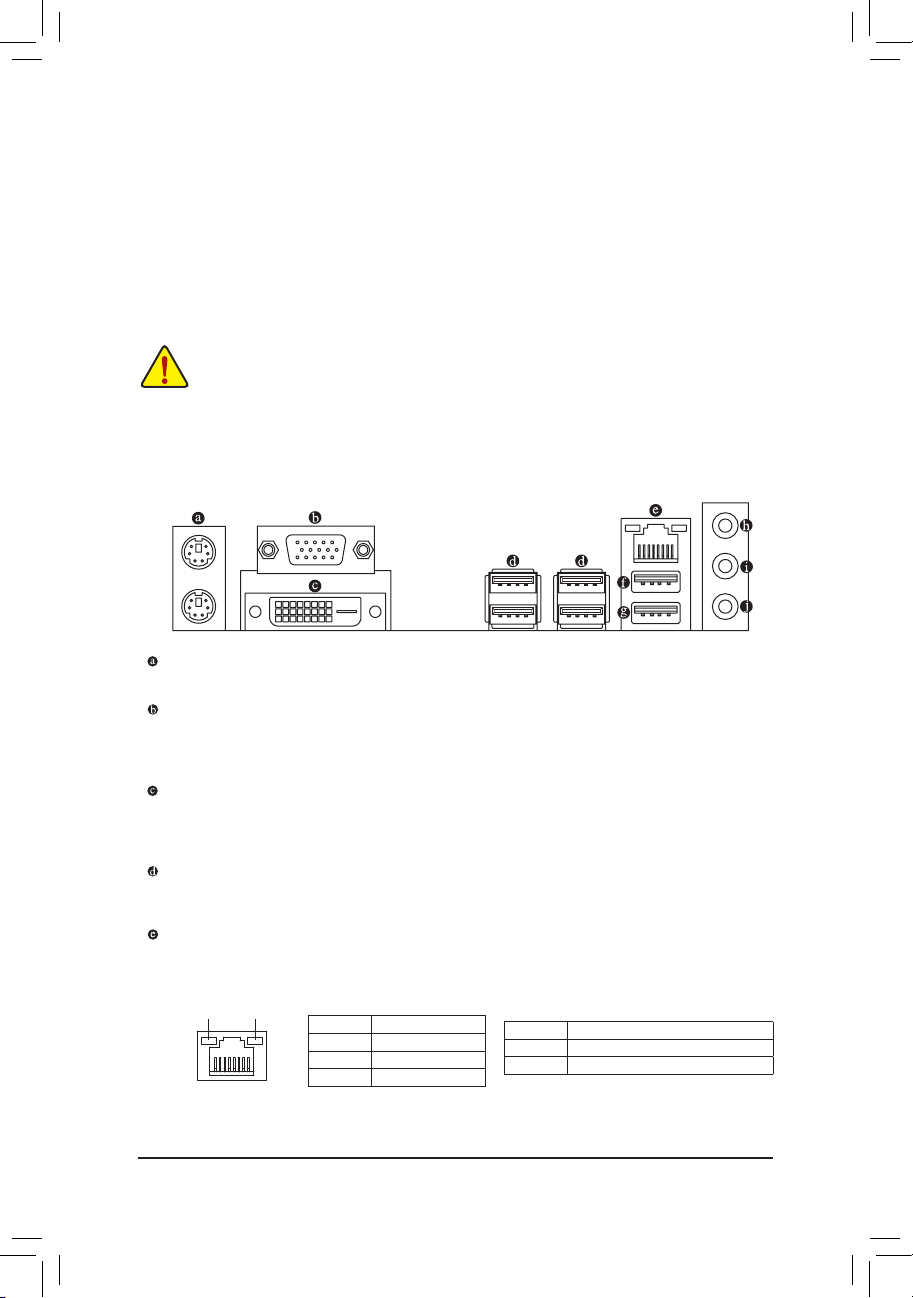

1-6 Back Panel Connectors

PS/2 Keyboard and PS/2 Mouse Port

Use the upper port (green) to connect a PS/2 mouse and the lower port (purple) to connect a PS/2 keyboard.

D-Sub Port

The D-Sub port supports a 15-pin D-Sub connector and supports a maximum resolution of 1920x1200@60 Hz

(the actual resolutions supported depend on the monitor being used). Connect a monitor that supports

D-Sub connection to this port.

DVI-D Port (Note)

The DVI-D port conforms to the DVI-D specication and supports a maximum resolution of 1920x1200@60 Hz

(the actual resolutions supported depend on the monitor being used). Connect a monitor that supports

DVI-D connection to this port.

USB 3.2 Gen 1 Port

The USB 3.2 Gen 1 port supports the USB 3.2 Gen 1 specication and is compatible to the USB 2.0

specication. Use this port for USB devices.

RJ-45 LAN Port

The Gigabit Ethernet LAN port provides Internet connection at up to 1 Gbps data rate. The following

describes the states of the LAN port LEDs.

(Note) The DVI-D port does not support D-Sub connection by adapter.

Activity LED

Connection/

Speed LED

LAN Port

Activity LED:

Connection/Speed LED:

State Description

Orange 1 Gbps data rate

Green 100 Mbps data rate

Off 10 Mbps data rate

State Description

Blinking Data transmission or receiving is occurring

Off No data transmission or receiving is occurring

- 10 -

Table des matières

Autres manuels Gigabyte Carte mère

Gigabyte

Gigabyte GS-R11U4S Manuel utilisateur

Gigabyte

Gigabyte GA-P55A-UD3 Manuel utilisateur

Gigabyte

Gigabyte GA-H110M-S2PT Manuel utilisateur

Gigabyte

Gigabyte GA-H61MA-D3V Manuel utilisateur

Gigabyte

Gigabyte GA-7PESLN Manuel utilisateur

Gigabyte

Gigabyte GA-Q77M-D2H Manuel utilisateur

Gigabyte

Gigabyte GA-N3160N-D3V Manuel utilisateur

Gigabyte

Gigabyte GA-8IG1000MF Series Manuel utilisateur

Gigabyte

Gigabyte GA-Z77-D3H Manuel utilisateur

Gigabyte

Gigabyte GA-Z68A-D3-B3 Manuel utilisateur

Gigabyte

Gigabyte GA-K8NE-RH Manuel utilisateur

Gigabyte

Gigabyte GA-A320M-S2H Manuel utilisateur

Gigabyte

Gigabyte GA-MA780G-UD3H Manuel utilisateur

Gigabyte

Gigabyte GA-7ZMMC Manuel utilisateur

Gigabyte

Gigabyte GA-IMB370TN Manuel utilisateur

Gigabyte

Gigabyte X670 AORUS ELITE AX Manuel utilisateur

Gigabyte

Gigabyte GA-G41M-ES2H Manuel utilisateur

Gigabyte

Gigabyte GA-7TESH2-RH Manuel utilisateur

Gigabyte

Gigabyte GA-X38-DS5 Manuel utilisateur

Gigabyte

Gigabyte GA-686BLX Manuel utilisateur

Gigabyte

Gigabyte GA-8IRX Manuel utilisateur

Gigabyte

Gigabyte B760 DS3H AX Manuel utilisateur

Gigabyte

Gigabyte GA-8IEXRR Manuel utilisateur

Gigabyte

Gigabyte GA-945GCMX-S2 Manuel utilisateur

Manuels Carte mère populaires d'autres marques

DFI

DFI SD170 Manuel utilisateur

ASROCK

ASROCK ROMED8-2T Manuel utilisateur

Asus

Asus P2L97A Manuel utilisateur

Winmate

Winmate IC70 Manuel utilisateur

Asus

Asus MES-B Manuel utilisateur

Grantech

Grantech SYS8F377VGGA-3OMN Manuel utilisateur

Telit Wireless Solutions

Telit Wireless Solutions SL869-3DR Manuel utilisateur

Texas Instruments

Texas Instruments ADS8372EVM Manuel utilisateur

Commell

Commell MS-C73 Manuel utilisateur

IBT Technologies

IBT Technologies MB860 Manuel utilisateur

Nvidia

Nvidia TEGRA DG-04927-001_V01 Manuel utilisateur

Biostar

Biostar M7VIT Bravo Instructions d'utilisation et d'installation

Intel

Intel D33217CK Manuel utilisateur

Asus

Asus F1A55-M LX PLUS R2.0 Manuel utilisateur

EPC

EPC EPC9147C Manuel utilisateur

Asus

Asus EX-B760M-V5 D4 Manuel utilisateur

EPOX

EPOX MU-8KHA0010 Manuel utilisateur

Ski-Doo

Ski-Doo Bombardier MPEM 219 700 090 Manuel utilisateur
