Gigabyte B550M K Manuel utilisateur

For more product details, please visit GIGABYTE's website.

https://www.gigabyte.com/Motherboard/B550M-K-rev-10?m=ma#kf

GIGABYTE will reduce paper use in order to fulll the responsibilities of a global citizen.

Also, to reduce the impacts on global warming, the packaging materials of this product

are recyclable and reusable. GIGABYTE works with you to protect the environment.

B550M K

User's Manual

Rev. 1001

Questo manuale d’istruzione è fornito da trovaprezzi.it. Scopri tutte le offerte per Gigabyte B550M K

1.0 o cerca il tuo prodotto tra le migliori offerte di Schede Madri

The trademarks mentioned in this manual are legally registered to their respective owners.

Disclaimer

Information in this manual is protected by copyright laws and is the property of GIGABYTE.

Changes to the specications and features in this manual may be made by GIGABYTE without

prior notice. No part of this manual may be reproduced, copied, translated, transmitted, or

published in any form or by any means without GIGABYTE's prior written permission.

For detailed product information, carefully read the User's Manual.

For quick set-up of the product, refer to the Quick Installation Guide on GIGABYTE's

website.

https://download.gigabyte.com/FileList/Manual/mb_manual_installation-guide_103.pdf?m=sw

For product-related information, check on our website at: https://www.gigabyte.com

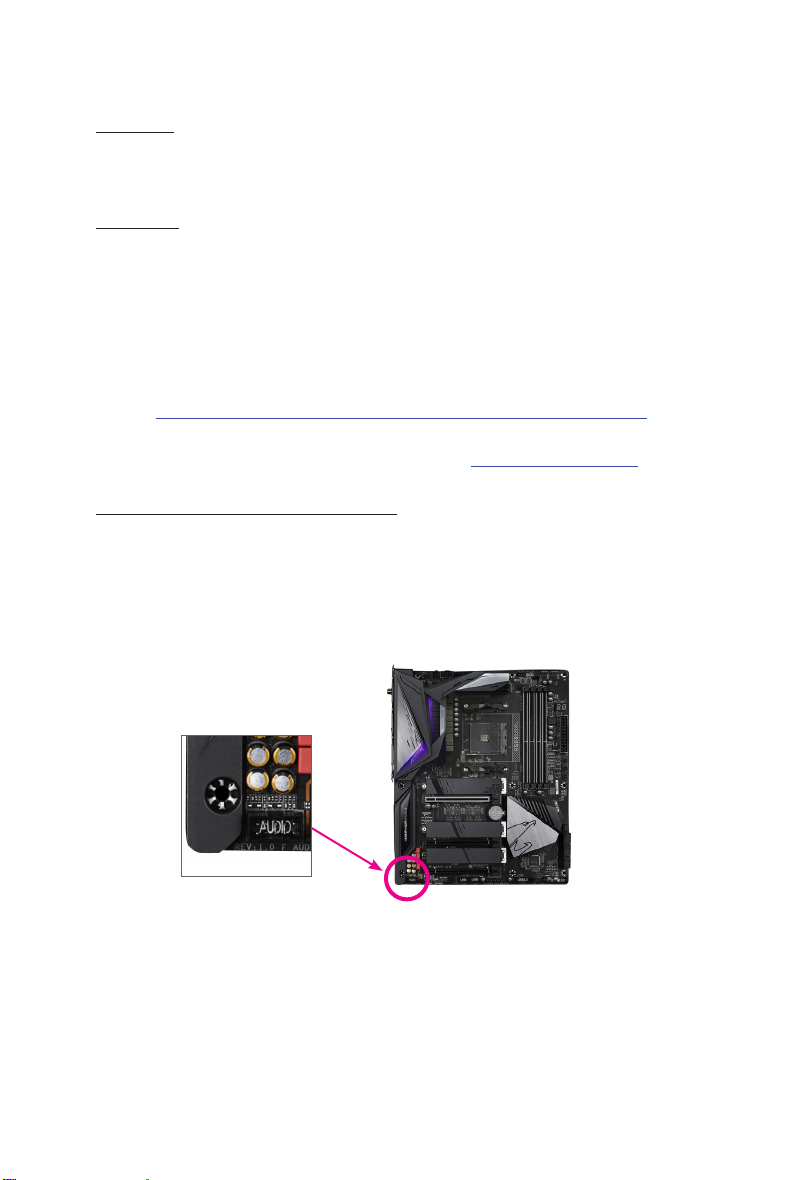

Identifying Your Motherboard Revision

The revision number on your motherboard looks like this: "REV: X.X." For example, "REV: 1.0"

means the revision of the motherboard is 1.0. Check your motherboard revision before updating

motherboard BIOS, drivers, or when looking for technical information.

Example:

- 3 -

Table of Contents

Chapter 1 Product Introduction.......................................................................................4

1-1 Motherboard Layout......................................................................................... 4

1-2 Box Contents.................................................................................................... 5

Chapter 2 Hardware Installation .....................................................................................6

2-1 Installation Precautions.................................................................................... 6

2-2 Product Specications...................................................................................... 7

2-3 Installing the CPU .......................................................................................... 10

2-4 Installing the Memory..................................................................................... 11

2-5 Installing an Expansion Card ......................................................................... 12

2-6 Back Panel Connectors.................................................................................. 13

2-7 Internal Connectors........................................................................................ 15

Chapter 3 BIOS Setup ..................................................................................................23

Chapter 4 Installing the Operating System and Drivers................................................25

4-1 Operating System Installation ........................................................................ 25

4-2 Drivers Installation.......................................................................................... 26

Chapter 5 Appendix ......................................................................................................27

5-1 Conguring a RAID Set.................................................................................. 27

Regulatory Notices.................................................................................................... 28

Contact Us ................................................................................................................ 29

- 4 -

KB_MS_USB

CPU_FAN

ATX

B550M K

AUDIO

DDR4_A1

DDR4_B2

BAT

ATX_12V

AMD

B550

DP_HDMI

CODEC

M_BIOS

PCIEX16

iTE®

Super I/O

Realtek®

GbE LAN

F_U32

F_USB1 F_PANEL

TPM

USB_LAN

Socket AM4

U32X4

CLR_CMOS

M2A_CPU

M2B_SB

0 3

1 2

SATA3

DDR4_A2

DDR4_B1

SYS_FAN1

F_AUDIO

PCIEX1

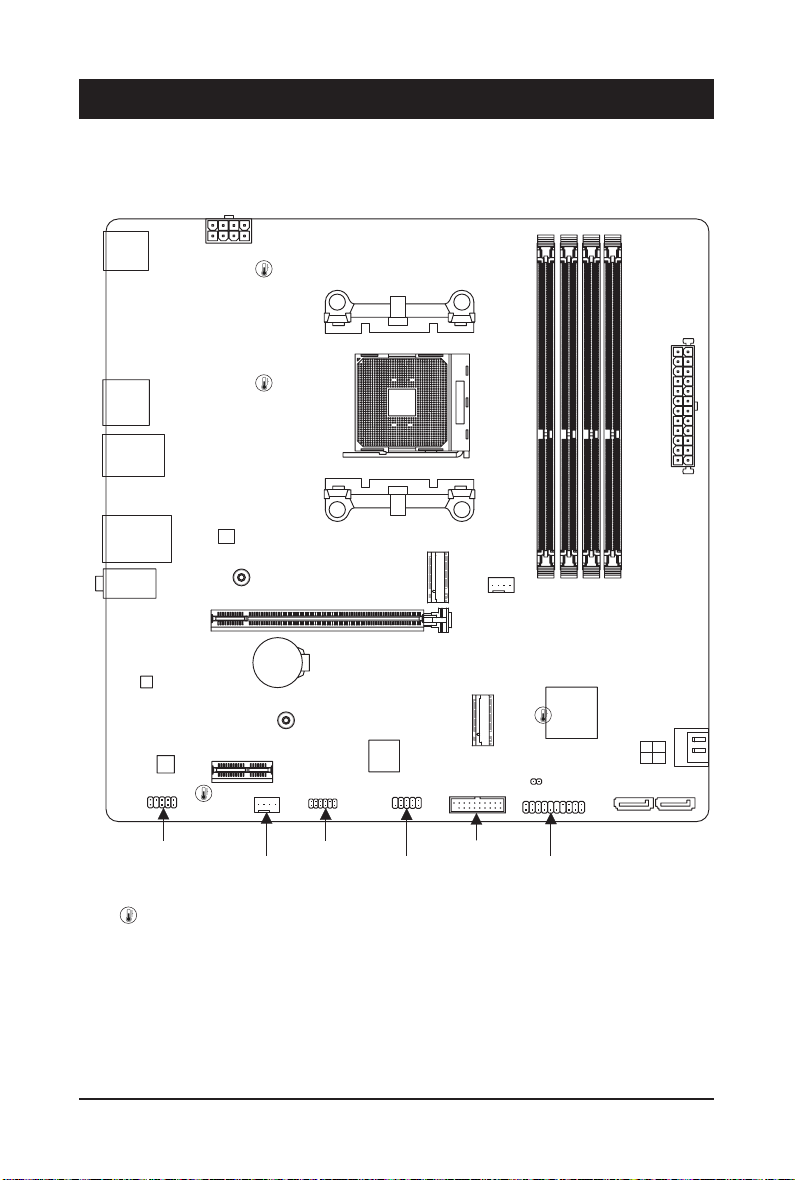

1-1 Motherboard Layout

Chapter 1 Product Introduction

Temperature sensor

- 5 -

1-2 Box Contents

5B550M K motherboard

5User's Manual

5One SATA cable

5I/O Shield

* The box contents above are for reference only and the actual items shall depend on the product package you obtain.

The box contents are subject to change without notice.

2-1 Installation Precautions

The motherboard contains numerous delicate electronic circuits and components which can become

damaged as a result of electrostatic discharge (ESD). Prior to installation, carefully read the user's

manual and follow these procedures:

•Prior to installation, make sure the chassis is suitable for the motherboard.

•Prior to installation, do not remove or break motherboard S/N (Serial Number) sticker or

warranty sticker provided by your dealer. These stickers are required for warranty validation.

•Always remove the AC power by unplugging the power cord from the power outlet before

installing or removing the motherboard or other hardware components.

•When connecting hardware components to the internal connectors on the motherboard, make

sure they are connected tightly and securely.

•When handling the motherboard, avoid touching any metal leads or connectors.

•It is best to wear an electrostatic discharge (ESD) wrist strap when handling electronic

components such as a motherboard, CPU or memory. If you do not have an ESD wrist strap,

keep your hands dry and rst touch a metal object to eliminate static electricity.

•Prior to installing the motherboard, please have it on top of an antistatic pad or within an

electrostatic shielding container.

•Before connecting or unplugging the power supply cable from the motherboard, make sure

the power supply has been turned off.

•Before turning on the power, make sure the power supply voltage has been set according to

the local voltage standard.

•Before using the product, please verify that all cables and power connectors of your hardware

components are connected.

•To prevent damage to the motherboard, do not allow screws to come in contact with the

motherboard circuit or its components.

•Make sure there are no leftover screws or metal components placed on the motherboard or

within the computer casing.

•Do not place the computer system on an uneven surface.

•Do not place the computer system in a high-temperature or wet environment.

•Turning on the computer power during the installation process can lead to damage to system

components as well as physical harm to the user.

•If you are uncertain about any installation steps or have a problem related to the use of the

product, please consult a certied computer technician.

•If you use an adapter, extension power cable, or power strip, ensure to consult with its installation

and/or grounding instructions.

Chapter 2 Hardware Installation

- 6 -

CPU AMD Socket AM4, support for:

AMD Ryzen™5000 G-Series Processors/

AMD Ryzen™5000 Series Processors/

AMD Ryzen™4000 G-Series Processors/

AMD Ryzen™3000 Series Processors

(Go to GIGABYTE's website for the latest CPU support list.)

Chipset AMD B550

Memory 4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity)

of system memory

Support for DDR4 3200/2933/2667/2400/2133 MT/s memory modules

Dual channel memory architecture

Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules

Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules

Support for Extreme Memory Prole (XMP) memory modules

(Go to GIGABYTE's website for the latest supported memory speeds and memory

modules.)

Onboard

Graphics

Integrated Graphics Processor:

- 1 x DisplayPort, supporting a maximum resolution of 5120x2880@60 Hz

* Support for DisplayPort 1.4 version, HDCP 2.3, and HDR.

- 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz

* Support for HDMI 2.1 version, HDCP 2.3, and HDR.

Maximum shared memory of 16 GB

Audio Realtek®Audio CODEC

High Denition Audio

2/4/5.1/7.1-channel

* You can change the functionality of an audio jack using the audio software. To congure

7.1-channel audio, access the audio software for audio settings.

LAN Realtek®GbE LAN chip (1 Gbps/100 Mbps)

Expansion Slots 1 x PCI Express x16 slot, integrated in the CPU:

- AMD Ryzen™5000 Series/3000 Series Processors support PCIe 4.0 x16 mode

- AMD Ryzen™5000 G-Series/4000 G-Series Processors support PCIe 3.0

x16 mode

1 x PCI Express x1 slot, integrated in the Chipset:

- Supporting PCIe 3.0 x1 mode

Storage Interface 1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3,

M key, type 2280 SSDs:

- AMD Ryzen™5000 Series/3000 Series Processors support SATA and PCIe

4.0 x4/x2 SSDs

- AMD Ryzen™5000 G-Series/4000 G-Series Processors support SATA and

PCIe 3.0 x4/x2 SSDs

1 x M.2 connector (M2B_SB), integrated in the Chipset, supporting Socket 3,

M key, type 2280 SSDs:

- Supporting PCIe 3.0 x2 SSDs

4 x SATA 6Gb/s connectors, integrated in the Chipset:

- Support for RAID 0, RAID 1, and RAID 10

2-2 ProductSpecications

- 7 -

USB CPU:

- 4 x USB 3.2 Gen 1 ports on the back panel

Chipset:

- 2 x USB 3.2 Gen 1 ports available through the internal USB header

- 6 x USB 2.0/1.1 ports (4 ports on the back panel, 2 ports available through

the internal USB header)

Internal

Connectors

1 x 24-pin ATX main power connector

1 x 8-pin ATX 12V power connector

1 x CPU fan header

1 x system fan header

2 x M.2 Socket 3 connectors

4 x SATA 6Gb/s connectors

1 x front panel header

1 x front panel audio header

1 x USB 3.2 Gen 1 header

1 x USB 2.0/1.1 header

1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S

module only)

1 x Clear CMOS jumper

Back Panel

Connectors

1 x PS/2 keyboard/mouse port

1 x DisplayPort

1 x HDMI port

4 x USB 3.2 Gen 1 ports

4 x USB 2.0/1.1 ports

1 x RJ-45 port

3 x audio jacks

I/O Controller iTE®I/O Controller Chip

Hardware

Monitor

Voltage detection

Temperature detection

Fan speed detection

Fan fail warning

Fan speed control

* Whether the fan speed control function is supported will depend on the cooler you

install.

BIOS 1 x 128 Mbit ash

Use of licensed AMI UEFI BIOS

PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Unique Features Support for APP Center

* Available applications in APP Center may vary by motherboard model. Supported

functions of each application may also vary depending on motherboard specications.

- @BIOS

- EasyTune

- Smart Backup

- System Information Viewer

Support for Q-Flash

Support for Xpress Install

- 8 -

Bundled

Software

Norton®Internet Security (OEM version)

LAN bandwidth management software

Operating

System

Support for Windows 11 64-bit

Support for Windows 10 64-bit

Form Factor Micro ATX Form Factor; 24.4cm x 24.4cm

* GIGABYTE reserves the right to make any changes to the product specications and product-related information without

prior notice.

&Please visit GIGABYTE's website for support lists of CPU, memory modules, SSDs, and M.2 devices.

https://www.gigabyte.com/Motherboard/B550M-K-rev-10?m=dl#support-dl

&Please visit the SERVICE/SUPPORT\Utility page on GIGABYTE's website to download the latest

version of apps.

https://www.gigabyte.com/Support/Utility/Motherboard?m=ut

- 9 -

2-3 Installing the CPU

Read the following guidelines before you begin to install the CPU:

•Make sure that the motherboard supports the CPU.

(Go to GIGABYTE's website for the latest CPU support list.)

•Always turn off the computer and unplug the power cord from the power outlet before installing the

CPU to prevent hardware damage.

•Locate the pin one of the CPU. The CPU cannot be inserted if oriented incorrectly.

•Apply an even and thin layer of thermal grease on the surface of the CPU.

•Do not turn on the computer if the CPU cooler is not installed, otherwise overheating and damage

of the CPU may occur.

•Set the CPU host frequency in accordance with the CPU specications. It is not recommended

that the system bus frequency be set beyond hardware specications since it does not meet the

standard requirements for the peripherals. If you wish to set the frequency beyond the standard

specications, please do so according to your hardware specications including the CPU, graphics

card, memory, hard drive, etc.

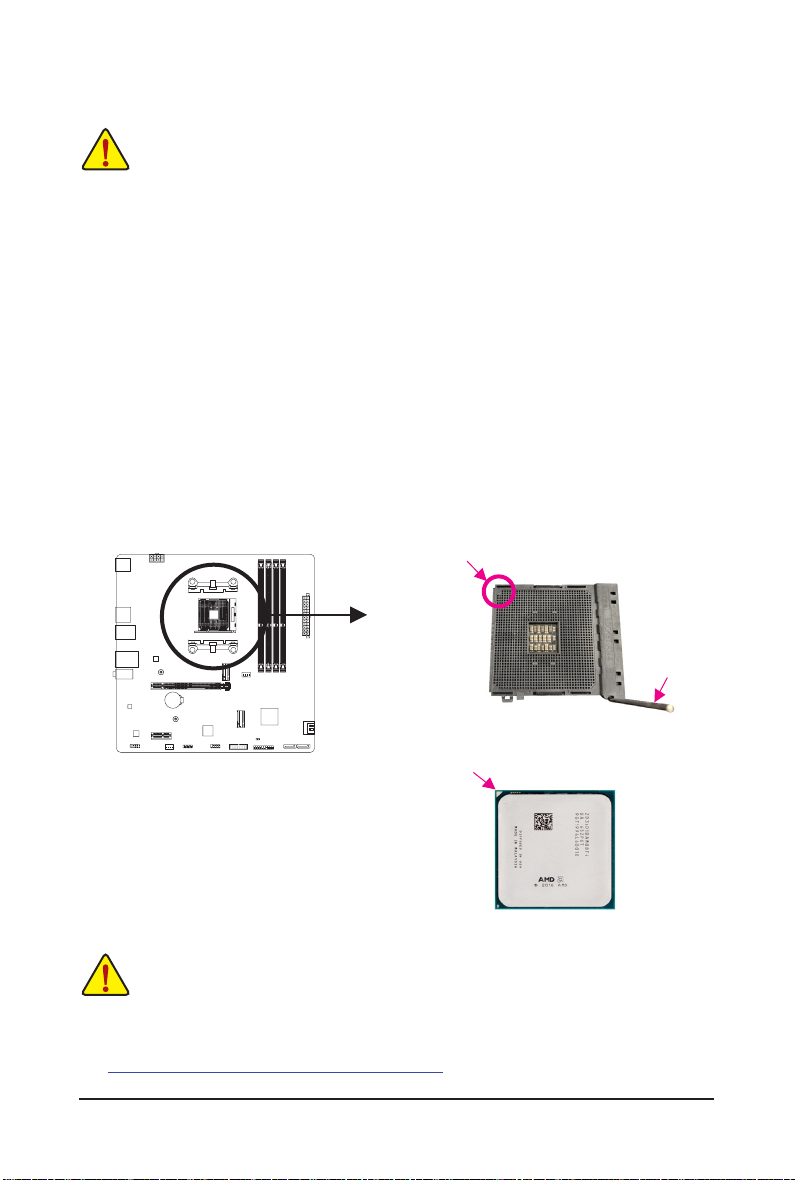

Installing the CPU

Completely lift up the CPU socket locking lever. Locate the pin one (denoted by a small triangle) of the CPU

socket and the CPU. Once the CPU is positioned into its socket, place one nger down on the middle of the

CPU, lowering the locking lever and latching it into the fully locked position.

Do not force the CPU into the CPU socket before the CPU socket locking lever is lifted up, or

damage to the CPU and CPU socket may occur.

&Please visit GIGABYTE's website for details on hardware installation.

http://www.gigabyte.com/WebPage/210/quick-guide.html?m=sw

AM4 CPU

A Small Triangle

Marking Denotes CPU

Pin One

AM4 CPU Socket

A Small Triangle

Marking Denotes Pin

One of the Socket

Completely lift up the

CPU socket locking lever

- 10 -

Table des matières

Autres manuels Gigabyte Carte mère

Gigabyte

Gigabyte GA-8IDML Series Manuel utilisateur

Gigabyte

Gigabyte GA-990FXA-UD5 R5 Manuel utilisateur

Gigabyte

Gigabyte GA-F2A55M-S1 Manuel utilisateur

Gigabyte

Gigabyte H510M H Manuel utilisateur

Gigabyte

Gigabyte Z590 Series Manuel utilisateur

Gigabyte

Gigabyte GA-870A-UD3 Manuel utilisateur

Gigabyte

Gigabyte 8VM533M-RZ Manuel utilisateur

Gigabyte

Gigabyte GA-F2A68HM-HD2 Manuel utilisateur

Gigabyte

Gigabyte X570S AERO G Manuel utilisateur

Gigabyte

Gigabyte GA-A55-DS3P Manuel utilisateur

Gigabyte

Gigabyte GA-9ILDTH Manuel utilisateur

Gigabyte

Gigabyte GA-8SMMLP Manuel utilisateur

Gigabyte

Gigabyte MW31-SP0 Manuel utilisateur

Gigabyte

Gigabyte B450M GAMING Manuel utilisateur

Gigabyte

Gigabyte GA-A320M-D2P Manuel utilisateur

Gigabyte

Gigabyte GA-B150-HD3 Manuel utilisateur

Gigabyte

Gigabyte GA-8PEMT4 Manuel utilisateur

Gigabyte

Gigabyte GA-F2A75-D3H Manuel utilisateur

Gigabyte

Gigabyte 7VT600P-RZ Manuel utilisateur

Gigabyte

Gigabyte GA-8I915G Duo Manuel utilisateur

Gigabyte

Gigabyte GA-EP31-DS3LP Manuel utilisateur

Gigabyte

Gigabyte GA-VT890P Manuel utilisateur

Gigabyte

Gigabyte GA-8IMMT4 Manuel utilisateur

Gigabyte

Gigabyte GA-M61PME-S2 Manuel utilisateur

Manuels Carte mère populaires d'autres marques

DFI

DFI SD170 Manuel utilisateur

ASROCK

ASROCK ROMED8-2T Manuel utilisateur

Asus

Asus P2L97A Manuel utilisateur

Winmate

Winmate IC70 Manuel utilisateur

Asus

Asus MES-B Manuel utilisateur

Grantech

Grantech SYS8F377VGGA-3OMN Manuel utilisateur

Telit Wireless Solutions

Telit Wireless Solutions SL869-3DR Manuel utilisateur

Texas Instruments

Texas Instruments ADS8372EVM Manuel utilisateur

Commell

Commell MS-C73 Manuel utilisateur

IBT Technologies

IBT Technologies MB860 Manuel utilisateur

Nvidia

Nvidia TEGRA DG-04927-001_V01 Manuel utilisateur

Biostar

Biostar M7VIT Bravo Instructions d'utilisation et d'installation

Intel

Intel D33217CK Manuel utilisateur

Asus

Asus F1A55-M LX PLUS R2.0 Manuel utilisateur

EPC

EPC EPC9147C Manuel utilisateur

Asus

Asus EX-B760M-V5 D4 Manuel utilisateur

EPOX

EPOX MU-8KHA0010 Manuel utilisateur

Ski-Doo

Ski-Doo Bombardier MPEM 219 700 090 Manuel utilisateur
