Gigabyte 6LMM7 Manuel utilisateur

R-10-02-090114

6LMM7

USER'S MANUAL

1. System power on by PS/2 Mouse: First, enable this function

in CMOS Setup, then you can power on the system by double

clicking the right or left button of your PS/2 Mouse.

2. System power on by Keyboard: If your ATX power supply

supports larger than 300 mA 5V Stand-By current (dependent

on the specification of keyboards), you can power on your

system by entering password from the Keyboard after setting

the “Keyboard power on” jumper (JP1) and password in

CMOS Setup.

3. Support 3 steps ACPI LED selectable.

4. Support Modem Ring-On. (Include internal Modem and

external modem on COM A and COM B)

5. Support Wake-up On LAN. (Your ATX power supply must

support larger than 720 mA 5V Stand-By current)

6. ATI RAGE PRO AGP Display Onboard.

7. YAMAHA PCI Sound Onboard.

Intel



Celeron TM Processor MAINBOARD

REV. 1.0 Second Edition

6LMM7

The author assumes no responsibility for any errors or omissions that may

appear in this document nor does it make a commitment to update the

information contained herein.

Third-party brands and names are the property of their respective owners.

January 14, 1999 Taipei, Taiwan

Quick Installation Guide

I. Quick Installation Guide :

CPU SPEED SETUP

The default system bus speed is 66 MHz. The user can change the DIP

SWITCH (SW) selection to set up the CPU speed for 366 - 433MHz

processor.





The CPU speed must match with the frequency RATIO. It will cause

system hanging up if the frequency RATIO is higher than that of CPU.

DIP SWITCH (SW)

12 3 4

FREQ. RATIO EXT.CLK. MHz INT.CLK. MHz

OFF ON OFF ON 4.5 66 300

ON OFF OFF ON 5 66 333

OFF OFF OFF ON 5.5 66 366

ON ON ON OFF 6 66 400

OFF ON ON OFF 6.5 66 433

JP2, JP3, JP4 (Select the system speed－66, 75, 83 MHz )

MAIN CLOCK JP4 JP3 JP2

66MHz 2-3 2-3 2-3

75MHz 2-3 1-2 2-3

83MHz 1-2 2-3 1-2





Note: We don’t recommend you to setup your system speed to 75 or

83MHz because these frequencies are not the standard

specifications for CPU, Chipset and most of the peripherals.

Whether your system can run under 75 or 83MHz properly will

depend on your hardware configurations: CPU, SDRAM, Cards,

etc.

6LMM7

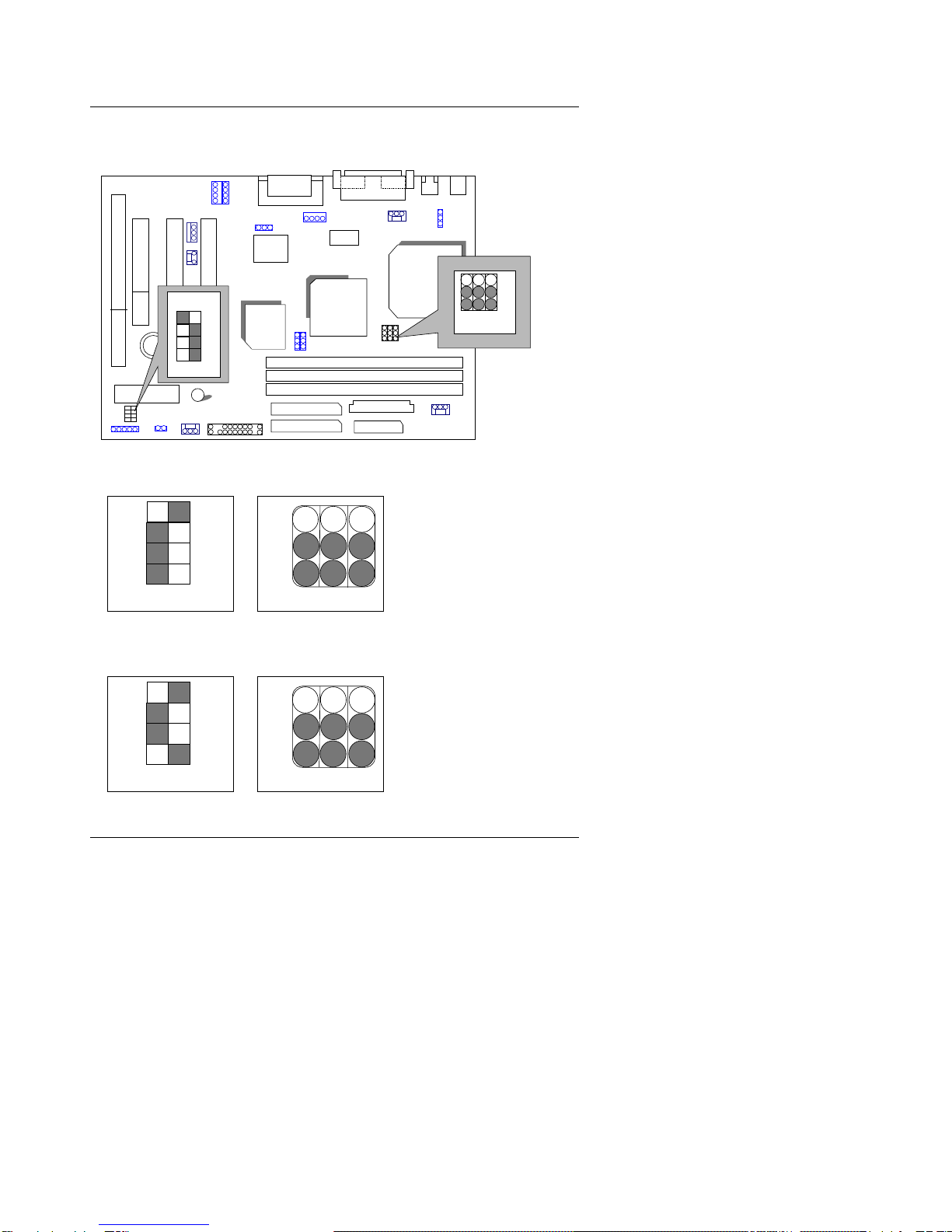

1. CeleronTM 366 MHz / 66MHz FSB

6LMM7

BIOS

YAMAHA

ATi

RAGE PRO

AGP

PIIX4E

CPU 1

JP2

JP3

JP4

INTEL

82443LX

OFF1

2. CeleronTM 400 MHz / 66MHz FSB

JP4 JP3 JP2

OFF

3. CeleronTM 433 MHz / 66MHz FSB

JP4 JP3 JP2

OFF

Quick Installation Guide

II. Jumper setting :

GN : Green Function Switch

6LMM7

BIOS

YAMAHA

ATi

RAGE PRO

AGP

PIIX4E

CPU

INTEL

82443LX

Open:

Normal

operation

Short:

Entering

Green

mode

GD : Green Function LED

6LMM7

BIOS

YAMAHA

ATi

RAGE PRO

AGP

PIIX4E

CPU

INTEL

82443LX

PIN FUNCTION

1LED (+)

2LED (-)

6LMM7

HD : IDE Hard Disk Active LED

6LMM7

BIOS

YAMAHA

ATi

RAGE PRO

AGP

PIIX4E

CPU

INTEL

82443LX

PIN FUNCTION

1LED (+)

2LED (-)

SPKR : External Speaker/ Internal Buzzer Connector

6LMM7

BIOS

YAMAHA

ATi

RAGE PRO

AGP

PIIX4E

CPU

INTEL

82443LX

PIN FUNCTION

1VCC

2VCC

3Data

4Data

External Speak

Default :

Internal Buzzer

Buzzer

Quick Installation Guide

RES : Reset Switch

6LMM7

BIOS

YAMAHA

ATi

RAGE PRO

AGP

PIIX4E

CPU

INTEL

82443LX

Open:

Normal

operation

Short:

Reset system

PWR : Power LED Connector (as 3 steps ACPI LED)

6LMM7

BIOS

YAMAHA

ATi

RAGE PRO

AGP

PIIX4E

CPU

INTEL

82443LX

PIN FUNCTION

1LED (+)

2LED (-)

3LED (-)

6LMM7

PW: Soft Power Connector

6LMM7

BIOS

YAMAHA

ATi

RAGE PRO

AGP

PIIX4E

CPU

INTEL

82443LX

PIN FUNCTION

1Signal

2GND

IR: Soft Power Connector (Optional)

6LMM7

BIOS

YAMAHA

ATi

RAGE PRO

AGP

PIIX4E

CPU

INTEL

82443LX

Pin No.

IR Data

Output

GND

IR Data

POWER (+)

Function

Quick Installation Guide

PS/2 Mouse / Keyboard Connector

6LMM7

BIOS

YAMAHA

ATi

RAGE PRO

AGP

PIIX4E

CPU

INTEL

82443LX

Pin No. Function

5Clock

Data

VCC (+5V)

GND

PS/2

Mouse/Keyboard

6NC

PS/2 Keyboard

PS/2 Mouse

CPU FAN : CPU Cooling Fan Power Connector

6LMM7

BIOS

YAMAHA

ATi

RAGE PRO

AGP

PIIX4E

CPU

INTEL

82443LX

Pin No. Function

GND

+12V

SENSE
