GIGA-BYTE TECHNOLOGY Z690 UD AC Manuel utilisateur

To reduce the impacts on global warming, the packaging materials of this product

are recyclable and reusable. GIGABYTE works with you to protect the environment.

Z690 UD AC

Z690 UD AX

Z690 UD

Z690 UD AX DDR4

Z690 UD DDR4

User's Manual

Rev. 1101

12ME-Z69UDX4-1101R

For more product details, please visit GIGABYTE's website.

Z690 UD AC Z690 UD AX Z690 UD Z690 UD AX DDR4 Z690 UD DDR4

The trademarks mentioned in this manual are legally registered to their respective owners.

Disclaimer

Information in this manual is protected by copyright laws and is the property of GIGABYTE.

Changes to the specications and features in this manual may be made by GIGABYTE without

prior notice. No part of this manual may be reproduced, copied, translated, transmitted, or

published in any form or by any means without GIGABYTE's prior written permission.

In order to assist in the use of this product, carefully read the User's Manual.

For product-related information, check on our website at: https://www.gigabyte.com

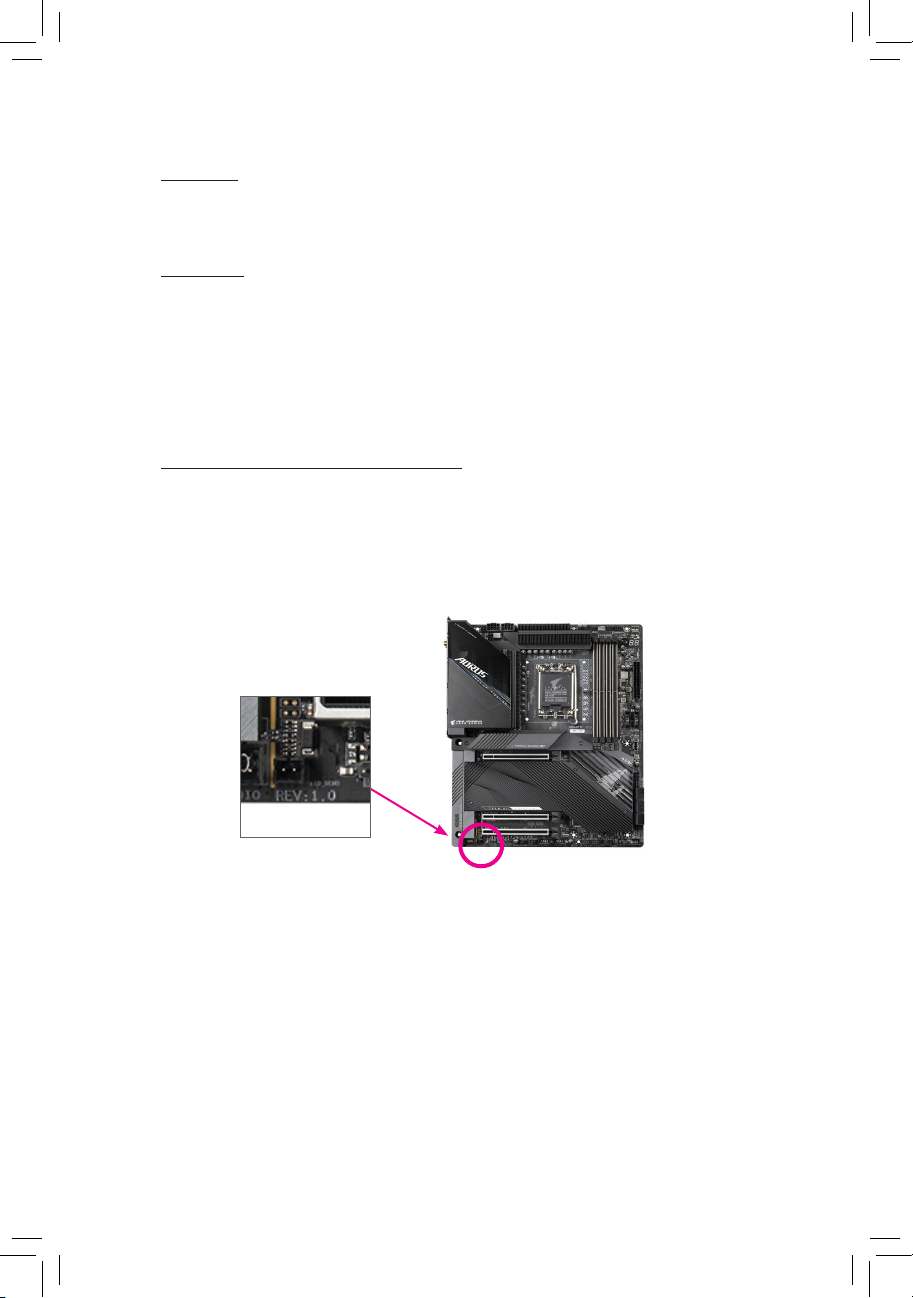

Identifying Your Motherboard Revision

The revision number on your motherboard looks like this: "REV: X.X." For example, "REV: 1.0"

means the revision of the motherboard is 1.0. Check your motherboard revision before

updating motherboard BIOS, drivers, or when looking for technical information.

Example:

- 3 -

Table of Contents

Chapter 1 Product Introduction.......................................................................................4

1-1 Motherboard Layout......................................................................................... 4

1-2 Box Contents.................................................................................................... 6

Chapter 2 Hardware Installation .....................................................................................7

2-1 Installation Precautions.................................................................................... 7

2-2 Product Specications...................................................................................... 8

2-3 Installing the CPU and CPU Cooler ............................................................... 12

2-4 Installing the Memory..................................................................................... 15

2-5 Installing an Expansion Card ......................................................................... 16

2-6 Back Panel Connectors.................................................................................. 17

2-7 Internal Connectors........................................................................................ 19

Chapter 3 BIOS Setup ..................................................................................................33

Chapter 4 Installing the Operating System and Drivers................................................35

4-1 Operating System Installation ........................................................................ 35

4-2 Drivers Installation.......................................................................................... 36

Chapter 5 Appendix ......................................................................................................37

5-1 Conguring a RAID Set.................................................................................. 37

Regulatory Notices.................................................................................................... 38

Contact Us ................................................................................................................ 44

- 4 -

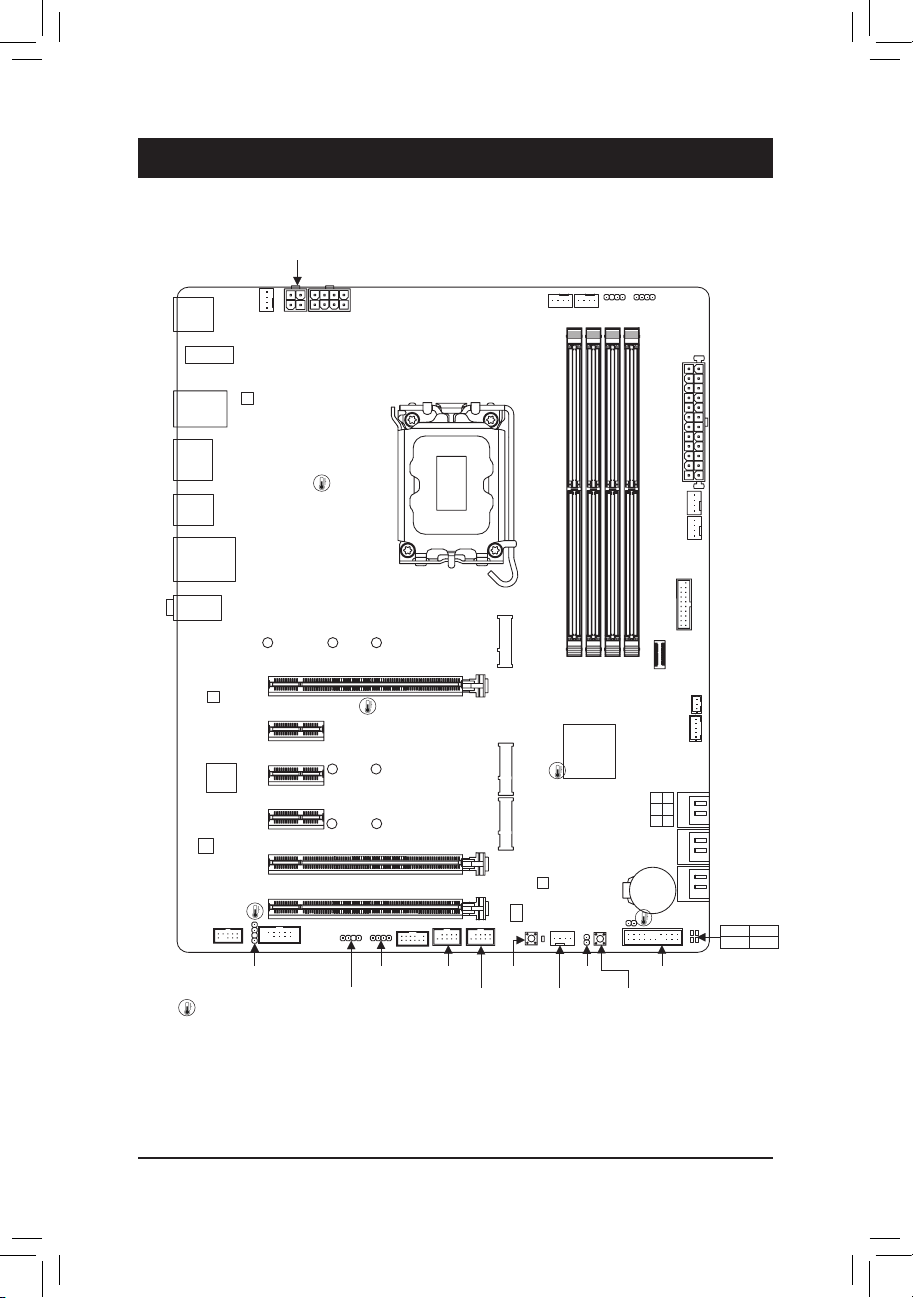

1-1 Motherboard Layout

LGA1700

Chapter 1 Product Introduction

KB_MS_USB20

DP_HDMI

U32_20

U32_LAN

ATX

AUDIO

ATX_12V_2X4

Intel®Z690

CLR_CMOS

M_BIOS

PCIEX1_4

PCIEX16

PCIEX1_3

F_U32

M2A_CPU

CODEC

Z690 UD AC/Z690 UD AX/Z690 UD

F_PANEL

F_USB2

LED_C1

F_AUDIO

COM SPI_TPM

SYS_FAN1

SYS_FAN2A

CPU_FAN

iTE®

Super I/O

SATA3

7 6

5 4

3 2

BAT

Realtek®

2.5GbE LAN

CPU DRAM

VGA BOOT

U320G

U32G2

THB_C1

M2Q_SB

ATX_12V_2X2

DDR5_B1

DDR5_B2

DDR5_A1

DDR5_A2

D_LED2 LED_C2

QFLASH_PLUS

60110

M2P_SB

SYS_FAN3_

PUMP

D_LED1

SPDIF_O

QFLED

THB_C2

F_U32C

80 60

F_USB1

Temperature sensor

USB 2.0 Hub

M2_WIFIjk

USB 2.0 Hub

jOnly for Z690 UD AC.

kOnly for Z690 UD AX.

RST_SW

RST

SYS_FAN2B

CPU_OPT

PCIEX1_2

PCIEX4

80 60

PCIEX1_1j

- 5 -

LGA1700

KB_MS_USB20

DP_HDMI

U32_20

U32_LAN

ATX

AUDIO

ATX_12V_2X4

Intel®Z690

CLR_CMOS

M_BIOS

PCIEX1_4

PCIEX16

PCIEX1_3

F_U32

M2A_CPU

CODEC

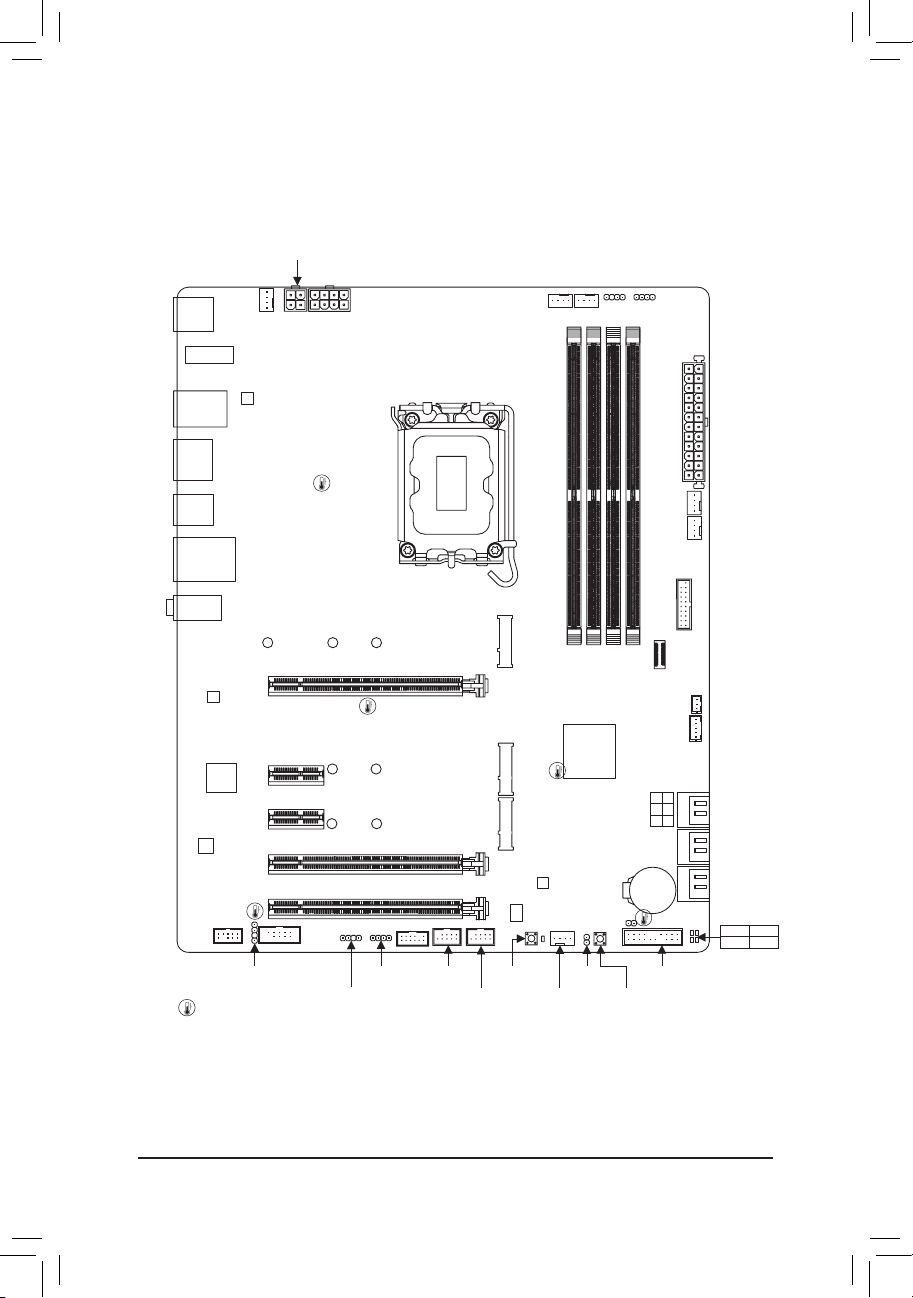

Z690 UD AX DDR4/Z690 UD DDR4

F_PANELF_USB2LED_C1

F_AUDIO

COM SPI_TPM

SYS_FAN1

SYS_FAN2A

CPU_FAN

iTE®

Super I/O

SATA3

7 6

5 4

3 2

BAT

Realtek®

2.5GbE LAN

CPU DRAM

VGA BOOT

U320G

U32G2

THB_C1

M2Q_SB

ATX_12V_2X2

DDR4_B1

DDR4_B2

DDR4_A1

DDR4_A2

D_LED2 LED_C2

QFLASH_PLUS

60110

M2P_SB

SYS_FAN3_

PUMP

D_LED1

SPDIF_O

QFLED

THB_C2

F_U32C

80 60

F_USB1

Temperature sensor

USB 2.0 Hub

M2_WIFIm

USB 2.0 Hub

mOnly for Z690 UD AX DDR4.

RST_SW

RST

SYS_FAN2B

CPU_OPT

PCIEX1_2

PCIEX4

80 60

- 6 -

1-2 Box Contents

5Z690 UD AC, Z690 UD AX, Z690 UD, Z690 UDAX DDR4,or

Z690 UD DDR4 motherboard

5User's Manual

5Antennajkm

5Two SATA cables

5M.2 screws

* The box contents above are for reference only and the actual items shall depend on the product package you obtain.

The box contents are subject to change without notice.

jOnly for Z690 UD AC.

kOnly for Z690 UD AX.

mOnly for Z690 UD AX DDR4.

- 7 -

2-1 Installation Precautions

The motherboard contains numerous delicate electronic circuits and components which can become

damaged as a result of electrostatic discharge (ESD). Prior to installation, carefully read the user's

manual and follow these procedures:

•Prior to installation, make sure the chassis is suitable for the motherboard.

•Prior to installation, do not remove or break motherboard S/N (Serial Number) sticker or

warranty sticker provided by your dealer. These stickers are required for warranty validation.

•Always remove the AC power by unplugging the power cord from the power outlet before

installing or removing the motherboard or other hardware components.

•When connecting hardware components to the internal connectors on the motherboard, make

sure they are connected tightly and securely.

•When handling the motherboard, avoid touching any metal leads or connectors.

•It is best to wear an electrostatic discharge (ESD) wrist strap when handling electronic

components such as a motherboard, CPU or memory. If you do not have an ESD wrist strap,

keep your hands dry and rst touch a metal object to eliminate static electricity.

•Prior to installing the motherboard, please have it on top of an antistatic pad or within an

electrostatic shielding container.

•Before connecting or unplugging the power supply cable from the motherboard, make sure

the power supply has been turned off.

•Before turning on the power, make sure the power supply voltage has been set according to

the local voltage standard.

•Before using the product, please verify that all cables and power connectors of your hardware

components are connected.

•To prevent damage to the motherboard, do not allow screws to come in contact with the

motherboard circuit or its components.

•Make sure there are no leftover screws or metal components placed on the motherboard or

within the computer casing.

•Do not place the computer system on an uneven surface.

•Do not place the computer system in a high-temperature or wet environment.

•Turning on the computer power during the installation process can lead to damage to system

components as well as physical harm to the user.

•If you are uncertain about any installation steps or have a problem related to the use of the

product, please consult a certied computer technician.

•If you use an adapter, extension power cable, or power strip, ensure to consult with its installation

and/or grounding instructions.

Chapter 2 Hardware Installation

- 8 -

2-2 ProductSpecications

CPU LGA1700 socket: Support for 12th Generation Intel®Core™i9 processors/Intel®

Core™i7 processors/Intel®Core™i5 processors

(Go to GIGABYTE's website for the latest CPU support list.)

L3 cache varies with CPU

Chipset Intel®Z690 Express Chipset

Memory Support for DDR5 4800/4000 MHz memory modulesjkl

Support for DDR4 3200/3000/2933/2666/2400/2133 MHz memory modulesmn

4 x DDR DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity)

of system memory

Dual channel memory architecture

Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in

non-ECC mode)

Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules

Support for Extreme Memory Prole (XMP) memory modules

(Go to GIGABYTE's website for the latest supported memory speeds and memory

modules.)

Onboard

Graphics

Integrated Graphics Processor-Intel®HD Graphics support:

- 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz

* Support for HDMI 2.0 version and HDCP 2.3.

- 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz

* Support for DisplayPort 1.2 version and HDCP 2.3

(Graphics specications may vary depending on CPU support.)

Audio Realtek®Audio CODEC

High Denition Audio

2/4/5.1/7.1-channel

* To congure 7.1-channel audio, you need to open the audio software and select

Device advanced settings > Playback Device to change the default setting rst.

Please visit GIGABYTE's website for details on conguring the audio software.

Support for S/PDIF Out

LAN Realtek®2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)

Wireless

Communication

Modulej

Intel®Wi-Fi AC 9560

- WIFI a, b, g, n, ac, supporting 2.4/5 GHz Dual-Band

- BLUETOOTH 5.1

- Support for 11ac 160MHz wireless standard and up to 1.73 Mbps data rate.

* Actual data rate may vary depending on environment and equipment.

Wireless

Communication

Modulek

Intel®Wi-Fi 6 AX201 (For PCB rev. 1.0)

Intel®Wi-Fi 6 AX200 (For PCB rev. 1.1)

- WIFI a, b, g, n, ac, ax, supporting 2.4/5 GHz carrier frequency bands

Intel®Wi-Fi 6E AX211 (For PCB rev. 1.2)

- WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands

- BLUETOOTH 5.2

- Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate

* Actual data rate may vary depending on environment and equipment.

jOnly for Z690 UD AC.

kOnly for Z690 UD AX.

lOnly for Z690 UD.

mOnly for Z690 UD AX DDR4.

nOnly for Z690 UD DDR4.

- 9 -

Wireless

Communication

Modulem

Intel®Wi-Fi 6 AX201 (For PCB rev. 1.0)

Intel®Wi-Fi 6 AX200 (For PCB rev. 1.1/1.2)

- WIFI a, b, g, n, ac, ax, supporting 2.4/5 GHz carrier frequency bands

Intel®Wi-Fi 6E AX211 (For PCB rev. 1.3/1.4)

- WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands

- BLUETOOTH 5.2

- Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate

* Actual data rate may vary depending on environment and equipment.

Expansion Slots 1 x PCI Express x16 slot, running at x16 (PCIEX16)

* For optimum performance, if only one PCI Express graphics card is to be installed,

be sure to install it in the PCIEX16 slot.

(The PCIEX16 slot conforms to PCI Express 5.0 standard.)

1 x PCI Express x16 slot, running at x4 (PCIEX4)

1 x PCI Express x16 slot, running at x1 (PCIEX1_4)

3 x PCI Express x1 slotsj

2 x PCI Express x1 slotsklmn

(The PCIEX4 and PCIEX1 slots conform to PCI Express 3.0 standard.)

Multi-Graphics

Technology Support for AMD Quad-GPU CrossFire™and 2-Way AMD CrossFire™technologies

Storage Interface CPU:

- 1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 PCIe 4.0 x4/x2

SSD support) (M2A_CPU)

Chipset:

- 1 x M.2 connector (Socket 3, M key, type 2260/2280 PCIe 4.0 x4/x2 SSD

support) (M2P_SB)

- 1 x M.2 connector (Socket 3, M key, type 2260/2280 PCIe 4.0 x4/x2 SSD

support) (M2Q_SB)

- 6 x SATA 6Gb/s connectors

Support for RAID 0, RAID 1, RAID 5, and RAID 10

Intel®Optane™Memory Ready

* System acceleration with Intel®Optane™Memory can only be enabled on the M.2

connectors supported by the Chipset.

USB Chipset:

- 1 x USB Type-C®port on the back panel, with USB 3.2 Gen 2x2 support

- 1 x USB Type-C®port with USB 3.2 Gen 1 support, available through the

internal USB header

- 1 x USB 3.2 Gen 2 Type-A ports (red) on the back panel

- 6 x USB 3.2 Gen 1 ports (4 ports on the back panel, 2 ports available through

the internal USB header)

Chipset+2 USB 2.0 Hubs:

- 8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through

the internal USB headers)

jOnly for Z690 UD AC.

kOnly for Z690 UD AX.

lOnly for Z690 UD.

mOnly for Z690 UD AX DDR4.

nOnly for Z690 UD DDR4.

- 10 -

Internal

Connectors

1 x 24-pin ATX main power connector

1 x 8-pin ATX 12V power connector

1 x 4-pin ATX 12V power connector

1 x CPU fan header

1 x water cooling CPU fan header

3 x system fan headers

1 x system fan/water cooling pump header

2 x addressable LED strip headers

2 x RGB LED strip headers

3 x M.2 Socket 3 connectors

6 x SATA 6Gb/s connectors

1 x front panel header

1 x front panel audio header

1 x S/PDIF Out header

1 x USB Type-C®header, with USB 3.2 Gen 1 support

1 x USB 3.2 Gen 1 header

2 x USB 2.0/1.1 headers

1 x serial port header

2 x Thunderbolt™add-in card connectors

1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI

2.0 module only)

1 x reset button

1 x reset jumper

1 x Q-Flash Plus button

1 x Clear CMOS jumper

Back Panel

Connectors

1 x PS/2 keyboard/mouse port

2 x SMA antenna connectors (2T2R)jkm

1 x DisplayPort

1 x HDMI port

1 x USB Type-C®port, with USB 3.2 Gen 2x2 support

1 x USB 3.2 Gen 2 Type-A port (red)

4 x USB 3.2 Gen 1 ports

4 x USB 2.0/1.1 ports

1 x RJ-45 port

3 x audio jacks

I/O Controller iTE®I/O Controller Chip

Hardware

Monitor

Voltage detection

Temperature detection

Fan speed detection

Water cooling ow rate detection

Fan fail warning

Fan speed control

* Whether the fan (pump) speed control function is supported will depend on the fan

(pump) you install.

jOnly for Z690 UD AC.

kOnly for Z690 UD AX.

mOnly for Z690 UD AX DDR4.

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels GIGA-BYTE TECHNOLOGY Carte mère

GIGA-BYTE TECHNOLOGY

GIGA-BYTE TECHNOLOGY H310M D3H 2.0 Manuel utilisateur

GIGA-BYTE TECHNOLOGY

GIGA-BYTE TECHNOLOGY GA-AB350M-DS3H Manuel utilisateur

GIGA-BYTE TECHNOLOGY

GIGA-BYTE TECHNOLOGY GA-MA78GM-US2H Manuel utilisateur

GIGA-BYTE TECHNOLOGY

GIGA-BYTE TECHNOLOGY GA-H110TN-M Manuel utilisateur

GIGA-BYTE TECHNOLOGY

GIGA-BYTE TECHNOLOGY GA-IMBLAP3450 Manuel utilisateur

GIGA-BYTE TECHNOLOGY

GIGA-BYTE TECHNOLOGY GA-X99-Phoenix SLI Manuel utilisateur

GIGA-BYTE TECHNOLOGY

GIGA-BYTE TECHNOLOGY H410M DS2V V2 Manuel utilisateur

GIGA-BYTE TECHNOLOGY

GIGA-BYTE TECHNOLOGY GA-B250M-HD3 Manuel utilisateur

GIGA-BYTE TECHNOLOGY

GIGA-BYTE TECHNOLOGY MX32-BS0 Manuel utilisateur

GIGA-BYTE TECHNOLOGY

GIGA-BYTE TECHNOLOGY GA-H110M-S2PV DDR3 Manuel utilisateur

GIGA-BYTE TECHNOLOGY

GIGA-BYTE TECHNOLOGY B660M DS3H AX DDR4 Manuel utilisateur

GIGA-BYTE TECHNOLOGY

GIGA-BYTE TECHNOLOGY B560I AORUS PRO AX Manuel utilisateur

GIGA-BYTE TECHNOLOGY

GIGA-BYTE TECHNOLOGY GA-970A-D3P Manuel utilisateur

GIGA-BYTE TECHNOLOGY

GIGA-BYTE TECHNOLOGY Z690 AORUS ELITE AX Manuel utilisateur

GIGA-BYTE TECHNOLOGY

GIGA-BYTE TECHNOLOGY GA-F2A55M-S1 Manuel utilisateur

GIGA-BYTE TECHNOLOGY

GIGA-BYTE TECHNOLOGY GA-B150M-D3V Manuel utilisateur

GIGA-BYTE TECHNOLOGY

GIGA-BYTE TECHNOLOGY Z790 AORUS PRO X Manuel utilisateur

GIGA-BYTE TECHNOLOGY

GIGA-BYTE TECHNOLOGY GA-A320-DS3 Manuel utilisateur

GIGA-BYTE TECHNOLOGY

GIGA-BYTE TECHNOLOGY GA-IMB4100TN Manuel utilisateur

GIGA-BYTE TECHNOLOGY

GIGA-BYTE TECHNOLOGY Z790 AERO G Manuel utilisateur

GIGA-BYTE TECHNOLOGY

GIGA-BYTE TECHNOLOGY H510M S2 Manuel utilisateur

GIGA-BYTE TECHNOLOGY

GIGA-BYTE TECHNOLOGY H410M H V3 Manuel utilisateur

GIGA-BYTE TECHNOLOGY

GIGA-BYTE TECHNOLOGY GIGABYTE GS-W42G-P08R Manuel utilisateur

GIGA-BYTE TECHNOLOGY

GIGA-BYTE TECHNOLOGY H310N 2.0 Manuel utilisateur

Manuels Carte mère populaires d'autres marques

DFI

DFI SD170 Manuel utilisateur

ASROCK

ASROCK ROMED8-2T Manuel utilisateur

Asus

Asus P2L97A Manuel utilisateur

Winmate

Winmate IC70 Manuel utilisateur

Asus

Asus MES-B Manuel utilisateur

Grantech

Grantech SYS8F377VGGA-3OMN Manuel utilisateur

Telit Wireless Solutions

Telit Wireless Solutions SL869-3DR Manuel utilisateur

Gigabyte

Gigabyte GA-9IVDT Manuel utilisateur

Texas Instruments

Texas Instruments ADS8372EVM Manuel utilisateur

Commell

Commell MS-C73 Manuel utilisateur

IBT Technologies

IBT Technologies MB860 Manuel utilisateur

Nvidia

Nvidia TEGRA DG-04927-001_V01 Manuel utilisateur

Biostar

Biostar M7VIT Bravo Instructions d'utilisation et d'installation

Intel

Intel D33217CK Manuel utilisateur

Asus

Asus F1A55-M LX PLUS R2.0 Manuel utilisateur

EPC

EPC EPC9147C Manuel utilisateur

Asus

Asus EX-B760M-V5 D4 Manuel utilisateur

EPOX

EPOX MU-8KHA0010 Manuel utilisateur
