GIGA-BYTE TECHNOLOGY H510M DS2 Manuel utilisateur

For more product details, please visit GIGABYTE's website.

To reduce the impacts on global warming, the packaging materials of this product

are recyclable and reusable. GIGABYTE works with you to protect the environment.

H510M DS2

User's Manual

Rev. 1001

The trademarks mentioned in this manual are legally registered to their respective owners.

Disclaimer

Information in this manual is protected by copyright laws and is the property of GIGABYTE.

Changes to the specications and features in this manual may be made by GIGABYTE without

prior notice. No part of this manual may be reproduced, copied, translated, transmitted, or

published in any form or by any means without GIGABYTE's prior written permission.

In order to assist in the use of this product, carefully read the User's Manual.

For product-related information, check on our website at: https://www.gigabyte.com

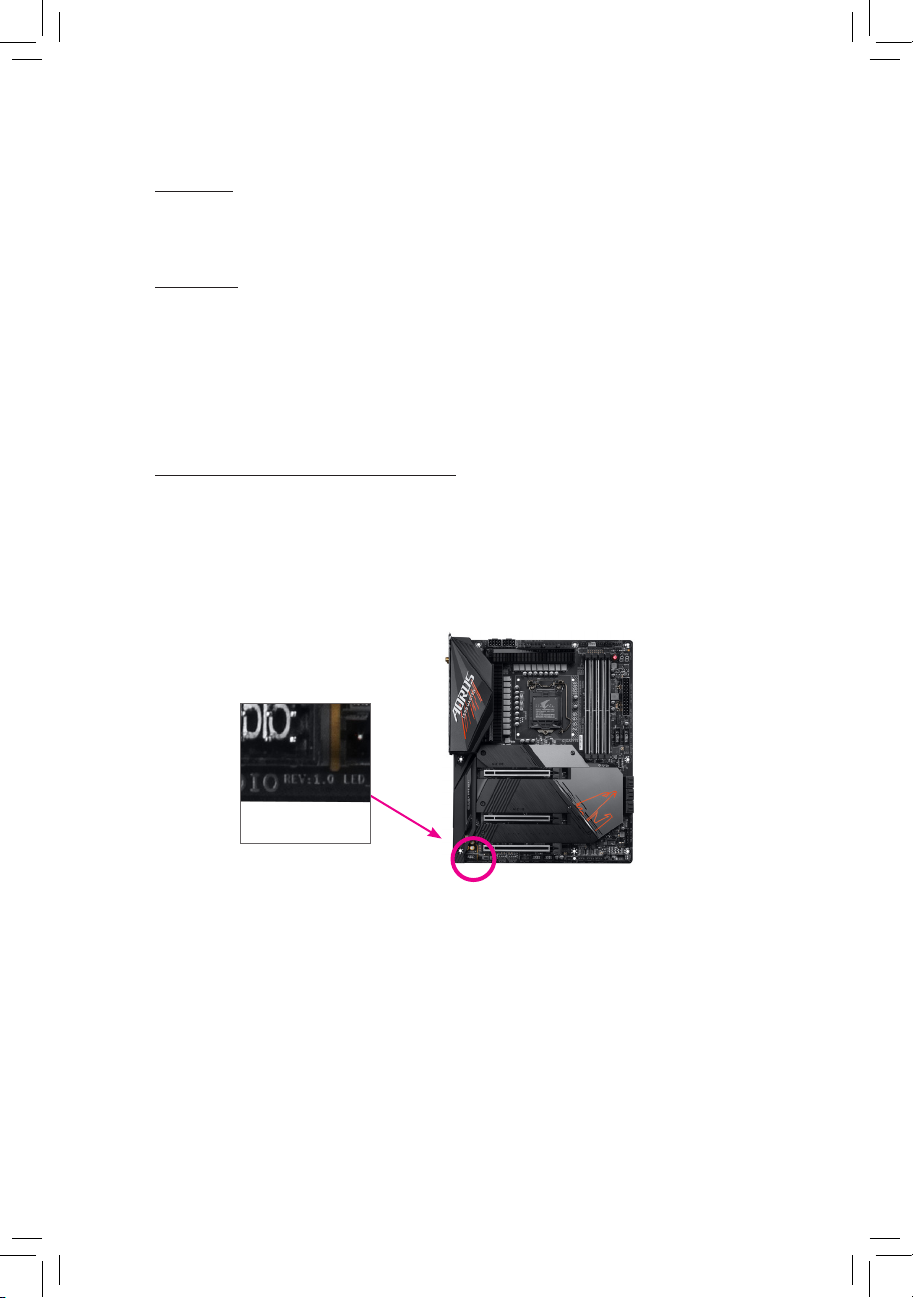

Identifying Your Motherboard Revision

The revision number on your motherboard looks like this: "REV: X.X." For example, "REV:

1.0" means the revision of the motherboard is 1.0. Check your motherboard revision before

updating motherboard BIOS, drivers, or when looking for technical information.

Example:

- 3 -

Table of Contents

H510M DS2 Motherboard Layout....................................................................................4

Chapter 1 Hardware Installation .....................................................................................5

1-1 Installation Precautions.................................................................................... 5

1-2 ProductSpecications...................................................................................... 6

1-3 Installing the CPU ............................................................................................ 9

1-4 Installing the Memory....................................................................................... 9

1-5 Installing an Expansion Card ......................................................................... 10

1-6 Back Panel Connectors.................................................................................. 10

1-7 Internal Connectors........................................................................................ 12

Chapter 2 BIOS Setup ..................................................................................................18

2-1 Startup Screen ............................................................................................... 18

2-2 The Main Menu .............................................................................................. 19

2-3 Smart Fan 6 .................................................................................................. 20

2-4 Favorites (F11) ............................................................................................... 21

2-5 Tweaker.......................................................................................................... 22

2-6 Settings .......................................................................................................... 27

2-7 System Info. ................................................................................................... 32

2-8 Boot................................................................................................................ 33

2-9 Save & Exit..................................................................................................... 36

Chapter 3 Appendix ......................................................................................................37

Drivers Installation..................................................................................................... 37

Regulatory Notices.................................................................................................... 38

Contact Us ................................................................................................................ 39

- 4 -

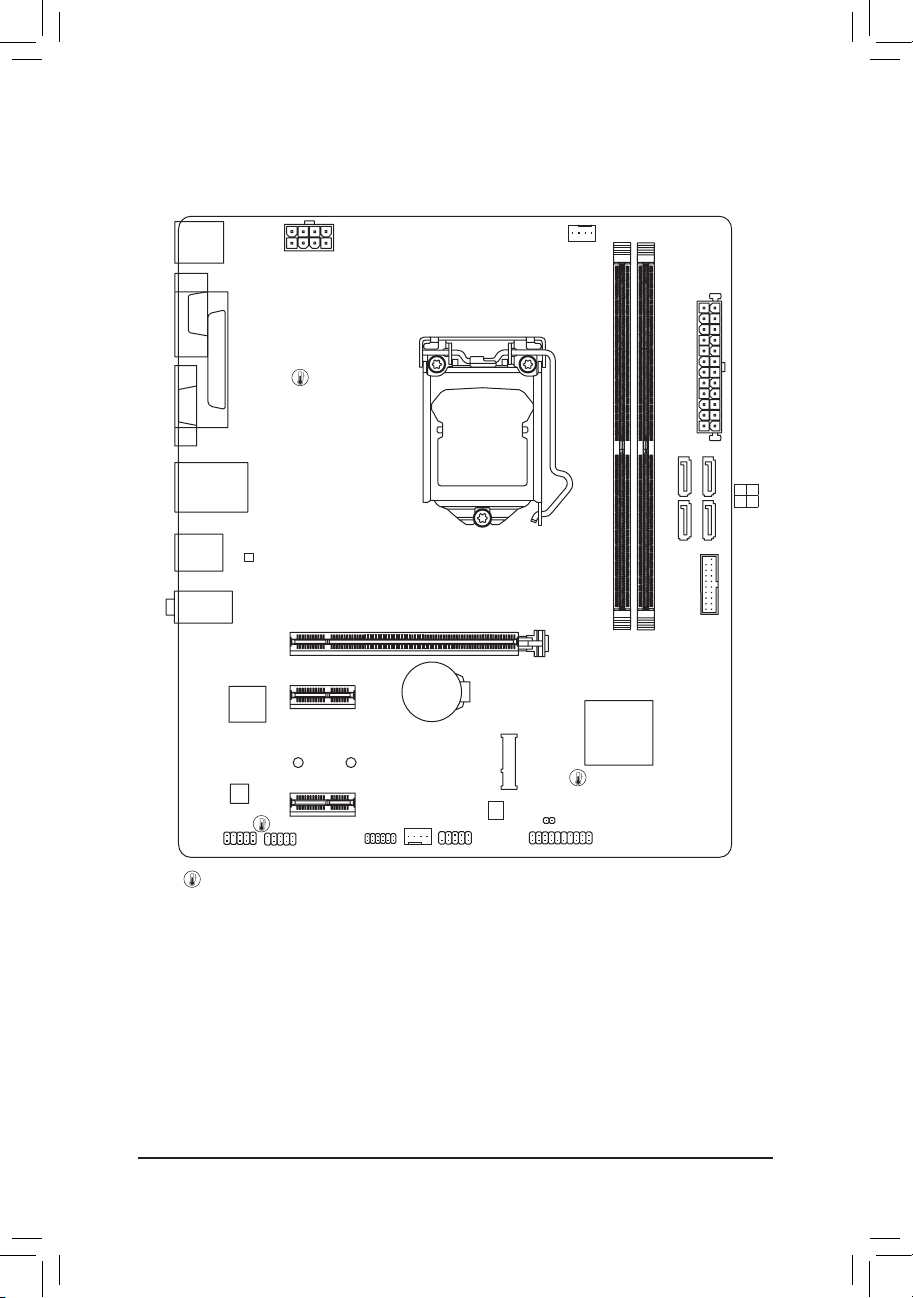

H510M DS2 Motherboard Layout

* The box contents above are for reference only and the actual items shall depend on the product package you obtain.

The box contents are subject to change without notice.

Box Contents

5H510M DS2 motherboard

5Motherboard driver disc 5Two SATA cables

5User's Manual 5I/O Shield

Temperature sensor

KB_MS_USB

CPU_FAN

SYS_FAN

LGA1200

ATX

H510M DS2

F_AUDIO COMB

AUDIO

BAT

ATX_12V_2X4

Intel®H510

U32

CODEC

CLR_CMOS

M_BIOS

VGA

USB_LAN

PCIEX16

80 60

PCIEX1_1

PCIEX1_2

iTE®

Super I/O

Realtek®

GbE LAN

F_USB2 F_PANEL

SPI_TPM

F_U32

DDR4_2

DDR4_1

M2A_SB

0 1

2 3

SATA3

COMA

LPT

Chapter 1 Hardware Installation

1-1 Installation Precautions

The motherboard contains numerous delicate electronic circuits and components which can become

damaged as a result of electrostatic discharge (ESD). Prior to installation, carefully read the user's

manual and follow these procedures:

•Prior to installation, make sure the chassis is suitable for the motherboard.

•Prior to installation, do not remove or break motherboard S/N (Serial Number) sticker or

warranty sticker provided by your dealer. These stickers are required for warranty validation.

•Always remove the AC power by unplugging the power cord from the power outlet before

installing or removing the motherboard or other hardware components.

•When connecting hardware components to the internal connectors on the motherboard, make

sure they are connected tightly and securely.

•When handling the motherboard, avoid touching any metal leads or connectors.

•It is best to wear an electrostatic discharge (ESD) wrist strap when handling electronic

components such as a motherboard, CPU or memory. If you do not have an ESD wrist strap,

keepyourhandsdryandrsttouchametalobjecttoeliminatestaticelectricity.

•Prior to installing the motherboard, please have it on top of an antistatic pad or within an

electrostatic shielding container.

•Before connecting or unplugging the power supply cable from the motherboard, make sure

the power supply has been turned off.

•Before turning on the power, make sure the power supply voltage has been set according to

the local voltage standard.

•Before using the product, please verify that all cables and power connectors of your hardware

components are connected.

•To prevent damage to the motherboard, do not allow screws to come in contact with the

motherboard circuit or its components.

•Make sure there are no leftover screws or metal components placed on the motherboard or

within the computer casing.

•Do not place the computer system on an uneven surface.

•Do not place the computer system in a high-temperature or wet environment.

•Turning on the computer power during the installation process can lead to damage to system

components as well as physical harm to the user.

•If you are uncertain about any installation steps or have a problem related to the use of the

product,pleaseconsultacertiedcomputertechnician.

•If you use an adapter, extension power cable, or power strip, ensure to consult with its installation

and/or grounding instructions.

- 5 -

1-2 ProductSpecications

CPU LGA1200 package:

- 11th Generation Intel®Core™i9 processors/Intel®Core™i7 processors/

Intel®Core™i5 processors

- 10th Generation Intel®Core™i9 processors/Intel®Core™i7 processors/

Intel®Core™i5 processors/Intel®Core™i3 processors/Intel®Pentium®

processors/Intel®Celeron®processors*

* Limited to processors with 4 MB Intel®Smart Cache, Intel®Celeron®G5xx5 family.

(Go to GIGABYTE's website for the latest CPU support list.)

L3 cache varies with CPU

Chipset Intel®H510 Express Chipset

Memory 11th Generation Intel®Core™i9/i7/i5 processors:

- Support for DDR4 3200/3000/2933/2666/2400/2133 MHz memory modules

10th Generation Intel®Core™i9/i7 processors:

- Support for DDR4 2933/2666/2400/2133 MHz memory modules

10th Generation Intel®Core™i5/i3/Pentium®/Celeron®processors:

- Support for DDR4 2666/2400/2133 MHz memory modules

2 x DDR4 DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity)

of system memory

Dual channel memory architecture

Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in

non-ECC mode)

Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules

SupportforExtremeMemoryProle(XMP)memorymodules

(Go to GIGABYTE's website for the latest supported memory speeds and memory

modules.)

Onboard

Graphics

Integrated Graphics Processor-Intel®HD Graphics support:

- 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz

(GraphicsspecicationsmayvarydependingonCPUsupport.)

Audio Realtek®Audio CODEC

HighDenitionAudio

2/4/5.1/7.1-channel

* Tocongure7.1-channelaudio,youneedtoopentheaudiosoftwareandselect

Deviceadvanced settings >Playback Devicetochange thedefault setting rst.

PleasevisitGIGABYTE'swebsitefordetailsonconguringtheaudiosoftware.

LAN Realtek®GbE LAN chip (1 Gbps/100 Mbps)

Expansion Slots 1 x PCI Express x16 slot, running at x16

(The PCI Express x16 slot conforms to PCI Express 4.0 standard.) (Note)

2 x PCI Express x1 slots

(The PCI Express x1 slots conform to PCI Express 3.0 standard.)

(Note) Supported by 11th Generation processors only.

- 6 -

Storage Interface Chipset:

- 1 x M.2 connector (Socket 3, M key, type 2260/2280 SATA and PCIe 3.0 x4/

x2 SSD support)

* The PCIEX1_1 slot shares bandwidth with the M.2 slot. When the PCIEX1_1

slot is populated, the M.2 slot will operate at up to PCIe 3.0 x2 SSD.

- 4 x SATA 6Gb/s connectors

* Refer to "1-7 Internal Connectors," for the installation notices for the M.2

and SATA connectors.

USB Chipset:

- 4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through

the internal USB header)

- 6 x USB 2.0/1.1 ports (4 ports on the back panel, 2 ports available through

the internal USB header)

Internal

Connectors

1 x 24-pin ATX main power connector

1 x 8-pin ATX 12V power connector

4 x SATA 6Gb/s connectors

1 x CPU fan header

1 x system fan header

1 x front panel header

1 x front panel audio header

1 x USB 3.2 Gen 1 header

1 x USB 2.0/1.1 header

1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI

2.0 module only)

1 x serial port header

1 x Clear CMOS jumper

Back Panel

Connectors

1 x PS/2 keyboard/mouse port

1 x serial port header

1 x parallel port header

1 x D-Sub Port

2 x USB 3.2 Gen 1 ports

4 x USB 2.0/1.1 ports

1 x RJ-45 port

3 x audio jacks

I/O Controller iTE®I/O Controller Chip

Hardware

Monitor

Voltage detection

Temperature detection

Fan speed detection

Overheating warning

Fan fail warning

Fan speed control

* Whether the fan speed control function is supported will depend on the

cooler you install.

- 7 -

BIOS 1x256Mbitash

Use of licensed AMI UEFI BIOS

PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Unique Features Support for APP Center

* Available applications in APP Center may vary by motherboard model. Supported

functionsofeachapplicationmayalsovarydependingonmotherboardspecications.

- @BIOS

- EasyTune

- Fast Boot

- Game Boost

- ON/OFF Charge

- Smart Backup

- System Information Viewer

Support for Q-Flash

Support for Xpress Install

Bundled

Software

Norton®Internet Security (OEM version)

Realtek®8118 Gaming LAN Bandwidth Control Utility

Operating

System Support for Windows 10 64-bit

Form Factor Micro ATX Form Factor; 24.4cm x 21.0cm

* GIGABYTEreservestherighttomakeanychangestotheproductspecicationsandproduct-relatedinformationwithout

prior notice.

- 8 -

Please visit GIGABYTE's website

for support lists of CPU, memory

modules, SSDs, and M.2 devices.

Please visit the Support\Utility List

page on GIGABYTE's website to

download the latest version of apps.

1-3 Installing the CPU

1-4 Installing the Memory

Read the following guidelines before you begin to install the memory:

•Make sure that the motherboard supports the memory. It is recommended that memory of the same

capacity, brand, speed, and chips be used.

(Go to GIGABYTE's website for the latest supported memory speeds and memory modules.)

•Always turn off the computer and unplug the power cord from the power outlet before installing the

memory to prevent hardware damage.

•Memory modules have a foolproof design. A memory module can be installed in only one direction.

If you are unable to insert the memory, switch the direction.

DualChannelMemoryConguration

This motherboard provides two memory sockets and supports Dual Channel Technology. After the memory

isinstalled,theBIOSwillautomaticallydetectthespecicationsandcapacityofthememory.EnablingDual

Channel memory mode will double the original memory bandwidth.

Please visit GIGABYTE's website for details on hardware installation.

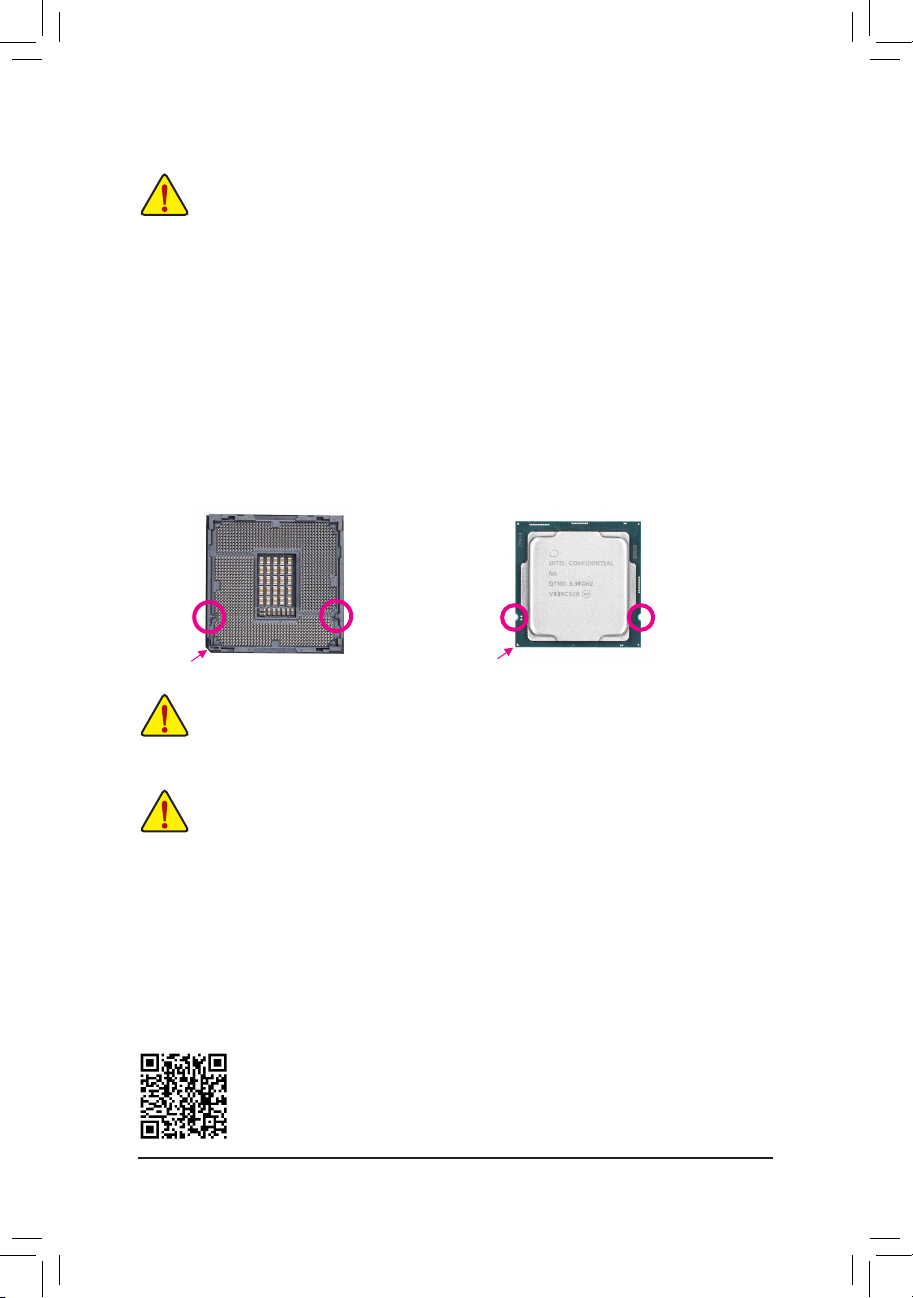

Read the following guidelines before you begin to install the CPU:

•Make sure that the motherboard supports the CPU.

(Go to GIGABYTE's website for the latest CPU support list.)

•Always turn off the computer and unplug the power cord from the power outlet before installing the

CPU to prevent hardware damage.

•Locate the pin one of the CPU. The CPU cannot be inserted if oriented incorrectly. (Or you may

locate the notches on both sides of the CPU and alignment keys on the CPU socket.)

•Apply an even and thin layer of thermal grease on the surface of the CPU.

•Do not turn on the computer if the CPU cooler is not installed, otherwise overheating and damage

of the CPU may occur.

•SettheCPUhostfrequencyinaccordancewiththeCPUspecications.Itisnotrecommended

thatthesystembusfrequencybesetbeyondhardwarespecicationssinceitdoesnotmeetthe

standard requirements for the peripherals. If you wish to set the frequency beyond the standard

specications,pleasedosoaccordingtoyourhardwarespecicationsincludingtheCPU,graphics

card, memory, hard drive, etc.

Installing the CPU

Locate the alignment keys on the motherboard CPU socket and the notches on the CPU.

Do not remove the CPU socket cover before inserting the CPU. It may pop off from the load

plate automatically during the process of re-engaging the lever after you insert the CPU.

Triangle Pin One Marking on the CPU

NotchNotch

LGA1200 CPU

Alignment

Key

Alignment

Key

LGA1200 CPU Socket

Pin One Corner of the CPU Socket

- 9 -

1-5 Installing an Expansion Card

Read the following guidelines before you begin to install an expansion card:

•Make sure the motherboard supports the expansion card. Carefully read the manual that came

with your expansion card.

•Always turn off the computer and unplug the power cord from the power outlet before installing an

expansion card to prevent hardware damage.

Due to CPU limitations, read the following guidelines before installing the memory in Dual Channel mode.

1. Dual Channel mode cannot be enabled if only one memory module is installed.

2. When enabling Dual Channel mode with two memory modules, it is recommended that memory of

the same capacity, brand, speed, and chips be used.

The two DDR4 memory sockets are divided into two channels and each channel has one memory socket as

following:

Channel A: DDR4_1

Channel B: DDR4_2

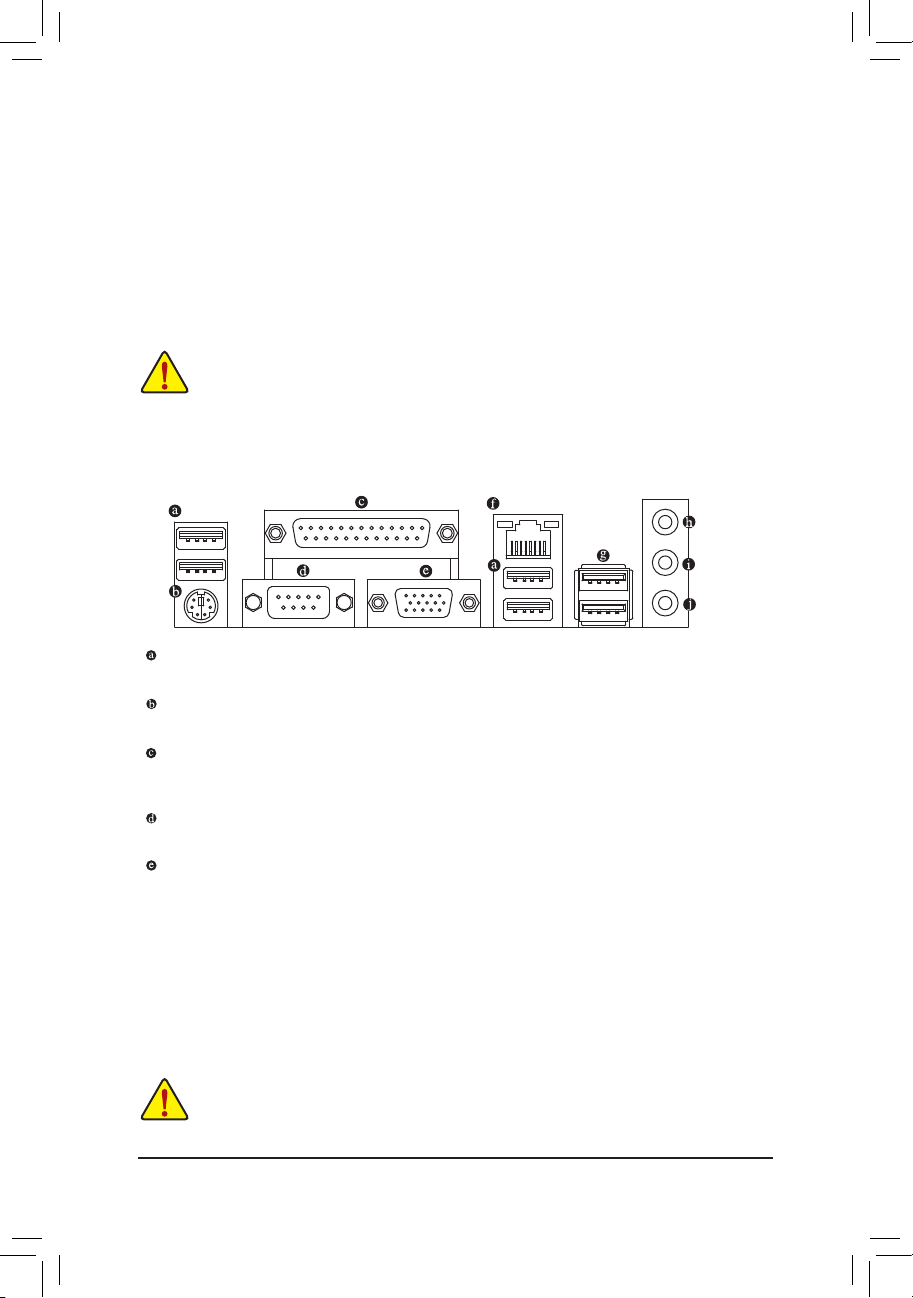

1-6 Back Panel Connectors

USB 2.0/1.1 Port

TheUSBportsupportstheUSB2.0/1.1specication.UsethisportforUSBdevices.

PS/2 Keyboard/Mouse Port

Use this port to connect a PS/2 mouse or keyboard.

Parallel Port

Use the parallel port to connect devices such as a printer, scanner and etc. The parallel port is also called

a printer port.

Serial Port

Use the serial port to connect devices such as a mouse, modem or other peripherals.

D-Sub Port

The D-Sub port supports a 15-pin D-Sub connector and supports a maximum resolution of 1920x1200@60 Hz

(the actual resolutions supported depend on the monitor being used). Connect a monitor that supports D-Sub

connection to this port.

•Whenremovingthecableconnectedtoabackpanelconnector,rstremovethecablefromyour

device and then remove it from the motherboard.

•When removing the cable, pull it straight out from the connector. Do not rock it side to side to

prevent an electrical short inside the cable connector.

- 10 -

Table des matières

Autres manuels GIGA-BYTE TECHNOLOGY Carte mère

GIGA-BYTE TECHNOLOGY

GIGA-BYTE TECHNOLOGY R181-2A0 Manuel utilisateur

GIGA-BYTE TECHNOLOGY

GIGA-BYTE TECHNOLOGY R182-Z90 Manuel utilisateur

GIGA-BYTE TECHNOLOGY

GIGA-BYTE TECHNOLOGY GA-F2A68HM-DS2H Manuel utilisateur

GIGA-BYTE TECHNOLOGY

GIGA-BYTE TECHNOLOGY H510M S2H V2 Manuel utilisateur

GIGA-BYTE TECHNOLOGY

GIGA-BYTE TECHNOLOGY H410M DS2V V2 Manuel utilisateur

GIGA-BYTE TECHNOLOGY

GIGA-BYTE TECHNOLOGY GA-A320M-H Manuel utilisateur

GIGA-BYTE TECHNOLOGY

GIGA-BYTE TECHNOLOGY A520M S2H Manuel utilisateur

GIGA-BYTE TECHNOLOGY

GIGA-BYTE TECHNOLOGY GA-6LXSL Manuel utilisateur

GIGA-BYTE TECHNOLOGY

GIGA-BYTE TECHNOLOGY H310M H Manuel utilisateur

GIGA-BYTE TECHNOLOGY

GIGA-BYTE TECHNOLOGY MX32-BS0 Manuel utilisateur

GIGA-BYTE TECHNOLOGY

GIGA-BYTE TECHNOLOGY GA-B250M-HD3 Manuel utilisateur

GIGA-BYTE TECHNOLOGY

GIGA-BYTE TECHNOLOGY B365M DS3H Manuel utilisateur

GIGA-BYTE TECHNOLOGY

GIGA-BYTE TECHNOLOGY GA-F2A78M-DASH Manuel utilisateur

GIGA-BYTE TECHNOLOGY

GIGA-BYTE TECHNOLOGY GA-Z270X-Gaming K5 Manuel utilisateur

GIGA-BYTE TECHNOLOGY

GIGA-BYTE TECHNOLOGY Z690 AERO G Manuel utilisateur

GIGA-BYTE TECHNOLOGY

GIGA-BYTE TECHNOLOGY GA-Z270N-Gaming 5 Manuel utilisateur

GIGA-BYTE TECHNOLOGY

GIGA-BYTE TECHNOLOGY H310M DS2 2.0 Manuel utilisateur

GIGA-BYTE TECHNOLOGY

GIGA-BYTE TECHNOLOGY B560M DS3H AC Manuel utilisateur

GIGA-BYTE TECHNOLOGY

GIGA-BYTE TECHNOLOGY GA-6PXSV3 Manuel utilisateur

GIGA-BYTE TECHNOLOGY

GIGA-BYTE TECHNOLOGY GA-F2A58M-S1 Manuel utilisateur

GIGA-BYTE TECHNOLOGY

GIGA-BYTE TECHNOLOGY GA-AX370-Gaming K7 Manuel utilisateur

GIGA-BYTE TECHNOLOGY

GIGA-BYTE TECHNOLOGY MD30-RS0 Manuel utilisateur

GIGA-BYTE TECHNOLOGY

GIGA-BYTE TECHNOLOGY GA-Z270-HD3 Manuel utilisateur

GIGA-BYTE TECHNOLOGY

GIGA-BYTE TECHNOLOGY R281-3C0 Manuel utilisateur

Manuels Carte mère populaires d'autres marques

DFI

DFI SD170 Manuel utilisateur

ASROCK

ASROCK ROMED8-2T Manuel utilisateur

Asus

Asus P2L97A Manuel utilisateur

Winmate

Winmate IC70 Manuel utilisateur

Asus

Asus MES-B Manuel utilisateur

Grantech

Grantech SYS8F377VGGA-3OMN Manuel utilisateur

Telit Wireless Solutions

Telit Wireless Solutions SL869-3DR Manuel utilisateur

Gigabyte

Gigabyte GA-9IVDT Manuel utilisateur

Texas Instruments

Texas Instruments ADS8372EVM Manuel utilisateur

Commell

Commell MS-C73 Manuel utilisateur

IBT Technologies

IBT Technologies MB860 Manuel utilisateur

Nvidia

Nvidia TEGRA DG-04927-001_V01 Manuel utilisateur

Biostar

Biostar M7VIT Bravo Instructions d'utilisation et d'installation

Intel

Intel D33217CK Manuel utilisateur

Asus

Asus F1A55-M LX PLUS R2.0 Manuel utilisateur

EPC

EPC EPC9147C Manuel utilisateur

Asus

Asus EX-B760M-V5 D4 Manuel utilisateur

EPOX

EPOX MU-8KHA0010 Manuel utilisateur
