GA-AM1M-S2H

User's Manual

Rev. 1102

Motherboard

GA-AM1M-S2H

Jan. 27, 2014

Motherboard

GA-AM1M-S2H

The trademarks mentioned in this manual are legally registered to their respective owners.

Disclaimer

Information in this manual is protected by copyright laws and is the property of GIGABYTE.

Changes to the specications and features in this manual may be made by GIGABYTE without prior notice.

No part of this manual may be reproduced, copied, translated, transmitted, or published in any form or by

any means without GIGABYTE's prior written permission.

In order to assist in the use of this product, carefully read the User's Manual.

For product-related information, check on our website at: http://www.gigabyte.com

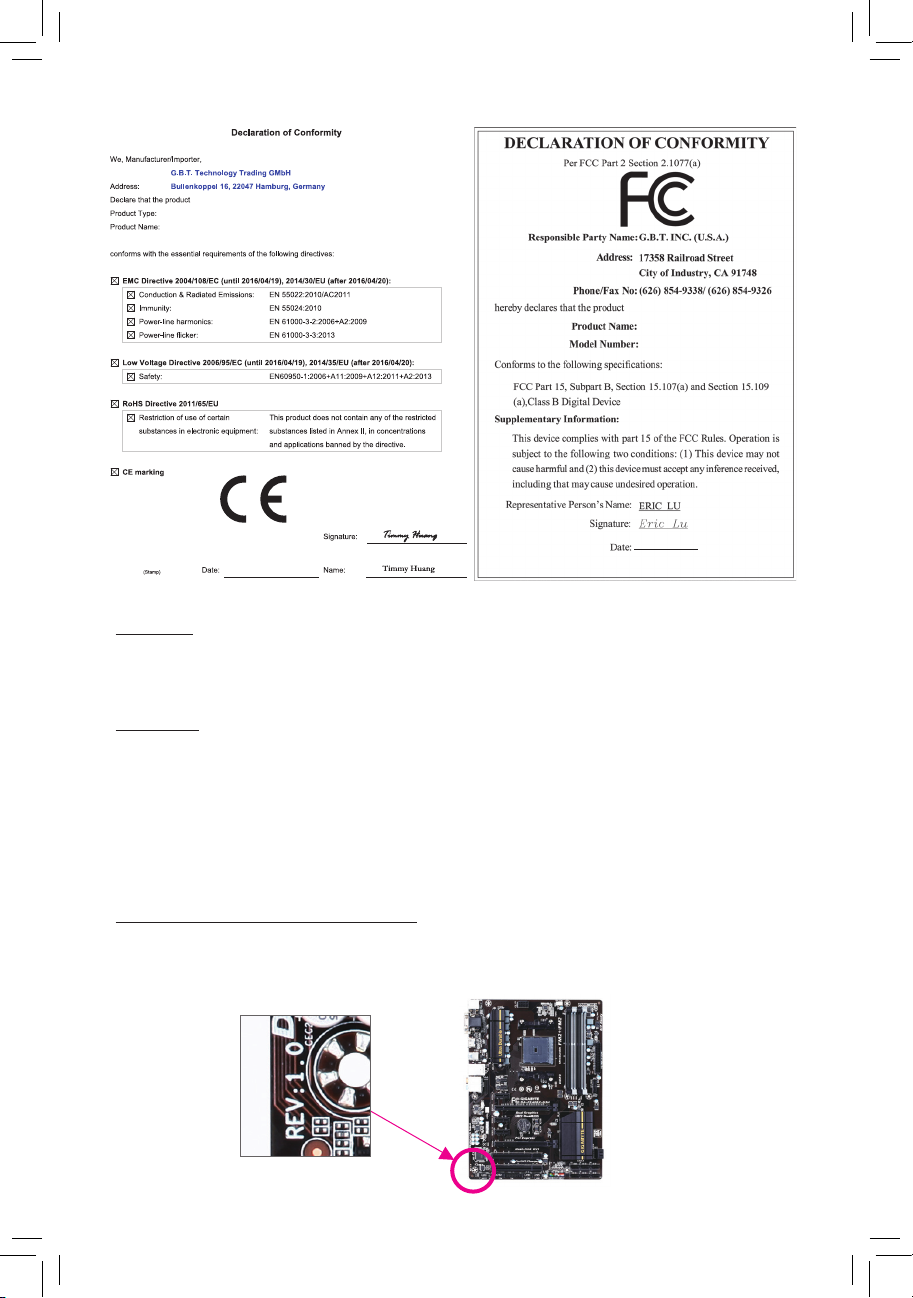

Identifying Your Motherboard Revision

The revision number on your motherboard looks like this: "REV: X.X." For example, "REV: 1.0" means the

revision of the motherboard is 1.0. Check your motherboard revision before updating motherboard BIOS,

drivers, or when looking for technical information.

Example:

- 3 -

Table of Contents

GA-AM1M-S2H Motherboard Layout ..............................................................................4

GA-AM1M-S2H Motherboard Block Diagram..................................................................5

Chapter 1 Hardware Installation .....................................................................................6

1-1 Installation Precautions.................................................................................... 6

1-2 Product Specications...................................................................................... 7

1-3 Installing the APU............................................................................................. 9

1-4 Installing the Memory....................................................................................... 9

1-5 Installing an Expansion Card ........................................................................... 9

1-6 Back Panel Connectors.................................................................................. 10

1-7 Internal Connectors........................................................................................ 11

Chapter 2 BIOS Setup ..................................................................................................16

2-1 Startup Screen ............................................................................................... 17

2-2 M.I.T. .............................................................................................................. 17

2-3 System Information ........................................................................................ 20

2-4 BIOS Features ............................................................................................... 21

2-5 Peripherals..................................................................................................... 24

2-6 Power Management....................................................................................... 26

2-7 Save & Exit..................................................................................................... 27

Chapter 3 Appendix ......................................................................................................28

Drivers Installation..................................................................................................... 28

Regulatory Statements.............................................................................................. 29

Contact Us ................................................................................................................ 32

- 4 -

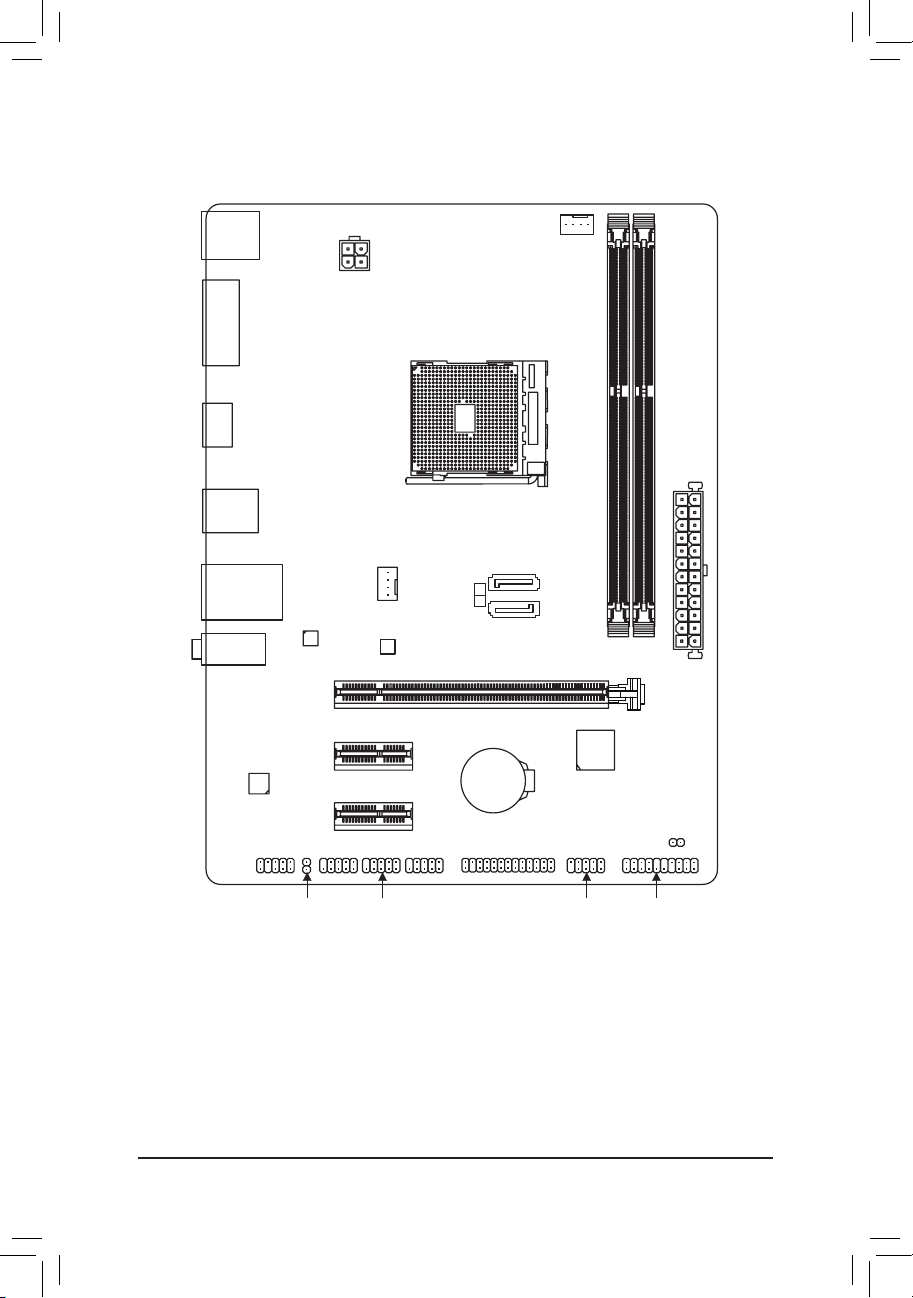

GA-AM1M-S2H Motherboard Layout

Box Contents

5GA-AM1M-S2H motherboard

5Motherboard driver disk 5Two SATA cables

5User's Manual 5I/O Shield

KB_MS CPU_FAN

SYS_FAN

Socket FS1b

ATX

GA-AM1M-S2H

F_AUDIO

AUDIO

DDR3_2

DDR3_1

BAT

ATX_12V

COM

R_USB30

CODEC

CLR_CMOS

M_BIOS

VGAHDMI

USB_LAN

PCIEX4

PCIEX1_1

PCIEX1_2

iTE®

Super I/O

Realtek®

GbE LAN

F_USB1 LPT

F_USB2 F_PANEL

SATA3 1

SPDIF_O

F_USB3

* The box contents above are for reference only and the actual items shall depend on the product package you obtain.

The box contents are subject to change without notice.

- 5 -

For detailed product information/limitation(s), refer to "1-2 Product Specications."

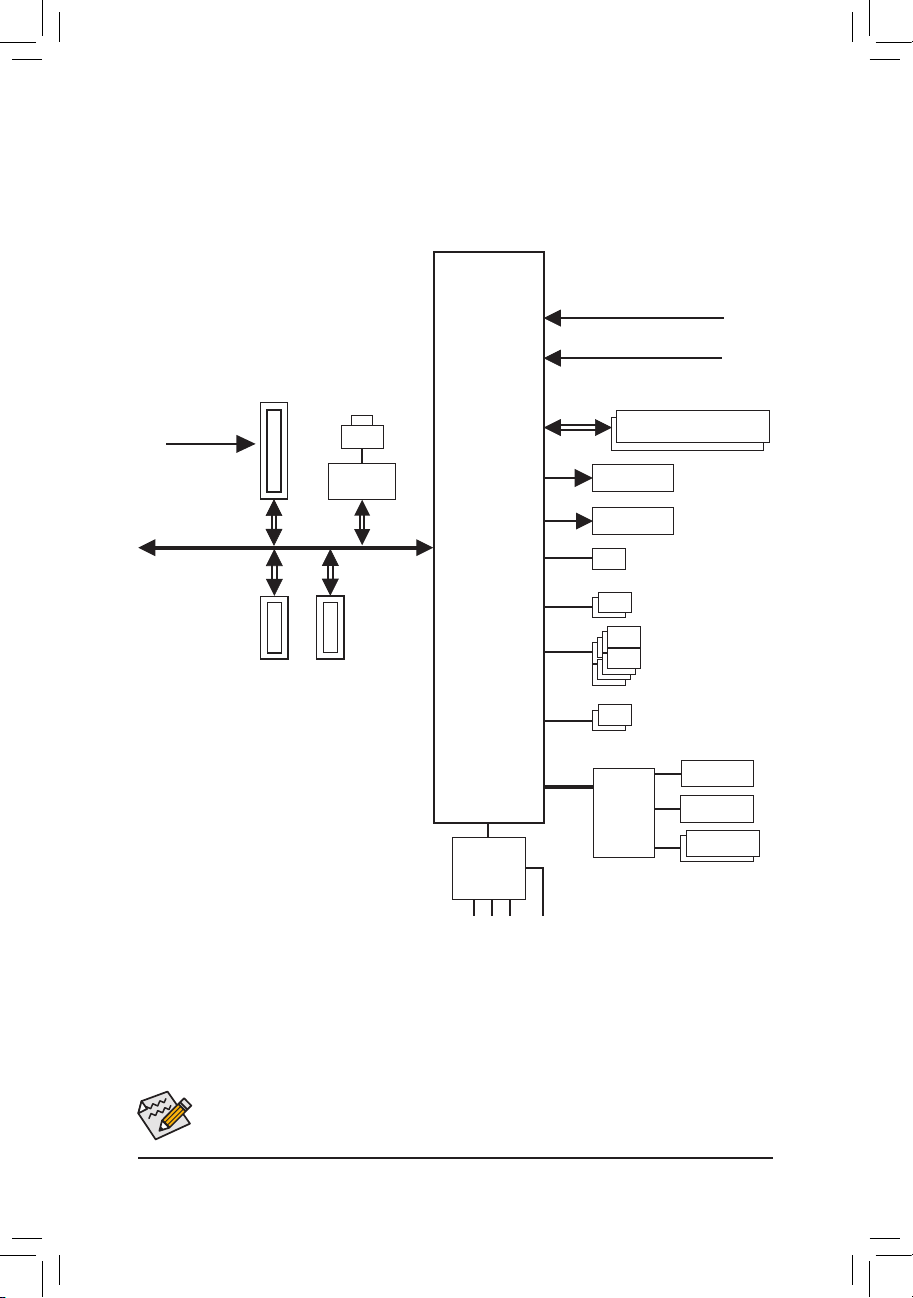

GA-AM1M-S2H Motherboard Block Diagram

APU CLK+/- (100 MHz)

Memory

PCI Express Bus

LPC

Bus

BIOS

PCIe CLK

(100 MHz)

PS/2 KB/Mouse

8 USB 2.0/1.1

2 USB 3.0/2.0

LAN

RJ45

x1x4

Realtek®

GbE LAN

2 x PCI Express x1

D-Sub

2 SATA 6Gb/s

DISP CLK+/- (100 MHz)

DDR3 1600/1333 MHz

S/PDIF Out

Line Out (Front Speaker Out)

MIC (Center/Subwoofer

Speaker Out)

Line In (Rear Speaker Out)

CODEC

LPT

COM

HDMI

AMD APU

iTE®

Super I/O

1 PCI Express x4

- 6 -

Chapter 1 Hardware Installation

1-1 Installation Precautions

The motherboard contains numerous delicate electronic circuits and components which can become

damaged as a result of electrostatic discharge (ESD). Prior to installation, carefully read the user's

manual and follow these procedures:

•Prior to installation, make sure the chassis is suitable for the motherboard.

•Prior to installation, do not remove or break motherboard S/N (Serial Number) sticker or

warranty sticker provided by your dealer. These stickers are required for warranty validation.

•Always remove the AC power by unplugging the power cord from the power outlet before

installing or removing the motherboard or other hardware components.

•When connecting hardware components to the internal connectors on the motherboard, make

sure they are connected tightly and securely.

•When handling the motherboard, avoid touching any metal leads or connectors.

•It is best to wear an electrostatic discharge (ESD) wrist strap when handling electronic

components such as a motherboard, CPU or memory. If you do not have an ESD wrist strap,

keep your hands dry and rst touch a metal object to eliminate static electricity.

•Prior to installing the motherboard, please have it on top of an antistatic pad or within an

electrostatic shielding container.

•Before unplugging the power supply cable from the motherboard, make sure the power supply

has been turned off.

•Before turning on the power, make sure the power supply voltage has been set according to

the local voltage standard.

•Before using the product, please verify that all cables and power connectors of your hardware

components are connected.

•To prevent damage to the motherboard, do not allow screws to come in contact with the

motherboard circuit or its components.

•Make sure there are no leftover screws or metal components placed on the motherboard or

within the computer casing.

•Do not place the computer system on an uneven surface.

•Do not place the computer system in a high-temperature environment.

•Turning on the computer power during the installation process can lead to damage to system

components as well as physical harm to the user.

•If you are uncertain about any installation steps or have a problem related to the use of the

product, please consult a certied computer technician.

•If you use an adapter, extension power cable, or power strip, ensure to consult with its installation

and/or grounding instructions.

- 7 -

1-2 ProductSpecications

APU FS1b Socket:

- AMD Athlon™series processors

- AMD Sempron™series processors

(Go to GIGABYTE's website for the latest CPU support list.)

Memory 2 x 1.5V DDR3 DIMM sockets supporting up to 32 GB of system memory

* Due to a Windows 32-bit operating system limitation, when more than 4 GB of physical

memory is installed, the actual memory size displayed will be less than the size of

the physical memory installed.

Support for DDR3 1600/1333 MHz memory modules

Support for Extreme Memory Prole (XMP) memory modules

(Go to GIGABYTE's website for the latest supported memory speeds and memory

modules.)

Onboard

Graphics

Integrated Graphics Processor:

- 1 x D-Sub port, supporting a maximum resolution of 1920x1200

- 1 x HDMI port, supporting a maximum resolution of 4096x2160

* Support for HDMI 1.4a version.

- Maximum shared memory of 2 GB

Audio Realtek®ALC887 codec

High Denition Audio

2/4/5.1/7.1-channel

* To congure 7.1-channel audio, you have to use an HD front panel audio module

and enable the multi-channel audio feature through the audio driver.

Support for S/PDIF Out

LAN Realtek®GbE LAN chip (10/100/1000 Mbit)

Expansion Slots 1 x PCI Express x16 slot, running at x4 (PCIEX4)

2 x PCI Express x1 slots

(The PCI Express slots conform to PCI Express 2.0 standard.)

Storage Interface Integrated in the APU:

- 2 x SATA 6Gb/s connectors

USB Integrated in the APU:

- 2 x USB 3.0/2.0 ports on the back panel

- 8 x USB 2.0/1.1 ports (2 ports on the back panel, 6 ports available through

the internal USB headers)

Internal

Connectors

1 x 24-pin ATX main power connector

1 x 4-pin ATX 12V power connector

2 x SATA 6Gb/s connectors

1 x APU fan header

1 x system fan header

1 x front panel header

1 x front panel audio header

1 x S/PDIF Out header

3 x USB 2.0/1.1 headers

1 x serial port header

1 x parallel port header

1 x Clear CMOS jumper

- 8 -

Back Panel

Connectors

1 x PS/2 keyboard port

1 x PS/2 mouse port

1 x D-Sub port

1 x HDMI port

2 x USB 3.0/2.0 ports

2 x USB 2.0/1.1 ports

1 x RJ-45 port

3 x audio jacks (Line In, Line Out, Mic In)

I/O Controller iTE®I/O Controller Chip

Hardware

Monitor

System voltage detection

APU/System temperature detection

APU/System fan speed detection

APU overheating warning

APU/System fan speed control

* Whether the fan speed control function is supported will depend on the cooler you

install.

BIOS 1 x 32 Mbit ash

Use of licensed AMI UEFI BIOS

PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Unique Features Support for @BIOS

Support for Q-Flash

Support for Xpress Install

Support for EasyTune

* Available functions in EasyTune may differ by motherboard model.

Support for Smart Recovery 2

Support for ON/OFF Charge

Bundled

Software Norton®Internet Security (OEM version)

Operating

System

Support for Windows 8.1/7 32-bit/64-bit

Support for Windows XP 32-bit

Form Factor Micro ATX Form Factor; 22.6cm x 17.0cm

* GIGABYTE reserves the right to make any changes to the product specications and product-related information without

prior notice.

* Please visit the Support\Utility List page on GIGABYTE's website to check the supported operating system(s) for the

software listed in the "Unique Features" and "Bundled Software" columns.

- 9 -

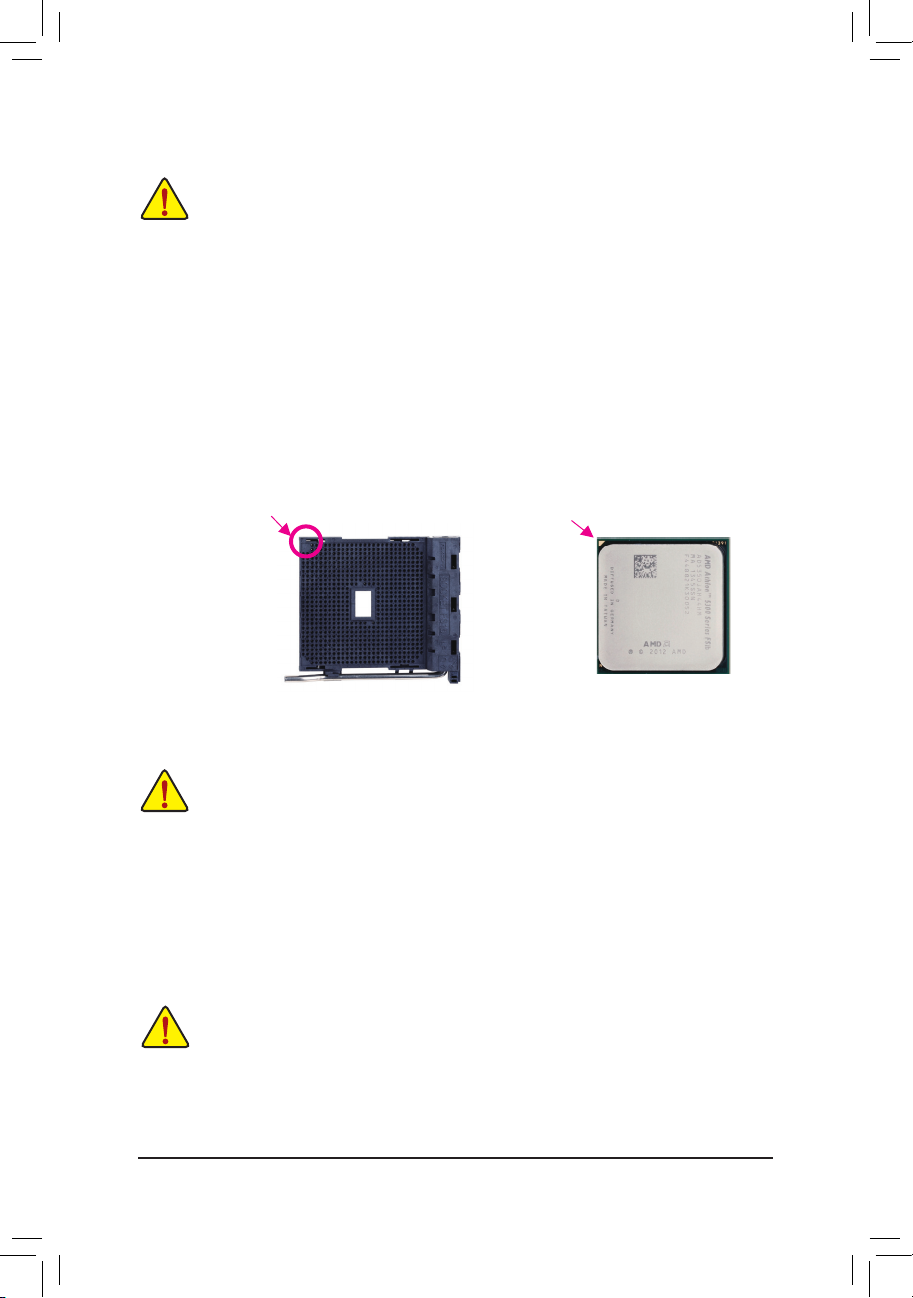

1-3 Installing the APU

Read the following guidelines before you begin to install the APU:

•Make sure that the motherboard supports the APU.

(Go to GIGABYTE's website for the latest APU support list.)

•Always turn off the computer and unplug the power cord from the power outlet before installing the

APU to prevent hardware damage.

•Locate the pin one of the APU. The APU cannot be inserted if oriented incorrectly.

•Apply an even and thin layer of thermal grease on the surface of the APU.

•Do not turn on the computer if the APU cooler is not installed, otherwise overheating and damage

of the APU may occur.

•Set the APU host frequency in accordance with the APU specications. It is not recommended

that the system bus frequency be set beyond hardware specications since it does not meet the

standard requirements for the peripherals. If you wish to set the frequency beyond the standard

specications, please do so according to your hardware specications including the APU, graphics

card, memory, hard drive, etc.

Installing the APU

Locate the pin one (denoted by a small triangle) of the APU socket and the APU.

1-4 Installing the Memory

Read the following guidelines before you begin to install the memory:

•Make sure that the motherboard supports the memory. It is recommended that memory of the

same capacity, brand, speed, and chips be used.

(Go to GIGABYTE's website for the latest supported memory speeds and memory modules.)

•Always turn off the computer and unplug the power cord from the power outlet before installing the

memory to prevent hardware damage.

•Memory modules have a foolproof design. A memory module can be installed in only one direction.

If you are unable to insert the memory, switch the direction.

APU

A Small Triangle

Marking Denotes Pin

One of the Socket

FS1b Socket A Small Triangle

Marking Denotes

APU Pin One

1-5 Installing an Expansion Card

Read the following guidelines before you begin to install an expansion card:

•Make sure the motherboard supports the expansion card. Carefully read the manual that came

with your expansion card.

•Always turn off the computer and unplug the power cord from the power outlet before installing an

expansion card to prevent hardware damage.

- 10 -

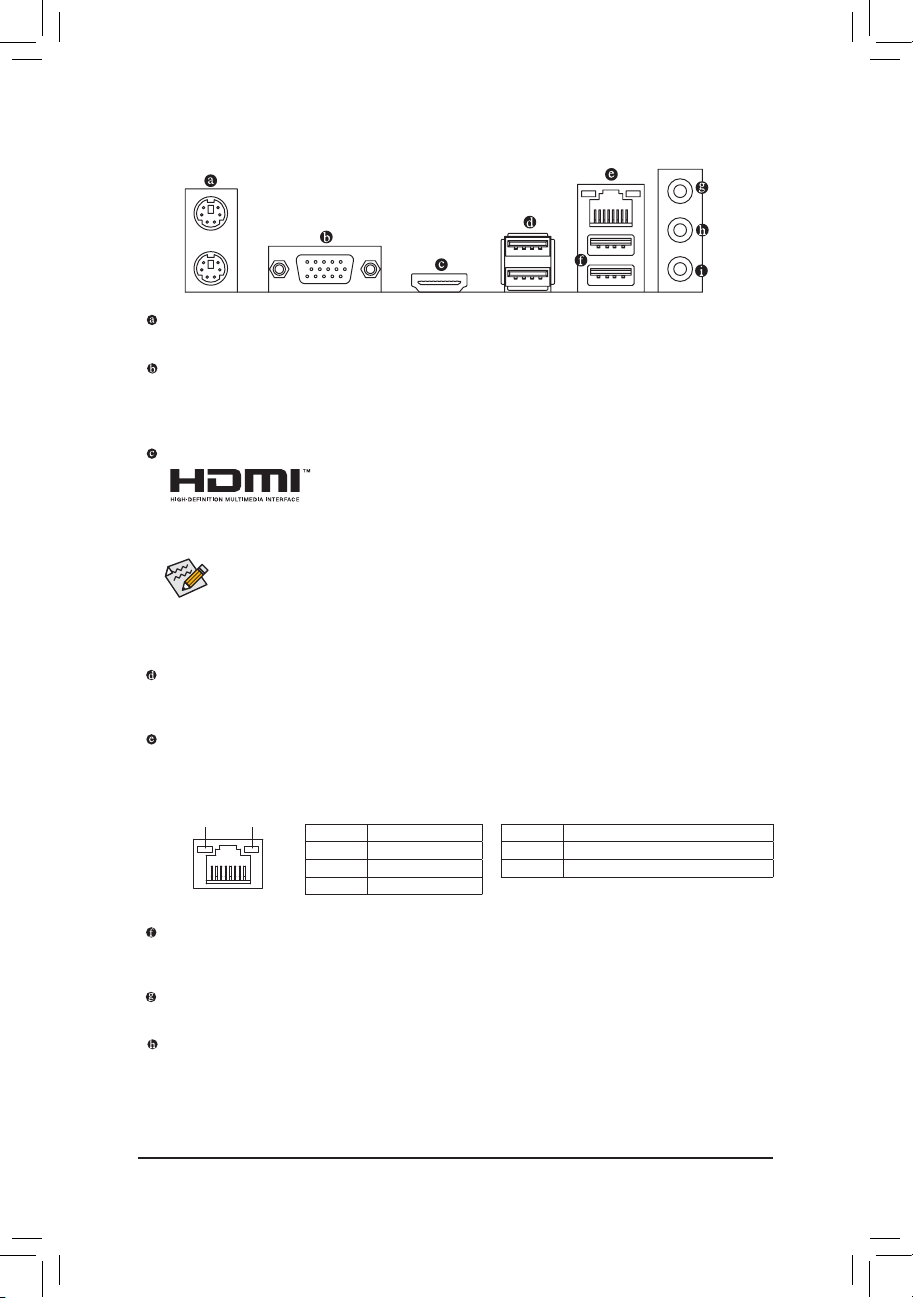

1-6 Back Panel Connectors

PS/2 Keyboard and PS/2 Mouse Port

Use the upper port (green) to connect a PS/2 mouse and the lower port (purple) to connect a PS/2 keyboard.

D-Sub Port

The D-Sub port supports a 15-pin D-Sub connector and supports a maximum resolution of 1920x1200

(the actual resolutions supported depend on the monitor being used). Connect a monitor that supports

D-Sub connection to this port.

HDMI Port

The HDMI port is HDCP compliant and supports Dolby True HD and DTS HD

Master Audio formats. It also supports up to 192KHz/24bit 8-channel LPCM

audio output. You can use this port to connect your HDMI-supported monitor. The maximum supported

resolution is 4096x2160, but the actual resolutions supported are dependent on the monitor being used.

Activity LED

Connection/

Speed LED

LAN Port

Activity LED:Connection/Speed LED:

State Description

Orange 1 Gbps data rate

Green 100 Mbps data rate

Off 10 Mbps data rate

State Description

Blinking Data transmission or receiving is occurring

Off No data transmission or receiving is occurring

USB 3.0/2.0 Port

The USB 3.0 port supports the USB 3.0 specication and is compatible to the USB 2.0/1.1 specication.

Use this port for USB devices such as a USB keyboard/mouse, USB printer, USB ash drive and etc.

RJ-45 LAN Port

The Gigabit Ethernet LAN port provides Internet connection at up to 1 Gbps data rate. The following

describes the states of the LAN port LEDs.

After installing the HDMI device, make sure to set the default sound playback device to HDMI.

DualDisplayCongurationsfortheOnboardGraphics:

Dual display congurations are supported after you install motherboard drivers in OS.

USB 2.0/1.1 Port

The USB port supports the USB 2.0/1.1 specication. Use this port for USB devices such as a USB

keyboard/mouse, USB printer, USB ash drive and etc.

Line In Jack (Blue)

The line in jack. Use this audio jack for line in devices such as an optical drive, walkman, etc.

LineOutJack(Green)

The line out jack. Use this audio jack for a headphone or 2-channel speaker. This jack can be used to

connect front speakers in a 4/5.1/7.1-channel audio conguration.

Table des matières

Autres manuels GIGA-BYTE TECHNOLOGY Carte mère

GIGA-BYTE TECHNOLOGY

GIGA-BYTE TECHNOLOGY H310N 2.0 Manuel utilisateur

GIGA-BYTE TECHNOLOGY

GIGA-BYTE TECHNOLOGY GA-Z97X-Gaming GT Manuel utilisateur

GIGA-BYTE TECHNOLOGY

GIGA-BYTE TECHNOLOGY B365M DS3H Manuel utilisateur

GIGA-BYTE TECHNOLOGY

GIGA-BYTE TECHNOLOGY GA-H97M-HD3 Manuel utilisateur

GIGA-BYTE TECHNOLOGY

GIGA-BYTE TECHNOLOGY GA-H110M-S2PH Manuel utilisateur

GIGA-BYTE TECHNOLOGY

GIGA-BYTE TECHNOLOGY GA-Z270-HD3 Manuel utilisateur

GIGA-BYTE TECHNOLOGY

GIGA-BYTE TECHNOLOGY GA-H110M-D3H Manuel utilisateur

GIGA-BYTE TECHNOLOGY

GIGA-BYTE TECHNOLOGY MU70-SU0 Manuel utilisateur

GIGA-BYTE TECHNOLOGY

GIGA-BYTE TECHNOLOGY MZ72-HB2 Manuel utilisateur

GIGA-BYTE TECHNOLOGY

GIGA-BYTE TECHNOLOGY GA-P110-D3 Manuel utilisateur

GIGA-BYTE TECHNOLOGY

GIGA-BYTE TECHNOLOGY GA-H170M-DS3H Manuel utilisateur

GIGA-BYTE TECHNOLOGY

GIGA-BYTE TECHNOLOGY GA-Z97-HD3 Manuel utilisateur

GIGA-BYTE TECHNOLOGY

GIGA-BYTE TECHNOLOGY Z690 AORUS ELITE AX Manuel utilisateur

GIGA-BYTE TECHNOLOGY

GIGA-BYTE TECHNOLOGY GA-B250-HD3P Manuel utilisateur

GIGA-BYTE TECHNOLOGY

GIGA-BYTE TECHNOLOGY GA-H110TN Manuel utilisateur

GIGA-BYTE TECHNOLOGY

GIGA-BYTE TECHNOLOGY H410M DS2V V2 Manuel utilisateur

GIGA-BYTE TECHNOLOGY

GIGA-BYTE TECHNOLOGY H410M H V3 Manuel utilisateur

GIGA-BYTE TECHNOLOGY

GIGA-BYTE TECHNOLOGY GA-6LXSL Manuel utilisateur

GIGA-BYTE TECHNOLOGY

GIGA-BYTE TECHNOLOGY B365M D2V Manuel utilisateur

GIGA-BYTE TECHNOLOGY

GIGA-BYTE TECHNOLOGY GA-E3800N Manuel utilisateur

GIGA-BYTE TECHNOLOGY

GIGA-BYTE TECHNOLOGY B460M D2V Manuel utilisateur

GIGA-BYTE TECHNOLOGY

GIGA-BYTE TECHNOLOGY B365M HD3 Manuel utilisateur

GIGA-BYTE TECHNOLOGY

GIGA-BYTE TECHNOLOGY Z790 AERO G Manuel utilisateur

GIGA-BYTE TECHNOLOGY

GIGA-BYTE TECHNOLOGY R281-3C0 Manuel utilisateur

Manuels Carte mère populaires d'autres marques

DFI

DFI SD170 Manuel utilisateur

ASROCK

ASROCK ROMED8-2T Manuel utilisateur

Asus

Asus P2L97A Manuel utilisateur

Winmate

Winmate IC70 Manuel utilisateur

Asus

Asus MES-B Manuel utilisateur

Grantech

Grantech SYS8F377VGGA-3OMN Manuel utilisateur

Telit Wireless Solutions

Telit Wireless Solutions SL869-3DR Manuel utilisateur

Gigabyte

Gigabyte GA-9IVDT Manuel utilisateur

Texas Instruments

Texas Instruments ADS8372EVM Manuel utilisateur

Commell

Commell MS-C73 Manuel utilisateur

IBT Technologies

IBT Technologies MB860 Manuel utilisateur

Nvidia

Nvidia TEGRA DG-04927-001_V01 Manuel utilisateur

Biostar

Biostar M7VIT Bravo Instructions d'utilisation et d'installation

Intel

Intel D33217CK Manuel utilisateur

Asus

Asus F1A55-M LX PLUS R2.0 Manuel utilisateur

EPC

EPC EPC9147C Manuel utilisateur

Asus

Asus EX-B760M-V5 D4 Manuel utilisateur

EPOX

EPOX MU-8KHA0010 Manuel utilisateur
