GA-AB350M-DASH

User's Manual

Rev. 1002

Questo manuale d’istruzione è fornito da trovaprezzi.it. Scopri tutte le offerte per Gigabyte

AB350M Dash o cerca il tuo prodotto tra le migliori offerte di Schede Madri

The trademarks mentioned in this manual are legally registered to their respective owners.

Disclaimer

Information in this manual is protected by copyright laws and is the property of GIGABYTE.

Changes to the specications and features in this manual may be made by GIGABYTE without prior notice.

No part of this manual may be reproduced, copied, translated, transmitted, or published in any form or by

any means without GIGABYTE's prior written permission.

In order to assist in the use of this product, carefully read the User's Manual.

For product-related information, check on our website at: http://www.gigabyte.com

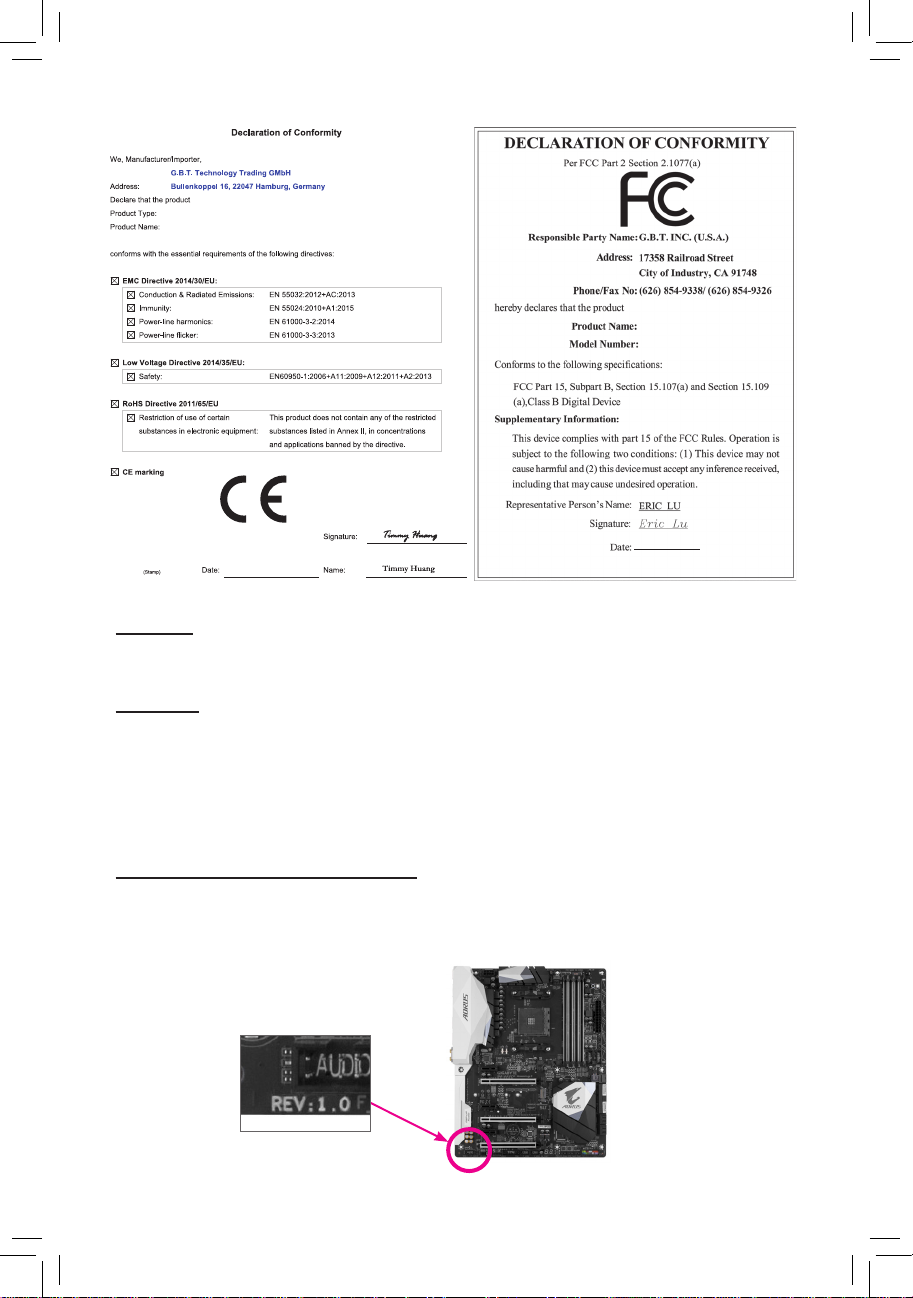

Identifying Your Motherboard Revision

The revision number on your motherboard looks like this: "REV: X.X." For example, "REV: 1.0" means

the revision of the motherboard is 1.0. Check your motherboard revision before updating motherboard

BIOS, drivers, or when looking for technical information.

Example:

Motherboard

GA-AB350M-DASH

Apr. 12, 2018

Motherboard

GA-AB350M-DASH

- 3 -

Table of Contents

GA-AB350M-DASH Motherboard Layout........................................................................4

Chapter 1 Hardware Installation .....................................................................................5

1-1 Installation Precautions.................................................................................... 5

1-2 ProductSpecications...................................................................................... 6

1-3 Installing the CPU ............................................................................................ 9

1-4 Installing the Memory....................................................................................... 9

1-5 Installing an Expansion Card ......................................................................... 10

1-6 Back Panel Connectors.................................................................................. 10

1-7 Internal Connectors........................................................................................ 12

Chapter 2 BIOS Setup ..................................................................................................19

2-1 Startup Screen ............................................................................................... 19

2-2 M.I.T. .............................................................................................................. 20

2-3 System Information ........................................................................................ 25

2-4 BIOS Features ............................................................................................... 26

2-5 Peripherals..................................................................................................... 29

2-6 Chipset........................................................................................................... 31

2-7 Power Management....................................................................................... 32

2-8 Save & Exit..................................................................................................... 34

Chapter 3 Appendix ......................................................................................................35

3-1 ConguringaRAIDSet.................................................................................. 35

3-2 Drivers Installation.......................................................................................... 37

RegulatoryStatements.............................................................................................. 38

Contact Us ................................................................................................................ 40

- 4 -

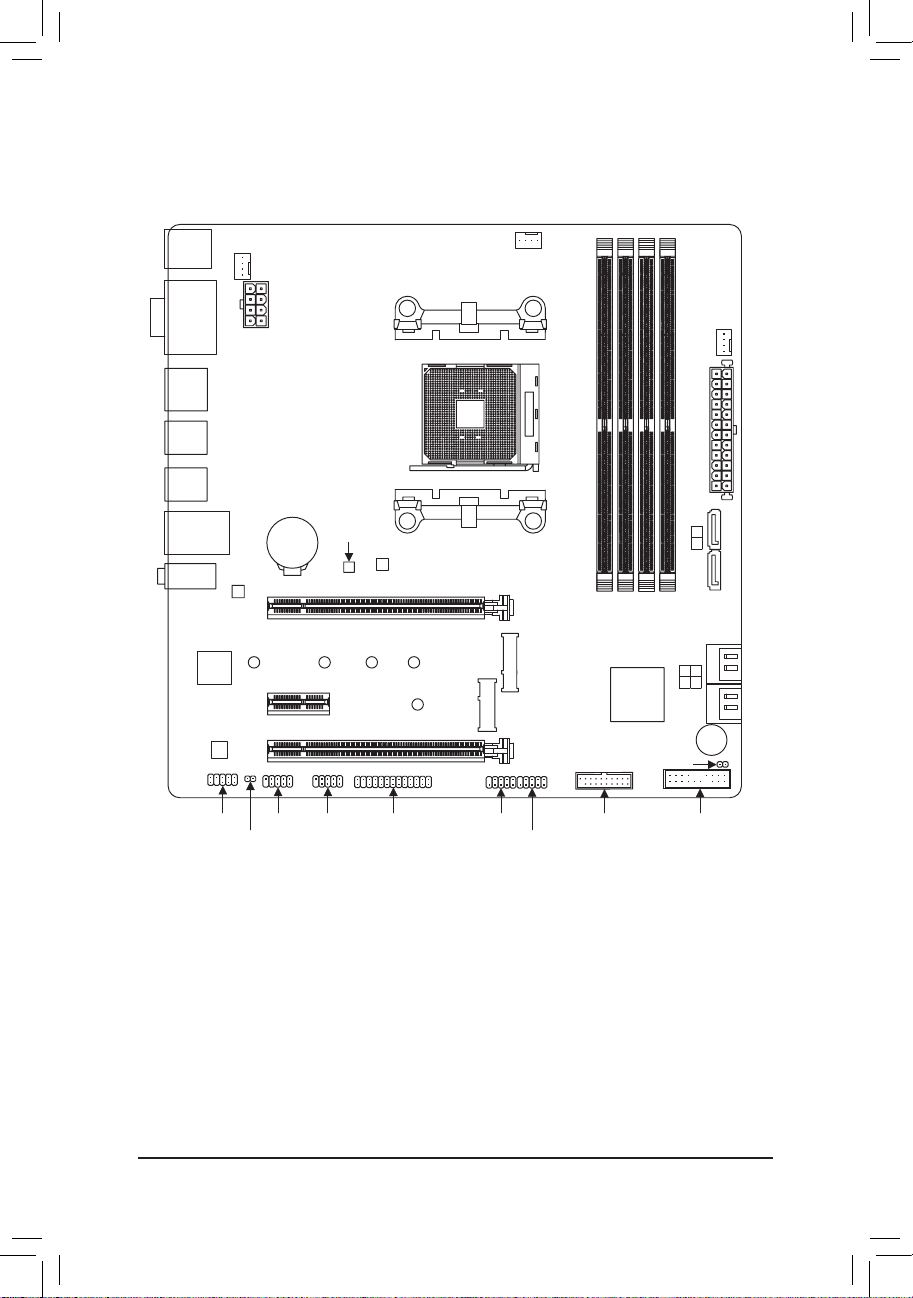

GA-AB350M-DASH Motherboard Layout

* The box contents above are for reference only and the actual items shall depend on the product package you obtain.

The box contents are subject to change without notice.

Box Contents

5GA-AB350M-DASH motherboard

5Motherboard driver disk 5Two SATA cables

5User's Manual 5I/O Shield

KB_MS CPU_FAN

SYS_FAN1

ATX

GA-AB350M-DASH

AUDIO

BAT

ATX_12V

AMD B350

R_USB31

USB30_LAN

R_USB30

CODEC

M_BIOS

BUZZER

DP2

VGA

HDMI

PCIEX16

PCIEX1

PCIEX4

iTE®

Super I/O

Realtek®

GbE LAN

F_PANELF_USB30

CLR_CMOS

F_USB1

F_USB2

LPTCOMBCOMA

TPM IC

F_AUDIO

SATA3 ASATA3

0 2

1 3 0 1

426080110

M2F_32G

M2_WIFI

Socket AM4

SYS_FAN2

DDR4_4

DDR4_2

DDR4_3

DDR4_1

SPKR

Chapter 1 Hardware Installation

1-1 Installation Precautions

The motherboard contains numerous delicate electronic circuits and components which can become

damaged as a result of electrostatic discharge (ESD). Prior to installation, carefully read the user's

manual and follow these procedures:

•Prior to installation, make sure the chassis is suitable for the motherboard.

•Prior to installation, do not remove or break motherboard S/N (Serial Number) sticker or

warranty sticker provided by your dealer. These stickers are required for warranty validation.

•Always remove the AC power by unplugging the power cord from the power outlet before

installing or removing the motherboard or other hardware components.

•When connecting hardware components to the internal connectors on the motherboard, make

sure they are connected tightly and securely.

•When handling the motherboard, avoid touching any metal leads or connectors.

•It is best to wear an electrostatic discharge (ESD) wrist strap when handling electronic

components such as a motherboard, CPU or memory. If you do not have an ESD wrist strap,

keepyourhandsdryandrsttouchametalobjecttoeliminatestaticelectricity.

•Prior to installing the motherboard, please have it on top of an antistatic pad or within an

electrostatic shielding container.

•Before connecting or unplugging the power supply cable from the motherboard, make sure

the power supply has been turned off.

•Before turning on the power, make sure the power supply voltage has been set according to

the local voltage standard.

•Before using the product, please verify that all cables and power connectors of your hardware

components are connected.

•To prevent damage to the motherboard, do not allow screws to come in contact with the

motherboard circuit or its components.

•Make sure there are no leftover screws or metal components placed on the motherboard or

within the computer casing.

•Do not place the computer system on an uneven surface.

•Do not place the computer system in a high-temperature or wet environment.

•Turning on the computer power during the installation process can lead to damage to system

components as well as physical harm to the user.

•If you are uncertain about any installation steps or have a problem related to the use of the

product,pleaseconsultacertiedcomputertechnician.

•If you use an adapter, extension power cable, or power strip, ensure to consult with its installation

and/or grounding instructions.

- 5 -

1-2 ProductSpecications

CPU AM4 Socket:

- AMDRyzen™processor

- AMD 7th Generation A-series/Athlon™processors

(Go to GIGABYTE's website for the latest CPU support list.)

Chipset AMD B350

Memory 4xDDR4DIMMsocketssupportingupto64GBofsystemmemory

Dual channel memory architecture

SupportforDDR42667 (Note)/2400/2133MHzmemorymodules

SupportforECCUn-bufferedDIMM1Rx8/2Rx8memory modules(operatein

non-ECC mode)

Supportfornon-ECCUn-bufferedDIMM1Rx8/2Rx8/1Rx16memorymodules

SupportforExtremeMemoryProle(XMP)memorymodules

(Go to GIGABYTE's website for the latest supported memory speeds and memory

modules.)

Onboard

Graphics

Integrated Graphics Processor:

- 1xD-Subport,supportingamaximumresolutionof1920x1200@60Hz

- 2xDisplayPorts,supportingamaximumresolutionof4096x2304@60Hz

* Support for DisplayPort 1.2 version.

- 1xHDMIport,supportingamaximumresolutionof4096x2160@24Hz

* Support for HDMI 1.4 version.

Support for up to 3 displays at the same time

Maximum shared memory of 2 GB

Audio Realtek®ALC887 codec

HighDenitionAudio

2/4/5.1/7.1-channel

* Tocongure7.1-channelaudio,youhavetouseanHDfrontpanelaudiomoduleand

enable the multi-channel audio feature through the audio driver.

LAN Realtek®GbE LAN chip (10/100/1000 Mbit)

TPM InneonTPMchip,supportingTPM2.0

Expansion Slots 1 x PCI Express x16 slot, running at x16 (PCIEX16) (Note)

* For optimum performance, if only one PCI Express graphics card is to be installed,

be sure to install it in the PCIEX16 slot.

(The PCIEX16 slot conforms to PCI Express 3.0 standard.)

1 x PCI Express x16 slot, running at x4 (PCIEX4)

1 x PCI Express x1 slot

* The PCIEX4 slot shares bandwidth with the PCIEX1 slot. The PCIEX4 slot operates

at up to x2 mode when the PCIEX1 slot is populated. The PCIEX4 slot operates at

up to x4 mode when the PCIEX1 slot is empty.

(The PCIEX4 and PCIEX1 slots conform to PCI Express 2.0 standard.)

1 x M.2 Socket 1 connector for the wireless communication module (M2_WIFI)

(Note) Actual support may vary by CPU.

- 6 -

Storage Interface 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe

x4 (Note)/x2 SSD support)

6 x SATA 6Gb/s connectors

SupportforRAID0,RAID1,andRAID10

USB Chipset:

- 2 x USB 3.1 Gen 2 Type-A ports (red) on the back panel

- 2 x USB 3.1 Gen 1 ports available through the internal USB header

- 4 x USB 2.0/1.1 ports available through the internal USB headers

CPU:

- 4 x USB 3.1 Gen 1 ports on the back panel

Internal

Connectors

1 x 24-pin ATX main power connector

1 x 8-pin ATX 12V power connector

1 x CPU fan header

2 x system fan headers

6 x SATA 6Gb/s connectors

1 x front panel header

1 x front panel audio header

1 x S/PDIF Out header

1 x speaker header

1 x USB 3.1 Gen 1 header

2 x USB 2.0/1.1 headers

2 x serial port headers

1 x parallel port header

1 x Clear CMOS jumper

Back Panel

Connectors

1 x PS/2 mouse port

1 x PS/2 Keyboard port

1 x D-Sub port

2 x DisplayPorts

1 x HDMI port

2 x USB 3.1 Gen 2 Type-A ports (red)

4 x USB 3.1 Gen 1 ports

1xRJ-45port

3 x audio jacks

I/O Controller iTE®I/O Controller Chip

Hardware

Monitor

Voltage detection

Temperature detection

Fan speed detection

Overheating warning

Fan fail warning

Fan speed control

* Whether the fan speed control function is supported will depend on the cooler you

install.

(Note) Actual support may vary by CPU.

- 7 -

BIOS 1x128Mbitash

Use of licensed AMI UEFI BIOS

PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Unique Features Support for APP Center

* Available applications in APP Center may vary by motherboard model. Supported

functionsofeachapplicationmayalsovarydependingonmotherboardspecications.

- @BIOS

- 3D OSD

- AutoGreen

- Cloud Station

- EasyTune

- Fast Boot

- Game Boost

- ON/OFF Charge

- Smart Backup

- Smart Keyboard

- Smart TimeLock

- System Information Viewer

- USB Blocker

- V-Tuner

Support for Q-Flash

Support for Xpress Install

Bundled

Software Norton®Internet Security (OEM version)

Operating

System

Support for Windows 10 64-bit

Support for Windows 7 64-bit

* TosupportWindows764-bit,youmustinstallanAMDPinnacleRidgeorSummit

RidgeCPU.

Form Factor Micro ATX Form Factor; 24.4cm x 24.4cm

* GIGABYTEreservestherighttomakeanychangestotheproductspecicationsandproduct-relatedinformationwithout

prior notice.

Please visit GIGABYTE's website

for support lists of CPU, memory

modules, SSDs, and M.2 devices.

Please visit the Support\Utility List

page on GIGABYTE's website to

download the latest version of apps.

- 8 -

Please visit GIGABYTE's website for details on hardware installation.

DualChannelMemoryConguration

This motherboard provides four memory sockets and supports Dual Channel Technology. After the memory

isinstalled,theBIOSwillautomaticallydetectthespecicationsandcapacityofthememory.EnablingDual

Channel memory mode will double the original memory bandwidth.

The four memory sockets are divided into two channels and each channel has two memory sockets as following:

ChannelA:DDR4_2,DDR4_4

ChannelB:DDR4_1,DDR4_3

1-4 InstallingtheMemory

Readthefollowingguidelinesbeforeyoubegintoinstallthememory:

•Make sure that the motherboard supports the memory. It is recommended that memory of the same

capacity, brand, speed, and chips be used.

(Go to GIGABYTE's website for the latest supported memory speeds and memory modules.)

•Always turn off the computer and unplug the power cord from the power outlet before installing the

memory to prevent hardware damage.

•Memory modules have a foolproof design. A memory module can be installed in only one direction.

If you are unable to insert the memory, switch the direction.

ReadthefollowingguidelinesbeforeyoubegintoinstalltheCPU:

•Make sure that the motherboard supports the CPU.

(Go to GIGABYTE's website for the latest CPU support list.)

•Always turn off the computer and unplug the power cord from the power outlet before installing the

CPU to prevent hardware damage.

•Locate the pin one of the CPU. The CPU cannot be inserted if oriented incorrectly.

•Apply an even and thin layer of thermal grease on the surface of the CPU.

•Do not turn on the computer if the CPU cooler is not installed, otherwise overheating and damage

of the CPU may occur.

•SettheCPUhostfrequencyinaccordancewiththeCPUspecications.Itisnotrecommended

thatthesystembusfrequencybesetbeyondhardwarespecicationssinceitdoesnotmeetthe

standard requirements for the peripherals. If you wish to set the frequency beyond the standard

specications,pleasedosoaccordingtoyourhardwarespecicationsincludingtheCPU,graphics

card, memory, hard drive, etc.

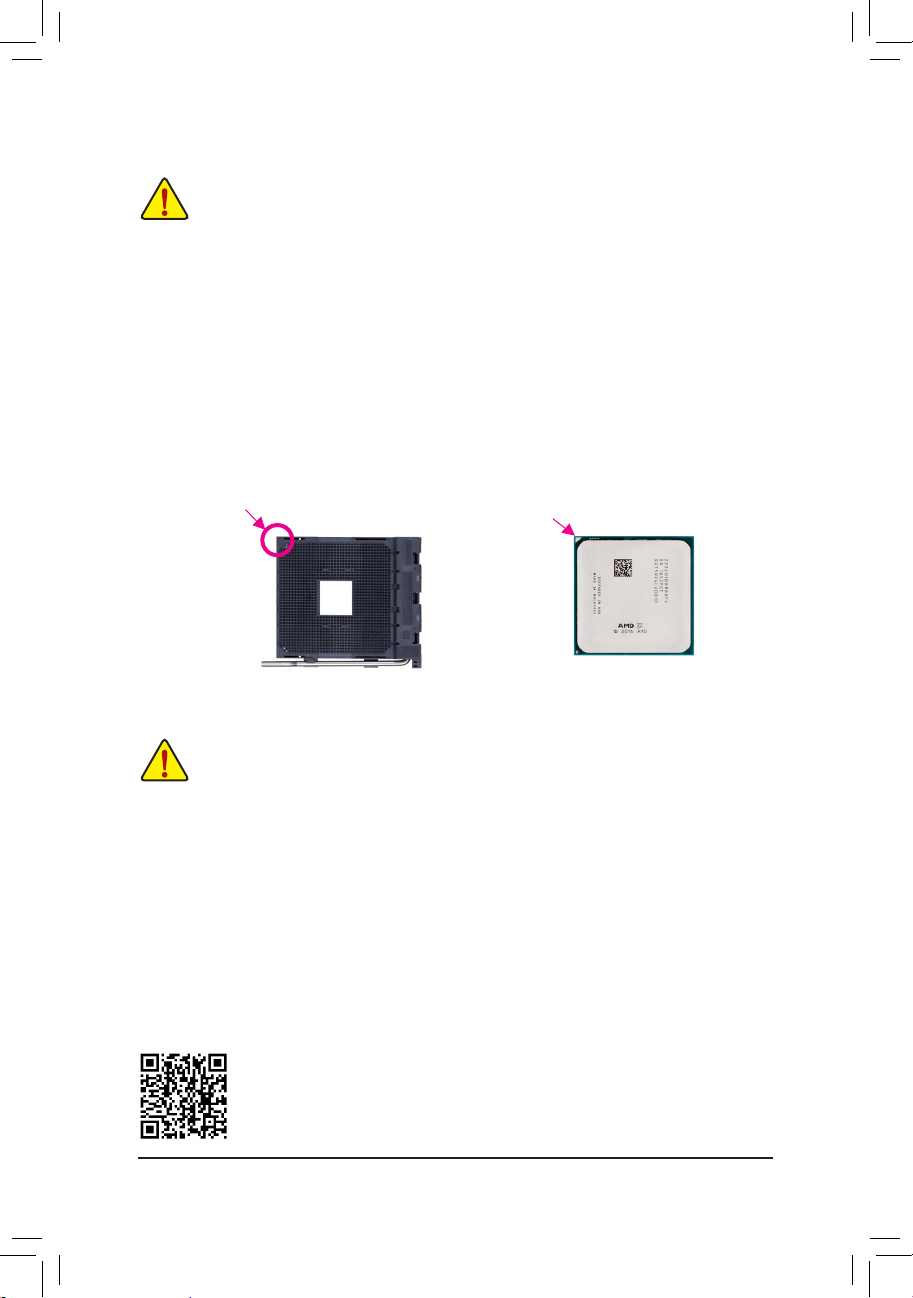

InstallingtheCPU

Locate the pin one (denoted by a small triangle) of the CPU socket and the CPU.

AM4 Socket

A Small Triangle

Marking Denotes Pin

One of the Socket AM4 CPU

A Small Triangle

Marking Denotes CPU

Pin One

1-3 InstallingtheCPU

- 9 -

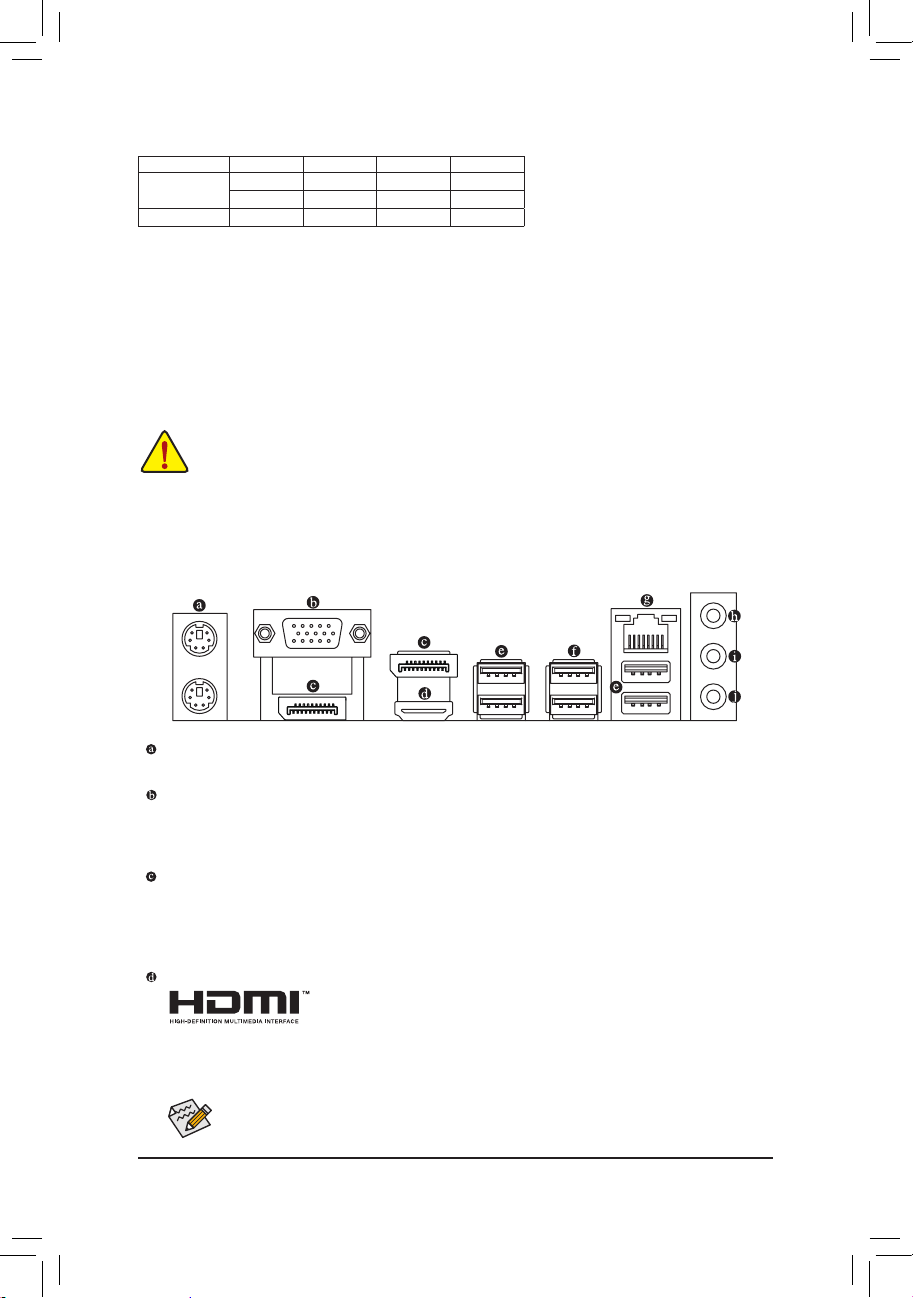

1-6 Back Panel Connectors

PS/2 Keyboard and PS/2 Mouse Port

Use the upper port (green) to connect a PS/2 mouse and the lower port (purple) to connect a PS/2 keyboard.

D-Sub Port

TheD-Subportsupportsa15-pinD-Subconnectorandsupportsamaximumresolutionof1920x1200@60Hz

(the actual resolutions supported depend on the monitor being used). Connect a monitor that supports

D-Sub connection to this port.

DisplayPort

DisplayPort delivers high quality digital imaging and audio, supporting bi-directional audio transmission.

DisplayPort can support both DPCP and HDCP content protection mechanisms. You can use this port to

connect your DisplayPort-supported monitor. Note: The DisplayPort Technology can support a maximum

resolutionof4096x2304@60Hzbuttheactualresolutionssupporteddependonthemonitorbeingused.

HDMI Port

The HDMI port supports HDCP 2.2 and Dolby TrueHD and DTS HD Master Audio

formats.Italsosupportsupto192KHz/16bit8-channelLPCMaudiooutput.You

can use this port to connect your HDMI-supported monitor. The maximum supported resolution is

4096x2160@30Hz,buttheactualresolutionssupportedaredependentonthemonitorbeingused.

Due to CPU limitations, read the following guidelines before installing the memory in Dual Channel mode.

1. Dual Channel mode cannot be enabled if only one memory module is installed.

2. When enabling Dual Channel mode with two or four memory modules, it is recommended that memory

of the same capacity, brand, speed, and chips be used. For optimum performance, when enabling

DualChannelmodewithtwomemorymodules,werecommendthatyouinstallthemintheDDR4_1

andDDR4_2sockets.

1-5 InstallinganExpansionCard

Readthefollowingguidelinesbeforeyoubegintoinstallanexpansioncard:

•Make sure the motherboard supports the expansion card. Carefully read the manual that came

with your expansion card.

•Always turn off the computer and unplug the power cord from the power outlet before installing an

expansion card to prevent hardware damage.

After installing the HDMI device, make sure to set the default sound playback device to HDMI.

(The item name may differ depending on your operating system.)

DualChannelMemoryCongurationsTable

DDR4_4 DDR4_2 DDR4_3 DDR4_1

2 Modules - - DS/SS - - DS/SS

DS/SS - - DS/SS - -

4 Modules DS/SS DS/SS DS/SS DS/SS

(SS=Single-Sided, DS=Double-Sided, "- -"=No Memory)

- 10 -

Table des matières

Autres manuels GIGA-BYTE TECHNOLOGY Carte mère

GIGA-BYTE TECHNOLOGY

GIGA-BYTE TECHNOLOGY H310M S2V 2.0 Manuel utilisateur

GIGA-BYTE TECHNOLOGY

GIGA-BYTE TECHNOLOGY MD30-RS0 Manuel utilisateur

GIGA-BYTE TECHNOLOGY

GIGA-BYTE TECHNOLOGY GA-H110M-D3H Manuel utilisateur

GIGA-BYTE TECHNOLOGY

GIGA-BYTE TECHNOLOGY GA-Z270X-Gaming 5 Manuel utilisateur

GIGA-BYTE TECHNOLOGY

GIGA-BYTE TECHNOLOGY GA-F2A58M-S1 Manuel utilisateur

GIGA-BYTE TECHNOLOGY

GIGA-BYTE TECHNOLOGY GA-AX370-Gaming K7 Manuel utilisateur

GIGA-BYTE TECHNOLOGY

GIGA-BYTE TECHNOLOGY B550M AORUS PRO Manuel utilisateur

GIGA-BYTE TECHNOLOGY

GIGA-BYTE TECHNOLOGY B365M DS3H Manuel utilisateur

GIGA-BYTE TECHNOLOGY

GIGA-BYTE TECHNOLOGY A520M H Manuel utilisateur

GIGA-BYTE TECHNOLOGY

GIGA-BYTE TECHNOLOGY GA-H110TN-M Manuel utilisateur

GIGA-BYTE TECHNOLOGY

GIGA-BYTE TECHNOLOGY Z590 AORUS ULTRA Manuel utilisateur

GIGA-BYTE TECHNOLOGY

GIGA-BYTE TECHNOLOGY GA-H81M-DS2 Manuel utilisateur

GIGA-BYTE TECHNOLOGY

GIGA-BYTE TECHNOLOGY GA-H81M-S2PT Manuel utilisateur

GIGA-BYTE TECHNOLOGY

GIGA-BYTE TECHNOLOGY GA-A320-DS3 Manuel utilisateur

GIGA-BYTE TECHNOLOGY

GIGA-BYTE TECHNOLOGY GA-F2A55M-S1 Manuel utilisateur

GIGA-BYTE TECHNOLOGY

GIGA-BYTE TECHNOLOGY Z490 GAMING X AX Manuel utilisateur

GIGA-BYTE TECHNOLOGY

GIGA-BYTE TECHNOLOGY MZ01-CE0 Manuel utilisateur

GIGA-BYTE TECHNOLOGY

GIGA-BYTE TECHNOLOGY G191-H44 Manuel utilisateur

GIGA-BYTE TECHNOLOGY

GIGA-BYTE TECHNOLOGY GA-Z97-HD3 Manuel utilisateur

GIGA-BYTE TECHNOLOGY

GIGA-BYTE TECHNOLOGY H410M H V3 Manuel utilisateur

GIGA-BYTE TECHNOLOGY

GIGA-BYTE TECHNOLOGY H510M HD3P Manuel utilisateur

GIGA-BYTE TECHNOLOGY

GIGA-BYTE TECHNOLOGY GA-Z270X-Gaming K5 Manuel utilisateur

GIGA-BYTE TECHNOLOGY

GIGA-BYTE TECHNOLOGY H510M DS2V Manuel utilisateur

GIGA-BYTE TECHNOLOGY

GIGA-BYTE TECHNOLOGY B365M HD3 Manuel utilisateur

Manuels Carte mère populaires d'autres marques

DFI

DFI SD170 Manuel utilisateur

ASROCK

ASROCK ROMED8-2T Manuel utilisateur

Asus

Asus P2L97A Manuel utilisateur

Winmate

Winmate IC70 Manuel utilisateur

Asus

Asus MES-B Manuel utilisateur

Grantech

Grantech SYS8F377VGGA-3OMN Manuel utilisateur

Telit Wireless Solutions

Telit Wireless Solutions SL869-3DR Manuel utilisateur

Gigabyte

Gigabyte GA-9IVDT Manuel utilisateur

Texas Instruments

Texas Instruments ADS8372EVM Manuel utilisateur

Commell

Commell MS-C73 Manuel utilisateur

IBT Technologies

IBT Technologies MB860 Manuel utilisateur

Nvidia

Nvidia TEGRA DG-04927-001_V01 Manuel utilisateur

Biostar

Biostar M7VIT Bravo Instructions d'utilisation et d'installation

Intel

Intel D33217CK Manuel utilisateur

Asus

Asus F1A55-M LX PLUS R2.0 Manuel utilisateur

EPC

EPC EPC9147C Manuel utilisateur

Asus

Asus EX-B760M-V5 D4 Manuel utilisateur

EPOX

EPOX MU-8KHA0010 Manuel utilisateur
