Giada PC610 Manuel utilisateur
- 1 -
- 2 -
Statement
The copyright of this manual belongs to Shenzhen JEHE Technology Development Co., Ltd.
(Giada, JEHE’s global brand) and all rights are reserved. The company reserves the right to
change this manual at any time without notification. Specifications here are for reference only,
please take the real product as standard.
Without official authorization of Giada, other companies or individuals may not copy,
plagiarize, translate, or disseminate this manual for commercial purpose.
The information provided in this manual is accurate and reliable. The company does not take
any legal responsibility for the consequences of infringement use of this manual.
Safety Notice
• Read the user manual carefully before setting up the Giada product.
• Disconnect the power before installing the internal components
• Most electronic components are sensitive to static electrical charge, please wear a
wrist-grounding strap when installing the internal components.
• Do not disconnect the power when the system is running to avoid damage to the sensitive
components by instantaneous surge voltage.
Contact Information
Shenzhen JEHE Technology Development Co., Ltd.
Website: www.giadatech.com
Phone: +86-755-3330 0336
Email: support@giadatech.com
Address: 1~3/F, Block A, Tsinghua Information Harbor, North Section, Shenzhen Hi-tech
Park, Nanshan District, Shenzhen, China
3
Table of Contents
1. Product Introduction ........................................................................................ 5
2. Interface Description and Hardware Specifications ...................................... 5
2.1 Interface Description .................................................................................... 5
2.2 Hardware Specifications ............................................................................... 6
3. Accessories Installation Steps ........................................................................... 7
3.1 CPU Installation ............................................................................................. 7
3.2 Memory Installation ....................................................................................... 8
3.3 SSD (M.2) Installation ................................................................................... 9
3.4 WIFI (M.2) Installation ................................................................................ 10
4. BIOS Setup ....................................................................................................... 11
4.1 Main (Standard CMOS Setup) .................................................................... 14
4.2 Advanced (Advanced BIOS Setup) ............................................................. 15
4.2.1 ACPI Setting ....................................................................................... 15
4.2.2 CPU Configuration ............................................................................. 16
4.2.3 Super IO Hardware Monitor .............................................................. 18
4.2.4 Super IO Configuration ...................................................................... 21
4.2.5 OEM Configuration ........................................................................... 23
4.2.6 OEM ME Configuration .................................................................... 24
4.2.7 System Devices Configuration .......................................................... 25
4
4.3 Security ....................................................................................................... 28
4.4 Boot Menu ................................................................................................... 29
4.5 Save & Exit ................................................................................................. 30
5. JAHC Introduction ......................................................................................... 31
5.1 Auto Power On ............................................................................................ 31
5.2 JAHC Software ........................................................................................... 34
5.2.1 JAHC Software Function ..................................................................... 34
5.2.2 JAHC Software Installation Guide ....................................................... 34
5.2.3 Startup & Shutdown Time Setup ......................................................... 37
5.3 Watchdog API & Instruction ....................................................................... 39
5
1. Product Introduction
Complies with Intel OPS standard and based on Intel®Comet Lake platform, Giada PC610 adopts
DDR4 dual-channel memory (Max 32GB) as well as M.2 storage interface design. With selectable
desktop processors, it provides high computing and graphics performance. The player is suitable to
be applied in interactive white board, video conference and other high-end digital signage
applications.
2. Interface Description and Hardware Specifications
2.1 Interface Description

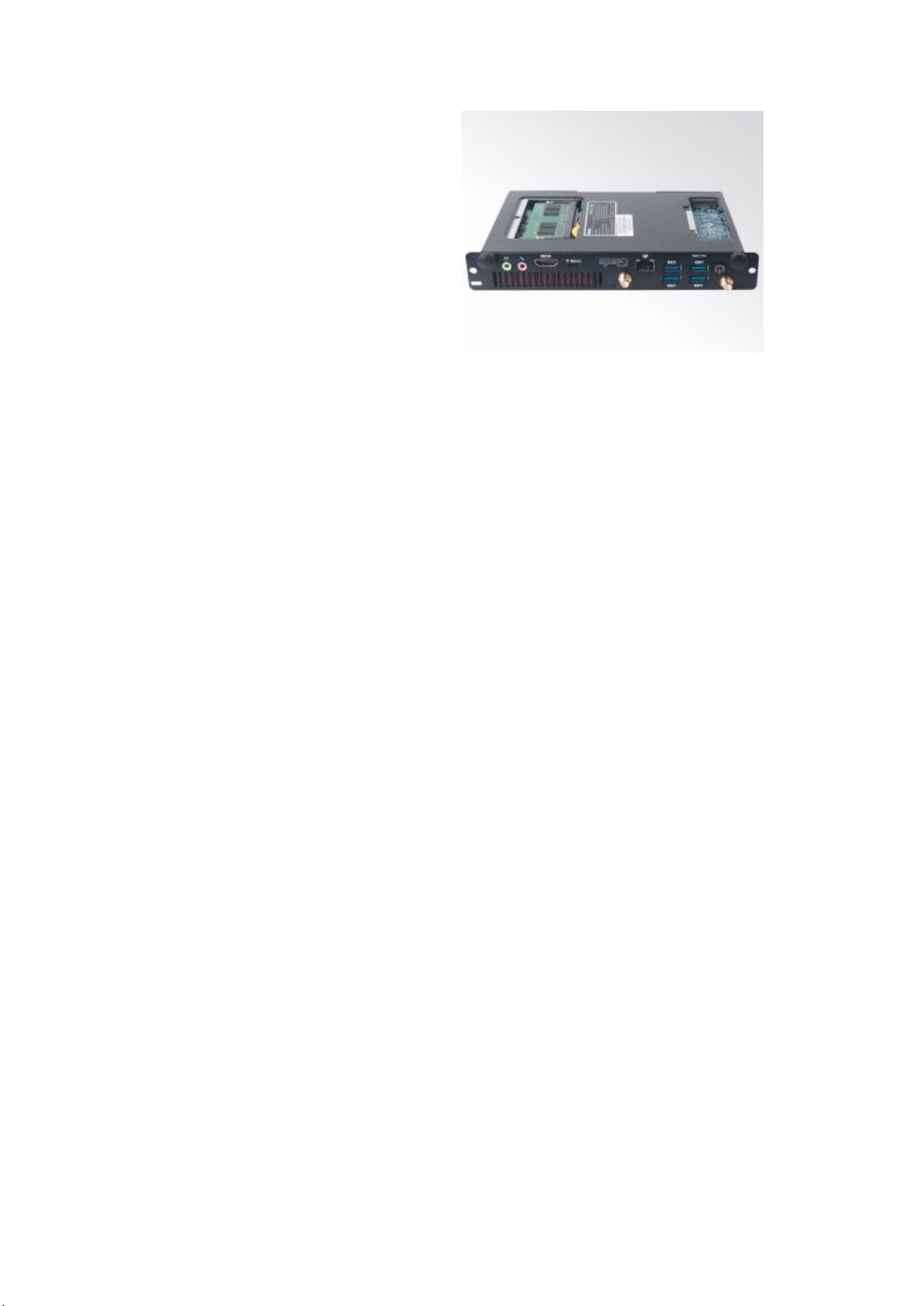

Front I/O Port
Rear I/O Port
6
2.2 Hardware Specifications
PC610
Processor
CPU
Intel®LGA1200 Socket 10th / 11th Gen. Processor
BIOS
AMI Source Code
Chipset
Intel®H470 (Optional Q470/H420E)
Memory
Type
DDR4-2666MHz
Socket
2 x SO-DIMM
Max Capacity
32 GB
Graphics
DP (80 Pin JAE)
1 x DP (Max.4096 x 2304 @ 60Hz)
HDMI (80 Pin JAE)
1 x HDMI (Max.4096 x 2304 @ 60Hz)
HDMI
1 x HDMI (Max.4096 x 2304 @60Hz)
Network
Controller
Realtek 8111H Gigabit Ethernet
Interface
1 x RJ45
I/O Interface
USB
2 x USB 3.2 Gen1, 2 x USB 3.2 Gen2
1 x USB Type-C 3.2 Gen1 (H470)
4 x USB 3.2 Gen1
1 x USB Type-C 3.2 Gen1 (H420E)
Audio
1 x MIC-in, 1 x Audio-out
Serial Port
1 x UART (JAE)
M.2
1 x M.2 (2230) E-KEY for WIFI/BT
TPM
Infineon TPM 2.0
Storage
M.2
1 x M.2 (2242/2280) for SSD
Operation
System
Windows (Optional)
Windows 10（64-bit)
Linux
Supported
Power
Power Type
2.5/5/5 DC Jack / 12V~19V
80 Pin JAE DC-IN / 12V~19V
Mechanical
Construction
Metal
Dimension
(W x D x H)
200mm x 119mm x 30mm (7.87’’ x 4.69’’ x 1.18’’)
Color
Black
Environment
Operating
Temperature
0℃~ 40℃( 32 ℉~ 104 ℉) at 0.7m/s Air Flow
Relative Humidity
95%@40℃(non-condensing)
Certification
CE, FCC
7
3. Accessories Installation Steps
For safety reasons, please ensure that the power is disconnected before opening the case.
How to open the top cover and bottom cover
Unscrew the seven screws and remove the top cover. (CPU, SO-DIMM #1 and M.2 for WIFI are on
top side)
Unscrew the three screws and remove the two covers. (SO-DIMM#2 and M.2 for SSD are on bottom
side)
3.1 CPU Installation
1. Unscrew the screws and remove the CPU cooler.
2. Remove the hook to open the closure.
3. Put the CPU on the board and paint the top side with heat conduction grease.
4. Remove the closure and put the hook back.
5. Tighten up the screws.
8
3.2 Memory Installation
This product only supports DDR4 SO-DIMM memory modules.
1. Locate the SO-DIMM slot on the board.
2. Gently insert the module into the slot in a 45-degree angle.
3. Carefully push down the memory module until it snaps into the locking mechanism.
9
3.3 SSD (M.2) Installation
1. Plug the SSD (M.2) into the appropriate slot.
2. Secure the module to the carrier by tightening up the screw.
3. Remove the clear membrane of the thermal pad and paste the pad on the SSD.
4. Remove the blue membrane of the thermal pad.
10
3.4 WIFI (M.2) Installation
1. Plug the WIFI module into the appropriate slot.
2. Secure the module to the carrier by tightening up the screw.
3. Connect the two black cables to Main and AUX. Install antennas.
Hot-plugging may cause damage to the OPS PC. Please disconnect the power of the
monitor before installing the OPS PC into the slot.
