Instruction manual

Installation manual

Lighting xture type

“Philips 253”

Warning!

Read this manual carefully and

store it in a safe place for further use

Ghisamestieri s.r.l. • Quality system certicate ISO 9001:2008 • phone +39 0543 462611 • fax. +39 0543 449111 • info@ghisamestieri.it • www.ghisamestieri.it

e pictures used are purely for information. Ghisamestieri the green way of light may make improvements or changes at any time without prior notice.

Producer

Warning

Ghisamestieri s.r.l

Via Grande n°226 • 47032 Bertinoro (FC) • ITALIA

T +39 0543 462611

F +39 0543 449111

inf[email protected]

www.ghisamestieri.it

Before proceeding with the installation make sure you have switched the system’s power o.

Electricity

rev. 2015•06•17

Installation manual

Ghisamestieri s.r.l. • Quality system certicate ISO 9001:2008 • phone +39 0543 462611 • fax. +39 0543 449111 • info@ghisamestieri.it • www.ghisamestieri.it

e pictures used are purely for information. Ghisamestieri the green way of light may make improvements or changes at any time without prior notice.

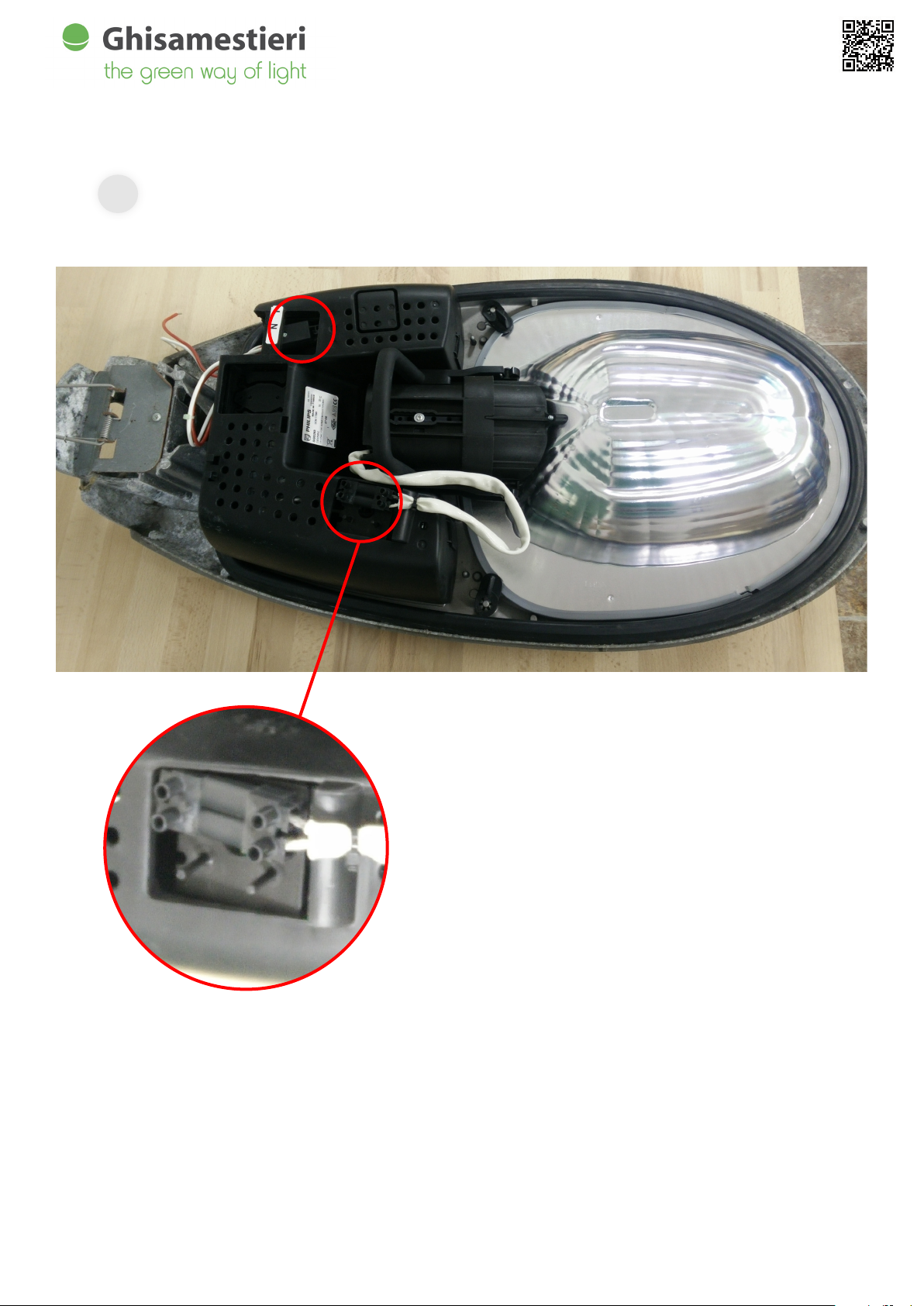

a. Disconnect the connectors highlighted in red.

rev. 2015•06•17

Installation manual

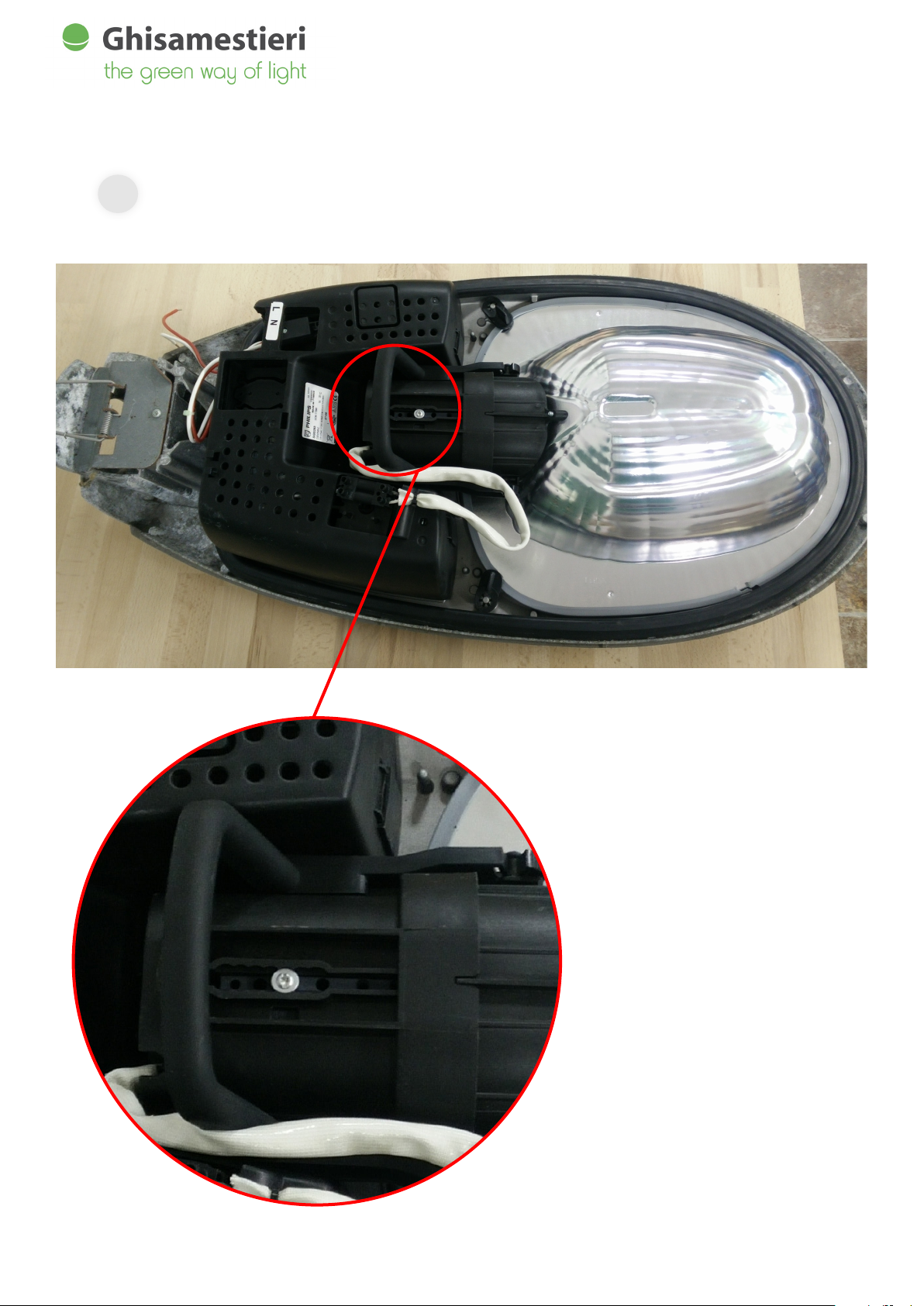

b. Remove the lamp holder highlighted in red.

Ghisamestieri s.r.l. • Quality system certicate ISO 9001:2008 • phone +39 0543 462611 • fax. +39 0543 449111 • info@ghisamestieri.it • www.ghisamestieri.it

e pictures used are purely for information. Ghisamestieri s.r.l. may make improvements or changes at any time without prior notice.

rev. 2015•06•17

Installation manual

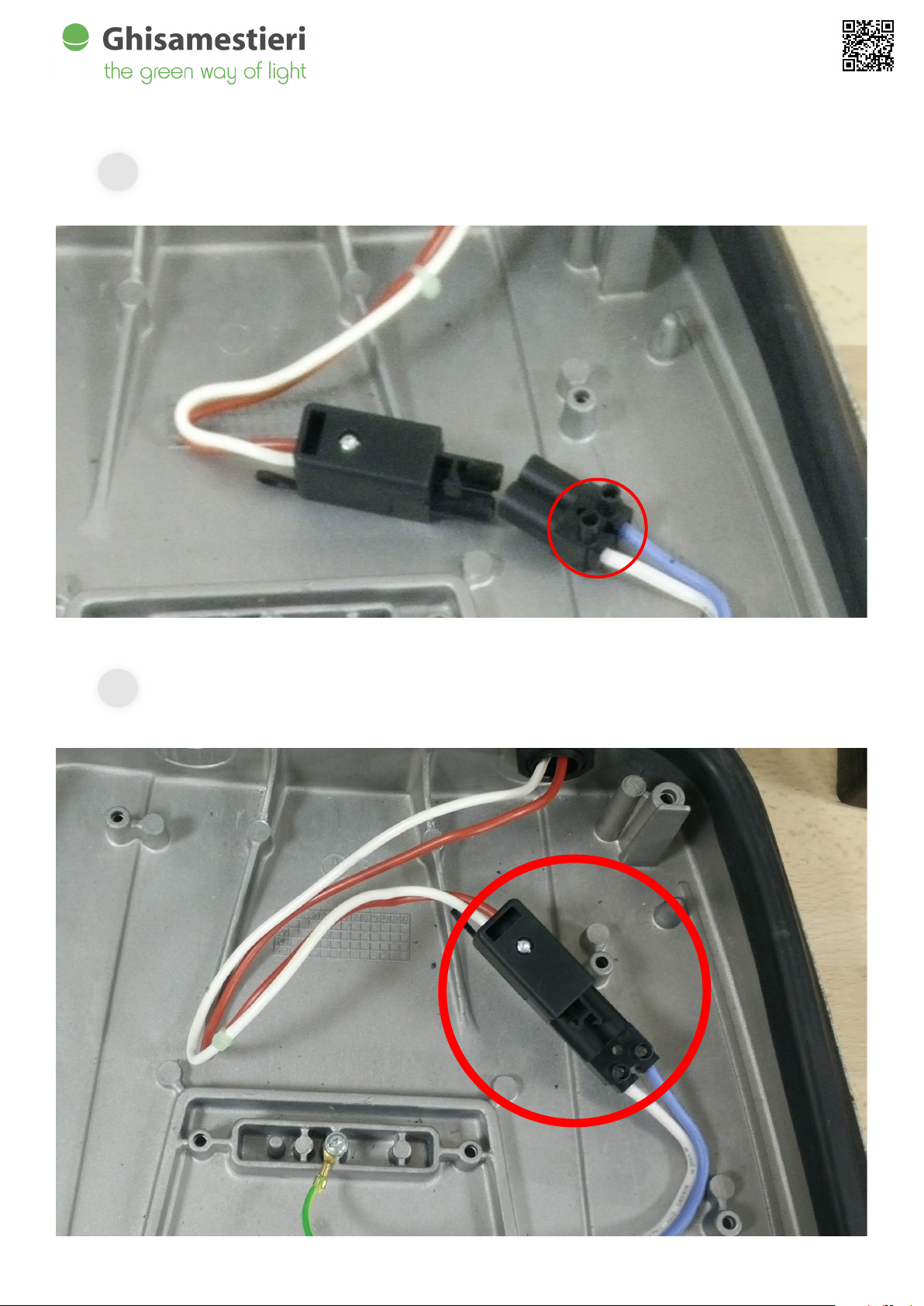

c. Press the two tabs to remove the wiring.

Ghisamestieri s.r.l. • Quality system certicate ISO 9001:2008 • phone +39 0543 462611 • fax. +39 0543 449111 • info@ghisamestieri.it • www.ghisamestieri.it

e pictures used are purely for information. Ghisamestieri s.r.l. may make improvements or changes at any time without prior notice.

rev. 2015•06•17

Installation manual

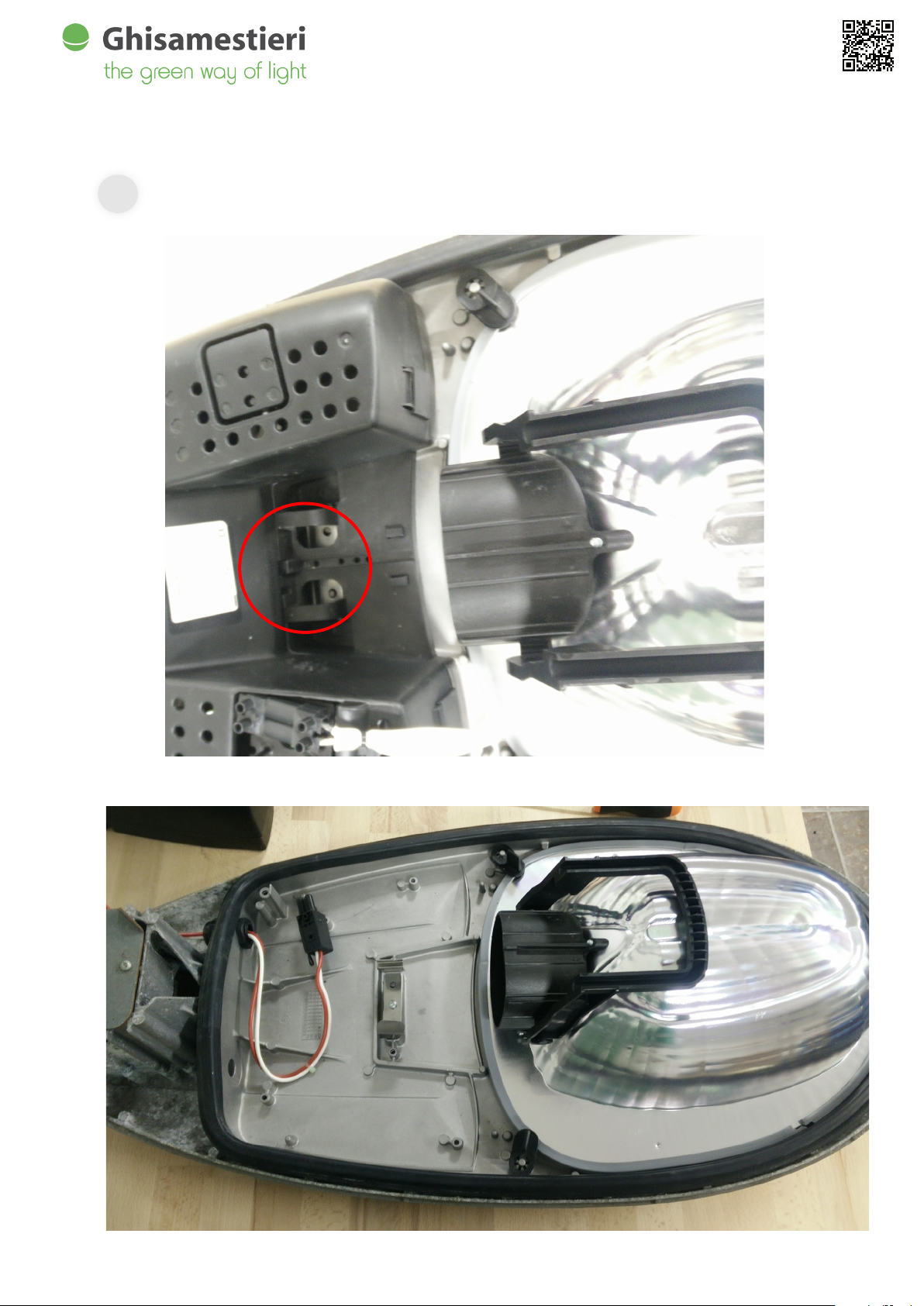

d. 1. Unscrew the screw highlited in red by the cyrcle special key 15 Torx tool.

2. Rotate the fasteners that lock the optic system.

Ghisamestieri s.r.l. • Quality system certicate ISO 9001:2008 • phone +39 0543 462611 • fax. +39 0543 449111 • info@ghisamestieri.it • www.ghisamestieri.it

e pictures used are purely for information. Ghisamestieri s.r.l. may make improvements or changes at any time without prior notice.

rev. 2015•06•17

Installation manual

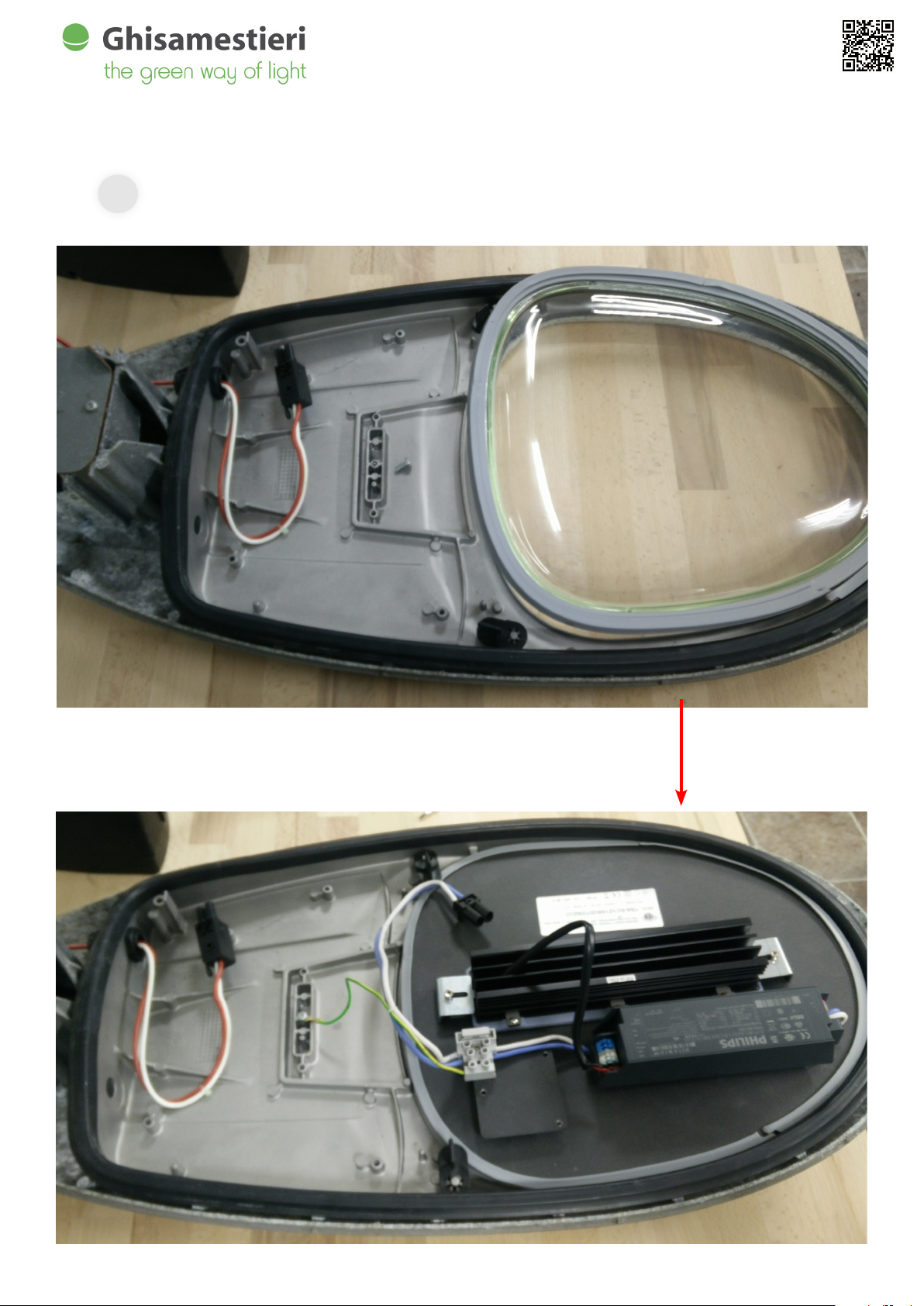

e. Insert the retting kit into the apposite space instead of the optic system

Ghisamestieri s.r.l. • Quality system certicate ISO 9001:2008 • phone +39 0543 462611 • fax. +39 0543 449111 • info@ghisamestieri.it • www.ghisamestieri.it

e pictures used are purely for information. Ghisamestieri s.r.l. may make improvements or changes at any time without prior notice.

rev. 2015•06•17

Installation manual

f. Connect the earth cable and screw by the special Torx with key 15.

Ghisamestieri s.r.l. • Quality system certicate ISO 9001:2008 • phone +39 0543 462611 • fax. +39 0543 449111 • info@ghisamestieri.it • www.ghisamestieri.it

e pictures used are purely for information. Ghisamestieri s.r.l. may make improvements or changes at any time without prior notice.

rev. 2015•06•17

Installation manual

g. Fix the retting kit with the fasteners.
