GFA Installation Instructions SI 25.80 FU-40 Manuel utilisateur
Installation Instructions
ELEKTROMAT
SI 25.80 FU-40,00
Model: 10003826 10011
-en-
Status: 23.08.2018
2
GfA ELEKTROMATEN GmbH & Co. KG
Wiesenstraße 81
D-40549 Düsseldorf
www.gfa-elektromaten.de
3
Table of contents
1General safety information .............................................................................................. 4
2Technical Data ................................................................................................................ 5
3Mechanical installation .................................................................................................... 6
4Electrical installation ..................................................................................................... 10
5Limit switch adjustment ................................................................................................. 11
6Motor connection .......................................................................................................... 12
7Limit switch connection ................................................................................................. 12
8Emergency manual operation (emergency hand crank) ................................................ 13
9Completion of commissioning / testing .......................................................................... 15
10Declaration of incorporation / Declaration of conformity ................................................. 18
Symbols
Warning - Potential injury or danger to life!
Warning - Danger to life from electric current!
Note - Important information!
▶ Requirement - Required action!
Schematic representations are based on product examples. Deviations from delivered
products are possible.
4
1 General safety information
Specified normal use
The drive unit is intended for doors, which have to be secured against falling down; a safety
brake is included in the gearbox. The drive unit is directly mounted on the door shaft.
The safe operation is only guaranteed with normal specified use. The drive unit is to be
protected from rain, moisture and aggressive ambient conditions. No liability for damage
caused by other applications or non-observance of the information in the manual.
Modifications are only permitted with the agreement of the manufacturer. Otherwise the
Manufacturer’s Declaration shall be rendered null and void.
Safety information
Installation and initial operation tasks are to be performed by trained, skilled fitters only.
Only trained electrical craftsmen are permitted to work on electrical equipment. They must
assess the tasks assigned to them, recognise potential danger zones and be able to take
appropriate safety measures.
The installation is only to be carried out with the supply off.
Observe the applicable regulations and standards.
Coverings and safety devices
Do not operate unless corresponding coverings and safety devices are fitted/installed.
Ensure that gaskets are correctly positioned and cable glands are correctly tightened.
Spare parts
Use only original spare parts.
5
2 Technical Data
Type SG 85F
Output torque 250 (210) 1) Nm
Output speed OPEN 18-80 rpm
Output speed CLOSE 18-50 rpm
Output speed CLOSE > 2,5m 18-50 rpm
Output shaft / hollow shaft 40,00 mm
Locking torque moment 990 Nm
Safety brake (testhouse/approval number) 14-003612-PR03
Maximum holding torque 250 Nm
Supply voltage 1N~ 230 V
Operating current 7,30 A
Operating frequency 50 Hz
Power factor cos φ 0,63
Maximum movement per hour 52 h-1
Hand forces 233 N
Class of protection IP 65
Limit switch range
(maximum revolutions of output shaft / hollow shaft) 20
Braking torque 9 Nm
Braking voltage 103 V DC
Rectifier type FU
Temperature range +5 / +40 (+60) 2) °C
Operating sound pressure level < 70 dB(A)
1)
Abtriebsdrehmoment, das konstant über den gesamten Endschalterbereich und die maximalen Schaltungen pro Stunde genutzt werden kann.
2) When using a temperature range of +40°...+60°C use half of maximum movements per hour.
6
3 Mechanical installation
Prerequisites
The permissible loads on walls, fastenings, mountings and transmission elements must not
be exceeded, even for maximum holding torques or locking torques (▶ refer to technical
data).

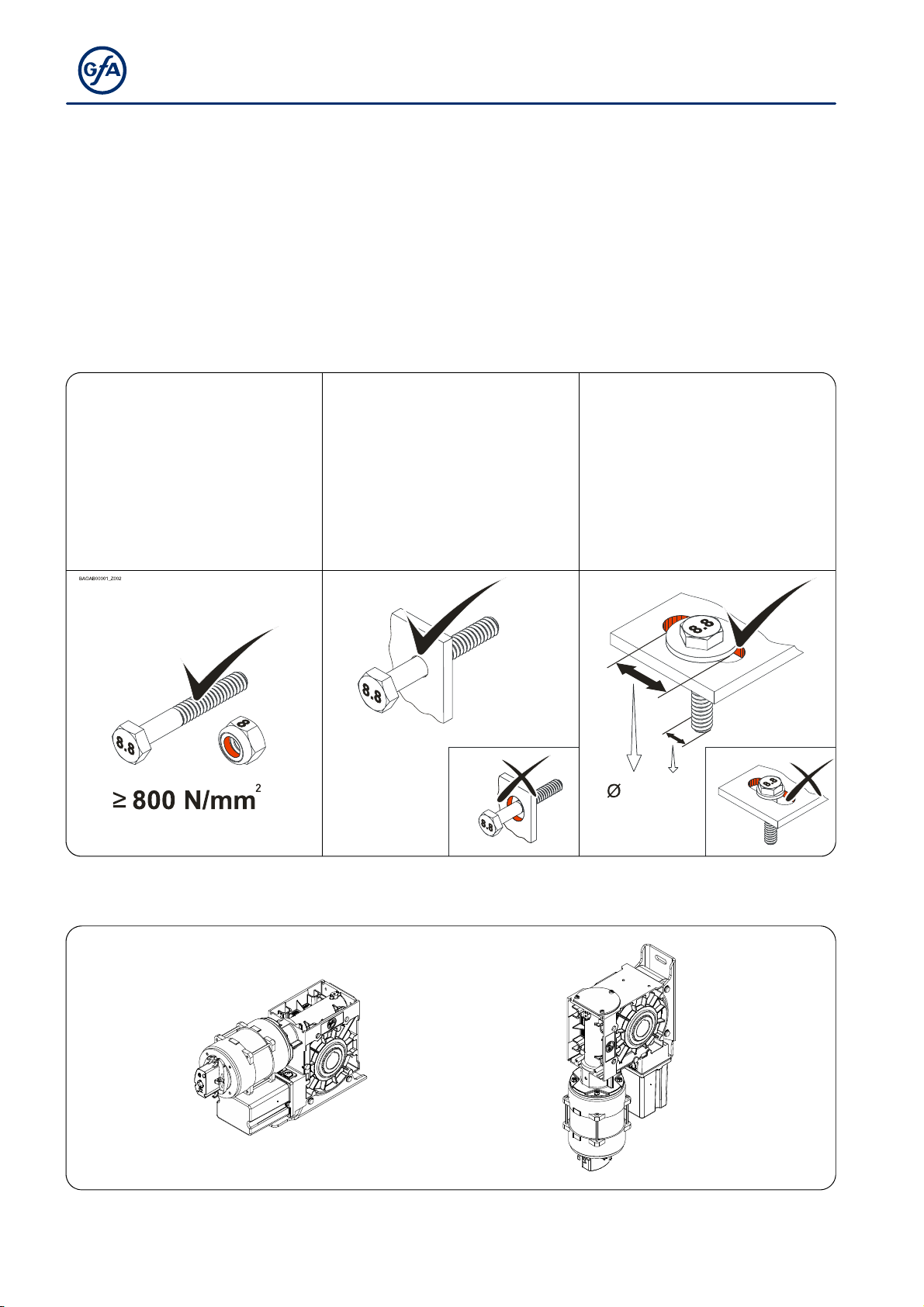

Connection elements
▶ Self-locking connection
elements with a minimum
strength of 800 N/mm2
(8.8) must be used.
▶ Utilize the hole diameter
to the full.
▶ Use adequately
dimensioned washers for
elongated holes.
BA GAB00002_Z002 BAGAB00003_Z002
3 : 1
Permissible mounting positions
BAGAC0 30 0 1 _Z0 0 2
7
Mounting

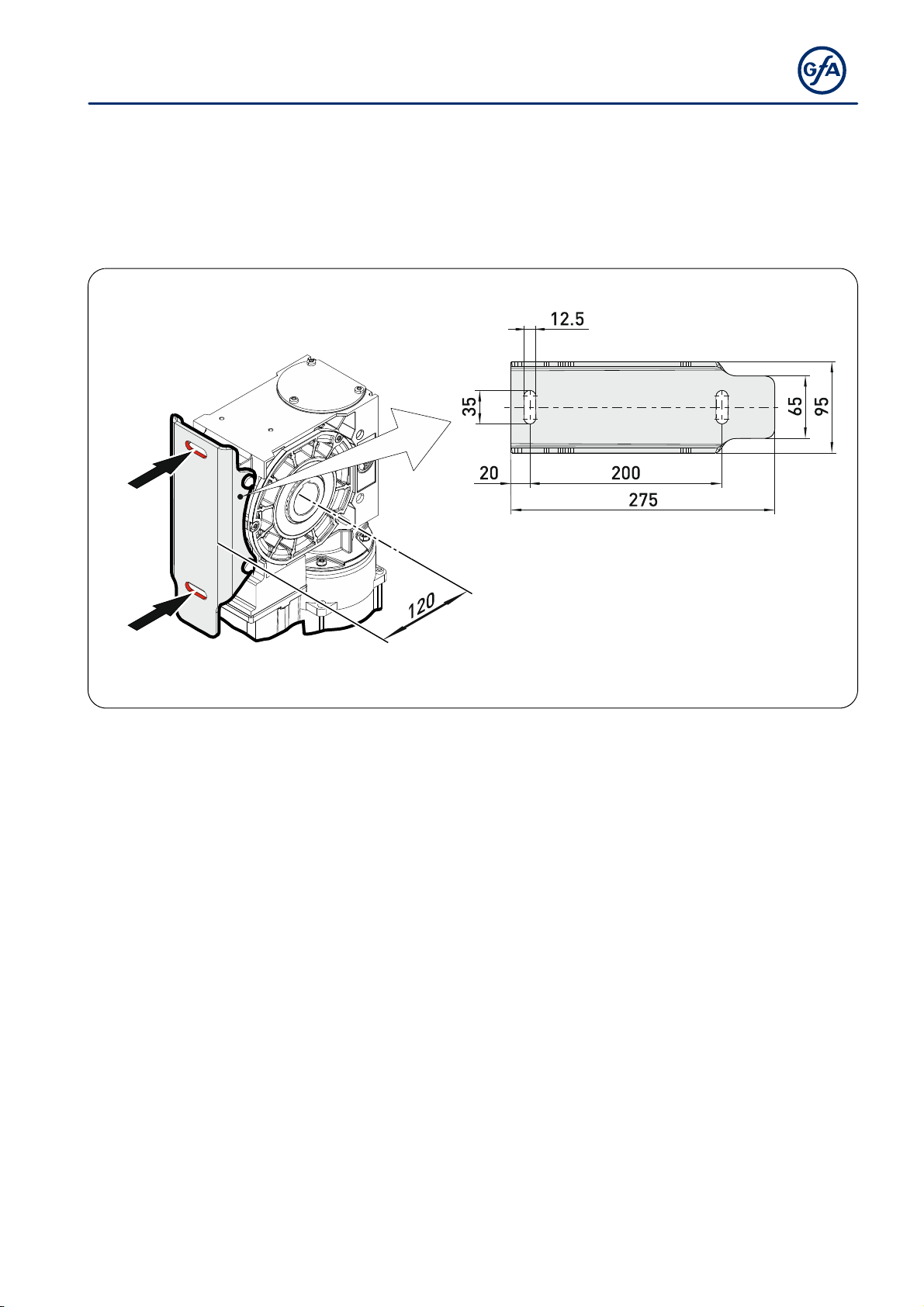

Two elongated holes are provided for mounting.
BAGAD03 0 0 1 _Z0 0 3
8
Installation
The descriptions below apply to general door specifications. The specifications of the door
manufacturer must also be observed during installation.
Warning - Potential injury or danger to life!
During installation, be sure to use a lifting device that has a sufficient load-carrying
capacity.

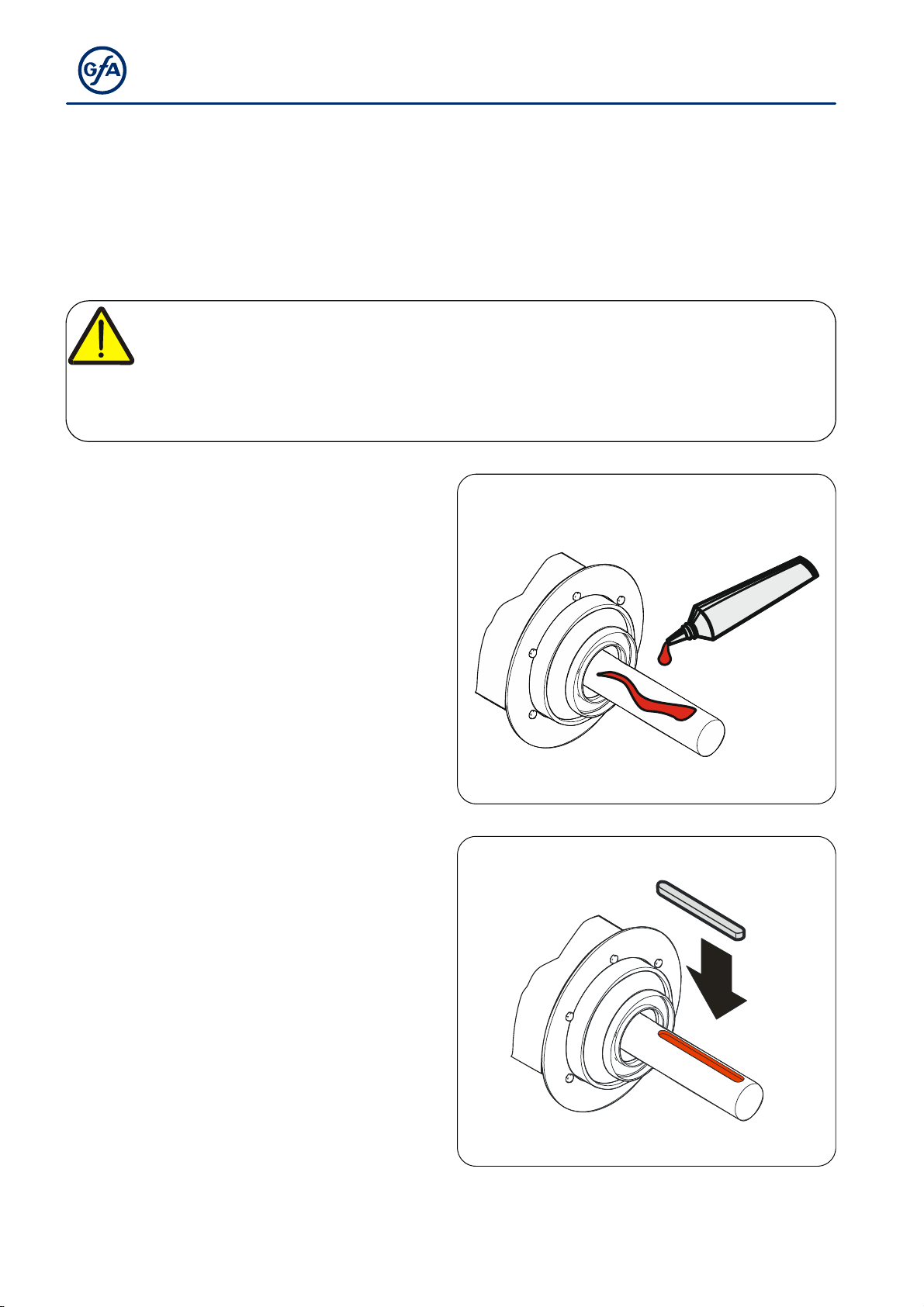

▶ Thoroughly grease the door shaft. BAGAE01001_Z003
▶ Mount the keys.
BAGAE03002_Z001
9

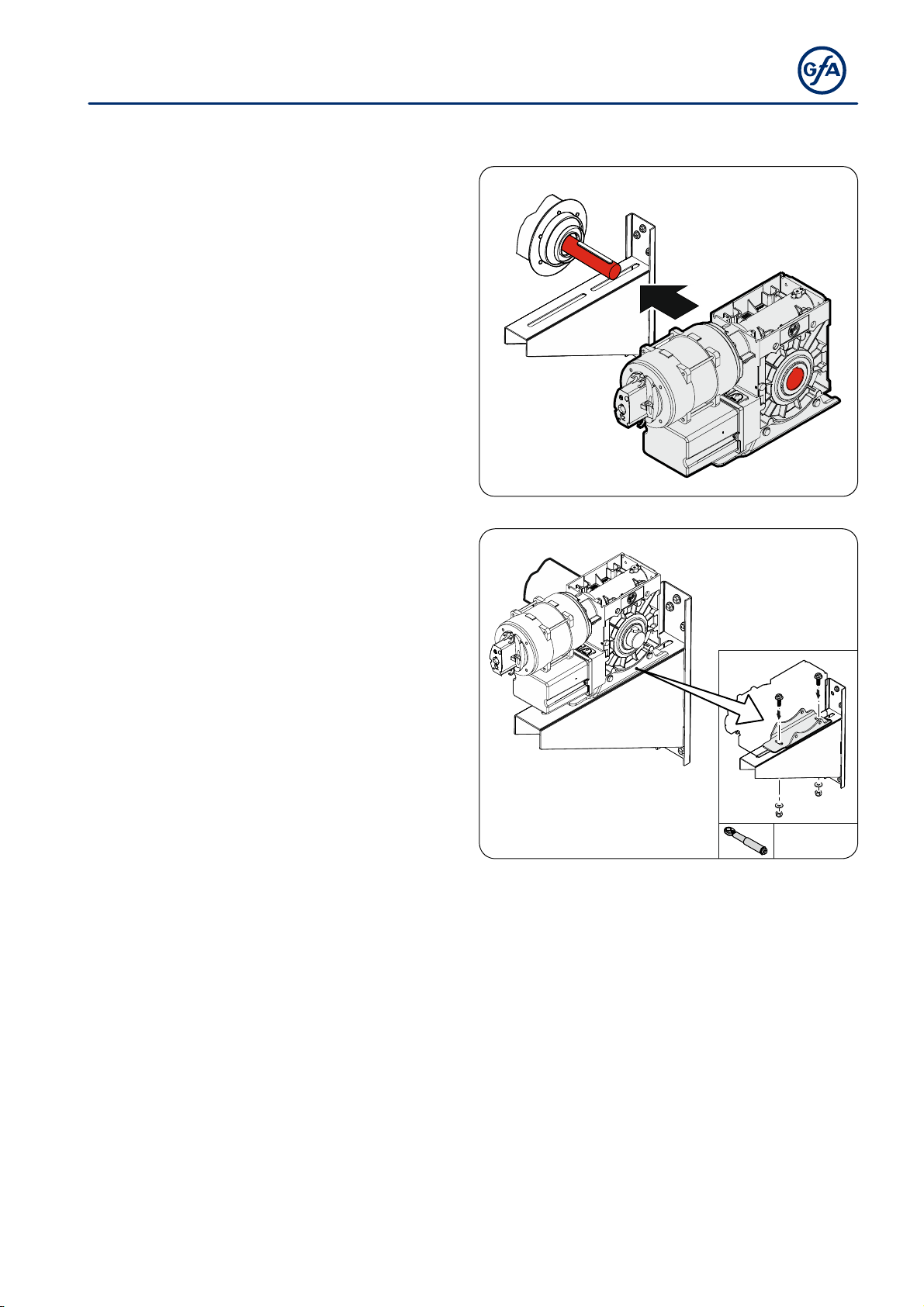

▶ Attach the drive unit. BAGAE03005_Z002
▶ Tighten all connection elements (M12) to
75 Nm. Install all other connection
elements according to the specifications of
the door manufacturer.
BAGAE03010_Z002
75 Nm
8.8
8.8
8.8
8.8
10
4 Electrical installation
Warning - Danger to life from electric current!
Switch the mains OFF and check that the cables are de-energised
Observe the applicable regulations and standards
Make a proper electrical connection
Use suitable tools
Performing electrical installation

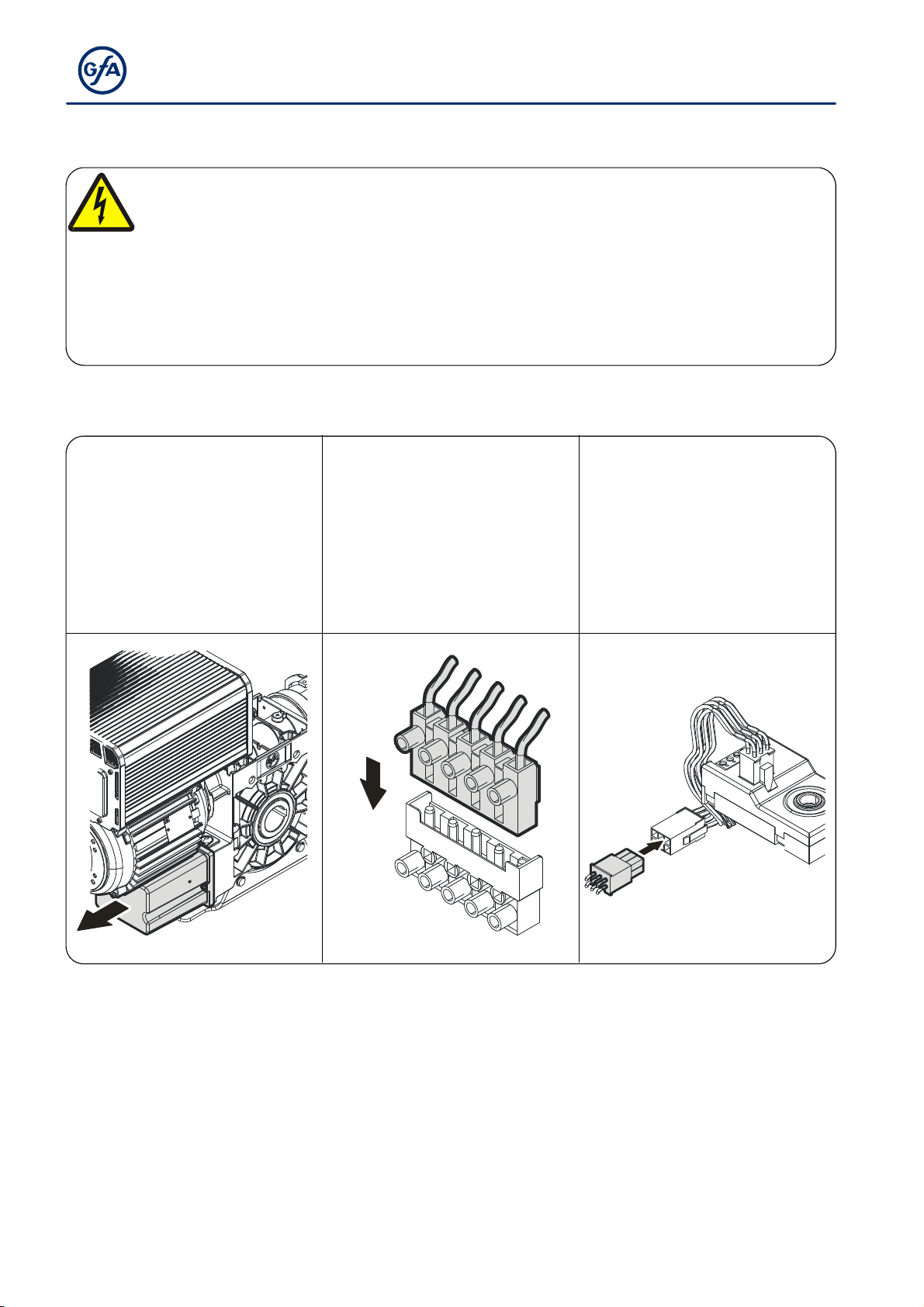

Remove the cover. Insert the motor plug. Insert the limit switch plug.
BAHEA02_Z001 BAHEB01_Z001 BAHEC01_Z001
Completing the electrical installation
Mount the cable entries and/or cable glands.
