Genius NETSCROLL 100 Manuel utilisateur

Service Manual

NetScroll 100 (PS2)

Service Manual NetScroll 100 (PS/2)

Version 1.0

age 1

Table of Contents

Chapter 1. Introduction.....................................................................................................................2

a. System Requirements...............................................................................................2

Chapter 2. Troubleshooting...............................................................................................................3

Chapter3. Testing Procedures……………………………………………………………..4

a.Testing Flow Chart……………………………………………………………………4

b.Check PS/2 cable………………………………………………………………….5

c.Check Mouse Cursor………………………………..……………………………..6

d.Check Mouse Buttons………………………………..………………………………7

Chapter 4. Removal and Replacement……………………………………………………………9

Chapter 5. Parts list.......................................................................................................................110

Chapter 6. Tools............................................................................................................................110

Service Manual NetScroll 100 (PS/2)

Version 1.0

age 2

Chapter 1. Introduction

a. System Requirements

♦ IBM PC Pentium 233 compatible or higher

♦ Windows XP/Me/2003/2000/98SE or Mac OS or later(for USB model)

♦ Available USB port

♦ Available PS/2 port

♦ CD/DVD-ROM drive for software installation

Service Manual NetScroll 100 (PS/2)

Version 1.0

age 3

Chapter 2.Troubleshooting

Item Condition Probable Reasons Solutions

1. Mouse can’t

work 1. Cursor can’t work 1. PS/2 cable or mouse

failed Change PS/2 cable or

mouse PCBA

2. Button can’t

work 1.Press button no respond 1. Mouse PCBA or

buttons failed Change mouse PCBA

or buttons

3. Cursor can’t

move smoothly 1. Cursor can’t move smoothly 1. Sensor failed Change PCBAor

sensor

Service Manual NetScroll 100 (PS/2)

Version 1.0

age 4

Chapter 3. Testing Procedures

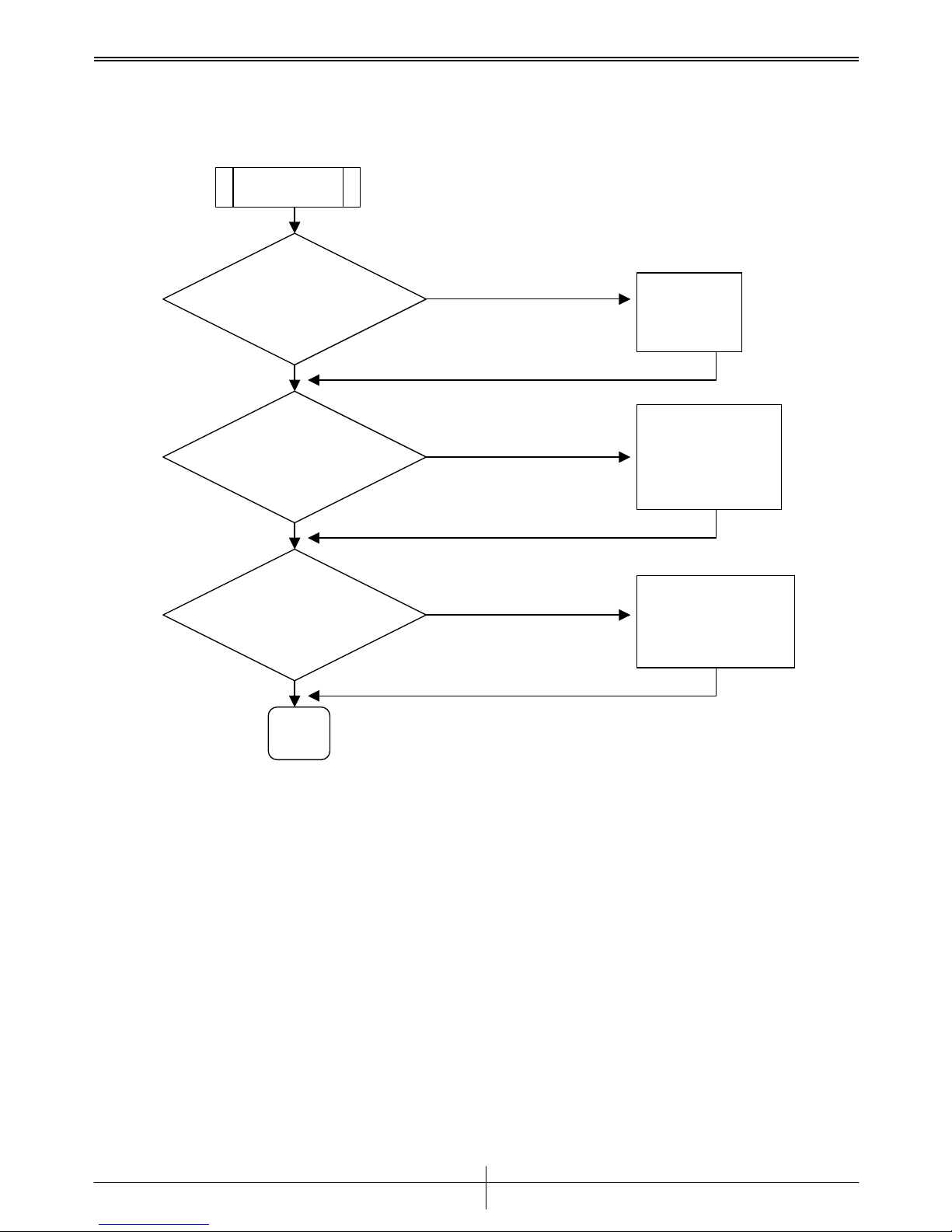

a. Testing flow chart

Replace

PS/2 cable

START

Check PS/2

cable

Check Mouse

Cursor

Check Mouse

buttons

Replace Mouse

PCBA

Replace Mouse

PCBA or buttons

END

Service Manual NetScroll 100 (PS/2)

Version 1.0

age 5

b.Check PS/2 cable when mouse can not work.

When mouse can not work please use a good PS/2 cable to check if the

mouse can function or not ,if mouse can function that means the old PS/2

cable is failed so please replace a new PS/2 cable.

PS/2 cable

Service Manual NetScroll 100 (PS/2)

Version 1.0

age 6

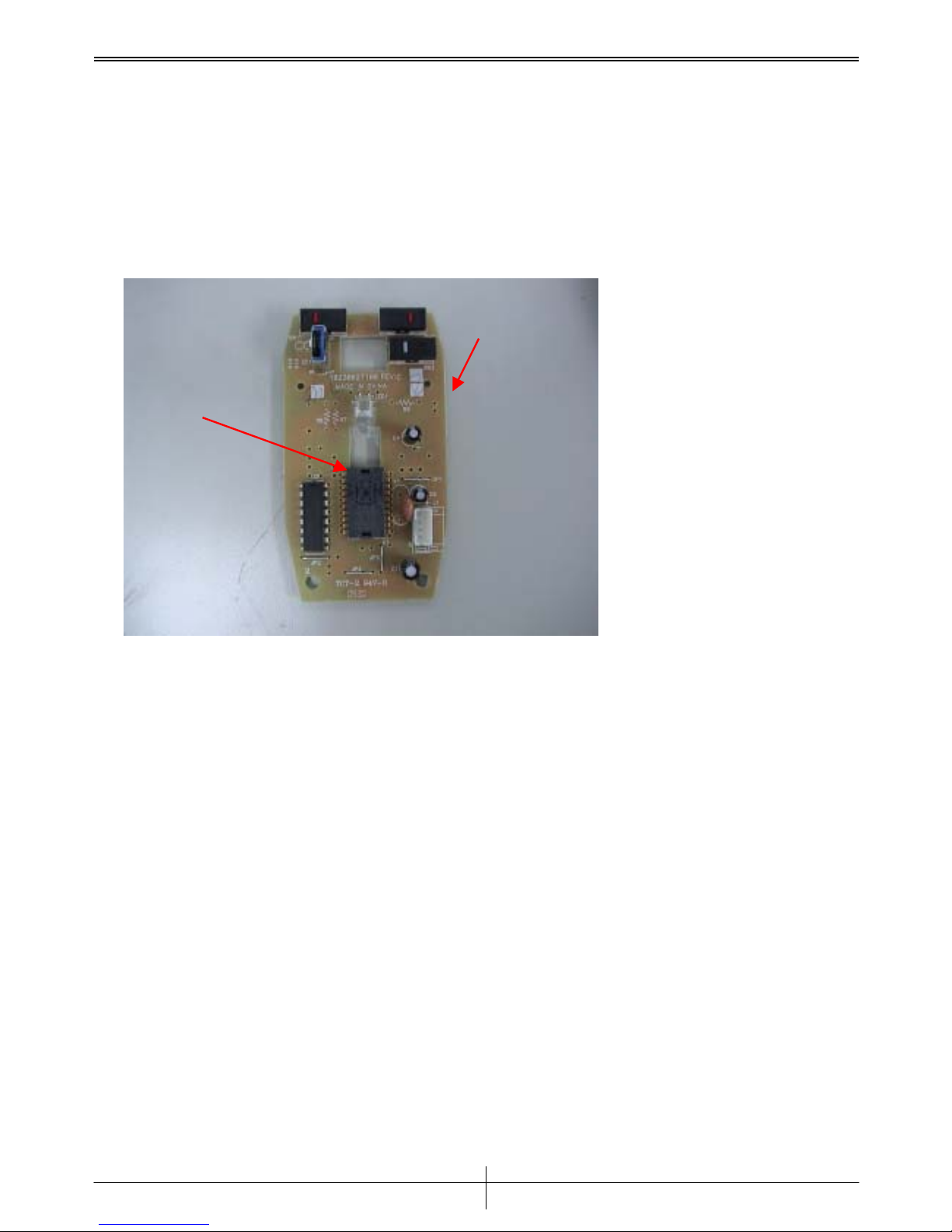

c.Check Mouse cursor

If the cursor can not still move after replacing PS/2 cable , please

replace mouse PCBA .

If cursor can not move smoothly,please replace sensor(U1).

Mouse PCBA

Sensor

Service Manual NetScroll 100 (PS/2)

Version 1.0

age 7

d.Check mouse buttons

If the mouse buttons do not function, please replace SW1/SW2/SW3 or

mouse PCBA .

Mouse PCBA

Service Manual NetScroll 100 (PS/2)

Version 1.0

age 8

Chapter 4. Removal and Replacement

Step Description Picture

1. Turn mouse

over To disassemble the

mouse, you have to

remove the pad away

and loosen screw to

take mouse apart.

Screw inside

the pad

Service Manual NetScroll 100 (PS/2)

Version 1.0

age 9

2. Loosen

screw Using screwdriver to

loosen 1 screw as red

arrow pointed and then

you can take the upper

cover apart.

3. Take apart

PCBA Disconnect PS/2 cable

and then pick PCBA

directly.

The PCBA is the most

important part of

mouse.

Screw inside

the pad
