Geniatech ATV130 Manuel utilisateur

Android Box

MHL Dual Core HDMI Stick

ATV130

User’s Guide

Thank you for purchasing this Geniatech product.

.Before using it, be sure to read the precautions contained in this User’s Guide.

.Keep the User’s Guide in a safe place for future reference.

.For the most up-to-date information about this product, visit official website at

http://www.geniatech.com

Contents

1. Safety Information, P3-4

1.1 Warning, P3

1.2 Precautions, P3

1.3 Handling Cautions, P4

2. Introduction, P5-7

2.1 Package Contents, P5

2.2 Product Features, P5

2.3 Panel Introduction, P6

2.4 Remote Controller, P6

2.5 Setup Connection, P7

2.6 Display when Power Up, P7

3. Settings,P8-16

3.1 WiFi, P8

3.2 Ethernet, P8

3.3 Date Usage, P9

3.4 More..., P9

3.5 Sound, P10

3.6 Display, P10

3.7 Storage, P11

3.8 Apps, P11

3.9 Accounts & sync, P12

3.10 Security, P13

3.11 Language & input, P13

3.12 Backup & reset, P14

3.13 Add account, P14

3.14 Date & time, P15

3.15 Accessibility, P15

3.16 Developer options, P16

3.17 About device, P16

4. Apps Install & Uninstall,P17

5. Firmware Update,P18

6. Trouble Shooting/FAQ,P19

7. Repairs,P20

8. Specification,P21

9. Trademark Notice,P22

1. Safety Information

Read and understand all instructions before using this product. If damage is caused

by failure to follow the instructions, the warranty does not apply.

1.1 Warning

To reduce the risk of electric shock, DO NOT remove the cover (or back).

DO NOT attempt to repair the product, this could lead to the risk of injury, damage

to the product .

To reduce the risk of fire or electric shock, keep this product away from exposed

direct sunlight, naked flames or heat, large amounts of moisture, dust, and sand.

FCC Note (for U.S.A)

This equipment has been tested and found to comply with the limits for a Class B

digital device, pursuant to Part 15 of the FCC rules. These limits are designed to

provide reasonable protection against harmful interference in a residential

installation. This equipment generates, uses and can radiate radio frequency energy

and, if not installed and used in accordance with the instructions, may cause

harmful interference to radio or television reception, which can be determined by

turning the equipment off and on.

The user is encouraged to try to correct the interference by one or more of the

following measures.

- Reorient or relocate the receiving antenna.

- Increase the separation between the equipment and receiver.

- Consult the dealer or an experienced radio/TV technician for help.

- This class B digital product meets all requirements of the Canadian Interference -

Causing Equipment Regulations.

1.2 Precautions

Important Safety Instructions

Read these operating instructions carefully before using the unit. Follow all the

safety instructions listed below.

Keep these operating instructions handy for future reference.

1.2.1 Read these instructions.

1.2.2 Keep these instructions.

1.2.3 Heed all warnings.

1.2.4 Follow all instructions.

1.2.5 DO NOT use this apparatus near water.

1.2.6 DO NOT clean with any chemical detergent. Clean only with a dry cloth.

1.2.7 DO NOT block any ventilation openings. Install in accordance with the

manufacturer’s instructions.

1.2.8 DO NOT install near any heat sources such as radiators, heat registers, stoves,

or other apparatus that produce heat.

1.2.9 Protect the power cord from being walked on or pinched particularly at plugs,

convenience receptacles, and the point where it exits the apparatus.

1.2.10 Only use attachments/accessories specified by the manufacturer.

1.2.11 Use only with the cart, stand, tripod, bracket, or table specified by the

manufacturer, or sold with the apparatus. When a cart is used , use caution when

moving the cart/apparatus combination to avoid injury from tip-over.

1.2.12 Unplug this apparatus during lightning storms or when unused for long

period of time.

1.2.13 Refer all servicing to qualified service personnel. Servicing is required when

the apparatus has been damaged in any way, such as when the power-supply cord or

plug is damaged, liquid has been spilled or objects have fallen into the apparatus,

the apparatus has been exposed to rain or moisture, does not operate normally, or

has been dropped.

1.3 Handling Cautions

1.3.1 DO NOT expose this apparatus to dripping or splashing. Do not put objects

filled with liquids, such as vases on the apparatus.

1.3.2 To turn this apparatus off completely, you must pull the power plug out of the

wall socket. Consequently, the power plug must be easily and readily accessible at

all times.

1.3.3 DO NOT plug multiple electric devices into the same wall socket.

Overloading a socket can cause it to overheat, resulting in a fire.

1.3.4 Before connecting other components to this player, be sure to turn them off.

1.3.5 If the product makes an abnormal noise or produces a burning smell or smoke,

turn off the power switch immediately and disconnect the power plug from the wall

outlet. Then, contact the nearest customer service center for technical assistance. Do

not use the product. Using the product as it is may cause a fire or an electric shock.

2. Introduction

2.1 Package Contents

MHL Dual Core HDMI Stick - ATV130

User’s Guide

IR Remote Controller (IR RC)

Optional Remote Controller

2.4G wireless Remote Controller

USB wire/wireless Mouse & Keyboard

2.2 Product Features

HDMI video output ,connect HDTV with Dual Core Stick ATV130 for HD

1080P video playback

Dual Core ARM CORTEX A9*2, frequency is 1.5GHz,RAM 1G, built in 4G

flash memory. Powered by Android 4.1 OS

Connect to the internet with Google Chrome browser to access any website for

entertainment, information or education

Support flash player11, watch online video from YouTube, Netflix, Hulu,

Amazon, or any local video sites and even video-on-demand services

Chat with Facebook or Twitter, Skype and Yahoo message etc

Access to Android app-store to download, install and run the huge number of

Android applications that are available

Built in 802.11b/g/n WIFI module, 2G-32G flash memory(optional) and

supports 3D Graphics

Direct power supply via Mini USB port, no need of a power adaptor

Unique mini PC design, the size of the product is similar with USB flash disk

The TV stick Dual Core is being operated by an infrared remote control, you

can use the receiver everywhere within the operating range

Support weather, calendar, and desktop clock gadgets

App Installer for application installation from USB/Micro SD

2.3 Panel Introduction

2.4 Remote Controller

Note: Button Battery 2025 3V insert with correct polarity (+/-).

①Power

②Mode

③Mute

④Upwards

⑤Towards the left

⑥Towards the right

⑦Downwards

⑧OK

⑨Return

⑩Home

⑪Background App

⑫Menu

⑬Vol+

⑭Notification

⑮Page Up

⑯Vol-

⑰Page Down

2.5 Setup Connection

Place ATV130 on a flat platform near the TV, and make sure nothing block the

remote control signal.

2.6 Display when Power Up

2.6.1 After power up, the TV will first show a green robot then change to “android”

logo during loading. When loading is finished, it will go to Home screen.

2.6.2 Home Screen display.

3. Settings

Using Navigation (4 directions), OK, EXIT, and Menu keys of Remote Controller

to select the options, the option selected will be highlighted and confirmed by

pressing OK key. Same operation for text input if needed.

Select icon then press OK key.

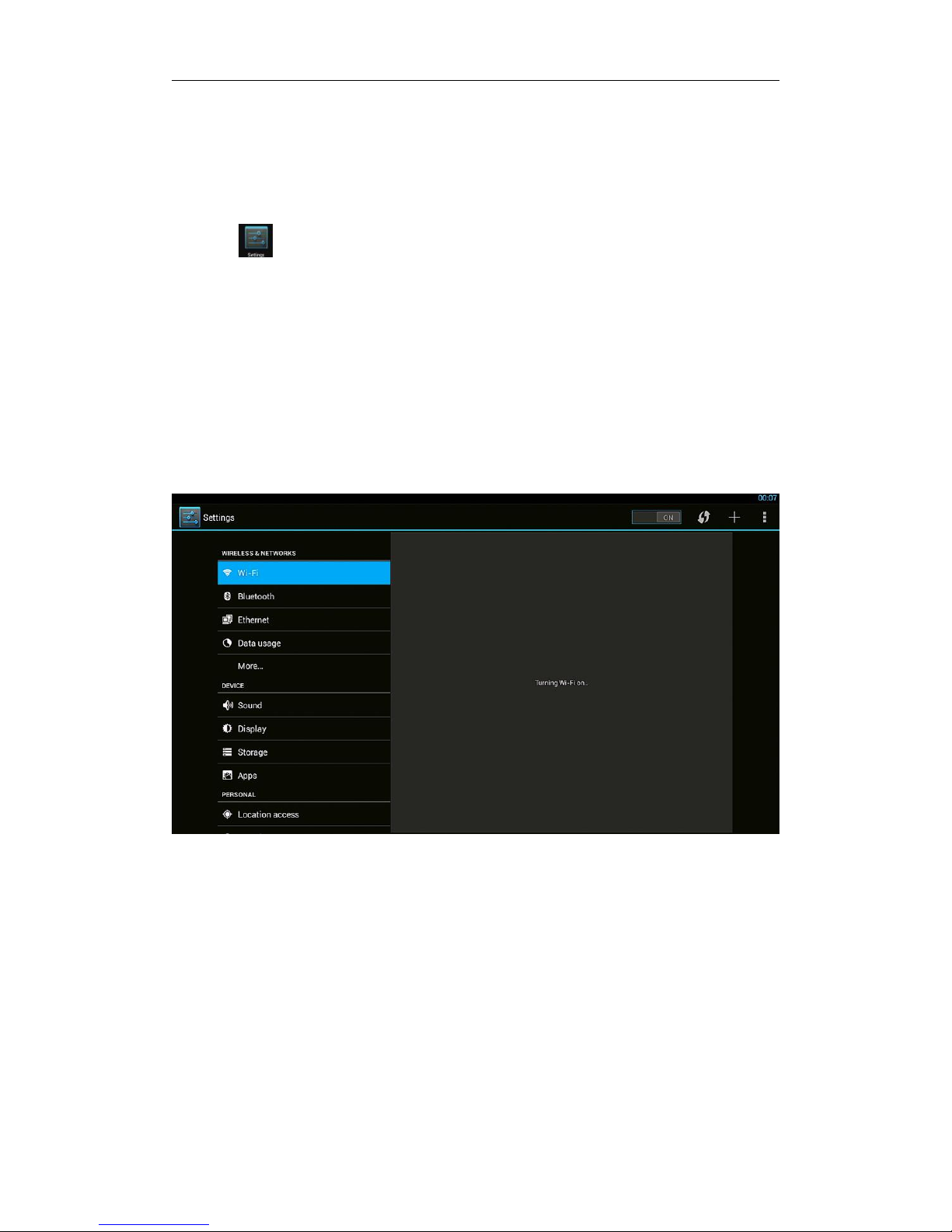

3.1 WiFi

3.1.1 It will automatically scan ambient WiFi networks when select “ON”.

3.1.2 Connect an available WiFi network. If connect a secured WiFi network,

corresponding password will be input firstly. Or fail to connect and need reset

password.

3.1.3 Once build up the connection with a certain WiFi network successfully,

ATV1220M will connect this WiFi network automatically when restart.

Note: If factory reset, the password of WiFi network have to be reset.

3.2 Ethernet

Connect Box and Router by RJ45 network cable.

Press “ ON” in Ethernet setting, it will connect to network automatically.

3.3 Date usage

Show data usage information.

3.4 More...

3.4.1 VPN

Build and set VPN

3.4.2 Tethering & Portable hotspot

3.4.3 Proxy settings

Setup proxy server

3.5 Sound

3.6 Display

3.6.1 Font size

Change the font size of OSD
