INSTRUCTION MANUAL
X5 Red Dot and Line Laser
2
Please read this instruction manual before operating this product.
Please store this instruction manual in the carry case for future reference.
CAUTION: Class 2 Laser Product
Do not stare directly into the laser beam from apertures.
Do not disassemble the instrument or attempt to perform any internal servicing
as this will void your warranty. No user serviceable parts included.
Only approved and authorised service technicians can carry out warranty repairs.
SAFETY
3
BatteriesCarry bag
Laser target Magnetic base
General X5
Please ensure the following items are included with your laser.
If anything is missing please contact your retailer.
ITEM CHECKLIST
INCHES CM
1
1
2
3
4
5
6
7
2
3
4
Vertical laser port (x1)
PRODUCT OVERVIEW
Horizontal laser port (x1)
Control panel
Power / locking switch Dot laser ports (x5)
5
CONTROL PANEL
Dot / line mode
Pulse mode
Pulse mode indicator
Battery indicator
6
MODE
DETECTOR CONTROL PANEL*
Sound on / off
Laser sensor
Power indicator
Coarse / fine mode indicator
Coarse / fine mode
Bubble vial
On/off button
Direction arrows
*The detector is an additional accessory which can be purchased from your retailer.
7
USING YOUR LASER
Setting Up
Power Supply
Operation
‣Select a place as close as practical to the work site.
Ensure the location is clear of traffic.
‣Place the laser on a level surface such as a bench or mount.
The X5 is powered by three AA alkaline batteries.
‣To turn the unit on slide the power switch to “on” position. Self
levelling will commence and all dot and line beams will appear.
‣If the unit is outside the self levelling range the unit will not
level causing the speaker to beep and the laser beam to turn off.
‣Press the dot / line mode button on the control panel to cycle
through the active beams.
8
Using Your Detector*
‣Press the pulse button on the control panel on top of the laser to
enter into pulse mode.
‣Switch the detector on and move it into the path of the laser beam.

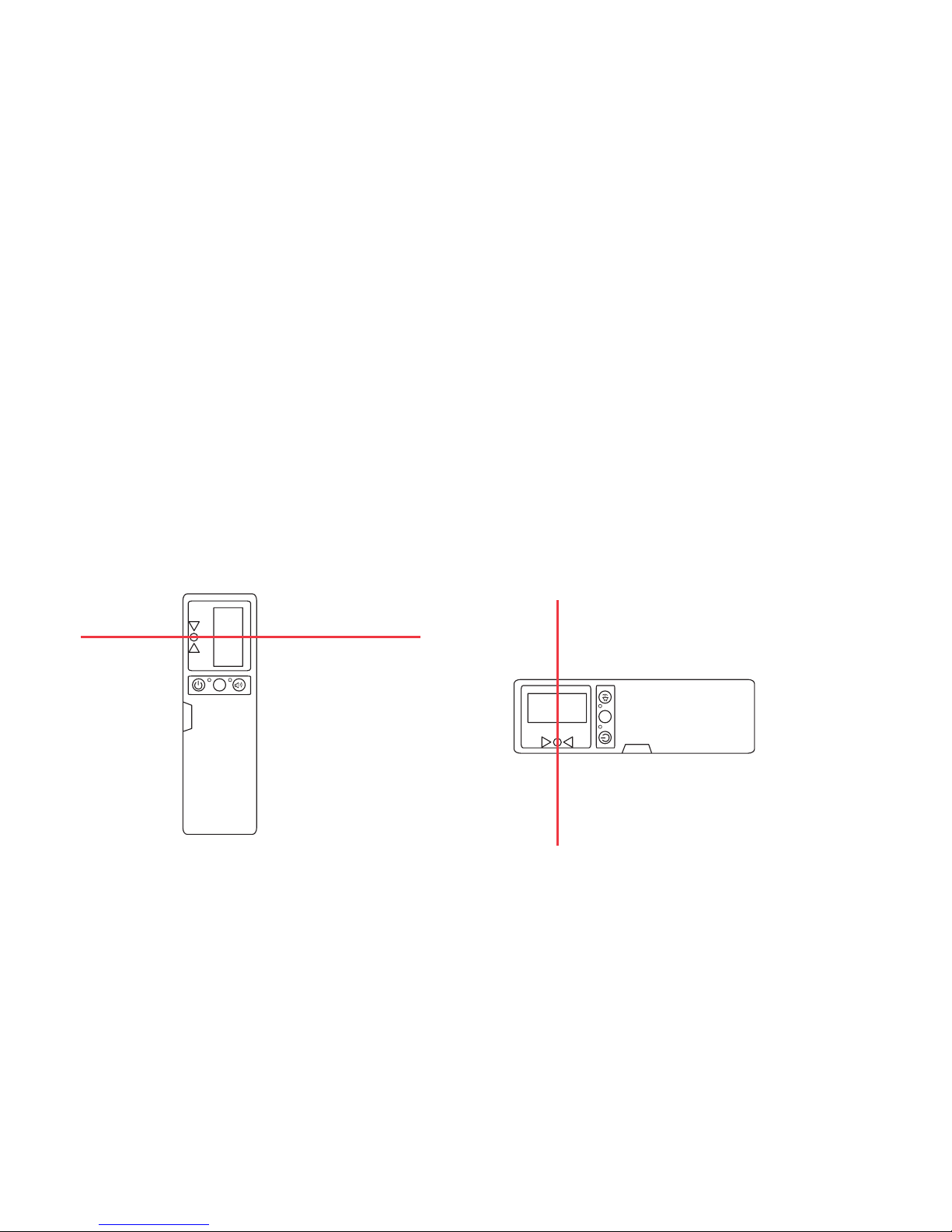

‣Hold the detector upright for horizontal beams. Rotate the detector 90°
for vertical beams. The direction arrows will indicate the position of the
laser beam. The centre LED will indicate alignment with the beam.
MODE
MODE
*The detector is an additional accessory which can be purchased from your retailer.
9
CARE AND MAINTENANCE
‣Reflective surfaces such as glass may reflect the beam, causing
two beams to strike the detector at the same time. This may create
inaccurate reference points.
‣This is a precision instrument and should always be transported
within the carry case provided.
‣Always slide the on/off lock to “off” when transporting the unit.
‣Whenever possible, store the instrument in a dry, shady location.
‣The X5 should be calibrated every 6 months, if ongoing accurate
levelling is required or an impact has occurred.
‣The operator should check the X5 for accuracy before precision
levelling is attempted.
‣Clean the instrument with a dry, soft cloth after use in dusty, damp
or wet conditions before storing.
‣Smudges and fingerprints may be removed with a damp tissue or
a soft, lint-free cloth.
10
WARRANTY
The General X5 comes with a 3 year manufacturers warranty.
Our goods come with guarantees that cannot be excluded under the Australian
Consumer Law. You are entitled to a replacement or refund for a major failure
and for compensation for any other reasonably foreseeable loss or damage. You
are also entitled to have the goods repaired or replaced if the goods fail to be of
acceptable quality and the failure does not amount to a major failure.
Separate to the above Australia Consumer Law, Spot-on oers a global warranty.
Customer Support
To assist you with any queries or technical questions please contact the
customer support line: 1300 658 338
Operates 5 days a week: 8am - 5pm (EST)
30 Day Free Service
If your laser is out of calibration within the rst 30 days of purchase you
are entitled to a free calibration adjustment. For more information please
contact your retailer or Spot-on.
