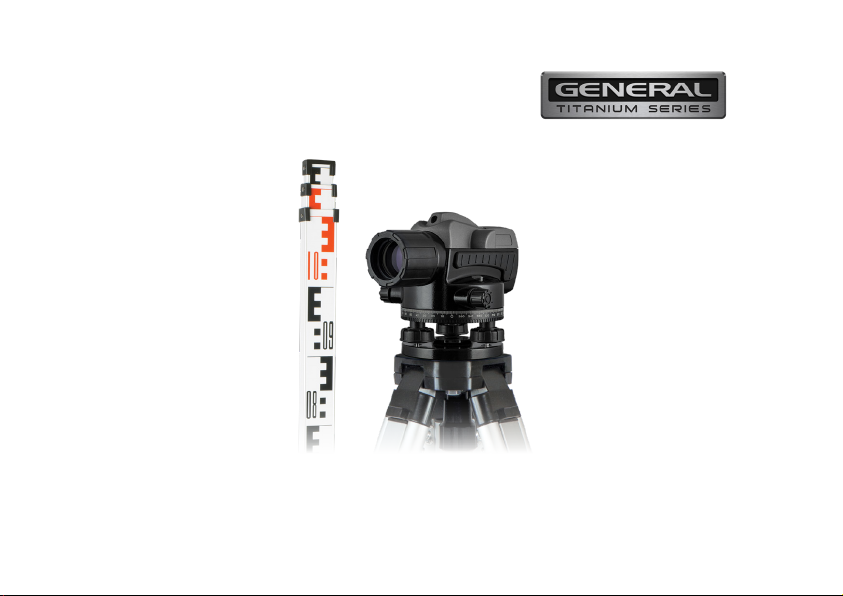

TOL-24X
OPTICAL LEVEL PACKAGE
INSTRUCTION MANUAL
2
• Positiontheopticallevelsecurelyonalevel
surface.Damageorseriousinjurycouldresultif
theopticallevelfalls.
•
•
• WARNING:DoNotDisassemble
TheLaser.
Therearenouserserviceablepartsinside.
Disassemblingthelaserwillvoidallwarrantieson
theproduct.Donotmodifytheproductinanyway.
Modifyingthetoolmayresultinhazardouslaser
radiationexposure.
SAFETY
Readthefollowingsafetyinstructionsbefore
attemptingtooperatethisproduct.
Keeptheseinstructionsinasafeplaceorstoreinthe
carrycaseforfuturereference.
SAVEALLWARNINGSANDINSTRUCTIONSFOR
FUTUREREFERENCE.
WARNING:Readandunderstandall
instructions.
• Useonlyaccessoriesthatarerecommendedfor
yourmodel.
• Toolservicemustbeperformedonlybyqualified
repairpersonnel.Repairs,serviceormaintenance
performedbyunqualifiedpersonnelwillvoidthe
warranty.Onlyapprovedandauthorisedservice
technicianscancarryoutwarrantyrepairs.
!
!
3
ITEMCHECKLIST
Pleaseensurethefollowingitemsareincludedwithyourlaserlevel.
Ifanythingismissingpleasecontactyourretailer.
GeneralTitanium
SeriesTOL-24X Carrycase
Plumbbob
StaTripod
4
OPTICALLEVELOVERVIEW:FRONT
5/8”x11tripodthread
360°protractor
Levellingscrew
Bubblevial
Bubblevialmirror
Opticalviewguide
Frontlenselement
Panningscrew Panningscrew
Levellingscrew
Baseplate
5
OPTICALLEVELOVERVIEW:SIDE
Levellingscrew
360°protractor
Opticalviewguide
Panningscrew
Focusingknob
Eyepiece
Levellingscrew
Baseplate 5/8”x11tripodthread
6
SETUP
• Standthetripod(partsoldseparately)onalevel
surfacewithlegsspacedforstability.
• Threadthetripodyokethroughthe5/8” x 11
threadonthebaseoftheinstrument.Screwinto
placeuntilsecure.
• Centrethebubblevialbyturningthelevelling
screws.
USINGYOUROPTICALLEVEL
OPERATION
• Pointtheinstrumenttowardsthedesiredarea.
• Useabrightbackgroundorholdawhitesheetof
paperinfrontofthearea.Turntheeyepieceuntil
thecrosshairsareasharpblack.
• Turntheleveltowardsthestaffusingtheoptical
viewguide.
• Turnthepanningscrewtosettheverticalhair
downthecentreofthestaff.
Measurement
• Readthestaffwhereitiscutbythemiddlehair.
7
Distancemeasurement
• Readthestaffwhereitiscutbytheupperand
lowerhairs.
• Calculatethedistancebetweentheupperand
lowerhairs.
• Multiplythefigureby100tocalculatethedistance
betweentheinstrumentandthestaff.
Anglemeasurement
• Pointtheinstrumenttowardsthefirstpoint.
• Settheprotractorbaseto0°
• Pointtheinstrumenttowardsthesecondpoint.
• Theangleresultwillbeintheprotractorreading.
USING YOUR OPTICAL LEVEL (continued)
09
08
07
8
USING YOUR OPTICAL LEVEL (continued)
Heightmeasurement
• Placetheinstrumentontoasolidtripod
betweentwostaves.
• Levelofftheopticalusingthebubblevial.
• Takeanaccuratemeasurementreadingfrom
staffA.(Example.1.924m).Takeanaccurate
measurementreadingfromstaffB
(Example.1.712m)
1.712m
1.924m
0.212m
STAFFB
STAFFA
• SubtractthemeasurementofstaffBfromstaff
A.(Example.1.924m–1.712m=0.212m).This
calculationshowsthatstaffBis0.212mhigher
thanstaffA.
9
BUBBLEVIAL
• Centrethebubblebyadjustingthelevellingscrews
untillevel.
• Turntheinstrument90°atatimeandcheck
thepositionofthebubbleinsidethevial.Ifthe
bubblemovesoutofthecentreringaserviceand
calibrationisrequired.
CHECKINGACCURACY
COMPENSATOR
• Placetheinstrumentontoasolidtripodbetween
twostavesspaced30mto50mapart.
• Levelofftheopticalusingthebubblevial.
• Takeanaccuratemeasurementreadingfrom
staffA.(Example.1.924m).Takeanaccurate
measurementreadingfromstaffB(Example.
1.712m)
• SubtractthemeasurementofstaffBfromstaff
A.(Example.1.924m–1.712m=0.212m).This
calculationshowsthatstaffBis0.212mhigher
thanstaffA.
• Positiontheinstrumentandtripod1mfromStaff
AwhilekeepingitinbetweenbothStaffAand
StaffB.
• Takeanaccuratemeasurementreadingfrom
StaffA.(Example.1.696m.Subtracttheheight
differencethatwascalculatedinstep3fromthe
currentmeasurementreading(Example.1.696m–
0.212m=1.484m).
10
1.712m
(1.696m)
(1.484m)
1.924m
0.212m
STAFFB
STAFFA
• Takeanaccuratemeasurementreadingfromstaff
B.ThemeasurementreadingforstaffBshouldbe
approximately1.484mbasedonthecalculation
above.
• Ifthecompensatoraccuracyislessorgreater
than3mmafterfollowingthemeasurementsand
calculationsshowninthesesteps,aserviceand
calibrationisrequired.
CHECKING ACCURACY (continued)
