GEIGER GEIGER-SOLIDline Manuel utilisateur

www.geiger.de EN

DE Bedienungsanleitung

Operating Instructions

Manuel d’utilisation

Manual de instrucciones

Istruzioni per l’uso

Tubular motor:

GEIGER-SOLIDline

Motor control:

GEIGER-SoftPerfection-S (GU45..E04)

for rolling shutters with stoppers and anti-lift device

Gerhard Geiger GmbH & Co. KG | 100W0550 0518V000

Index

1. GEIGER-SoftPerfection-S: Special features ..................3

2. General information .........................................................4

3. Guarantee ..........................................................................4

4. Safety information ............................................................4

5. Intended use .....................................................................5

6. Installation instructions ...................................................6

7. Setting of end stops .........................................................6

8. Delete the end positions ..................................................7

9. Obstacle recognition ........................................................7

10. End position correction ...................................................7

11. Technical data ...................................................................8

12. Declaration of conformity ................................................8

13. Information for the specialist electrician .......................9

14. Notes on waste disposal .................................................9

15. What to do if… ................................................................10

www.geiger.de EN

1. GEIGER-SoftPerfection-S: Special features

Application range: rolling shutter systems

Precondition: anti-lift device and stoppers

Initial operation with Plug & Play

• Only one operation to the upper and the lower end stop is required.

Ready! Plug & Play!

Cloth protection with the Soft-System

• The GEIGER Soft position ensures that the hanging stops a few

millimetres before reaching the upper end position. The hanging is

thus optimally protected. Two exceptions: the programming runs and

the reference runs after 50 cycles.

• During the programming of the reference runs the GEIGER motor

control ensures a “soft shutdown” when reaching the upper end

positions. Hanging and the rolling shutter system – compared to

conventional torque motors – are well preserved.

Synchronous position in the upper end position

• The GEIGER-SoftPerfection-S ensures that the bottom lath in the

upper end position is always the same distance away from the upper

end rail.

• When rolling shutters of different sizes are mounted next to each

other, the bottom laths are positioned on the same level. This is

a really nice visual upgrade for the house façade: the GEIGER-

synchronous position.

Obstacle detection

• Protection of the rolling shutter system during retraction

Antifreeze protection

• The situation «hanging frozen to the window sill», is recognized by

the system and the curtain will not be damaged.

Safety

• A torque shutoff is effected after each cycle in the lower end position.

This makes it fairly difﬁcult to lift up the curtain.

Gerhard Geiger GmbH & Co. KG | 100W0550 0518V000

2. General information

Dear customer,

By purchasing a GEIGER tubular motor you have decided on a quality product from

GEIGER.

Thank you very much for your decision and the conﬁdence placed in us.

Before you put this drive into operation please observe the following safety

information. It serves for the prevention of danger and for the avoidance of personal

injury and damage to property.

Please retain this information for future reference.

fSuitable for all types of rolling shutters with anti-lift device and stoppers

fDrives are switchable in parallel

3. Guarantee

In the case of incorrect installation contrary to the operating instructions and/

or constructional modiﬁcation, the legal and contractual guarantee for property

damage and product liability lapses.

4. Safety information

I ATTENTION: Important safety information. For personal safety, it is

important to follow these instructions. The instructions should be

kept.

fThis appliance is not to be used by persons (including children) whose

physical, sensorial or mental capacities are impaired, or who have no

expe rience or know-how, unless they have been supervised or been given

instructions on the use of the appliance by someone who is responsible for

their safety.

fChildren must be supervised to make sure they do not play with the

appliance.

fThe installation is to be checked regularly for defective balance, wear and

damage.

fDamaged connecting leads must be replaced by the GEIGER connecting

lead of the same wire type.

fDuring operation observe the danger zone.

fIf people or objects are in the danger zone, do not use the installation.

fUrgently shut down damaged installations until repair.

fUnconditionally shut down the unit during maintenance and cleaning

operations.

fPinching and shearing sites are to be avoided and to be safeguarded

against.

fWhen operating the manual actuator with the open sun protection system,

exercise caution as it can fall down quickly if springs expand or are broken.

fDo not operate the device if operations such as, for example, window

cleaning are to be carried out in the vicinity.

www.geiger.de EN

fDisconnect the device from the mains power supply if operations such as,

for example, window cleaning are being carried out in the vicinity.

I ATTENTION: Important safety information. Follow all installation

instructions, as incorrect installation can lead to serious injuries.

fConnection must be carried out by a skilled electrician according to the

regulations in force locally.

fThe mains plug of the tubular motor must be accessible after installation.

fOn the installation of the tubular motor without mechanical protection of

the driven parts, the tubular motor must be installed at a height of at least

2.5 m above the ground or of another level which provides access to the

drive.

fBefore the tubular motor is installed, all leads which are not needed are to

be removed and all equipment which is not needed for actuation is to be

put out of operation.

fIf the tubular motor is controlled by a switch or pushbutton, the switch

or pushbutton must be mounted within eyeshot of the tubular motor. The

switch or pushbutton must not be located in the vicinity of moving parts.

The height of installa tion must be at least 1.5 m above the ﬂoor.

If the apparatus is equipped without a pin and a socket connector (STAS3K)

in the connecting lead, or other means for disconnecting from the mains

with at least a 3 mm contact opening on each pole, a disconnecting device

of this type must be incorporated into the permanently installed electrical

installation according to the wiring rules.

fPermanently installed control devices must be attached visibly.

fThe correct dimensioning of the drive is to be observed.

5. Intended use

The tubular motors of the model range SOLIDline (GU45..E04) with the SoftPer-

fection-S system are designed exclusively for the operation of rolling shutters with

anti-lift device and stoppers

If the tubular motors are used for other applications and/or modiﬁcations are

performed to the tubular motors, which have not been discussed with GEIGER

Antriebstechnik, then the manufacturer is not liable for personal injury and/or

damage to property and for consequential damage.

Gerhard Geiger GmbH & Co. KG | 100W0550 0518V000

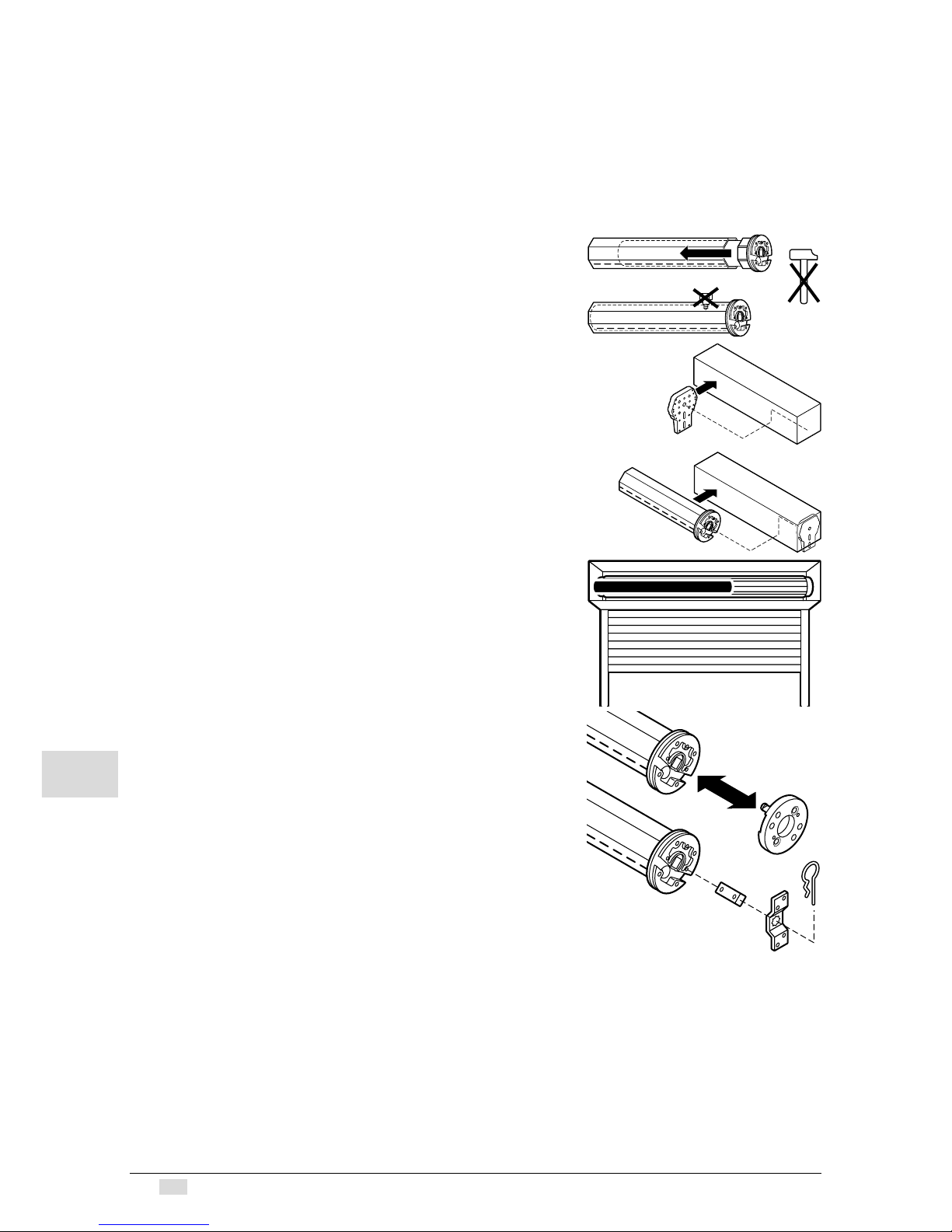

6. Installation instructions

Before ﬁxing, the strength of the masonry or of the subsurface is to be checked.

I Caution: If the tube is screwed/riveted to the drive, the measure must

be taken from the tube end to the center of the drive and marked on the

tube.

When drilling the winding shaft never drill into the

area of the tubular motor!

When inserting into the shaft, the tubular motor

must not be struck and must not be allowed to fall

into the shaft.

Installation into the rolling shutter:

Fix motor support to available stud bolts or in the

side frame.

Insert motor into the shaft with a suitable adapter

and drive up to the stop of the shaft adapter.

Insert roller capsule on the opposite side.

Put shaft with motor on motor support or on pivo-

ting engine bearer. On the opposite side pull out

roller capsule until bolt ﬁts into ball bearing.

Screw together roller capsule with shaft.

Screw together shaft with tubular carrier.

Fix rolling shutter casing to shaft.

I In order to adjust the end positions, a

rolling shutter system with upper end

stop and anti-lift device is required.

7. Setting of end stops

1. Connect the connecting cable to the motor

2. Move the shutter to both end positions once

(any order will do)

3. DONE!

www.geiger.de EN

8. Delete the end positions

1. Move the curtain to any position of your choice.

I Please note: respect a distance of approximately 50 cm from the end

positions

2. Operate as follows:

I Please note: a break of at least 5 seconds must be respected

between the different runs.

3. DONE!

9. Obstacle recognition

When, after the teaching of the ﬁrst complete, uninterrupted travel from one end

position to the other end position is carried out, the torque needed is learnt.

In any following complete, uninterrupted travel from end position to end position,

the torque needed is automatically reset. Slow changes in the installation due to

ageing, soiling, cold or heat are thus automatically taken into consideration.

If a travel movement in UP direction is blocked by an obstacle, the motor switches

off and a small return motion takes place.

The running direction in which the obstacle was recognized is blocked.

The block is removed if the motor has been operated in the opposite direction for

a certain time. An obstacle must thus ﬁrst be released before the motor can be

operated again in the direction of the obstacle.

10. End position correction

I The engine needs to be taught with the end stops

(stopper and anti-lift device).

Checking of the end position, and if appropriate an end position correction, takes

place after 5, 20, and then every 50 cycles.

Should a hangings elongation have resulted, due to temperature changes, this is

corrected at the next end position correction.

If, due to temperature changes, modiﬁed winding behaviour should arise and the

hangings should run against the stop, an immediate end position correction takes

place. In addition, the counter for the end position correction is started afresh.

5 sec1 sec 5 sec1 sec 5 sec1 sec 1 sec

breakUP ––––––breakDOWN break

5 sec

–breakUP UP

5 sec

–break

Gerhard Geiger GmbH & Co. KG | 100W0550 0518V000

11. Technical data

Technical data of short motor SOLIDline (GU45..)

GU4510 GU4520 GU4530 GU4540

Voltage 230 V~/50 Hz 230 V~/50 Hz 230 V~/50 Hz 230 V~/50 Hz

Current 0,47 A 0,63 A 0,8 A 1,0 A

Cos Phi (cosj)>0,95 >0,95 >0,95 >0,95

Inrush current

(factor)

x 1,2 x 1,2 x 1,2 x 1,2

Power 105 W 140 W 180 W 220 W

Torque 10 Nm 20 Nm 30 Nm 40 Nm

Speed of rotation 16 1/min 16 1/min 16 1/min 16 1/min

Protection type IP 44 IP 44 IP 44 IP 44

Total length1) 515,5 mm 545,5 mm 565,5 mm 585,5 mm

Operating type S2 4 min S2 5 min S2 4 min S2 4 min

Diameter 45 mm 45 mm 45 mm 45 mm

Weight ca. 1,9 kg ca. 2,2 kg ca. 2,4 kg ca. 2,7 kg

1) SOLIDline-COM + 3,5 mm / SOLIDline-SOC: + 3 mm / SOLIDline-SIL: ± 0 mm (without trunnion)

Subject to technical modifications. Please find information to the ambient

temperature range of our GEIGER motors under www.geiger.de DE

geprüfte

Sicherheit

12. Declaration of conformity

We herewith explicitly declare that this product complies with the essential require-

ments and relevant directives. It is authorised for use in all EC member states and

in Switzerland without any need of prior registration. The Declaration of Conformity

concerning this product is available on our website:

www.geiger-antriebstechnik.de.

www.geiger.de EN

13. Information for the specialist electrician

H Caution: Wrong installation and wrong

connection can lead to serious injuries.

The parallel operation of the several SOLIDline

SoftPerfection-S is possible. Please observe the

rating of the control switch used.

Please do not use any installation switch which

allows simultaneous up and down controls.

When changing the running direction the

switchover must be effected through an off-position.

When changing the running direction the

switchover time must be at least 0.5 s.

PVC cables are not suitable for equipment used

outdoors or exposed to prolonged high levels of

UV radiation.

These cables should not be used if they are likely

to touch metal parts that can heat up to tempera-

tures exceeding 100°C.

Connecting cables with plug connectors of the

Hirschmann Company, type STAS 3K or the

Phoenix Mecano Company, type GLS/3+PE may

only be used in connection with the Hirschmann

cable socket STAK 3K.

14. Notes on waste disposal

Recycling of packaging materials

In the interest of environmental protection, please

contact your local government’s recycling or solid

waste management department to learn more

about the services it provides.

Waste disposal of electric and electronic

equipment

Electronic equipment or batteries cannot be

discarded along with the normal household waste.

Keep for more information on the recycling and

disposal methods envisaged by the local regula-

tions in your area.

12 3

PE N

Electronic /

mechanical

limit stop

blue

brown

black

green/yellow

Mains: 230V / 50Hz

Gerhard Geiger GmbH & Co. KG | 100W0550 0518V000

For technical questions, please call our service team at: +49 (0) 7142 938-333.

They will be happy to assist you.

Gerhard Geiger GmbH & Co. KG

Schleifmühle 6

D-74321 Bietigheim-Bissingen

Telephone: +49 (0) 7142 938-0

Telefax: +49 (0) 7142 938-230

E-Mail: info@geiger.de

Internet: www.geiger.de

15. What to do if…

Problem Solution

Motor does not run. • Motor not plugged in.

Please check the plug connection.

• Check connecting cable for possible

damage.

• Check the mains voltage and allow

the cause of the voltage break down

to be tested by a specialist

electrician.

Instead of in the upwards direction,

motor runs downwards.

• The control leads are interchanged.

Exchange black/brown control leads.

Motor only runs in one

direction.

• Motor in the end position.

Run motor in the opposite direction.

After running several times,

the motor breaks down and

no longer responds.

• The motor became too hot and has

switched off.

Try it again after a cooling time of

about 15 min.

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels GEIGER Moteur

GEIGER

GEIGER GEIGER-SOLIDline x/55 Series Manuel utilisateur

GEIGER

GEIGER GB45SS Series Manuel utilisateur

GEIGER

GEIGER SOLIDline GU4506 Manuel utilisateur

GEIGER

GEIGER GEIGER-MODULARline Manuel utilisateur

GEIGER

GEIGER INline System GSI56 r Series Manuel utilisateur

GEIGER

GEIGER INline GSI56 e5 Series Manuel utilisateur

GEIGER

GEIGER SOLIDline Manuel utilisateur

GEIGER

GEIGER PRO.TECline Spindle GB45 Series Manuel utilisateur

GEIGER

GEIGER SOLIDline GJ56 Series Manuel utilisateur

GEIGER

GEIGER GEIGER-SOLIDline Series Manuel utilisateur

GEIGER

GEIGER SOLIDline Manuel utilisateur

GEIGER

GEIGER SOLIDline GU4510 Manuel utilisateur

GEIGER

GEIGER GJ56 e Series Manuel utilisateur

GEIGER

GEIGER SOLIDline SoftPlus-Qi GU45-E09 Series Manuel utilisateur

GEIGER

GEIGER SOLIDline GU45 Series Manuel utilisateur

GEIGER

GEIGER GJ5610v1 Manuel utilisateur

GEIGER

GEIGER GEIGER-SoftZero-55 Manuel utilisateur

GEIGER

GEIGER PRO.TECline GB45 M01 Series Manuel utilisateur

GEIGER

GEIGER GJ56 E14-1002 Series Manuel utilisateur

GEIGER

GEIGER GJ56E11 Series Manuel utilisateur

GEIGER

GEIGER GB45R Series Manuel utilisateur

GEIGER

GEIGER SOLIDline ZIP-Perfection GU45 E11 Series Manuel utilisateur

GEIGER

GEIGER SOLIDline GU45 Series Manuel utilisateur

GEIGER

GEIGER GEIGER-MODULARline Manuel utilisateur

Manuels Moteur populaires d'autres marques

Rotax

Rotax 125 senior MAX evo Manuel utilisateur

Kohler

Kohler K361 Manuel utilisateur

MTD

MTD OHV Series Manuel utilisateur

Kohler

Kohler COMMAND CH18-745 Manuel utilisateur

Mercury

Mercury D4.2L D-Tronic Manuel utilisateur

Selve

Selve SE Plus-RC Series Manuel utilisateur

Perkins

Perkins 1206E-E66TA Manuel utilisateur

Skov

Skov DA 174 Manuel

Rossi

Rossi TX11 Series Manuel utilisateur

Siemens

Siemens SIMOTICS T-1FW3 Feuille d'instructions

AL-KO

AL-KO PRO 350 Manuel utilisateur

MTU

MTU 12 V 4000 Lx4 Manuel utilisateur

Nanni

Nanni N3.30 Manuel d'instructions

Nanni

Nanni N5.160 CR2 Manuel utilisateur

KSB

KSB SuPreme Series Instructions d'installation

Hiwin

Hiwin EM1 Series Manuel utilisateur

Rotax

Rotax 912 i series Mode d'emploi

Siemens

Siemens SIMOTICS XP 1MB1 Manuel utilisateur
