Thank you for purchasing the Gefen USB•100 Series. The USB•100 incorporates
ExtremeUSB™ technology, which allows users the benefits of USB technology
extended far beyond the desktop at remote locations. Extending your USB peripherals
up to 330 feet away from the location of your office computer is done easily with the
USB•100.
The USB•100 system consists of two units. The USB•100S Sender resides next to
the host computer, and the USB•100R Receiver is linked to the Sender via Category-5
(CAT-5) cable and resides at the desired location of the USB accessory device away
from the computer.
You can connect additional USB•100 systems to the same computer, allowing you to
connect multiple USB peripherals at remote locations up to 330 feet away from the host
computer.
INTRODUCTION
1
OPERATION NOTES
READ THESE NOTES BEFORE INSTALLING OR
OPERATING THE USB•100 SYSTEM.
* The USB•100 Sender and Receiver units were designed to operate on USB-enabled
computers. DO NOT attempt to use this equipment with any other type of computer.
* Use the computer's USB port when using a local keyboard that is not extended with
the USB•100 Sender unit.
* In order to operate properly, the USB•100 Receiver unit must be connected, powered,
and the CAT-5 cable must be installed between the Sender and Receiver units.
* Only dedicated Category 5 UTP type cable (CAT-5) is recommended for this
application (pin to pin compatible).
* The length of cable used to connect the USB•100S Sender unit to the USB•100R
Receiver unit MUST NOT EXCEED 330 feet.
2
USB•100 INSTALLATION
3
1. Place the USB•100R Receiver unit close to the USB devices at the remote end.
2. Connect the USB device to the USB•100R Receiver unit.
3. Connect the AC power adapter to an available wall outlet.
4. Connect the power adapter to the USB•100R Receiver unit using the supplied cable.
5. Place the USB•100S Sender unit close to the host computer.
6. Connect the USB•100S Sender unit to the USB•100R Receiver unit using the desired
length of CAT5 cable.
7. Connect the USB•100S Sender unit to the host computer using the USB cable
supplied with the unit. This connection should be made last.
USB•100 PANELS LAYOUT
USB•100S Facing Computer
1 2 3 4 5 6
4
USB•100R Facing USB Peripheral(s)
USB•100R Facing CAT5 Link
109
87
12
11
USB LED - Indicates if a USB connection is made properly
USB In - Attach USB cable (A-B) cable from computer to Sender unit here.
Link LED - Indicates a link between the USB•100S Sender and the USB•100R
Receiver units across the CAT5 extension cable.
Link Connector - CAT-5 Modular Jack (RJ-45) which connects to CAT5 cable
linking the USB•100S Sender and the USB•100R Receiver units
Power LED - Indicates the unit is plugged in and powered up properly.
15V DC Power Input Jack (Sender) - Used with an optionally purchased 15V DC
power supply when the host computer does not provide sufficient power on the
USB bus.
Link LED - Indicates a link between the USB•100S Sender unit and the
USB•100R Receiver unit across the CAT5 extension cable.
Link Connector - CAT-5 Modular Jack (RJ-45) which connects to CAT5 cable
linking the USB•100S Sender and the USB•100R Receiver units
Power LED - Indicates the unit is plugged in and powered up properly.
15V DC Power Input Jack (Receiver) - Power jack for the included 15V DC Wall-
mount power supply.
USB LED - Indicates if a USB device is plugged in and seen by the host computer
USB Out - One USB A type connector for attaching the extended USB Peripheral.
USB•100 FUNCTION DESCRIPTION
5
1
2
3
4
5
6
7
8
9
10
11
12
USB•100 SYSTEM WIRING DIAGRAM
6

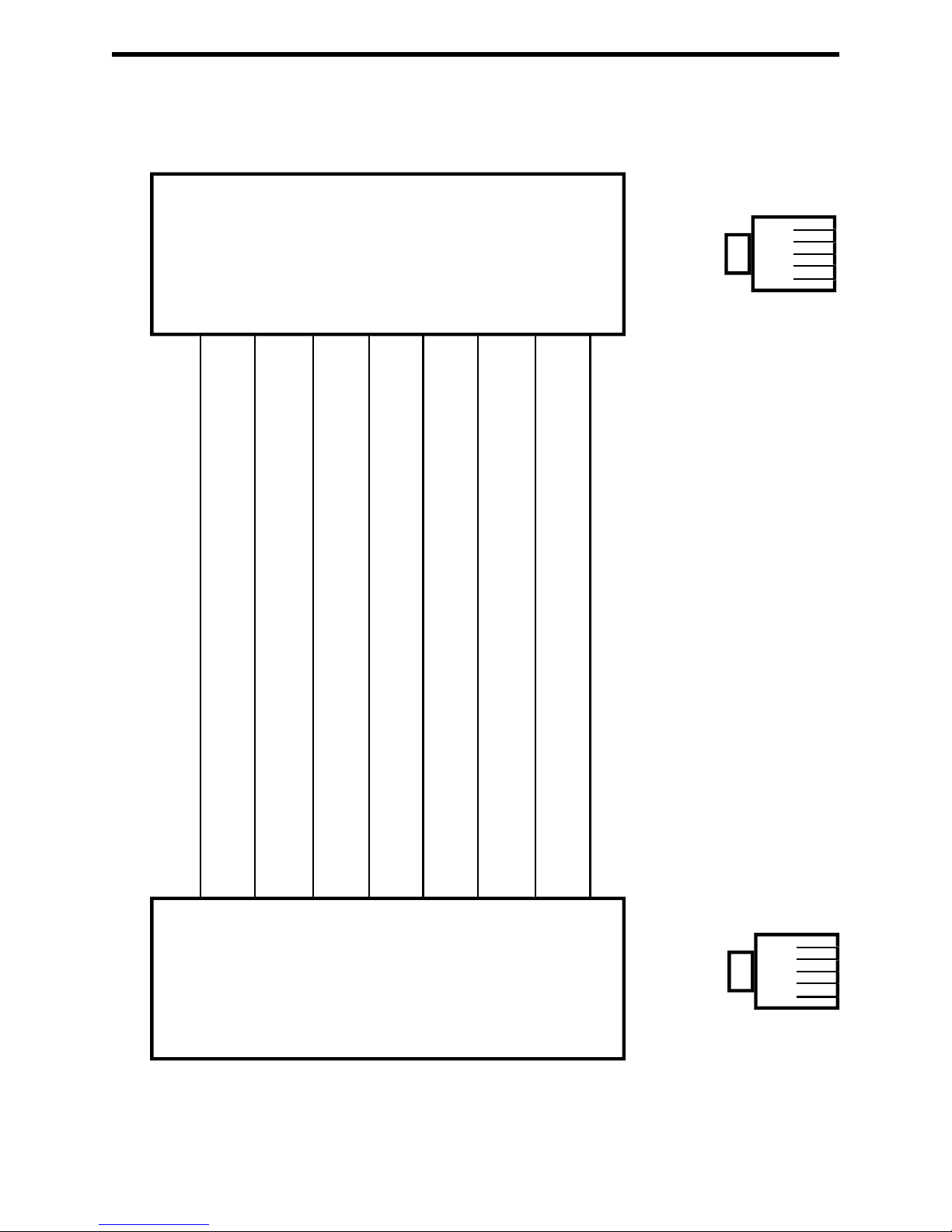

LINK CABLE - WIRING DIAGRAM
7
White/Orange
Orange
White/Green
Blue
White/Blue
Green
White/Brown
Brown
RJ-45 Jack RJ-45 Jack
2
3
4
5
6
7
8
1
2
3
4
5
6
7
8
1
1818
