Gefen HDMI 1000HD Manuel utilisateur

HDMI • 1000HD

USER MANUAL

www.gefen.com

Technical Support:

Telephone (818) 884-6294

(800) 545-6900

Fax (818) 884-3108

Technical Support Hours:

9:00 AM to 5:00 PM Monday through Friday.

Write To:

Gefen Inc.

C/O Customer Service

6265 Variel Ave.

Woodland Hills, CA91367-9897

Notice

Gefen Inc. reserves the right to make changes in the hardware, packaging and any

accompanying documentation without prior written notice.

The HDMI 1000 is a trademark of Gefen Inc.

ASKING FOR ASSISTANCE

TABLE OF CONTENTS

Introduction

Front Panel Descriptions

Back Panel Descriptions

How To Connect The HDMI 1000

How To Connect The HDMI 1000 (w/o DDC)

HDMI 1000 Wiring Diagram

Speciﬁcations

Warranty

READ THESE NOTES BEFORE INSTALLING

OR OPERATING THE HDMI 1000

• The ﬁber optics cable must be treated carefully when connectors are exposed. They

are susceptible to dust which can contribute to loss of pixels.

• The HDMI 1000 works for all HDMI displays and supports resolutions up to

1920x1200 or 1080p

• The HDMI 1000 is housed in a metal box for better RF shielding.

• Fully HDMI 1.2 compliant

• Uses CAT-5 cable for HDCP/DDC and control signals.

OPERATION NOTES

INTRODUCTION

Thank you for purchasing Gefen’ s ex•tend•it HDMI 1000. The HDMI 1000 allows exten-

sion of HDMI up to 1640 feet without losing any quality.

CONTENTS

The HDMI 1000 consists of:

--- (1) HDMI 1000S

--- (1) HDMI 1000R

--- (1) HDMI cable (6FT)

--- (1) 12VDC Power Supply

--- (1) User's Manual

HDCP & DDC Signals

HDMI 1000 Sender (Front View Only)

Blue

Green

Red Clock

Status LED indicates a link

between the sender and receiver

HDCP & DDC Signals

Blue

GreenRed Clock

Status LED indicates a link

between the sender and receiver

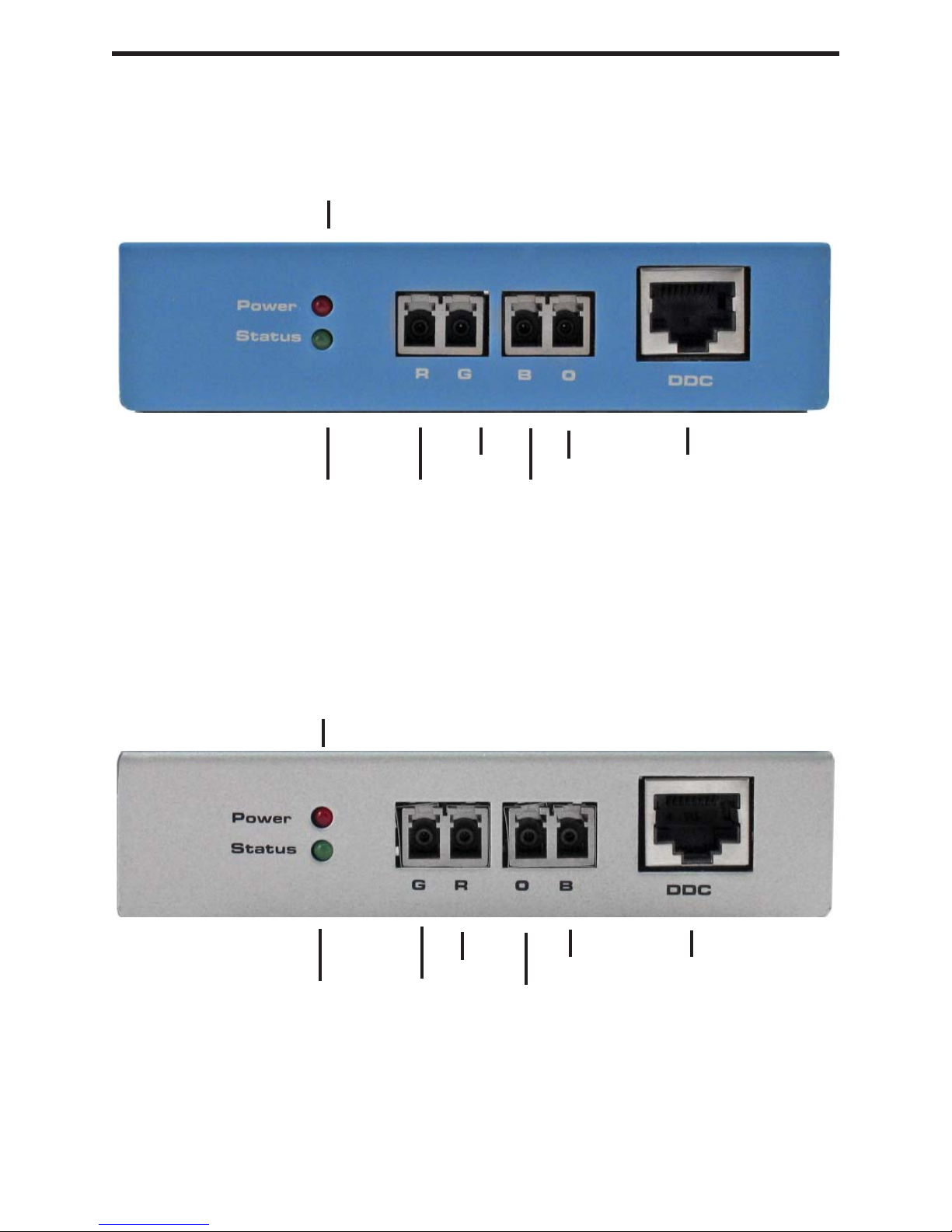

FRONT PANELS DESCRIPTIONS

Power LED indicates the unit is powered

HDMI 1000 Receiver (Front View Only)

Power LED indicates the unit is powered

12 VDC Input

HDMI 1000 Sender (Rear View Only)

HDMI Input

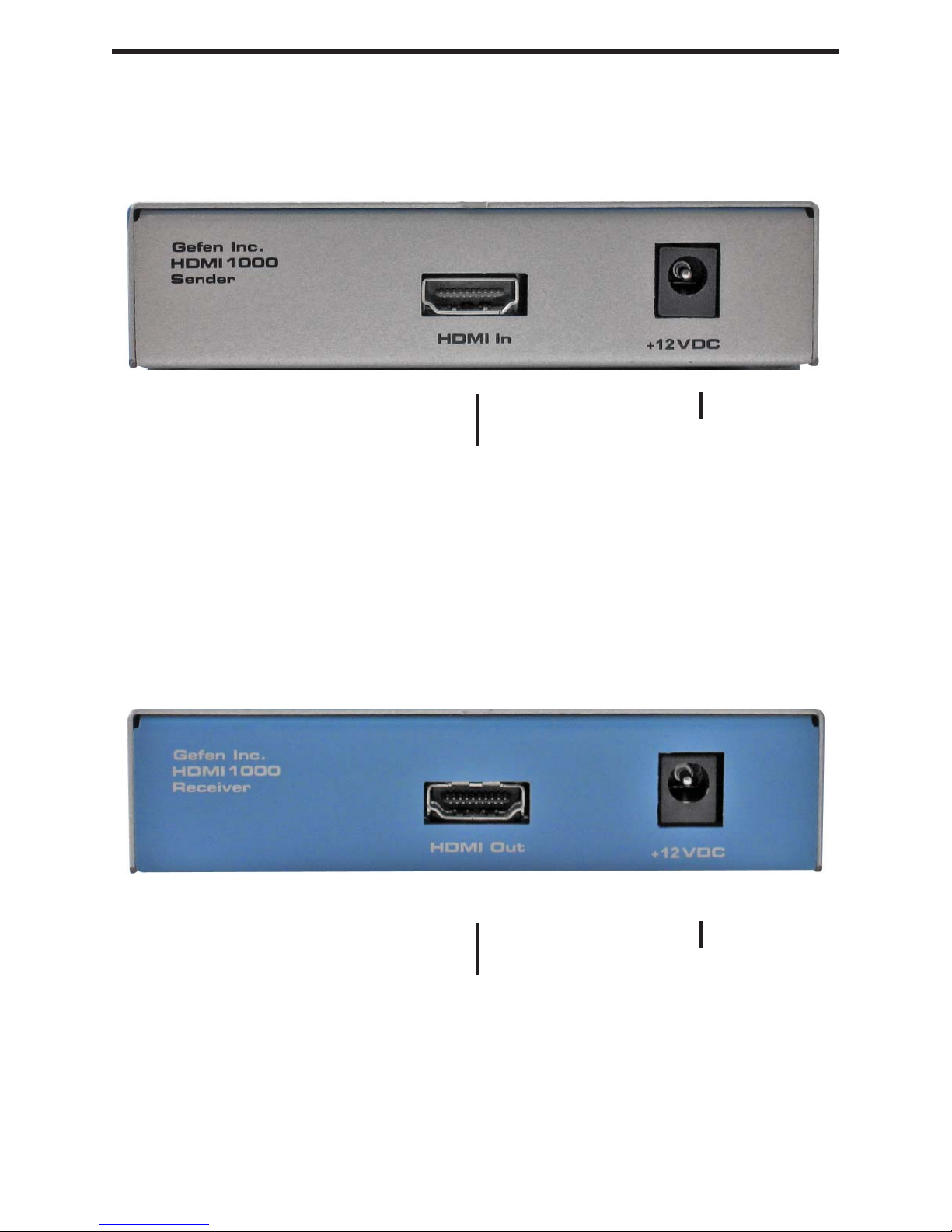

BACK PANELS DESCRIPTIONS

HDMI 1000 Receiver (Rear View Only)

12 VDC Input

HDMI Output

Connect the HDMI 1000 sender unit to the HDMI source using the supplied cables.

Connect the HDMI 1000 receiver unit to your HDMI display.

Connect the four ﬁber optics and one CAT5 cable between the sender and receiver.

Plug the 12VDC power supplies into the HDMI 1000 receiver.

You should see a beautiful picture.

* Cable Requirement - 50 or 62.5 micron multimode ﬁber optics cable

HOW TO CONNECT THE HDMI 1000

Connect the HDMI 1000 sender unit to the HDMI source using the supplied cables.

Connect the HDMI 1000 receiver unit to your HDMI display.

Connect the four ﬁber optics between the sender and receiver.

Plug the 12VDC power supplies into the HDMI 1000 sender.

Plug the 12VDC power supplies into the HDMI 1000 receiver.

If using a HDMI Detective attatch it inbetween the computer and the sender

You should see a beautiful picture.

* Cable Requirement - 50 or 62.5 micron multimode ﬁber optics cable

HOW TO CONNECT THE HDMI 1000 (w/o DDC)

The HDMI 1000HD can be hooked up without using the CAT5 if DDC is not needed. A

second power supply will be required to power the reciever unit in this setup.

For computer extensions where EDID is needed, a HDMI Detective can be purchased

to store the EDID of the display.

HDMI 1000 WIRING DIAGRAM
