GE Monogram ZTD910SFSS Instructions d'utilisation

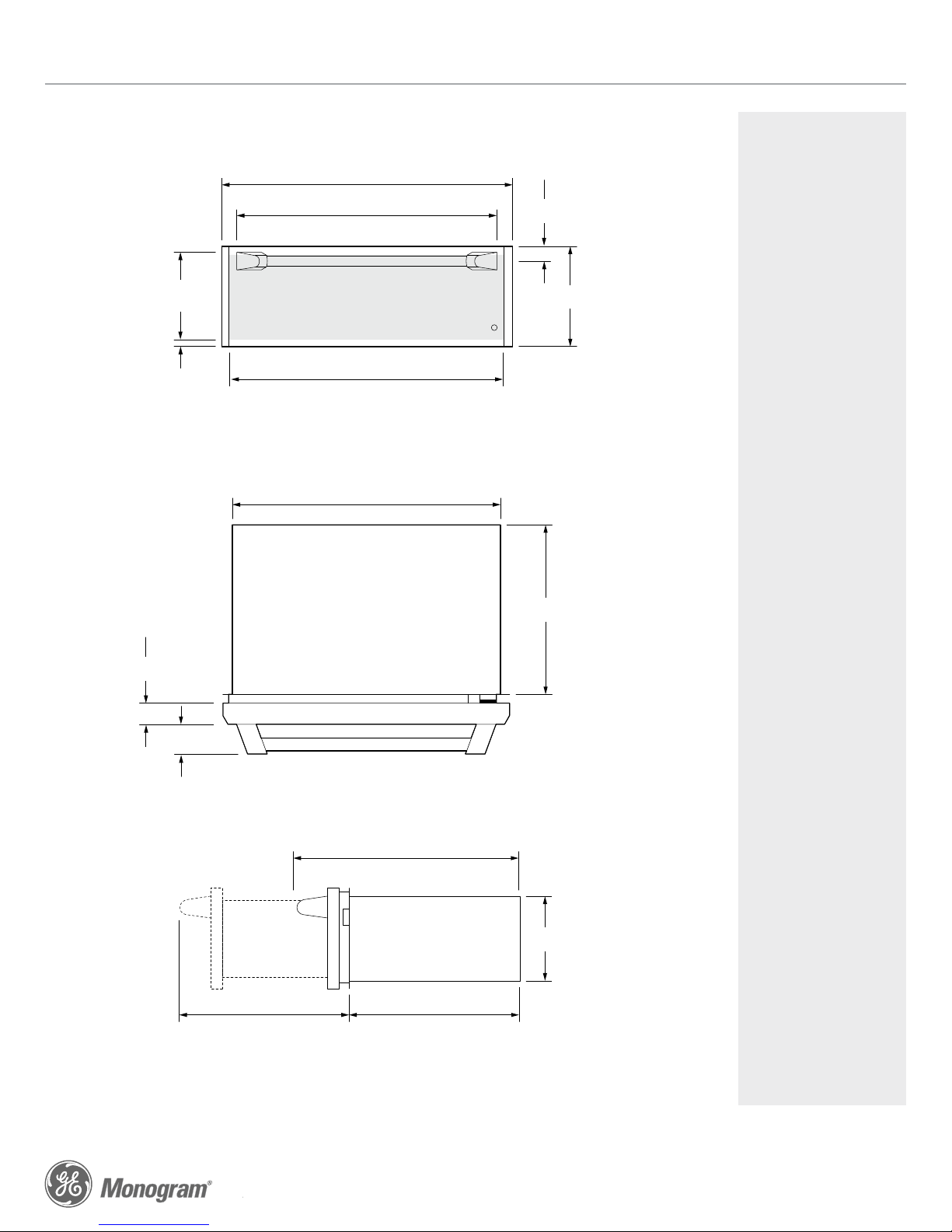

OVERALL DIMENSIONS

FRONT VIEW (SHOWING CUTOUT OVERLAP)

TOP VIEW

SIDE VIEW

1 3/32"

(2.8)

25 19/32" (65)

handle width

28 1/2" (72.4)

cutout width

30" (76.2)

10 1/2"

(26.7)

5/8"

(1.6)

9 1/4"

(23.5)

cutout height

(22.9)

26" (66.0)

including handle

23 1/4" (59.0)22" (55.9)

27 15/16" (71.0)

23 1/4"

(59.0)

29/32"

(2.4)

(5.1)

Dimensions in parentheses

are in centimeters unless

otherwise noted. Actual

product dimensions may

vary due to manufacturing

tolerances.

For more details refer to the installation instructions

for this product.

Product Speciﬁcation Created 8/14

GE Monogram®30" Warming Drawer

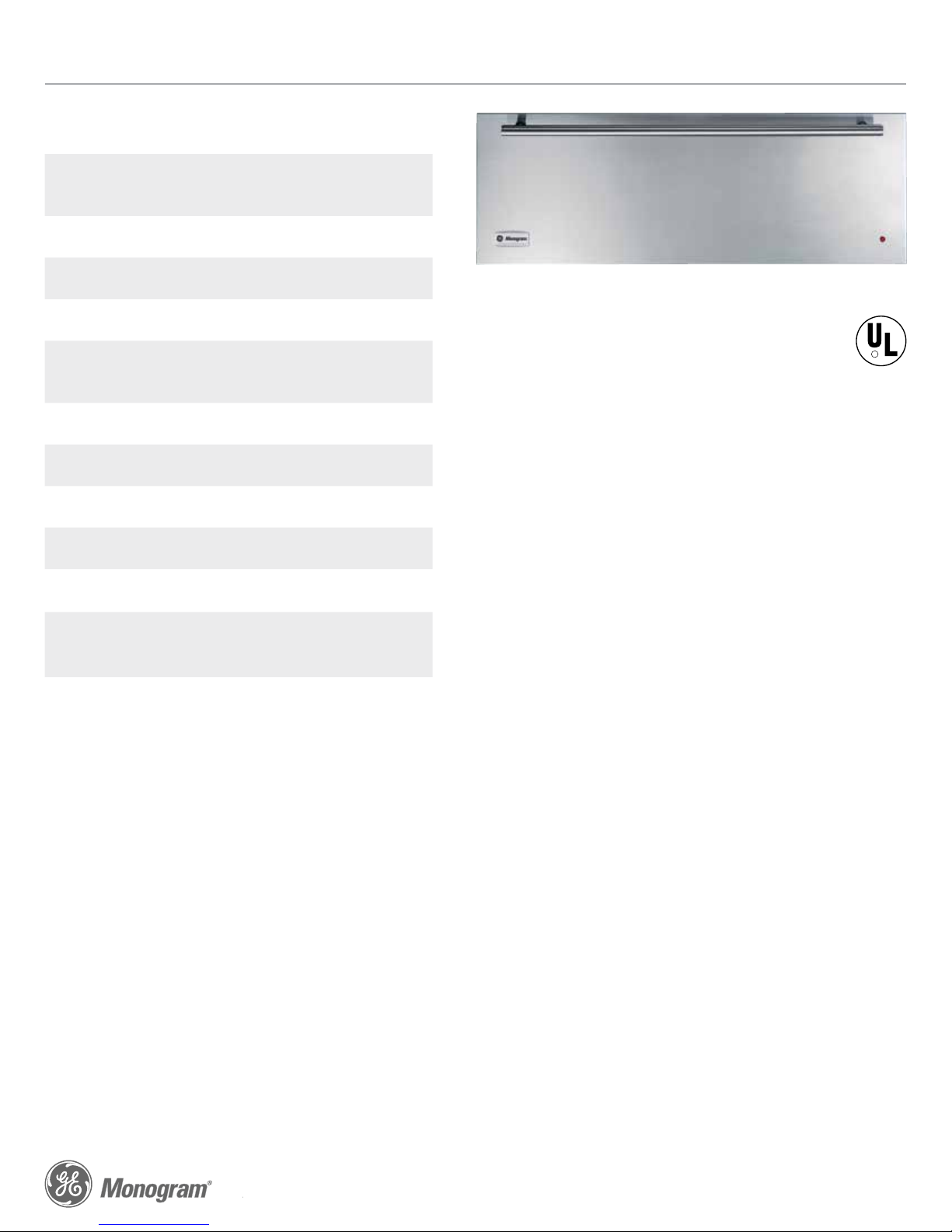

SPECIFICATIONS

Overall Width 30" (76.2 cm)

Overall Height 10 1/2" (26.7 cm)

Overall Depth 23 1/4" (59.0 cm)

Drawer Capacity 1.90 cu. ft. (53.8 l)

Cut-out Width 28 1/2" (72.4 cm)

Cut-out Height 9 1/4" (23.5 cm)

Cut-out Depth 23 1/2" (59.7 cm)

Power Cord Length 56" (142.2 cm)

Electrical Rating 450W @ 120V/60Hz

Total Amps 15 Amps

Net Weight 59 lbs. (26.8 kg)

Approx. Shipping Weight 65 lbs. (29.6 kg)

OPTIONAL ACCESSORIES

Custom Panel Kit ZXD30B

Professional Panel Kit ZXD30P

ZTD910SFSS

ATTENTION ELECTRICIAN:

This appliance is supplied with a 56" (142.2 cm)

long electrical cord equipped with a 3-prong

(grounding) plug that mates to a standard

3-prong grounding wall outlet.

The electrical power cord is located on the right

side of the warming drawer. Locate the wall

outlet within easy reach of the electrical cord in

an adjacent cabinet, within 42" (106.7 cm) of the

right side or 16" (40.6 cm) from the left side of the

cut-out. A recessed outlet can be installed on the

right side of the cut-out, 7" (17.8 cm) max. from

the rear of the cabinet.

DO NOT USE AN EXTENSION CORD

WITH THIS PRODUCT.

NOTES

AWarming drawers

are approved for

installation below

only certain speciﬁed

wall oven and cooktop

models. See the label

attached to the top of

the warming drawer for

approved combinations.

BAdditional clearance

between cut-outs may

be required. Check to be

sure that oven supports

above the warming

drawer location do not

obstruct the required

interior 23-1/2" depth

and 9-1/4" height.

CIf you are installing in

frameless cabinets,

it may be necessary

to install 1/2" wide

cleats to accept drawer

mounting screws. See

drawer for mounting

screw locations.

DInstall a 2"x2" or 2"x4"

Anti-tip block against

rear wall, 9" from ﬂoor

of cutout to bottom

of block. The anti-tip

block must be installed

to prevent the drawer

from tipping forward

when opened and

loaded. Failure to add

the anti-tip block could

result in personal injury.

EWhen installing the

warming drawer

below a cooktop, a

solid barrier must be

installed at least 1"

from the lowest point of

the bottom of cooktop

burner box to the top

of the cut-out. Use any

solid material such as

1/4" thick plywood.

Allow at least 1/4"

air gap between the

barrier and the top of

the warming drawer.

For more details refer

to the installation

instructions for this

product.

INSTALLATION BELOW SINGLE OR DOUBLE WALL OVEN

INSTALLATION BELOW COOKTOP

Product Speciﬁcation Created 8/14

GE Monogram®30" Warming Drawer ZTD910SFSS

SIDE VIEW FRONT VIEW

28 1/2" (72.4)

min. cutout width

28 1/2" (72.4)

min. cutout width

2" (5.1)

min.

23 1/2" (59.7)

min. cutout depth

1" (2.5) min.

above toe-kick

or adjust to

oven height

9 1/4"

(23.5)

cutout height

TOP VIEW

Side cleats

23 1/2" (59.7)

min. cutout depth

5 1/2"

(14.0)

min.

From top of countertop

to top of warming

drawer cutout

1" (2.5) min.

above toe-kick

or adjust to

cooktop height

9 1/4"

(23.5)

cutout height

ZDT910SFSS

SIDE VIEW FRONT VIEW

28 1/2" (72.4)

min. cutout width

28 1/2" (72.4)

min. cutout width

2" (5.1)

min.

23 1/2" (59.7)

min. cutout depth

1" (2.5) min.

above toe-kick

or adjust to

oven height

9 1/4"

(23.5)

cutout height

TOP VIEW

Side cleats

23 1/2" (59.7)

min. cutout depth

5 1/2"

(14.0)

min.

From top of countertop

to top of warming

drawer cutout

1" (2.5) min.

above toe-kick

or adjust to

cooktop height

9 1/4"

(23.5)

cutout height

ZDT910SFSS

NOTES

AIf you are installing in

frameless cabinets,

it may be necessary

to install 1/2" wide

cleats to accept drawer

mounting screws. See

drawer for mounting

screw locations.

BInstall a 2"x2" or 2"x4"

anti-tip block against

rear wall, 9" from ﬂoor

of cutout to bottom

of block. The anti-tip

block must be installed

to prevent the drawer

from tipping forward

when opened and

loaded. Failure to add

the anti-tip block could

result in personal injury.

CWhen installing the

warming drawer below

a cabinet drawer, a

solid barrier must be

installed at least above

the warming drawer

to block access. Use

any solid material such

as 1/4" thick plywood.

Allow at least 1/4"

air gap between the

barrier and the top of

the warming drawer.

Observe the 5" min.

above the ﬂoor or 1"

min. above the toe kick

installation height.

DWhen installing two

warming drawers side

by side, install them

in separate cut-outs

and allow a 2" min. gap

between each cut-out.

EThe warming drawer

may be supported by

either a solid bottom or

2"x2" or 2"x4" runners.

The support must

be level and rigidly

mounted, ﬂush with

the bottom edge of the

cut-out (there is no way

to level the drawer once

it has been installed,

so make sure that the

supports are level). The

ﬂoor or runners must be

capable of supporting

at least 150 lbs.

For more details refer

to the installation

instructions for this

product.

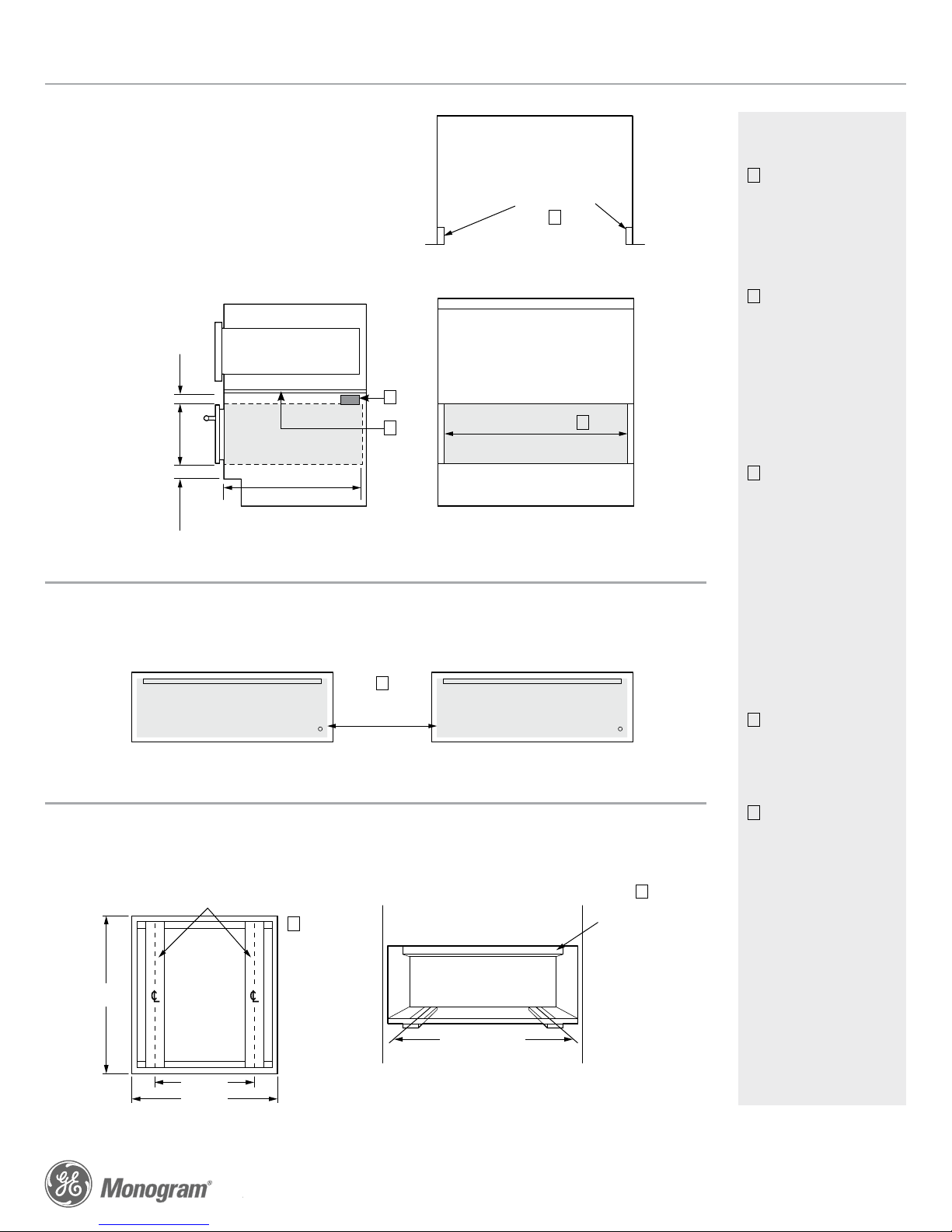

INSTALLATION BELOW A CABINET DRAWER

PROVIDING CABINET SUPPORT INSTALLING ANTI-TIP BLOCKS

SIDE BY SIDE INSTALLATION

Product Speciﬁcation Created 8/14

GE Monogram®30" Warming Drawer ZTD910SFSS

SIDE VIEW FRONT VIEW

TOP VIEW

28 1/2" (72.4)

min. cutout width

23 1/2" (59.7)

min. cutout width

1/4"

(.6)

min.

(2.5)

min.

Above

toe-kick

2" (5.1) min.

Between cut-outs

2" (5.1) x 4" (10.2)

or Equivalent Runners

Install

2" (5.1) x 4" (10.2)

2" (5.1) x 2" (5.1)

Anti-tip Block against

rear cabinet wall 9" from

floor to bottom of block

Side cleats

9 1/4"

(23.5)

Cut-out

height

30" (76.2)

25" (63.5)

23 1/2"

(59.7)

2" (5.1) x 4" (10.2)

2" (5.1) x 2" (5.1)

Runners or Solid Bottom

ZDT910SFSS

SIDE VIEW FRONT VIEW

TOP VIEW

28 1/2" (72.4)

min. cutout width

23 1/2" (59.7)

min. cutout width

1/4"

(.6)

min.

(2.5)

min.

Above

toe-kick

2" (5.1) min.

Between cut-outs

2" (5.1) x 4" (10.2)

or Equivalent Runners

Install

2" (5.1) x 4" (10.2)

2" (5.1) x 2" (5.1)

Anti-tip Block against

rear cabinet wall 9" from

floor to bottom of block

Side cleats

9 1/4"

(23.5)

Cut-out

height

30" (76.2)

25" (63.5)

23 1/2"

(59.7)

2" (5.1) x 4" (10.2)

2" (5.1) x 2" (5.1)

Runners or Solid Bottom

ZDT910SFSS

SIDE VIEW FRONT VIEW

TOP VIEW

28 1/2" (72.4)

min. cutout width

23 1/2" (59.7)

min. cutout width

1/4"

(.6)

min.

(2.5)

min.

Above

toe-kick

2" (5.1) min.

Between cut-outs

2" (5.1) x 4" (10.2)

or Equivalent Runners

Install

2" (5.1) x 4" (10.2)

2" (5.1) x 2" (5.1)

Anti-tip Block against

rear cabinet wall 9" from

floor to bottom of block

Side cleats

9 1/4"

(23.5)

Cut-out

height

30" (76.2)

25" (63.5)

23 1/2"

(59.7)

2" (5.1) x 4" (10.2)

2" (5.1) x 2" (5.1)

Runners or Solid Bottom

ZDT910SFSS

NOTES

This kit contains a

mounting panel to support

a trim-less custom drawer

front up to 3/4" thick. The

original tubular handle

can be reinstalled onto the

custom panel with longer

screws (not provided) or

can be replaced with a

custom handle of your

choice (also not provided).

For more details refer

to the installation

instructions for this

product.

INSTALLATION WITH CUSTOM PANEL KIT - ZXD27B

Product Speciﬁcation Created 8/14

GE Monogram®30" Warming Drawer ZTD910SFSS

SIDE VIEW

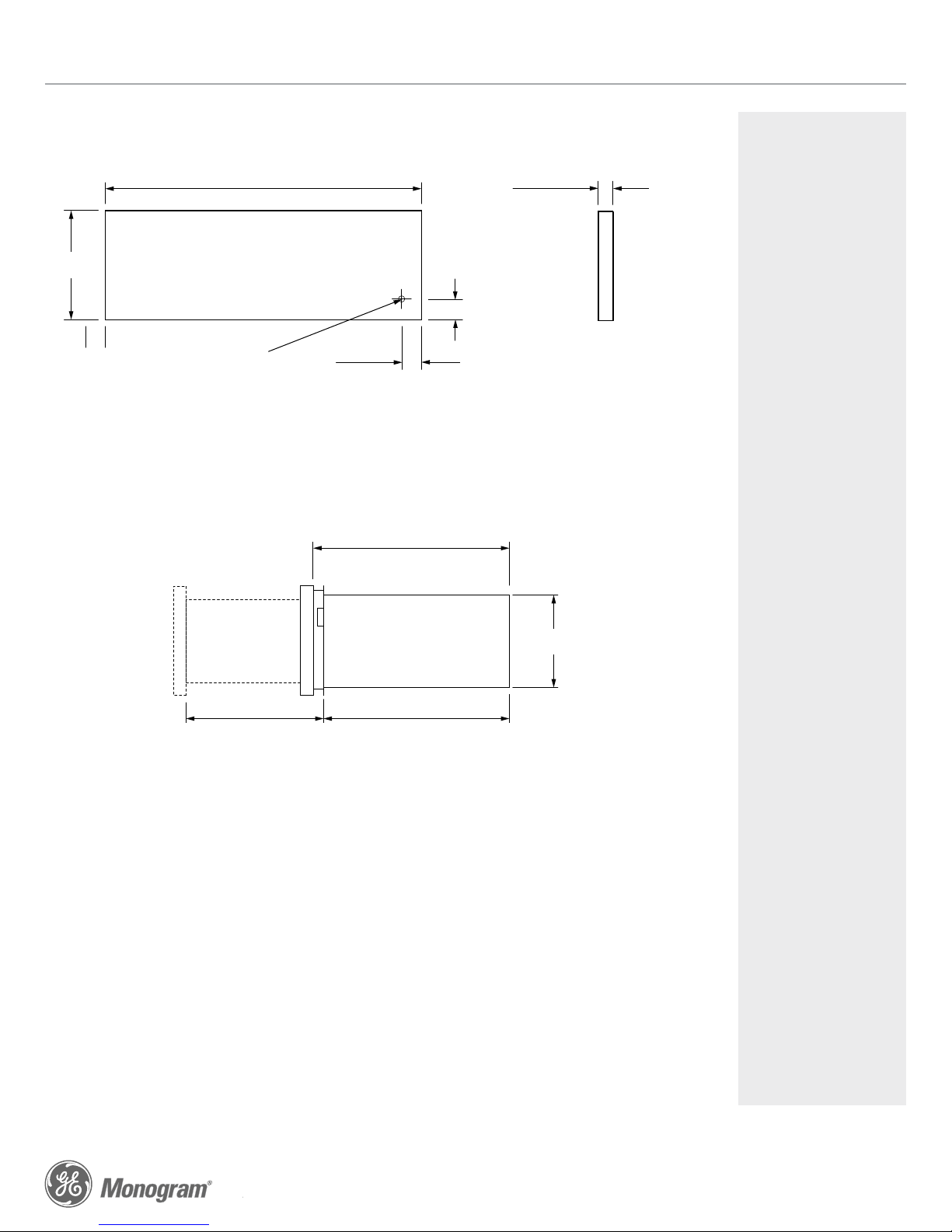

CUSTOM PANEL PREPARATION

FRONT VIEW CUSTOM PANEL

PREPARATION

SIDE VIEW

(22.9)

23 5/16" (59.2)

including handle

Excluding

custom panel

Drawer

open

Excluding

custom panel

23 1/4" (59.0)24" (61.0)

10 1/2"

(26.7)

Drill

5/16" (0.8)

through custom

panel for lamp jewel

30" (76.2)

1 13/16" (4.6)

1 3/4" (4.5)

3/4" (1.9) max.

NOTES

This kit contains a

mounting panel to support

a trim-less custom drawer

front up to 3/4" thick. The

original tubular handle

can be reinstalled onto the

custom panel with longer

screws (not provided) or

can be replaced with a

custom handle of your

choice (also not provided).

For more details refer

to the installation

instructions for this

product.

INSTALLATION WITH PROFESSIONAL STYLE PANEL KIT - ZXD30P

Product Speciﬁcation Created 8/14

GE Monogram®30" Warming Drawer ZTD910SFSS

FRONT VIEW (SHOWING CUT-OUT OVERLAP)

TOP VIEW

SIDE VIEW

10 1/2"

(26.7)

(22.9)

9 1/4"

(23.5)

Cutou-out height

5/8"

(1.6)

2 1/4"

(5.7)

1 3/4"

(4.5)

2 13/16"

(7.1)

30" (76.2)

27 15/16" (71.0)

26" (66.0)

Handle width

28 5/16" (72.0)

Including Handle

28 1/2" (72.4)

Cut-out width

28 1/2" (72.4) 23 1/4" (59.0)

23 1/4"

(59.0)

FEATURES AND BENEFITS

Inﬁnite Setting Temperature Control –

75 Degrees to 230 Degrees

Variable Humidity Control – Crisp to Moist

Removable Half Rack

1.9 cu. ft capacity

Accepts 3/4" trimless custom panel and custom

handle with trim kit

Full extension drawer on ball bearing glides

"On" indicator light

Accepts Optional Professional Panel Kit

Removable Stainless Steel Pan

Variable Installation Options

Hidden Controls Provide Flush Installation

Appearance

On/Off Rocker Switch

Product Speciﬁcation Created 8/14

GE Monogram®30" Warming Drawer ZTD910SFSS

Table des matières

Autres manuels GE tiroir chauffant

GE WDP6000I Manuel utilisateur

GE Profile PKD915SMSS Manuel

GE PJ7000SFSS Manuel

GE Monogram ZKD910 Manuel utilisateur

GE PHB925STSS Manuel utilisateur

GE Monogram ZKD910BF Instructions d'utilisation

GE Monogram ZKD910 Manuel utilisateur

GE JTD915BFBBC Mode d'emploi

GE Monogram ZKD910 Manuel utilisateur

GE Cafe CW9000SDSS Manuel utilisateur

GE JB705EDES Manuel

GE Monogram ZKD910 Manuel utilisateur

GE Profile PTD915 Manuel utilisateur

GE Monogram ZTD910SBSS Instructions d'utilisation

GE JB705STSS Manuel

GE Monogram ZKD910 Manuel utilisateur

GE MONOGRAM ZTD910BF/SF/WF Instructions d'utilisation

GE PHB915SDSS Manuel utilisateur

GE Monogram ZKD910 Manuel utilisateur

GE Profile PTD915WMWW Manuel

GE JTD910 Manuel utilisateur

GE Monogram ZKD910 Manuel utilisateur

GE PTW9000 Series Instructions originales

GE Profile PTD915SMSS Manuel

Manuels tiroir chauffant populaires d'autres marques

Siemens

Siemens HW 290 Series Manuel utilisateur

Hatco

Hatco HDW-1 Instructions d'installation

APW Wyott

APW Wyott WD-2CMF Manuel utilisateur

Viking

Viking DEWD102SS Manuel utilisateur

Miele

Miele ESW 6229 Manuel utilisateur

Brandt

Brandt WD1014X Manuel utilisateur

KitchenAid

KitchenAid KOWT107ESS Manuel utilisateur

Gaggenau

Gaggenau WSP 222 Manuel utilisateur

DCS

DCS WDI Manuel utilisateur

Fisher & Paykel

Fisher & Paykel OR90SCG6R1 Manuel utilisateur

Electrolux

Electrolux EED21600X Manuel utilisateur

Fisher

Fisher PROFESSIONAL WB76SPEX1 Manuel utilisateur

Electrolux

Electrolux EW30WD55GS Manuel utilisateur

Hanseatic

Hanseatic TCN14J6D-S Manuel utilisateur

Jenn-Air

Jenn-Air JWD6030CDX Manuel utilisateur

Gaggenau

Gaggenau WS482710 Manuel utilisateur

Bosch

Bosch HWD2720UC Manuel utilisateur

NEFF

NEFF N29HA11Y2 Instructions d'utilisation et d'entretien
