Dimensions and Installation Information (in inches)

Listed by

Underwriters

Laboratories

For answers to your Monogram®or GE®

appliance questions, visit our website at

geappliances.com or call GE Answer Center®

service, 800.626.2000.

Under Oven Installation

Warming Drawer Dimensions

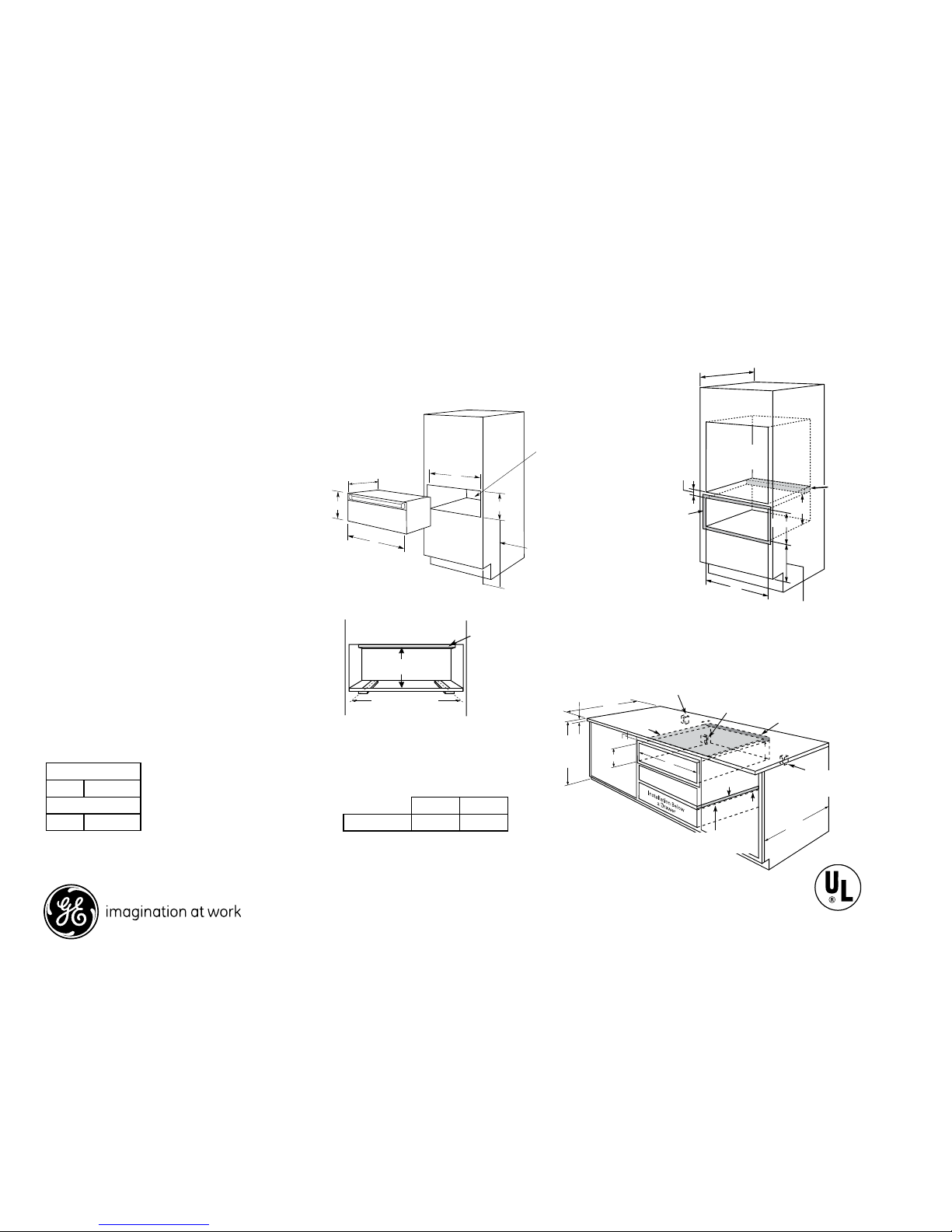

Undercounter Installation

Specification Created 2/13 221135

Optional Accessories: ZXD30B –1/4” panel kit

capability.

Note: Custom panel will not be flush with adjacent

cabinetry drawers and doors.

Undercounter Installation: A solid barrier must

be installed at least 1” from the lowest point of the

bottom of cooktop burner box to the top of the

cutout. Use any solid material such as 1/4”-thick

plywood. Allow at least 1/4” air gap between the

barrier and the top of the warming drawer. See

label on top of the warming drawer for approved

cooktop models.

Under Oven Installation: Additional clearance

between cutouts may be required. Check to be

sure that oven supports above the warming

drawer location do not obstruct the required

interior 23-1/2” depth and 9-1/4” height.

Door handle protrudes 2-3/4” from door face.

Cabinets and drawers on adjacent 45° and 90°

walls should be placed to avoid interference with

the handle.

Installation Information: Before installing, consult

installation instructions packed with product for

current dimensional data.

PW9000SF

GE Profile™Series 30" Warming Drawer

10-1/2" 9-1/4"

Locate electrical

outlet in adjacent

cabinet 16" from

left side or 42"

from right side

24"

recommended

from floor

for under

countertop

installation

23-1/4"

(Must Support 150 lbs.)

Dimensions (in inches)

Install

2x4 or 2x2

anti-tip

block 9"

from floor

to bottom

of block

2x4 or 2x2

runners or solid

bottom

Install a solid barrier

below a cooktop

23-1/2"min.

Solid barrier

1/4" Air gap

Electrical

outlet 16" max.

from left side

Install 2x4 or 2x2

anti-tip block against

rear cabinet wall 9" from

floor to bottom of block

Electrical outlet

flush with side of

cabinet 7" max.

Electrical outlet

42" max. from

right side

1-1/2"

Cabinet top 25"

36"

Countertop

height A

1"Min.*

9-1/4"

Install a solid barrier

below a cooktop

Allow 5/8"

overlap on

all sides

23-1/2" min.

2" min.

Oven

cutout

9-1/4"

2x2 or 2x4

anti-tip block

against rear

wall 9" from

floor to bottom

of block

1" min. above toekick

or adjust to oven

installation height

A B

27" Drawer 25-1/2" 26-3/4"

30" Drawer 28-1/2" 29-3/4"

10-1/2" 9-1/4"

Locate electrical

outlet in adjacent

cabinet 16" from

left side or 42"

from right side

24"

recommended

from floor

for under

countertop

installation

23-1/4"

(Must Support 150 lbs.)

Dimensions (in inches)

Install

2x4 or 2x2

anti-tip

block 9"

from floor

to bottom

of block

2x4 or 2x2

runners or solid

bottom

Install a solid barrier

below a cooktop

23-1/2"min.

Solid barrier

1/4" Air gap

Electrical

outlet 16" max.

from left side

Install 2x4 or 2x2

anti-tip block against

rear cabinet wall 9" from

floor to bottom of block

Electrical outlet

flush with side of

cabinet 7" max.

Electrical outlet

42" max. from

right side

1-1/2"

Cabinet top 25"

36"

Countertop

height A

1"Min.*

9-1/4"

Install a solid barrier

below a cooktop

Allow 5/8"

overlap on

all sides

23-1/2" min.

2" min.

Oven

cutout

9-1/4"

2x2 or 2x4

anti-tip block

against rear

wall 9" from

floor to bottom

of block

1" min. above toekick

or adjust to oven

installation height

A B

27" Drawer 25-1/2" 26-3/4"

30" Drawer 28-1/2" 29-3/4"

10-1/2" 9-1/4"

Locate electrical

outlet in adjacent

cabinet 16" from

left side or 42"

from right side

24"

recommended

from floor

for under

countertop

installation

23-1/4"

(Must Support 150 lbs.)

Dimensions (in inches)

Install

2x4 or 2x2

anti-tip

block 9"

from floor

to bottom

of block

2x4 or 2x2

runners or solid

bottom

Install a solid barrier

below a cooktop

23-1/2"min.

Solid barrier

1/4" Air gap

Electrical

outlet 16" max.

from left side

Install 2x4 or 2x2

anti-tip block against

rear cabinet wall 9" from

floor to bottom of block

Electrical outlet

flush with side of

cabinet 7" max.

Electrical outlet

42" max. from

right side

1-1/2"

Cabinet top 25"

36"

Countertop

height A

1"Min.*

9-1/4"

Install a solid barrier

below a cooktop

Allow 5/8"

overlap on

all sides

23-1/2" min.

2" min.

Oven

cutout

9-1/4"

2x2 or 2x4

anti-tip block

against rear

wall 9" from

floor to bottom

of block

1" min. above toekick

or adjust to oven

installation height

A B

27" Drawer 25-1/2" 26-3/4"

30" Drawer 28-1/2" 29-3/4"

10-1/2" 9-1/4"

Locate electrical

outlet in adjacent

cabinet 16" from

left side or 42"

from right side

24"

recommended

from floor

for under

countertop

installation

23-1/4"

(Must Support 150 lbs.)

Dimensions (in inches)

Install

2x4 or 2x2

anti-tip

block 9"

from floor

to bottom

of block

2x4 or 2x2

runners or solid

bottom

Install a solid barrier

below a cooktop

23-1/2"min.

Solid barrier

1/4" Air gap

Electrical

outlet 16" max.

from left side

Install 2x4 or 2x2

anti-tip block against

rear cabinet wall 9" from

floor to bottom of block

Electrical outlet

flush with side of

cabinet 7" max.

Electrical outlet

42" max. from

right side

1-1/2"

Cabinet top 25"

36"

Countertop

height A

1"Min.*

9-1/4"

Install a solid barrier

below a cooktop

Allow 5/8"

overlap on

all sides

23-1/2" min.

2" min.

Oven

cutout

9-1/4"

2x2 or 2x4

anti-tip block

against rear

wall 9" from

floor to bottom

of block

1" min. above toekick

or adjust to oven

installation height

A B

27" Drawer 25-1/2" 26-3/4"

30" Drawer 28-1/2" 29-3/4"

KW Rating

120V .45

Breaker Size

120V 15 Amps

A B

30" Drawer 28-1/2" 29-3/4"

Specification Created 2/13 221135

Features and Benefits

• Variable temperature control - Provides a variety of temperatures

• Variable humidity control - Customized warming from crisp to moist

• Frameless drawer front - Offers a smooth appearance

• “On” indicator light - Illuminates when warming drawer is operating

• Half rack - Maximizes drawer space

• Model PW9000SFSS – Stainless steel

PW9000_PJ7000

PW9000SF

GE Profile™Series 30" Warming Drawer
