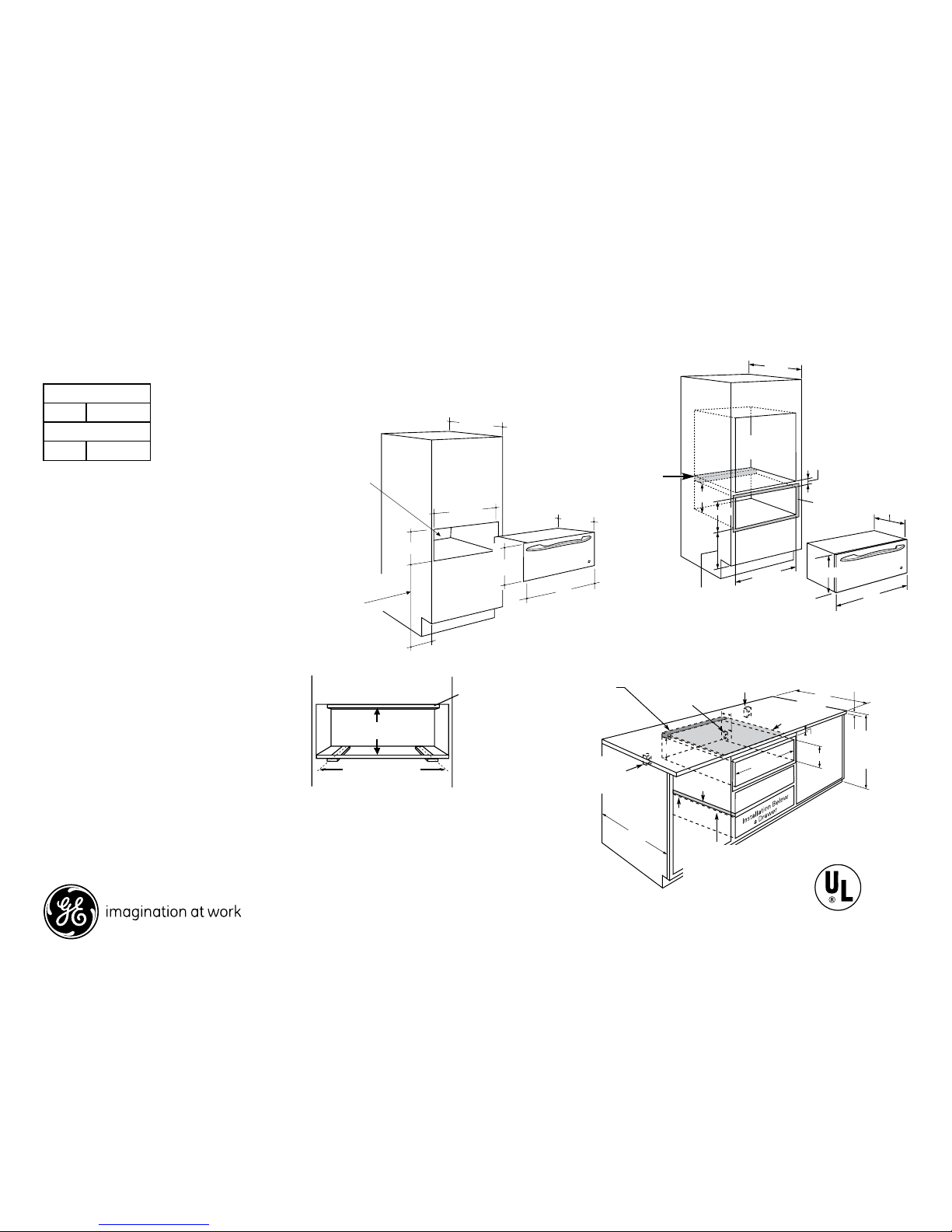

Dimensions and Installation Information (in inches)

For answers to your Monogram,® GE Profile™or

GE®appliance questions, visit our website at

ge.com or call GE Answer Center®service,

800.626.2000.

Listed by

Underwriters

Laboratories

Under Oven Installation

Warming Drawer Dimensions

Undercounter Installation

Specification Created 1/07 221128

Optional Accessories:

JXPN2 – Optional Pan Set

Accessory for Warming

Drawer. Two commercial

pans with lids (4” deep)

ZXD30B –3/4” panel kit

capability

Undercounter Installation: A solid barrier must

be installed at least 1” from the lowest point of the

bottom of cooktop burner box to the top of the

cutout. Use any solid material such as 1/4”-thick

plywood. Allow at least 1/4” air gap between the

barrier and the top of the warming drawer. See

label on top of the warming drawer for approved

cooktop models.

Under Oven Installation: Additional clearance

between cutouts may be required. Check to be

sure that oven supports above the warming

drawer location do not obstruct the required

interior 23-1/2” depth and 9-1/4” height.

Door handle protrudes 2-3/4” from door face.

Cabinets and drawers on adjacent 45° and 90°

walls should be placed to avoid interference with

the handle.

Installation Information: Before installing, consult

installation instructions packed with product for

current dimensional data.

KW Rating

120V .45

Breaker Size

120V 15 Amps

1-1/2"

Cabinet top

36"

Countertop

height

Electrical outlet

42" max. from

right side

Electrical outlet

flush with side of

cabinet 7" max.

Install 2x4 or 2x2

anti-tip block against

rear cabinet wall 9" from

floor to bottom of block

1" Min.*

9-1/4

28-1/2

Install a solid barrier

below a cooktop

(see note).

23-1/2 min.

Electrical

outlet 16" max.

from left side

Install a solid barrier

and a 1/4" min. air gap

above warming drawer.

Solid barrier

1/4" Air gap

298Dia1

9-1/4

Locate

electrical

outlet in

adjacent

cabinet

16" from

left side

or 42"

from right

side.

10-1/2

24"

recommended

from floor

for under

countertop

installation

23-1/4

23-1/2" Min.

Inside

28-1/2

9Allow 5/8"

overlap on

all sides

23-1/4

23-1/2"

min.

1" Min. above toekick

or adjust to oven

installation height

2" min.

Oven

cutout

9-1/4

Allow 5/8" overlap

on all sides

23-1/4

23-1/2"

min.

1" Min. above toekick

2" min.

2x2 or 2x4

anti-tip block

against rear

wall 9" from

floor to bottom

of block

2x2 or 2x4

anti-tip block

against rear

wall 9" from

floor to bottom

of block

Oven

cutout

9-1/4

10-1/2

28-1/2 10-1/2

PTD915BM/CM/WM

GE Profile™30" Warming Drawer

2x4 or 2x2

runners or solid

bottom

Install

2x4 or 2x2

Anti-Tip

Block 9"

From Floor

to Bottom

of Block

353Dia4

Specification Created 1/07 221128

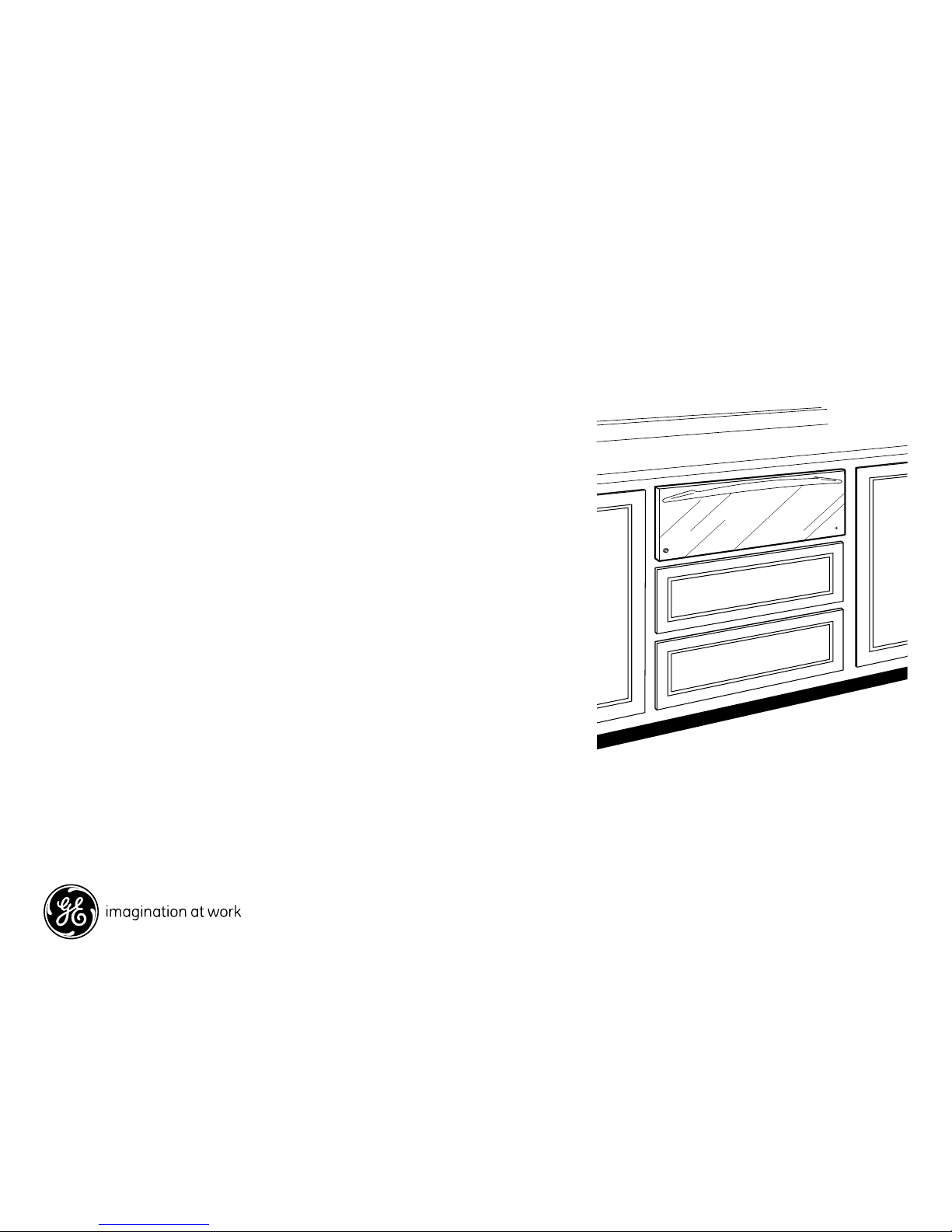

Features and Benefits

• Flush Appearance Installation - Transitions smoothly into the kitchen cabinetry to

deliver a clean and sophisticated appearance

• Variable Degree Control - Provides temperature settings from 80 degrees to 210

degrees to deliver flexible warming performance for a variety of needs

• Variable Humidity Control - Gives cooks the ability to customize warming, from crisp

to moist, based on their desired result

• Frameless Drawer Front - Achieves a smooth appearance for an attractive, modern

presentation that is easy to wipe clean

• “On” Indicator Light - Illuminates when the warming drawer is operating for cooking

convenience and kitchen safety

• Half Rack - Delivers a versatile option to help maximize drawer space for warming

multiple foods at once

• Model PTD915BMBB – Black on black

• Model PTD915CMCC – Bisque on bisque

• Model PTD915WMWW – White on white

PKD915/PTD915WM/CM

PTD915BM/CM/WM

GE Profile™30" Warming Drawer
