NX-10

Alarm system user manual

GE imagination at work

The European directive 2002/96/EC “Waste Electrical and Electronic Equipment” (WEEE) aims to minimise the impact of electrical and electronic equipment waste on the envi-

ronment and human health. To conform with this directive, electrical equipment marked with this symbol must not be disposed of in European public disposal systems.

European users of electrical equipment must now return end-of-life equipment for disposal.

Further information can be found on the following website: www.recyclethis.info.

98/482/EC Declaration

(Applies to products that have CE mark attached)

This equipment has been approved in accordance with Council Decision 98/482/EC for Pan-European single terminal connection to the public switched telephone network

(PSTN). However, due to differences between the individual PSTNs provided in different countries, the approval does not, of itself, give an unconditional assurance of successful

operation on every PSTN network termination point.

ww.gesecurity.com

information without notice.

NX-10 Alarm System User Manual 3

Menu map ....................................................................................................4

LCD keypad ..................................................................................................6

Keypad keys ................................................................................................7

LCD icons ......................................................................................................8

Using the NX-10 menus .........................................................................9

Preparing your system ...........................................................................10

Arming and disarming using a single-partition keypad .........11

Arming and disarming using a master keypad ..........................12

Disarming your system after an alarm ...........................................13

Resetting fire detectors ..........................................................................14

Using life safety functions .....................................................................15

Viewing the status of a zone ...............................................................16

Bypassing one or more zones .............................................................17

Changing your user code and name ...............................................18

Changing another user’s code and name .....................................19

Changing user rights ...............................................................................20

Setting the system time and date .....................................................21

Adjusting the keypad settings ............................................................22

Adjusting the LCD display .....................................................................23

Reading the event log .............................................................................24

Changing phone numbers ....................................................................25

Setting up light control ...........................................................................26

Activating your light control system ................................................27

Up/downloading data ............................................................................28

Testing your system ................................................................................29

Adding and deleting cards ...................................................................30

Service messages .....................................................................................31

Glossary .........................................................................................................34

Battery replacement ..............................................................................36

Notes ..............................................................................................................37

Contents

NX-10 User Manual 4

Menu map

Bypass Zones

Users

Group Bypass

Log Review

Alarm Memory

Service Check

Users 1-10

Users 11-20

Users 21-30...

Authority

Partitions

Language

Name

Outputs Output 1

Output 2

Output 3...

Control Outputs

Arm Only After Closing

Arm Only

Arm/Disarm

Master Code

Bypass Zones

Reports Open/Close

Zone 1-8

Zone 9-16

Zone 17-24

Zone 25-32

Zone 33-40

Zone 41-48

User Code

Delete Code

User Menu (1) Zone 1

(2) Zone 2

(3) Zone 3...

NX-1701 Proximity Readers* Add One Card

Add Multiple Cards

Activate Card

Deactivate Card

Delete One Card

*available only if installed

User Details** User Code

Language

Name

** displayed if a user is not a master user

NX-10 User Manual 5

Menu map

Walktest

Keypad Volume

LCD Contrast

LCD Brightness

LCD & Self Test

Master Mode

Silent Exit

Detector Reset

Backlight Always On

Set Date/Time

Phone Numbers

Light Control

Bypass Zones

Device 1

Device 2

Device 3...

User Menu

Phone Number 1

Phone Number 2

Phone Number 3

Quick User Menu

Group Bypass

Alarm Memory

Service Check

Light Control

Detector Reset

Chime

Answer U/D Call

Begin U/D Call

Module Number

House Code

Download

Download Answer U/D Call

Begin U/D Call

Zone 1-8

Zone 9-16

Zone 17-24

Zone 25-32

Zone 33-40

Zone 41-48

(1) Zone 1

(2) Zone 2

(3) Zone 3...

Change Batteries

NX-10 User Manual 6

LCD keypad

Status indicator

Status icons, see page 8.

Function keys: Preset function keys

(Arm Away, Stay Mode, Disarm, Night

Mode, Bypass Zones), see page 7.

NO: A rejection and navigation key.

OK*: An acceptance and navigation key.

LCD display: System status information,

menu options and other information that is

entered are displayed here.

F1, F2, F8: Programmable keys that are

set by the installer.

F1:

F2:

F8:

: Navigation and editing keys.

#: A key that activates the function of the

next key that is pressed.

: A key that toggles Chime mode on

and off.

Alphanumeric display

NX-10 User Manual 7

Arm Away

Press to arm the system in Away mode.

Arm Stay

Press to arm the system in Stay mode. When in the menu, press

to scroll to the start of the LCD message. If configured this way by the

installer you can use this key to toggle the Stay/Instant mode of the

armed partition.

Disarm

Press to disarm the selected partition. This key works in Master

mode only. When in the menu, press to scroll to the end of the LCD

message.

Bypass Zone

Press to select (or deselect) a zone to bypass.

Night Mode

Press to arm the system in Night mode.

Chime

Press to toggle Chime mode on and off.

F1, F2, F8

These keys can be programmed by the installer to perform certain

functions.



Press the navigation keys to scroll through menu lists and options.

When in master mode or not in a menu:

•Pressto display bypassed zones.

•Pressto display problem zones.

When editing text and phone numbers:

•Press

to overwrite or insert text.

•Press

to delete text.

•PressNO to cancel a change to the menu selection or

• navigate to a higher level in the menu structure or

• cancel a sequence when entering numeric data.

Note

: It is recommended to always use the

key to wake up a keypad.

OK*

•PressOK to activate the menu or

• accept selection changes or

• move forward in the menu structure or

• complete a sequence when entering numeric data.

When editing text and phone numbers:

•Press# F4 (or ) to move to the first character or number.

•Press# F5 (or ) to move to the last character or number.

•Press#to delete from the current position to the end.

Keypad keys

NX-10 User Manual 8

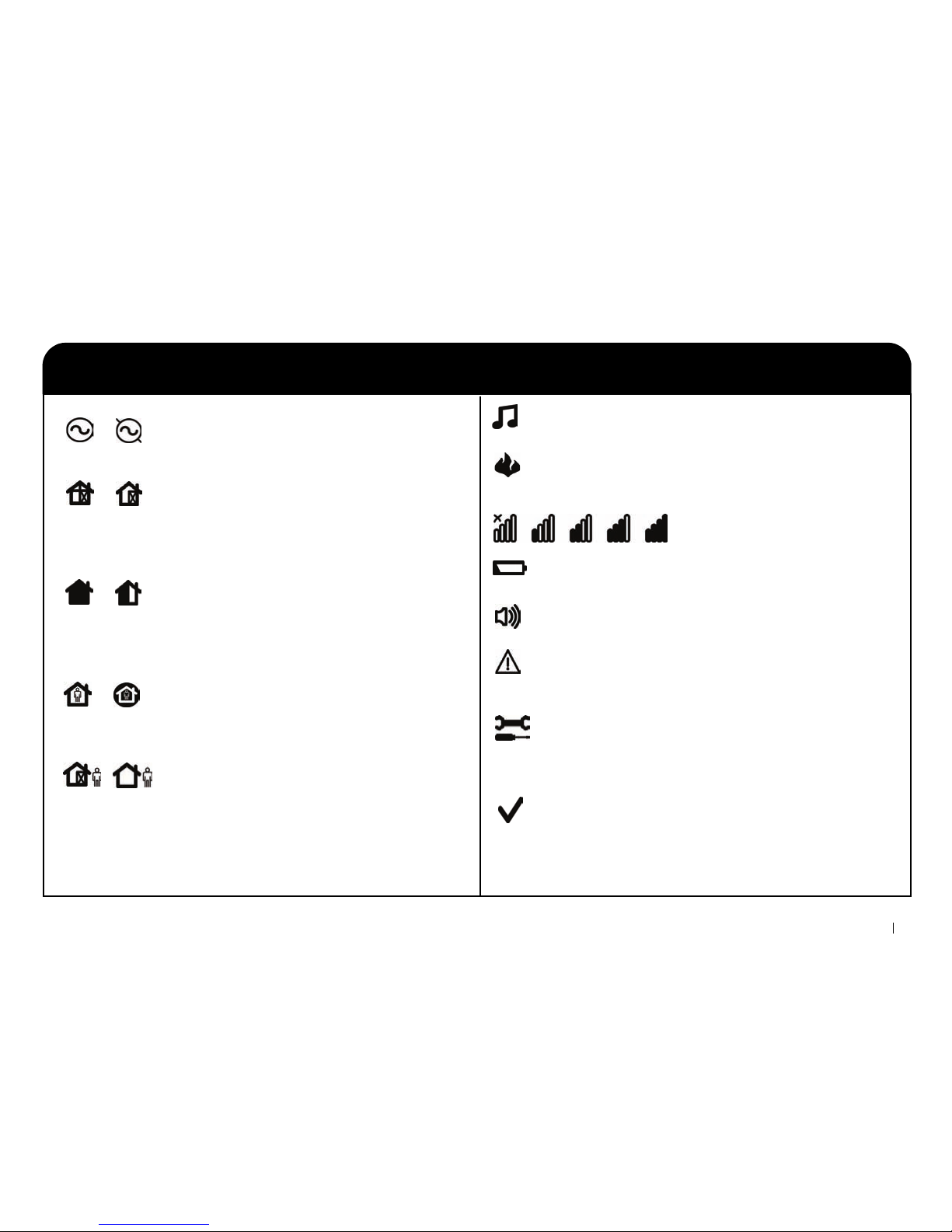

Power If power is present, the left icon is

displayed. If power is failing, the right

icon shows up.

Bypass In MASTER mode, the left icon shows

up if ANY partition is bypassed. In

PARTITION mode, the right icon is

being displayed if ANY zone is

bypassed.

Full/Part

armed

In MASTER mode, the FULL icon (left)

shows up only if ALL partitions are

ARMED, while the PART icon (right)

shows up if NOT ALL partitions are

ARMED.

Stay/Night

mode

In PARTITION mode, the STAY icon

(left) shows up if armed and staying,

and the NIGHT icon (right) if the night

function is enabled.

Away In PARTITION mode, one of these

icons shows up if armed and leaving,

the left one if ANY zone is bypassed,

the right one if NO zone is bypassed.

Chime In CHIME mode, this icon will be ON,

otherwise OFF.

Fire This icon indicates that a fire zone or

the fire keypad function has been

activated.

This icon indicates RF-link field

strength.

Battery

Low

If the keypad battery is low, this icon

is flashing ON and OFF.

Alarm This icon flashes ON and OFF in case

of an alarm condition.

Trouble This icon indicates a system trouble

condition, for example, day zone

trouble or AC power loss.

Service This icon is ON in case the system

needs to be serviced. You can display

a service message with the #key.

Ready to

arm

If the system is OK to arm, the V-sign

icon is displayed. If it is NOT OK to

arm, the V-sign disappears. In case

the force armable zone is open, it will

flash on and off.

LCD icons

NX-10 User Manual 9

Quick User menu

You can access a limited number of menu options, without entering a

user code, through the Quick User menu. Press OK, and then press

keys to enter and navigate the command menu.

Changing the user interface language

To change the language on your keypad, press OK repeatedly to find

the required language. See page 22 for more information.

User menu

Your user code allows you to perform certain keypad functions

through the user menu. A master user code allows you to perform ALL

keypad functions. A master user is the only person allowed to edit user

information and rights in the system. To access the user menu, press

OK at the default display and enter your user code. Only those menu

options to which you have rights are displayed. Press to navigate

the user menu.

Note

Your keypad may work slightly differently, depending on how it was set

up by your installer.

Navigating the menus

Press to move through different menu options.

The quick user menu and the user menu contain lists of entries such

as users and zones.

Press # to move to the same menu option for the previous entry in

the list. For example, if you are viewing the user code for user 2, press

#to view the user code for user 1.

Press #to move to the same menu option for the next entry in the

list. For example, if you viewing the user code for user 2, press #to

view the user code for zone 3.

Exiting the menu system

•Press## to display the OK to Exit prompt (if editing data, press

NO first).

•PressOK at this prompt to exit the menu system.

Note: The keypad may timeout from the menu system and return to

the default display.

Note: Press NO key to clear any incorrectly entered user code or other

information.

Note: After exiting the menu or after waking up, the wireless keypad

checks the system state for about 3 seconds. Please allow appropriate

time for the wireless keypad to finish its actions.

Using the NX-10 menus

NX-10 User Manual 10

Preparing your system

2. Press to view all problem zones.

• Any open zones are shown. Close the zones before you arm the system.

If you try to arm with open zones, the keypad beeps.

• Any tamper zones are shown. A tamper indicates a system fault and

you should contact your installer to fix it.

3. Press OK or NO key to return to the default display.

4. Press to view all bypassed zones. For more information on bypassing

zones, see page 17.

5. Any bypassed zones are shown. Ensure that these zones need to be

bypassed.

6. Your system is ready to be armed.

1. If your system is NOT ready to be armed, check if a door or window is

open. System Not Ready

For Help Press 





System Ready

Type Code to Arm

Before you can arm your system, you must ensure that all partitions are closed. An LCD message is displayed when the system is not ready

to be armed, and the V-sign icon disappears from a display.

nnn Open



nnn Tamper

nnn Bypass

........

Autres manuels pour NX-10

Table des matières

Autres manuels GE Système de sécurité

GE Deluxe 45117 Manuel utilisateur

GE 45411 Manuel utilisateur

GE 600-1021-95R Manuel utilisateur

GE SIMON XT Manuel d'instructions

GE SuperBus 2000 Manuel utilisateur

GE TX-7201-05-1 Manuel utilisateur

GE Allegro 60-874-95R Manuel utilisateur

GE Simon Security System Manuel utilisateur

GE 4 Series Manuel utilisateur

GE SmartCom CC-SCRS01 Manuel utilisateur

GE 8RP Board Instructions de montage

GE VT71230-R3 Guide d'installation

GE JSC1300 Manuel utilisateur

GE Concord 4 Manuel d'instructions

GE 600-1064-95R b Manuel utilisateur

GE 45129 Manuel utilisateur

GE 60-960-95 Manuel utilisateur

GE NetworX V3 Manuel utilisateur

GE Telligence Patient-Staff Communications... Manuel utilisateur

GE CareGard Manuel utilisateur

GE Simon XTi Manuel utilisateur

GE Simon XT V2 Manuel utilisateur

GE NX-10 Manuel utilisateur

GE NetworX Manuel utilisateur

Manuels Système de sécurité populaires d'autres marques

Inner Range

Inner Range Concept 2000 Manuel utilisateur

Climax

Climax Mobile Lite R32 Instructions de montage

CADDX

CADDX NX-6 Manuel utilisateur

FBII

FBII XL-31 Series Manuel utilisateur

Johnson Controls

Johnson Controls PENN Connected PC10 Manuel utilisateur

Aeotec

Aeotec Siren Gen5 Manuel utilisateur

Blaupunkt

Blaupunkt SA 2700 Manuel utilisateur

IDEAL

IDEAL Accenta Manuel du propriétaire

AJAX

AJAX DoubleButton Manuel utilisateur

Swann

Swann SW-P-MC2 Manuel utilisateur

Ecolink

Ecolink Siren+Chime Manuel utilisateur

Digital Monitoring Products

Digital Monitoring Products XR150 Manuel utilisateur

EDM

EDM Solution 6+6 Wireless-AE Manuel utilisateur

Highway Safety Group

Highway Safety Group EA401 Manuel utilisateur

Siren

Siren LED GSM Manuel utilisateur

Detection Systems

Detection Systems 7090i Instructions de montage

Se-Kure Controls

Se-Kure Controls MicroMini SK-4841 Manuel utilisateur

Siemens

Siemens FDM273 Manuel utilisateur
