GE Profile PT960DR Manuel

For answers to your Monogram,® GE Profile™or

GE®appliance questions, visit our website at

ge.com or call GE Answer Center®service,

800.626.2000.

Listed by

Underwriters

Laboratories

Specification Revised 7/10

220150

KW Rating

240V 7.6

208V 5.7

Breaker Size

240V 40 Amps

208V 40 Amps

PT960DR

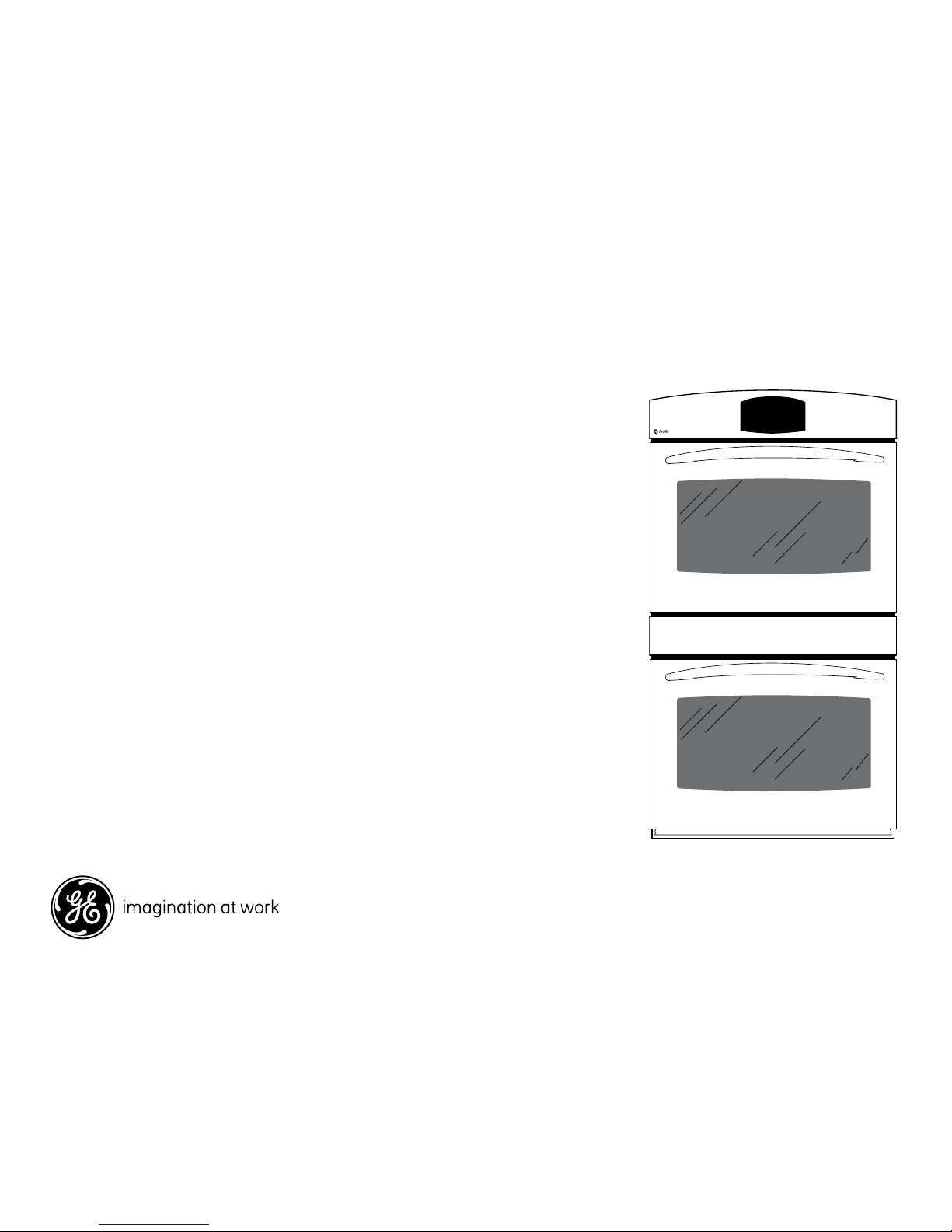

GE Profile™30" Built-In Double Convection Wall Oven

Note: Cabinets installed adjacent to wall ovens

must have an adhesion spec of at least a 194°F

temperature rating. Electric wall ovens are

not approved for installation with a plug and

receptacle. They must be hard wired in accordance

with installation instructions.

Door handle protrudes 3" from door face. Cabinets

and drawers on adjacent 45° and 90° walls should be

placed to avoid interference with the handle.

Installation Information: Before installing, consult

installation instructions packed with product for

current dimensional data.

21" minimum

Door Opening

Allowance

Cutout height

51-13/16" MIN.

51-15/16" MAX.

Minimum cutout location

12" from the floor.

Cutout depth

23-1/2" MIN

47" to

bottom of

junction box

Cutout width

28-1/2'' MIN.

28-5/8'' MAX.

Cabinet

width 30"

MOST 30'' WALL CABINETS CAN BE USED WITH THIS UNIT.

THE OPENING BETWEEN THE INSIDE WALLS MUST BE AT LEAST 28-1/2'' WIDE.

Conduit

48-1/2"

Junction box

location

L2 x 4 or

equivalent

runners

Suitable

bracing

to support

runners

21-5/8"

over centerline

of cabinet

(must support 325 lbs.)

Cabinet 30"

A – Overlap of oven over side of edges of cutout 11/16"-3/4"

B – Overlap of oven at top and bottom of cutout 1"

Oven

C – Overall depth* 23-1/2"

D – Overall height with trim 53-3/8"

Overall height without trim 52-7/8"

E –Overall width 29-3/4"

*Depth including door handle is approximately 26-6/10" min. to

26-9/10" max.

Dimensions and Installation Information (in inches)

21" minimum

Door Opening

Allowance

Cutout height

51-13/16" MIN.

51-15/16" MAX.

Minimum cutout location

12" from the floor.

Cutout depth

23-1/2" MIN

47" to

bottom of

junction box

Cutout width

28-1/2'' MIN.

28-5/8'' MAX.

Cabinet

width 30"

MOST 30'' WALL CABINETS CAN BE USED WITH THIS UNIT.

THE OPENING BETWEEN THE INSIDE WALLS MUST BE AT LEAST 28-1/2'' WIDE.

Conduit

(72"

long)

Junction box

location

L2 x 4 or

equivalent

runners

Suitable

bracing

to support

runners

21-5/8"

over centerline

of cabinet

(must support 325 lbs.)

Cabinet 30"

A – Overlap of oven over side of edges of cutout 11/16"-3/4"

B – Overlap of oven at top and bottom of cutout 1"

Oven

C – Overall depth* 23-1/2"

D – Overall height with trim 53-3/8"

Overall height without trim 52-7/8"

E – Overall width 29-3/4"

*Depth including door handle is approximately 26-6/10" min. to

26-9/10" max.

Specification Revised 7/10

220150

PT960DR

GE Profile™30" Built-In Double Convection Wall Oven

Features and Benefits

• GlassTouchLCDControls–Combineasmooth,easy-to-cleanglassdesignwith

large, easy-to-read graphics to facilitate easier usage

• BlackGlossOvenInterior-Blackoveninterioraddsastylishtouch

to any kitchen

• PreciseAir™ConvectionSystem–Areversingfancirculatesheatandairforevenly

browned and baked foods

• Heavy-DutyRollerRack-Racksprovideeasyaccesstoitemsinsidetheovenby

simplifying loading and unloading

• ConvectionBake–Thissettingisoptimalforbakingcasserolesorlasagnas,yeast

breads, pies and pizzas with no need to turn the pan

• ConvectionRoast–Optimalforlargercutsofmeat,thissettingrotatestheheat

around all sides, sealing in the juices, producing rotisserie results at up to 25%

faster than a conventional oven

• FlatBackConvection–Convectionfansystemisonly1"deeptoprovide

additional room for cookware

• HiddenBakeOvenInterior–Concealsthelowerovenbakeelementtoeliminate

hard-to-reach areas that collect food and spills for easy cleaning

• Self-CleanOven–Self-cleanallowsyoutospareyourselffromthetroubleand

effort it takes to scrub the oven interior

• Super-LargeOvenCapacity-Remarkablylargeoveninteriorisidealforholidays,

dinner parties and everyday family cooking

• ModelPT960DRBB–Blackonblack

PT960WM/BM
