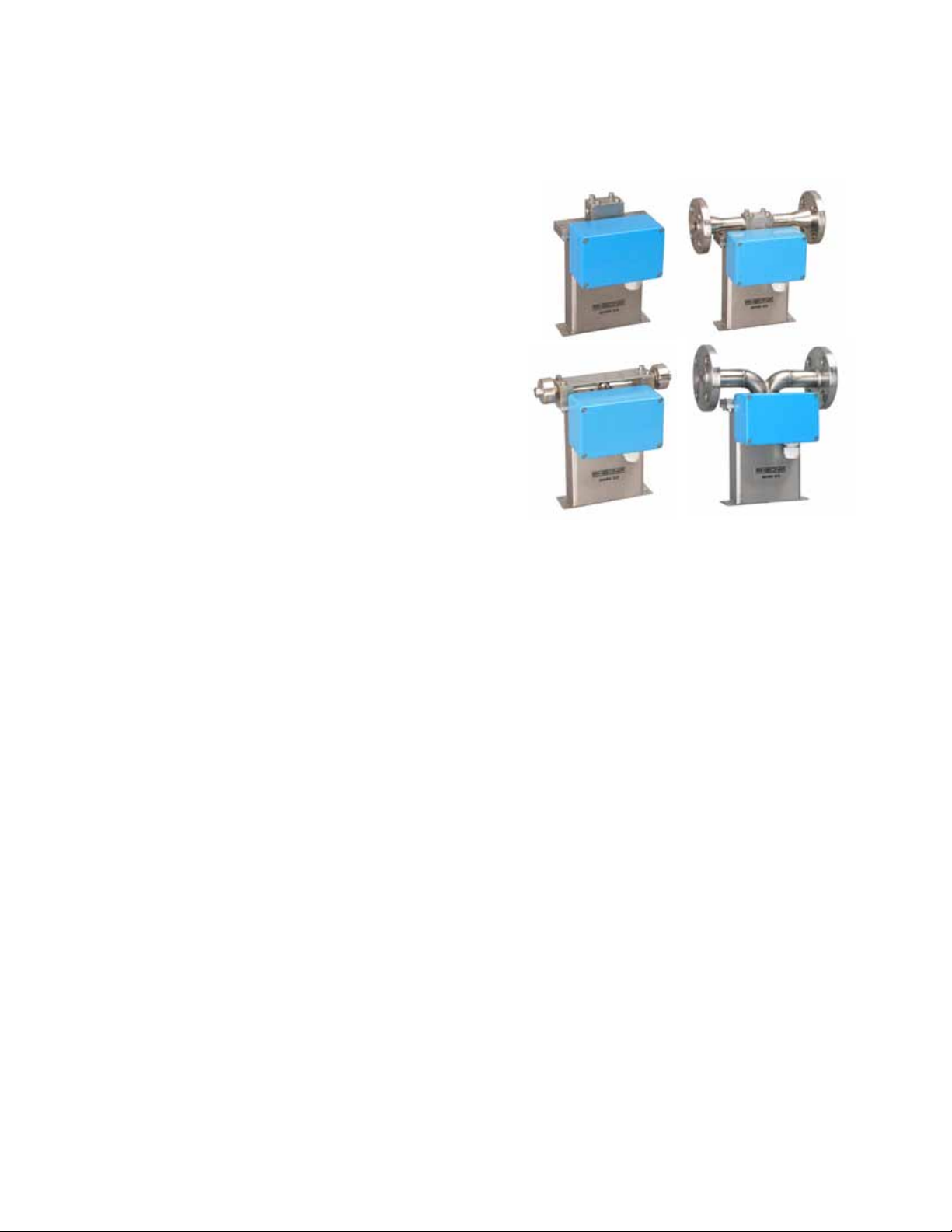

The RHM 04 can measure ow rates up to 10 kg/min

(22 lb/min) with extremely fast response times and

excellent repeatability. A very high pressure version

up to 1067 bar is also available, manufactured by

GE’s Rheonik mass owmeter experts.

Applications

• General control • Dosing • Mixing

• Batching • Injections • Filling

Features

• Available as very high pressure version up to 1067

bar

• Response times of 30 ms and better

• Flow uncertainty down to 0.10%

• Repeatability better than 0.05%

• Unique torsion oscillator

• Typical measuring ranges from 0.1 to 10 kg/min

• Minimal ows as low as 50 g/min

• Customization possible

• Extra compact design with minimal space

requirement

• Hazardous Area Approvals (ATEX, CSA, ...)

Versatile Coriolis Mass

Flowmeter with Fast

Response Times for Very

High Pressure Applications

Advantages

• Torsion oscillator design assures most stable and

basically drift free measurement and increased

signal to noise ratio

• Not sensitive to changes in pressure

• Longest life time and increased safety (low stress

in welds and increased wall thickness against

abrasion)

• No moving parts, practically no maintenance

• Removable connection manifold available

Measurement & Control

General Dimensions RHM 04

PM0/SM0 (parallel/serial, manifold construction)

Process Connection Face to face length (L) Order Code

mm in

Standard Flange DIN DN15/PN40 220 8.66 D1

Flange DIN DN15/PN100 220 8.66 D2

Flange ANSI ½" 150# RF/SF 220 8.66 A1

Flange ANSI ½" 300# RF/SF 220 8.66 A2

Flange ANSI ½'' 600# RF/SF 220 8.66 A3

Flange ANSI ½" 1500# RF/SF 300 11.81 A6

Flange ANSI ½'' 1500# RTJ 300 11.81 R1

Optional Flange DIN DN15 / PN 160 220 8.66 D3

Flange JIS RF 10k 15A (1/2") 220 8.66 J1

Flange JIS RF 20k 15A (1/2") 220 8.66 J2

Type removable manifold with PTFE seals and ange connection

H1 = 173 mm (6.79 in)

H2 = 189 mm (7.44 in)

PM0/SM0/PH0 (parallel/serial, manifold construction with

thread connection)

Process Connection Face to face length (L) Order Code

mm in

PM0/SM0

Standard

Female Thread G ¼" 50 1.97 G1

Female Thread ¼" NPT 50 1.97 N1

PH0

Standard

Female Thread G ¼" 70 2.76 G1

Female Thread ¼" NPT 70 2.76 N1

Autoclave 3/8" MP (9/16-18

UNF female thread)

70 2.76 P2

Type parallel, very high pressure manifold with PTFE seals and thread connection

(orientation upwards)

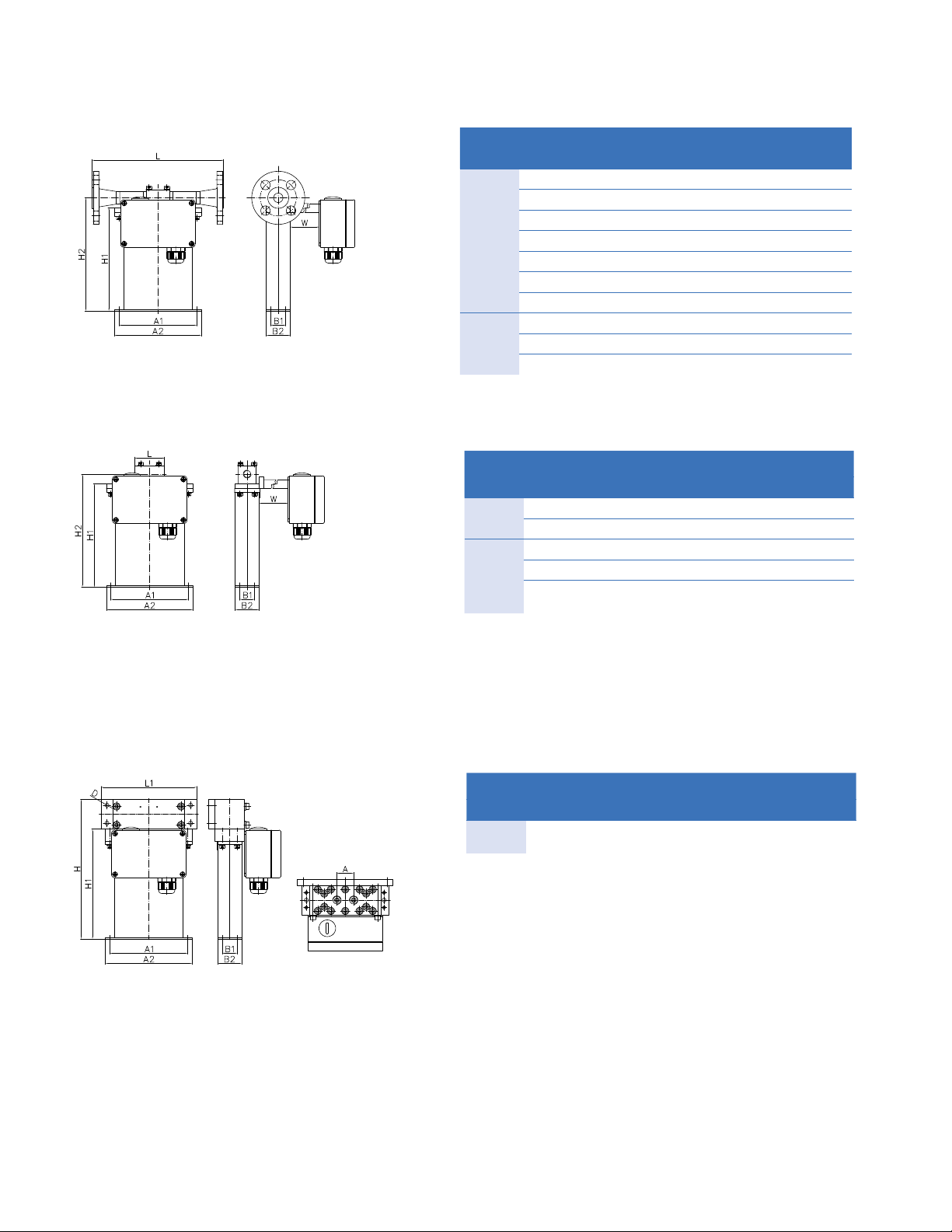

H1 = 184 mm (7.24 in)

A = 28 mm (1.10 in)

D = 6.5 mm (0.26 in)

L1 = 160 mm (6.30 in)

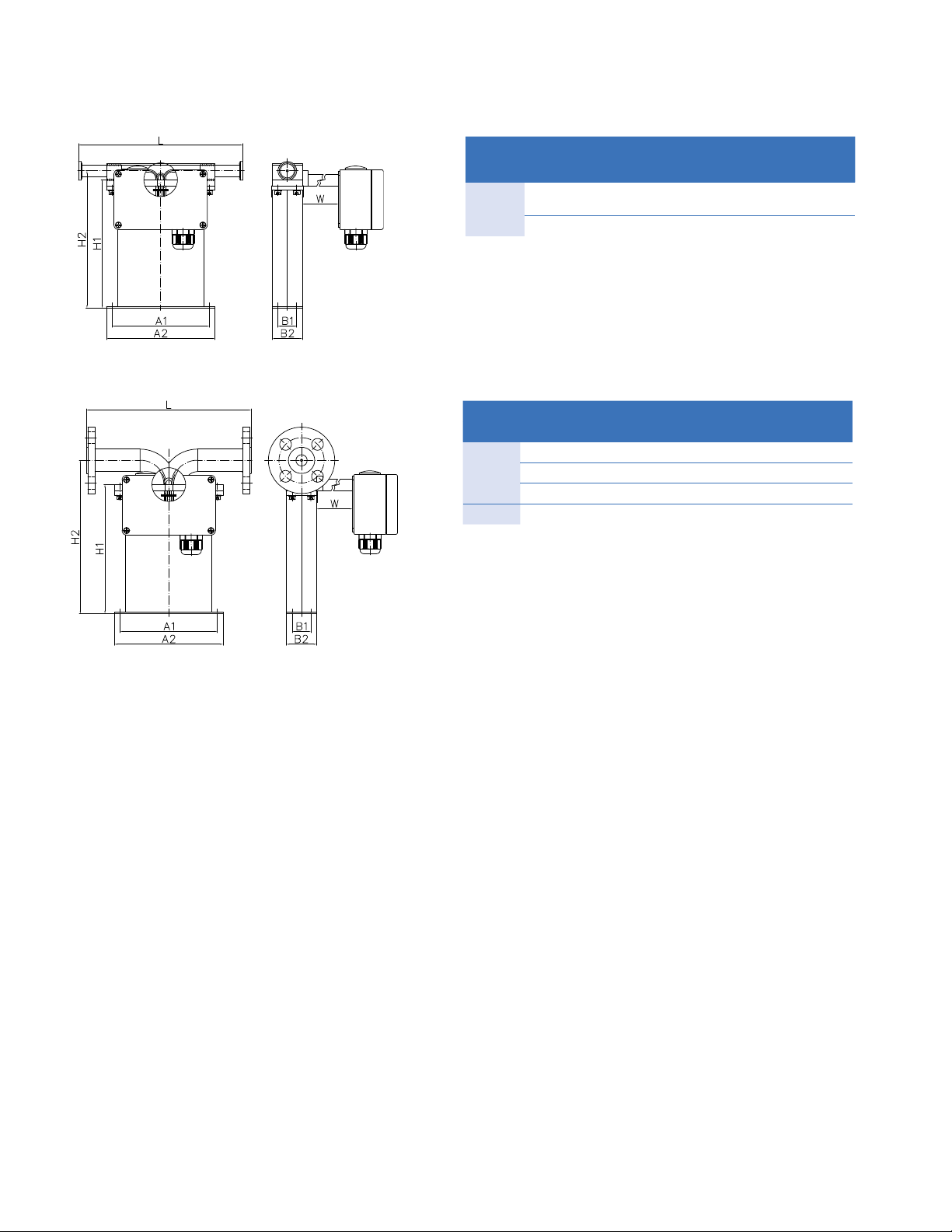

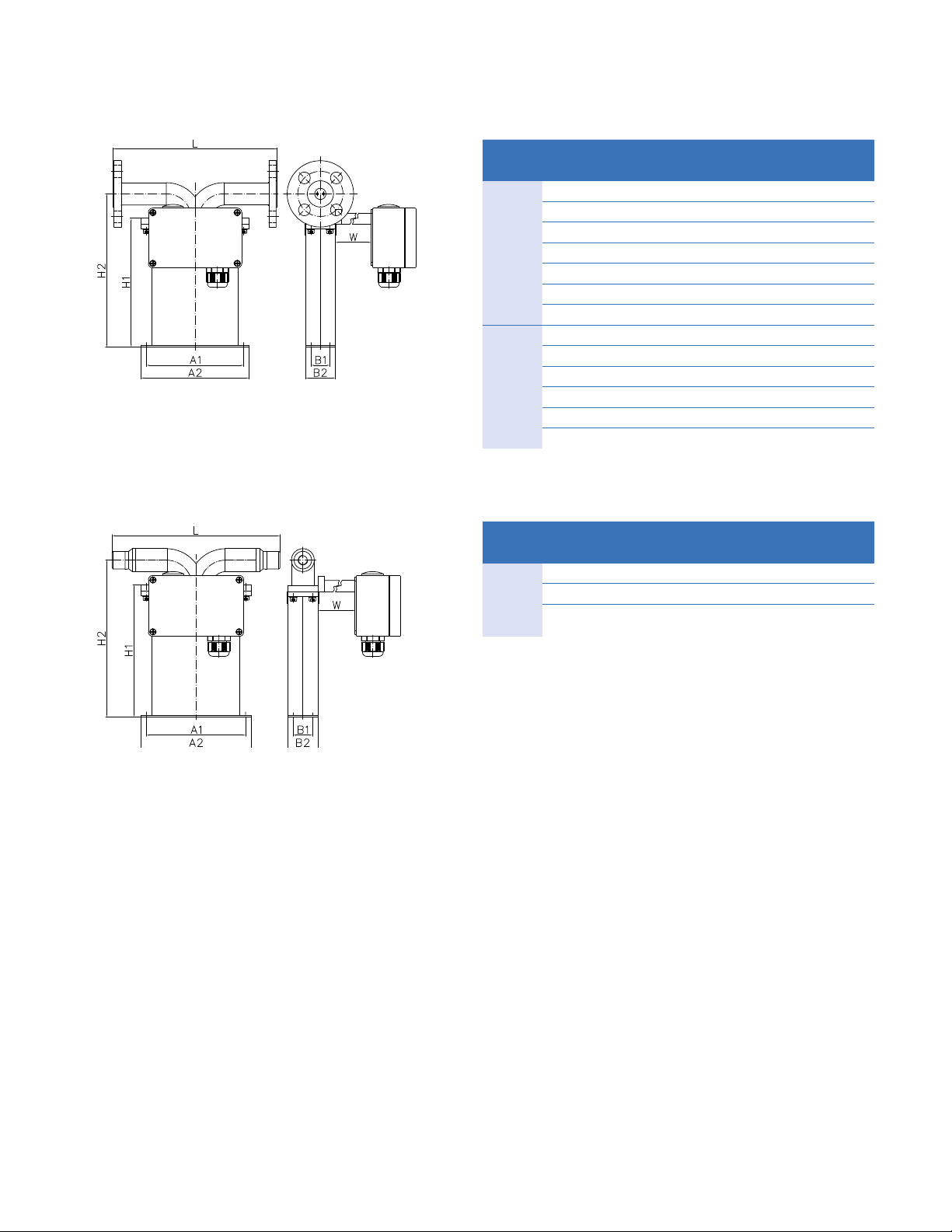

A1 = 130 mm (5.12 in) B1 = 25 mm (0.98 in) Terminal box (without cable gland) 125 x 80 x 58 mm (4.92 x 3.15 x 2.28 in)

A2 = 145 mm (5.71 in) B2 = 40 mm (1.57 in) W = 0 mm for Temperature Range T1 and TA

W = 100 mm (3.94 in) for Temperature Range T2

For weights and packaging dimensions please see last page of this section.

Process Connection Overall Height (H) Order Code

mm in

Standard Autoclave 3/8" MP (9/16-18

UNF female thread)

234 9.21 P2

Type removable manifold with PTFE seals and thread connection

PM0/SM0

H1 = 173 mm (6.79 in)

H2 = 189 mm (7.44 in)

PH0 (high pressure manifold construction)

H1 = 184 mm (7.24 in)

H2 = 204 mm (8.03 in)

PHH (parallel, very high pressure manifold construction)

General Dimensions RHM 04

PF0 (parallel, sealless construction with ange

connection)

Type parallel, welded measuring loops without seals and ange connection

Process Connection Face to face length (L) Order Code

mm in

Standard Flange DIN DN15/PN40 220 8.66 D1

Flange DIN DN15/PN100 220 8.66 D2

Flange ANSI ½" 150# RF/SF 220 8.66 A1

Flange ANSI ½" 300# RF/SF 220 8.66 A2

Flange ANSI ½'' 600# RF/SF 220 8.66 A3

Flange ANSI ½" 1500# RF/SF 300 11.81 A6

Flange ANSI ½'' 1500# RTJ 300 11.81 R1

Optional Flange DIN DN15 / PN160 220 8.66 D3

Flange DIN DN25 / PN160 260 10.24 D4

Flange ANSI ½" 2500# RF/SF 300 11.81 A8

Flange JIS RF 10k 15A (1/2") 220 8.66 J1

Flange JIS RF 20k 15A (1/2") 220 8.66 J2

Grayloc Hub 1 GR4 (1") 300 11.81 H3

PFT (parallel, sealless construction with thread

connection)

Process Connection Face to face length (L) Order Code

mm in

Standard Female Thread G ¼" 220 8.66 G1

Female Thread ¼" NPT 220 8.66 N1

Swagelok ¼" tube inlet (SS-

400-1-4W)

300 11.81 W1

Type parallel, welded measuring loops without seals and thread connection

A1 = 130 mm (5.12 in) B1 = 25 mm (0.98 in) Terminal box (without cable gland) 125 x 80 x 58 mm (4.92 x 3.15 x 2.28 in)

A2 = 145 mm (5.71 in) B2 = 40 mm (1.57 in) W = 0 mm for Temperature Range T1 and TA

H1 = 173 mm (6.79 in) W = 100 mm (3.94 in) for Temperature Range T2, T3 and T4

H2 = 205 mm (8.07 in)

For weights and packaging dimensions please see last page of this section.

General Dimensions RHM 04

SF0 (serial, sealless construction without dead spaces) (*)

Type single path, welded measuring loops without seals and sanitary connection

H2 = 184 mm (7.24 in)

Process Connection Face to face length (L) Order Code

mm in

Standard Sanitary ½" Triclamp, DIN

32676

220 8.66 S1

Sanitary NW10, DIN 11851 220 8.66 S2

Process Connection Face to face length (L) Order Code

mm in

Standard Flange DIN DN15/PN40 220 8.66 D1

Flange ANSI ½" 150# RF/SF 220 8.66 A1

Flange ANSI ½" 300# RF/SF 220 8.66 A2

Optional Flange ANSI ½'' 150# RTJ 220 8.66 R3

Type single path, welded measuring loops without seals and ange connection

H2 = 205 mm (8.07 in)

A1 = 130 mm (5.12 in) B1 = 25 mm (0.98 in) Terminal box (without cable gland) 125 x 80 x 58 mm (4.92 x 3.15 x 2.28 in)

A2 = 145 mm (5.71 in) B2 = 40 mm (1.57 in) W = 0 mm for Temperature Range T1 and TA

H1 = 173 mm (6.79 in) W = 100 mm (3.94 in) for Temperature Range T2, T3 and T4

(*) SF0 construction contains brazed joints (brazing material B-Ni82CrSiBFe-970/1000) which are not as corrosion resistant as the piping material 1.4571 (316Ti).

Weight in standard manifold construction with female threads: approx. 2.5 kg (5.5 lb)

Weight in standard sealless construction and 150# anges: approx. 3.5 kg (7.7 lb)

Shipping in carton box approx. 60 x 41 x 32 cm (24 x 16 x 13 in), gross weight with sealless construction, 150# standard anges and RHE 08 approx. 10 kg (22 lb)

Finish type of our ANSI anges corresponds to SF (AARH 125 up to 250 μin, Ra 3.2 up to 6.3 μm)

For customization with regard to face to face length and special ttings, please consult your local agent

Please note that larger diameter process connections are always possible

Pressure Rating RHM 04

The maximum pressure (pmax) of a sensor is determined by its weakest part. The weakest part can be the measuring

loops (pmax indicated below) or the construction type (pmax indicated in the Basic Order Code section, last page) or the

selected anges / ttings (for pmax please see respective standard).

pmax of P1 measuring loops, standard

M0 standard material - 1.4539 (904 L)

OD x WT 4.5 x 0.3 mm (0.18 x 0.012 in)

bar °C psi °F

170 50 2466 122

150 120 2176 248

120 210 1740 410

100 350 1450 662

pmax of P1 measuring loops

M3 optional material - 2.4602 (Alloy C22)

OD x WT 4.5 x 0.3 mm (0.18 x 0.012 in)

bar °C psi °F

215 50 3118 122

190 120 2756 248

153 210 2219 410

128 350 1856 662

pmax of P2 measuring loops

M0 standard material - 1.4539 (904 L)

OD x WT 4.5 x 0.5 mm (0.18 x 0.02 in)

bar °C psi °F

295 50 4279 122

250 120 3626 248

200 210 2901 410

170 350 2466 662

pmax of PH measuring loops

HP optional material - HP160

OD x WT 4.5 x 0.9 mm (0.18 x 0.035 in)

bar °C psi °F

1067 20 15476 68

900 50 13053 122

870 120 12618 248

pmax of P1 measuring loops*

M1 optional material - 1.4571 (316 Ti)

OD x WT 4.5 x 0.3 mm (0.18 x 0.012 in)

bar °C psi °F

156 50 2263 122

*Only for T3 temperature rating

Performance RHM 04

Max Flow Rate Qmax and Qnom (*) = 10 kg/min (22 lb/min)

Standard Models

Flow Rate Uncertainty

kg/min lb/min in % of reading

10.0 22.05 0.20

7.0 15.43 0.20

4.0 8.82 0.20

0.5 1.10 0.20

0.2 0.44 0.50

Goldline Models (**) - selected sensors

Flow Rate Uncertainty

kg/min lb/min in % of reading

10.0 22.05 0.10

7.0 15.43 0.10

4.0 8.82 0.10

1.0 2.20 0.10

0.5 1.10 0.12

Low Flow Models (**) - selected sensors

Flow Rate Uncertainty

kg/min lb/min in % of reading

4.0 8.82 0.20

2.0 4.41 0.20

1.0 2.20 0.20

0.2 0.44 0.20

0.1 0.22 0.60

Repeatability

Better ± 0.1% of rate,

Goldline 0.05%

Temperature

Better ± 1°C

(*) Nominal ow Qnom refers to roughly 8 - 10

m/s (33 ft/s) velocity in measuring loops for best

performance.

(**) Selected sensors are only available in combination

with temperature options T1, TA, standard material and

pressure range.

• Serial/single path versions oer the same accuracy at

half the ow (Qmax serial version = 5 kg/min).

• No relevant pressure eect due to torsional oscillation

and semi-circle (non-deforming) measurement

section.

• Uncertainty of reading (incl. zero drift) indications refer

to reference conditions H2O, 18-24°C (66 - 76°F), 1 - 3

bar (15 – 45 psi) and installation according to eld

manual.

• Pressure drop indications refer to H2O, with parallel

measuring loops type P1 and standard manifold block

connections.

• For calibration to customer range and / or with

improved uncertainty, please consult factory.

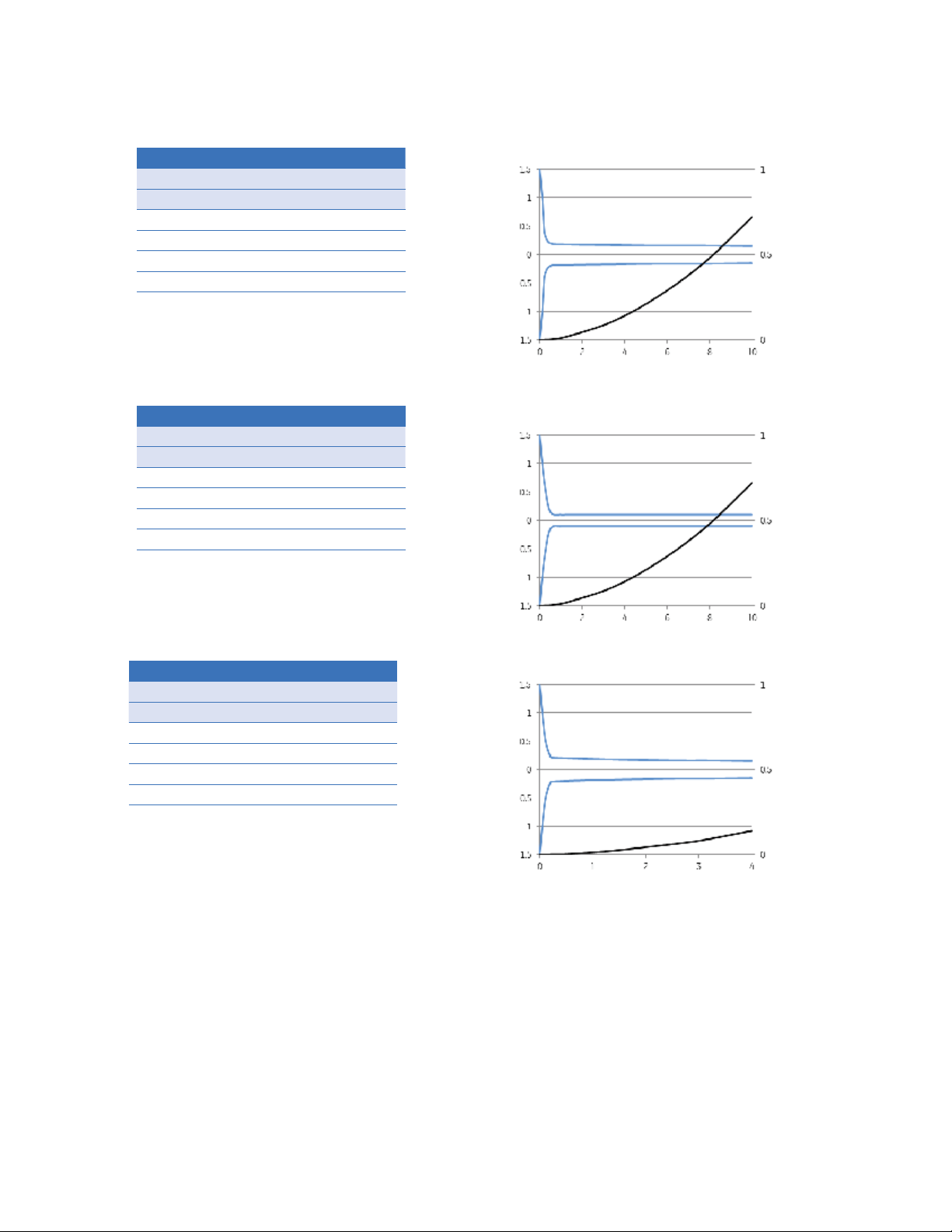

Uncertainty % DP (bar)

Flow Rate kg/min

Uncertainty % DP (bar)

Flow Rate kg/min

Uncertainty % DP (bar)

Flow Rate kg/min

General Specications RHM 04

Temperature Range

• NT Models from -20 to +120°C (-4 to +248°F)

• ET Models from -45 to +120°C (-49 to +248°F)

• ET2 Models from -45 to +210°C (-49 to +410°F)

• ET1 Models from -196 to +50°C (-320 to +122°F)

• HT Models from 0 to 350°C (+32 to +662°F)

(Heating for housing optional, please consult your local

agent)

Electrical Connection

• Junction box Aluminium coated (standard). Junction box

in SS 316Ti optional

• Cable entry M25 x 1.5. Optional cable entries M20 x 1.5,

1/2” NPT or 3/4” NPT

• Max cable length between RHM and RHE is 100m

(330 ft). 200m (660 ft) only with factory approval

Material of Wetted Parts

• 1.4539 / SS 904 L / UNS N08904 (standard measuring

loops material)

• 1.4571 / SS 316 Ti / UNS S31635 (standard connection

part material, optional measuring loops material)

• 2.4602 / Alloy C22 / UNS N06022

• HP 160

• Others on request

Sensor Enclosure/Housing

• Stainless Steel 1.4301 / SS 304, optional in 1.4571 / SS

316Ti. Others on request

• Protection Class IP 65. Optional IP 66 / NEMA 4x

Approvals

• ATEX (CESI 02 ATEX 053 X) Ex II 1 G, EEx ia IIC T6-T1

• CSA USA-Canada, Class I, Div. 1, Groups A, B, C, D

• PED according to directive 97/23/EC Art.3 (3) Sound

Engineering Practice (SEP)

• Others on request

920-493A

names mentioned in this document may be trademarks or registered trademarks of their respective companies, which are not aliated with GE.

gwww.ge-mcs.com

Basic Order Code RHM 04

Sensor Size

Temperature Range

T1 NT from -20°C to +120°C (standard)

TA ET from -45°C to +120°C

T2 ET2 Extended Temperature Range from -45°C to +210°C

T3 ET1 Extended Temperature Range from -196°C to +50°C

T4 HT High Temperature Range from 0°C to +350°C

Pressure Range of Measuring Loops @ 120°C

P1 pmax = 150 bar, M0 Material (standard)

P2 pmax = 250 bar, M0 Material

PH pmax = 870 bar, HP Material

Construction Type (pmax indications @ 120°C)

PM0 Parallel Measuring Loops with removable Manifold and PTFE Seals,

pmax = 400 bar with thread connection, 214 bar with ange connection

SM0 Serial Measuring Loops with removable Manifold and PTFE Seals

pmax = 400 bar with thread connection, 214 bar with ange connection

PF0 Parallel Measuring Loops Seal Less Version

SF0 Serial Measuring Loops Seal Less Version, pmax = 42.9 bar

PFT Parallel Measuring Loops Seal Less Version for Thread Connection, pmax = 530 bar

PH0 Parallel Measuring Loops with High Pressure Manifold and PTFE Seals, pmax = 540 bar

PHH Parallel Measuring Loops with Very High Pressure Manifold and PTFE Seals,

pmax = 870 bar

Material of Wetted Parts

M0 Measuring Loops 1.4539 (904L), Manifold/Connection 1.4571 (316Ti) (standard)

M1 Measuring Loops and Manifold/Connection 1.4571 (316Ti)

M3 Measuring Loops and Connection Part 2.4602 (Alloy C22), Seal Less Construction

Types only

HP Measuring Loops HP 160; not with PF0, SF0, PFT Construction Type

Process Connection

D1 Flange DIN DN15/PN40 Form C

D2 Flange DIN DN15/PN100 Form E

A1 Flange ANSI ½” 150# RF/SF

A2 Flange ANSI ½” 300# RF/SF

A3 Flange ANSI ½’’ 600# RF/SF

R1 Flange ANSI ½’’ 1500# RTJ

A6 Flange ANSI ½” 1500# RF

G1 Female Thread G ¼”

N1 Female Thread ¼” NPT

W1 Swagelok ¼” tube inlet (SS-400-1-4W) - valid for SS only

S1 Sanitary ½” Triclamp, DIN 32676, pmax = 40 bar @ 120°C

S2 Sanitary NW10, DIN 11851, pmax = 40 bar @ 120°C

P2 Autoclave 3/8” MP (9/16-18 UNF female thread)

Others on request

RHM 04 - - - -

Autres manuels GE Instrument de mesure

GE DPI 610 IS Manuel utilisateur

GE PanaFlow Z1G Manuel utilisateur

GE N60 Manuel utilisateur

GE Optica Manuel utilisateur

GE DigitalFlow GF868 Manuel du propriétaire

GE Moisture monitor series 3 Manuel du propriétaire

GE TransPort PT900 Manuel utilisateur

GE Kelman MULTITRANS Manuel utilisateur

GE Protimeter MMS2 Manuel utilisateur

GE Druck DPI 705 Manuel utilisateur

GE MAC 800 Manuel utilisateur

GE 68K System Manuel utilisateur

GE PM880 Manuel utilisateur

GE Krautkramer USM 35X Manuel utilisateur

GE DigitalFlow GF868 Guide de l'utilisateur

GE DigitalFlow DF868 Manuel du propriétaire

GE N60 Manuel utilisateur

GE Moisture Image 1 Series Guide de l'utilisateur

GE N60 Manuel utilisateur

GE RHM 30 Manuel utilisateur

GE Multilin EPM 2000 Series Manuel utilisateur

GE JXSOUSV1 Manuel utilisateur

GE Druck DPI 705 Manuel utilisateur

GE EPM6000 Manuel utilisateur

Manuels Instrument de mesure populaires d'autres marques

Suaoki

Suaoki D40 Manuel utilisateur

Elster

Elster BK-G1.6 Manuel utilisateur

Endress+Hauser

Endress+Hauser Deltabar FMD71 Manuel

Duratool

Duratool D03128 Manuel utilisateur

Vega

Vega VEGAPULS 65 Manuel utilisateur

Tonghui

Tonghui TH2618B Manuel utilisateur

Tenmars

Tenmars TM-801 Manuel utilisateur

MSR

MSR 145 Manuel utilisateur

TPS

TPS WP-82 Manuel utilisateur

ELMETRON

ELMETRON CP-511 Manuel utilisateur

PCB Piezotronics

PCB Piezotronics 003C30 Manuel utilisateur

Tenma

Tenma 72-10465 Manuel utilisateur

Endress+Hauser

Endress+Hauser Proline Promag 50 Caractéristiques techniques

Siemens

Siemens SITRANS F Coriolis FCT030 Manuel de la liste des pièces

KLINGER

KLINGER CMF V Series Manuel utilisateur

EXFO

EXFO FTB-2 Manuel d'exploitation et d'entretien

Keysight

Keysight M8290A Manuel utilisateur

ADTEK

ADTEK MW-5 Manuel utilisateur
