GCX LiDCO Manuel utilisateur

DU-LC-0002-60 Rev C 6/14/06 GCX Corp. Page 1 of 11

Installation Guide

LiDCO Hemodynamic Monitor - Roll Stand Kit (US Version)

The purpose of this guide is to describe assembly of the roll stand kit and mounting of applicable devices.

Table of Contents

1.0 Assembling the Roll Stand with Counterweight and Utility Basket ......................................................................... 2

2.0 Attaching the Roll Stand Handle .................................................................................................................................. 3

3.0 Attaching the Power Outlet Strip.................................................................................................................................. 4

4.0 Attaching the Syringe/Bag Holder................................................................................................................................ 5

5.0 Attaching the Sensor Interface Bracket/Cord Loop Hook ......................................................................................... 6

6.0 Attaching the Manual Tilt /VESA Mounting Plate Assembly ..................................................................................... 7

7.0 Mounting the PPC-150, POC-153 or POC-155 Platform on the Roll Stand............................................................... 8

8.0 Cable Management ...................................................................................................................................................... 11

9.0 Adjusting Tilt and Tilt Tension ................................................................................................................................... 11

10.0 Periodic Maintenance & Cleaning ............................................................................................................................ 11

DU-LC-0002-60 Rev C 6/14/06 GCX Corp. Page 2 of 11

5/16-18 x 1'' HHCS

5/16 Flat Washer

5/16 Lock Washer

1.0 Assembling the Roll Stand with Counterweight and Utility Basket

Parts Reference

The following parts and hardware are provided for this procedure:

Tools Required

Phillips screwdriver (not provided), 1/2'' wrench (not provided).

1. Attach two (2) Nylon Basket Clips to Wire Utility Basket in accordance with separate installation guide (DU-UT-0002).

Insert two (2) #8-32 x 1-1/2'' PHMS and #8-32 hex nuts in Basket Clips but do not tighten at this time.

2. Slide Basket Clips over bottom end of Roll Stand Post and insert Post in center of Roll Stand Base (below left). Lay

assembly on its side.

3. Using a 1/2'' [13mm] wrench, fasten Post to Base using one (1) 5/16-18 x 1'' HHCS, with 5/16 lock washer, and 5/16

flat washer (below right).

4. Slide Basket to desired mounting position on Post and tighten two (2) Basket Clip screws to secure Basket.

Item # Description Qty

1 Post, 44'' with 6'' Offset 1

2 Base 1

3 5/16-18 x 1'' Hex Head Cap Screw (HHCS) 1

4 5/16 Split Lock Washer 1

5 Roll Stand Washer, 2'' 1

6 Utility Basket, 6'' 1

7 Nylon Basket Clip – Utility Basket Attachment 2

8 #8-32 x 1-1/2'' Pan Head Machine Screw (PHMS) 2

9 #8-32 x Hex Nut 2

Basket Clips (2)

#8-32 x 1-1/2'' PHMS (2)

#8-32 Hex Nuts (2)

Base

Post

DU-LC-0002-60 Rev C 6/14/06 GCX Corp. Page 3 of 11

#10-32 x 9/16'' PHMS (2)

2.0 Attaching the Roll Stand Handle

Parts Reference

The following parts and hardware are provided for this procedure:

Tools Required

Phillips screwdriver (not provided).

1. Fasten Handle to Post with two (2) #10-32 x 9/16'' PHMS as shown below.

Item # Description Qty

1 Roll Stand Handle 1

2 #10-32 x 9/16'' Pan Head Machine Screw (PHMS) 2

DU-LC-0002-60 Rev C 6/14/06 GCX Corp. Page 4 of 11

3.0 Attaching the Power Outlet Strip

Installation Note: The Power Outlet Strip is an optional accessory and may not be included with this Roll Stand Kit.

Parts Reference

The following parts and hardware are provided for this procedure:

Tools Required

Phillips screwdriver (not provided).

1. Fasten Front Clamping Block to threaded mounting holes on rear of Power Outlet Strip with two (2) #8-32 x 3/4'' PHMS

as shown below left.

2. Position Power Outlet Strip on Roll Stand Post and fasten Rear Clamping Block to Front Block with two #10-32 x 9/16''

PHMS (below right).

Item # Description Qty

1 Power Outlet Strip 1

2 Front Clamping Block 1

3 Rear Clamping Block 1

4 #10-32 x 9/16'' Pan Head Machine Screw (PHMS) 2

#8-32 x 3/4'' PHMS (2)

Front Clamping Block

#10-32 x 9/16'' PHMS (2)

Mounting Holes on Rear

of Power Outlet Strip

DU-LC-0002-60 Rev C 6/14/06 GCX Corp. Page 5 of 11

4.0 Attaching the Syringe/Bag Holder

Parts Reference

The following parts and hardware are provided for this procedure:

Tools Required

Phillips screwdriver (not provided).

1. Fasten Syringe/Bag Holder around Post with two (2) #10-32 x 9/16'' PHMS as shown below.

Item # Description Qty

1 Syringe/Bag Holder 1

2 #10-32 x 9/16'' Pan Head Machine Screw (PHMS) 2

#10-32 x 9/16'' PHMS (2

Syringe/Bag Holder

DU-LC-0002-60 Rev C 6/14/06 GCX Corp. Page 6 of 11

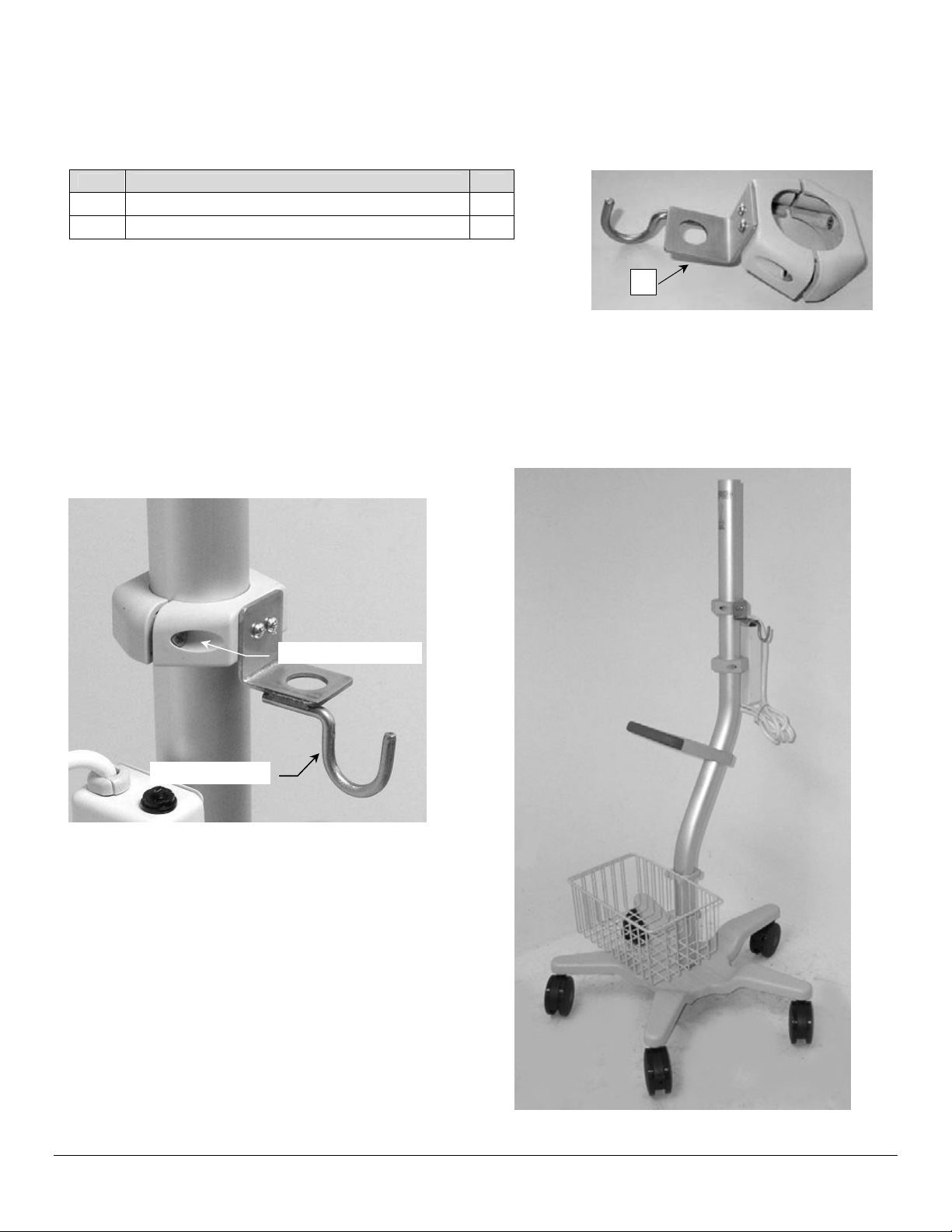

5.0 Attaching the Sensor Interface Bracket/Cord Loop Hook

Parts Reference

The following parts and hardware are provided for this procedure:

Tools Required

Phillips screwdriver (not provided).

1. Position Clamping Blocks (Bracket and Hook) at desired height on Roll Stand Post and fasten Rear Block to Front

Block (below left) with two (2) #10-32 x 9/16'' PHMS.

2. Mount Sensor Interface by inserting four (4) mounting studs into slots in mounting bracket and sliding downward into

locking position (below center).

Item # Description Qty

1 Sensor Interface Bracket/Front Clamping Block Assembly 1

2 Cord Loop Hook/Rear Clamping Block Assembly 1

3 #10-32 x 9/16'' Pan Head Machine Screw (PHMS) 2

Sensor Interface

#10-32 x 9/16'' PHMS (2

DU-LC-0002-60 Rev C 6/14/06 GCX Corp. Page 7 of 11

6.0 Attaching the Manual Tilt /VESA Mounting Plate Assembly

Parts Reference

The following parts and hardware are provided for this procedure:

Tools Required

Phillips screwdriver (not provided), 9/64'' hex wrench (provided).

1. Align Mounting Plate Assembly toward front of Roll Stand and fasten

to top of Post with three (3) #10-32 x 7/8'' FHMS as shown below.

Installation Note: The Tilt Lever is a multi-position clamping lever

that operates by lifting, rotating, and releasing the handle.

2. Remove backing from black Screw Cover and press Cover over

screw heads as shown below center.

Item # Description Qty

1 Mounting Plate Assy. 1

2 #10-32 x 7/8'' Flat Head Machine Screw (FHMS) 3

3 Lever, Tilt 1

4 Screw Cover, Black Lexan 1

5 9/64'' Hex Wrench 1

#10-32 x 7/8'' FHMS (3)

DU-LC-0002-60 Rev C 6/14/06 GCX Corp. Page 8 of 11

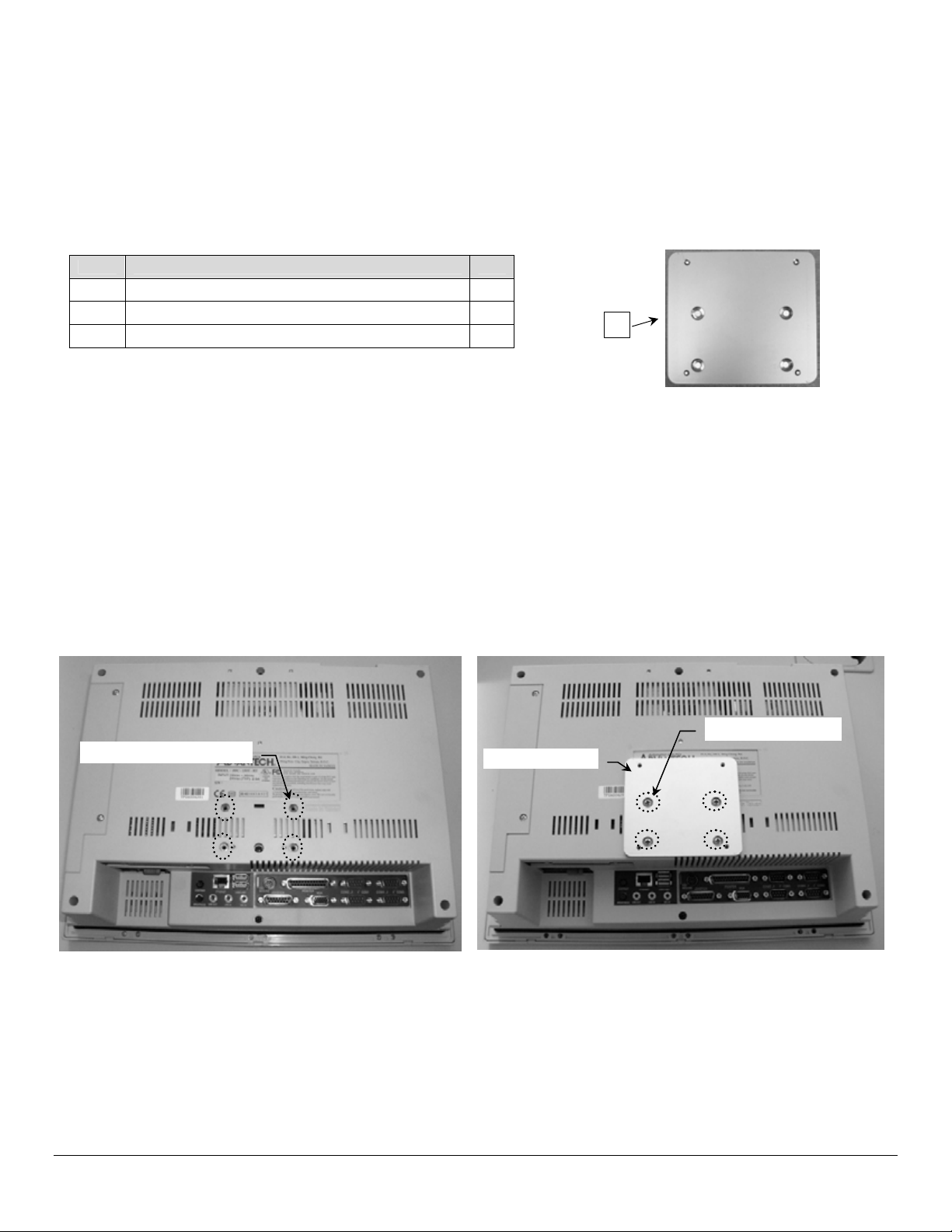

7.0 Mounting the PPC-150, POC-153 or POC-155 Platform on the Roll Stand

The PPC-150 platform requires a Mounting Adapter (provided) for mounting on the Roll Stand. The POC-153 and POC-155

platform have a 75 x 75mm mounting pattern on the rear and only requires M4 x 20mm screws (provided) for mounting

on the Roll Stand. Procedures for both types of platform are included in this section.

Parts Reference

The following parts and hardware are provided for this procedure:

Tools Required

Phillips screwdriver (not provided).

Mounting the PPC-150 Platform

1. Locate four (4) threaded mounting holes on rear housing (below left).

2. Fasten Mounting Adapter to PPC-150 with four (4) M4 x 10mm PHMS as shown below right.

Item # Description Qty

1 Mounting Adapter 1

2 M4 x 10mm Pan Head Machine Screw (PHMS) 8

3 M4 x 20mm PHMS 4

Threaded Mounting Holes (4)

M4 x 10mm PHMS (4)

MountingAdapter

DU-LC-0002-60 Rev C 6/14/06 GCX Corp. Page 9 of 11

3. Thread two (2) M4 x 10mm PHMS into two (2) upper holes on Mounting Adapter (below left). Leave 1/4'' [6 mm] of

thread exposed to allow screws to fit into slots in VESA Mounting Plate.

4. Guide two (2) upper screws into slots in VESA Mounting Plate (below right). Do not fully tighten these screws until

instructed in Step 5.

5. Thread two (2) M4 x 10mm screws into two (2) lower mounting holes (below left). Tighten all mounting screws.

M4 x 10mm PHMS (2)

VESA Mounting Plate

M4 x 10mm PHMS (2)

DU-LC-0002-60 Rev C 6/14/06 GCX Corp. Page 10 of 11

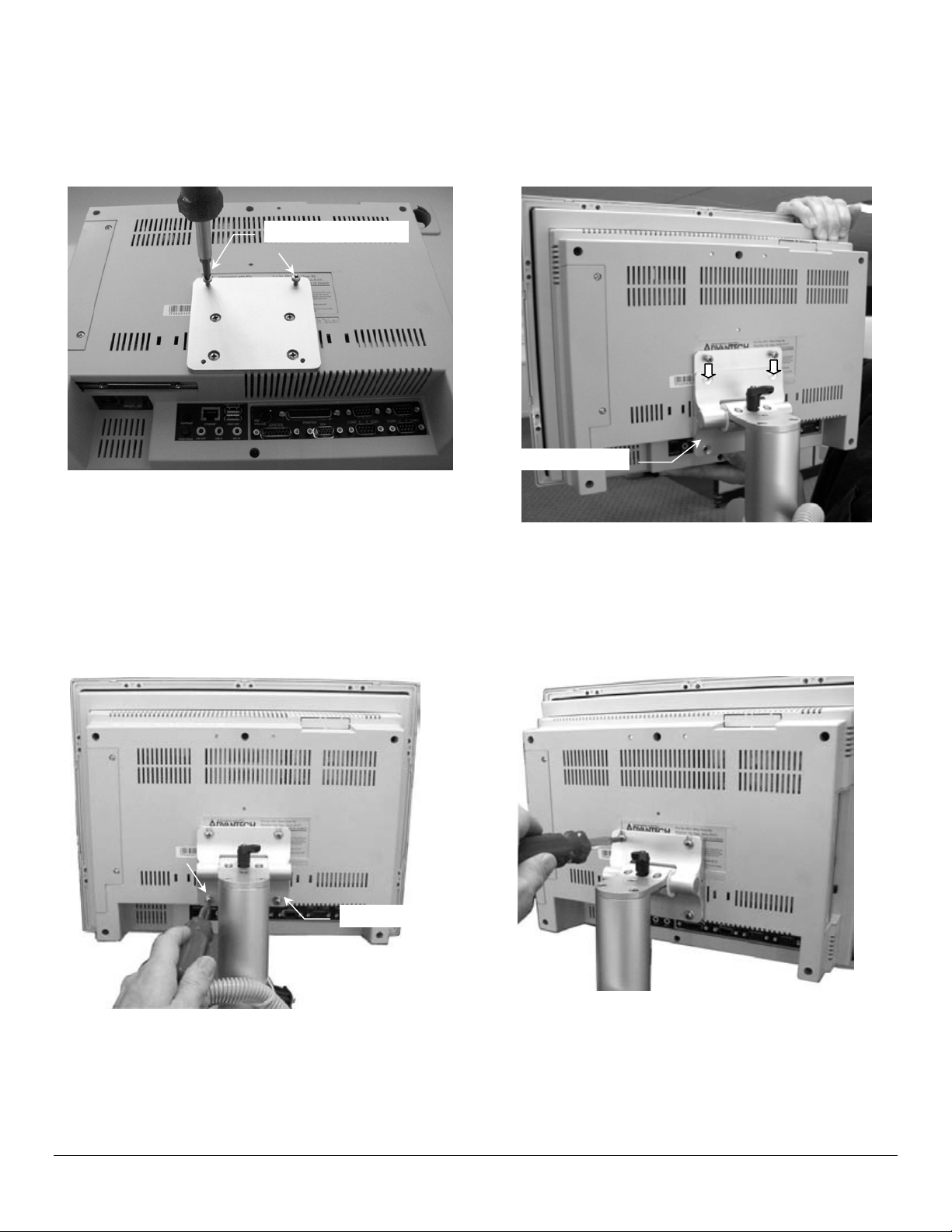

Mounting the POC-153 and POC-155 Platforms

1. Thread two (2) M4 x 20mm PHMS into two (2) upper holes of the 75 x 75mm mounting pattern on the rear of the POC-

153 or POC-155 (below left). Leave 1/4'' [6 mm] of thread exposed to allow screws to fit into slots in VESA Mounting Plate.

2. Guide two (2) upper screws into slots in VESA Mounting Plate (below right). Do not fully tighten these screws until

instructed in Step 3.

3. Thread two (2) M4 x 20mm screws into two (2) lower mounting holes. Tighten all mounting screws.

M4 x 20mm PHMS (2)
