6. System Mode6. System Mode

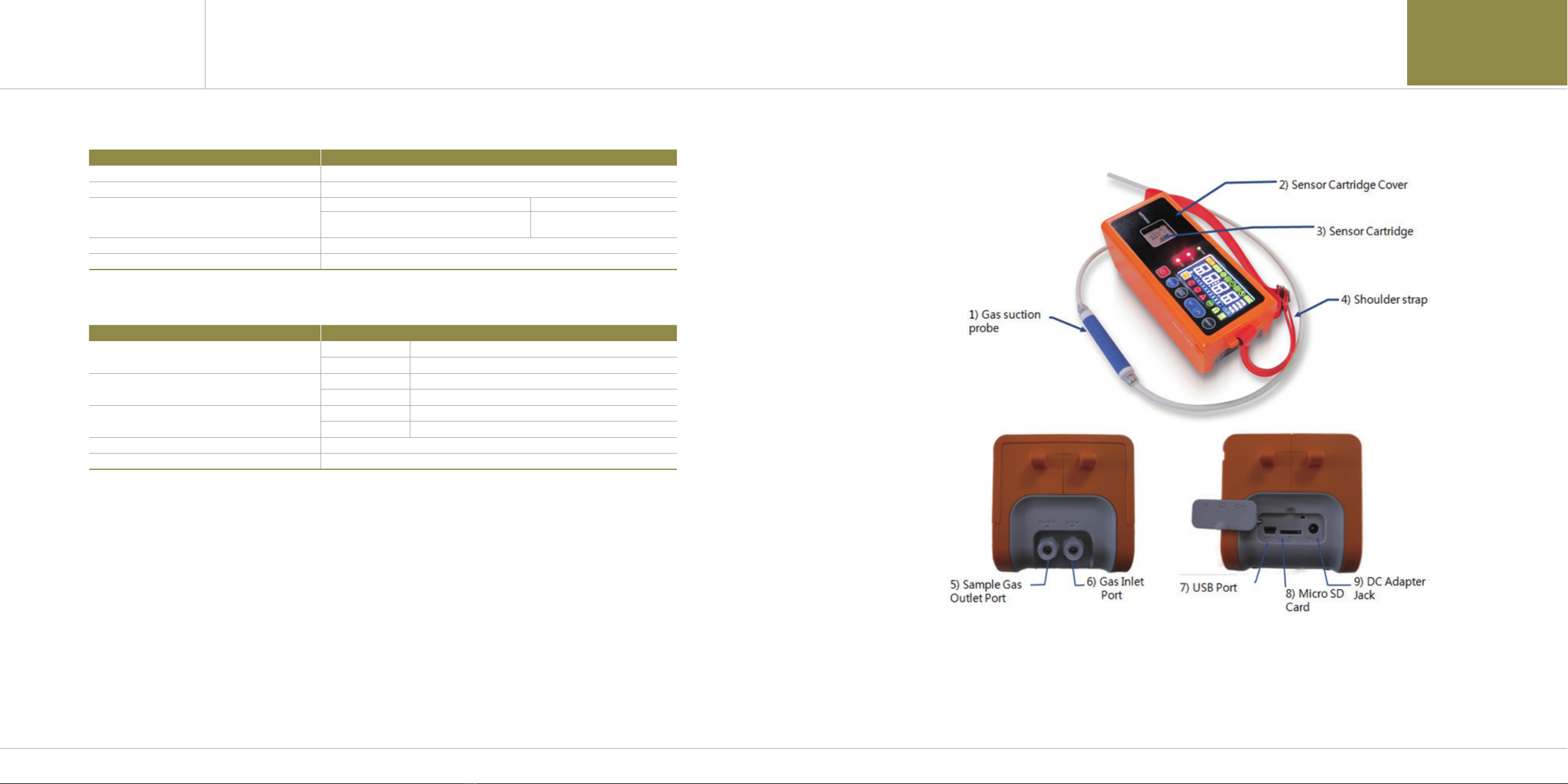

GPD-100
Instruction Manual
6.1. Mode configuration
■ The relevant equipment is comprised of the menu in the following form.
[Table 6. Mode Configuration]
CLASSIFICATION MENU DISPLAY DESCRIPTION REMARKS
CONFIGURATION MODE CONF Setting configuration for inside functions
PROGRAM MODE PRGM Setting related to gas measurement
CALIBRATION MODE CALB Gas calibration
ALARM MODE ALAM Alarm setting
TIME MODE TIME Time change Factory Mode
SENSOR DATA MODE S-DT Sensor data output Factory Mode
TEST TEST MODE Test mode Factory Mode
FLOW MODE FLOW Setting mode for Flo w operation Factory Mode
Log Mode Log Log-related setting
MAINTENANCE MODE M-T Configuration setting for inside functions Factory Mode
6.2. Detailed configuration of menu
■ Entire menu configuration for equipment is as follows.
[Table 7. Menu Table]
CLASSIFICATION
MENU DISPLAY DESCRIPTION REMARKS
COnF Body setting
Add Sensor No. designation Set for [01] 01~64
PSWd Password designation Set for [00] 00~99
SUPr Setting for suppression ratio of
concentration display Set for OFF 1~50%
PyrO Use setting for Pyrolyzer ON / OFF
Py-U Display of used voltage for Pyrolyzer 1.50U
U-00 Display of program version
Prgm Measuring
data
UnIt Setting for measuring unit %LEL, %VOL, PPM, PPB
dP-S Position setting for decimal point Set for 0000, 0.000, 00.00, 000.0
H-SL Setting for Full Scale Arbitrarily set for 0~9999
CALb Calibration
mode ZERO ZERO calibration mode
YES/no Execution setting for
ZERO calibration
0.0 Display mode for
measured values
WAIt Display during ZERO
calibration
0.0
Display measured values
after completion of calibration
CLASSIFICATION
MENU DISPLAY
DESCRIPTION
REMARKS
CALb Calibration
mode SPAN Span calibration mode
YES/no Execution setting for
span calibration
50.0 Setting for span
calibration value
50.3 Display of standard gas
measured values
WAIt Display during span
calibration
50.0
Display of measured
values after completion of
calibration
ALAm Set Alarm
LACH Setting for maintenance of
Alarm occurrence state on/OFF
AL-1 Setting for Alarm1 value Set for 90% of 0~Full Scale
1H/1L Setting for operation direction of Alarm1 H: Ascent Alarm/L: Descent Alarm
AL-2 Setting for Alarm2 value Set for 90% of 0~Full Scale
2H/2L Setting for operation direction of Alarm2 H: Ascent Alarm/L: Descent Alarm

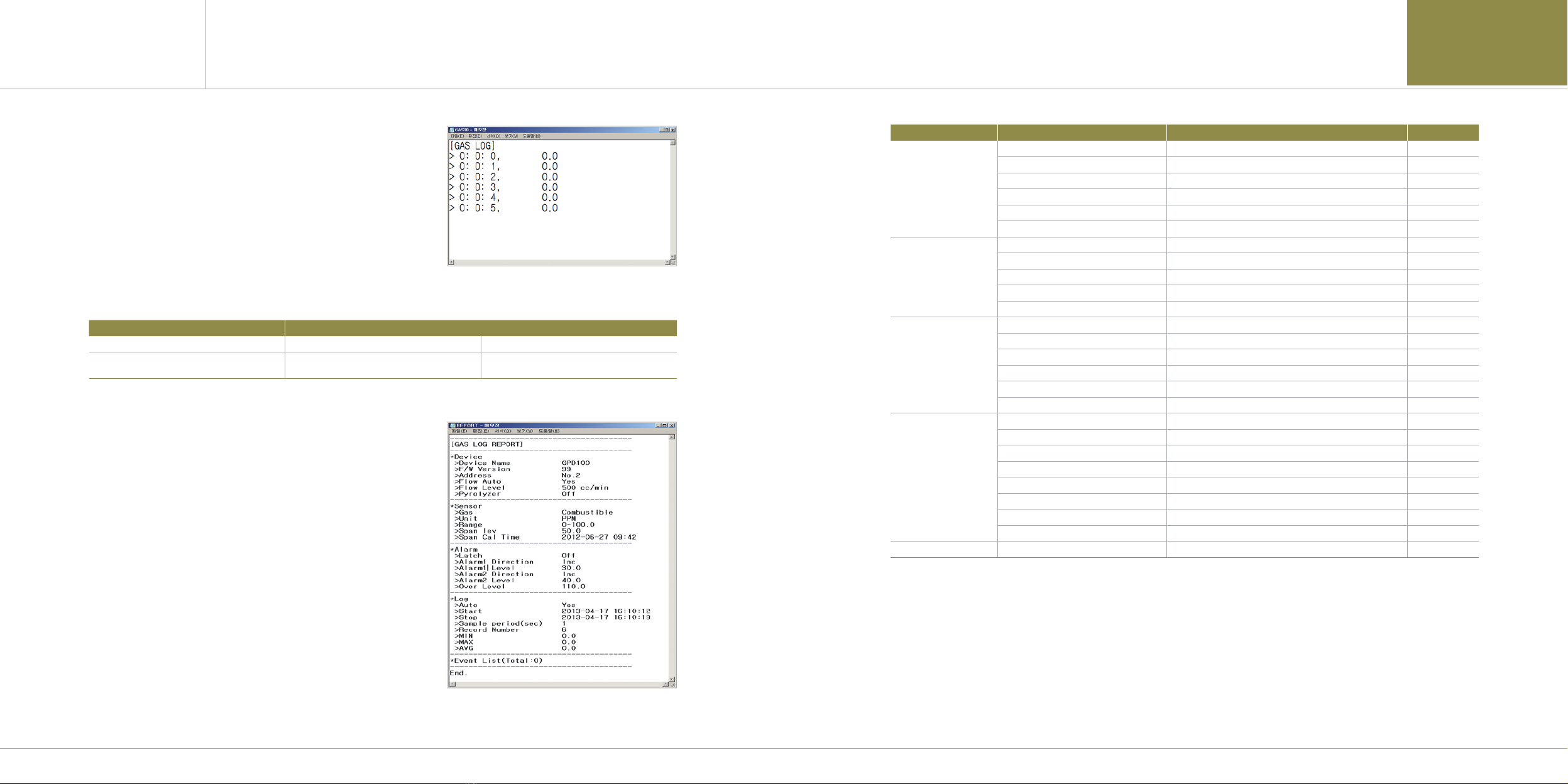

LOg Save log
CtrL Log saving mode On/OFF
AUto Setting for automatic log saving mode On/OFF
mSdC Setting for external memory type

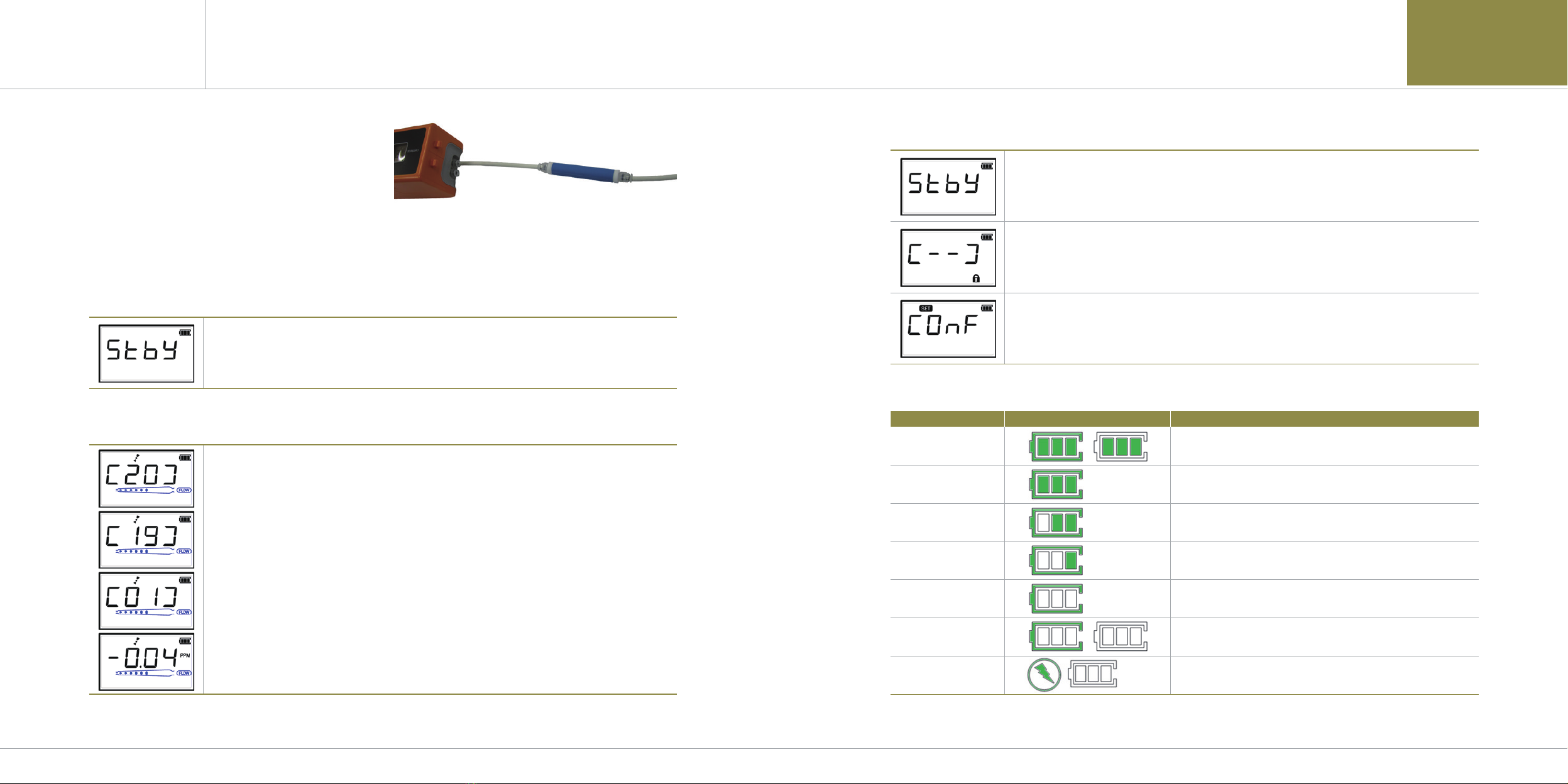

6.3. Setting for body environment (Configuration Mode)

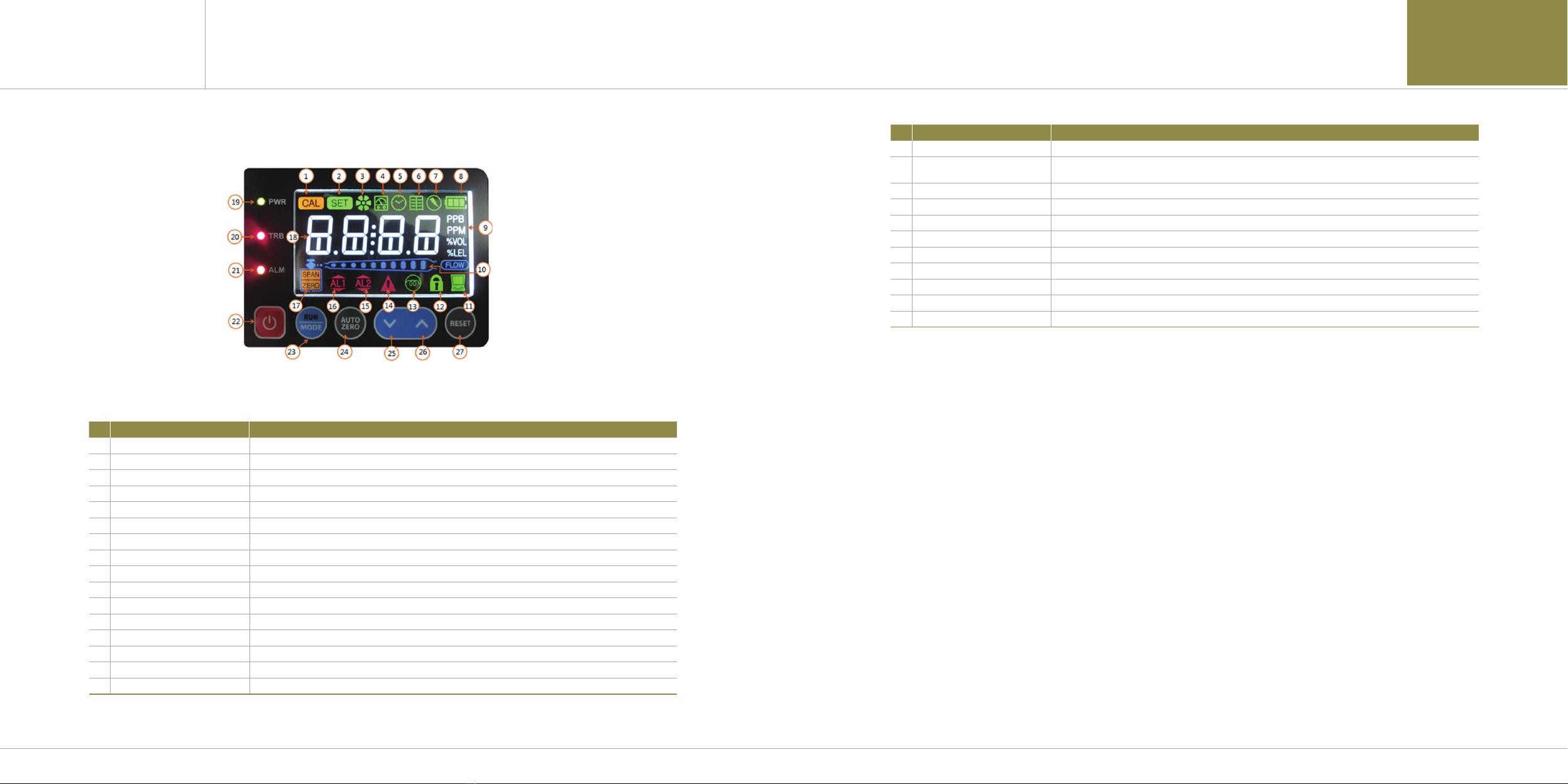

- When "RUN/MODE" Key is pushed for more than 2sec in the state of displaying "Stby" (Stand by).
menu selection mode is entered into
-
There is a part for inputting password. When the password is inputted by using "UP" key or "DOWN" key
and "RUN/MODE" Key is pushed, it is shifted to "ConF" (Configuration) menu. (Initial password: [--]).
- Select "COnF"(Configuration) by using
"UP" key or "DOWN" key
, and "RUN/MODE" Key is pushed,
setting mode is entered into.
- When Reset key is pushed in the designated setting state. St and by display state is entered into
