Spd/Cad Sensor 2

IMPORTANT SAFETY AND

PRODUCT INFORMATION

WARNING

Failure to heed the following warnings could result in an

accident or medical event resulting in death or serious injury.

Battery Warnings

Coin cell batteries can be used in the accessory.

If these guidelines are not followed, batteries may experience

a shortened life span or may present a risk of damage to the

device, re, chemical burn, electrolyte leak, and/or injury.

• Do not disassemble, modify, remanufacture, puncture or

damage the device or batteries.

• Do not expose the device or batteries to re, explosion,

or other hazard.

• Do not place in high temperature environments, such as

a clothes dryer.

• Do not use a sharp object to remove the removable

batteries.

• KEEP BATTERIES AWAY FROM CHILDREN.

NEVER PUT BATTERIES IN MOUTH. Swallowing

can lead to chemical burns, perforation of soft tissue,

and death. Severe burns can occur within 2 hours of

ingestion. Seek medical attention immediately.

Health Warnings

• Always consult your physician before beginning or

modifying any exercise program.

NOTICE

Failure to heed the following notice could result in personal

or property damage, or negatively impact the device

functionality.

Spd/Cad Sensor 2

Battery Notices

• Do not immerse or expose batteries to water or other

liquids.

• Do not leave the device exposed to a heat source or in

a high-temperature location, such as in the sun in an

unattended vehicle. To prevent the possibility of damage,

remove the device from the vehicle or store it out of

direct sunlight, such as in the glove box.

• Do not operate the device outside of the temperature

ranges specied in the printed manual in the product

packaging.

• When storing the device for an extended time period,

store within the temperature ranges specied in the

printed manual in the product packaging.

• Replaceable coin cell batteries may contain perchlorate

material. Special handling may apply. Contact your local

waste disposal department to dispose of the device/

batteries in accordance with applicable local laws

and regulations.

Product Environmental Programs

Information about the Garmin product recycling program and

WEEE, RoHS, REACH, and other compliance programs can be

found at Garmin.com/aboutGarmin/environment.

Limited Warranty

The Garmin standard limited warranty applies to this

accessory. For more information, go to Garmin.com.sg/

support/warranty.html.

Spd/Cad Sensor 2

Quick Start Manual

WARNING

See the

Important Safety and Product

Information

guide in the previous pages

for product warnings and other important

information.

Installing the Speed Sensor

NOTE: If you do not have this sensor, you can

skip this task.

TIP: Garmin recommends you secure your

bike on a stand while installing the sensor.

1Place and hold the speed sensor on top of

the wheel hub.

2Pull the strap

①

around the wheel hub,

and attach it to the hook

②

on the sensor.

The sensor may be tilted when installed on

an asymmetrical hub. This does not affect

operation.

Spd/Cad Sensor 2

3Rotate the wheel to check for clearance.

The sensor should not contact other parts

of your bike.

NOTE: The LED ashes green for ve

seconds to indicate activity after two

revolutions.

Installing the Cadence Sensor

NOTE: If you do not have this sensor, you can

skip this task.

TIP: Garmin recommends you secure your

bike on a stand while installing the sensor.

1 Select the band size that ts your crank

arm

①

securely.

The band you select should be the

smallest one that stretches across the

crank arm.

2On the non-drive side, place and hold the

at side of the cadence sensor on the

inside of the crank arm.

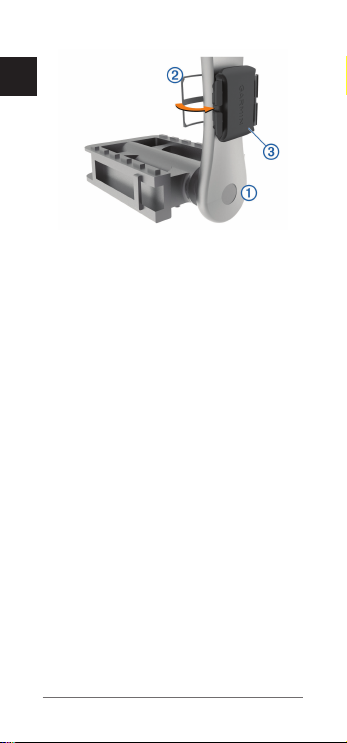

3Pull the bands

②

around the crank arm,

and attach them to the hooks

③

on the

sensor.

Spd/Cad Sensor 2

4Rotate the crank arm to check for

clearance.

The sensor and bands should not contact

any part of your bike or shoe.

NOTE: The LED ashes green for ve

seconds to indicate activity after two

revolutions.

5Take a 15 minute test ride and inspect the

sensor and bands to ensure there is no

evidence of damage.

Pairing the Sensors with Your

Garmin Device

The rst time you connect a wireless sensor

to your device using ANT+ or Bluetooth®

technology, you must pair the device and

sensor. After they are paired, the device

connects to the sensor automatically when

you start an activity and the sensor is active

and within range.

Spd/Cad Sensor 2

NOTE: The pairing instructions differ for each

Garmin compatible device. See your owner’s

manual.

• Bring the Garmin compatible device within

3 m (10 ft.) of the sensor.

• Stay 10 m (33 ft.) away from other

wireless sensors while pairing.

After you pair the rst time, your Garmin

compatible device automatically recognizes

the wireless sensor each time it is activated.

Pairing the Speed Sensors With Your

Smartphone

The speed sensors must be paired directly

through the Garmin Connect app, instead

of from the Bluetooth settings on your

smartphone.

1From the app store on your smartphone,

install and open the Garmin Connect app.

2Bring your smartphone within 3 m (10 ft.)

of the sensor.

NOTE: Stay 10 m (33 ft.) away from other

wireless sensors while pairing.

3Select an option to add your device to your

Garmin Connect account:

• If this is the rst device you have

paired with the Garmin Connect app,

follow the on-screen instructions.

• If you have already paired another

Spd/Cad Sensor 2

device with the Garmin Connect

app, from the or menu, select

Garmin Devices > Add Device, and

follow the on-screen instructions.

User Replaceable Batteries

WARNING

See the

Important Safety and Product

Information

guide in the previous pages box

for product warnings and other important

information.

Replacing the Speed Sensor Battery

The LED ashes red to indicate a low battery

level after two revolutions.

1Locate the circular battery cover

①

on the

front of the sensor.

Spd/Cad Sensor 2

2Twist the cover counter-clockwise until the

marker points to unlocked and the cover is

loose enough to remove.

3Remove the cover and the battery

②

4Wait 30 seconds.

5Insert the new battery into the cover,

observing polarity.

NOTE: Do not damage or lose the O-ring

gasket.

6Twist the cover clockwise until the marker

points to locked.

NOTE: The LED ashes red and green for a

few seconds after battery replacement.

When the LED ashes green and then

stops ashing, the device is active and

ready to send data.

Replacing the Cadence Sensor Battery

The LED ashes red to indicate a low battery

level after two revolutions.

1Locate the circular battery cover

①

on the

back of the sensor.
