Gama Sonic 98B010 Manuel utilisateur

US patents

# 7172307, 9458970

ROYAL BULB SOLAR LAMP

Part # 98B010, 98B110, 98B310, 98B011,

98B111, 98B311, 98B012, 98B112, 98B312

Instruction Manual

Post/3" Fitter Mount

Pier Mount

Wall Mount

Thank you for your purchase! GAMA SONIC® solar charged lights are brighter and last

all night with a typical solar charge. Unique design, superior light output and numerous

installation options conﬁrm the outstanding value of our product. GAMA SONIC® has been

recognized as a worldwide leader in the lighting industry for over 20 years.

Please read the instruction manual carefully to obtain the best results from your purchase.

Visit our website or download the latest version of your instruction manual:

www.gamasonic.com or www.gamasonic.com/user-guides

Technical Assistance / Warranty Claims / Replacement Parts

Toll-Free number: +1-800-835-4113 (only within the US) or www.gamasonic.com

For optimum light duration throughout

the night, it is very important to mount

your solar lamp in a spot where it will

receive the maximum amount of

direct sunlight throughout the

day.

NOTE: For best results,

the solar light must be

charged in the “High or

Low” position for at

least 2 days of full

direct sunlight.

Gama Sonic’s patented Bulb technology

gives your solar lamp the look and feel

of a traditional incandescent lamp. This

helps to distribute light further than

traditional solar lamps.

Gama Sonic's Bulb Technology What’s In The Box

Solar Lamp Location

page 2

EBulb

Hardware

C D

A B

98B012, 98B112,

98B312 only

98B011, 98B111,

98B311 only

98B010, 98B110,

98B310 only

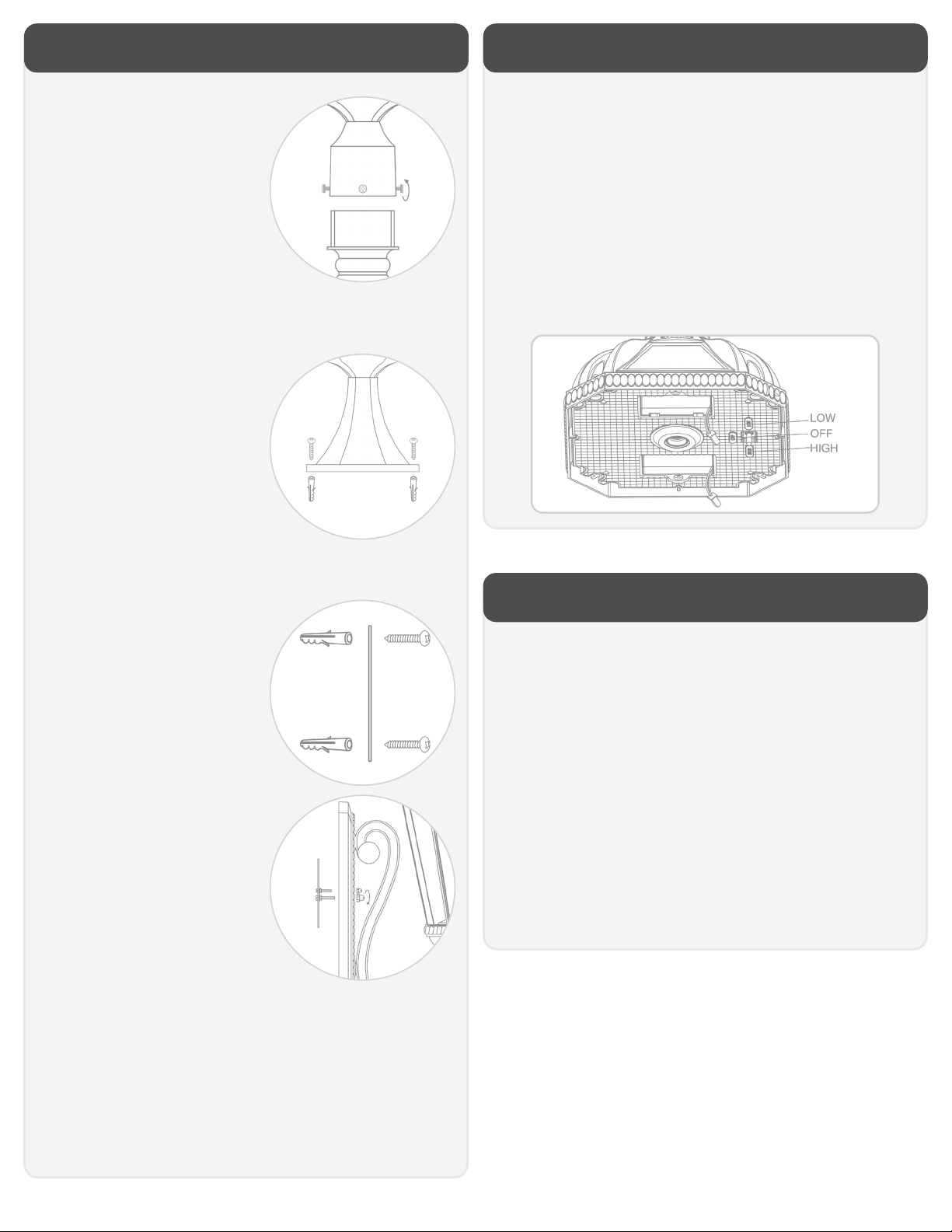

3” Fitter Mount

NOTE: If you are replacing an existing gas

electric post light, you must consult a certiﬁed

technician to disconnect them before

installation.

1. Attach the 3” ﬁtter ﬁxture (D)

by sliding the mount over your

existing pole and secure using the

3 set screws.

NOTE: Be sure to not overtighten the set

screws.

Pier Mount

NOTE: There are speciﬁc types of screws for speciﬁc

surfaces. If you’re unsure of the appropriate type

of screw to use on your desired surface, please

consult a professional.

1. Use a drill to make tow holes in

the desired mounting location

(use the pier mount ﬁxture (C) as

a template for drilling locations)

2. Insert the anchors into the holes and

secure the ﬁxture (C) to the surface using

the provided screws.

Wall Mount

NOTE: Installing the light on a wall may limit

the solar panel for sun exposure. Make sure

the lamp is mounted so direct sun exposure

is available.

1. Remove the silver backet from

the Wall Mount Fixture (E) by

removing the two screw caps.

2. Use a drill to make two holes in the

wall where the lamp will be mounted.

(use the wall mount as a template

for drilling locations but make

sure to keep the two screw posts

horizontal)

3. Place the anchors into the holes

and secure the bracket to the wall.

4. Secure the wall mount ﬁxture (E)

to the wall by sliding the ﬁxture on

to the bracket and securing with the

two screw caps.

1. Remove the two screw caps from the top (B).

2. Install the GS Solar LED Bulb into the lamp by holding it at the base

and turning clockwise.

3. Turn the operation switch to your desired setting:

Low = Softer light output and longer duration

High = Brighter light output

4. Place the top (B) back on the ﬁxture and secure with the two screw

caps.

5. Install the ﬁnial (A) into the top (B) by twisting clockwise.

Assembly Instructions Operation Instructions

Replacement Batteries and Bulbs are available at

www.gamasonic.com or via our Toll Free number: +1-800-835-4113

Your Lamp can use the following bulbs:

A50WW10W – included bulb with Warm White LEDs (2700K)

A50BW10W – bulb with Bright White LEDs (6000K)

F30WW05W –Flame bulb with simulated ﬂame LEDs

T45WW10W – Edison LED Bulb with Warm White LEDs (2700k)

Your Lamp uses two of the following battery:

GS32V30

Replacement Parts

page 3

Replacing the battery

page 4

Maintenance

Batteries are available for purchase at www.gamasonic.com

Troubleshooting

Clean the solar panels regularly with a damp towel to guarantee optimum performance. Do not use any type of

solvent for cleaning and be careful not to put too much pressure on the solar panels while cleaning.

WARNING: Do not dispose of Li-Ion batteries in the regular trash, municipal waste stream or by ﬁre as batteries may

leak or explode. Do not open, short circuit, or mutilate batteries as injury may occur. Preserve our environment by

recycling Li-Ion batteries or disposing of them in accordance with local, State, and federal regulations. Do not mix old

and new batteries.

If your solar light does not come on as expected despite observance of all the instructions, please try the

following steps:

1. Make sure that the solar lamp is not being aected by any other light source.

2. Ensure the solar lamp is not positioned in the shade during the day.

3. Check that the batteries are installed correctly.

NOTE: The performance of the solar lamp will vary with the time of year. It will last longer when it has had a full

day in the sun rather than a day in overcast weather.

WARNING: Please keep out of reach of children. Do not dispose of the Li-Ion battery in the regular trash,

municipal waste stream or by ﬁre as batteries may leak or explode. Do not open, short circuit, or mutilate

batteries as injury may occur. Preserve our environment by recycling Li-Ion batteries or disposing of them in

accordance with local, State and federal regulations. Do not mix old and new batteries.

WINTERTIME TIPS: For optimal performance, be sure to remove any snow or debris accumulation from solar

panel(s). A solar panel free of debris will charge the batteries much more eciently.

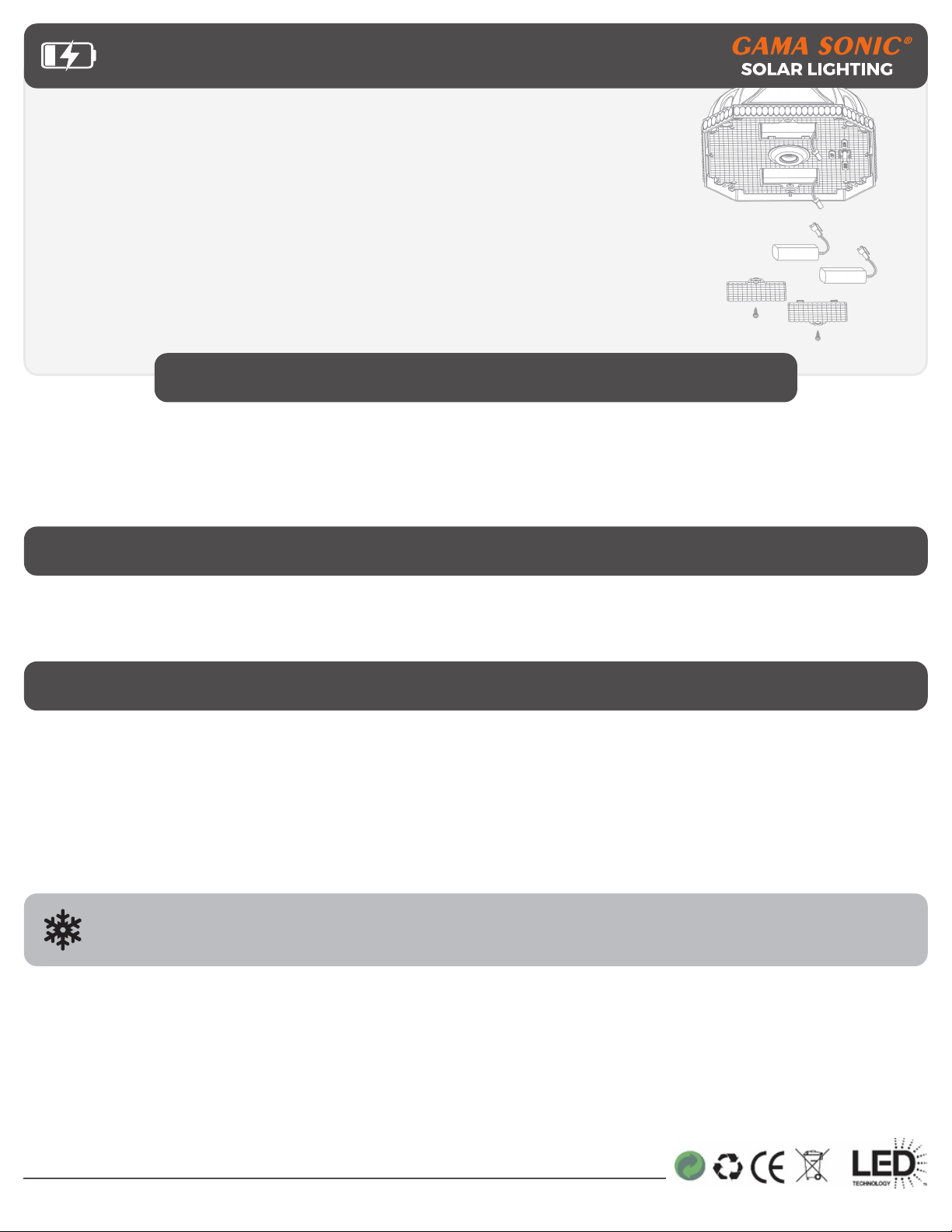

After several years of use, the battery may need replacing.

1. Remove the top (B) by unscrewing the two screwcaps.

2. Switch the unit OFF and remove the bulb.

3. Remove the screw and battery compartment cover.

4. Unclip and remove the battery.

5. Replace with a high quality Li-Ion 3.2V / 3000mAh battery with matching connector (Item GS32V30).

6. Install the battery in the compartment and secure the cover with the screw.

7. Repeat steps 3-6 for the second battery compartment.

8. Install the bulb and switch the unit ON to your desired setting.

9. Place the top (B) back on the ﬁxture and secure with the two screw caps.
