Coupling Alignment Gage Operation Manual

CA-9001

OMCA90016-16

Coupling Alignment Gage Operation Manual

CA-9001

Operating Procedures

Inspecting Parts

Materials Needed:

Coupling Alignment Gage (CA-9001) Calipers



Contact points (3)



Paper clip or Piano Wire

Marker Scale or Ruler

1. Use the table at right to determine which

contact points should be installed to inspect

the coupling.

IMPORTANT: API Specification 5B Section

5.1.35 requires proper contact points be used

during the inspection of coupling alignment.

Connection

Type

Threads

per Inch

(TPI)

Contact

Point

Diameter

(Inches)

Model

Numb

API Buttress

Casing – Taper 5 0.100

Truncated by

0.030 T062

API Tubing &

Casing

(8 Round) 8 0.072 T072

API Tubing

(10 Round) 10 0.057 T057

2. Rock the gage forward and seat the moveable

contact point into the thread. Use your index

finger to apply just enough pressure to

maintain the gage’s contact with the thread

flanks.

Coupling Alignment Gage Operation Manual

CA-9001

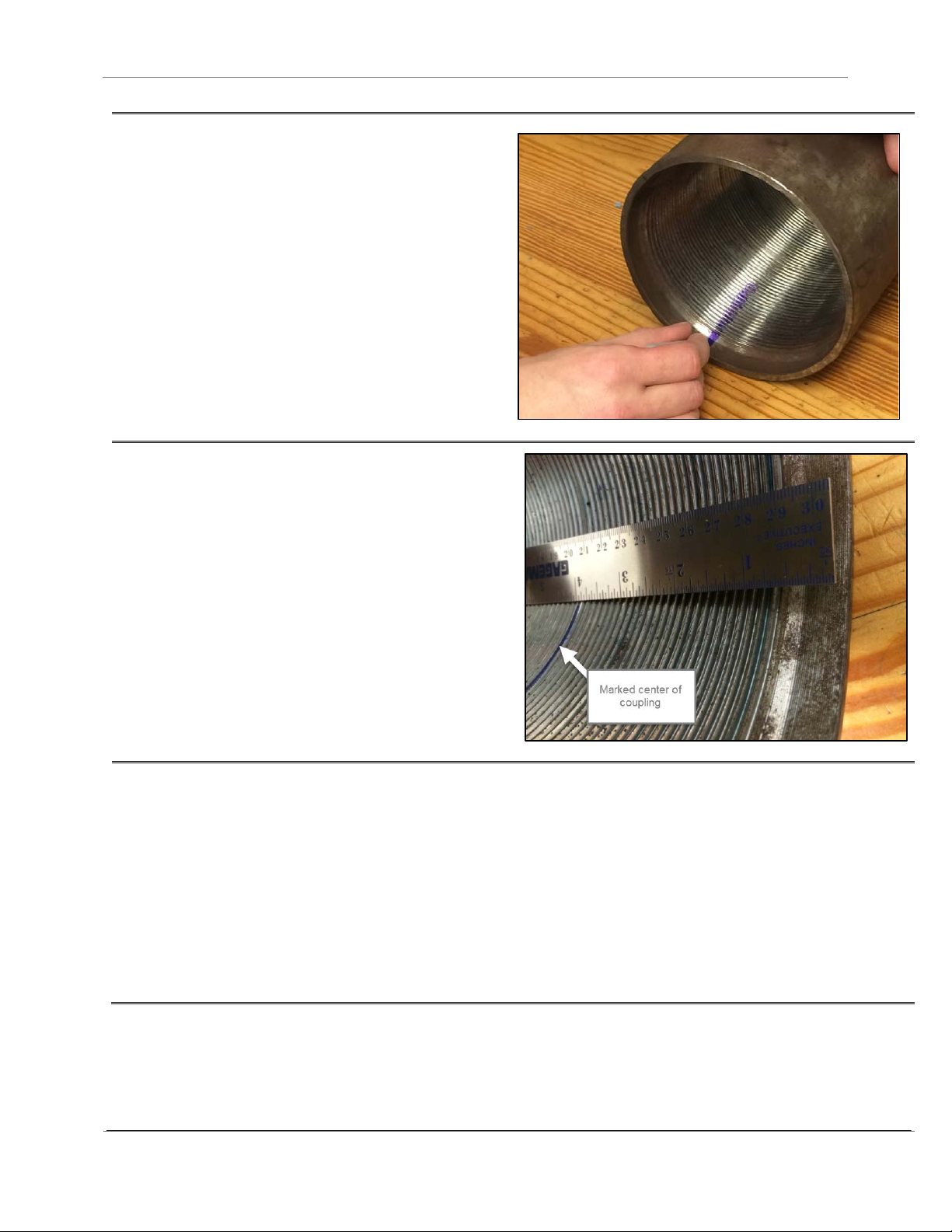

3. Use a marker to draw a line inside of the

coupling.

NOTE: This line will be used as a timing mark.

4. Use a marker to mark the center of the

coupling.

5. Mark the thread that is 1.500 in. from the

center of the coupling.

IMPORTANT: This mark will be used to properly

position the center of the coupling between the

contact points of the CA-9001 as mandated by

API Specification 5B Section 5.1.35.

Coupling Alignment Gage Operation Manual

CA-9001

6. Place the coupling on a table or surface and

position it on its side.

NOTE: The table or surface needs to have

enough room for the coupling to roll one complete

revolution.

IMPORTANT: Proper Personal Protective

Equipment (PPE) such as steel toed boots should

be worn during the inspection of the coupling to

prevent injuries from falling objects.

7. Position the CA-9001 by placing the two fixed

contact points into the thread groove marked

in Step 5 (1.500 in. from center). Ensure that

all of the contact points are seated in the

proper thread grooves.

8. Zero the gage by adjusting the bezel.

Coupling Alignment Gage Operation Manual

CA-9001

9. Roll the coupling one complete revolution and

make note of the minimum and maximum

indications.

TIP: Roll the coupling by keeping both hands on

the gage and pushing the gage down and

forward.

10. Determine the total sweep by subtracting the

minimum indication from the maximum

indication.

The total sweep of the coupling must not

exceed the maximum sweep value recorded

in the tables found in the Maximum Sweep

Value tables on page 7 & 8.

The maximum sweep values were calculated

using the following equation from API

Specification 5B Section 5.1.35.

where

R= maximum permissible sweep of the

dial gauge indicator;

E= pitch diameter of the coupling where

the contact points on the gauge are

located. This must be calculated for the

coupling being inspected;

A= maximum allowable misalignment in

20 ft. API Specification 5B Section 4.1.10

states that the maximum angular

misalignment shall not exceed ¾” per 20’

of the projected axis for all tubing and

casing sizes.

Coupling Alignment Gage Operation Manual

CA-9001

Maximum Sweep Values

EUE

EUE Coupling Size

(Inches)

Maximum Sweep Value

(Inches)

1.315 0.004

1.660 0.006

1.900 0.006

2⅜0.008

2⅞0.009

3½ 0.011

40.013

4½ 0.014

NUE

NUE Coupling Size

(Inches)

Maximum Sweep Value

(Inches)

2⅜0.007

2⅞0.009

3½ 0.011

40.012

4½ 0.014

LTC

LTC Coupling Size

(Inches)

Maximum Sweep Value

(Inches)

4½ 0.014

50.015

5½ 0.017

6⅝0.020

70.021

7⅝0.023

8⅝0.026

9⅝0.029

20 0.061

Coupling Alignment Gage Operation Manual

CA-9001

STC

STC Coupling Size

(Inches)

Maximum Sweep Value

(Inches)

4½ 0.014

50.015

5½ 0.017

6⅝0.020

70.021

7⅝0.023

8⅝0.026

9⅝0.029

10¾0.033

11¾0.036

13⅜0.041

16 0.049

18⅝0.057

20 0.062

API BUTTRESS

Buttress Coupling Sizes

(Inches)

Maximum Sweep Value

(Inches)

4½ 0.014

50.015

5½ 0.017

6⅝0.020

0.021

7⅝

0.023

8⅝

0.026

9⅝

0.029

10¾0.033

11¾0.036

13⅜0.041

16 0.049

18⅝0.058

20 0.062

Coupling Alignment Gage Operation Manual

CA-9001

NOTES

Coupling Alignment Gage Operation Manual

CA-9001

Maintenance Tips

•Keep all unprotected metal surfaces coated with light oil.

•Avoid dropping the gage or subjecting it to any vibration or impact.

•Keep the gage dry and away from any machine coolant spray.

•Do not force the movement of any of the mechanical parts. The mechanics are designed to

move freely.

•Keep the indicator face clean.

Warranty Information

Gagemaker warrants its products to be free from defects in material and workmanship under normal

operating conditions for 12 months from the date of shipment. This warranty is limited to repairing, or at

Gagemaker’s option, replacing any product which is proven to have been defective at the time it was

shipped and/or suffered damage during shipping; provided buyer has given Gagemaker written notice of

any such claimed defect within 15 days of receipt. Any defective product must be properly packed and

shipped to the Gagemaker factory in Pasadena, Texas USA. This warranty applies to all products when

used in a normal industrial environment. Any unauthorized tampering, misuse or neglect will make this

warranty null and void. Under no circumstances will Gagemaker or any affiliate have any liabilities for loss

or for any indirect or consequential damages. The foregoing warranties are in lieu of all other warranties

expressed or implied, including but not limited to, the implied warranties of merchantability and fitness for

a particular purpose.

Products Requiring Repair or Calibration Return Process

1. Prior to sending any products to Gagemaker, please call 713-472-7360 and request a

Returned Material Authorization (RMA) number from Sales.

2. Include a Purchase Order or work instructions with the returned product.

3. Return to: Gagemaker LP

712 East Southmore Ave.

Pasadena, TX 77502-110
