FY G360 Manuel utilisateur
Compatible with Samsung gear 360/Kodak pixpro sp360/Kodak
pixpro sp360 4k/Sony FDR-X3000 etc.
G360 Panoramic Camera Gimbal
Instruction Manual
V 1.0EN
GuiLin FeiYu Technology Incorporated Company
Product Overview
Indicator
Status
Handle
Function
button
1/4 inch
screw hole
Panning
axis
Counter
weight
Tilting axis
Rolling
axis
Upper slider
Pin
Lower slider
Adapter
Adjusting
screw
* G360 camera shown in the picture
is only for reference.
Thumb screw
USB cable X1 Batteries
(Type:22650)X1
Life Right Joystick
20g counter
weight
30g counter
weight
40g counter
weight
100g counter
weight
Indicator Status Mode / Status
Blue light flashes once
Blue light flashes three times
Panning mode
Standby
Lock mode / Initializing
Blue light is always on
Blue light keeps flashing Initialization failure /
Malfunction
Low battery
Red light flashes three times
Red light keeps flashing
Function button
You can use the function button to switch
the working mode, power on or power off
the gimbal.
Please refer to chapter“ Modes / Functions”.
Parts List
Screw cap
Switching to standby
mode/ Gimbal will
power off
Long press the selfie button, the lens will horizontally
rotate 360°, release for positioning
Self-timer button
User Guide
Install the battery
3
2
1
Install the Camera
(1) Align the camera mounting hole with the upper slider
center slot and tighten the screw to secure it.
(2) Hold the pin first，then place the upper slider with the
camera on the lower slider and tighten screw.
4
(1) (2)
Camera balance adjustment
5
（1） Adjust the horizontal center of gravity with the counterweight
a.Place a counterweight of a similar weight to the camera on the gimbal and tighten the
counterweight in the opposite direction .
b.Ajust as follows to get the best balance.
（1） Best Balance
Adjust to B1 direction Adjust to A1 direction
B1
A1
B1
A1
Charging Download APP
(1) Please install the camera before powering on the gimbal
(2) When not in use, turn off the gimbal and then remove the camera
Attention !
!
App Store
Google play
Feiyu ON
Download
GuiLin FeiYu Technology Incorporated Company
Feiyu ON
（1） iOS version:
（2）Android version:
Option 1: Charge with micro USB cable.
micro USB
Option 2: remove the battery and charge the
battery with charger (equipped by user).
（equipped by user）
Please make sure the battery is fully charged before you
use the gimbal for the first time.
Remove the handle and insert
one 22650 battery into it.
Download "Feiyu ON" and install it.
Modes / Functions
6 7 Connect to APP
（2） Adjust the vertical center of gravity by the upper and lower sliders
Best Balance
（2）b
（2）a
Lean forward Lean backward
Lean to the right
Lean to the left
Tip: Loosen the screw to adjust, please don't take out the screws from the sliders.
Power on / off
Power On： Press and hold function button
until the green light is on.
Power Off： Press and hold function button
until the red light changes from quick flashing
to always on.
Attention: Make sure the
camera is secure before
powering on the Gimbal.
!In case of low battery, the red LED indicator
flashes for three times for every 5 seconds.
Please charge G360 or replace the battery.
Start the app on your smartphone,follow the instructions
to connect the smartphone with gimbal via Bluetooth.
Working Modes
Reset
Stand-by
Other Functions
Motor stops working.
The orientation of the camera is fixed.
Panning Mode
Tilting and rolling direction are fixed, and the camera
lens moves according to the hand movement of the user.
Panning and Tilting Mode
The rolling direction is fixed, and the camera lens moves
according to the hand movement of the user.
Lock Mode
* The gimbal will work in panning mode after powering on.
Reset to initial status.
G360
Gimbals Update Settings
Panning Pan&Tilt Lock
Standby Reverse Reset
360°
Choose a device
FY_G360_XX
D7:58:42:2D:DD：xx
Searching...
Rssi=xx
cancel
Firmware Upgrade
Gimbal initialization
3
Function Button
Single tap
Function Explanation
Panning Mode / Lock Mode Single tap to switch between panning mode and lock mode
Reset the tilting axis of the gimbal to initial orientation and initial
mode
Quadruple tap Reset
Long press until
the red light
flashes quickly
Single tap again to awake the gimbal, or triple tap to initialize the
gimbal
Standby
Mode / Function Operation Instructions
Please visit the official website www.feiyu-tech.com to download the relevant programs for
upgrading, including USB driver, firmware upgrade software and product firmware,and install the
relevant software, decompress the firmware files for standby application.

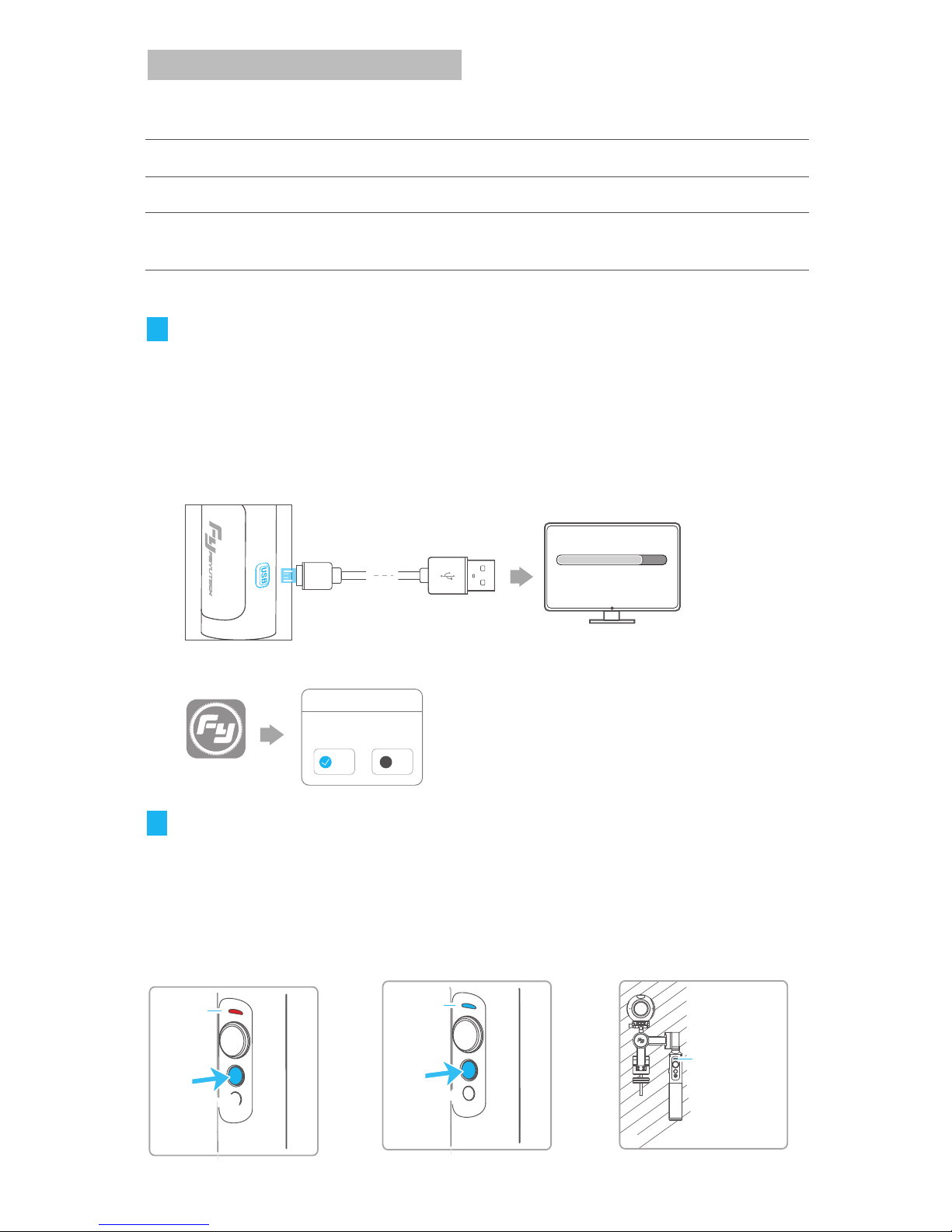

Option 1: connect the gimbal with PC via micro USB cable, and then upgrade the firmware.
Option 2: connect the gimbal with Smarphone via bluetooth, and then upgrade the firmware.
(1)
(2)
Upgrade........
PC
micro USB
Feiyu ON
new firmware is available,
do you want to upgrade?
×
Firmware upgrade
Yes No
You can initialize your gimbal when:
（1） camera is not level
（2） if not used for a long period of time
（3） in case of extreme temperature variations
Red light
flashes
1
press and hold press and hold
Adjusting steps:
2
Triple tapTriple tap
Blue light
is on Stands on table
Blue light flash
three times
quickly
Initialization
successful
189mm
165mm
217.5mm
114.5mm
Parameters
360°
100°
360°
Counter weight 20g, 30g, 40g, 100g
Camera with 1/4 inch screw hole, weight 100~300g.
360g （Not including battery, camera or counter weight ）
61.5mm
Unit: mm
Titling Angle
Rolling Angle
Panning Angle
Adaption
Weight
DISCLAIMER
Attention
Please correctly assemble the gimbal in accordance with the diagram
When the gimbal is not in use or placed on the table, please ensure it is powered off
Please install the camera before powering on the gimbal
Prohibit any user for any illegal purpose. Users will be responsible for all behaviors of
purchase and use products.
The Company assumes no liability for any risks related to or resulting from the debug and
use of this product (including the direct, indirect or third-party losses).
For any unknown sources of using, we will not be at any services.
The updating and changes of product firmware and program may cause changes in function
descriptions in this user manual, please read the instructions carefully before upgrading the
firmware and use the corresponding user manual.
You can get the latest user manual from the official website: www.feiyu-tech.com
Feiyu Tech reserves the right to amend this manual and the terms and conditions of use the
product at any time.
min 2°/s max 75°/s
min 3°/s max 150°/s
Titling Increments
Panning Increments
Usage time 6 Hours
www.feiyu-tech.com
Create More Possibilities
For more information, please visit our official website:
www.feiyu-tech.com
Support Email: service@feiyu-tech.com
Due to software and hardware improvements, your actual product might
differ from the descriptions and pictures in this user manual. You can get
the latest user manual from the official website.
