FXLuminaire WIRELESS LUXOR LINKING Manuel utilisateur
LUXOR LINKING OWNERS MANUAL
PROGRAMMING WIRELESS LINKING MODULE
Note: Before programming determine which module will be installed on the primary controller (LUX
models) and which will be installed on the Luxor Satellite controllers (LSAT models). Primary Luxors are
controllers with a facepack installed.
PRIMARY LUXOR
1. Insert wireless linking module (LINK-MOD) into the primary Luxor controller linking port.
2. From Home screen, select Setup
3. Within Setup screen, select Linking
LUXOR LINKING OWNERS MANUAL

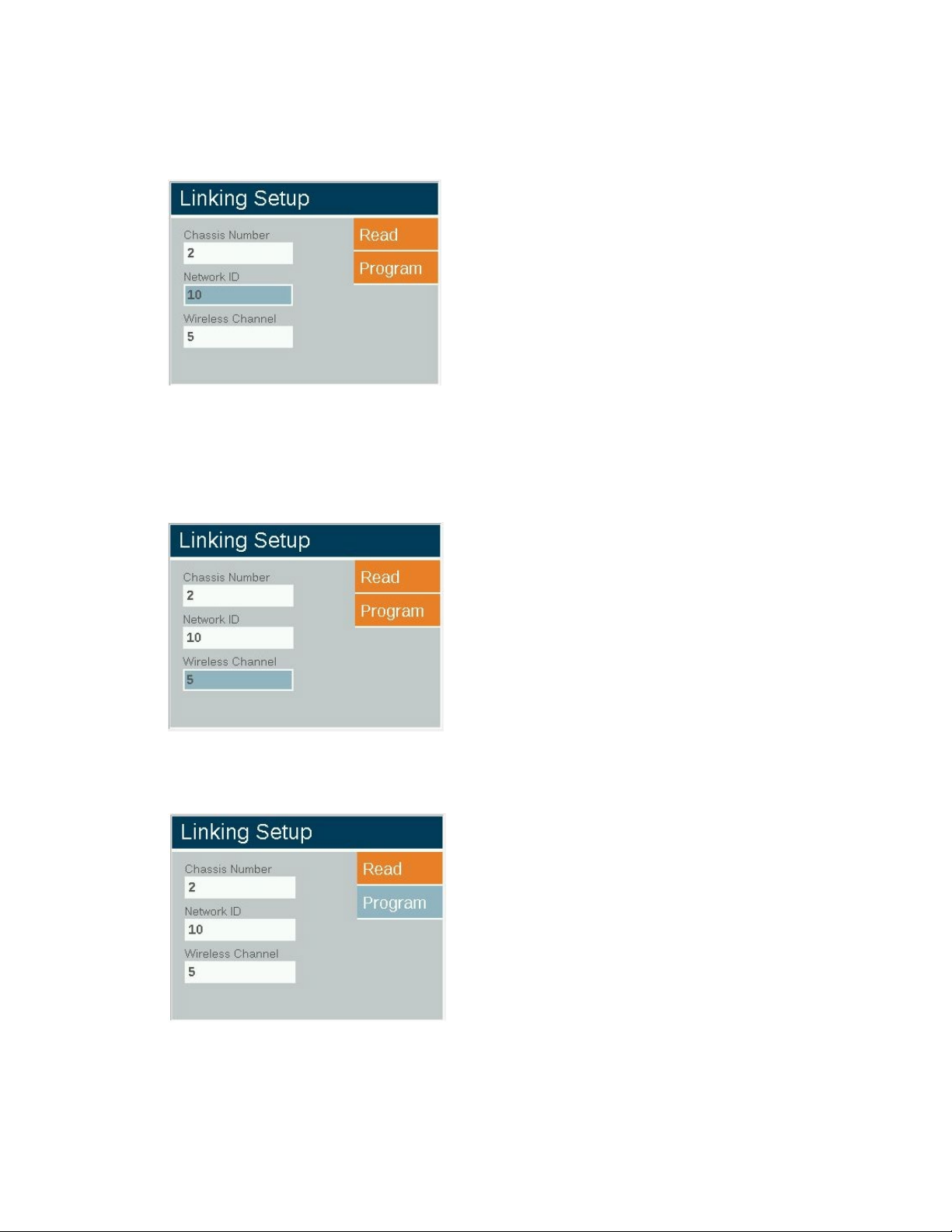

4. Scroll to Chassis Number field, select 0 (Primary).
5. Scroll to Network ID field, select desired Network ID (1-255). This Network ID will need to be
assigned to all wireless linking modules installed on the site.
6. Scroll to Wireless Channel field, select desired Wireless Channel. This Wireless Chassis ID will
need to be assigned to all wireless linking modules installed on the site.
LUXOR LINKING OWNERS MANUAL
7. Scroll to Program and press scroll wheel. “Assignment Succeeded” will appear at the bottom of
the screen
8. Remove module from Linking Port
LUXOR LINKING OWNERS MANUAL
SATELLITE LUXOR
1. Insert wireless linking module (LINK-MOD) into the primary Luxor controller linking port.
2. From Home screen, select Setup
3. Within Setup screen, select Linking
4. Scroll to Chassis Number field, select desired Chassis Number (1-10).
Note: 0 (Primary) is assigned to wireless module used on Primary Controller. See section xxx
LUXOR LINKING OWNERS MANUAL
5. Scroll to Network ID field, select desired Network ID (1-255). This Network ID will need to be
assigned to all wireless linking modules installed on the site.
6. Scroll to Wireless Channel field, select desired Wireless Channel. This Wireless Chassis ID will
need to be assigned to all wireless linking modules installed on the site.
7. Scroll to Program and press scroll wheel. “Assignment Succeeded” will appear at the bottom of
the screen
LUXOR LINKING OWNERS MANUAL
INSTALLING WIRELESS LINKING MODULES
PRIMARY LUXOR
1. Using Wireless Linking Module assigned to Chassis Number (0 Primary), insert wireless linking
cable through the 7/8” hole on bottom of Luxor cabinet
2. Plug wireless module into one of the Linking Ports
3. Secure wireless module in place using supplied nut
4. For remote mount installations, thread wireless module into supplied mount.
SATELITTE LUXORS
1. Using Wireless Linking Module assigned to desired Satellite Chassis, insert wireless linking cable
through the 7/8” hole on bottom of Luxor cabinet
2. Plug wireless module into one of the Linking Ports
3. Secure wireless module in place using supplied nut
4. For remote mount installations, thread wireless module into supplied mount.
CONTROLLER MOUNT
REMOTE MOUNT
LUXOR LINKING OWNERS MANUAL
Troubleshooting
Read feature
The “read” feature allows users to read wireless module settings by displaying Chassis Number,
Network ID, and Wireless Channel on the Luxor facepack
1. Insert desired wireless linking module (LINK-MOD) into the primary Luxor controller linking port.
2. From Home screen, select Setup
3. Within Setup screen, select Linking
4. Scroll to Read and press scroll wheel. Wireless Linking Module settings will be displayed on
Luxor facepack
LUXOR LINKING OWNERS MANUAL
MODULE DETAILS
ICON LEGEND
LUXOR LINKING OWNERS MANUAL
LUXOR LINKING OWNERS MANUAL
