Futek LSB200 Manuel utilisateur
MINIATURE S-BEAM JR. LOAD CELL
LSB200 MANUAL
ADVANCED SENSOR TECHNOLOGY, INC.
www.futek.com10 Thomas, Irvine, CA 92618 USA · (949) 465-0900
EM1007 · 1
ADVANCED SENSOR TECHNOLOGY, INC.
FUTEK
ADVANCED SENSOR TECHNOLOGY, INC. LSB200 MANUAL
PREFACE
www.futek.com10 Thomas, Irvine, CA 92618 USA · (949) 465-0900
EM1007 · 2
For specifications, dimension, and capacities, please refer to the LSB200 spec sheet:
http://www.futek.com/files/pdf/Product%20Drawings/lsb200.pdf
MEASURING END
The top of the sensor is the measuring end.
PRECAUTIONS
Remove the shunt before applying any load.
Make sure the cover is not touching the measuring end of the load cell.
Install the LSB200 in a dry, clean environment for optimum performance and to prevent short
circuiting the sensor.
DISCLAIMER
This documentation was generated and completed to the best ability of
FUTEK’s Engineering Team. The information and recommendations on this
document are presented in good faith and believed to be correct however,
FUTEK Advanced Sensor Technology makes no representations or warranties
as to the completeness or accuracy of the information.
DO NOT USE these products as safety or emergency stop devices, or in
any other application where failure of the product could result in
personal injury. Failure to comply with these instructions could result in
death or serious injury.
Via Paolo Uccello 4 - 20148 Milano
ADVANCED SENSOR TECHNOLOGY, INC.
FUTEK
ADVANCED SENSOR TECHNOLOGY, INC. LSB200 MANUAL
INSTALLATION GUIDE
www.futek.com10 Thomas, Irvine, CA 92618 USA · (949) 465-0900
EM1007 · 3
When handling the sensor, do not pinch the ends
where the load is applied.
When installing the sensor, connect it to an instrument
and monitor the output to prevent possible overload.
Do not apply excessive torque or create a torque
through the sensor when attaching the fixtures.
In an environment with a high amount of moisture or
humidity, create a drip loop on the cable to prevent
any water from flowing into the sensor.
For compression, install the sensor right side up for
best results (reference the label). For tension, install
the sensor upside down so the load is being applied
to the measuring end.
When routing the cable to an instrument, you want to
create a service loop in the cable so it is not taut or
stretched. (Cable bend radius of 0.80" should be
maintain where possible.)
OK
Via Paolo Uccello 4 - 20148 Milano
ADVANCED SENSOR TECHNOLOGY, INC.
FUTEK
ADVANCED SENSOR TECHNOLOGY, INC. LSB200 MANUAL
If there is no output or the output isn’t changing when applying a load, check the following points to troubleshoot the sensor.
www.futek.com
10 Thomas, Irvine, CA 92618 USA · (949) 465-0900
EM1007 · 4

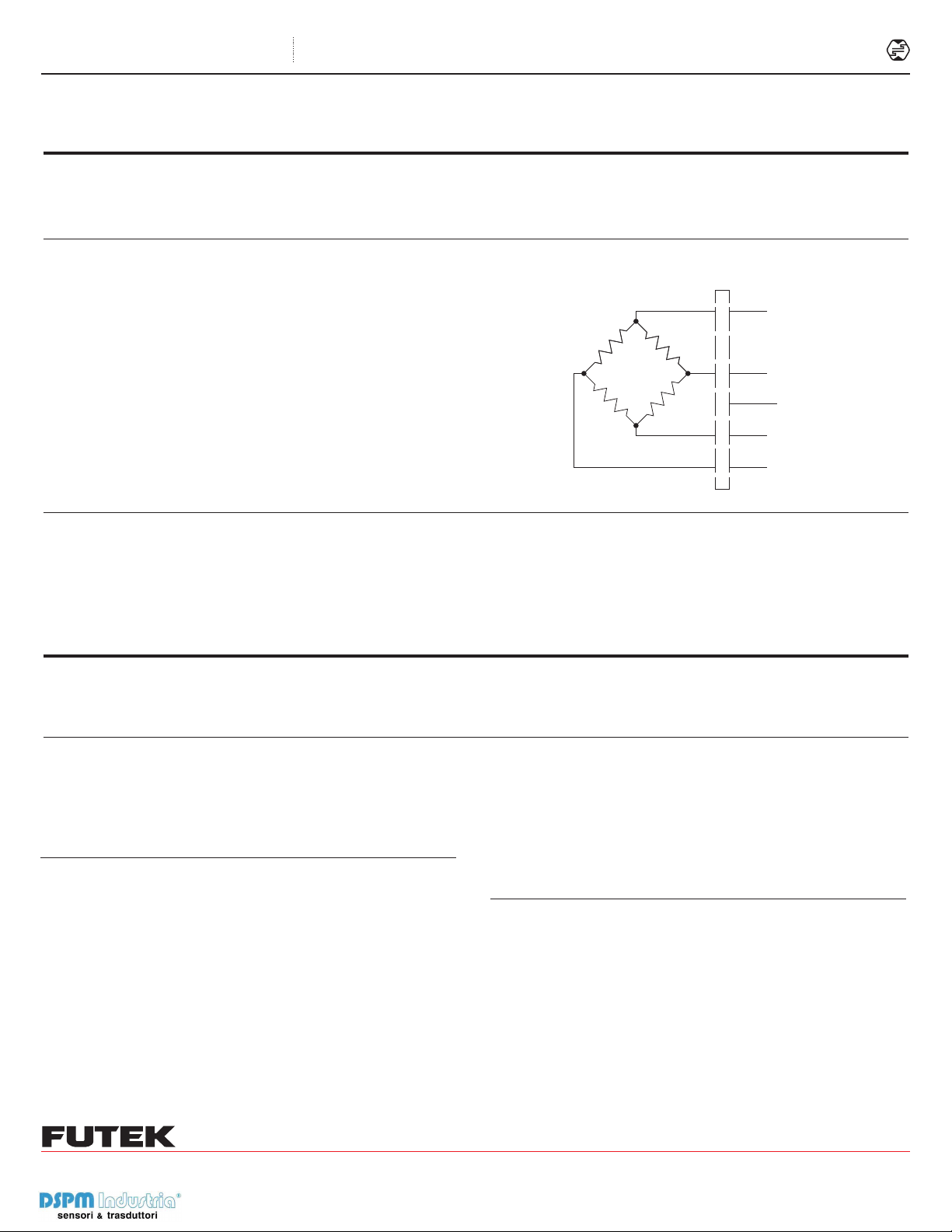

Is the sensor wired properly?
Make sure the power is applied between red and black, and the signal is
measured between green and white.
WC1: Standard 4-Wire
ZERO SHIFT
NO OUTPUT
If the zero has an offset before applying any load, check the following points to troubleshoot the sensor.
Is there any sign of damage to the cable?
Any damage to the cable can lead to discontinuity in the wire. Carefully check the cable
to make sure no damage has been done. If the cable will experience continuous flexing,
please consider a cable bend radius at least 10x the cable diameter for bend relief.
Examples of possible ways the cable can be damaged are listed here:
• Cuts/nicks
• Sharp bends
• Excessive twisting
• Too much tension
• Crushed under weight
Is the load cell mounted upside down?
The load cell has been calibrated in its optimal direction and has
taken into account the measurement end. Reference the label when
mounting the sensor. (see installation guide)
Does the sensor respond to a shunt?
A load can be simulated on the sensor through the use of an
external resistor connected on the –Signal and –Excitation wires.
Shunting can provide for a way to test a sensor’s functionality. Note
that a shunt is performed with no load on the sensor. You can find a
Shunt calculator online at http://www.futek.com/shuntcalc.aspx.
Is the sensor preloaded in either direction?
Having a preload, such as a fixture weight, on the sensor will create
an offset in the zero. This will reduce the load that can be applied. o
Ex. If a 10 lb sensor is mounted with 2 lb fixtures, the remaining
weight that can be applied is 8 lbs. Even if the instrument is tared to
zero, the sensor cannot take more than a 10 lb load.
Does the bridge need to be rebalanced?
The zero balance calculator can be used to compensate for this high
zero by selecting a resistor to be used as a zero shunt. http://www.
futek.com/zerocalc.aspx
TROUBLESHOOTING GUIDE
Bridge Sensor
XXXΩ
+ Excitation (Red)
Shield (Floating)
+ Signal (Green/Yellow)
– Signal (White)
– Excitation (Black/Blue)
Via Paolo Uccello 4 - 20148 Milano
INCORRECT OUTPUT
If the output of the sensor is incorrect when applying a known load, check the following points to troubleshoot the sensor.
Is there any sign of damage to the load cell?
Any damage to the load cell can lead to an incorrect output or even
no output at all. Carefully check the load cell to make sure no
damage has been done. Examples of possible ways the load cell
can be damaged are listed here:
• Overloading • Fractures • Collapsed
Is the cover making contact with the load cell?
If the cover is touching the active end of the load cell, it could affect
the accuracy of the output. The active end of the load cell is defined
as the end where the load is applied, or the top in reference to the
label (see installation guide). Make sure the cover is not pinched in
or making any contact with the inside of the load cell.
Is the sensor hot?
An excessively high excitation voltage will heat up the sensor. This
may damage the sensor’s bridge. Check the excitation voltage to
make sure it is set properly.
Is the bridge resistance correct?
Check the resistance between +E and –E to make sure it is correct
compared to the value on the infosheet. http://www.futek.com/
files/pdf/Product%20Drawings/lsb200.pdf
Have any of the settings on the instrument changed?
Check the instrument that the load cell is connected to, to make
sure the settings have been set correctly and nothing has been
changed unintentionally.
Has there been any power surge to the instrument?
A power surge to the instrument may damage it leading to incorrect
readings of the signal from the load cell.
Has the load cell been subjected to any type of water or spray?
If the load cell has been in contact with any conductive fluids, the
bridge may be subject to short circuiting. Make sure to work in a dry
environment to prevent short circuiting.
Is the load cell in a dusty or harsh environment?
If the load cell is being used in dirty or harsh environments, there
could be residual build up on the load cell or in the overload
protection cutout that may prevent the load cell from being loaded
properly. Keep the load cell in a clean environment for optimal
performance.
Has the load cell been subjected to a high change
in temperature?
The LSB200 has a temp. shift zero of ±0.01% of R.O./°F, and a
temp. shift span of ±0.02% of Load/°F. If the temperature in the
testing environment has a high fluctuation, this may lead to unstable
readings. To get stable readings, keep the load cell in an environ-
ment with a steady temperature.
Is the load cell properly aligned/mounted to the fixture?
Misaligning the load cell can cause an off center load. For accurate
readings, make sure the load cell is properly mounted.
Has the sensor been damaged during installation or handling?
Make sure to follow the installation guide to prevent any damage to
the sensor. Also make sure to handle the sensor with care. The lower
the capacity, the more susceptible the sensor is to being damaged.
ADVANCED SENSOR TECHNOLOGY, INC.
FUTEK
ADVANCED SENSOR TECHNOLOGY, INC. LSB200 MANUAL
www.futek.com10 Thomas, Irvine, CA 92618 USA · (949) 465-0900
EM1007 · 5
TROUBLESHOOTING GUIDE
Via Paolo Uccello 4 - 20148 Milano
ADVANCED SENSOR TECHNOLOGY, INC.
FUTEK
ADVANCED SENSOR TECHNOLOGY, INC. LSB200 MANUAL
www.futek.com10 Thomas, Irvine, CA 92618 USA · (949) 465-0900
EM1007 · 6
INCORRECT OUTPUT
If the output of the sensor is incorrect when applying a known load, check the following points to troubleshoot the sensor.
Has the wiring and power to the sensor been confirmed?
Check to ensure the sensor wiring pattern from page 4 has been
observed and that power is on to the sensor. It can be helpful to
confirm the power supply to the sensor with an instrument such as a
multi-meter.
Has the sensor been tested outside of the application
on its own?
A lot of items can be eliminated in the troubleshooting by
completely removing the sensor from the application, and fixtures,
and test the sensor on its own with an instrument such as a
multi-meter. The output is specified with a mV/V rating found on
the sensor’s calibration certificate. This means the output of the
load cell at full capacity will be the sensor’s mV/V rating for every
volt supplied to the sensor. Here expect to see a linear output
range from about zero millivolts to your full mV output as the sensor
is loaded from zero to full capacity.
TROUBLESHOOTING GUIDE
Via Paolo Uccello 4 - 20148 Milano
