NETWORK SOUNDER

DFF3

OPERATOR'S MANUAL

www.furuno.co.jp

MODEL

IMPORTANT NOTICES

• The descriptions in this manual are intended for readers with a solid knowledge of English.

• No part of this manual may be copied or reproduced without written permission.

• If this manual is lost or worn, contact your dealer about replacement.

• The contents of this manual and equipment specifications are subject to change without notice.

• Store this manual in a convenient place for future reference.

• FURUNO will assume no responsibility for the damage caused by improper use ormodification

of the equipment (including software) by an unauthorized agent or a third party.

• When it is time to discard this product it mustbe done according to local regulations for disposal

of industrial waste. For disposal in the USA, refer to the Electronics Industries Alliance (http://

www.eiae.org/).

SAFETY INSTRUCTIONS

Do not operate the equipment with

wet hands.

Electrical shock can result.

Do not place liquid-filled containers

on the top of the equipment.

Electrical shock can result.

Do not install the equipment where

it may be subjected to rain or water

splash.

Fire or electrical shock can result if water

gets inside the equipment.

Use the proper fuse.

Use of a wrong fuse can damage the

equipment and may cause fire.

WARNING

Indicates a potentially hazardous situation which, if not avoided,

could result in death or serious injury.

CAUTION

Indicates a potentially hazardous situation which, if not avoided,

may result in minor or moderate injury.

Warning, Caution

Mandatory Action

Prohibitive Action

The user and installer must read the appropriate safety instructions before attempting to install

or operate the equipment.

WARNING

Do not open the equipment.

Only qualified personnel should work

inside the equipment.

Do not disassemble or modify the

equipment.

Fire, electrical shock or serious injury can

result.

Turn off the power immediately if the

equipment is emitting smoke or fire.

Fire or electrical shock can result if the

power is left on.

Turn off the power immediately if water

leaks into the equipment or an object

is dropped inside the equipment.

Continued use can cause fire or electrical

shock.

Turn off the power immediately if you

feel the equipment is acting abnormally.

If the equipment is hot to the touch or is

emitting strange noises, turn off the power

immediately and contact your dealer for

advice.

WARNING

Safety instructions for the operator

WARNING

To avoid electrical shock,

do not remove cover. No

user-serviceable parts

Name: Warning Label (1)

Type: 86-003-1011-3

Code No.: 100-236-233-10

A warning label is attached to the equipment.

Do not remove this label. If the label is missing

or illegible, contact a FURUNO agent or dealer

about replacement.

SAFETY INSTRUCTIONS

iii

Standard

compass Steering

compass

0.95 m 0.60 m

CAUTION

The transducer cable must be handled

carefully, following the guidelines

below.

• Keep fuels and oils away from the

cable.

• Locate the cable away from chemicals.

• Locate the cable away from locations

where it might be damaged.

Do not apply the power with the

transducer exposed to air.

Damage to the transducer may result.

Observe the following compass safe

distances to prevent interference to a

magnetic compass:

WARNING

Do not open the equipment.

Only qualified personnel should work

inside the equipment.

Turn off the power before beginning

the installation.

Fire or electrical shock can result if the

power is left on.

Be sure no water leaks at the transducer

and temperature sensor.

Water leakage can sink the vessel. Also,

confirm that neither the transducer or

sensor will loosen by vibration. The

installer is solely responsible for the

installation.

Confirm that the power supply voltage

is within the rating of this equipment.

Incorrect voltage will damage the equip-

ment and may cause fire.

Safety instructions for the installer

TABLE OF CONTENTS

FOREWORD....................................................................................................................v

SYSTEM CONFIGURATION ..........................................................................................vi

1. MOUNTING...............................................................................................................1

1.1 Equipment Lists.............................................................................................................1

1.2 Network Sounder ..........................................................................................................8

1.3 Transducer....................................................................................................................9

1.4 Optional Speed/Temperature Sensors ST-02MSB, ST-02PSB....................................9

1.4.1 Mounting considerations........................................................................................9

1.4.2 Mounting procedure...............................................................................................9

1.5 Optional Temperature Sensors...................................................................................10

1.5.1 Transom mount temperature sensor T-02MTB ...................................................10

1.5.2 Thru-hull temperature sensor T-02MSB, T-03MSB............................................. 11

2. WIRING ...................................................................................................................12

2.1 Wiring Outline..............................................................................................................12

2.2 Transducer Cable........................................................................................................13

3. INITIAL SETTINGS.................................................................................................15

3.1 Tap Setting..................................................................................................................15

3.2 DIP Switch Setting ...................................................................................................... 16

3.3 Operation Check ......................................................................................................... 18

4. MAINTENANCE......................................................................................................19

4.1 Maintenance................................................................................................................19

4.2 Replacing the Fuse.....................................................................................................20

4.3 Restoring Default Settings ..........................................................................................20

FOREWORD

A Word to the Owner of the DFF3

Congratulations on your choice of the FURUNO DFF3 Network Sounder. We are confident you

will see why the FURUNO name has become synonymous with quality and reliability.

For 60 years FURUNO Electric Company has enjoyed an enviable reputation for quality marine

electronics equipment. This dedication to excellence is furthered by our extensive global network

of agents and dealers.

This equipment is designed and constructed to meet the rigorous demands of the marine environ-

ment. However, no machine can perform its intended function unless operated and maintained

properly. Please carefully read and follow the recommended procedures for operation and main-

tenance.

Thank you for considering and purchasing FURUNO.

Features

The DFF3 network sounder is a dual frequency echo sounderdesigned for use with the FURUNO

NavNet/NavNet vx2/NavNet 3D series. The DFF3 feeds data about underwater conditions via a

LAN.

A few of the features are

• FURUNO Free Synthesizer (FFS) transceiver design allows use of user-selectable operating

frequencies (28 - 200 kHz).

• Automatic operation selects correct range and gain to show fish echoes and bottom in both

shallow and deep waters.

• Improved discrimination of near-surface fish by eliminating the transmission line.

• Heaving compensation* stabilizes the picture against ship’s pitching and rolling.

* Requires NavNet 3D display device and Satellite Compass SC-30, heading data fed in NMEA

2000®format.

• ACCU-FISH®feature estimates length and depth of individual fish.

(Transducer 50/200-1T only for use with NavNet 3D.)

• 1/2/3 kW output

Note: The terms “NavNet” and “Navnet 3D” refer to the models listed below.

Navnet/NavNet vx2 NavNet 3D

Model 17x2 Series, Model 17x2C Series,

Model 17x4 Series, Model 17x4C Series,

GD-1720, GD-1720C,

Model 18x3C(-BB) Series, Model 18x4C(-BB) Series,

Model 19x3C(-BB) Series, Model 19x4C(-BB) Series,

GD-1900C(-BB), GD-1920C(-BB)

MFDBB, MFD8, MFD12

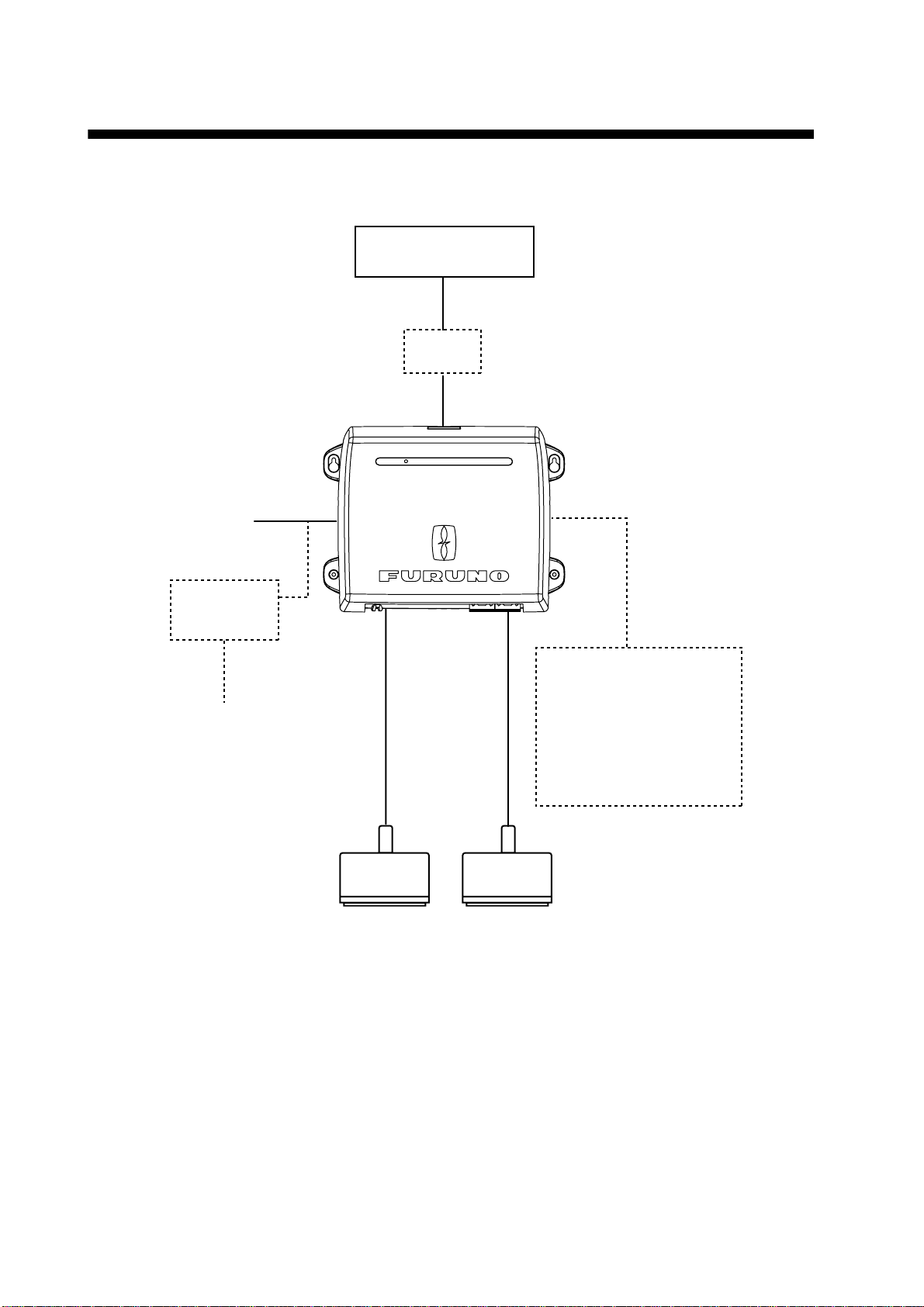

SYSTEM CONFIGURATION

Basic configuration shown with solid line.

100/110/115/

220/230 VAC

φ,

50/60 Hz

Network Sounder

DFF3

12-24 VDC

Low

Freq.

Transducer

High

Freq.

Transducer

Rectifier

PR-62

Speed/Temperature Sensor

ST-02MSB

ST-02PSB

Temperature Sensor

T-02MTB

T-02MSB

T-03MSB

DFF3

NETWORK SOUNDER

ST-BY

* HUB-100 (For NavNet)

HUB-101 (For NavNet 3D)

NavNet Series

NavNet 3D Series

HUB*

1. MOUNTING

1.1 Equipment Lists

Standard supply

Optional supply

Name Type Code No. Qty Remarks

Network Sounder DFF3 —1

Spare Parts SP02-05601 001-033-740 1 set Fuse

Installation Materials CP02-08500 000-011-917 1 set - Power cable (3.5 m)

- LAN cable (5 m for NavNet3D)

- Self-tapping screws

Name Type Code No. Remarks

Transducer 1/2/3kW available. See

next page for choices. —

Thru-hull pipe —

Tank —

Cable Assembly MJ-A6SPF0017-010C 001-159-704-10 1 m, for NavNet

MJ-A6SPF0017-050C 001-159-705-10 5 m, for NavNet

MJ-A6SPF0017-100C 001-159-706-10 10 m, for NavNet

MJ-A6SPF0017-200C 001-159-707-11 20 m, for NavNet

MJ-A6SPF0017-300C 001-159-708-11 30 m, for NavNet

MOD-Z072-020+ 000-167-175-10 2 m, for NavNet 3D (HUB-101)

MOD-Z072-100+ 001-167-177-10 10 m, for NavNet 3D (HUB-101)

Speed/Temper-

ature

Sensor

ST-02MSB 000-137-986 Thru-hull mount, steel hull

ST-02PSB 000-137-987 Thru-hull mount, plastic hull

Temperature

Sensor T-02MTB 000-040-026 Transom mount

T-02MSB 000-040-040 Thru-hull mount

T-03MSB 000-040-027 Thru-hull mount

Rectifier PR-62 000-013-484 100 VAC

000-013-485 110 VAC

000-013-486 220 VAC

000-013-487 230 VAC

1. MOUNTING

Transducer, thru-hull pipe and tank combinations

Output

(W) Frequency

(kHz) Ship type Transducer Thru-hull

pipe Tank

1k/1k 28/50 Steel 28F-8

50B-9B TWB-6000(2) T-656

FRP - -

28/88 Steel 28F-8

88B-8 TWB-6000(2) T-657

FRP - -

50/88 Steel 50B-9B

88B-8 TWB-6000(2) T-658

FRP - -

50/200 Steel 50/200-1T or TFB-5000(1) T-603

FRP 50/200-1ST - T-603F

Steel 50/200-12M - -

FRP - -

1k/2k 28/200 Steel 28F-8

200B-8/8B TWB-6000(2) T-657

FRP - -

50/200 Steel 50B-9B

200B-8/8B TWB-6000(2) T-658

FRP - -

88/200 Steel 88B-8

200B-8/8B TWB-6000(2) T-659

FRP - -

1. MOUNTING

2k/2k 28/50 Steel 28F-18

50B-12 TFB-7000(2) T-634

FRP TRB-1100(2) T-634-F

28/82 Steel 28F-18

82B-35R TFB-7000(2) T-636

FRP TRB-1100(2) T-636-F

28/88 Steel 28F-18

88B-10 TFB-7000(2) T-636

FRP TRB-1100(2) T-636-F

28/200 Steel 28F-18

200B-8/8B TFB-7000(2) T-638

FRP TRB-1100(2) T-638-F

Steel 28BL-6HR

200B-8/8B TFB-7000(2) T-693

FRP TRB-1100(2) T-693-F

38/200 Steel 38BL-9HR

200B-8/8B TFB-7000(2) T-693

FRP TRB-1100(2) T-693-F

50/82 Steel 50B-12

82B-35R TFB-7000(2) T-643

FRP TRB-1100(2) T-643-F

50/88 Steel 50B-12

88B-10 TFB-7000(2) T-643

FRP TRB-1100(2) T-643-F

50/200 Steel 50B-12

200B-8/8B TFB-7000(2) T-645

FRP TRB-1100(2) T-645-F

Steel 50BL-12HR

200B-8/8B TFB-7000(2) T-693

FRP TRB-1100(2) T-693-F

Steel 50BL-12

200B-8/8B TFB-7000(2) T-693

FRP TRB-1100(2) T-693-F

82/200 Steel 82B-35R

200B-8/8B TFB-7000(2) T-649

FRP TRB-1100(2) T-649-F

88/200 Steel 88B-10

200B-8/8B TFB-7000(2) T-649

FRP TRB-1100(2) T-649-F

28/107 Steel 28F-18

100B-10R TFB-7000(2) T-636

FRP TRB-1100(2) T-636-F

Output

(W) Frequency

(kHz) Ship type Transducer Thru-hull

pipe Tank

Autres manuels pour Network Sounder DFF3

Table des matières

Autres manuels Furuno Équipement marin

Furuno

Furuno FCV-582L Manuel utilisateur

Furuno

Furuno TZT-3KP-F3D Manuel utilisateur

Furuno

Furuno FE-800 Manuel utilisateur

Furuno

Furuno FCV-292 Manuel utilisateur

Furuno

Furuno GP-1850WF Manuel utilisateur

Furuno

Furuno FCV-295 Manuel utilisateur

Furuno

Furuno FMD-3200 Manuel utilisateur

Furuno

Furuno Multi Instrument FI-504 Manuel utilisateur

Furuno

Furuno FI-301 Manuel utilisateur

Furuno

Furuno SC-33 Manuel utilisateur

Furuno

Furuno MD-550 Manuel utilisateur

Furuno

Furuno PG500R Manuel utilisateur

Furuno

Furuno Color LCD Sounder FCV-620/585 Manuel utilisateur

Furuno

Furuno DFF1 Manuel utilisateur

Furuno

Furuno ETR-30N Manuel utilisateur

Furuno

Furuno DSC-6A Manuel utilisateur

Furuno

Furuno GP-1650DF Manuel utilisateur

Furuno

Furuno FELCOM 82A Series Manuel utilisateur

Furuno

Furuno FCV-1500 Manuel utilisateur

Furuno

Furuno FCV-1150 Manuel utilisateur

Furuno

Furuno IF-7000 Manuel utilisateur

Furuno

Furuno FW-200 Manuel utilisateur

Furuno

Furuno FCV-1200L Manuel utilisateur

Furuno

Furuno FSV-25 MARK-2 Manuel utilisateur

Manuels Équipement marin populaires d'autres marques

Clarion

Clarion CMS2 Manuel de réparation

EBS

EBS M7000 Manuel utilisateur

Kongsberg

Kongsberg M3 Bathy Manuel utilisateur

NPK

NPK SCS-1002 Manuel utilisateur

Harken

Harken 1561 Manuel utilisateur

Simrad

Simrad DD15 Manuel utilisateur

Notifier

Notifier FS-BSO Manuel utilisateur

Raymarine

Raymarine ST40 Manuel utilisateur

E2S

E2S E2XS112UL Manuel utilisateur

R2Sonic

R2Sonic 2026 Manuel utilisateur

COBHAM

COBHAM SAILOR 6000 Manuel utilisateur

Clarion

Clarion GR10BT Manuel de réparation

Raymarine

Raymarine Maxiview ST80 Guide de l'utilisateur

GUIDANCE MARINE

GUIDANCE MARINE 20- Series Instructions de montage

Raymarine

Raymarine ST60 Tridata Guide de l'utilisateur

olympia electronics

olympia electronics ΒS-531/1/MAR Manuel utilisateur

Sonic

Sonic 2024 Manuel utilisateur

Quicksilver

Quicksilver 88688A25 Manuel
