Furuno GP-320B Manuel utilisateur

GPS RECEIVER

GP-320B

SAFETY INSTRUCTIONS

Confirm that the power supply voltage

is compatible with the voltage rating

of the equipment.

Connection to the wrong power supply can

cause fire or damage the equipment.

CAUTION NOTICE

No one navigation device should ever

be solely relied upon for the navigation

of a vessel.

Always confirm position against all

available aids to navigation, for safety of

vessel and crew.

TABLE OF CONTENTS

SYSTEM OVERVIEW........................................................................................... iii

EQUIPMENT LISTS .............................................................................................. v

1. MOUNTING ....................................................................................................... 1

2. WIRING ............................................................................................................. 2

3. DEFAULT SETTINGS ....................................................................................... 6

4. TROUBLESHOOTING, BATTERY ................................................................... 7

SPECIFICATIONS........................................................................................... SP-1

PACKING LIST

OUTLINE DRAWING

Declaration of Conformity

iii

SYSTEM OVERVIEW

The GP-320B is a GPS receiver with WAAS (Wide Area Augmentation System) capability.

WAAS, available in North America, is a provider in the worldwide SBAS (Satellite Based

Augmentation System) navigation system. An SBAS provider furnishes GPS signal

corrections to SBAS users, for even better position accuracy, typically better than three

meters. Two more SBAS providers are also currently under development, MSAS

(Multi-Functional Satellite Augmentation System) for Japan and EGNOS (Euro

Geostationary Navigation Overlay Service) for Europe. All providers will be compatible with

one another, thus providing “seamless” position fixes to SBAS users.

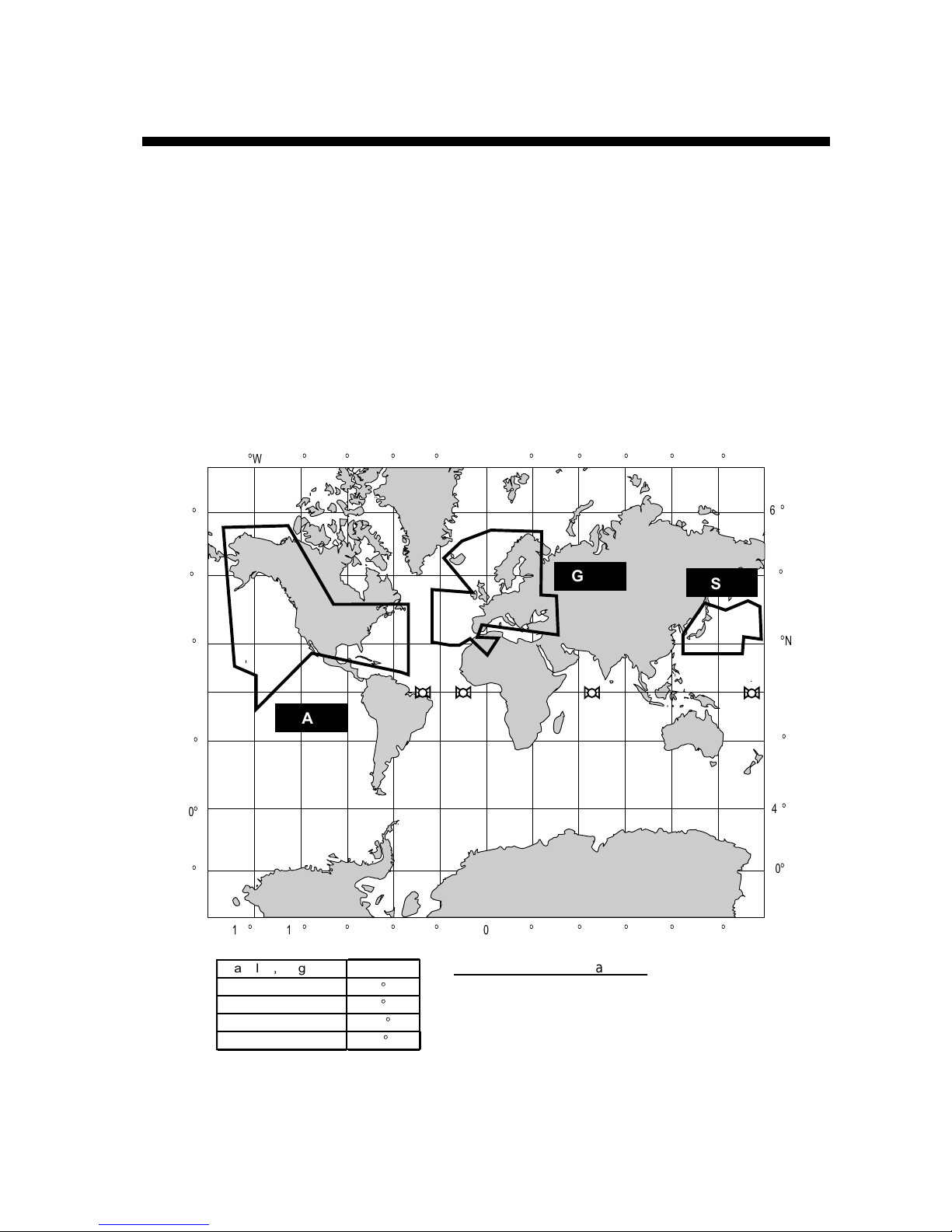

SBAS is currently in the developmental phase and SBAS providers are expected to have

initial operations capability from the times shown below. During the developmental phase

the reliability and availability of the SBAS signal cannot be guaranteed.

150

W 120

W 90

W 60

W 30

W 0 30

E 60

E 90

E 120

E 150

150

W 120

W 90

W 60

W 30

W 0 30

E 60

E 90

E 120

E 150

WAAS

EGNOS MSAS

Satellite, Region Position

120, AOR-E

15.5

122, AOR-W

131, IOR

64.5

134, POR

131 134

122 120

Expected operations capability

WAAS: 2003

EGNOS: 2004

MSAS: 2005

Note: Unless otherwise noted, this manual uses “WAAS” when referring to any SBAS

provider.

Other Equipment*

JUNCTION BOX

GD-XXXX

GR-80

Ship's Mains (12-24 VDC)

Multi Display RD-30*

Echo Sounder LS-6100

NavNet Series

Model 1722C Model 1833C

Model 1722 Model 1933C

Model 1732C Model 1943C

Model 1732 Model 1833

Model 1742C Model 1933

Model 1742 Model 1943

Model 1752C Model 1953C

Model 1752 GD-1900C

Model 1762C GD-1700C

Model 1762 GD-1700

* = WAAS is inoperative.

EQUIPMENT LISTS

Standard supply

Name Type Code No. Qty Remarks

GPS Receiver GP-320B 1 With 10 m cable

Optional equipment

Name Type Code No. Qty Remarks

Cable Assembly MJ-A7SPF/SRMD-100 000-144-534 1 7P-7P, straight,

10 m

Mast Mounting Kit CP20-01111 004-365-780 1

Right Angle

Antenna Base NO.13-QA330 000-803-239 1

L-angle Antenna

Base NO.13-QA310 000-803-240 1

Handrail-mount

Antenna Base NO.13-RC5160 000-806-114 1

(This page intentionally left blank.)

1. MOUNTING

Mounting considerations

Follow the guidelines below to choose a suitable mounting location for the antenna unit.

•

The antenna may be mounted three ways: screwed into a pipe (local supply), fixed to a

post with the optional mast mounting kit, or screwed into an optional mounting base. For

fixing by the post or pipe, it is recommended to use stays to prevent damage to the GPS

receiver.

•

Select a location out of the radar beam. The radar beam will obstruct or prevent

reception of the GPS signal.

•

The location should be well away from a VHF antenna. A GPS receiver is interfered by a

harmonic wave of a VHF antenna.

•

The location should be well away from an Inmarsat antenna. Inmarsat transmission will

obstruct or prevent reception of the GPS signal.

•

There should be no interfering object within the line-of-sight to the satellites. Objects

within line-of-sight to a satellite, for example, a mast, may block reception or prolong

acquisition time.

•

Mount the antenna unit as high as possible to keep it free of interfering objects and

water spray, which can obstruct reception of the GPS signal if the water freezes.

•

Observe the following minimum separation distances from other antenna units.

1.5 m

MAIN MAST

TX ANTENNA(MF/HF)

NOT WITHIN RADAR BEAM

* = DISTANCE DEPENDS ON MAST DIAMETER OF ’a’.

4 m

1 m1 m

3 m

INMARSAT ANTENNA

LOOP ANTENNA

RX WHIP ANTENNA

5 m NOT WITHIN INMARSAT BEAM

0.5 m

WHIP ANTENNA(VHF/UHF) WHIP ANTENNA(MF/HF)

GPS ANTENNA

DIA. OF ’a’ DISTANCE (MIN.)

3 m

1.5 m

10 cm

30 cm

Mounting procedure

Install the antenna unit by referring to the installation diagram on page D-1.

2. WIRING

This unit outputs position and speed to external equipment. NavNet equipment, Multi

Display RD-30 and Echo Sounder LS-6100 can be connected directly. For connection to

other equipment, use a junction box (local supply) which has seven terminals.

The antenna cable is 10 meters long. If the distance between the antenna unit and the

display monitor is more than 10 meters, use the optional cable assy. (10 m). Up to four

extension cables can be connected serially.

Connecting to FURUNO NavNet equipment

Connect the antenna cable to the DATA1 port on NavNet equipment.

Total length: Max. 50 m

Cable assy. (option)

MJ-A7SPF/SRMD-100

10 m (max. 4)

Antenna Cable

10 m

DATA 1 port

NavNet

Waterproofing connectors

If you use the cable assy.(s), waterproof their connectors by wrapping them with vulcanizing

tape and then vinyl tape. Bind tape ends with suitable cable-ties.
