Fujitsu PRIMERGY SX910 S1 Manuel utilisateur

Operating Manual - English

PRIMERGY SX910 S1 Storage Blade

Operating Manual

Edition March 2011

Comments…Suggestions…Corrections…

The User Documentation Department would like to

know your opinion of this manual. Your feedback helps

us optimize our documentation to suit your individual

needs.

Feel free to send us your comments by e-mail to

email: [email protected].

Certified documentation

according to DIN EN ISO 9001:2008

To ensure a consistently high quality standard and

user-friendliness, this documentation was created to

meet the regulations of a quality management system

which complies with the requirements of the standard

DIN EN ISO 9001:2008.

cognitas. Gesellschaft für Technik-Dokumentation mbH

www.cognitas.de

Delivery subject to availability; right of technical modifications reserved.

All hardware and software names used are trade names and/or trademarks of their respective

manufacturers.

– The contents of this manual may be revised without prior notice.

– Fujitsu assumes no liability for damages to third party copyrights or other rights arising from

the use of any information in this manual.

– No part of this manual may be reproduced in any form without the prior written permission

of Fujitsu.

Microsoft, Windows, Windows Server, and Hyper V are trademarks or registered trademarks of

Microsoft Corporation in the USA and other countries.

Intel and Xeon are trademarks or registered trademarks of Intel Corporation or its subsidiaries

in the USA and other countries.

SX910 S1 Operating Manual

Before reading this manual

For your safety

This manual contains important information for safely and correctly using this

product.

Carefully read the manual before using this product. Pay particular attention to

the accompanying manual "Safety Notes and Regulations" and ensure these

safety notes are understood before using the product. Keep this manual and the

manual "Safety Notes and Regulations" in a safe place for easy reference while

using this product.

Radio interference

This product is a "Class A" ITE (Information Technology Equipment). In a

domestic environment this product may cause radio interference, in which case

the user may be required to take appropriate measures. VCCI-A

Aluminum electrolytic capacitors

The aluminum electrolytic capacitors used in the product's printed circuit board

assemblies and in the mouse and keyboard are limited-life components. Use of

these components beyond their operating life may result in electrolyte leakage

or depletion, potentially causing emission of foul odor or smoke.

As a guideline, in a normal office environment (25°C) operating life is not

expected to be reached within the maintenance support period (5 years).

However, operating life may be reached more quickly if, for example, the product

is used in a hot environment. The customer shall bear the cost of replacing

replaceable components which have exceeded their operating life. Note that

these are only guidelines, and do not constitute a guarantee of trouble-free

operation during the maintenance support period.

High safety use

This product has been designed and manufactured for general uses such as

general office use, personal use, domestic use and normal industrial use. It has

not been designed or manufactured for uses which demand an extremely high

level of safety and carry a direct and serious risk to life or body if such safety

cannot be ensured.

Operating Manual SX910 S1

These uses include control of nuclear reactions in nuclear power plants,

automatic airplane flight control, air traffic control, traffic control in mass

transport systems, medical devices for life support, and missile guidance control

in weapons systems (hereafter, "high safety use"). Customers should not use

this product for high safety use unless measures are in place for ensuring the

level of safety demanded of such use. Please consult the sales staff of Fujitsu if

intending to use this product for high safety use.

Measures against momentary voltage drop

This product may be affected by a momentary voltage drop in the power supply

caused by lightning. To prevent a momentary voltage drop, use of an AC

uninterruptible power supply is recommended.

(This notice follows the guidelines of Voltage Dip Immunity of Personal

Computer issued by JEITA, the Japan Electronics and Information Technology

Industries Association.)

Technology controlled by the Foreign Exchange and Foreign Trade

Control Law of Japan

Documents produced by Fujitsu may contain technology controlled by the

Foreign Exchange and Foreign Trade Control Law of Japan. Documents which

contain such technology should not be exported from Japan or transferred to

non-residents of Japan without first obtaining authorization in accordance with

the above law.

Harmonic Current Standards

This product conforms to harmonic current standard JIS C 61000-3-2.

Only for the Japanese market:

About SATA hard disk drives

The SATA version of this server supports hard disk drives with SATA / BC-SATA

storage interfaces. Please note that the usage and operation conditions differ

depending on the type of hard disk drive used.

Please refer to the following internet address for further information on the

usage and operation conditions of each available type of hard disk drive:

http://primeserver.fujitsu.com/primergy/harddisk/

SX910 S1 Operating Manual

Only for the Japanese market:

IAlthough described in this manual, some sections do not apply to the

Japanese market. These options and routines include:

– USB Flash Module (UFM)

– CSS (Customer Self Service)

– Replacing the lithium battery

Operating Manual SX910 S1

SX910 S1 Operating Manual

Contents

1 Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

1.1 Concept and target groups for this manual . . . . . . . . . 10

1.2 Documentation overview . . . . . . . . . . . . . . . . . . . 10

1.3 Performance features . . . . . . . . . . . . . . . . . . . . . 11

1.4 Notational conventions . . . . . . . . . . . . . . . . . . . . 12

1.5 Technical data . . . . . . . . . . . . . . . . . . . . . . . . . 13

2 Important notes . . . . . . . . . . . . . . . . . . . . . . . . . 15

2.1 Safety instructions . . . . . . . . . . . . . . . . . . . . . . . 15

2.2 Electrostatic sensitive device label . . . . . . . . . . . . . . 17

2.3 CE conformity . . . . . . . . . . . . . . . . . . . . . . . . . 18

2.4 FCC Class A Compliance Statement . . . . . . . . . . . . . 18

2.5 RFI suppression . . . . . . . . . . . . . . . . . . . . . . . . 19

2.6 Notes on transportation . . . . . . . . . . . . . . . . . . . . 19

2.7 Environmental protection . . . . . . . . . . . . . . . . . . . 20

3 Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

3.1 Installation procedure . . . . . . . . . . . . . . . . . . . . . 24

3.2 Unpacking a Storage Blade . . . . . . . . . . . . . . . . . . 24

3.3 Installing/removing a Storage Blade . . . . . . . . . . . . . 25

3.3.1 Installing/removing in a PRIMERGY BX900 S1 . . . . . . . . . 25

3.3.2 Installing/removing in a PRIMERGY BX400 S1 . . . . . . . . . 30

4 Installation and operation . . . . . . . . . . . . . . . . . . . 37

4.1 Control and display elements . . . . . . . . . . . . . . . . . 37

4.1.1 Indicators on the Storage Blade . . . . . . . . . . . . . . . . . 37

4.1.2 Controls and indicators on the tape drive . . . . . . . . . . . . 39

Operating Manual SX910 S1

Contents

4.2 Putting the Storage Blade into operation . . . . . . . . . . . 41

5 Troubleshooting and tips . . . . . . . . . . . . . . . . . . . . 43

Index . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45

SX910 S1 Operating Manual 9

1 Introduction

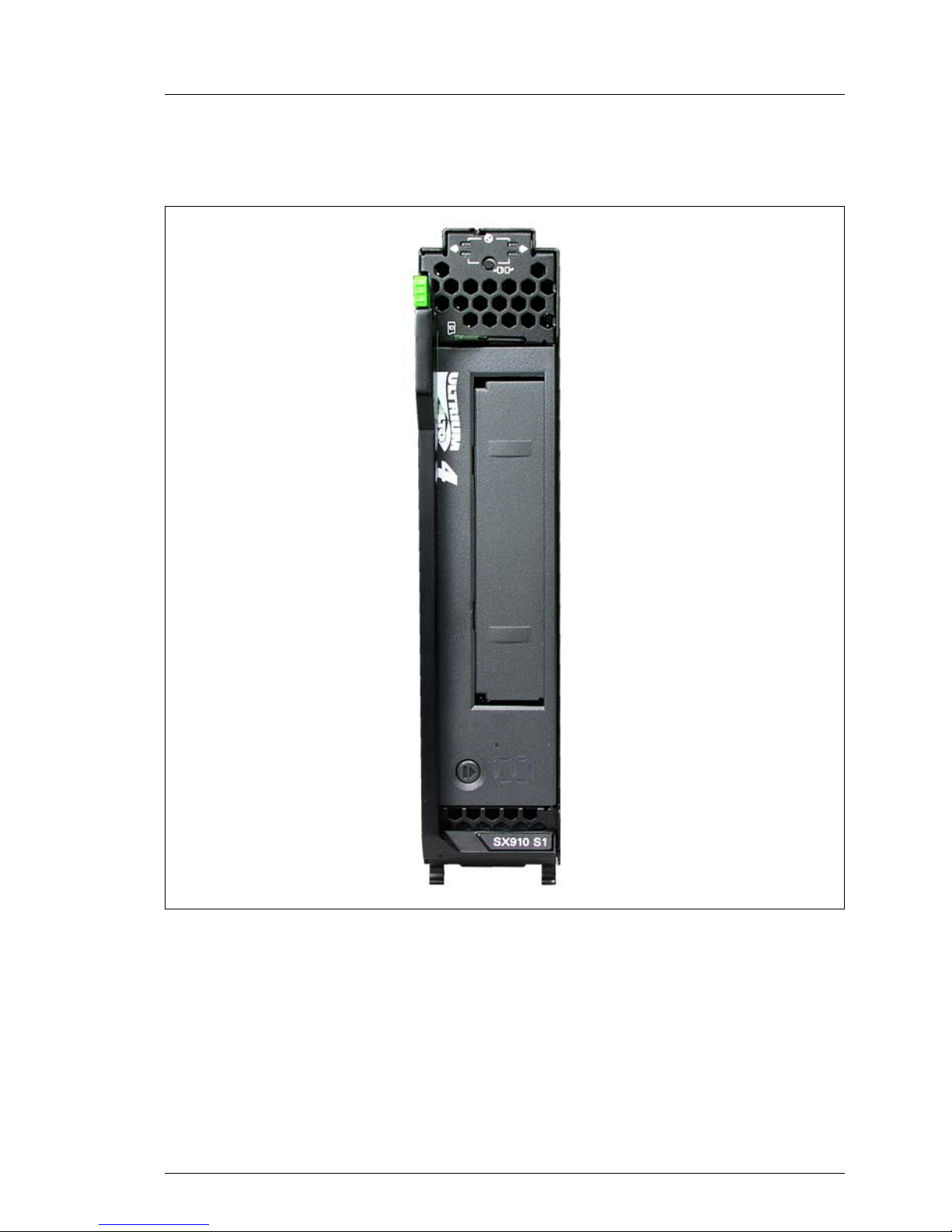

Figure 1: PRIMERGY SX910 S1 storage blade

The PRIMERGY SX910 S1 storage blade is used as a storage subsystem for

the PRIMERGY BX900 S1 blade server and the BX400 S1 blade server and

their successor models.

The PRIMERGY SX910 S1 storage blade allows an SAS tape drive to be

installed together with the corresponding controller and occupies one bay in the

PRIMERGY BX900 S1 and BX400 S1 system units.

10 Operating Manual SX910 S1

Concept and target groups for this manual Introduction

Up to six PRIMERGY SX910 S1 storage blades can be installed in the

BX900 S1 system unit. Up to four PRIMERGY SX910 S1 storage blades can be

installed in the BX400 S1 system unit.

1.1 Concept and target groups for this manual

This operating manual shows you how to install the storage blade in the basic

unit, how to start up the storage blade and how to operate it.

This operating manual is intended for those responsible for installing the

hardware and ensuring that the system runs smoothly. It contains all the

information you need to put your PRIMERGY SX910 S1 storage blade into

operation.

To understand the various expansion options, you will need to be familiar with

the fields of hardware and data transmission and you will require a basic

knowledge of the underlying operating system.

1.2 Documentation overview

More information on your PRIMERGY SX910 S1 storage blade can be found in

the following documents:

– "Safety notes and regulations" manual

"安全上のご注意 " for the Japanese market

– "Warranty" manual

"保証書 " for the Japanese market

– "Returning used devices" manual and "Service Desk" leaflet

"サポート＆サービス " for the Japanese market

– “LTO-3 Half-Height SAS Tape Drive” manual

"内蔵 LTO3 ユニット取扱説明書 “ for the Japanese market

– “LTO-4 Half-Height SAS Tape Drive” manual

"内蔵 LTO4 ユニット取扱説明書 “ for the Japanese market

– “LTO-5 Half-Height SAS Tape Drive” manual

"内蔵 LTO5 ユニット取扱説明書 “ for the Japanese market
