FUJITSU Storage

ETERNUS DX500 S3/DX600 S3

Disk storage system

Configuration Guide (Basic)

P3AM-7732-05ENZ0

This page is intentionally left blank.

Preface

Fujitsu would like to thank you for purchasing our FUJITSU Storage ETERNUS DX500 S3/DX600 S3 Disk storage

system (hereinafter referred to as ETERNUS DX).

The ETERNUS DX is designed to be connected to Fujitsu servers (Fujitsu M10, PRIMEQUEST, or PRIMERGY) or

non-Fujitsu servers.

This manual describes all the procedures that are required to start operation of the ETERNUS DX.

This manual is intended for use of the ETERNUS DX in regions other than Japan.

Please carefully review the information outlined in this manual.

Fifth Edition

December 2014

About This Manual

Organization

This manual is composed of the following nine chapters:

•"Chapter 1 Component Names" (page 18)

This chapter provides components names of the ETERNUS DX.

•"Chapter 2 Checking the Configuration Environment" (page 25)

This chapter describes the environment required for system configuration.

•"Chapter 3 General Settings" (page 33)

This chapter describes the basic settings for the ETERNUS DX.

•"Chapter 4 Monitoring Settings" (page 62)

This chapter describes the settings required to monitor the ETERNUS DX.

•"Chapter 5 Power Control Setup" (page 82)

This chapter describes the settings required for power control of the ETERNUS DX.

•"Chapter 6 SAN Connection Settings" (page 86)

This chapter describes the settings required to use the ETERNUS DX with a SAN connection.

•"Chapter 7 Advanced Copy Settings" (page 118)

This chapter describes the settings required to operate Advanced Copy.

•"Chapter 8 System Status Check" (page 129)

This chapter describes the status check for the ETERNUS DX after system configuration.

•"Chapter 9 Solution Configuration" (page 134)

This chapter describes storage solutions using the ETERNUS DX.

Registered Trademarks and Trademarks

•All SPARC trademarks are used under license from SPARC International, Inc. and are trademarks or regis-

tered trademarks of that company in the United States and other countries.

•UNIX is a registered trademark of The Open Group in the United States and other countries.

•Microsoft, Windows, Windows Server, and Internet Explorer are either registered trademarks or trademarks

of Microsoft Corporation in the United States and/or other countries.

FUJITSU Storage ETERNUS DX500 S3/DX600 S3 Disk storage system Configuration Guide (Basic)

P3AM-7732-05ENZ0

•Oracle and Java are registered trademarks of Oracle and/or its affiliates.

•HP-UX is a trademark of Hewlett-Packard Company in the U.S. and other countries.

•Mozilla, Firefox, and the Mozilla and Firefox logos are trademarks or registered trademarks of the Mozilla

Foundation in the United States and other countries.

•Red Hat is a registered trademark of Red Hat, Inc. in the U.S. and other countries.

•Linux is a registered trademark of Linus Torvalds.

•SUSE is a registered trademark of Novell, Inc. in the United States and other countries.

•IBM, AIX, and Tivoli are trademarks of International Business Machines Corporation, registered in many ju-

risdictions worldwide.

•VMware, VMware logos, Virtual SMP, and vMotion are either registered trademarks or trademarks of

VMware, Inc. in the U.S. and/or other countries.

•ARCserve® products and logos are registered trademarks of CA Technologies.

•The company names, product names and service names mentioned in this document are registered trade-

marks or trademarks of their respective companies.

•Microsoft product screen shot(s) reprinted with permission from Microsoft Corporation.

Naming Conventions

■Product Names

•The following abbreviations are used for Microsoft® Windows Server®.

Product name Abbreviation

Microsoft® Windows Server® 2003, Datacenter Edition Windows Server 2003

Microsoft® Windows Server® 2003, Enterprise Edition

Microsoft® Windows Server® 2003, Standard Edition

Microsoft® Windows Server® 2008 Datacenter

Microsoft® Windows Server® 2008 R2 Datacenter

Windows Server 2008

Microsoft® Windows Server® 2008 Enterprise

Microsoft® Windows Server® 2008 R2 Enterprise

Microsoft® Windows Server® 2008 Standard

Microsoft® Windows Server® 2008 R2 Standard

Microsoft® Windows Server® 2008 for Itanium-Based Systems

Microsoft® Windows Server® 2008 R2 for Itanium-Based Systems

Microsoft® Windows Server® 2008 HPC Edition

Microsoft® Windows Server® 2008 R2 HPC Edition

Microsoft® Windows Server® 2012 Datacenter

Microsoft® Windows Server® 2012 R2 Datacenter

Windows Server 2012

Microsoft® Windows Server® 2012 Standard

Microsoft® Windows Server® 2012 R2 Standard

Microsoft® Windows Server® 2012 Essentials

Microsoft® Windows Server® 2012 R2 Essentials

Preface

FUJITSU Storage ETERNUS DX500 S3/DX600 S3 Disk storage system Configuration Guide (Basic)

P3AM-7732-05ENZ0

•The following abbreviations are used for Red Hat Linux.

Product name Abbreviation

Red Hat Enterprise Linux 5 (for x86)

Red Hat Enterprise Linux 5 (for Intel64)

Red Hat Enterprise Linux 5

Red Hat Enterprise Linux 6 (for x86)

Red Hat Enterprise Linux 6 (for Intel64)

Red Hat Enterprise Linux 6

Red Hat Enterprise Linux 7 (for Intel 64) Red Hat Enterprise Linux 7

■Symbols Used in This Manual

The following symbol is used throughout this manual:

This indicates information for the user to note when using the ETERNUS DX. Please be

sure to read this information.

This indicates supplementary and reference information.

■Abbreviations Used in This Manual

•"ETERNUS DX500 S3" refers to the FUJITSU Storage ETERNUS DX500 S3 Disk storage system and "ETERNUS

DX600 S3" refers to the FUJITSU Storage ETERNUS DX600 S3 Disk storage system.

•"ETERNUS DX" refers to the ETERNUS DX500 S3 and ETERNUS DX600 S3 Disk storage systems.

•"CA" refers to a host interface module that is used in an ETERNUS DX to connect to a server.

•"Host Bus Adapter (HBA)" refers to the interface module that is normally used by the server to connect to

ETERNUS DX storage systems.

•Trademark symbols such as ™ and ® are omitted in this document.

Preface

FUJITSU Storage ETERNUS DX500 S3/DX600 S3 Disk storage system Configuration Guide (Basic)

P3AM-7732-05ENZ0

Warning Signs

Warning signs are shown throughout this manual in order to prevent injury to the user and/or material dam-

age. These signs are composed of a symbol and a message describing the recommended level of caution.

The following explains the symbol, its level of caution, and its meaning as used in this manual.

This symbol indicates the possibility of serious or fatal injury if the ETERNUS DX is not

used properly.

This symbol indicates the possibility of minor or moderate personal injury, as well as

damage to the ETERNUS DX and/or to other users and their property, if the ETERNUS DX

is not used properly.

This symbol indicates IMPORTANT information for the user to note when using the ETER-

NUS DX.

The following symbols are used to indicate the type of warnings or cautions being described.

Electric Shock

The triangle emphasizes the urgency of the WARNING and CAUTION contents. Inside

the triangle and above it are details concerning the symbol (e.g. Electrical Shock).

No Disassembly

The barred "Do Not..." circle warns against certain actions. The action which must be

avoided is both illustrated inside the barred circle and written above it (e.g. No Disas-

sembly).

Unplug

The black "Must Do..." circle indicates actions that must be taken. The required ac-

tion is both illustrated inside the black disk and written above it (e.g. Unplug).

Preface

FUJITSU Storage ETERNUS DX500 S3/DX600 S3 Disk storage system Configuration Guide (Basic)

P3AM-7732-05ENZ0

How Warnings are Presented in This Manual

A message is written beside the symbol indicating the caution level. This message is marked with a vertical

ribbon in the left margin, to distinguish this warning from ordinary descriptions.

A display example is shown here.

Warning level indicator

Warning type indicator

Warning details

•To avoid damaging the ETERNUS DX, pay attention to the following points

when cleaning the ETERNUS DX:

- Make sure to disconnect the power when cleaning.

- Be careful that no liquid seeps into the ETERNUS DX when using

cleaners, etc.

- Do not use alcohol or other solvents to clean the ETERNUS DX.

Warning layout ribbon

Example warning

CAUTION Do

Preface

FUJITSU Storage ETERNUS DX500 S3/DX600 S3 Disk storage system Configuration Guide (Basic)

P3AM-7732-05ENZ0

Warning Labels and Manufacturer's Labels

Warning labels, manufacturer's labels, and a device ID label are found in the ETERNUS DX, as shown in the

example below.

Never remove these labels from the equipment or allow them to become dirty.

ETERNUS DX500 S3/DX600 S3 (Controller Enclosures)

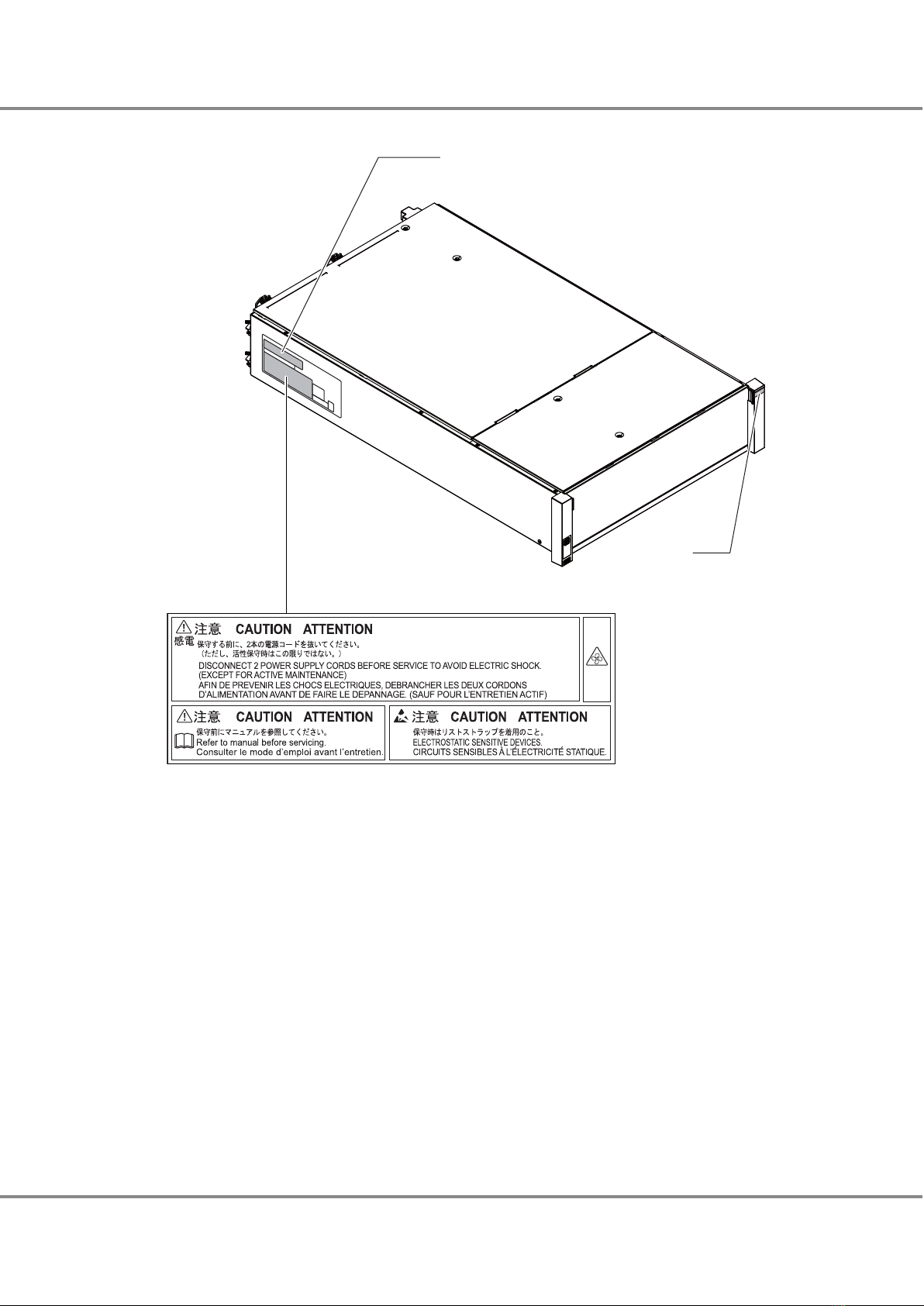

On the controller enclosure, warning labels and manufacturer's labels are attached to the rear or to the left

side.

•When warning labels and manufacturer's labels are attached to the rear

Device ID label

The model name and the serial number are listed.

Manufacturer's label

The model name and the serial number are listed.

This label can be viewed by pulling out the label plate

when the controller enclosure is installed in a rack.

This label is attached on the label plate, which is located on the left rear

side of the controller enclosure. This label can be viewed by pulling out

the label plate when the controller enclosure is installed in a rack.

Preface

FUJITSU Storage ETERNUS DX500 S3/DX600 S3 Disk storage system Configuration Guide (Basic)

P3AM-7732-05ENZ0

•When warning labels and manufacturer's labels are attached to the left side

Manufacturer's label

The model name and the serial number are listed.

Device ID label

The model name and

the serial number are listed.

Preface

FUJITSU Storage ETERNUS DX500 S3/DX600 S3 Disk storage system Configuration Guide (Basic)

P3AM-7732-05ENZ0

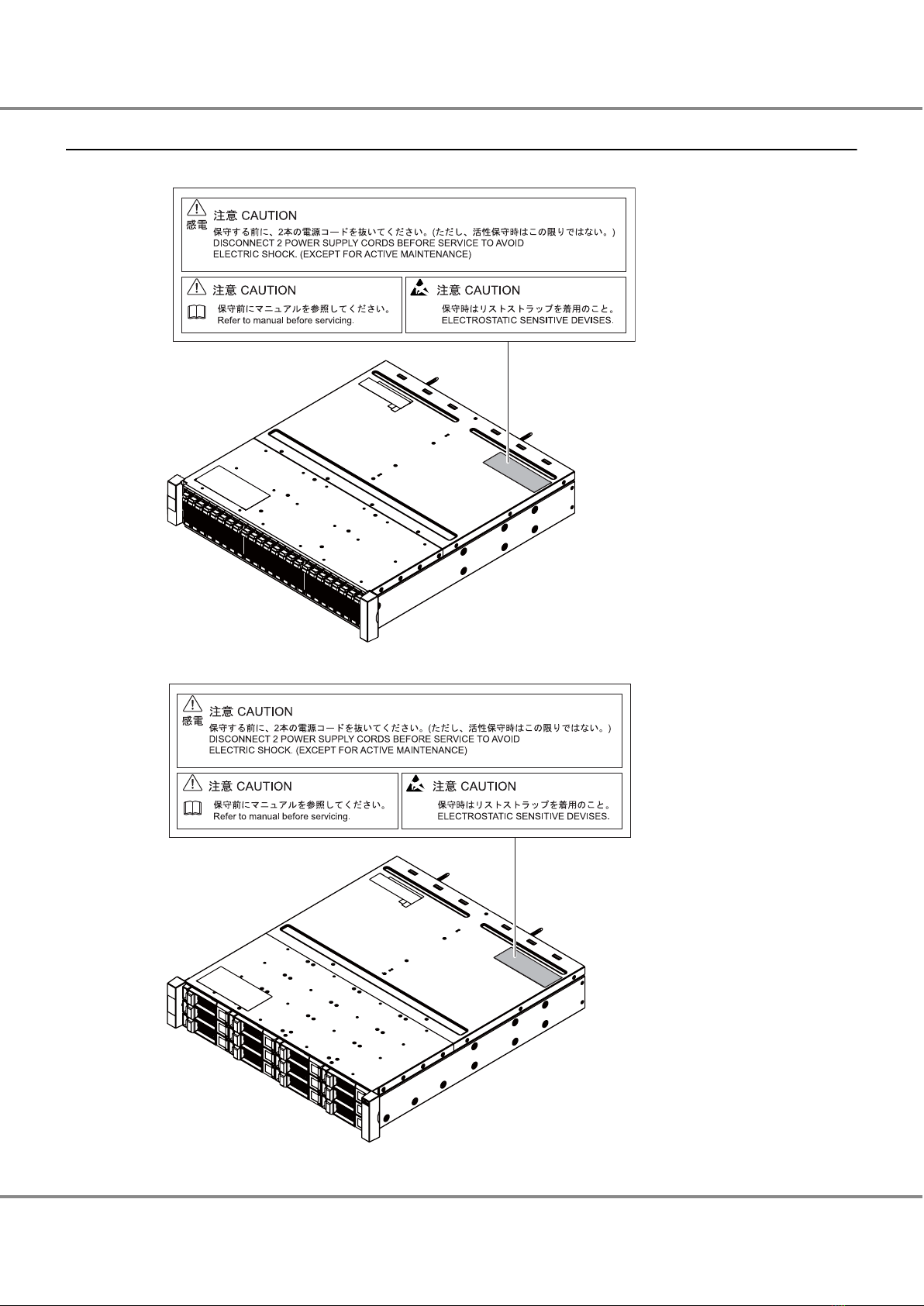

Drive Enclosures

•2.5" type drive enclosure

•3.5" type drive enclosure

Preface

FUJITSU Storage ETERNUS DX500 S3/DX600 S3 Disk storage system Configuration Guide (Basic)

P3AM-7732-05ENZ0
