Setup Guide

FUJITSU Storage

ETERNUS AF250 All-Flash Arrays

P3AG-1862-02ENZ0

An installation space and network environment must be prepared in advance.

Prepare the following manuals:

●Manuals for the ETERNUS AF250

●Related manuals, such as manuals for the server or the networking equipment that is used

Installation Space

Site Planning Guide

Network Environment

•Configuration Guide (Basic)

•Configuration Guide (Web GUI)

Preparation

STEP

Installation space

Check that the installation area meets the space requirements of the rack in which the ETERNUS AF250 (hereafter

referred to as "ETERNUS AF") is to be installed.

Environmental considerations for installation

Check if the installation area for the ETERNUS AF meets the environmental conditions and installation environment

conditions.

Power outlets

Check the type and the number of power outlets/sockets that are required to install the ETERNUS AF.

Completing and attaching the Network Settings label

Write down the IP address for the ETERNUS AF on the Network Settings label and attach it inside the rack.

Settings for the PC

●Set up the network environment

-IP address : 192.168.1.2

-Subnet mask : 255.255.255.0

●Set the Web browser

Refer to "Configuration Guide (Web GUI)" for details on the settings that are required.

FUJITSU Storage ETERNUS AF250 All-Flash Arrays Setup Guide

The rack rail needs to be attached to the rack and the controller enclosure or the drive enclosure needs to be

installed.

Installation in a Rack

STEP

Configuration Guide (Basic)

The center of gravity must be taken into consideration to prevent a rack from toppling over. The controller

enclosure and drive enclosures should generally be installed from bottom to top to lower the center of gravity

and to ensure the safe use of racks.

IMPORTANT

2. Install and fasten the controller enclosure or the drive enclosure in the rack.

1. Attach the rack rails to the rack.

The size of the controller enclosure and each drive enclosure is 2U.

(Front rack pillars)

(Rear rack pillars)

Rack rail (for right side)

Rack rail (for left side)

Washers

M5 screws

Washers

M5 screws

Plate

M5 screws

Plate

M5 screws

Flange cover

●To fasten the controller enclosure

Use three M5 screws to fasten the controller enclosure to the rack pillars and attach the flange cover.

FUJITSU Storage ETERNUS AF250 All-Flash Arrays Setup Guide

Make sure to install or remove the controller enclosure or the drive enclosure in the rack with two or more

people.

IMPORTANT

●To fasten the drive enclosure

Use four M5 screws to fasten the drive enclosure to the rack pillars and attach the flange cover.

Flange cover

M5 screws

Flange cover

M5 screws

FUJITSU Storage ETERNUS AF250 All-Flash Arrays Setup Guide

Various cables need to be connected to the ports on the rear of the ETERNUS AF.

Rear viewCable

●MNT port

A port that is used to connect to an operation management LAN. Before connecting to the operation

management LAN, change the IP address of the MNT port in the Setup Network Environment settings.

●RMT port

A port that is used for initial setup or to connect to the remote support center.

Cable Connection

STEP

To help with cable management and prevent incorrect connection, attach labels to the cables and make a note

of connection origins and destinations.

Point

●The cables should never be bent, twisted or pulled.

●Some cables have static-sensitive electronic components. Wear an anti-static wrist strap or touch a metal

part to discharge the static electricity on your body before starting each operation. Failure to discharge static

electricity before touching the connectors may cause a device failure.

IMPORTANT

Configuration Guide (Basic)

Controller (CM#0) Controller (CM#1)

MNT por

NT portRMT por

MT port

LAN Cable

Connect a host interface cable to each host interface port.

Rear viewCable

Host Interface Cable

●FC,

iSCSI 10Gbit/s (10GBASE-SR)

(for FC cable connection)

●iSCSI 10Gbit/s (10GBASE-SR)

(for Copper Twinax cable connection)

●iSCSI 10Gbit/s (10GBASE-T)

CA#0 CA#1 CA#0 CA#1

Port#0 Port#1

FC, iSCSI 10Gbit/s (10GBASE-SR)

(for FC cable connection)

Port#0 Port#1

iSCSI 10Gbit/s (10GBASE-SR)

(for Copper Twinax cable connection)

iSCSI 10Gbit/s (10GBASE-T)

Port#0 Port#1

FUJITSU Storage ETERNUS AF250 All-Flash Arrays Setup Guide

Rear viewCable

When drive enclosures are installed, use mini SAS HD cables between enclosures to connect between the DI ports of

each enclosure.

●DI (OUT) side plug

The " ■" symbol is

printed here.

Mini SAS HD Cable Between Enclosures

When connecting the mini SAS HD cable between enclosures,

check the direction of the connector (the tab must be pointed

downward) and firmly insert all the way in.

IMPORTANT

Tab

DI (OUT) port

DI (IN) port

●Controller enclosure

●Drive enclosure

The controller enclosure only has DI (OUT) ports.

Plug in the connectors on which the " " symbol is printed.

●Example of mini SAS HD cable connections between enclosures

Controller enclosure

Drive enclosure

●DI (IN) side plug

The "●" symbol is

printed here.

Attach the destination labels

to the plugs of the mini SAS HD

cables between enclosures.

FUJITSU Storage ETERNUS AF250 All-Flash Arrays Setup Guide

Use ETERNUS Web GUI to perform a basic setup of the ETERNUS AF.

Connect a PC terminal to the ETERNUS AF.

Connect the PC terminal to the RMT port of Controller 0 (CM#0) on the controller enclosure directly with the LAN

cable.

Turn on the PC terminal and the ETERNUS AF.

Basic Setup

STEP

Configuration Guide (Basic)

ETERNUS AF and PC Terminal Connection

Powering On

Connect the power cords to the inlets of the power supply unit.

Use release ties to hold the power cords in place.

Rear viewCable

Power Cords

Drive enclosure

Controller enclosure

PC terminal

LAN cable

LAN port

Controller enclosure

RMT port of Controller 0 (CM #0)

Controller enclosure

Power switch

Drive enclosure

FUJITSU Storage ETERNUS AF250 All-Flash Arrays Setup Guide

Perform the settings that are required before operation of the ETERNUS AF on the Initial Setup screen.

Perform the following settings according to the wizard

screen:

●Set Storage System Name

●Change User Password

●Set Thin Provisioning

●Register SED Authentication Key

●Setup Network Environment

In the Setup Network Environment settings, set the IP

address of the MNT port to connect the ETERNUS AF to

the operation management LAN.

After the settings are complete, close the Web browser.

Initial Setup

Remove the LAN cable between the RMT port on Controller 0 and the PC terminal.

Connect the LAN cables of the MNT ports on Controller 0 and Controller 1 to the network of the customer.

Then start the web browser from the PC terminal that is connected to the network and log in to ETERNUS Web GUI

again with the IP address that is set in the Setup Network Environment settings. After login, the Overview screen

appears.

Establishing a Connection between the ETERNUS AF and the Operation Management LAN

Set the firewall for each service.

Firewall Settings

1. Click the [System] tab, click [Network] in [Category],

and then click [Setup Firewall] in [Action].

2. Enable or disable each service. Make sure to disable

the ETERNUS DX Discovery function.

If the network environment is not set up,

the ETERNUS DX Discovery function is

enabled. Some functions are not available

when the ETERNUS DX Discovery function

is enabled for the MNT port. Make sure

to set up the network environment

and disable the ETERNUS DX Discovery

function.

IMPORTANT

1. Open the Web browser on the PC terminal.

2. Enter the following URL in the address bar of the Web browser.

http://192.168.1.1/

The login screen for ETERNUS Web GUI appears.

3. To change the user interface language, click the [Option] button and select "English" or "Japanese" in

"Language".

4. Enter the username and password.

Username: root

Password: root (by default)

After logging in, the Initial Setup screen of ETERNUS Web GUI appears.

ETERNUS Web GUI Startup

FUJITSU Storage ETERNUS AF250 All-Flash Arrays Setup Guide

Use ETERNUS Web GUI to set RAID configurations in the ETERNUS AF.

Perform the following settings:

●RAID group creation

●Volume creation

●Hot spare registration

1. RAID group creation

Create RAID groups to create volumes.

To display the screen to create RAID groups:

Click the [RAID Group] tab, and then click [Create]

in [Action].

2. Volume creation

Create volumes in the RAID group.

To display the screen to create volumes:

Click the [Volume] tab, and then click [Create] in

[Action].

3. Hot spare registration

To display the screen to register the hot spare:

Click the [Component] tab, and then click [Drives] in [Category].

●Global Hot Spare registration

Select the drive that is to be registered as the

Global Hot Spare and click [Assign Global HS] in

[Action]. In the confirmation screen that appears,

click the [OK] button.

●Dedicated Hot Spare registration

Select the drive that is to be registered as the

Dedicated Hot Spare and click

[Assign Dedicated HS] in [Action].

RAID Configuration Settings

Select which RAID group to use the selected drive

as a Dedicated Hot Spare for and click the [Assign]

button. In the confirmation screen that appears,

click the [OK] button.

FUJITSU Storage ETERNUS AF250 All-Flash Arrays Setup Guide

The host affinity settings ensure security when multiple servers are connected by assigning the host interface ports

that the hosts (servers) can access and the volumes that the hosts (servers) can recognize.

Follow the procedure below to set host affinity by associating a host group, a CA port group and a LUN group.

1. Host group addition

Add the information on the hosts (servers) that access

the ETERNUS AF.

To display the screen to add the host groups (example

for iSCSI host groups):

Click the [Connectivity] tab, click [Host Group] in

[Category], and then click [Add iSCSI Host Group] in

[Action].

2. Port parameter settings

Set the connection information between the host

interface port and the server.

To display the screen to set the port parameters

(example for iSCSI Port):

Click the [Connectivity] tab, and then click [iSCSI]

under [Port Group] in [Category]. Select the checkbox

for the iSCSI port to set the port parameters for on the

[iSCSI Port] screen and then click [Configure iSCSI Port]

in [Action].

3. Port group creation

Create a port group for a host to access the ETERNUS

AF.

To display the screen to create a port group (example

for iSCSI Port):

Click the [Connectivity] tab, click [Port Group] in

[Category], and then click [Create iSCSI Port Group] in

[Action].

4. LUN group addition

Add a group of volumes that can be recognized by the

host (LUN group).

To display the screen to add a LUN group:

Click the [Connectivity] tab, click [LUN Group] in

[Category], and then click [Add LUN Group] in [Action].

Host Affinity Settings

FUJITSU Storage ETERNUS AF250 All-Flash Arrays Setup Guide

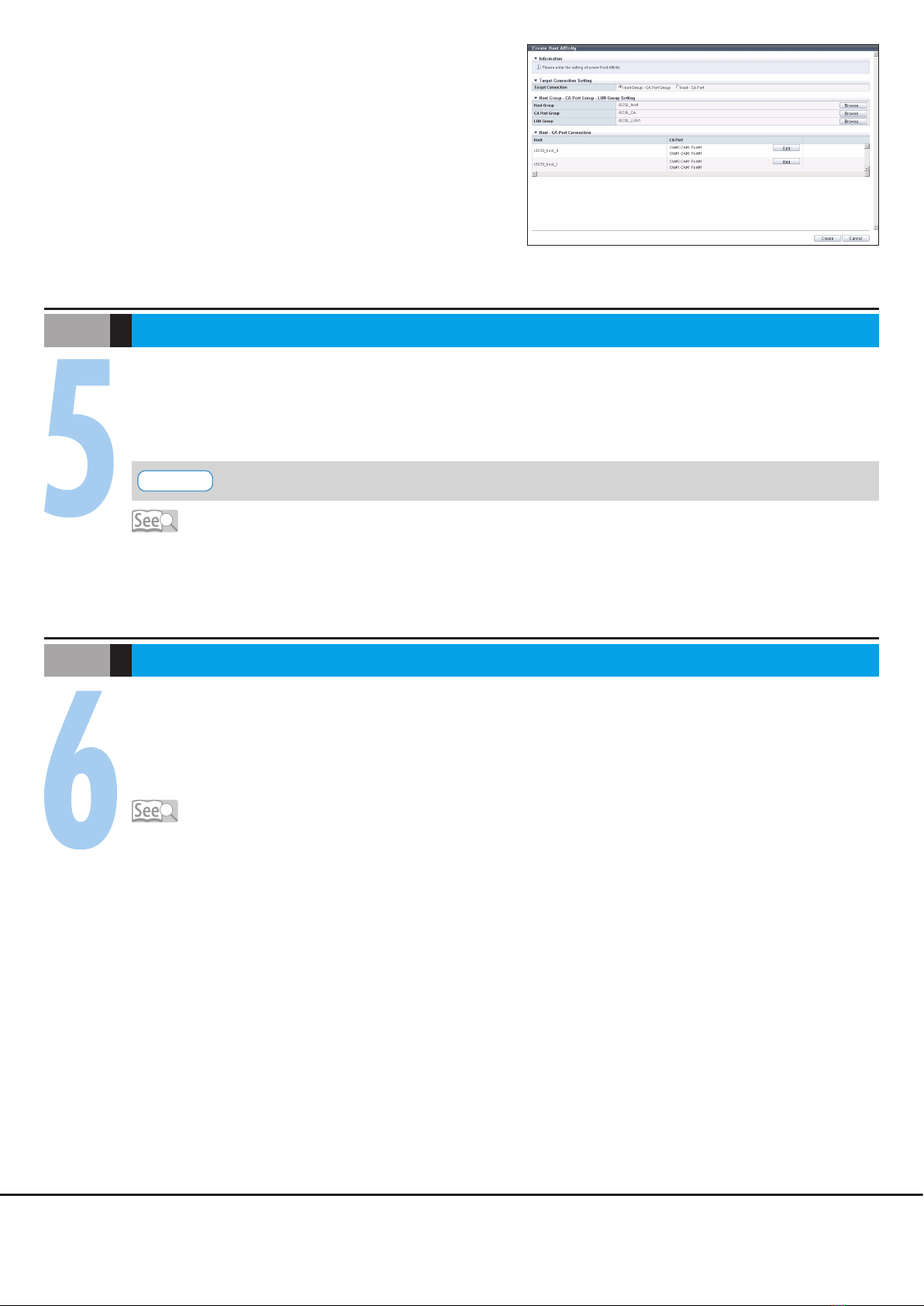

5. Host affinity creation

Create an association between a host group and a port

group and an association between a host group and a

LUN group.

To display the screen to create a host affinity:

Click the [Connectivity] tab, and then click [Create Host

Affinity] in [Action].

Perform the ETERNUS AF monitoring setup if required.

●Notification of the ETERNUS AF problems as they occur is possible if the event notification method and level

have been set.

●If remote support is required, the ETERNUS AF needs to be set to notify the remote support center of failures.

Perform the settings required to connect to the server and install the required drivers. Perform the settings required

for network devices connecting the server and the ETERNUS AF.

After the server connection setup, confirm that the volumes in the ETERNUS AF can be recognized by the server.

All necessary settings are complete, and the ETERNUS AF is now ready for normal operation.

Monitoring Setup

STEP

Server Connection

STEP

Remote support allows prompt detection and resolution of trouble.

Point

Configuration Guide (Basic)

•Configuration Guide (Basic)

•Configuration Guide -Server Connection-

Autres manuels pour ETERNUS AF250

Table des matières

Autres manuels Fujitsu Stockage

Fujitsu

Fujitsu MHV2080BS Manuel utilisateur

Fujitsu

Fujitsu MHN2100AT - Mobile 10 GB Hard Drive Manuel utilisateur

Fujitsu

Fujitsu ETERNUS AF Series Manuel utilisateur

Fujitsu

Fujitsu ETERNUS DX60 Manuel de référence

Fujitsu

Fujitsu ETERNUS AB Series Manuel technique

Fujitsu

Fujitsu MHT2080AH - 80GB 5400 RPM PATA Hard Drive Manuel utilisateur

Fujitsu

Fujitsu MAX3147NP Manuel utilisateur

Fujitsu

Fujitsu MPF3102AT - Desktop 10.2 GB Hard Drive Manuel utilisateur

Fujitsu

Fujitsu MAF3364FC SERIES Manuel utilisateur

Fujitsu

Fujitsu MHW2040AT - Mobile 40 GB Hard Drive Manuel utilisateur

Fujitsu

Fujitsu ETERNUS LT260 Manuel utilisateur

Fujitsu

Fujitsu ETERNUS DX S4 Series Manuel utilisateur

Fujitsu

Fujitsu PG-HDH97A Manuel utilisateur

Fujitsu

Fujitsu ETERNUS AX Series Manuel utilisateur

Fujitsu

Fujitsu PRIMERGY PG-DTA101 Manuel utilisateur

Fujitsu

Fujitsu ETERNUS DX60 Manuel utilisateur

Fujitsu

Fujitsu ETERNUS AX Series Mode d’emploi

Fujitsu

Fujitsu MHX2300BT - Mobile 300 GB Hard Drive Manuel utilisateur

Fujitsu

Fujitsu ETERNUS CS800 Manuel utilisateur

Fujitsu

Fujitsu MHV2100BH Manuel utilisateur

Fujitsu

Fujitsu MBA3300NC Manuel utilisateur

Fujitsu

Fujitsu MHW2120BK Manuel utilisateur

Fujitsu

Fujitsu MHM2100AT - Mobile 10 GB Hard Drive Manuel utilisateur

Fujitsu

Fujitsu ETERNUS DX60 S2 Manuel utilisateur

Manuels Stockage populaires d'autres marques

QNAP

QNAP TS 32PXU Series Manuel utilisateur

LaCie

LaCie RUGGED RAID Manuel utilisateur

Freecom

Freecom CLS DOCK Manuel utilisateur

PNY

PNY Attache P-FD64MBATT3 Manuel utilisateur

HP StorageWorks MSL2024 Manuel utilisateur

OLT

OLT 6x6 Maximizer Manuel utilisateur

Transcend

Transcend JetFlash 160 Manuel utilisateur

LaCie

LaCie RUGGED MINI Manuel utilisateur

Thunderbolt

Thunderbolt 600 Manuel utilisateur

Panasonic

Panasonic LB-DH8 series Manuel

Intel

Intel RAID High Availability Manuel utilisateur

LaCie

LaCie 12big Thunderbolt 3 Manuel utilisateur

Spectra Logic

Spectra Logic T-Series Spectra T50e Manuel utilisateur

Panasonic

Panasonic LKM-F931-1 Manuel utilisateur

Tabernus

Tabernus Enterprise Erase E2400 Manuel utilisateur

Rocstor

Rocstor COMMANDER 3F series Manuel utilisateur

HP P9000 Manuel utilisateur

Western Digital

Western Digital Ultrastar Data60 Manuel utilisateur
