PRIMERGY CX400 M1

incl. new CX25y0 M2

System configurator and order-information guide

Contents 24x 2.5" Hot-plug HDD or SSD (K1530-V100)

12x 2.5" Hot-plug HDD or SSD (K1530-V200)

Instructions

Configuration diagram

Configurator 8x 2.5" Hot-plug HDD or SSD (K1530-V300)

0 System software

I CX400 M1 Basic unit

II CX25y0 M2 Basic Unit

III Processor for CX25y0 M2

IV Memory

V Graphics/GPGPU/Grid/XeonPhi

VI Accessible drives

VII Drive Bay for 6x HDD/SSD

VIII Modular Raid 0/1, Raid5 for 4x 2.5" / 8x 2.5" SAS or SATA HD's.

On-board Controller for 4x 2.5" SATA or SAS HD`s

IX 2.5" SAS / SATA / PCIe Hard disk drives / SATADOM

X External SAS Disk Array, SAS backup drives or SCSI peripheral devices

XI Fibre-Channel controller

XII Communication/Network

XIII System Management Products (RemoteView)

XIV Miscellaneous

XV Country specific power cord

Change report

PRIMERGY Server

November 2016

System configurator and order-information guide

PRIMERGY CX400 M1 Status 2016-10-31

Instructions

This document contains basic product and configuration information that will enable you to configure your system via

PC-/SystemArchitect.

Only these tools will ensure a fast and proper configuration of your PRIMERGY server or your complete

PRIMERGY Rack system.

You can configure your individual PRIMERGY server in order to adjust your specific requirements.

The System configurator is divided into several chapters that are identical to the current price list and PC-/SystemArchitect.

Please follow the lines. If there is a junction, you can choose which way or component you would like to take. Go through

the configurator by following the lines from the top to the bottom.

Section

III Memory

There are X memory slots which can be equipped with XXX MB.

It is permissible to make up to X passes through the memory upgrade options.

S26361-XXX-XXX S26361-XXX-XXX

Memory XXX MB Memory XXX MB

X times

max. X times per system max. X times per system

In one chapter you can only select as many components (here 4x) as the arrow indicates. 4x

Please note that there are information symbols which indicate necessary information.

For further information see:

http://ts.fujitsu.com/products/standard_servers/index.html (internet)

https://partners.ts.fujitsu.com/com/order-supply/configurators/primergy_config/current/Pages/default.aspx (extranet)

Prices and availability see price list and PC-/SystemArchitect.

Subject to change and errors excepted.

Fujitsu Technology Solutions x86 PRIMERGY Server 2 of 33

System configurator and order-information guide

PRIMERGY CX400 M1 Status 2016-10-31

Configuration diagram PRIMERGY CX400 M1

System unit (I)

with up to 24x 2.5" HDD/SSD for CX2550 M1 and up to 12x 2.5" HDD/SSD for CX2570 M1

Below drawing shows slot numbering. For HDD installation order, please refer operating manual.

CX400 M1 for CX2550 (S26361-K1530-V100)

rear view

CX400 M1 for CX2550 variant 8x 2,5 HDD (S26361-K1530-V300)

CX400 M1 for CX2570 (S26361-K1530-V200) Liquid Cooling is not possible

rear view

HDD cage including BP/Linking board options (can be selected under node of CX25y0 M1)

Type A: 6x 2.5" SAS Backplane (SAS / SATA only) (S26361-F5519-E10)

Type B: 6x PCIe Backplane (2x for SAS / SATA / PCIe SFF SSD + 4x for SAS / SATA only) (S26361-F5519-E20)

Dummy HDD cage: This is for customer who does not use front HDDs/SSDs (e.g. SATADOM or UFM only used)

(S26361-F5519-E50)

Type A

Type B

CX25y0 can select Type A or B or Dummy HDD cage

No loose delivery available for HDD cage options

Only special release

PSU (S26113-F617-E50/L50) In case of single PSU, throttling might be occurred.

1x 1,600W PSU (Platinum efficiency) It depends on Consumed power.

100-240V wide range 100V environment requires below HW config limitation

CPU: Only LV CPU (E5-2650L/2630L v3)

PSU (S26113-F620-E30/L30) Please see sheet of "CX400 M1 Base Unit"

1x 2,400W PSU (Platinum efficiency) Mem: Only R-DIMM, not LR-DIMM

100-240V wide range

0 1 2 3 4 5 0 1 2 3 4 5 0 1 2 3 4 5 0 1 2 3 4 5

Slot 1 HDDs Slot 2 HDDs Slot 3 HDDs Slot 4 HDDs

PSU1 Slot 3 Slot 1

PSU2 Slot 4 Slot 2

0 1

2 3

SAS / SATA / PCIe SFF SSD combi

SAS / SATA only

4 5

0 1 2 3 4 5 0 1 2 3 4 5 0 1 2 3 4 5 0 1 2 3 4 5

Slot 1 HDDs Slot 2 HDDs

PSU1

Slot 3 Slot 1

PSU2

0 1

0 1 2 3 4 5 0 1

0 1 0 1

PSU1 Slot 3 Slot 1

PSU2 Slot 4 Slot 2

Rear view

0 1 2 3 4 5

Fujitsu Technology Solutions x86 PRIMERGY Server 3 of 33

System configurator and order-information guide

PRIMERGY CX400 M1 Status 2016-10-31

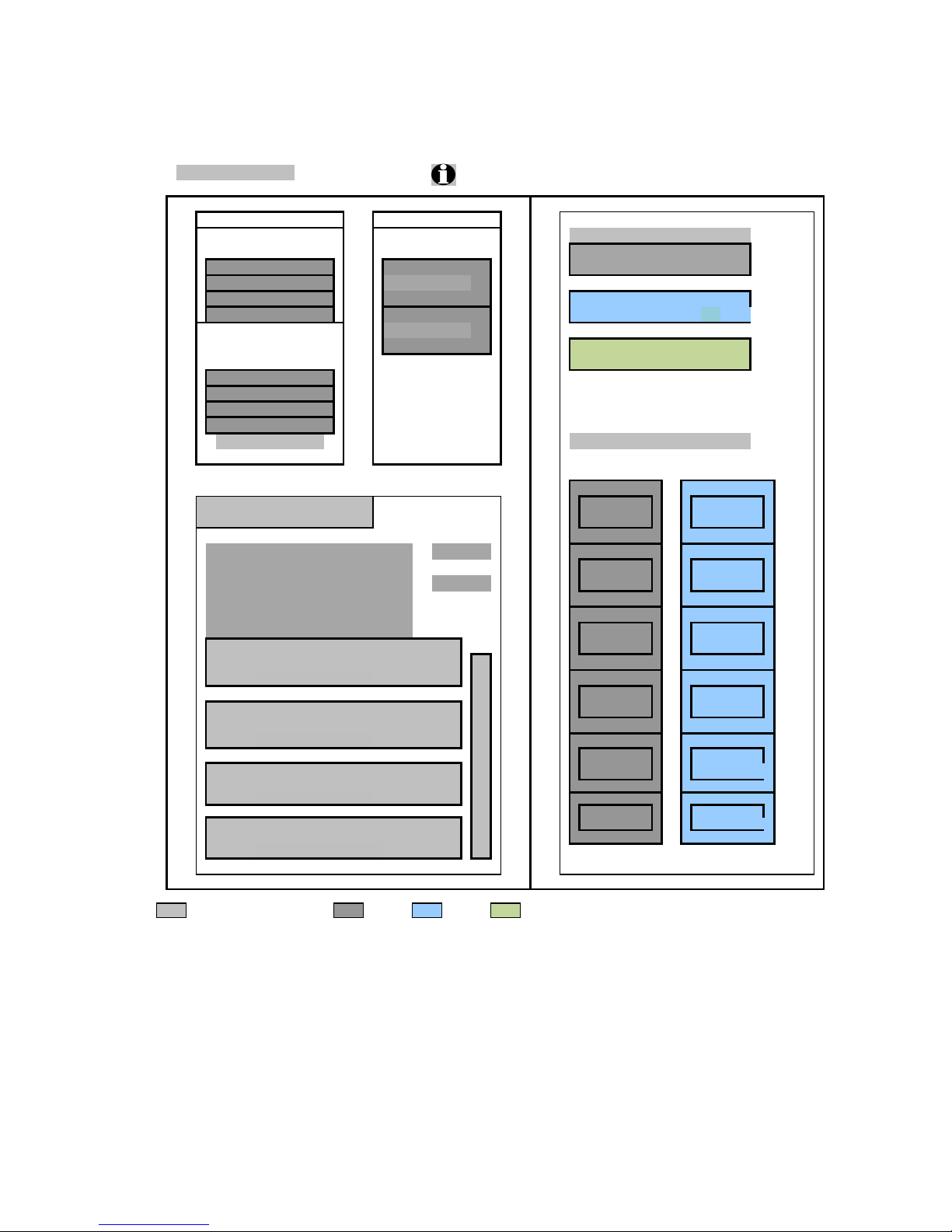

Configuration diagram

CX400 M1 for PRIMERGY CX2550 M1/M2 24x 2.5" HDD (S26361-K1530-V100)

System unit (I)

board

front side

Memories CPUs

Memory CPU1 Drive Bay (VI)

(Channel A + B + C + D) Bay for 6x 2.5" (Type A)

Bank 1 (2 Modules) Xeon 4C-18C (M1) Only with SAS / SATA

Bank 2 (2 Modules) Xeon 4C-22C (M2)

Bank 3 (2 Modules) CPU incl. Heatpipe Bay for 6x 2.5" (Type B)

Bank 4 (2 Modules) Xeon 4C-18C (M1) 2x SAS / SATA / PCIe + 4x SAS / SATA

Xeon 4C-22C (M2)

Memory CPU2 CPU incl. Heatpipe

Dummy HDD cage

(Channel E + F + G + H)

Bank 1 (2 Modules)

Bank 2 (2 Modules)

Bank 3 (2 Modules)

Bank 4 (2 Modules)

Memory ( III ) Hard disk drives (VI)

HD5HD5

SATA RAID 0/1 2.5"x1" SAS 2.5"x1" SAS

support on-board or SATA or SATA

Extension slots for

HD4HD4

Modular RAID (VII) 2.5"x1" SAS 2.5"x1" SAS

Ext. SAS and SCSI Controller (IX) or SATA or SATA

Fibre Channel Controller (X)

Communication/Network (XI)

HD3HD3

2.5"x1" SAS 2.5"x1" SAS

or SATA or SATA

UFM 4GB (M1) or 8GB (M2)

HD2HD2

SATADOM 2.5"x1" SAS 2.5"x1" SAS

or SATA or SATA

HD1HD1

2.5"x1" SAS 2.5"x1" SAS or

Slot 11-14: PCIe-3 x16 (low profile, half length) or SATA SATA or PCIe

(170mm incl. bracket)

left slot from rear view HD0HD0

2.5"x1" SAS 2.5"x1" SAS or

Slot 1-4: PCIe-3 x16 (low profile, half length) or SATA SATA or PCIe

(170mm incl. bracket)

right slot from rear view

slot1-4@CPU1, slot11-14@CPU2

Key:

Included in basic unit or or =Option

2 riser cards

Fujitsu Technology Solutions x86 PRIMERGY Server 4 of 33

System configurator and order-information guide

PRIMERGY CX400 M1 Status 2016-10-31

Configuration diagram

CX400 M1 for PRIMERGY CX2550 M1/M2 8x 2.5" HDD (S26361-K1530-V300)

System unit (I)

board

front side

Memories CPUs

Memory CPU1 Bay for 2x 2.5" (Type C - virtual)

(Channel A + B + C + D) Only with 2x SATA

Bank 1 (2 Modules) Xeon 4C-18C (M1)

Bank 2 (2 Modules) Xeon 4C-22C (M2)

Bank 3 (2 Modules) CPU incl. Heatpipe

Bank 4 (2 Modules) Xeon 4C-18C (M1)

Xeon 4C-22C (M2)

Memory CPU2 CPU incl. Heatpipe

(Channel E + F + G + H)

Bank 1 (2 Modules)

Bank 2 (2 Modules)

Bank 3 (2 Modules)

Bank 4 (2 Modules)

Memory ( III )

Hard disk drives (VI)

SATA RAID 0/1

support on-board

HD1

2.5"x1" SATA

Extension slots for

Modular RAID (VII)

Ext. SAS and SCSI Controller (IX)

HD0

Fibre Channel Controller (X) 2.5"x1" SATA

Communication/Network (XI)

UFM 4GB (M1) or 8GB (M2)

SATADOM

Slot 11-14: PCIe-3 x16 (low profile, half length)

(170mm incl. bracket)

left slot from rear view

Slot 1-4: PCIe-3 x16 (low profile, half length)

(170mm incl. bracket)

right slot from rear view

slot1-4@CPU1, slot11-14@CPU2

Key:

Included in basic unit or or =Option

2 riser cards

Fujitsu Technology Solutions x86 PRIMERGY Server 5 of 33

System configurator and order-information guide

PRIMERGY CX400 M1 Status 2016-10-31

Configuration diagram

CX400 M1 for PRIMERGY CX2570 M1/M2 12x 2.5" HDD (S26361-K1530-V200)

System unit (I) Liquid Cooling is not possible

board

front side

Memories CPUs

Memory CPU1 Drive Bay (VI)

(Channel A + B + C + D) Bay for 6x 2.5" (Type A)

Bank 1 (2 Modules) Xeon 4C-18C (M1) Only with SAS / SATA

Bank 2 (2 Modules) Xeon 4C-22C (M2)

Bank 3 (2 Modules) CPU incl. Heatpipe Bay for 6x 2.5" (Type B)

Bank 4 (2 Modules) Xeon 4C-18C (M1)

2x SAS / SATA / PCIe +4x SAS / SATA

Memory CPU2 Xeon 4C-22C (M2)

(Channel E + F + G + H) CPU incl. Heatpipe

Dummy HDD cage

Bank 1 (2 Modules)

Bank 2 (2 Modules)

Bank 3 (2 Modules)

Bank 4 (2 Modules)

Memory ( III ) Hard disk drives (VI)

HD5HD5

SATA RAID 0/1 2.5"x1" SAS 2.5"x1" SAS

support on-board or SATA or SATA

Extension slots for UFM 4G/8G HD4 HD4

Modular RAID (VII) 2.5"x1" SAS 2.5"x1" SAS

Ext. SAS and SCSI Controller (IX) SATADOM or SATA or SATA

Fibre Channel Controller (X)

Communication/Network (XI)

HD3HD3

2.5"x1" SAS 2.5"x1" SAS

Slot 15-18: For only GPGPU/Grid/XeonPhi or SATA or SATA

PCIe-3 x16

HD2HD2

2.5"x1" SAS 2.5"x1" SAS

Slot 5-8: For only GPGPU/Grid/XeonPhi or SATA or SATA

PCIe-3 x16

HD1HD1

2.5"x1" SAS 2.5"x1" SAS

Slot 11-14: PCIe-3 x16 (low profile, half length) or SATA or SATA or PCIe

(170mm incl. bracket)

left slot from rear view HD0HD0

2.5"x1" SAS 2.5"x1" SAS

Slot 1-4: PCIe-3 x16 (low profile, half length) or SATA or SATA or PCIe

(170mm incl. bracket)

right slot from rear view

slot1-4/5-8@CPU1, slot11-14/15-18@CPU2

Key:

Included in basic unit or or =Option

4 riser cards

Fujitsu Technology Solutions x86 PRIMERGY Server 6 of 33

System configurator and order-information guide

PRIMERGY CX400 M1 Status 2016-10-31

Start PRIMERGY CX400 M1

Section

ICX400 M1 Basic unit

System unit consisting of:

* 2U Housing without power supply modules/HDD cage/HDD BP/Linking board

(PSU has to be configured min 2x for 1,600W PSU, min 1x for 2,400W PSU)

* Fans

- Redundant and non hot plug system 4x double-fans (n+1 redundancy)

* RMK

- Sliding rail

* Drives / Bays (option for node)

- 6x 2.5" HDD cage per node or 6x 2.5" HDD/PCIe SSD cage per node option or dummy HDD cage per node option

*HDD cage option includes HDD BP and Linking board

- 2x 2.5" SATA HDD/SSD cage per node

- 2x dummy cage for CX2570 M1/M2 variant base unit only

- 4x dummy cage for CX25y0 M1/M2

* Nodes (option)

- up to 4x CX2550 M1 or M2

- up to 2x CX2570 M1 or M2

Fujitsu Technology Solutions x86 PRIMERGY Server 7 of 33

System configurator and order-information guide

PRIMERGY CX400 M1 Status 2016-10-31

For AC 100V environment using CX2550M1/M2, restrictions

based on the quantity of memory and HDD applied as follow :

Memory (RDIMM) / Internal HDD quantity

CPU (TDP) Memory quantity 8 8 16 16

HDD quantity

2 6 2 6

Rack version for 19'' racks with >= 135 W - NA -NA

No PSU included in Base Unit 120 W X- - -

Basic unit CX400 M1 for

105 W, 90 W, 85 W

X X X -

CX2550 M2 variant 24x 2,5 HDD S26361-K1530-V100

65 W, 55 W

X X X X

Basic unit CX400 M1 for Remark : LRDIMM is not supported under AC 100V environment

CX2570 M1 variant S26361-K1530-V200 Liquid cooling is not possible

Basic unit CX400 M1 for

CX2550 M2 variant 8x 2,5 HDD S26361-K1530-V300

S26113-F617-E50 S26113-F620-E30 In case of 1x 2,400W Config

1,600W PSU module platinum 2,400W PSU module platinum

2x below accelerator card

redundancy redundancy can't be possible on CX2570

94% efficiency (platinum)

M1/M2

uses hot plug PSU slot uses hot plug PSU slot Tesla K80

min. 2 / max. 2x per system min. 1 / max. 2x per system XeonPhi 3120P / 7120P

Full redundancy cannot be guaranteed for high duty.

config.

You must purchase "Dummy PSU",

In this case SysArch will generate a warning and if you purchased only one PSU.

PowerSafeguard will throttle CPUs and memory

in case of a PSU failure. S26361-F5564-E10

So, power consumption will be limited to 1,600W. Dummy PSU

min 1x / max 1x

2.400W (S26113-F620-E30) must use Power Cord 16A (S26361-F3151-E301)

for CX400 M1 within rack

please choose only 1 of this 2 cables

S26361-F3151-E351 S26361-F3151-E301 S26361-F3151-E500 T26139-Y3850-E10

Power Cord 10A Power Cord 16A Power Cord No Power Cord

max. IEC 320 C19 -> C14 IEC 320 C19 -> C20 IEC320 C19 ->

2 x US NEMA L6-20p

default within rack for 100V-115V only*) without rack only without rack only *) in System architect please

1x per PSU 1x per PSU 1x per PSU 1x per PSU change the default 16A connection

to a 10A connection for all PSU

Please order appropriate power cord additionally:

Power code IEC320 C19 -> C14 (200-240V only) S26361-F3151-L350

Power code IEC320 C19 -> C20 S26361-F3151-L300

Power code IEC320 C19 -> US NEMA L6-20p S26361-F3151-L500

S26361-F5558-E50

Liquid cooling

tube set

for Liquid cooling

1x per CX400

S26361-F3151-E301

100-120V /

200-240V

100-120V /

200-240V

1600W PSU

2400W PSU

S26361-F3151-E351

200-240V only

Not supported

Fujitsu Technology Solutions x86 PRIMERGY Server 8 of 33

System configurator and order-information guide

PRIMERGY CX400 M1 Status 2016-10-31

PRIMECENTER Rack

Sliding rail

1-hand-mounting

RMK - 1 pair consisting of

carrier length variable

toolless mounting possible

included in base unit

S26361-F4530-E12 S26361-F4530-E10 S26361-F2735-L10

Mounting 2U server in Mounting in Adapter angle PC/DC-Rack, till 50Kg

asymmetrical racks symmetrical & 3rd party racks necessary for mounting RMKs in

with 2U support bracket (no support bracket needed) asymmetrical racks

SNP:SY-F1647E301-P

Installation ex works for one

server or subsystem.

Hereby the rack will be delivered "Rack-mounting ex factory"

completely pre-mounted and

This service is to be ordered once

all wired connections are tested.

per installable server/storage

With PCR M1 16U, 24U, 42U: subsystem, in order to get the

Systems and components server/storage subsystem

will be delivered installed in the rack mounted into the racks. In case of

not-installed server and subsystems

this service has to be ordered,

to get the mounting kits and the

To be ordered only together with cables installed.

a PRIMECENTER rack

refer PCR S2 or M1 rack configurator

for air cooling

refer to M2 rack configurator

for liquid cooling

max. 1x per System

S26361-F1452-E100 S26361-F1452-E110 S26361-F1452-E130

REGION KIT APAC/EMEA/India REGION KIT JP

REGION KIT America

For Shipments to EMEA / Asia and For Shipments to Japan regions For Shipments to America region

Pacific regions

1x per system 1x per system 1x per system

Fujitsu Technology Solutions x86 PRIMERGY Server 9 of 33

System configurator and order-information guide

PRIMERGY CX400 M1 Status 2016-10-31

Start PRIMERGY CX25y0 M2

Section

CX25y0 M2 Basic unit

CX2550 M2 System unit consisting of:

* 1U Half wide server node

- 1U Half wide tray

- Motherboard

- 2x PCIe Gen3 x16 riser card for low profile slot

(Liquid Cooling can only support 1x PCIe Gen3)

- 1x UFM 8GB placement possible

- 1x SATADOM possible

- 1x correspoding cooling part (Air Cooling = Heatsinks / Liqiud Cooling = LC Kit) already included

CX2570 M2 System unit consisting of:

* 2U Half wide server node

- 2U Half wide tray

- Motherboard

- 2x PCIe Gen3 x16 riser card for lowprofile slot

- 2x PCIe Gen3 x16 riser card for GPGPU/Grid/XeonPhi

- 1x UFM 8GB placement possible

- 1x SATADOM possible

Systemboard D3343-B (same for CX2550 M2 and CX2570 M2) with:

* Two Xeon E5-2600 v4 4C, 6C, 8C, 10C, 12C, 14C, 16C, 18C, 20C & 22C CPU`s (Socket-R3)

with 2 serial QPI links ( Quick Path Interconnect ) and four memory channels per CPU

Two CPU has to be selected for an orderable basic unit,

* Chipset Intel® C610 (codenamed Wellsburg)

* 4 PCIe slots

-2x PCIe-3 x16 (Low Profile cards)

-2x PCIe-3 x16 (GPGPU/Grid/XeonPhi)

* 16 memory slots for max. 2,048GB RAM DDR4 available

- Memory is divided into 8 DIMMs per CPU ( 4 channels with 2 slots per channel )

Possible max. configurations are:

16x 128GB LRDIMM (8 rank modules) = 2,048GB

16x 32GB RDIMM (dual rank modules) = 512GB

First Memory ( one module ) has to be selected for an orderable basic unit per CPU

- Memory upgrade is possible module wise

- SDDC (Chipkill) is supported for memory modules,

* Dual Port 10/100/1000 x4 PCI Express* Gigabit Ethernet Intel LAN controller Powerville on-board

* iRMC S4 (integrated Remote Management Controller) on-board server management controller with

dedicated 10/100/1000 Service LAN-port and integrated graphics controller.

The Service LAN-port can be switched alternatively on standard Gbit LAN port 1

* Graphics Controller integrated in iRMC S4 (integrated Remote Management Controller):

1600x1200x16bpp 60Hz, 1280x1024x16bpp 60Hz, 1024x768x32bpp 75Hz, 800x600x32bpp 85Hz,

640x480x32bpp 85Hz

(1280x1024x24bpp 60Hz only possible if local monitor or remote video redirection is off)

Fujitsu Technology Solutions x86 PRIMERGY Server 10 of 33

Table des matières

Autres manuels Fujitsu Serveur

Fujitsu

Fujitsu PRIMERGY BX922 S2 Manuel utilisateur

Fujitsu

Fujitsu PRIMERGY SX980 S1 Manuel du propriétaire

Fujitsu

Fujitsu PRIMERGY RX2520 M4 Manuel utilisateur

Fujitsu

Fujitsu PRIMERGY Econel 200 S2 Manuel du propriétaire

Fujitsu

Fujitsu PRIMERGY Econel 100 Manuel utilisateur

Fujitsu

Fujitsu PRIMERGY RX900 S2 Manuel utilisateur

Fujitsu

Fujitsu 1PRIMERGY RX600 S4 Manuel utilisateur

Fujitsu

Fujitsu PRIMERGY TX120 S3p Manuel utilisateur

Fujitsu

Fujitsu Primergy BX920 S4 Manuel utilisateur

Fujitsu

Fujitsu SPARC Enterprise M4000 Manuel de service

Fujitsu

Fujitsu PRIMERGY CX420 S1 Guide de l'utilisateur

Fujitsu

Fujitsu Primergy RX100 S3 Manuel du propriétaire

Fujitsu

Fujitsu PRIMERGY BX924 S3 Manuel utilisateur

Fujitsu

Fujitsu PRIMERGY RX100 S7 Manuel utilisateur

Fujitsu

Fujitsu SPARC Enterprise T5440 Server Manuel utilisateur

Fujitsu

Fujitsu PRIMERGY TX200 S7 Manuel utilisateur

Fujitsu

Fujitsu PRIMERGY RX800 S2 Manuel utilisateur

Fujitsu

Fujitsu PRIMERGY TX150 S6 Mode d’emploi

Fujitsu

Fujitsu PRIMERGY RX200 S3 Manuel utilisateur

Fujitsu

Fujitsu Primergy TX300 S4 Guide rapide

Fujitsu

Fujitsu SPARC Enterprise T2000 Manuel de service

Fujitsu

Fujitsu PRIMERGY RX300 S6 Manuel utilisateur

Fujitsu

Fujitsu Primergy TX300 S4 Mode d’emploi

Fujitsu

Fujitsu PRIMERGY RX900 S1 Manuel utilisateur

Manuels Serveur populaires d'autres marques

HP AlphaServer ES47 Manuel utilisateur

Dell

Dell PowerEdge R410 Manuel utilisateur

PowerNAS

PowerNAS CMA Manuel utilisateur

Supero

Supero FatTwin F617R3-FT Manuel utilisateur

MSI

MSI P1-109N-L70 Manuel utilisateur

Dell

Dell PowerEdge XE9640 Manuel

Dell

Dell PS4100 Instructions de montage

EtroVISION

EtroVISION EV3151 Manuel utilisateur

NEC

NEC Express5800/T110j Manuel utilisateur

HP ProLiant Gen9 Manuel utilisateur

Compaq

Compaq ProLiant 3000 Manuel

Dell

Dell PowerEdge 3YPMN Manuel utilisateur

iRobo

iRobo IPC2U Manuel utilisateur

Nortel

Nortel 1000 Con?guration guide Manuel utilisateur

Asus

Asus AP7500 Manuel d'utilisation et d'entretien

Avid Technology

Avid Technology AirSpeed 5000 Manuel utilisateur

HP Integrity rx2600 Guide d'installation

Milestone

Milestone Husky IVO 350T Manuel utilisateur
