The business scene continues to change

dramatically. To keep pace and to maintain

competitive positioning, mission critical

computing systems have also been changing.

Flexibility gained by the use of distributed

processing, and cost constraints on business,

have seen a growing movement from host-

centric computing to client server. Now there

is network computing using commodity

products via the Internet/Intranet.

Under these conditions, it is essential that

the new commodity networked systems

should not only have high enough

performance to process any increases in data

load, but also the highest levels of RAS

(Reliability, Availability, Serviceability) and a

standard architecture that delivers solutions

compatible to your business. Fujitsu's

promise is to deliver such support to your

business with its new industry standard UNIX

server series

GP7000F. GP7000F uses the

new high- performance processor, the

SPARC64 GP, the international standard

Solaris operating system, and delivers

excellent levels of RAS.

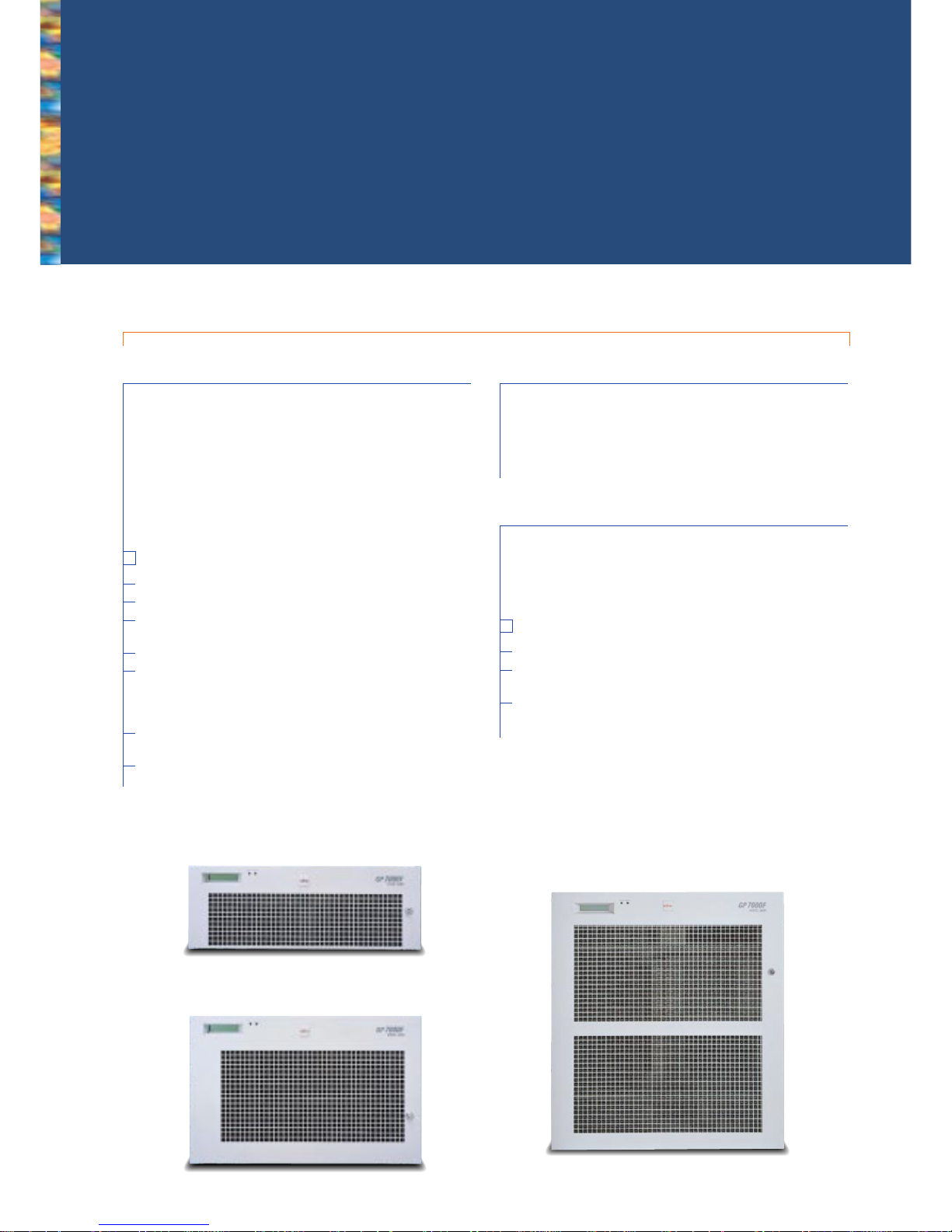

The GP7000F

UNIX servers

GP7000F provides scalability through three distinct models and clustering:

Model 200 is scalable to two processors, Model 400 to four processors,

and Model 600 to eight processors.

Model 200/200R

High-performance entry-level server for workgroups

Each entry-level model supports up to two SPARC64 GP processors. But,

despite being an entry-level model, it also supports multi-processor clusters

to provide you with even greater performance and advanced levels of RAS.

High-performance processor SPARC64 GP (225/250/300MHz) 1 or 2

International standard "Solaris" operating system

Fujitsu RAS (Reliability, Availability, Serviceability) including System Monitoring

Module

Model 600/600R

Mission Critical server with high RAS

and performance

This high-performance server supports up to eight SPARC64 GP

processors. Its built-in RAS strategy supports mission critical operation.

Up to eight high-performance SPARC64 GP processors per cabinet

International standard "Solaris" operating system

High expandability (Max. memory: 16GB, Max. disk capacity: 70TB)

Scalable in clusters up to 128 processors

Fujitsu RAS (Reliability, Availability, Serviceability) including System Monitoring

Module

F Series

A New Generation of Standard

for Mission Critical Business

Model 400A/400R

Highly expandable mid-range client/server

application server

This mid-range server supports up to four SPARC64 GP processors,

and with 12 PCI slots provides plenty of expansion capability.

Up to four SPARC64 GP high-performance processors (250/300MHz)

International standard "Solaris" operating system

High growth capability (Max. memory: 8GB, Max. disk capacity: 60TB)

Fujitsu RAS (Reliability, Availability, Serviceability) with hot-swap/ redundant

components (Disk/PSU/FAN) including a System Monitoring Module

GP7000F model 200R

GP7000F model 400R

"Solaris"

a global standard operating system

64-bit operating environment

Standards

The GP7000F operating system "Solaris7" offers a

powerful 64-bit computing environment. Solaris7's 64-bit

addressing supports very large memory and file systems

(1TB). It also provides superior performance on heavily

loaded systems such as data warehousing. Solaris7

provides binary compatibility with current 32-bit Solaris

applications. As a result, your software investments are

protected

and so is your future.

Year 2000 Compliance: follows X/Open®guidelines

Interface Standards: X/Open UNIX 98

Graphics Standards: X11, PostScriptTM, Display PostScriptTM,

OpenGL

Desktop Standards: CDE (Common Desktop Environment), Motif

Object Standards: Java IDL

Connectivity Standards: ONCTM, ONC+TM, NFS, WebNFSTM,

and optional NetWare IPX/SPX, SNA, SMB, AppleTalk, DECnet,

and others

Internet Standards: HTTP, FTP, Telnet, DNS, NTP, IMAP4,

DHCP, SNMP, SMTP

LDAPv3IETF RFCs 1323, 1510, 1652, 1869, 1870, 1891-1894,

1985, 1996, 2018, 2136, 2045, 2078

Network

Solaris offers an excellent base for network computing,

including "ONC+" that integrates network protocols

between different machines and dispersed services. It

also supports TCP/IP, FNA, SNA, JCA, ISDN, V.24/X.21,

V.35/RS449, ATM, and FDDI.

Highly reliable operating system

Value-added functions in Solaris

To reinforce mission critical support advantages,

reliability and serviceability have been improved by

providing specific value-added features, as part of the

operating system.

Hardware and software monitoring by Web-view.

Remote monitoring of system status and diagnosis of hardware

faults through log analysis.

Provision of menu-driven hardware monitoring, parameter setting,

display of log information, and machine management that displays

maintenance guidance during hot-swap operations.

New world-leading technology

GP7000F, through its adoption of international standards, the Solaris operating system,

and many new hardware technologies, delivers a UNIX server with the best in RAS

(Reliability, Availability, Serviceability).

[ GP7000F Rackmount type ]

GP7000F model 600R

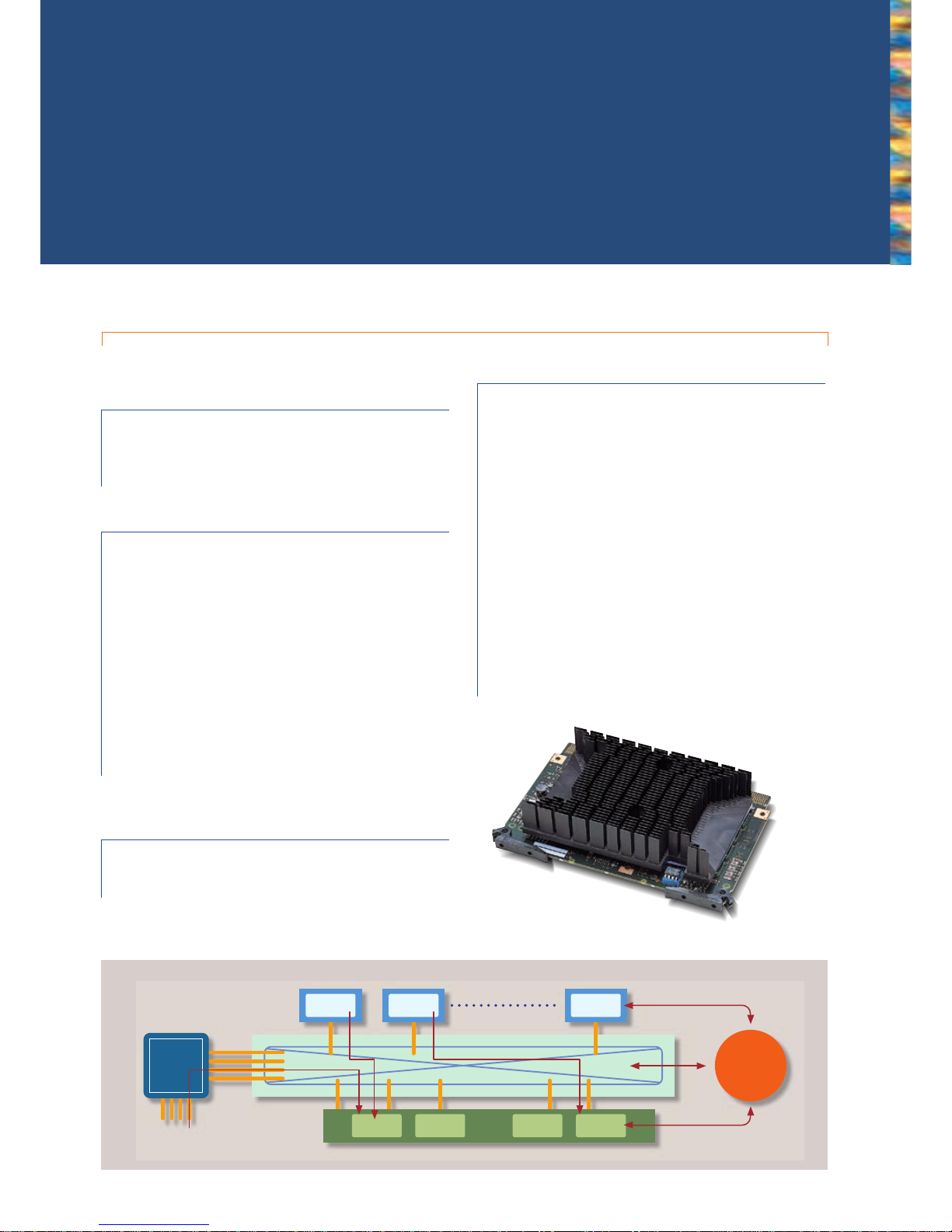

New high-performance technology

PCI bus

Data access and expansion are easy to manage.

GP7000F uses a 66/33MHz PCI bus I/O that supports

high-speed throughput of up to 3.1 GB/sec.

New high-performance 64-bit

RISC processor

SPARC64 GP

The GP7000F uses SPARC64 GP, a new 64-bit RISC

processor. Developed by Fujitsu and offering superb

performance, SPARC64 GP fully conforms to the SPARC

V9 architecture.

SPARC64 GP high-speed technology

The technology in SPARC64 GP provides improvement

in the number of simultaneously executable instructions

being processed. Its out-of-order function reduces

processing interrupts by executing instructions as

resources are available, rather than in the order of the

program. This ensures the maximum utilization of

available processing resources. SPARC64 GP also attains

very high-speed memory access by use of high-capacity

processor cache (1st level: 128KB, 2nd level: 2/4/8MB).

Techniques such as 4-way set associative, write-back

functions in 1st level cache, and predicted branches, also

reduce the load, avoid delays, and improve operational

performance.

High-performance system bus

Fujitsu offers world-class system performance through

a combination of a high-performance system bus, a

system bus controller, and the high-speed SPARC64 GP

processor.

The GP7000F system bus operates at an effective rate

of 5.6GB/sec. Use of the industry's highest-speed

crossbar switch maximizes CPU performance in

multiprocessor configurations. This is because more than

one bus can access memory and execute at the same

time using this crossbar.

A high-performance system controller was also

developed to ensure efficient use of the bus when

operating with the maximum 8 processors. The system

controller uses parallel caching techniques to obtain

efficient high-speed data transfer and improved memory

access through high-speed control of the crossbar

switch.

SPARC64 GP

SYSTEM

CONTROLLER

High-performance system bus

[Model 600]

Crossbar 128bit/90MHzX4

PCI

64bit/66MHzX4

64bit/33MHzX4 Fast bus switching for

memory access

CPUCPUCPU

I / O

Mutual monitoring,error report,

logged records

Rotation monitoring/control

PSU monitoring/control

Temperature monitoring

AC error report

Processing device

I/O monitoring/control

Mutual monitoring

Error report

RCI

CPU

Fan

PSU

UPS

Temperature sensor

I/O

Monitoring board

System Monitoring

Other servers

Highly reliable hardware

The GP7000F,s high reliability comes from redundancy

and error detection and correction. Redundant system

components such as power supply units, disks and fans

are hot-plug. In addition, system control functions

provide high availability through the automatic isolation

of faulty processors, memory modules, and the I/O bus.

The 1st and 2nd level cache, as well as all memory on

the SPARC64 GP processor, have ECC. As a result, the

GP7000F reduces the ratio of processor and system

failures and ensures a very stable system for mission

critical business.

System control

GP7000F has excellent management facilities via its

independent system control processor. This processor

delivers very highly reliable and enhanced operation. It

continually detects and monitors for service irregularities

independent of main system status. It operates even

during processor failures and any system hang. A log is

maintained which can be used for interrogation and

reporting. It is also possible to watch and control all

systems including peripherals by an RCI (Remote

Cabinet Interface) through a GUI control screen.

Highly reliable file system

"SynfinityFile," from Fujitsu's clustering solution,

provides a superior service compared to standard file

systems. SynfinityFile looks after your data when system

failures occur. SynfinityFile log function provides for

rapid recovery of the file system following any system

failure, no matter the size of the file count. It handles

high-capacity, multi-volume files, and provides tuning

functions, including load-balancing, to greatly improve

I/O traffic.

"SynfinityDisk" improves data reliability and availability

through mirroring. SynfinityDisk allows data to be

accessed after hardware failure. Support for large

volumes of data is standard, as is a hot spare function for

fast data re-creation. SynfinityDisk significantly shortens

recovery times and the reconfiguring of systems in

clustered configurations.

High reliability means stable

system operation

Secure disk array system "GR720"

The GP7000F supports a high-performance and highly

reliable disk array system, the GR720. The GR720 is

scalable from 27GB up to 2.3TB.

The GR720 supports

RAID level 0/1/0+1/5

Ultra Wide SCSI, Ultra2 Wide SCSI, and Fibre Channel

interface

Dynamic Capacity Expansion function

Redundant configuration of the power supply and fans in

order to prevent operations from being affected by hardware

failure

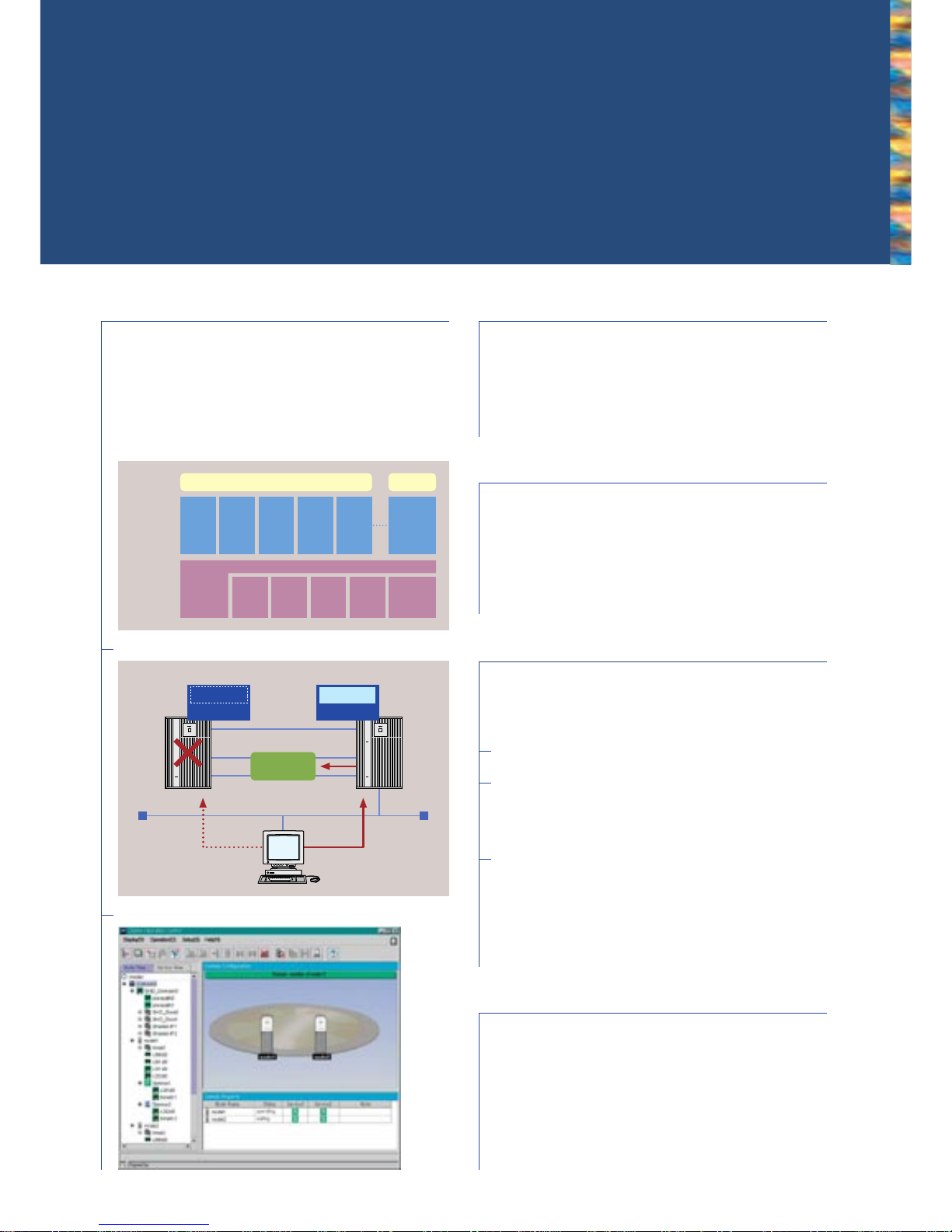

High Availability Cluster Systems

When your business cannot afford to stop, even for a short time, you need more than just

high reliability in each server. Such mission critical requirements are met by GP7000F's

clustering system. Multi-processor clusters linked to shared disk sub-systems minimize

service interruption when accidents or failures occur. Such clusters also provide

continued service when one server fails, or when components are off-line for routine

maintenance.

Range of solutions

The GP7000F's Clustering Systems offer a range of highly

available applications and environments in addition to the

basic durable and available system. The GP7000F's solutions

include highly available databases and transaction

processing systems, as well as network and shared printer

systems.

Availability

The hardware components are duplicated to maximize

system availability. This prevents total system failure or

data loss when a single component fails. In the event of a

potential server failure, the operational system can be

quickly transferred to a standby node to avoid service

disruption. The IP address, the operating node, MAC

address, and node name can also be transferred.

Hot standby technology

GP7000F can also be used in a "hot standby" configuration.

In this case, the standby node is in a hot standby condition

and is connected to the same shared disk system as the

operational node. This is different from the standard way of

transferring data and applications following a failure of an

operating node. With the GP7000F's "hot standby"

configuration, the time taken to restart the job is shortened

dramatically.

Operation

GP7000F clustering solutions remove the difficulties of

installation and operation that have previously restricted the

use of clustered solutions. Excellent system configuration

tools, such as the cluster installation wizard, automatic

hardware search and configuration function, WWW browser-

based operational setup, and centralized control function

take away the complexities of cluster management. In

addition, these tools also greatly improve the levels of system

security in the operational system.

Scalability

A GP7000F clustering system not only provides improved

availability when data or processes are transferred due to

node failure, but it also dramatically improves overall system

performance through parallel processing.

Maximum 128CPUs

Scalable up to a maximum of 16 nodes/128CPUs by clustering.

Auto isolation

When a node fails, it is automatically separated from the cluster.

It can then be serviced offline. The remaining nodes in the

cluster reschedule the work and continue to operate without

service interruption.

High-speed interconnect system

Fujitsu's Synfinity high-speed interconnect technology is used

to transfer information between clustered nodes. Synfinity is the

world's fastest interconnect technology and provides a data

transfer rate of 240MB/sec. in both directions. This high-speed

transfer significantly improves the parallel database processing

performance of Fujitsu's SymfoWARE and Oracle's Parallel

Server systems.

Cluster Operation Control Screen

Cluster System Configuration

Shared Disk

Failed

Application Application

Hot Standby

Business

Clustering

System

Cluster

System base

Printing NFS Network

Database

Tran-

saction

Parallel

Database

Processing

Cluster basic

S/W Disk

multiplex

path Volume

Control

Highly

Reliable

File

System

High

Speed

Interconnect

(VIA)

LAN

multiplex

path

Availability Scalability

SPARC64 is a registered trademark or trademark of SPARC.

International, Inc. in the United States and other countries used under license by Fujitsu Ltd.

Product bearing SPARC64 trademarks comply with SPARC V9 architecture developed by SPARC International, Inc.

Products bearing the SPARC trademarks are based on a architecture originally developed by Sun Microsystems, Inc.

Specifications are subject to change without notice. For the latest detailed information, contact your local representative.

All brand names and product names are trademarks and registered trademarks of their respective holders.

FUJITSU LIMITED

Business Development & Marketing Division

Marketing Group

Marunouchi Center Building

6-1, Marunouchi 1-chome, Chiyoda-ku, Tokyo100-8211, Japan

Phone:+81-3-3215-5255 Fax:+81-3-3215-5259

Printed in Japan

BK0068-5M

Fifth edition, March 2000

CPU

Cache

(per CPU)

Processor

Frequency

No. of CPU

SPEC int95

SPEC int_rate95

SPEC fp95

SPEC fp_rate95

14.0

212(2CPU)

17.2

249(2CPU)

Type

Main memory

Minimum

Maximum

Minimum

Maximum

Internal maximum

Disk option

Disk

Internal I/O

I/O Slots

Redundant

Hot plug

Standard I/O ports

Other functions

Dimension

Weight (kg)

Model 200

FDD

CD-ROM

4mm DAT

QIC

8mm Tape Drive

PCI(66/33MHz)

PCI(33MHz)

Disk

Power supply

Fan

Disk

Power supply

Fan

Internal Tape

WxDxH(mm)

SPARC64 GP

Model 200R Model 400A

SPARC64 GP

Model 400R

225MHz 250MHz 300MHz 300MHz 300MHz250MHz

2MB 4MB 8MB4MB 8MB4MB

250MHz250MHz 300MHz

1 2 1 4

15.9

250(2CPU)

20.9

287(2CPU)

19.2( )

307(2CPU)

24.0

( )

337(2CPU)

4GB 8GB 16GB

16.0

( )

253

( )

22.9

( )

325

( )

19.1

( )

299(2CPU )

27.3

( )

387(2CPU )

16.0

498(4CPU)

22.9

591(4CPU)

19.2

()

609(4CPU)

30.2

()

880(4CPU)

16.0

498(4CPU)

22.9

591(4CPU)

19.2

( )

609(4CPU)

30.2

( )

880(4CPU)

64KB+64KB

256MB

256/512MB/1GB with ECC protection

64/128/256/512MB/1GB with

ECC protection

256/512MB/1GB/2GB

with ECC protection

Only in expansion

file unit

9.1GB

40TB 60TB 70TB

36.4GB 400.4GB400.4GB36.4GB145.6GB

3.5inch FDD as standard

CD-ROM 32 as standard

100BaseTX or 10BaseT x 1

RS232C x 2

Parallel x 1

Option

Option One of three can be installed

Option

Option One of three can be installed

YES

(only for Expansion Cabinet/Unit)

YES YES YES

2 4(option)

4 8(option)

YES 94

YES

YES YES YES

YES YES

Only in expansion

file unit

YES

(only for Expansion Cabinet/Unit)

YES YES YES

Calendar, Auto power control function

UltraSCSI x 1

UltraSCSI x 1 or 2(option)UltraSCSI x 0 or 1(option)

482 x 779 x 174

230 x 667 x 700

43 482 x 814 x 307

500 x 882 x 700

175 800 x 900 x 1200

314

Estimation

Pedestal/Floor-stand Rackmount Pedestal/Floor-stand Rackmount

Memory module

YES

36.4GB

482 x 787 x 530

120

Model 600

SPARC64 GP

300MHz275MHz

8MB

2 8

17.6

1093(8CPU)

27.1

1487(8CPU)

19.2

1208(8CPU)

30.5

1622(8CPU)

Pedestal/Floor-stand Model 600R

300MHz275MHz

17.6

( )

1093(8CPU )

27.1

( )

1487(8CPU )

19.2

( )

1208(8CPU )

30.5

( )

1622(8CPU )

Rackmount

9.1GB/18.2GB (10,000rpm)

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Fujitsu Serveur

Fujitsu

Fujitsu PRIMERGY TX120 S2 Manuel utilisateur

Fujitsu

Fujitsu PRIMERGY TX2560 M2 Manuel utilisateur

Fujitsu

Fujitsu SPARC Enterprise M3000 Manuel de service

Fujitsu

Fujitsu PRIMEQUEST 1000 Series Manuel utilisateur

Fujitsu

Fujitsu PRIMERGY BX900 Guide rapide de l'utilisateur

Fujitsu

Fujitsu SPARC M10-4 Manuel utilisateur

Fujitsu

Fujitsu SPARC Enterprise M9000 Manuel utilisateur

Fujitsu

Fujitsu Primergy BX900 S2 Manuel utilisateur

Fujitsu

Fujitsu PRIMERGY RX800 S2 Manuel utilisateur

Fujitsu

Fujitsu Primergy TX120 Manuel utilisateur

Fujitsu

Fujitsu BS2000 Manuel utilisateur

Fujitsu

Fujitsu Primergy RX200 S4 Mode d’emploi

Fujitsu

Fujitsu SPARC Enterprise M3000 Manuel de service

Fujitsu

Fujitsu SPARC Enterprise T5440 Server Manuel utilisateur

Fujitsu

Fujitsu SPARC Enterprise T2000 Manuel utilisateur

Fujitsu

Fujitsu Primergy RX300 S3 Manuel du propriétaire

Fujitsu

Fujitsu FUTRO A300 Manuel utilisateur

Fujitsu

Fujitsu PRIMERGY BX900 S1 Manuel utilisateur

Fujitsu

Fujitsu Primergy RX4770 M1 Manuel utilisateur

Fujitsu

Fujitsu PRIMERGY TX200 S7 Manuel utilisateur

Fujitsu

Fujitsu PRIMERGY BX900 Manuel utilisateur

Fujitsu

Fujitsu PRIMERGY RX300 S7 Manuel utilisateur

Fujitsu

Fujitsu PRIMERGY TX1320 M4 Manuel utilisateur

Fujitsu

Fujitsu PRIMERGY 10/40GbE Connection Blade 18/8+2 Manuel de la liste des pièces

Manuels Serveur populaires d'autres marques

HP AlphaServer ES47 Manuel utilisateur

Dell

Dell PowerEdge R410 Manuel utilisateur

PowerNAS

PowerNAS CMA Manuel utilisateur

Supero

Supero FatTwin F617R3-FT Manuel utilisateur

MSI

MSI P1-109N-L70 Manuel utilisateur

Dell

Dell PowerEdge XE9640 Manuel

Dell

Dell PS4100 Instructions de montage

EtroVISION

EtroVISION EV3151 Manuel utilisateur

NEC

NEC Express5800/T110j Manuel utilisateur

HP ProLiant Gen9 Manuel utilisateur

Compaq

Compaq ProLiant 3000 Manuel

Dell

Dell PowerEdge 3YPMN Manuel utilisateur

iRobo

iRobo IPC2U Manuel utilisateur

Nortel

Nortel 1000 Con?guration guide Manuel utilisateur

Asus

Asus AP7500 Manuel d'utilisation et d'entretien

Avid Technology

Avid Technology AirSpeed 5000 Manuel utilisateur

HP Integrity rx2600 Guide d'installation

Milestone

Milestone Husky IVO 350T Manuel utilisateur
