Fujitsu BS2000 SE Series Manuel utilisateur

Edition October 2017

English

SE700 / SE500 / SE300

Quick Guide

FUJITSU Server BS2000

User Guide

Valid for:

M2000 V6.2A

X2000 V6.2A

HNC V6.2A

Comments…Suggestions…Corrections…

The User Documentation Department would like to know your

opinion on this manual. Your feedback helps us to optimize our

documentation to suit your individual needs.

Feel free to send us your comments by e-mail to:

manuals@ts.fujitsu.com

Certified documentation

according to DIN EN ISO 9001:2008

To ensure a consistently high quality standard and

user-friendliness, this documentation was created to

meet the regulations of a quality management system which

complies with the requirements of the standard

DIN EN ISO 9001:2008.

cognitas. Gesellschaft für Technik-Dokumentation mbH

www.cognitas.de

This manual is printed

on paper treated with

chlorine-free bleach.

Delivery subject to availability; right of technical modifications reserved.

All hardware and software names used are trademarks of their respective manufacturers.

The Xen® mark is a trademark of Citrix Systems, Inc., which manages the mark on behalf of the Xen open source

community. The Xen® mark is registered with the U.S. Patent and Trademark Office, and may also be registered in

other countries.

Novell and SUSE are registered trademarks of Novell, Inc. in the USA and other countries.

Linux is a registered trademark of Linus Torvalds.

Windows® is a registered trademark of Microsoft Corporation.

The Linux-based basic software M2000, X2000, and HNC which is installed on the Management Unit, Server Unit

x86, and HNC contains Open Source Software. The licenses for this can be found in the LICENSES directory on the

relevant installation DVD.

U41857-J-Z125-2-76

Dokuschablonen 19x24 Version 7.4de für FrameMaker V7.x vom 09.02.2010 © cognitas GmbH 2001-2010

25. Oktober 2017 Stand 17:53.09 Pfad: P:\FTS-BS\Server\SE-Server\SE-Doku\1303917_Kurz_062\se_kurz_e\se_kurz.ivz

Contents

1 Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

2 Calling the SE Manager . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

2.1 How do I log in on the SE Manager? . . . . . . . . . . . . . . . . . . . . . . . . . . 7

2.2 How do I log out of the SE Manager? . . . . . . . . . . . . . . . . . . . . . . . . . 8

2.3 How do I power on a Management Unit via a server rack (local console)? . . . . . 9

2.4 How do I power on a Management Unit via iRMC? . . . . . . . . . . . . . . . . . 10

3 Powering on, starting up BS2000, powering off . . . . . . . . . . . . . . . . . . 13

3.1 How do I power on Server Units and additional Units via the SE Manager? . . . 13

3.2 How can I boot the BS2000 on an SU /390? . . . . . . . . . . . . . . . . . . . . . 15

3.3 How can I boot the BS2000 on an SU x86? . . . . . . . . . . . . . . . . . . . . . 20

3.4 How do I open or close a BS2000 dialog? . . . . . . . . . . . . . . . . . . . . . . 23

3.5 How do I open a BS2000 console? . . . . . . . . . . . . . . . . . . . . . . . . . 25

3.6 How can I shut down the BS2000 via the BS2000 console? . . . . . . . . . . . . 26

3.7 How do I power off Server Units and additional Units? . . . . . . . . . . . . . . 27

4 Powering on/off Application Units . . . . . . . . . . . . . . . . . . . . . . . . . . 29

4.1 How do I power on/off an AU via iRMC? . . . . . . . . . . . . . . . . . . . . . . 29

4.2 How do I power on/off an AU via the SE Manager? . . . . . . . . . . . . . . . . . 32

Contents

U41857-J-Z125-2-76

5 Working with AIS Connect (remote service) . . . . . . . . . . . . . . . . . . . . . 33

5.1 How do I change the AIS Connect Service access? . . . . . . . . . . . . . . . . 33

5.2 How do I open a shadow terminal? . . . . . . . . . . . . . . . . . . . . . . . . . . 34

5.3 How do I restart the AIS Connect Service Agent? . . . . . . . . . . . . . . . . . . 35

5.4 How do I delete the AIS session logging files? . . . . . . . . . . . . . . . . . . . 36

6 Notes for error situations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39

6.1 How do I generate diagnostic data? . . . . . . . . . . . . . . . . . . . . . . . . . 39

6.2 How do I deploy diagnostic data for the Customer Support? . . . . . . . . . . . 40

Index . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41

U41857-J-Z125-2-76 5

Dokuschablonen 19x24 Version 7.4de für FrameMaker V7.x vom 09.02.2010 © cognitas GmbH 2001-2010

25. October 2017 Stand 17:53.09 Pfad: P:\FTS-BS\Server\SE-Server\SE-Doku\1303917_Kurz_062\se_kurz_e\se_kurz.k01

1 Introduction

The FUJITSU Server BS2000 SE Series unites the existing server lines S servers and SQ

servers in the server line SE servers.

Depending on requirements, the SE server contains all the system components needed for

operation as an overall application:

– /390-based BS2000 Server Unit

– x86-based Server Units with BS2000, Linux or Windows guest systems

– x86-based Application Units for operation under Linux, Windows or VMware

– Shareable tape and disk periphery

– A high-speed, server-internal infrastructure to connect the components with each other

and with the customer LAN or SAN.

Information on using the Quick Guide

This Quick Guide is intended for people who operate an SE server and contains short

instructions for the most important scenarios when placing the SE server in service. The

following requirements should be met:

●Customer Support provides the customer with the SE server.

●The desired BS2000 operating mode is set on each Server Unit.

●A BS2000 system is configured and fully operational.

●All necessary BS2000 devices are configured.

iPlease note the following:

The base system of the MU (M2000) as well as the iRMC of the MU have a pre-

defined administrator account admin at the time the SE server is delivered. In both

cases an initial password is preset, which you can ask for at the service.

Change the password immediately after you have logged in for the first time.

You may also change the validity time and the other password attributes.

You can access the password management as follows:

– in SE Manager: Authorizations →User →Password management

– on the iRMC: User management →iRMC S4 users

Introduction

6 U41857-J-Z125-2-76

A detailed description of the SE Manager's functionality with the usage of the base software

(M2000/X2000/HNC) V6.2A is included in the “Operation and Administration” manual and

in the SE Manager's online help.

U41857-J-Z125-2-76 7

Dokuschablonen 19x24 Version 7.4de für FrameMaker V7.x vom 09.02.2010 © cognitas GmbH 2001-2010

25. October 2017 Stand 17:53.09 Pfad: P:\FTS-BS\Server\SE-Server\SE-Doku\1303917_Kurz_062\se_kurz_e\se_kurz.k02

2 Calling the SE Manager

2.1 How do I log in on the SE Manager?

Requirement

A Management Unit is powered on. It might be necessary to power on a Management

Unit (MU) first, to make the access to the SE Manager possible (see “How do I power

on a Management Unit via a server rack (local console)?” on page 9 or “How do I power

on a Management Unit via iRMC?” on page 10).

If IP-based access rights are configured for accessing the SE server, the IP address of

the PC must have a permission.

Procedure

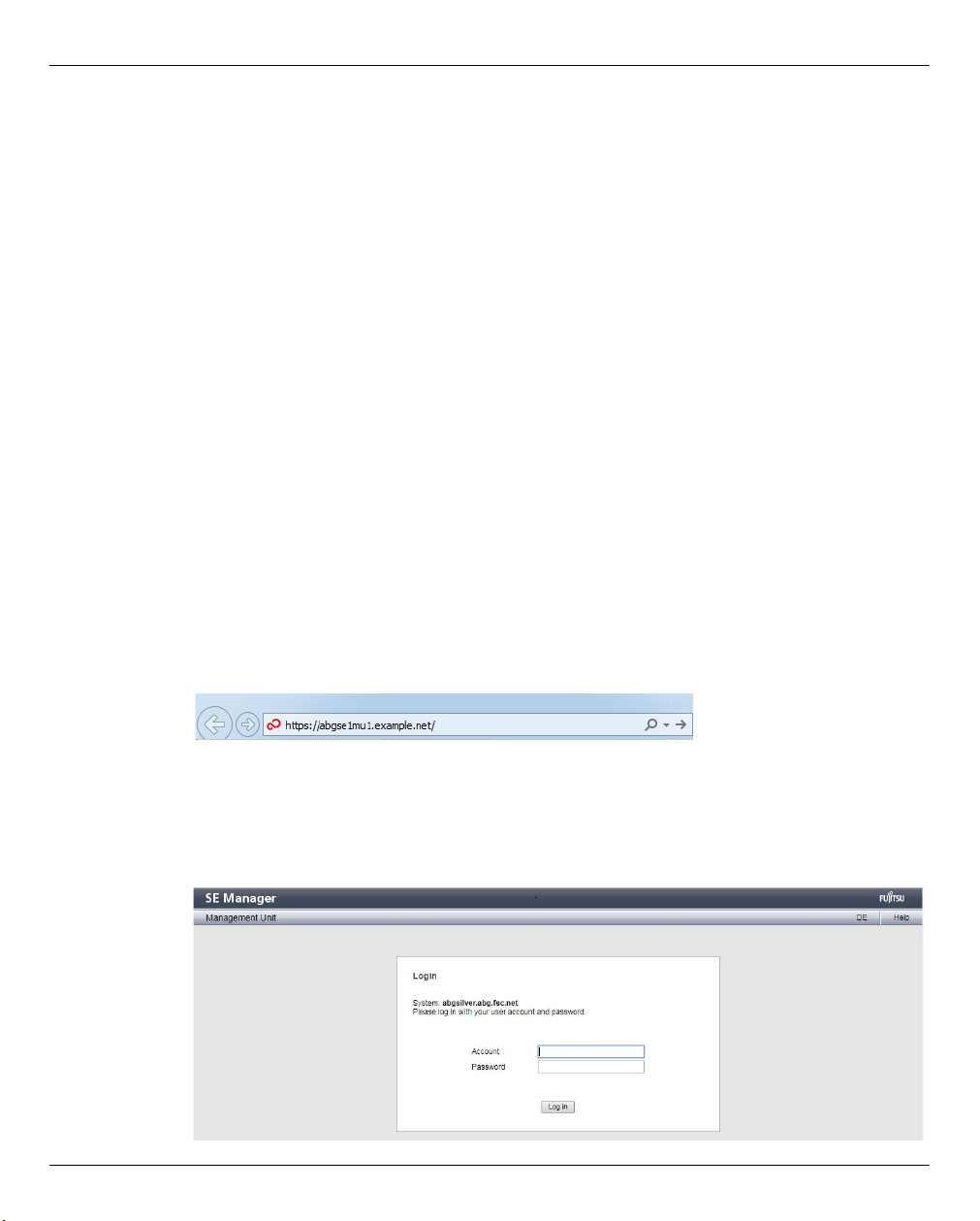

ÊEnter the FQDN (Fully Qualified Domain Name) or IP address of the active MU into the

address bar of the browser and press enter:

IIf the browser now displays a note about the security certificate, click on the

actions that allow loading the requested page.

Recommendation: Import the certificate into the browser so that these notes

are not shown repeatedly.

The connection is established and the login window opens:

Log out from the SE Manager Calling the SE Manager

8 U41857-J-Z125-2-76

iThe login window is also displayed to permit you to log in again if you have

logged out or the session was terminated owing to inactivity.

ÊEnter your account and the respective password in the login window.

IChange the inital password for the account admin immediately after the

first login (see also information on page 5).

ÊClick Log in.

The Dashboard tab opens as the welcome page. It provides a quick overview of the

systems, Units or Units/Partitions, IP networks, FC networks, Storage, Cluster, Users,

and Events of the SE server.

2.2 How do I log out of the SE Manager?

Logging out explicitly

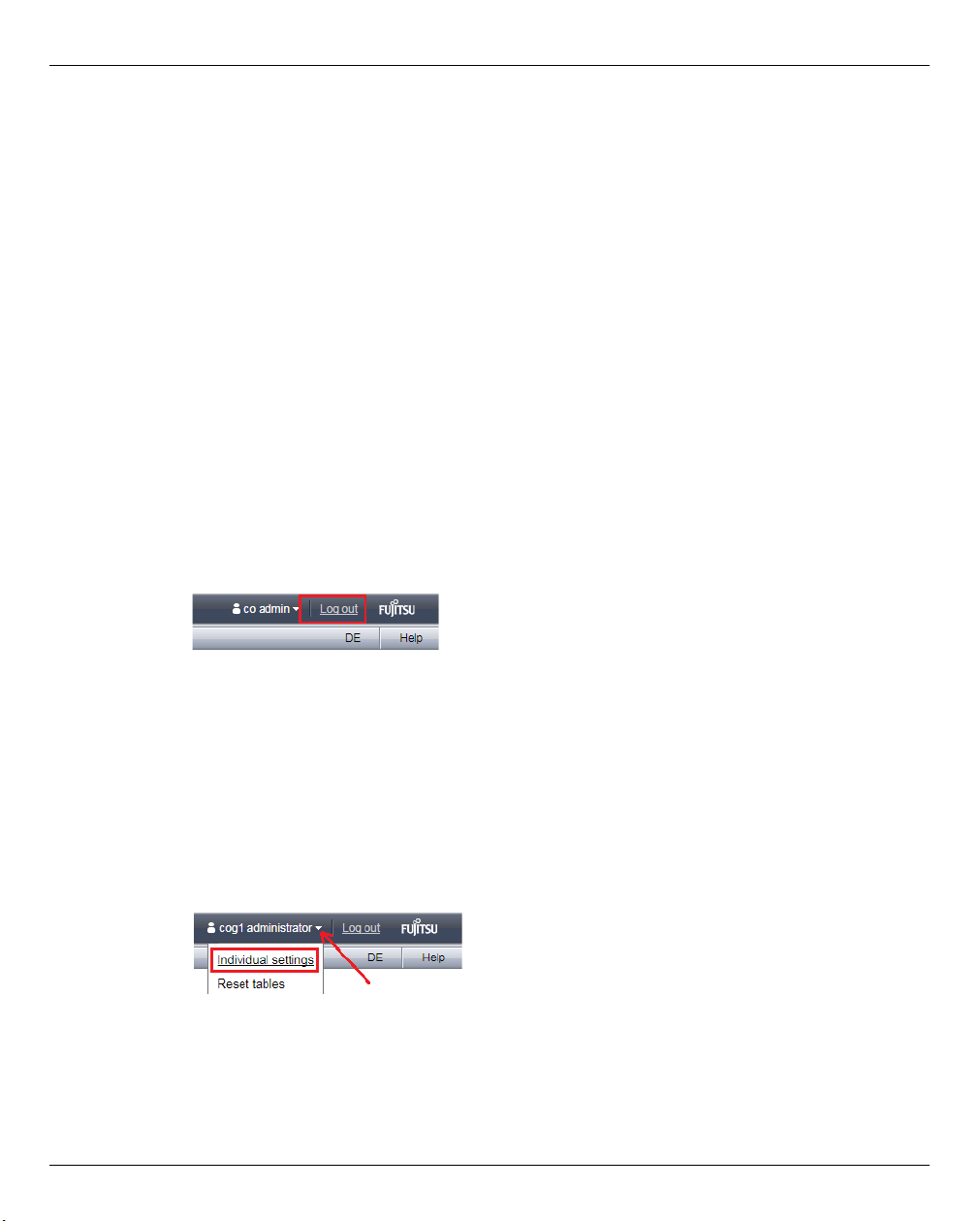

ÊIn the header area of the SE Manager main window click Log out to terminate the

session:

You will then be forwarded to the login window (for logging in again).

Logging out because of a session timeout

If you do not log out explicitly, the session terminates if there is no activity for 20 minutes,

i.e. if the SE Manager registers no activity in this time. The default session timeout is set to

20 minutes and can be changed individually:

ÊIn the header area of the SE Manager's main window click on the arrow next to the login

name and then, in the drop down list, click Individual settings to display the dialog for

changing the session timeout:

IWhen you want to start an activity in the SE Manager after a session has timed out,

first the login window appears, and you must log in again. Only after you have done

this will the activity be executed.

Calling the SE Manager Powering on the MU via the local console

U41857-J-Z125-2-76 9

Dokuschablonen 19x24 Version 7.4de für FrameMaker V7.x vom 09.02.2010 © cognitas GmbH 2001-2010

25. October 2017 Stand 17:53.09 Pfad: P:\FTS-BS\Server\SE-Server\SE-Doku\1303917_Kurz_062\se_kurz_e\se_kurz.k02

2.3 How do I power on a Management Unit via a server rack

(local console)?

Requirement

You are on the server rack of the SE server.

Procedure

ÊOpen the server rack

ÊPull out the tray with the local console and flip up the screen

ÊPress the power on button on the MU

IBy default the local console is attached to the MU. If the connection is attached to

the Server Unit, switch over to the MU using the console switch menu (press the

HOT KEY to call it).

The MU powers itself on and starts up. The startup messages are output on the local

console. As soon as the system is ready, you receive the login request.

ÊEnter account and password of an administrator account

Iadmin is the password of the admin account when the system is supplied. If it has

already been changed (or you are using a different password), you must enter the

current password (see also section “How do I log in on the SE Manager?” on

page 8).

ÊClick Login

After a successful login the Gnome Desktop is loaded.

ÊClick Computer in the task bar (bottom left), to open the application menu:

ÊDouble-click the Firefox icon to open the browser.

Powering on the MU via iRMC Calling the SE Manager

10 U41857-J-Z125-2-76

ÊEnter localhost into the address bar of the browser (or alternatively the FQDN of the

powered-on MU) and press enter:

As soon as the login window is displayed, the login to the SE Manager can be performed

(see “How do I log in on the SE Manager?” on page 7).

2.4 How do I power on a Management Unit via iRMC?

Requirement

The iRMC (integrated Remote Management Controller) of the Management Unit is

accessible.

Procedure

ÊOpen a browser window on the administrator PC

ÊEnter the IP address of the iRMC of the MU

IIf the browser now displays a warning about the security certificate, click

Continue to this website.

The browser displays the iRMC’s graphical user interface with a note in the work area that

it is necessary to log in on the iRMC:

ÊClick Login.

Autres manuels pour BS2000 SE Series

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Fujitsu Serveur

Fujitsu

Fujitsu PRIMERGY TX200 S5 Manuel utilisateur

Fujitsu

Fujitsu PRIMERGY TX300 S7 Manuel utilisateur

Fujitsu

Fujitsu Primergy BX2560 M1 Manuel utilisateur

Fujitsu

Fujitsu PRIMERGY RX2520 M5 Manuel utilisateur

Fujitsu

Fujitsu SPARC Enterprise T5440 Server Guide d'installation

Fujitsu

Fujitsu PRIMERGY MX130 S2 Upgrade and maintenance... Manuel utilisateur

Fujitsu

Fujitsu PRIMERGY RX200 S5 Manuel utilisateur

Fujitsu

Fujitsu SPARC Enterprise M4000 Fiche technique

Fujitsu

Fujitsu PRIMERGY BX400 S1 Manuel utilisateur

Fujitsu

Fujitsu FUTRO S720 Manuel utilisateur

Fujitsu

Fujitsu Primergy BX900 S2 Manuel utilisateur

Fujitsu

Fujitsu PRIMERGY TX2550 M5 Manuel utilisateur

Fujitsu

Fujitsu PRIMERGY TX300 S5 Manuel utilisateur

Fujitsu

Fujitsu Primergy BX920 S3 Manuel utilisateur

Fujitsu

Fujitsu PRIMERGY BX922 S2 Manuel utilisateur

Fujitsu

Fujitsu SPARC Enterprise M3000 Manuel de service

Fujitsu

Fujitsu PRIMERGY TX300 S8 Manuel utilisateur

Fujitsu

Fujitsu Primergy BX920 S3 Manuel utilisateur

Fujitsu

Fujitsu PRIMEQUEST 2400E3 Instructions d'utilisation et d'entretien

Fujitsu

Fujitsu PRIMERGY TX100 S2 Manuel utilisateur

Fujitsu

Fujitsu PRIMERGY BX920 S2 Manuel utilisateur

Fujitsu

Fujitsu PRIMERGY RX200 S7 Manuel utilisateur

Fujitsu

Fujitsu PRIMERGY TX1320 M3 Manuel utilisateur

Fujitsu

Fujitsu BX630 - PRIMERGY - S2 Dual Manuel du propriétaire

Manuels Serveur populaires d'autres marques

HP AlphaServer ES47 Manuel utilisateur

Dell

Dell PowerEdge R410 Manuel utilisateur

PowerNAS

PowerNAS CMA Manuel utilisateur

Supero

Supero FatTwin F617R3-FT Manuel utilisateur

MSI

MSI P1-109N-L70 Manuel utilisateur

Dell

Dell PowerEdge XE9640 Manuel

Dell

Dell PS4100 Instructions de montage

EtroVISION

EtroVISION EV3151 Manuel utilisateur

NEC

NEC Express5800/T110j Manuel utilisateur

HP ProLiant Gen9 Manuel utilisateur

Compaq

Compaq ProLiant 3000 Manuel

Dell

Dell PowerEdge 3YPMN Manuel utilisateur

iRobo

iRobo IPC2U Manuel utilisateur

Nortel

Nortel 1000 Con?guration guide Manuel utilisateur

Asus

Asus AP7500 Manuel d'utilisation et d'entretien

Avid Technology

Avid Technology AirSpeed 5000 Manuel utilisateur

HP Integrity rx2600 Guide d'installation

Milestone

Milestone Husky IVO 350T Manuel utilisateur
