Getting Started

Image Scanner

fi-

6800

fi-

6800

Getting Started

Image Scanner

Thank you for purchasing fi-6800 Color Image Scanner (hereinafter referred to as "the scanner").

This manual describes the preparation required for use of the scanner. Follow the preparation procedures

described in this manual.

Make sure to read the "Safety Precautions" document provided with the scanner before use. For details

about scanner functions and features, basic operation, daily care, consumable replacement and trouble-

shooting, refer to the "Operator's Guide" (PDF). The "Operator's Guide" is displayed by clicking [fi-6800] J

[Next] J[USER'S GUIDE] J[Operator's Guide] on the supplied Setup DVD-ROM.

October 2011

Microsoft, Windows, Windows Server, Windows Vista, and SharePoint are either registered trademarks or

trademarks of Microsoft Corporation in the United States and/or other countries.

ISIS and Quick Scan are either registered trademarks or trademarks of EMC Corporation in the United

States.

Adobe, the Adobe logo, Acrobat, and Adobe Reader are either registered trademarks or trade names of

Adobe Systems Incorporated in the United States and/or other countries.

Kofax and VRS are trademarks or registered trademarks of Kofax, Inc.

Other company names and product names are the registered trademarks or trademarks of the respective

companies.

Checking the Components

Make sure that all items shown below are included in the package. If any other packaging is provided, make

sure to store it as well. Make sure to handle the components with care.

The box and packaging materials are required for storage and transportation of the scanner. Do not throw

them away. If anything is missing or damaged, contact your FUJITSU scanner dealer or an authorized

FUJITSU scanner service provider.

P3PC-2482-01XA

Safety

Saft

Safety

Precaution

Safety

Precautions

Consignes de

curi

Consignes de

sécurité

Precauzionidi

sicurezz

Precauzioni di

sicurezza

Precaucionesde

segurida

segurid

segurida

Precaucionesde

seguridad

Precauções de

segurança

Sicherheit

vorkehrunge

vorkehrung

vorkehrunge

Sicherheits-

vorkehrungen

P3PC-2502-01XA

Image Scanner fi-Series

Check

Scan

Stop

Eject

Counter

Reset

iMFF

Function

/Enter

Send to

/Pause

Clear

/Back

Setup DVD-ROM

Scanner (× 1)

USB Cable (× 1)

Power Cable (× 1)Operator Panel Overlay (× 6)

Setup DVD-ROM (× 1)

Getting Started

(this manual) (× 1)

Safety Precautions (× 1)

-fi-6800 Convenient Operation (× 1)

-fi-6800 Maintenance Guide (× 1)

-QuickScan™ Pro brochure (× 1)

Adobe®Acrobat®

DVD-ROM (× 1)

Note: The contents may vary depending on the country.

P3PC-2482-02EN

Safety Precautions

The provided "Safety Precautions" document con-

tains important information about the safe use of

the scanner. Before using the scanner, make sure

to read and understand the information provided

in the "Safety Precautions" document.

Symbols Used in This

Manual

The following symbols are used in this manual.

Installing the Scanner

Software

The scanner drivers and applications bundled with

the scanner are as follows.

zTWAIN Driver

Conforms to the TWAIN standard. Used when

you operate the scanner using TWAIN-compli-

ant applications.

zISIS Driver

Conforms to the ISIS standard. Used when you

operate the scanner using ISIS-compliant

applications.

zKofax VRS Professional (hereinafter

referred to as "Kofax VRS")

A software program that allows you to gener-

ate high-quality images with simple operations.

The application automatically detects and cor-

rects document skews during scanning, and

characters blurred by coloring or shading.

zSoftware Operation Panel

Configures settings for scanning behavior and

consumables management. Installed together

with the scanner drivers (TWAIN/ISIS).

zError Recovery Guide

Shows the error status and the action to take

when an error occurs. Can be installed

together with the scanner drivers (TWAIN/

ISIS). Note this guide will not work if you use

Kofax VRS.

zImage Processing Software Option

A software option featuring advanced binariza-

tion of scanned images. Can be installed

together with the scanner drivers (TWAIN/

ISIS).

zScandAll PRO

A TWAIN/ISIS-compliant image scanning soft-

ware (recommended). You can define scan-

ning settings as batch profiles, to suit your

various operation requirements. By defining

scanning settings as batch profiles, you can

easily perform scans in accordance with vari-

ous operation requirements.

zScan to Microsoft SharePoint

A software program that allows you to upload

your files easily from ScandAll PRO to a

SharePoint site. Can be installed together with

ScandAll PRO.

zQuickScan Pro (trial)

A software program for scanning that conforms

to the ISIS standard. By using an ISIS scanner

driver, you can read scanned documents and

create their images. This is a trial version, and

can be executed 30 times before it is disabled.

You will need to purchase the full product ver-

sion if you wish to continue using it.

zManuals

Includes Getting Started, Operator's Guide,

and "Read Before Using VRS".

zScanner Central Admin Agent

Used to centralize the management of multiple

scanners, by allowing you to apply firmware

updates simultaneously, monitor the operating

status, and check the scanner information.

Note that required applications will differ

depending on the form of operation.

For details, refer to the Scanner Central Admin

4.0 User's Guide.

zAdobe®Acrobat®Standard

The de-facto standard application used for cre-

ating, editing, managing, and making use of

digitalized documents in PDF format.

Symbol Description

This symbol alerts operators to an

operation that, if not strictly

observed, may result in severe

injury or death.

This symbol alerts particularly

important information. Be sure to

read this information.

This symbol alerts operators to

helpful advice regarding opera-

tion.

Bundled Software

WARNING

Adobe®Acrobat®, bundled with the

scanner, may be upgraded without

notice.

Refer to Adobe Acrobat Help if the

actual screens differ from those

described in this manual.

The system requirements for fi-6800 are as

follows.

*1: Scanner Central Admin Agent is not

supported.

*2: Not supported by Kofax VRS.

*3: ScandAll PRO and Scan to Microsoft

SharePoint are not supported.

*4: QuickScan Pro does not support the

Windows®64-bit version.

The following describes how to install the bundled

software from the "Setup DVD-ROM" contained in

the scanner package.

There are two ways to install the bundled

software: [INSTALL (Recommended)] which

installs all software programs needed to operate

the scanner, or [INSTALL (Custom)] which installs

selected software programs one at a time.

For how to install Adobe®Acrobat®, refer to

"Installing Adobe®Acrobat®" (page 4).

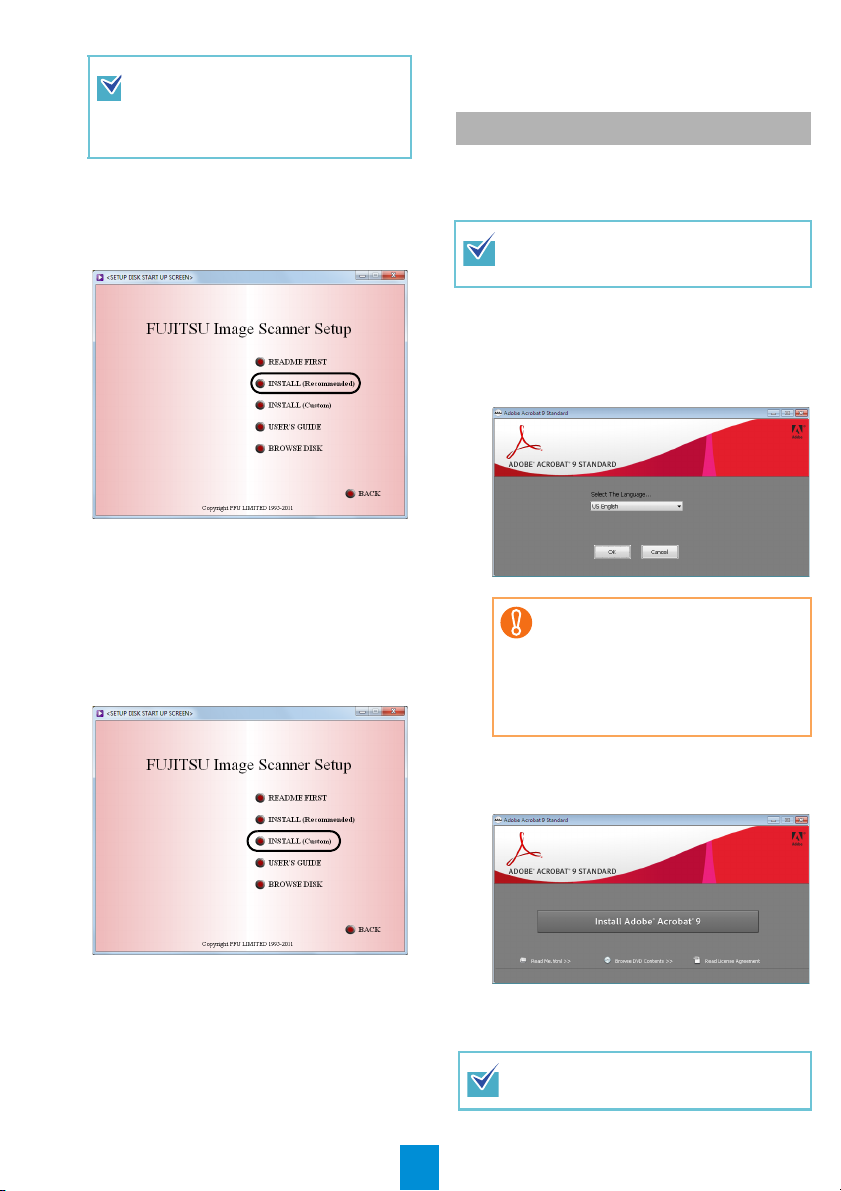

■INSTALL (Recommended)

1. Turn on your computer and log onto

Windows®.

2. Insert the Setup DVD-ROM into the DVD

drive.

DThe [FUJITSU Image Scanner Setup]

screen appears.

System Requirements

Operating

system

zMicrosoft®Windows®2000

Professional (Service Pack 4 or

later) (*1) (*2) (*3)

Microsoft

Windows

XP Home

Edition (Service Pack 3 or later) (*2)

zMicrosoft® Windows®XP

Professional

(Service Pack 3 or later)

zMicrosoft®Windows®XP

Professional x64 Edition

(Service Pack 2 or later) (*2) (*4)

Microsoft

Windows Server

2003,

Standard Edition (*1) (*2) (*3)

zMicrosoft®Windows Server®

2003, Standard x64 Edition

(*1) (*2) (*3) (*4)

zMicrosoft®Windows Server®2003

R2, Standard Edition

(Service Pack 2 or later) (*2)

zMicrosoft®Windows Server®2003

R2, Standard x64 Edition

(Service Pack 2 or later) (*2) (*4)

zMicrosoft®Windows Server®2008

Standard (32-bit/64-bit) (*2) (*4)

zMicrosoft®Windows Server®2008

R2 Standard (64-bit) (*2) (*4)

zMicrosoft®Windows Vista®

Ultimate (32-bit/64-bit)

(Service Pack 1 or later) (*4)

zMicrosoft®Windows Vista®Home

Premium (32-bit/64-bit)

(Service Pack 1 or later) (*2) (*4)

zMicrosoft®Windows Vista®Home

Basic (32-bit/64-bit)

(Service Pack 1 or later) (*2) (*4)

zMicrosoft®Windows Vista®

Business (32-bit/64-bit)

(Service Pack 1 or later) (*4)

zMicrosoft®Windows Vista®

Enterprise (32-bit/64-bit)

(Service Pack 1 or later) (*4)

zWindows®7 Home Premium

(32-bit/64-bit) (*2)(*4)

zWindows®7 Professional

(32-bit/64-bit) (*4)

zWindows®7 Enterprise

(32-bit/64-bit) (*4)

zWindows®7 Ultimate

(32-bit/64-bit) (*2)(*4)

DVD drive Essential for installing the software

Interface

zUltra-SCSI (50-pin)

zUSB2.0 (High-Speed)

zVRS (Ultra-Wide-SCSI/USB2.0)

Windows Vista®screen examples are

used to explain the operations. The

screens and operations may differ slightly

depending on the operating system you

are using.

Where there is no distinction between the

different versions of the above operating

system, the general term Windows®is

used.

Installing the Bundled Software

zIf an old version of the software is

installed already, uninstall it first. For

how to uninstall software, refer to "A.5

Uninstalling the Software" in the Opera-

tor's Guide.

zLog on as a user with "Administrator"

privileges (Administrators).

3. Click [fi-6800] and click the [Next] button

on the displayed screen.

4. Click the [INSTALL (Recommended)]

button.

5. Install the software, following the on-

screen instructions.

■INSTALL (Custom)

1. Perform Steps 1 to 3 in "INSTALL (Recom-

mended)" (page 3).

2. Click the [INSTALL (Custom)] button.

DThe [INSTALL PRODUCTS] screen

appears.

3. Click the button of the software to be

installed.

4. Install the software, following the on-

screen instructions.

Repeat Steps 3 and 4 to install other software

programs here.

Install Adobe®Acrobat®using the following

procedure from the "Adobe®Acrobat®DVD-ROM"

supplied with the scanner.

1. Insert the supplied "Adobe®Acrobat®

DVD-ROM"into the DVD drive.

DThe DVD-ROM is recognized automati-

cally, and the following dialog box

appears.

2. Select [US English] in [Select The

Language], and then click the [OK] button.

DThe following dialog box appears.

3. Follow the on-screen instructions to install

the software.

If the [FUJITSU Image Scanner Setup]

screen does not appear, find

"AutoPlayer.exe" in the Setup DVD-

ROM using "Windows Explorer" or

"Computer" and execute it directly. Installing Adobe®Acrobat®

You do not have to install Adobe®

Acrobat®if it is already installed on your

computer.

This dialog box is not displayed

automatically when the [Auto play]

setting of your computer is deacti-

vated. In this case, run

"AutoPlay.exe" of this DVD-ROM

directly using the "Windows

Explorer" or "Computer".

Refer to Adobe Acrobat Help about how

to use Adobe® Acrobat®.

This Acrobat version does not support Windows®

2000 and Windows Server®2008.

Installing the Scanner

Place the scanner at its installation site.

Connecting the Cables

The following describes how to connect the cables

between the scanner and your computer.

1. Make sure that the computer is turned

OFF.

2. Connect the scanner to your computer

either with a USB or SCSI cable.

The following describes the requirements for

connecting with the respective cables.

zUSB cable

-Be sure to use the USB cable which comes

as an accessory with this scanner.

-When connecting to an USB hub, use the

first stage USB hub that is closest to the

computer. If you use the second or later hub

stages, the scanner may not operate cor-

rectly.

-If you connect the scanner with USB 2.0, it

is required that the USB port and the hub be

compliant with USB 2.0. The scanning

speed slows down when you connect the

scanner with USB 1.1.

zSCSI cable

-When using the scanner with a SCSI inter-

face, the following types of SCSI cable and

SCSI card must be purchased.

SCSI cable:

Use a SCSI cable whose connector on the

computer side mates to the connector on

the SCSI card installed on your computer.

On the scanner side, use either of the fol-

lowing SCSI cable types depending on the

connector (1 or 2) used:

SCSI Connector 1: 50-pin high-density type

SCSI Connector 2: 68-pin high-density type

SCSI card:

Find the recommended SCSI card informa-

tion on the Fujitsu website (FAQ):

http://www.fujitsu.com/global/support/com-

puting/peripheral/scanners/scsi/

-In a SCSI daisy chain formation, connect

the scanner so that it is the terminated

device.

zThe scanner weight is 32 kg (70.56 lb).

You must not carry it alone.

zCarry the scanner by supporting it from

the bottom.

350

1630

860

430

460

(12.20)(12.20)

310

460460

(33.86)

(18.11) (64.17)

430

(16.93)

394

(15.51)

Scanner’s Dimensions

Installation Space

Unit: mm (in.)

SCSI ID

CGA Board (when Kofax VRS is used)

SCSI Connector 2 USB Connector 1

USB Connector 2 SCSI Connector 1

SCSI Cable

USB Cable

Power Cable

zYou cannot make both USB and

SCSI cable connections at the

same time.

zYou cannot connect multiple

computers to the scanner at the

same time.

zTo scan using TWAIN/ISIS, connect

the cable to USB Connector 1 or

SCSI Connector 1 on the scanner.

To scan using Kofax VRS, connect

the cable to USB Connector 2 or

SCSI Connector 2 on the scanner.

zTurn off the scanner and your

computer whenever you switch the

interface cable.

Be careful not to damage any pins of

the SCSI connector when connecting

the scanner to your computer.

-The SCSI ID initially set at the factory is [5].

If the SCSI ID of another SCSI device is set

to the same ID, change the scanner's SCSI

ID to [0] through [6].

3. Connect the power cable to the power

connector of your scanner and to the

power outlet.

Test-Scanning Documents

Using ScandAll PRO, you can test-scan docu-

ments to check if they are scanned correctly.

The following describes how to test-scan a

document:

1. Turn on the scanner.

1. Press the "I" side of the main power switch on

the rear side of the scanner.

2. Press the power button on the front of the

scanner. The scanner is turned ON, the

power button lights in blue, and the liquid

crystal display (LCD) shows [Ready].

2. Replace the current operator panel overlay

with the one for the language to be used,

and specify the language to be shown on

the LCD.

For how to replace the overlay and specify

the language setting, refer to "Chapter 4 How

to Use the Operator Panel" in the Operator’s

Guide.

3. Turn on your computer.

4. The scanner is automatically detected,

and the [Found New Hardware] dialog box

appears. Select [Locate and install driver

software (recommended)] to install the

driver, following the on-screen instructions.

5. Load a sheet into the scanner.

For loading a sheet, refer to "2.1 Loading

Documents" in the Operator's Guide.

6. Launch ScandAll PRO.

Select the [Start] menu J[All Programs] J

[Fujitsu ScandAll PRO] J[ScandAll PRO].

7. Select the [Tool] menu J[Preferences].

DThe [Setup] dialog box appears.

8. On the [Scan] tab, select a driver to use,

and then click the [OK] button.

When the connection is made via SCSI/USB

Connector 2, click [ISIS/VRS].

WARNING

Be sure to use the supplied power cable.

The following cases may cause electrical

shock or malfunction.

zUsing a power cable other than that

supplied

zUsing the supplied power cable for other

devices

If you see an error indication other

than the above on the LCD, refer to

"Chapter 8 Troubleshooting" in the

Operator's Guide.

For a SCSI connection, turn on the

scanner and confirm that the LCD

shows [Ready]. Then, turn on your

computer.

If the connection is made via SCSI

Connector 2, there is no need to

install the driver here. Just click

[Don't show this message again for

this device].

Function

/Enter

Check

Scan

Stop

Eject

Counter

Reset

iMFF

Send to

/Pause Clear

/Back

LCD

Power Button

Overlay

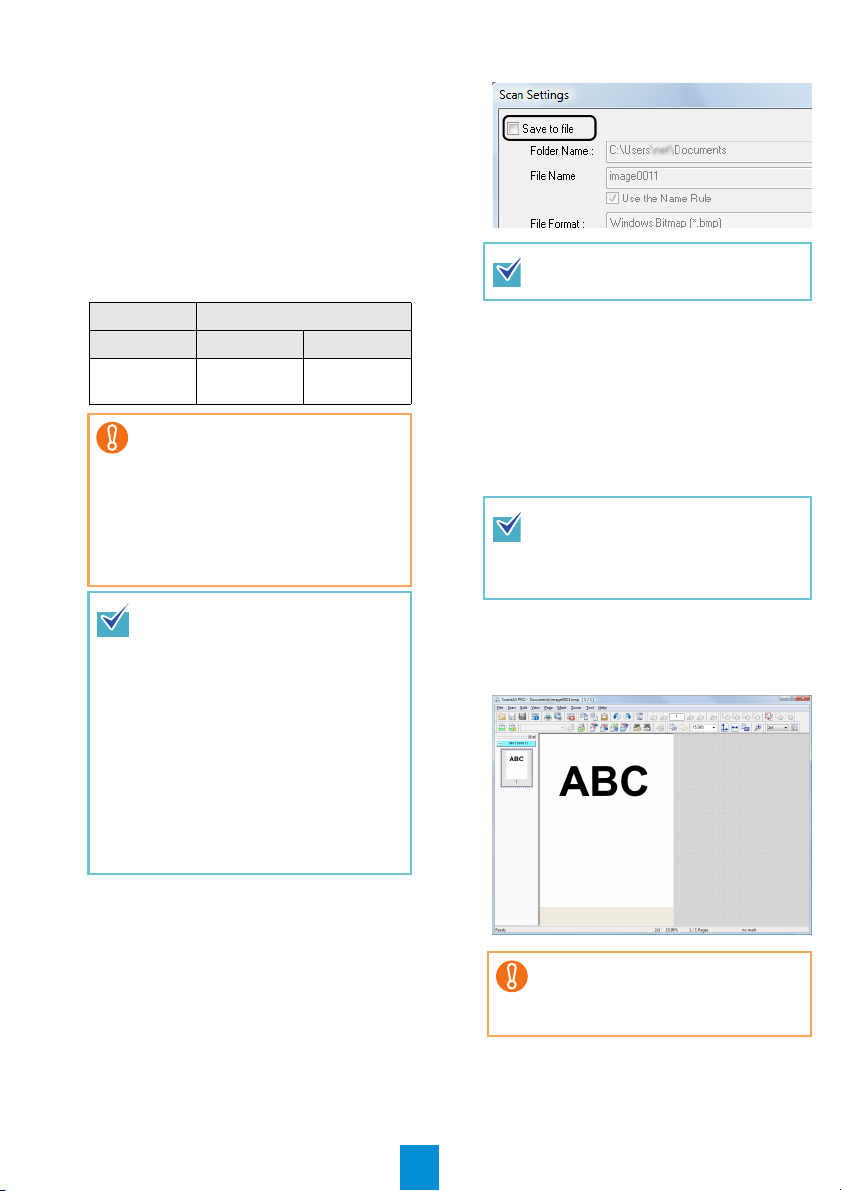

9. Select the [Scan] menu J[Select

Scanner].

DThe [Select Scanner] dialog box appears.

10.

Select the scanner you want to use, and

then click the [Select] button.

Select the scanner model which is connected

to your computer.

The list of scanner models varies depending

on the scanner driver installed. If the connec-

tion is via SCSI/USB Connector 2, select

[Kofax VRS Scanner].

11.

Click the [Scan] menu J[Scan Settings].

DThe [Scan Settings] dialog box appears.

12.

Clear the [Save to file] check box.

13.

Click the [Scanner Setting] button.

DThe scanner driver's setup dialog box

appears.

14.

Configure scanner settings such as the

resolution and paper size.

zTWAIN/ISIS/Kofax VRS scanner drivers

Configure scan settings, and then click the

[OK] button.

15.

In the [Scan Settings] dialog box, click the

[Scan] button.

DThe scanned document images are

displayed in the ScandAll PRO window.

For information about other scanning features,

refer to "Chapter 5 Various Ways to Scan" in the

Operator's Guide.

TWAIN ISIS/VRS

TWAIN ISIS Kofax VRS

FUJITSU

fi-6800dj

Fujitsu

fi-6800

Kofax VRS

Scanner

If [Kofax VRS Scanner] does not

appear in the list, check if the inter-

face cable is properly connected to

SCSI/USB Connector 2.

If [Kofax VRS Scanner] does not

appear even after you have

connected the cable properly, refer to

"Chapter 8 Troubleshooting" in the

Operator's Guide.

When using Kofax VRS for the first

time, the [Register Kofax VRS]

screen appears. User registration is

required to obtain support informa-

tion from Kofax as well as to upgrade

the software, though Kofax VRS can

still be used without user registration.

To register later, select [Start] menu

J[All Programs] J[Kofax VRS] J

[Kofax VRS Administration Console],

and follow the on-screen instructions.

For details, refer to the Kofax VRS

Installation Guide (PDF) which is

included in the Setup DVD-ROM

(\VRS\HVRS\HVRS\Documentation).

You only check the operation now, so

you do not have to save to file.

For a TWAIN scanner driver, the

scanner driver setup dialog box may

be displayed again after the [OK]

button is clicked. If this occurs, click

the [Scan] button in the dialog box.

Refer to "Chapter 8 Troubleshooting"

in the Operator's Guide, if you see

any unexpected characters on the

LCD.

Contact for Inquiries

Refer to the contact list on the last page of the

"Safety Precautions" document.

Autres manuels pour fi-6800

Table des matières

Autres manuels Fujitsu Scanner

Fujitsu

Fujitsu M3093GX Manuel d'utilisation et d'entretien

Fujitsu

Fujitsu S500M - ScanSnap - Document Scanner Manuel utilisateur

Fujitsu

Fujitsu ScanSnap iX1500 Guide de configuration

Fujitsu

Fujitsu ScanSnap FI-4110EOX2 Manuel utilisateur

Fujitsu

Fujitsu M3093DE Guide de configuration

Fujitsu

Fujitsu 6240 - fi - Document Scanner Manuel

Fujitsu

Fujitsu Libra S6 Manuel utilisateur

Fujitsu

Fujitsu ScanSnap S1300 Manuel utilisateur

Fujitsu

Fujitsu fi-7300NX Guide de configuration

Fujitsu

Fujitsu ScanSnap S500 Manuel utilisateur

Fujitsu

Fujitsu S1500 - ScanSnap Deluxe Bundle Mode d'emploi

Fujitsu

Fujitsu ScanPartner 3091DC Manuel utilisateur

Fujitsu

Fujitsu ScanPartner 3091DC Manuel utilisateur

Fujitsu

Fujitsu ScanSnap iX500 Manuel utilisateur

Fujitsu

Fujitsu M3091DC Manuel utilisateur

Fujitsu

Fujitsu FI-800R Manuel d'utilisation et d'entretien

Fujitsu

Fujitsu ScanSnap iX1600 Manuel utilisateur

Fujitsu

Fujitsu M3097DE Guide de configuration

Fujitsu

Fujitsu M3093DE Manuel

Fujitsu

Fujitsu fi-4860C Manuel utilisateur

Fujitsu

Fujitsu ScanSnap Organizer Manuel utilisateur

Fujitsu

Fujitsu ScanSnap iX500 Instructions d'installation

Fujitsu

Fujitsu M4099D Manuel

Fujitsu

Fujitsu ScanSnap S1100 Manuel utilisateur

Manuels Scanner populaires d'autres marques

Plustek

Plustek Scanner Manuel utilisateur

Z/I Imaging

Z/I Imaging PhotoScan 2001 Manuel utilisateur

Renkforce

Renkforce DS100-5M Manuel utilisateur

Image Access

Image Access WideTEK A2 Manuel utilisateur

Canon

Canon imageFORMULA CR-120N Manuel utilisateur

GeoSlam

GeoSlam ZEB Horizon Instructions d'installation

Kodak

Kodak i5800 Scanner Manuel utilisateur

Kodak

Kodak i7300 Manuel utilisateur

Revopoint

Revopoint POP Manuel utilisateur

Eddyfi Technologies

Eddyfi Technologies Floormap X Manuel utilisateur

Faselase

Faselase F6 Manuel utilisateur

Uniden

Uniden BC340CRS Manuel utilisateur

Infinite Peripherals

Infinite Peripherals INFINEA TAB M Manuel utilisateur

Mustek

Mustek PageExpress 4800 Pro Manuel utilisateur

Optex

Optex 750830 Manuel utilisateur

Innova

Innova 5210 Manuel utilisateur

Visioneer

Visioneer CardReader 100 Guide de démarrage rapide

Rohde & Schwarz

Rohde & Schwarz TSME6 Manuel utilisateur

Fujitsu fi-6800 Manuel utilisateur

Manuels Scanner populaires d'autres marques
