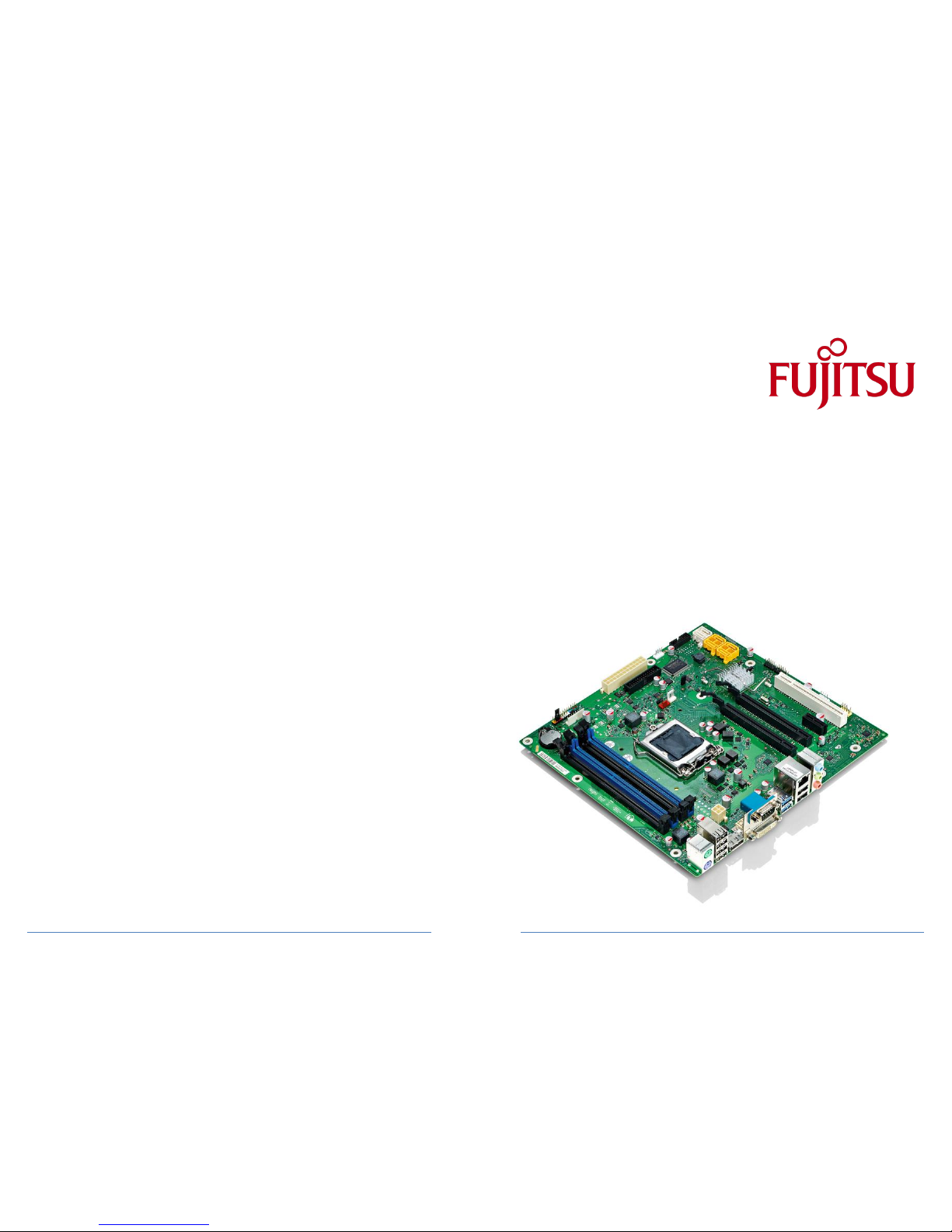

Fujitsu D3162-B Manuel utilisateur

TechNotes V1.0

Extended Lifecycle Mainboard

D3162-B

Page

TechNotes D3162-B V1.0 Page 2 of 45 www.ts.fujitsu.com/mainboards

Content

1Safety Instructions 4

2Feature Overview D3162-B 5

2.1 Basic Layout 8

2.2 Block Diagram 9

2.3 External Connectors D3162-B 10

2.4 Onboard components D3162-B 11

2.5 I/O-Shield 12

3Interfaces & Connectors 14

3.1 Frontpanel Connector 14

3.2 Internal Parallel Port Connector 15

3.3 Internal USB2.0 Connector (2 x 2 Ports) 15

3.4 Internal USB3.0 Connector (1 x 2 Ports) 16

3.5 External USB3.0 Connector 16

3.6 Fan Connector 17

3.7 Power Supply Fan Connector 17

3.8 High Definition Frontpanel Audio Connector (HD Audio) 18

3.9 AC97 Frontpanel Audio Connector (Legacy Audio) 18

3.10 Power Supply Connector 19

3.11 Additional Power Supply Connector 19

3.12 Chassis Intrusion 20

4System Monitoring 21

4.1 D3162-B: Temperature Sensors and Fan Connectors 22

4.2 D3162-B: SystemGuard 23

4.3 D3162-B: SystemGuard - Details 24

4.4 SilentFanConfigManager –Customize System Monitoring Settings 25

4.5 Components for continous 24/7 operation @ +45°C 26

4.6 Capacitor Endurance Time Comparison 27

4.7 Temperature Reference Points D3162-B 28

Page

TechNotes D3162-B V1.0 Page 3 of 45 www.ts.fujitsu.com/mainboards

5Power Supply 29

5.1 ATX Power Supply 29

6Display Options 30

6.1 VGA Output 30

6.2 DVI Output 31

6.3 HDMI Output 32

6.4 DisplayPort Output 33

6.5 Dual DVI Output 34

6.6 Multi Monitor Output 35

7Operating System Support 36

7.1 Support for Windows XP / Windows 7 37

8Mainboard Tools 38

Common Mainboard Tools 38

8.1 BIOS Boot Logo Tool 38

8.2 EditCMOS 38

8.3 OEMIDENT 38

8.4 SystemGuard 39

9Known Issues & Important Notes 40

9.1 Windows XP Installation in AHCI mode –necessary adjustments 40

9.2 RAID / AHCI driver disk installation (Windows XP) from floppy disk 41

10 Miscellaneous 42

10.1 System Watchdog (WD) 42

10.2 BIOS Update / BIOS Recovery 43

Page

TechNotes D3162-B V1.0 Page 4 of 45 www.ts.fujitsu.com/mainboards

1 Safety Instructions

TechNotesD307x-S V1.1

Safety Instructions

Do not connect or disconnect any cables or modules to or from any onboard connectors (except

for the rear I/O connectors) until the mainboard is completely powered down.

Any damage caused to the mainboard by misuse of the onboard connectors is excludedfrom the

standard warranty. Fujitsu Technology Solutions cannot be held liable for any damage that results

from incorrect use of any onboard connectors.

The system integrator is fully responsible for the usage of appropriate connectors and cables in

order to fulfill the technical requirements (electrical contact, durability, power/current levels,

signal integrity etc.)

Page

TechNotes D3162-B V1.0 Page 5 of 45 www.ts.fujitsu.com/mainboards

2 Feature Overview D3162-B

•Based on latest Intel

Pantherpoint

single-chip technology (iQ77)

•Support for full range of latest LGA1155 processors (gen2 / gen3; up to 95W)

•Intel® Core™ i7 – 2xxx / i7-37xx processor series

•Intel® Core™ i5 – 2xxx / i5-3xxx processor series

•Intel® Core™ i3 – 2xxx / i3-32xx processor series

•Intel® Pentium® –G6xx / G8xx processor series

•Intel® Celeron® –G4xx / G5xx processor series

•iAMT 8.0 / VPro 2012 Manageabilty Support

Note: Available feature set depends on installed processor

•Four memory sockets DDR3/1066/1333/1600 supporting up to 32GB

•Intel Gbit LAN 82579LM onboard

•iAMT support

Page

TechNotes D3162-B V1.0 Page 6 of 45 www.ts.fujitsu.com/mainboards

Feature Overview D3162-B

•Trusted Platform Module TPM V1.2 (Infineon) onboard

•Latest Intel®HD Graphics (integrated in processor)

•Simultaneous use of integrated graphics and PCIe graphics possible

•PCI Express Gen3

•5.1 multichannel audio onboard

•4-Layer PCB

Page

TechNotes D3162-B V1.0 Page 7 of 45 www.ts.fujitsu.com/mainboards

Feature Overview D3162-B

Designed & approved for 24/7 continuous operation

High Efficiency core voltage regulator design (80-85%)

Extended lifecycle up to 3 years

Hardware Watchdog

Easy SW integration via Windows API & Linux Driver

Page

TechNotes D3162-B V1.0 Page 8 of 45 www.ts.fujitsu.com/mainboards

Feature Overview D3162-B

2.1 Basic Layout

Feature Overview D307x-S

2.2 Block Diagram

Feature Overview D3162-B

2.3 External Connectors D3162-B

PS/2 Kbd / Mouse

4 x USB 2.0

DisplayPort

COM; DVI-I

2 x USB 3.0

LAN1; 2 x USB 2.0

Audio
