Fujitsu Siemens Computers B15-1 Manuel utilisateur

A26361-K905-Z100-2-5E19 English

Contents

Introduction........................................................................................................................................1

Notational conventions ..............................................................................................................2

Important notes .................................................................................................................................2

Safety notes ..............................................................................................................................2

Cleaning ....................................................................................................................................3

Transport...................................................................................................................................3

Power cable...............................................................................................................................4

Energy Star Guidelines..............................................................................................................4

CE marking................................................................................................................................4

FCC Class B Compliance Statement.........................................................................................4

Disposal and recycling...............................................................................................................5

Checking the contents of the consignment ........................................................................................6

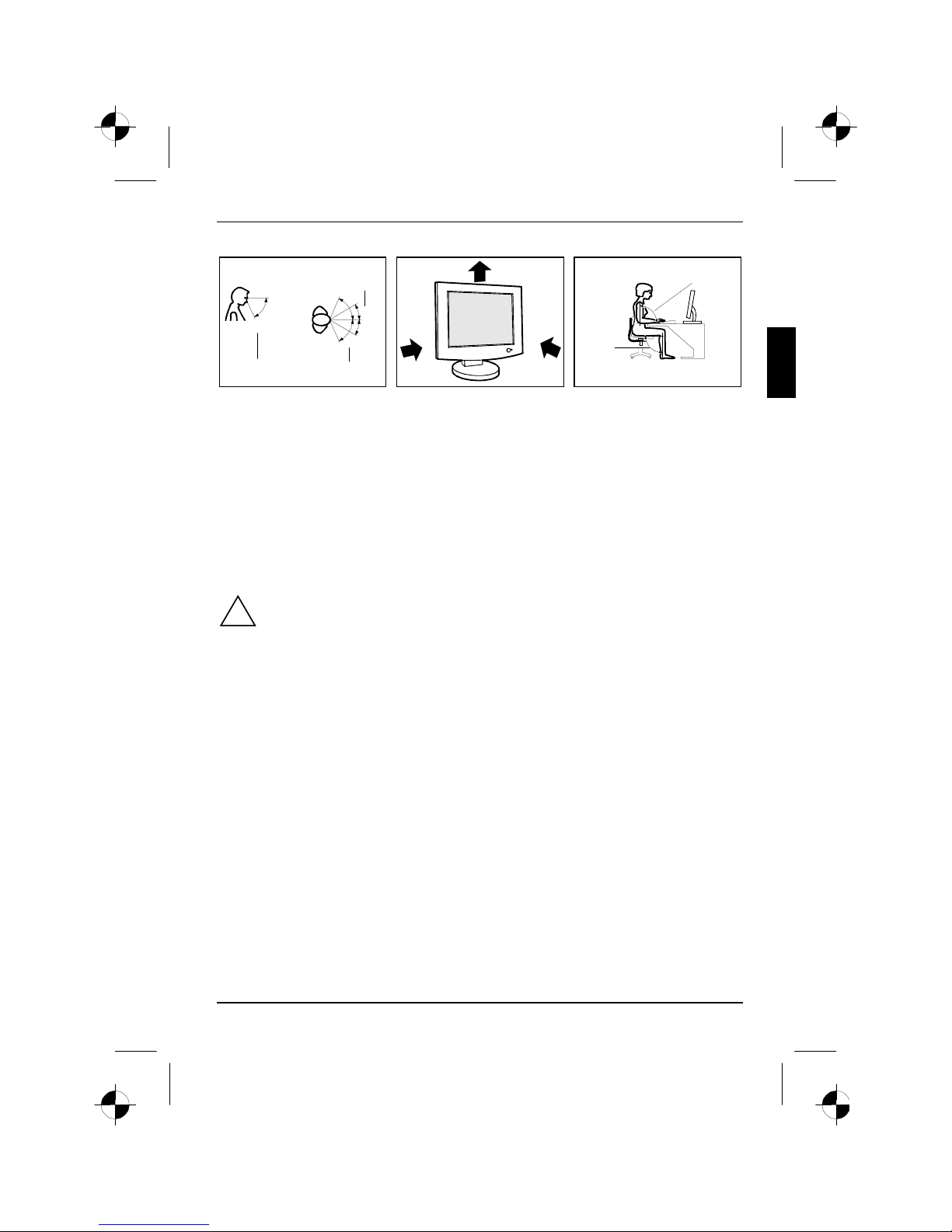

Installing an ergonomic video workstation .........................................................................................6

Connecting the monitor......................................................................................................................7

Connecting cables to the monitor ..............................................................................................8

Connecting cables to the computer............................................................................................9

Operation of the monitor....................................................................................................................9

Adjusting rake and rotation ........................................................................................................9

Switching the monitor on/off ....................................................................................................10

Notes on power management..................................................................................................10

Changing the monitor settings .................................................................................................11

Notes on ergonomic colour adjustment............................................................................................16

Removing the monitor base.............................................................................................................17

Technical data.................................................................................................................................18

VESA-DDC-compatible VGA interface.....................................................................................19

Preset operating modes...........................................................................................................19

Pin assignment D-SUB............................................................................................................20

Trouble shooting..............................................................................................................................20

A26361-K905-Z100-2-5E19 English - 1

Introduction

Your new LCD (Liquid Crystal Display) monitor B15-1 offers numerous features and functions, for

example:

•TFT display (Thin Film Transistor; active matrix)

•minimal space requirements thanks to slim casing

•optimum ergonomic characteristics (totally distortion-free, excellent picture definition and colour

purity right into the corners)

•high degree of brightness and good contrast

•high resolution (1024 x 768) for displaying the information content of a conventional 17-inch

screen with CRT (Cathode Ray Tube)

•presentation of up to 16.7 million colours (in conjunction with an appropriate graphics card)

•automatic scanning of horizontal frequencies from 30 to 61 kHz and refresh rates (vertical

frequencies) from 56 to 76 Hz (absolutely flicker-free)

•digital screen controller with microprocessor for storing 22 different display modes (7 display

modes are preset at the factory)

•freely adjustable colour alignment for matching the screen colours to the colours of various

input and output devices

•convenient operation via integrated OSD (On-Screen-display) menu

•VESA-DDC compatibility

•VESA-FPMPMI compatibility (Flat Panel Monitor Physical Mounting Interface) - mechanical

interface to swivel arm and wall bracket)

•plug&play capability

•power management for reducing power consumption when the computer is not in use

•compliance with the recommendations in accordance with TCO’03

In normal screen mode (dark characters against a light background) the monitor satisfies the

ergonomic requirements for the GS symbol.

This operating manual contains important information you require to start up and run your LCD

monitor.

A screen controller with VGA interface is required to control the B15-1 LCD monitor. The monitor

processes the data supplied to it by the screen controller. The screen controller/the associated

driver software is responsible for setting the modes (resolution and refresh rate).

When putting the monitor into operation for the first time, the screen display should be optimally

adapted to the screen controller used and adjusted in accordance with your needs (see the

"Changing the monitor settings" section in the"Operation of the monitor" chapter).

Target group

You don't need to be an "expert" to perform the operations described here. Do, however, read the

"Important notes" chapter in the operating manual of the computer and in this operating manual.

In the event of any problems occurring, please contact your sales outlet or our help desk.

Additional information

Details of how you set the resolution and refresh rate are provided in the documentation on your

screen controller/the associated driver software.

Colour monitor B15-1

2 - English A26361-K905-Z100-2-5E19

Notational conventions

The meanings of the symbols and fonts used in this manual are as follows:

!Pay particular attention to text marked with this symbol. Failure to observe this warning

endangers your life, destroys the device, or may lead to loss of data.

Supplementary information, remarks, and tips follow this symbol.

ÊText which follows this symbol describes activities that must be performed in the order shown.

"Quotation marks" indicate names of chapters or terms.

Texts in italics indicate filenames and menu items.

Important notes

!In this chapter you will find information regarding safety which is essential to take note of

with your monitor.

Safety notes

This device complies with the relevant safety regulations for data processing equipment, including

electronic office machines for use in an office environment. If you have any questions, contact your

sales outlet or our help desk.

•The display surface of the LCD monitor is sensitive to pressure and scratches. You should

therefore be careful with the display surface so as to avoid lasting damage (Newton rings,

scratches).

•If the device is brought into the installation site from a cold environment, condensation can

form. Before operating the device, wait until it is absolutely dry and has reached approximately

the same temperature as the installation site.

•During installation and before operating the device, please observe the instructions on

environmental conditions in the "Technical data" chapter as well as the instructions in the

"Installing an ergonomic video workstation" chapter.

•To ensure sufficient ventilation, the intake and exhaust air openings of the monitor must never

be blocked.

•The device automatically sets itself to the correct voltage within the range from 100 V to 240 V.

Ensure that the local mains voltage lies within these limits.

•Ensure that the power socket on the device or the grounded mains outlet is freely accessible.

•The ON/OFF switch does not disconnect the device from the mains voltage. To completely

disconnect the mains voltage, remove the power plug from the socket.

•Lay all cables so that nobody can stand on them or trip over them. When attaching the device,

observe the relevant notes in the "Connecting the monitor" chapter.

Colour monitor B15-1

A26361-K905-Z100-2-5E19 English - 3

•If you use a different data cable from the one supplied, ensure that it is adequately shielded.

CE conformance and optimum picture quality are guaranteed only if you use the data cable

supplied.

•No data transfer cables should be connected or disconnected during a thunderstorm.

•Make sure that no objects (e.g. jewellery chains, paper clips, etc.) or liquids get inside the

device (danger of electric shock, short circuit).

•In emergencies (e.g. damaged casing, elements or cables, penetration of liquids or foreign

matter), switch off the unit, disconnect the power plug and contact your sales outlet or our help

desk.

•The screen background lighting contains mercury. You must observe the applicable handling

and disposal safety regulations for fluorescent tubes.

•Only qualified technicians should repair the device. Unauthorised opening and incorrect repair

may greatly endanger the user (electric shock, fire risk).

•You may set only those resolutions and refresh rates specified in the "Technical data" chapter.

Otherwise you may damage your monitor. If you are in any doubt, contact your sales outlet or

our help desk.

•Keep this operating manual together with your device. If you pass on the device to third parties,

you should include this manual.

Cleaning

•Always pull out the power plug before you clean the monitor.

•Do not clean any interior parts yourself, leave this job to a service technician.

•Do not use any cleaning agents that contain abrasives or may corrode plastic.

•Ensure that no liquid will run into the system.

•Ensure that the ventilation areas of the monitor are free.

•The display surface of the LCD monitor is sensitive to pressure and scratches. Clean it only

using a soft, slightly moistened cloth.

Wipe the monitor casing with a dry cloth. If the monitor is particularly dirty, use a cloth which has

been moistened in mild domestic detergent and then carefully wrung out.

Transport

•Transport the monitor with care and only in its original packaging or another corresponding

packaging fit to protect it against knocks and jolts.

•Never drop the LCD monitor (danger of glass breakage).

Colour monitor B15-1

4 - English A26361-K905-Z100-2-5E19

Power cable

To guarantee safe operation, use the cable supplied. Use the following guidelines if it is necessary

to replace the original cable set.

•The female/male receptacles of the cord set must meet CEE-22 requirements.

•The cable has to be HAR-certified or VDE-certified. The mark HAR or VDE will appear on the

outer sheath or on the insulation of one of the inner conductors.

•For devices which are mounted on a desk or table, type SVT or SJT cable sets may be used.

For devices which sit on the floor, only SJT type cable sets may be used.

•The cable set must be selected according to the rated current for your device.

Energy Star Guidelines

The Fujitsu Siemens LCD colour monitor B15-1 is designed to conserve

electricity by dropping to less than 1 W when it goes into standby,

suspend and OFF mode. With this new power management the B15-1

qualifies for the U.S. Environmental Protection Agency's (EPA) Energy

Star Computers award.

The EPA estimates that computer equipment uses 5 % percent of all business electricity and that

this is growing rapidly. If all desktop computers and peripherals enter a low-power mode when not in

use, the overall savings in electricity could amount to $ 2 thousand million annually. These savings

could also prevent the emission of 20 million tons of carbon dioxide into the atmosphere - the

equivalent of 5 million automobiles.

As an Energy Star Partner, Fujitsu Siemens Computers GmbH has determined that this product

meets the Energy Star guidelines for energy efficiency.

CE marking

The shipped version of this device complies with the requirements of the EEC

directives 89/336/EEC "Electromagnetic compatibility" and 73/23/EEC "Low voltage

directive".

FCC Class B Compliance Statement

The following statement applies to the products covered in this manual, unless otherwise specified

herein. The statement for other products will appear in the accompanying documentation.

NOTE:

This equipment has been tested and found to comply with the limits for a "Class B" digital device,

pursuant to Part 15 of the FCC rules and meets all requirements of the Canadian Interference-

Causing Equipment Regulations. These limits are designed to provide reasonable protection against

harmful interference in a residential installation. This equipment generates, uses and can radiate

radio frequency energy and, if not installed and used in strict accordance with the instructions, may

cause harmful interference to radio communications. However, there is no guarantee that

interference will not occur in a particular installation.

Colour monitor B15-1

A26361-K905-Z100-2-5E19 English - 5

If this equipment does cause harmful interference to radio or television reception, which can be

determined by turning the equipment off and on, the user is encouraged to try to correct the

interference by one or more of the following measures:

•Reorient or relocate the receiving antenna.

•Increase the separation between equipment and the receiver.

•Connect the equipment into an outlet on a circuit different from that to which the receiver is

connected.

•Consult the dealer or an experienced radio/TV technician for help.

Fujitsu Siemens Computers GmbH is not responsible for any radio or television interference caused

by unauthorised modifications of this equipment or the substitution or attachment of connecting

cables and equipment other than those specified by Fujitsu Siemens Computers GmbH. The

correction of interference caused by such unauthorised modification, substitution or attachment will

be the responsibility of the user.

The use of shielded I/O cables is required when connecting this equipment to any and all optional

peripheral or host devices. Failure to do so may violate FCC rules.

Disposal and recycling

This device has been manufactured to the highest possible degree from materials which can be

recycled or disposed of in a manner that is not environmentally damaging. The device may be taken

back after use to be recycled, provided that it is returned in a condition that is the result of normal

use. Any components not reclaimed will be disposed of in an environmentally acceptable manner.

If you have any questions on disposal, please contact your local office, our help desk, or:

Germany Belgium Switzerland

Fujitsu Siemens Computers

GmbH

Remarketing und Recycling

D-33106 Paderborn

Tel.: +49 5251 / 81 80 10

Fax: +49 5251 / 81 80 15

http://www.fujitsu-siemens.de/wvm

RECUPEL

Boulevard Reyers, 80

B-1030 Brussels

Tel.: +32 2 / 706 86 16

Fax: +32 2 / 706 86 13

E-Mail: inf[email protected]

http://www.recupel.be

SWICO

Schweizerischer

Wirtschaftsverband der

Informations-,

Kommunikations- und

Organisationstechnik

A list of the SWICO

Acceptance places can be

found at:

http://www.swico.ch

USA USA

Environmental Affairs

Electronic Industries Alliance

Jason Linnell, Manager

2500 Wilson Blvd

Arlington, VA 22201

Tel.: 703-907-7573

Fax: 703-907-7501

E-Mail: jlinne[email protected]

North East Recycling Council

Lynn Rubinstein

suite 401

139 Mainstreet

Brattleboro VT 05301

(T 802-254-3636)

(F 802-254-5870)

E-Mail: Ly[email protected]

Colour monitor B15-1

6 - English A26361-K905-Z100-2-5E19

Checking the contents of the consignment

ÊUnpack all the individual parts.

ÊCheck the delivery for damage incurred during transportation.

ÊCheck whether the delivery agrees with the details in the delivery note.

The complete LCD monitor package includes:

−one monitor

−one data cable (D-SUB)

−one audio cable

−one power cable

−one floppy disk for the monitor picture calibration

−one Warranty Booklet

−this operating manual

Should you discover that the delivery does not correspond to the delivery note, notify your local

sales outlet immediately.

It is recommended not to throw away the original packaging material. Keep it for future

transportation.

Installing an ergonomic video workstation

Before you set up your equipment, you should select a suitable position for working at the monitor.

Please observe the following advice when installing a video workstation.

600 mm 600 mm

1 = Window

Avoid direct and reflected glare.

Avoid glare from electric

lighting. 1 = Edge of desk

2 = Permissible reaching

sector

Position the keyboard where it

is easiest to reach.

Colour monitor B15-1

A26361-K905-Z100-2-5E19 English - 7

30°

65°

0°

60°

1 = Preferable viewing sector

2 = Permissible viewing sector

Position the monitor for

optimum viewing. The viewing

distance to the monitor should

be approximately 50 cm.

Keep ventilated areas clear. 1 = approx. 90°and more

2 = approx. 90°

Remember to maintain correct

posture.

Depending on the situation, the use of a swivel arm or wall bracket (VESA FPMPMI), are available

from specialised dealers, may be advisable. For this purpose the monitor base must be removed

beforehand as described in "Removing the monitor base" chapter.

Connecting the monitor

!Observe the "Safety notes" in the "Important notes" chapter in this operating manual.

CE conformance and optimum picture quality are guaranteed only if you use the data

cable supplied.

Do not cover the ventilation openings of the monitor.

The computer power plug must be pulled out!

ÊBe sure that the monitor and the computer are switched off.

Colour monitor B15-1

8 - English A26361-K905-Z100-2-5E19

Connecting cables to the monitor

The monitor ports are protected by a cover.

1 = Cover

2 = Power connector

3 = D-SUB connector (ANALOG)

4 = AUDIO-IN connector

5 = Headphones port

ÊRemove the cover (1).

The data cable supplied has two 15-pin D-SUB connectors for connection to the monitor and to the

system unit.

ÊConnect one of the connectors of the data cable to the D-SUB connector on the monitor (3)

and secure the plug-in connection by tightening the safety screws.

ÊInsert one plug of the audio line in the AUDIO IN (5) socket on the monitor and make sure it is

properly engaged.

ÊPlug the power cable supplied into the power connector (2) of the monitor.

Table des matières

Autres manuels Fujitsu Siemens Computers Moniteur

Fujitsu Siemens Computers

Fujitsu Siemens Computers SCENICVIEW B17-3 Manuel utilisateur

Fujitsu Siemens Computers

Fujitsu Siemens Computers L19W-9 Manuel utilisateur

Fujitsu Siemens Computers

Fujitsu Siemens Computers FSC B15-1A Manuel utilisateur

Fujitsu Siemens Computers

Fujitsu Siemens Computers SCENICVIEW A17-2 Manuel utilisateur

Fujitsu Siemens Computers

Fujitsu Siemens Computers D22W-1 Manuel utilisateur

Fujitsu Siemens Computers

Fujitsu Siemens Computers x178 Manuel utilisateur

Fujitsu Siemens Computers

Fujitsu Siemens Computers MCM 171E Manuel utilisateur

Fujitsu Siemens Computers

Fujitsu Siemens Computers B19-2 Manuel utilisateur

Fujitsu Siemens Computers

Fujitsu Siemens Computers SCENICVIEW P20W-3 Manuel utilisateur

Fujitsu Siemens Computers

Fujitsu Siemens Computers SCENICVIEW B15-1A Manuel utilisateur

Fujitsu Siemens Computers

Fujitsu Siemens Computers L17-8 Manuel utilisateur

Fujitsu Siemens Computers

Fujitsu Siemens Computers 21P4 Manuel utilisateur

Fujitsu Siemens Computers

Fujitsu Siemens Computers SCENICVIEW A17-2A Manuel utilisateur

Fujitsu Siemens Computers

Fujitsu Siemens Computers Fujitsu Siemens SCENICVIEW P17-2 Manuel utilisateur

Fujitsu Siemens Computers

Fujitsu Siemens Computers SCENICVIEW A17-3A Manuel utilisateur

Fujitsu Siemens Computers

Fujitsu Siemens Computers AMILO SL 3260W Manuel utilisateur

Fujitsu Siemens Computers

Fujitsu Siemens Computers 172E Manuel utilisateur

Fujitsu Siemens Computers

Fujitsu Siemens Computers SCALEOVIEW L19-1W Manuel utilisateur

Fujitsu Siemens Computers

Fujitsu Siemens Computers Fujitsu Siemens SCENICVIEW P17-2 Manuel utilisateur

Fujitsu Siemens Computers

Fujitsu Siemens Computers SCENICVIEW P17-1A Manuel utilisateur

Fujitsu Siemens Computers

Fujitsu Siemens Computers 22" LCD Monitor Manuel utilisateur

Fujitsu Siemens Computers

Fujitsu Siemens Computers SCENICVIEW A20W-3 Manuel utilisateur

Fujitsu Siemens Computers

Fujitsu Siemens Computers SCALEOVIEW H22-1W Manuel utilisateur

Fujitsu Siemens Computers

Fujitsu Siemens Computers SCENICVIEW B17-5 Manuel utilisateur

Manuels Moniteur populaires d'autres marques

Linear Acoustic

Linear Acoustic LQ-1000 Manuel utilisateur

AOC

AOC I2579V Manuel utilisateur

Gateway

Gateway FPD1520 Manuel utilisateur

Furuno

Furuno Mu 120c Manuel utilisateur

Asus

Asus VB171D - 17" LCD Monitor Manuel utilisateur

Dell

Dell S2230MX Instructions d'utilisation

Philips

Philips 107C64 Manuel utilisateur

Dell

Dell S2409WFP Manuel utilisateur

EverFocus

EverFocus EN-7517E Manuel utilisateur

Panasonic

Panasonic TH152UX1 - 152" PLASMA TV Manuel utilisateur

Dell

Dell Precision 7680 Mode d’emploi

LG 50PM1M - - 50" Plasma Panel Manuel utilisateur

Bosch

Bosch DDU 9 Manuel utilisateur

Acer

Acer A231HL Manuel utilisateur

Philips

Philips 86BDL4152T Manuel utilisateur

NEC

NEC AccuSync LCD5V Manuel utilisateur

Emay

Emay SleepO2 Manuel utilisateur

IBM

IBM 6360 Instructions d'installation
