FSR Flex-IO16 Guide d'installation
Flex-IO Builder
Installation and Operating Guide
Based on firmware revision 1.22
244 Bergen Blvd. Woodland Park NJ 07424 973-785-4347
43088 LIT1547B
2
PROPRIETARY INFORMATION
All information in this manual is proprietary to and the property of FSR Inc. This publication is
protected by the Federal Copyright Law, with all rights reserved. No part of this document may
be reproduced, transcribed, or transmitted, in any form or by any means, without prior explicit
written permission from FSR Inc.
Specifications may be changed without any notice in order to improve
the function of the product.
3
LIMITED WARRANTY
The FLEX-IO16 module is warranted against failures due to defective parts or faulty
workmanship for a period of three years after delivery to the original owner. During this period,
FSR will make any necessary repairs or replace the unit without charge for parts or labor.
Shipping charges to the factory or repair station must be prepaid by the owner, return-shipping
charges (via UPS Ground) will be paid by FSR.
This warranty applies only to the original owner and is not transferable. In addition, it does not
apply to repairs done by other than the FSR factory or Authorized Repair Stations.
This warranty shall be cancelable by FSR at its sole discretion if the unit has been subjected to
physical abuse or has been modified in any way without written authorization from FSR. FSR’s
liability under this warranty is limited to repair or replacement of the defective unit.
FSR will not be responsible for incidental or consequential damages resulting from the use or
misuse of its products. Some states do not allow the exclusion of incidental or consequential
damages, so the above limitations may not apply to you. This warranty gives you specific legal
rights, and you may also have other rights which vary from state to state.
Warranty claims should be accompanied by a copy of the original purchase invoice showing the
purchase date (if a Warranty Registration Card was mailed in at the time of purchase, this is not
necessary). Before returning any equipment for repair, please read the important information on
service below.
SERVICE
Before returning any equipment for repair, please be sure that it is adequately packed and
cushioned against damage in shipment, and that it is insured. We suggest that you save the
original packaging and use it to ship the product for servicing.Also, please enclose a note giving
your name, address, phone number and a description of the problem.
NOTE: all equipment being returned for repair must have a Return authorization (RMA) Number.
To get a RMA Number, please call the FSR Service Department (1-800-332-FSR1). Please
display your RMA Number prominently on the front of all packages.
CONTACT INFORMATION
FSR INC.
244 Bergen Blvd.
Woodland Park, NJ 07424
Phone: (973) 785-4347
Order Desk Fax: (973) 785-4207
Web Site: www.fsrinc.com
4
SURGE PROTECTION DEVICE RECOMMENDED
This product contains sensitive electrical components that may be damaged by
electrical spikes, surges, electric shock, lightning strikes, etc. Use of surge protection
systems is highly recommended in order to protect and extend the life of your
equipment.
SAFETY
All the safety and user manual should be read before the appliance is operated.
The safety and operating instructions should be retained for future reference.
Unplug this product from the wall outlet before cleaning. Do not use liquid
cleaners or aerosol cleaners. Use a damp cloth for cleaning.
Do not use this equipment near wet place.
This product should be operated only from the type of power sources indicated
on the marking label. If you are not sure of the type of power supplied to your
home, consult your local power company.
This equipment may be equipped with a 3 wire grounding-type plug, a plug
having a third (grounding) pin. This pin will only fit in to a grounding type power
outlet. This is a safety feature. If you are unable to insert the plug in to the outlet,
contact your electrician to replace your obsolete outlet. Do not defeat the safety
purpose of the grounding-type plug.
Openings on the case are provided for ventilation and to ensure reliable
operation of the equipment and to protect it from overheating. The openings
should never be blocked.
Do not use any damaged power cords or plugs, or loosed outlets, this may cause
electrical shock or fire.
Do not put heavy articles such as other equipment on this product. Keep it away
from liquid, magnetic and flammable substances.
5
CONTENTS
PROPRIETARY INFORMATION..................................................................................................2
LIMITED WARRANTY..................................................................................................................3
SAFETY........................................................................................................................................4
DESCRIPTION .............................................................................................................................6
FEATURES...................................................................................................................................7
APPLICATIONS............................................................................................................................7
INSTALLATION CHECKLIST.......................................................................................................8
SERIAL CONNECTION DETAILS ..........................................................................................10
ETHERNET CONNECTION DETAILS....................................................................................10
USAGE AND TROUBLE SHOOTING.........................................................................................11
PING TEST FOR ETHERNET ................................................................................................13
EXAMPLE OF SUCCESSFUL CONNECTION VIA TCP/IP....................................................15
FIRMWARE VERSION AND BOOTCODE VERSION STRINGS ...........................................16
FIRMWARE UPGRADE PROCEDURE..................................................................................17
FLEX-IO BUILDER .....................................................................................................................22
NEW PROJECT......................................................................................................................22
ENTERING CHANNEL COMMANDS .....................................................................................25
SAVE PROJECT.....................................................................................................................27
OPEN AN EXISTING PROJECT.............................................................................................28
DOWNLOADING PROJECT TO FLEX-IO..............................................................................30
UPLOADING PROJECT FROM FLEX-IO...............................................................................35
FLEX-IO ACTION COMMANDS.................................................................................................36
GPI..........................................................................................................................................36
GPO ........................................................................................................................................37
WAIT .......................................................................................................................................37
SER COMMAND.....................................................................................................................38
IP INLINE ACTION..................................................................................................................38
IP COMMAND.........................................................................................................................38
DIMENSIONS.............................................................................................................................39
SPECIFICATIONS......................................................................................................................41
6
DESCRIPTION
The Flex-IO16 is a fully programmable control system component that provides an interface
between virtually any equipment having an RS-232 or Ethernet port and an external control
panel with up to 16 switches and lamps. This extremely versatile unit can be used to expand the
IO capabilities of the FSR Flex-LT control products or any 3rd party control system. It can also
be used to add IP connectivity to equipment that only has an RS- 232 port.
Configuration of the Flex-IO16 is accomplished through the use of the Flex-IO Builder GUI. The
Flex-IO builder can create, edit, debug, upload and download projects, and can also be used to
verify wiring and control in installed systems. The Flex-IO builder connects to the Flex-IO16 via
the second dedicated RS-232 “Program” port, or Ethernet.
Each of the 16 switch inputs can be configured to execute command strings up to 250
characters in length upon the press, hold, or release of the switch, or they can alternate
between two different strings when set to alternate action mode. The 16 lamp outputs can be
independently configured to turn on, off, blink or toggle state in response any of the switch input
events, or they can be remotely commanded via serial or IP. The short circuit
protection and automatic reset feature of the lamp outputs makes the Flex-IO16 very robust and
prevents damage due to typical field wiring errors. High output drive capability allows direct
control of external 12 volt relays.
The unit can be powered locally with an external IT-PS1 12 volt supply, or remotely via POE
from a POE network switch or midspan injector.
More complex control requirements can be satisfied by combining the Flex-IO16 with any of the
Flex-LT control products using virtual switch commands to the Flex-LT.
The FLEX-IO16 I/O Expansion Unit can be used with the FSR HuddleVU HV-T6 and HV-T3
Table Box models to convert button presses into serial or IP commands. This allows control of
various devices within a FLEX Controlled environment, while also providing LED feedback.
When used in conjunction with FSR’s line of T3-MJ Table Mic Boxes, you can easily connect up
to 16 boxes and have LED feedback when the mute circuits are activated on a 3rd Party DSP
Controller.
7
FEATURES
• 16 switch inputs
• Accommodates momentary or maintained N.O.
or N.C. switches
• 16 Lamp/Relay drive outputs with short circuit
protection/auto-reset feature
• Power locally or via POE Ethernet
• Configure via Serial or IP
• Full featured GUI supports system configuration & debug
• Independent serial ports for Program and Control
• Indicators for serial/IP activity, power and status
• Fully programmable
APPLICATIONS
• Add IP capability to legacy RS-232 equipment
• General purpose interface between hardwired
control panels and AV equipment
• I/O expansion for Flex-LT controllers
• Expansion unit for HuddleVU collaboration system
• Contact closure to RS-232 interface
• Contact closure to IP interface
8
INSTALLATION CHECKLIST
The following steps are a loose outline to install the software and connect the Flex-IO hardware:
1) Install Flex-IO Builder software.
This is the GUI program for the Flex-IO 16.
2) Install Flex Control Builder software.
This is required if you want to have access to the Control Libraries for Serial and IP
Devices within the Flex-IO Builder.
3) Connect Flex-IO 16 via Program Port to PC
It is recommended that you initially communicate with the Flex-IO through a Serial Cable
to its “Program Port”. It is easier to initially connect and configure the device via Serial
(rather than IP).

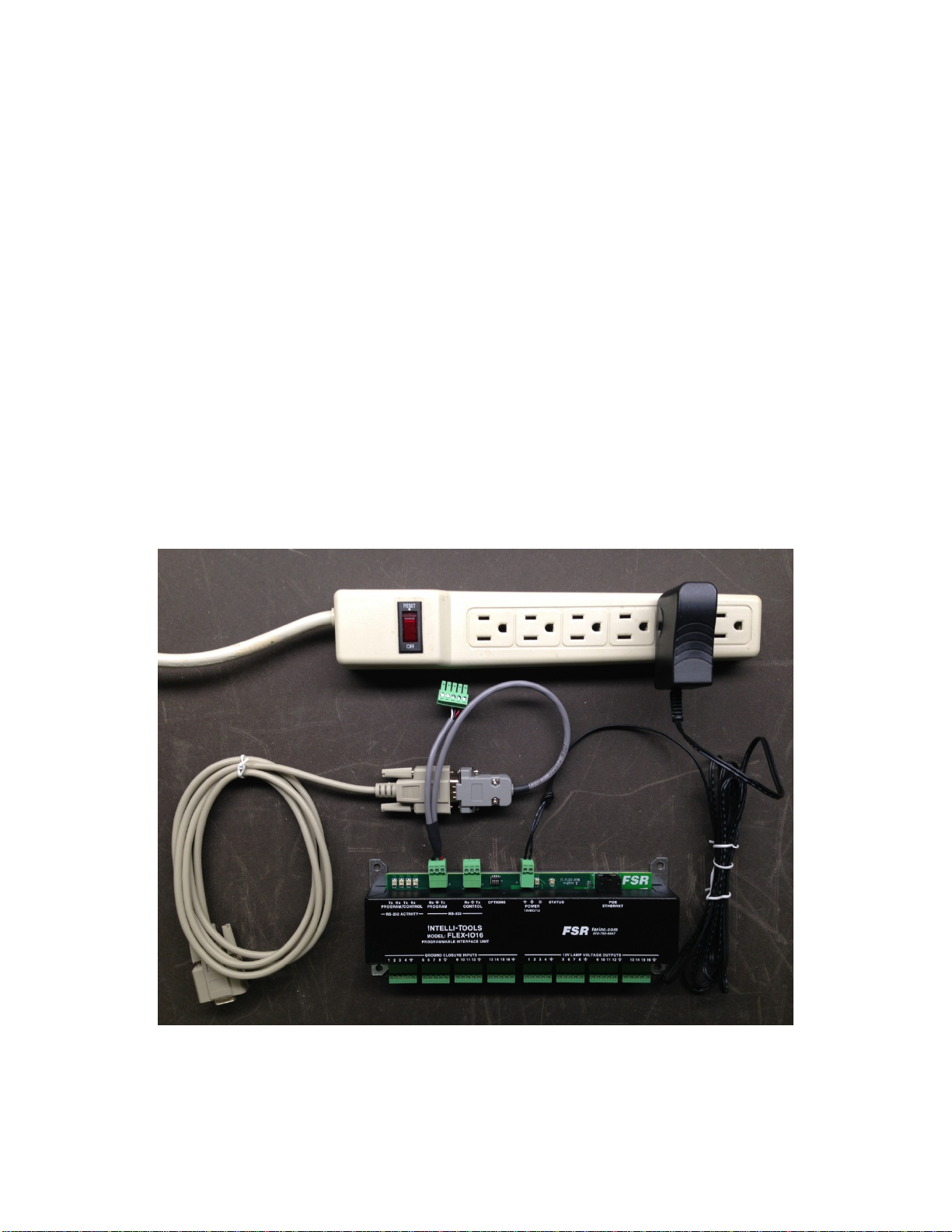

Figure 1 – Example of connecting the Flex-IO 16 to the serial cable and serial cable adapter
of the “FLEX-PRGM FLEX PROGRAM KIT”. (Power adapter is also shown.)
9
If you are trying to connect the Flex-IO via IP first, you will need enough understanding
and system privileges on the PC to change the PC’s “Local Area Connection” settings to
allow the PC to communicate with Flex-IO’s factory default IP settings (shown below):
IP address: 192.168.5.80
Subnet mask: 255.255.255.0
Gateway: 192.168.5.48
4) Verify the Firmware version and possible Upgrade of Firmware
5) Program, Download, and Test the various Actions required for the various Flex-IO
Channels.
Sample commands are shown below:
GPI 1 LOW
GPO 1 ON
WAIT 1000
SER ‘passed serial string <0D>’
IP 200.30.4.5:345 "ACTION = VPRESS DESKTOP 1 BUTTON 1<0D>"
IP 200.30.4.5:345 "<01 57 7F 03 4D 55 54 30 08 20 09 21 0A 20 10 21 1F 2C 02>"
10
SERIAL CONNECTION DETAILS
The Flex-IO Builder program has the serial control settings programmed in to communicate via
the “Program Port”.
If you would like to use your choice of terminal software (e.g. HyperTerminal, PuTTY, etc.) to
communicate with the Flex-IO hardware directly through the “Program Port”, these are the
serial settings:
Baud rate: 115200
Data bits: 8
Parity: None
Stop bits: 1
Handshake: None
The serial settings for the “Control Port” are potentially changed on each “Download Project”
based on the settings for the “Control Port” in the Project.
If no Project has been downloaded, the default serial settings of the “Control Port” are:
Baud rate: 115200
Data bits: 8
Parity: None
Stop bits: 1
Handshake: None
ETHERNET CONNECTION DETAILS
The Flex-IO Builder program has the Ethernet (or IP) control settings programmed in to
communicate via the “Ethernet Port” provided the IO 16’s IP Address is configured.
If you would like to use another program (such as TELNET) to communicate with the Flex-IO
over Ethernet, use Port 16001 (not 23).
When connecting to the IO16 via IP, the IO16 will terminate the session after 5 seconds of
inactivity. Inactivity is defined as no data of any kind, typically ASCII characters when typing at
a telnet terminal. (Each operation performed by the Flex-IO Builder program on the “Connect”
dialog opens a connection, sends commands, and closes the connection within 5 seconds.)
Table des matières
Autres manuels FSR Matériel informatique
Manuels Matériel informatique populaires d'autres marques
EMC2
EMC2 VNX Series Manuel du propriétaire
Panasonic
Panasonic DV0PM20105 Manuel utilisateur
Mitsubishi Electric
Mitsubishi Electric Q81BD-J61BT11 Manuel utilisateur
Gigabyte
Gigabyte B660M DS3H AX DDR4 Manuel utilisateur
Raidon
Raidon iT2300 Manuel utilisateur
National Instruments
National Instruments PXI-8186 Manuel utilisateur
