Frigidaire GLHS69EF Manuel utilisateur

N58L00001.eps N58FFDEEA2.eps N58RFCBBC7.eps N58BAAAAB5.eps

N58SLDJBE11.eps N58TCAAAB4.eps N58CAAAAA6.eps N58XEAAAA0.eps

N58YDAAAC0.eps N58I115T.eps W241689601.eps S241689601.eps

Product No. GLHS69EFPB0 GLHS69EFPW0

Series R134a Gallery R134a Gallery

Color black (smooth) white (smooth)

Volts 115 115

Wiring Diagram 241689701 241689701

Owner's Guide 241695100 241695100

Market North America North America

Energy Guide 241649237 241649237

Service Data Sheet 241636602 241636602

Electrolux Major Appliances

North & Latin America

P.O. BOX 212378

AUGUSTA, GA 30917

Publication No.

5995459657

06/01/26

(EN/SERVICE/DCS)

137

SIDE-BY-SIDE

REFRIGERATOR

Model No.

GLHS69EF

Publication No: 5995459657 GLHS69EF

01/06 2

FREEZER DOOR

22C

22A

21A

13A

N58FFDEEA2

79 80

GLHS69EF Publication No: 5995459657

# Functional Parts 3 01/06

* Non-Illustrated Parts

FREEZER DOOR

Model Index: AGLHS69EFP (GLHS69EFPB0)

BGLHS69EFP (GLHS69EFPW0)

POS. NO PART NO. DESCRIPTION

1 # 241674806 A - Gasket-frzr door, black, magnetic

1 # 241674802 - B Gasket-frzr door, white, magnetic

4B 240334202 A B Bin-door, frzr-upper

4C 240351702 A B Bin-door, frzr-dispenser

5 241545005 A B Bin-tilt out, tilt-out

11 241668168 A - Door-frzr, black, complete assy

11 241668120 - B Door-frzr, white, complete assy

13A 240581906 A - Door Stop, black, frzr

13A 240581902 - B Door Stop, white, frzr

18 240536810 A - Handle-door, black

18 240536809 - B Handle-door, white

21A 240598401 A B Screw, 10-32 x 1/2

22A 240328204 A - Bearing-hinge(frz), black, closer

22A 240328202 - B Bearing-hinge(frz), closer

22C 240328404 A - Bearing-hinge, black, upper

22C 240328402 - B Bearing-hinge, natural, upper

68 241525101 A B Chute-ice

79 218755402 A B Screw-set, 10-32 x 0.375

80 218755503 A B Screw-shoulder, #10 AB, handle mounting

* 240352102 A B Connector-water, straight

* 240552102 A B Harness-wiring, door

* 5303918256 A B Dispenser heater kit

Publication No: 5995459657 GLHS69EF

01/06 4

REFRIGERATOR DOOR

GLHS69EF Publication No: 5995459657

# Functional Parts 5 01/06

* Non-Illustrated Parts

REFRIGERATOR DOOR

Model Index: AGLHS69EFP (GLHS69EFPB0)

BGLHS69EFP (GLHS69EFPW0)

POS. NO PART NO. DESCRIPTION

2 # 241674805 A - Gasket-refr door, black, magnetic

2 # 241674801 - B Gasket-refr door, white, magnetic

4 240323002 A B Bin-door, pseudo, bottom

7 240326203 A B Door-dairy

12 240449710 A - Nameplate

12 240449708 - B Nameplate

13 240581905 A - Door Stop, black, ref

13 240581901 - B Door Stop, white, refr

15 240451969 A - Door-refr, black, complete assy

15 240451968 - B Door-refr, white, complete assy

18 240536810 A - Handle-door, black

18 240536809 - B Handle-door, white

21A 240598401 A B Screw, 10-32 x 1/2

22 240328203 A - Bearing-hinge, black, closer

22 240328201 - B Bearing-hinge(ref), closer

22B 240328404 A - Bearing-hinge, black, upper

22B 240328402 - B Bearing-hinge, natural, upper

27A 240396102 A B Retainer, tall bottle

49 240430311 A B Bin-door, gallon

79 218755402 A B Screw-set, 10-32 x 0.375

80 218755503 A B Screw-shoulder, #10 AB, handle mounting

Publication No: 5995459657 GLHS69EF

01/06 6

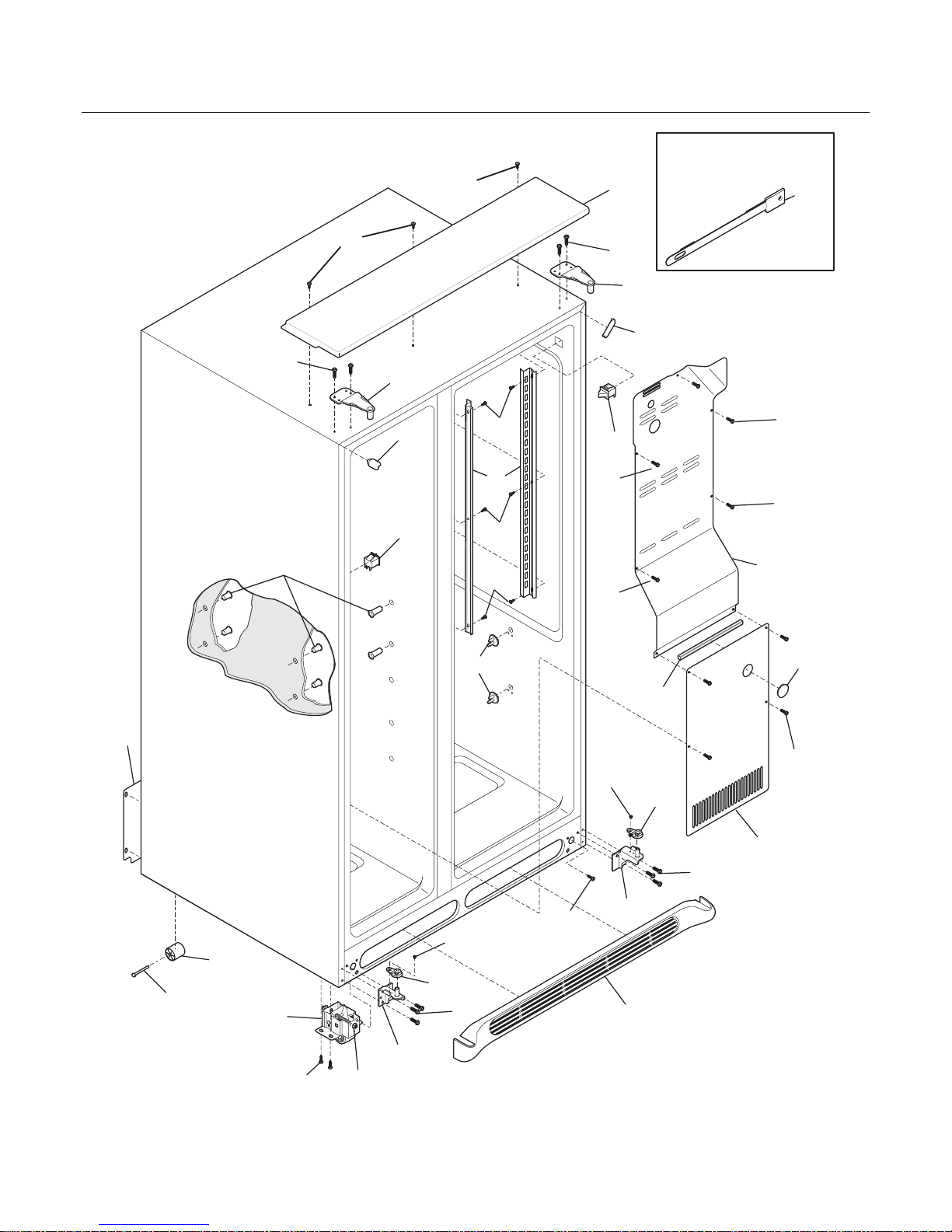

CABINET

14A

100

21C

30A

10A

N58BAAAAB5

GLHS69EF Publication No: 5995459657

# Functional Parts 7 01/06

* Non-Illustrated Parts

CABINET

Model Index: AGLHS69EFP (GLHS69EFPB0)

BGLHS69EFP (GLHS69EFPW0)

POS. NO PART NO. DESCRIPTION

10 240435908 A B Cover-air duct

10A 240475907 A B Cover-evap coil, lower

11 5303208309 A B Plug-hole, factory test

14 240505801 A B Switch, light/lamp

14A 241547901 A B Switch-light/lamp, frzr door

21C 218252200 A B Screw, #8 truss hd, 10-32CA x 0.500

22 240457702 A - Plate-door closer

22 240457701 - B Plate-door closer

23 240402701 A B Screw-#10-32 x 1/4 flat hd

28 240335501 A B Bolt-roller adj, hex washer head, 1/4-20 x 4.020, (2), special

30 241603701 A B Bracket-lower hinge, ref

30A 241603702 A B Bracket-lower hinge

37 240337603 A - Trim-cabinet corner, black, (2)

37 240337601 - B Trim-cabinet corner, white, (2)

38 240327201 A B Bracket-upper hinge

40 241555103 A - Cover-hinge, black

40 241555101 - B Cover-hinge

41 241550801 A B Grommet-shelf mtg, 1.40" long

41* 241550701 A B Grommet-shelf mtg, .96" long

42 240578901 A B Screw-hinge mtg, hex head, 1/4-20 x 5/8

43 240335003 A B Roller Assy, adjustable, front, (2)

45 241500301 A B Screw, hex washer head, 8-18AB x 0.500

47 240349402 A B Channel-shelf mtg, side, (2)

58 241595401 A B Screw-#10-32 X 3/4

66 5304424968 A B Damper Cover Assy

66* 240518802 A B Pin-push, push-in, plastic

72 240324406 A - Grille/Kickplate, black

72 240324402 - B Grille/Kickplate, white

81 5308016566 A B Screw, hex washer head, 8-15A x 0.625, low profile

82 5304418225 A B Roller, compressor base, rear, (2)

83 5303316859 A B Rivet, flat head, 1/4 OD x 1-3/4, roller pin

89 241574602 A B Cover access

90 218249808 A B Seal-coil cover

92 216850900 A B Screw, hex washer hd, 1/4 x 7/8, hinge mtg

100 240423701 A B Support, crisper cover, front, (4)

100* 240350802 A B Support, crisper cover, rear, (4)

* 240396801 A B Clamp, tube/wiring, nylon, black/natural

* 240479601 A B Plug, button, cab liner holes, (2)

* 5303321321 A - Paint, touch-up, black

* 5303321319 - B Paint, touch-up, white

Publication No: 5995459657 GLHS69EF

01/06 8

SHELVES

120

122

121

11A

141

142

140A

126

52A

109

51A

49B

49A

52B

51B

101

N58SLDJBE11

100

25A

47A

15A

16A

26A

27A

42A

123

24A

140

11C

24B

136

GLHS69EF Publication No: 5995459657

# Functional Parts 9 01/06

* Non-Illustrated Parts

SHELVES

Model Index: AGLHS69EFP (GLHS69EFPB0)

BGLHS69EFP (GLHS69EFPW0)

POS. NO PART NO. DESCRIPTION

2 241510604 A B Trim-basket

11 240350668 A B Shelf-freezer, glass, lower

11A 240350667 A B Shelf-freezer, glass, upper

11C 240324101 A B Shelf-pizza

15 241552801 A B Light Bulb

15A 241555401 A B Light Bulb

16 240590401 A B Socket-light

16* 241537504 A B Harness-wiring

16A# 241513901 A B Socket-light

24 240355203 A B Shelf-"Spill-Safe", fixed

24A 240350106 A B Shelf-"Spill-Safe", cantilever, sliding

24B 240424602 A B Shelf-"Spill-Safe", sliding, "Aspect", complete

25 240350702 A B Cover-crisper pan, upper

25* 240362101 A B Clip-slide, cover-crisper

25A 240350902 A B Cover-crisper pan, lower

26 240351021 A B Pan-crisper, upper

26* 240349801 A B Clip-slide, pan-crisper

26* 240423101 A B Channel-divider

26* 240423201 A B Retainer

26* 240423301 A B Divider-crisper pan

26* 241595202 A B Clip-slide, pan-crisper

26A 241638201 A B Control-humidity

26A* 241638101 A B Frame-humidity control

27 240351218 A B Pan-crisper, lower

27A 240362201 A B Control-humidity

39 240367602 A B Trim-shelf, front

42 240356501 A B Track, meat pan hanger, RH

42A 240349701 A B Hanger-meat pan, LH

42A* 240349901 A B Block-meat pan rail, LH

42A* 240350001 A B Spring-meat pan rail

47 240350602 A B Insert-pan cover, glass

47A 240350603 A B Insert-pan cover, glass

49 240564401 A B Basket-sliding

49A 240530502 A B Basket-sliding, upper, half

49B 240530504 A B Basket-sliding, upper, full

51 240343002 A B Hanger-basket, RH

51A 240395502 A B Hanger-basket, RH

51B 240579801 A B Hanger-basket, RH

52 240343102 A B Hanger-basket, LH

52A 240395602 A B Hanger-basket, LH

52B 240579802 A B Hanger-basket, LH

60 218362500 A B Screw, hex washer head, 8-18AB x 1.250, spacer, (2)

62 240342817 A B Pan-meat

81 5308016566 A B Screw, hex washer head, 8-15A x 0.625, low profile

97 240545306 A B Water Tank

100 240326302 A B Cover-water tank

101 218493100 A B Screw, hex washer head, 8-18AB x 1-3/4

109 240351301 A B Base-crisper light socket

120 241559001 A B Shelf-ice cream

Publication No: 5995459657 GLHS69EF

01/06 10

SHELVES

120

122

121

11A

141

142

140A

126

52A

109

51A

49B

49A

52B

51B

101

N58SLDJBE11

100

25A

47A

15A

16A

26A

27A

42A

123

24A

140

11C

24B

136
